RipEX2

Radio modem & Router

fw 1.2.1.0

07/30/2019 version 1.00

Important Notice .................................................................................................................................. 5

Quick guide ......................................................................................................................................... 6

List of documentation .......................................................................................................................... 8

1. Product ............................................................................................................................................ 9

1.1. Dimensions ........................................................................................................................... 9

1.2. Connectors ......................................................................................................................... 12

1.3. Indication LEDs .................................................................................................................. 20

1.4. Ordering codes ................................................................................................................... 22

2. Accessories ................................................................................................................................... 23

2.1. Overview ............................................................................................................................ 30

2.2. Details ................................................................................................................................. 30

3. Step-by-step guide ........................................................................................................................ 31

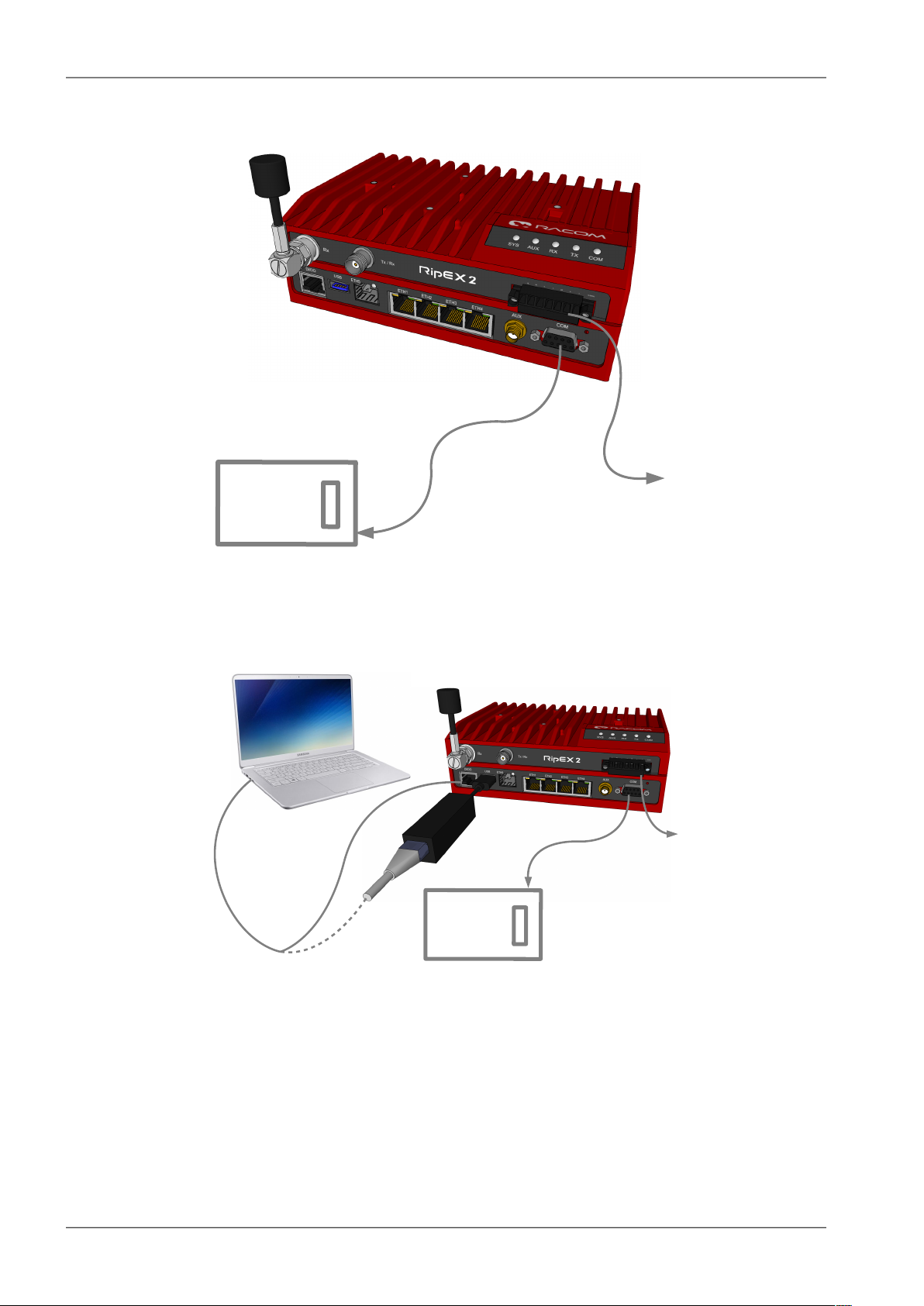

3.1. Connecting the hardware ................................................................................................... 31

3.2. Powering up your RipEX2 .................................................................................................. 32

3.3. Connecting RipEX2 to a programming PC ......................................................................... 33

3.4. Basic setup ......................................................................................................................... 37

3.5. Functional test .................................................................................................................... 37

4. Installation ..................................................................................................................................... 38

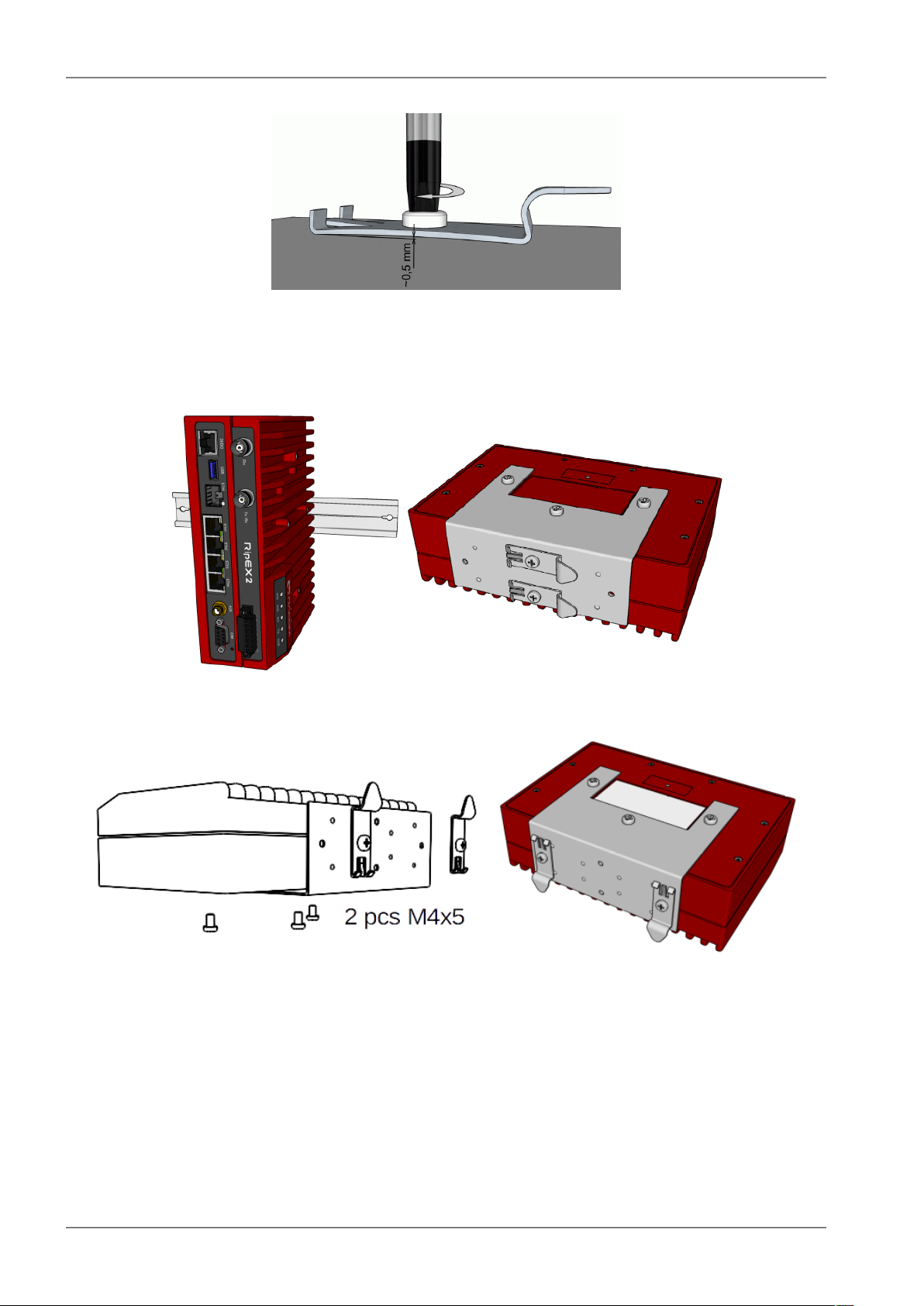

4.1. Mounting ............................................................................................................................. 39

4.2. Antenna installation ............................................................................................................ 42

4.3. Antenna feed line ............................................................................................................... 42

4.4. Grounding ........................................................................................................................... 43

4.5. Connectors ......................................................................................................................... 43

4.6. Power supply ...................................................................................................................... 44

5. Advanced Configuration ................................................................................................................ 45

6. CLI Configuration .......................................................................................................................... 46

6.1. CLI Examples ..................................................................................................................... 46

7. Troubleshooting ............................................................................................................................. 47

8. Technical parameters .................................................................................................................... 48

8.1. Detailed Radio parameters ................................................................................................. 53

9. Safety, environment, licensing ....................................................................................................... 60

9.1. Frequency .......................................................................................................................... 60

9.2. Safety distance ................................................................................................................... 60

9.3. High temperature ................................................................................................................ 62

9.4. RoHS and WEEE compliance ............................................................................................ 62

9.5. Instructions for Safe Operation of Equipment .................................................................... 65

9.6. Important Notifications ........................................................................................................ 65

9.7. EU restrictions or requirements notice ............................................................................... 66

9.8. EU Declaration of Conformity ............................................................................................. 67

9.9. Simplified EU declaration of conformity .............................................................................. 68

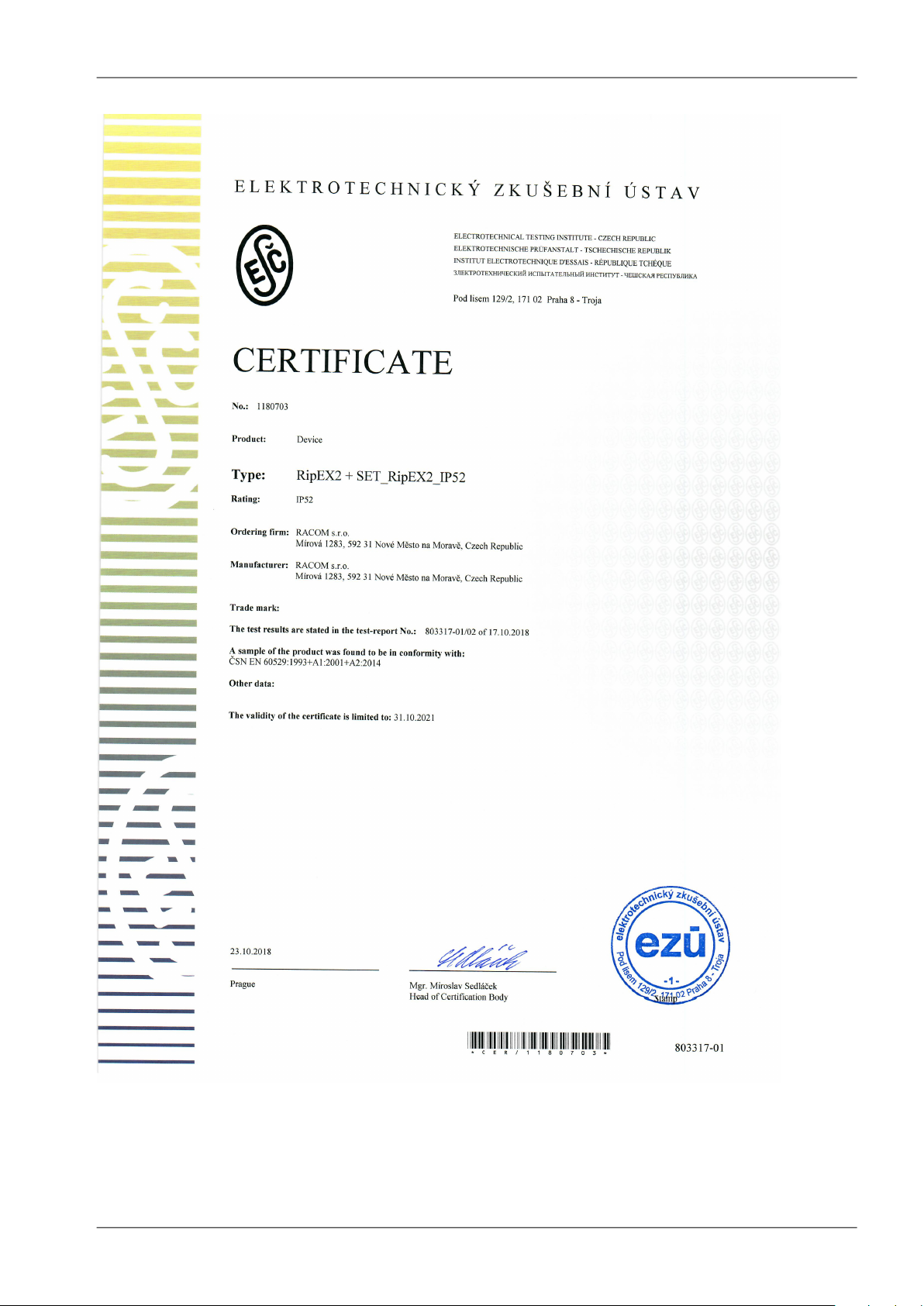

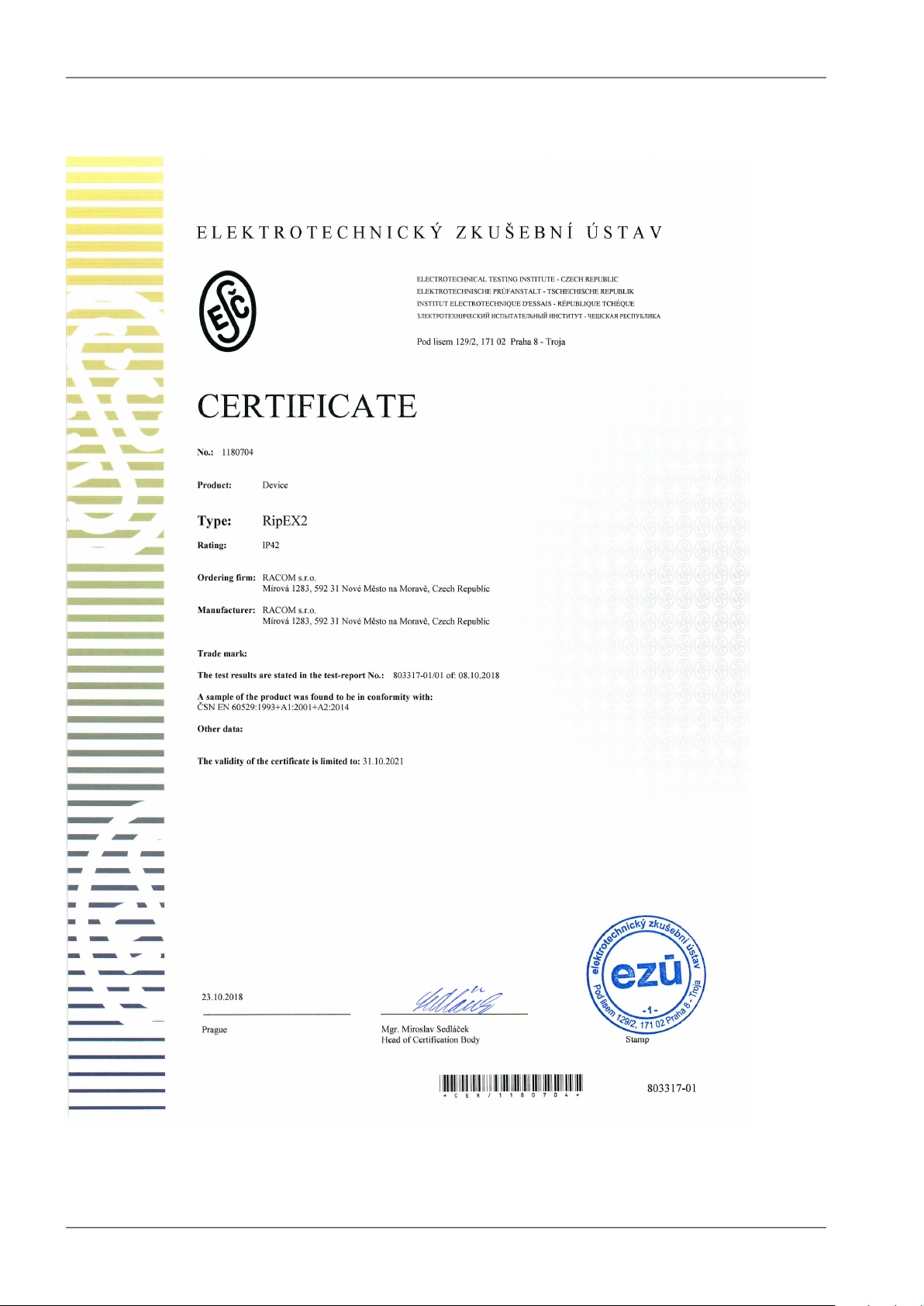

9.10. IP Certificate ..................................................................................................................... 70

9.11. Warranty ........................................................................................................................... 72

9.12. RipEX maintenance .......................................................................................................... 73

A. Abbreviations ................................................................................................................................ 74

Index .................................................................................................................................................. 76

B. Revision History ............................................................................................................................ 77

List of Tables

1.1. Pin assignment ........................................................................................................................... 13

3© RACOM s.r.o. – RipEX2 Radio modem & Router

RipEX2 Radio modem & Router

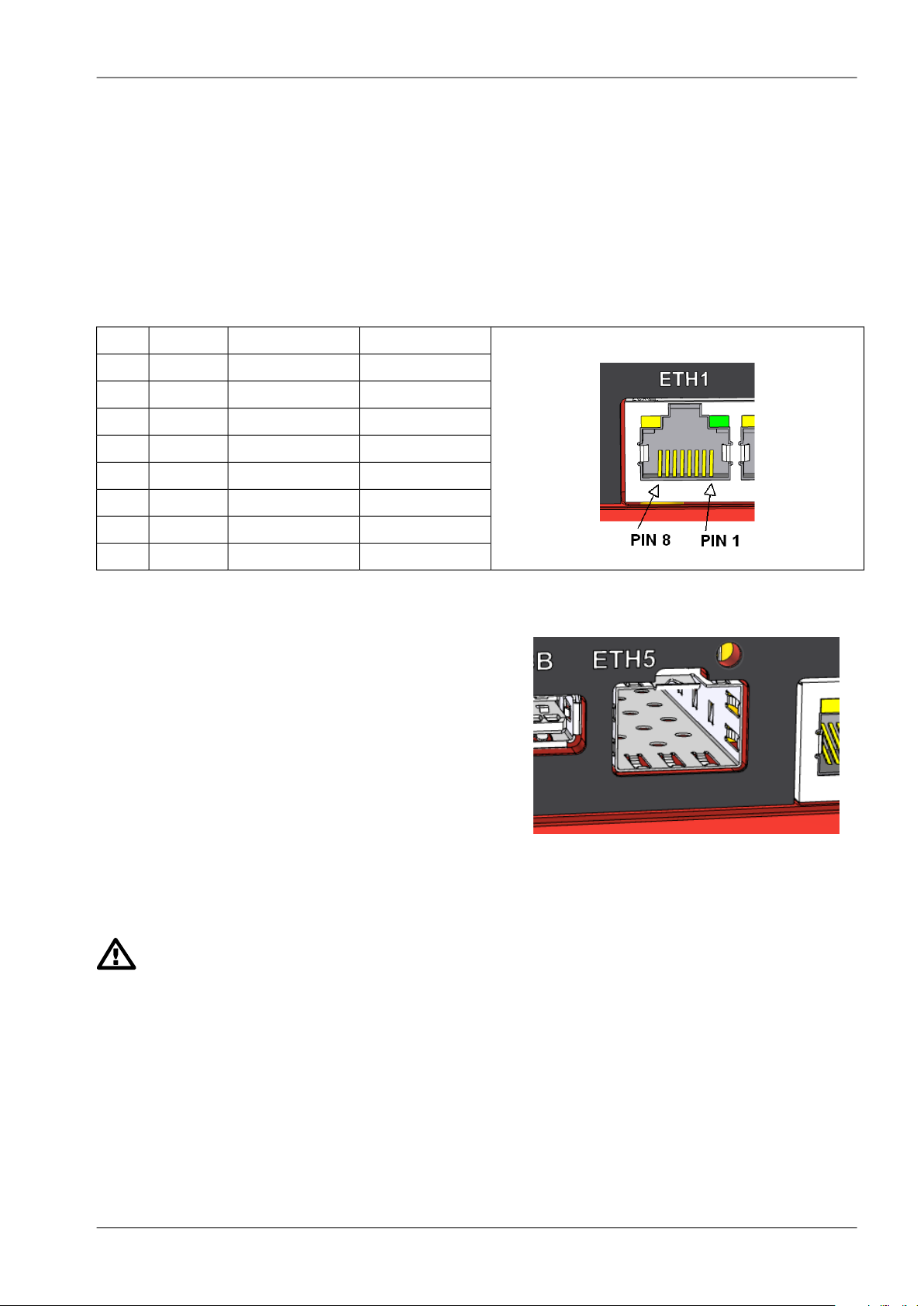

1.2. Ethernet to cable connector connections ................................................................................... 15

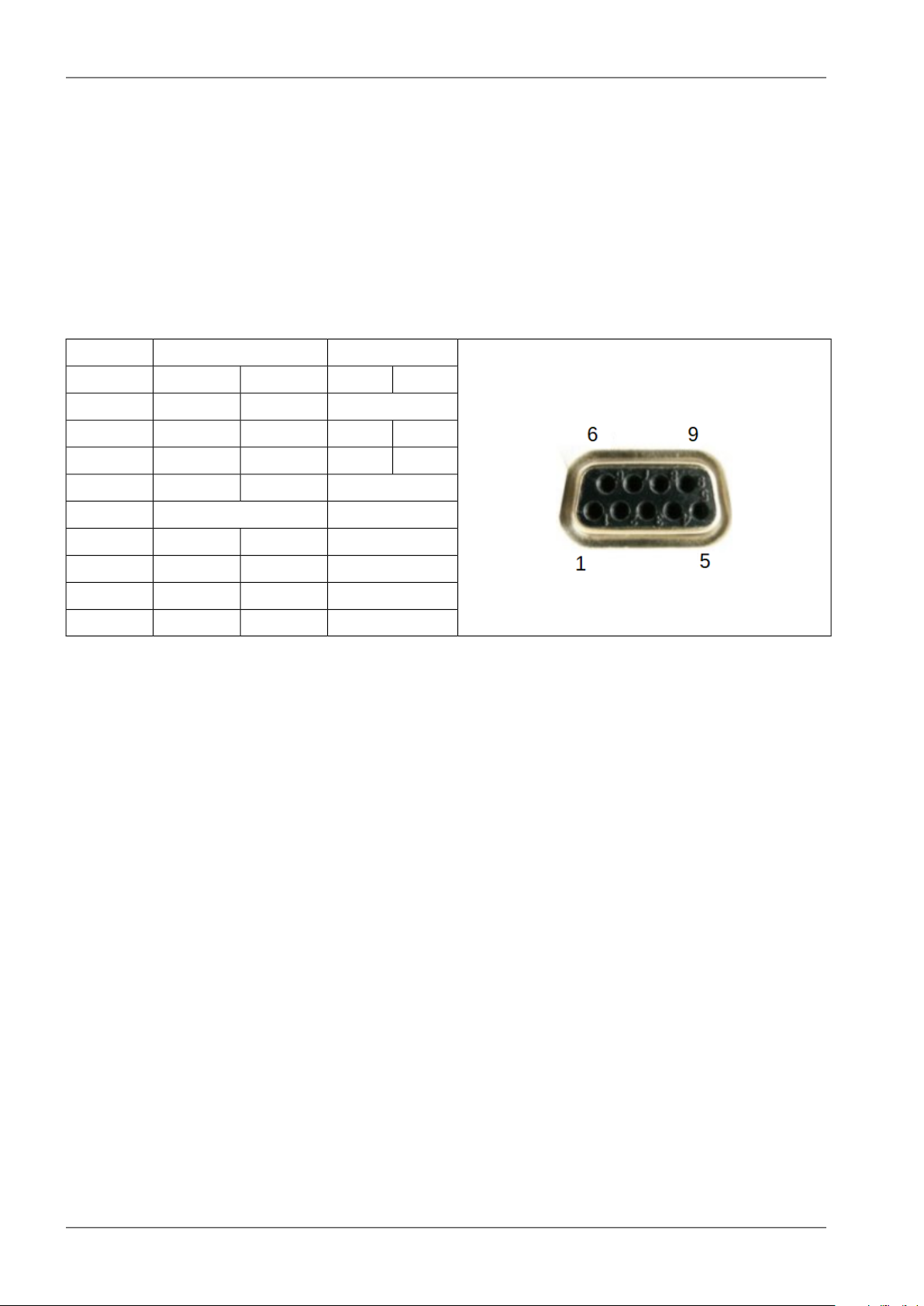

1.3. COM pin description ................................................................................................................... 16

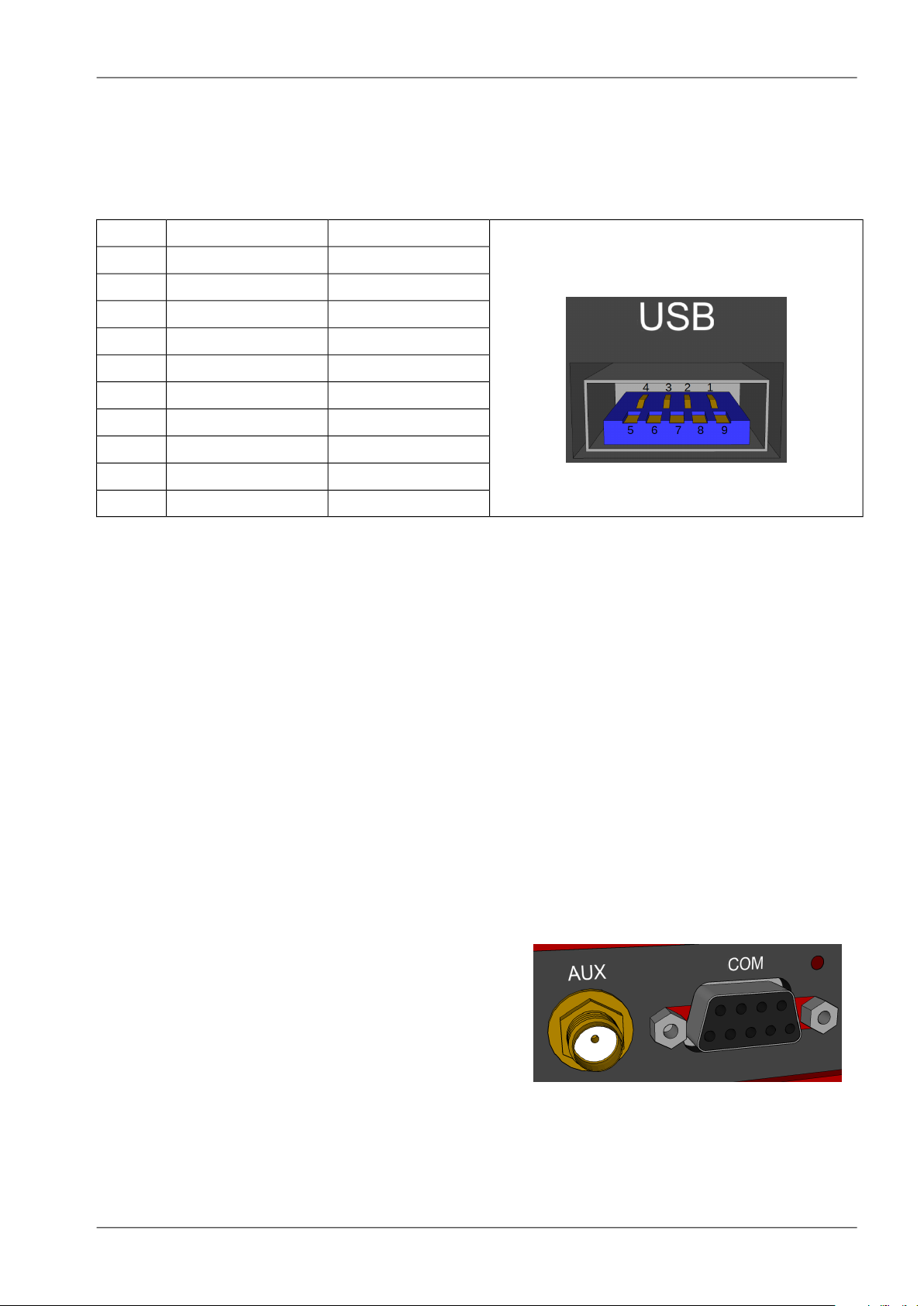

1.4. USB A Pinout Cable Assembly .................................................................................................. 17

1.5. Digital Inputs and Outputs .......................................................................................................... 19

1.6. Key to LEDs ............................................................................................................................... 20

8.1. Technical parameters ................................................................................................................. 48

8.2. List of connected cables ............................................................................................................. 52

8.3. 12.5 kHz ..................................................................................................................................... 53

8.4. 25 kHz ........................................................................................................................................ 54

8.5. 50 kHz ........................................................................................................................................ 55

8.6. 100 kHz ...................................................................................................................................... 56

8.7. 150 kHz ...................................................................................................................................... 56

8.8. 200 kHz ...................................................................................................................................... 57

9.1. Minimum Safety Distance 300–400 MHz ................................................................................... 60

RipEX2 Radio modem & Router – © RACOM s.r.o.4

Important Notice

© 2019 RACOM. All rights reserved. COM’s Products offered may contain software proprietary to RACOM s. r. o. (further referred to under the abbreviated name RACOM). The offer of supply of these products and services does not include or infer any transfer of ownership. No part of the documentation or information supplied may be divulged to any third party without the express written consent of RACOM.

Disclaimer

Although every precaution has been taken in preparing this information, RACOM assumes no liability for errors and omissions, or any damages resulting from the use of this information. This document or the equipment may be modified without notice, in the interests of improving the product.

Trademark

All trademarks and product names are the property of their respective owners.

Important Notice

• Due to the nature of wireless communications, transmission and reception of data can never be

guaranteed. Data may be delayed, corrupted (i.e., have errors), or be totally lost. Significant delays or losses of data are rare when wireless devices such as the RipEX2 are used in an appropriate manner within a well‐constructed network. RipEX2 should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. RACOM accepts no liability for damages of any kind resulting from delays or errors in data transmitted or received using RipEX2, or for the failure of RipEX2 to transmit or receive such data.

• Under no circumstances is RACOM or any other company or person responsible for incidental, acci-

dental or related damage arising as a result of the use of this product. RACOM does not provide the user with any form of guarantee containing assurance of the suitability and applicability for its application.

• RACOM products are not developed, designed or tested for use in applications which may directly

affect health and/or life functions of humans or animals, nor to be a component of similarly important systems, and RACOM does not provide any guarantee when company products are used in such applications.

5© RACOM s.r.o. – RipEX2 Radio modem & Router

Antenna Rx

DI / DO USB

Ethernet SPF

Ethernet RJ45

Default / Reset

AUX

COM RS232/485

Antenna Tx / Rx

Indicator LEDs

Sleep Input HW Alarm Input

- GND + HW Alarm Output Supply +10 to +30 V

- GND

Quick guide

RipEX2 is a widely configurable compact radio modem, more precisely a radio IP router. All you have to do to put it into operation is to connect it to an antenna and a power supply and configure it using a PC (tablet, smart phone) and a web browser.

Fig. 1: RipEX2 radio router

RipEX2 access is without default password: you have to set password for “admin” account.

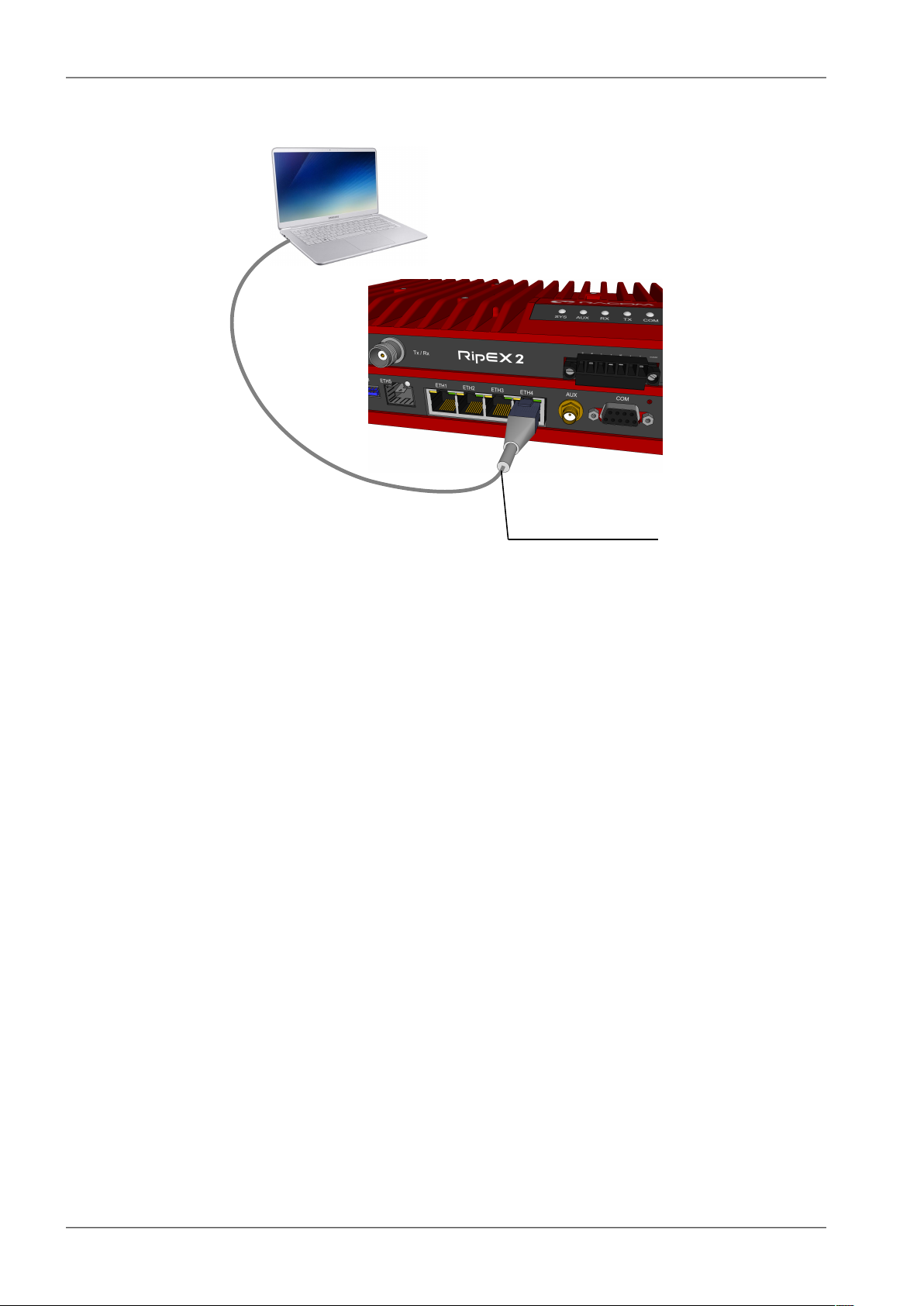

Ethernet

RipEX2 default IP is 192.168.169.169/24, so set a static IP 192.168.169.x/24 on your PC, power on the RipEX2 and wait approximately 48 seconds for the RipEX2 OS to boot. Connect your PC to RipEX2s' ETH interface, start your browser and type https://192.168.169.169 in the address line.

Before attempting to do any configuration, make sure your RipEX2 is the only powered-up unit around. Since all units coming from factory share the same default settings ex-factory, you could be accessing a different unit over the air without being aware of it.

USB/ETH adapter

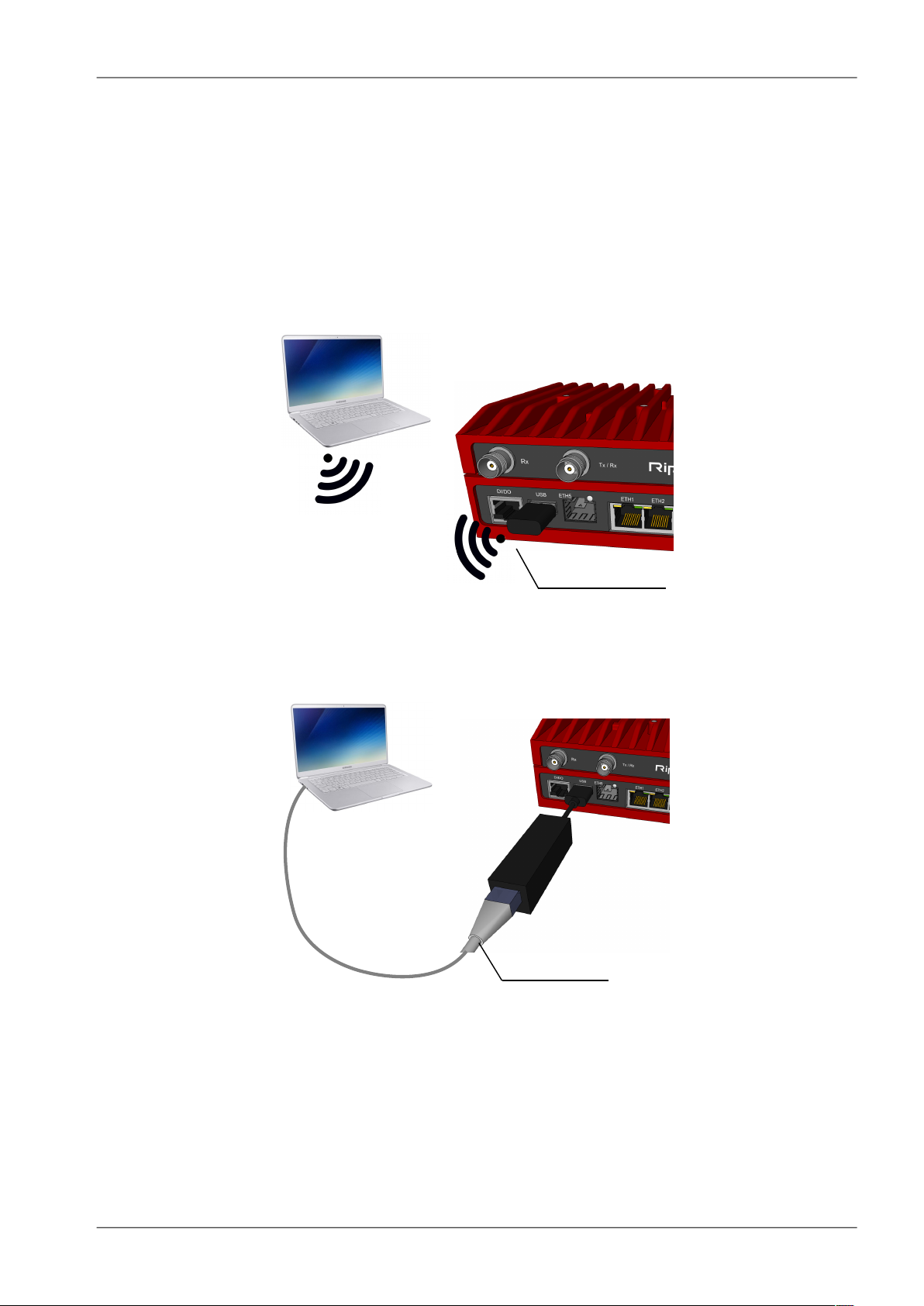

When accessing over the optional “XA” USB/ETH adapter, your PC will get its IP settings from the builtin DHCP server and you have to type https://10.9.8.7 in your browser. You do not need to worry about other RipEX2'es, you will be connected to the local unit in all cases.

RipEX2 Radio modem & Router – © RACOM s.r.o.6

Quick guide

Wifi adapter

When accessing over the optional “W1” Wifi adapter, connect your PC (tablet, smart phone) to the RipEX2 Wifi AP first. Its default SSID is “RipEX2 + Unit name + S/N”

Your PC will get its IP settings from the built-in DHCP server and you have to type http://10.9.8.7 in your browser. Remaining steps are the same and you do not need to worry about other RipEX2'es, since you will be connected to the local unit in all cases.

SCADA radio network step-by-step

Building a reliable radio network for a SCADA system may not be that simple, even when you use such a versatile and easy-to-operate device as the RipEX2 radio modem. The following step-by-step checklist can help you to keep this process fast and efficient.

1. Design your network to ensure RF signal levels meet system requirements.

2. Calculate and estimate the network throughput and response times when loaded by your application.

Perform a bench-test with 3-5 sets of RipEX2's and SCADA equipment (Chapter 3, Step-by-step guide).

Design the addressing and routing scheme of the network (RipEX App notes1and RipEX App notes-

Address planning2)

5. Preconfigure all RipEX2's (follow the SW manual).

6. Install individual sites

Mount RipEX2 into cabinet (Section 4.1, “Mounting”).

Install antenna (Section 4.2, “Antenna installation”).

Install feed line (Section 4.3, “Antenna feed line”).

Ensure proper grounding (Section 4.4, “Grounding”).

Run cables and plug-in all connectors except from the SCADA equipment (Section 1.2, “Con- nectors”)

6. Apply power supply to RipEX2.

7. Test radio link quality (follow the SW manual).

8. Check routing by the ping tool (follow the SW manual) to verify accessibility of all IP addresses with which the unit will communicate.

9. Connect the SCADA equipment (follow the SW manual).

7. Test your application

http://www.racom.eu/eng/products/m/ripex/app/index.html

http://www.racom.eu/eng/products/m/ripex/app/routing.html

7© RACOM s.r.o. – RipEX2 Radio modem & Router

List of documentation

User manuals:

• RipEX2 - User manual

User manual RipEX2 - this document

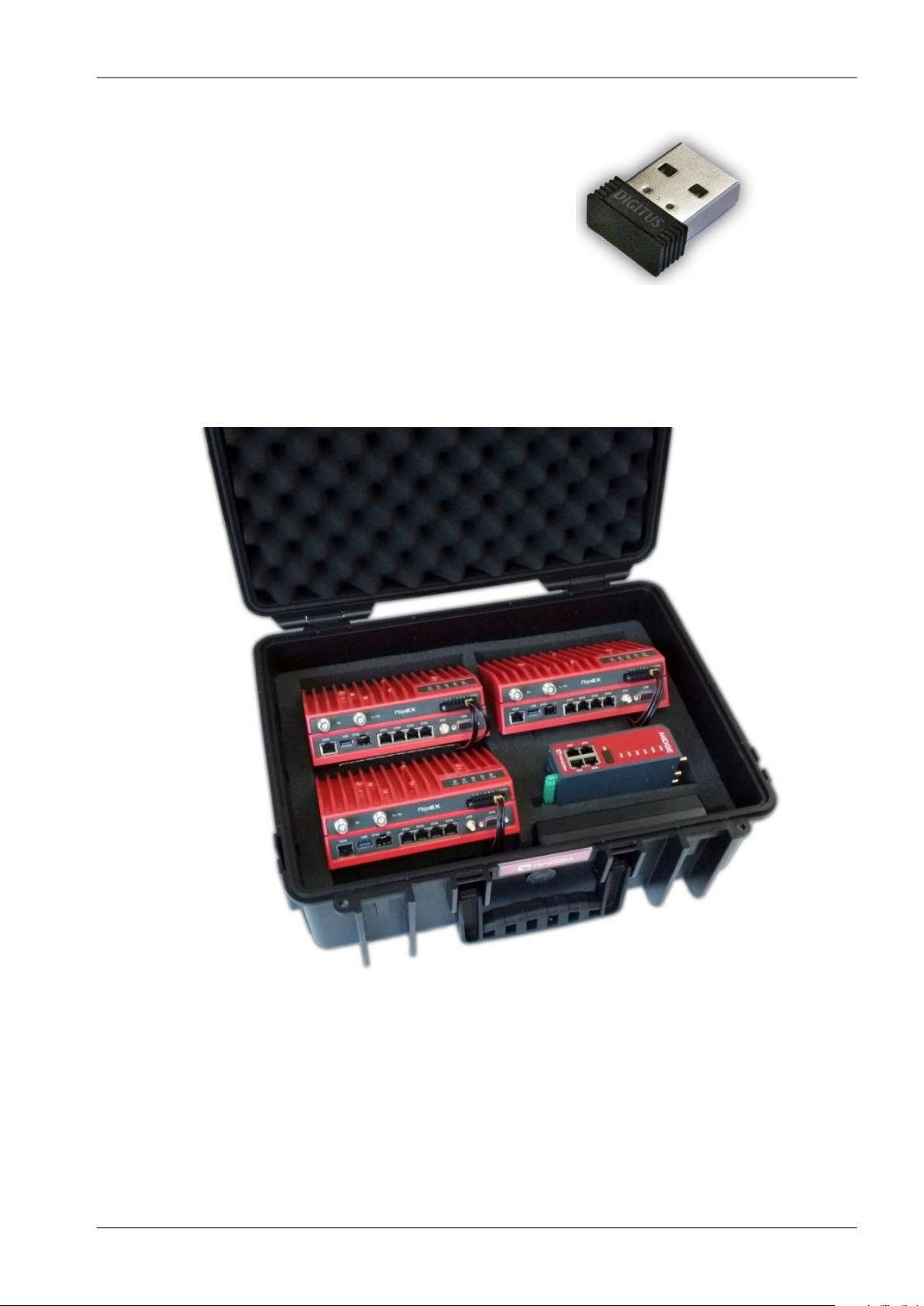

• DEMO handbook

RipEX test set

• RipEX Hot Standby2- User manual

User manual

Datasheets:

• RipEX2 - Datasheet

Application notes:

• RipEX - Application notes

○ Bridge mode

○ Flexible protocol

○ Base driven protocol

○ Network planing

○ Migration solution

○ and many others

Contents of the box

Standard RipEX2 package in paper box contents:

• RipEX2 – 1pc

• Removable sticker plate – 1pc

• Power and Control plug connector (counterpart) – 1pc

• DIN set (a pair of DIN rail clips + screws) – 1pc

• SFP port dust cap

http://www.racom.eu/eng/products/m/ripex/demo/index.html

http://www.racom.eu/eng/products/m/ray17/index.html

http://www.racom.eu/download/hw/ripex/free/eng/ripex-dsA4-en.pdf

http://www.racom.eu/eng/products/m/ripex/app/index.html

RipEX2 Radio modem & Router – © RACOM s.r.o.8

125,5

134,7

185

31,7

62,7

93,7

92,5

143

M4 (4x)

max. depth 6mm

Product

1. Product

RipEX2 is a radio modem platform renowned for overall data throughput in any real-time environment. RipEX2 radio modems are native IP devices, Software Defined with Linux OS that have been designed with attention to detail, performance and quality.

RipEX2 is built into a rugged die-cast aluminium casing that allows for multiple installation possibilities, see Section 4.1, “Mounting”.

1.1. Dimensions

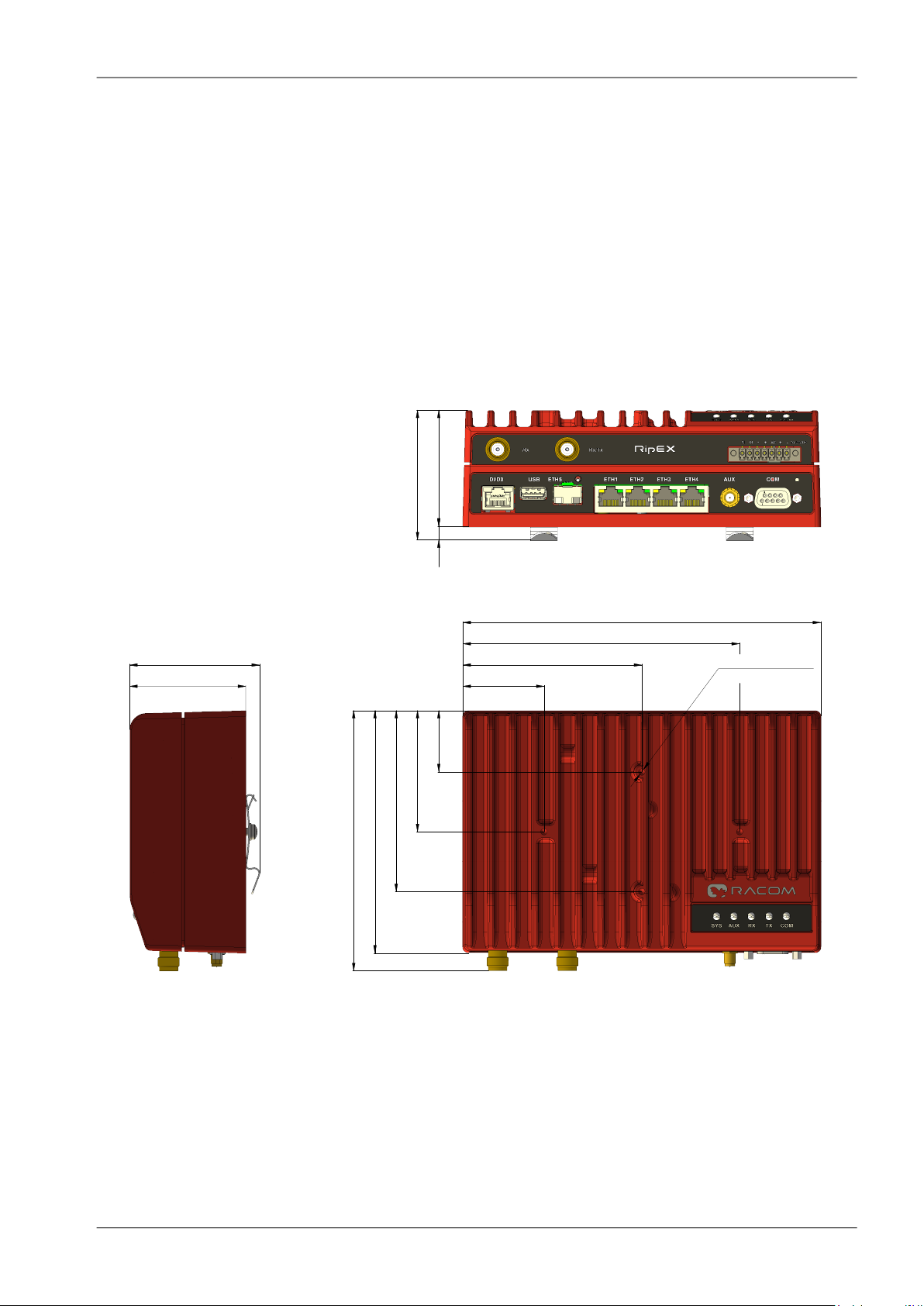

Fig. 1.1: RipEX2 dimensions

9© RACOM s.r.o. – RipEX2 Radio modem & Router

31,7

62,7

93,7

125,5

92,5

143

185

M4 (4x)

max.depth 8 mm

68,3

185

DIN 35 Rail

DIN Rail Clip

68,3

134,7

125,5

Product

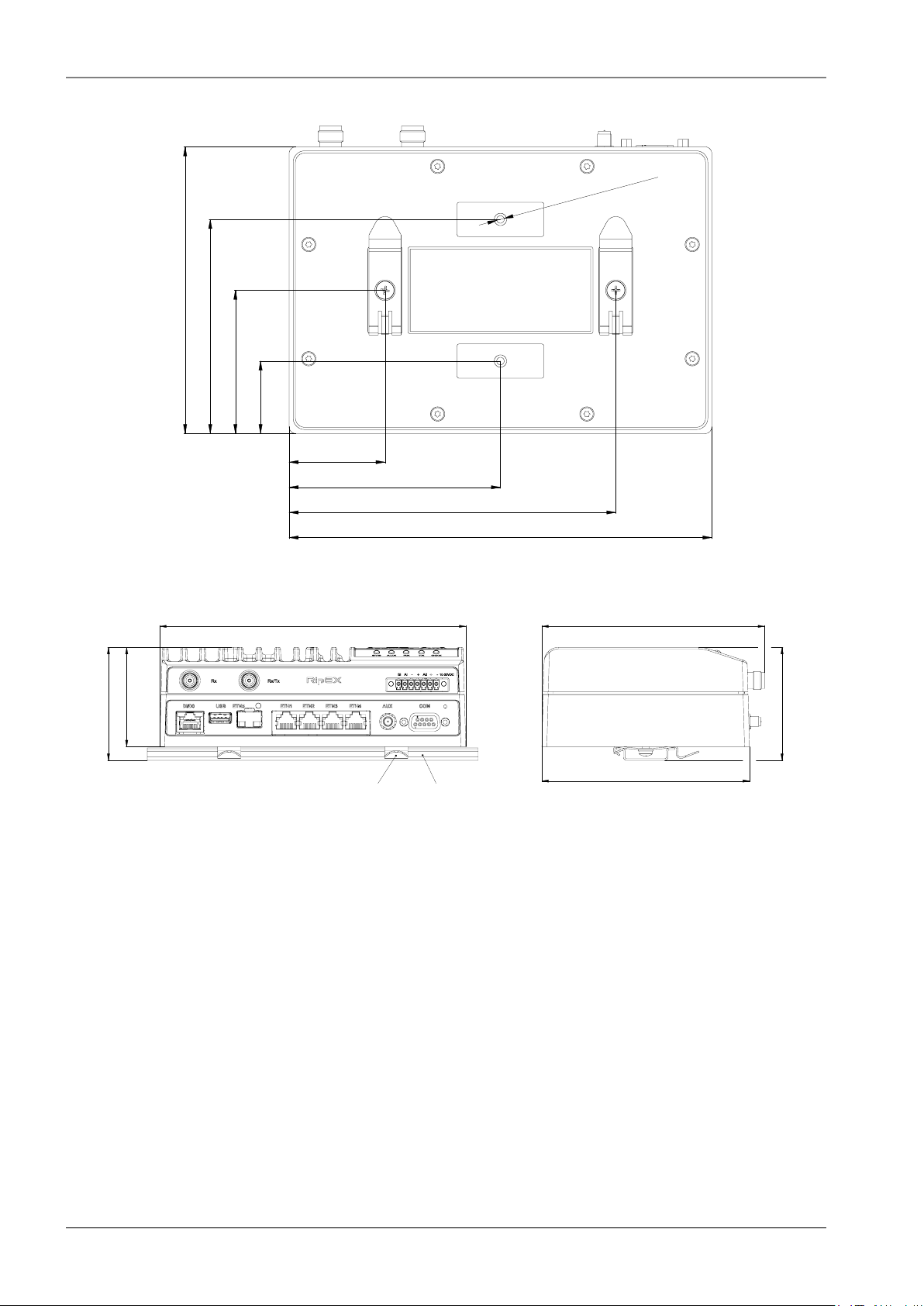

Fig. 1.2: RipEX2 dimensions – bottom

Fig. 1.3: RipEX2 with DIN rail

RipEX2 Radio modem & Router – © RACOM s.r.o.10

166,4

153,8

167,1

154,1

142,4

7,7

22,1

31,6

42,7

10,2

17,8

32,8

47,3

Product

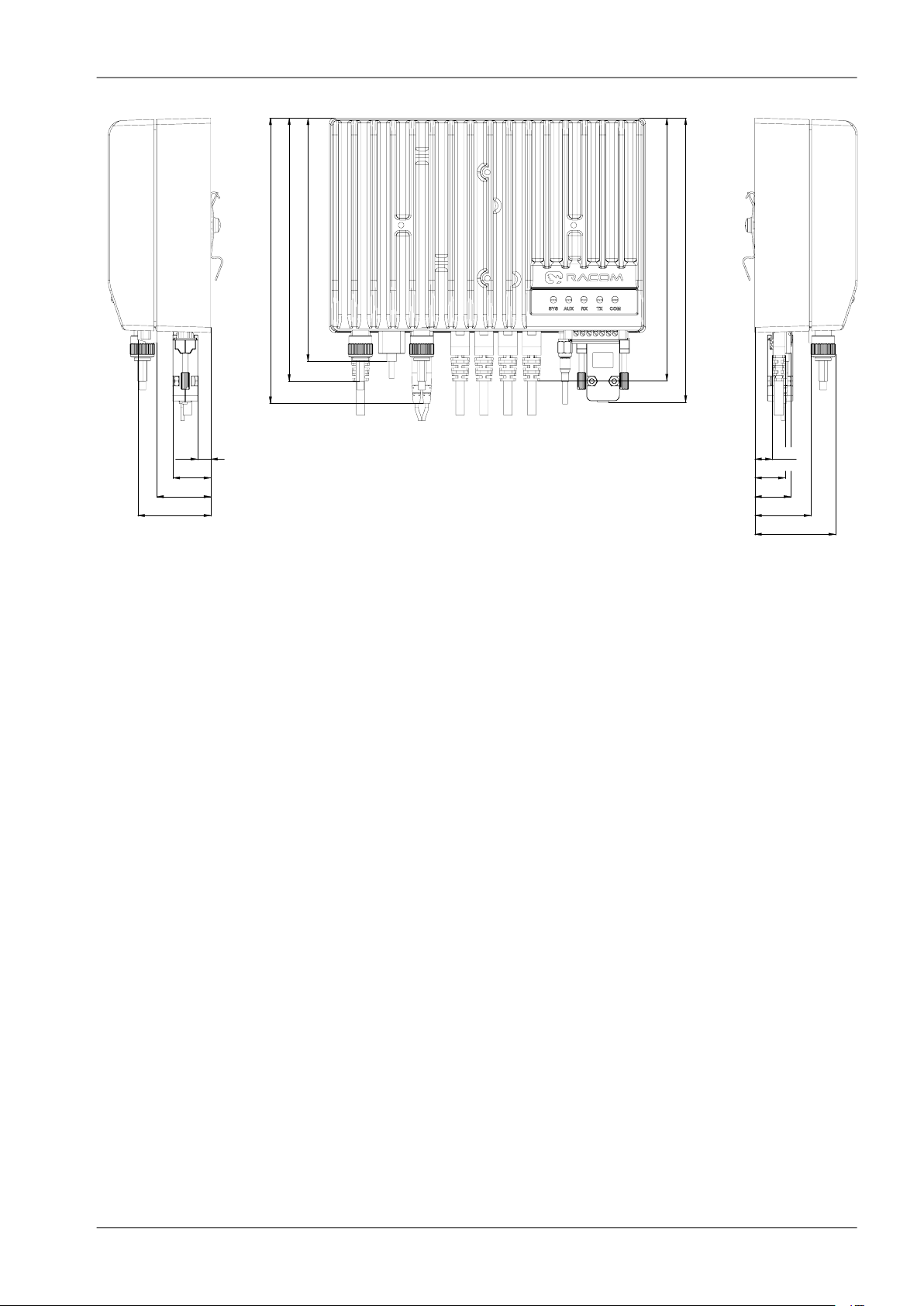

Fig. 1.4: RipEX2 dimensions with connectors

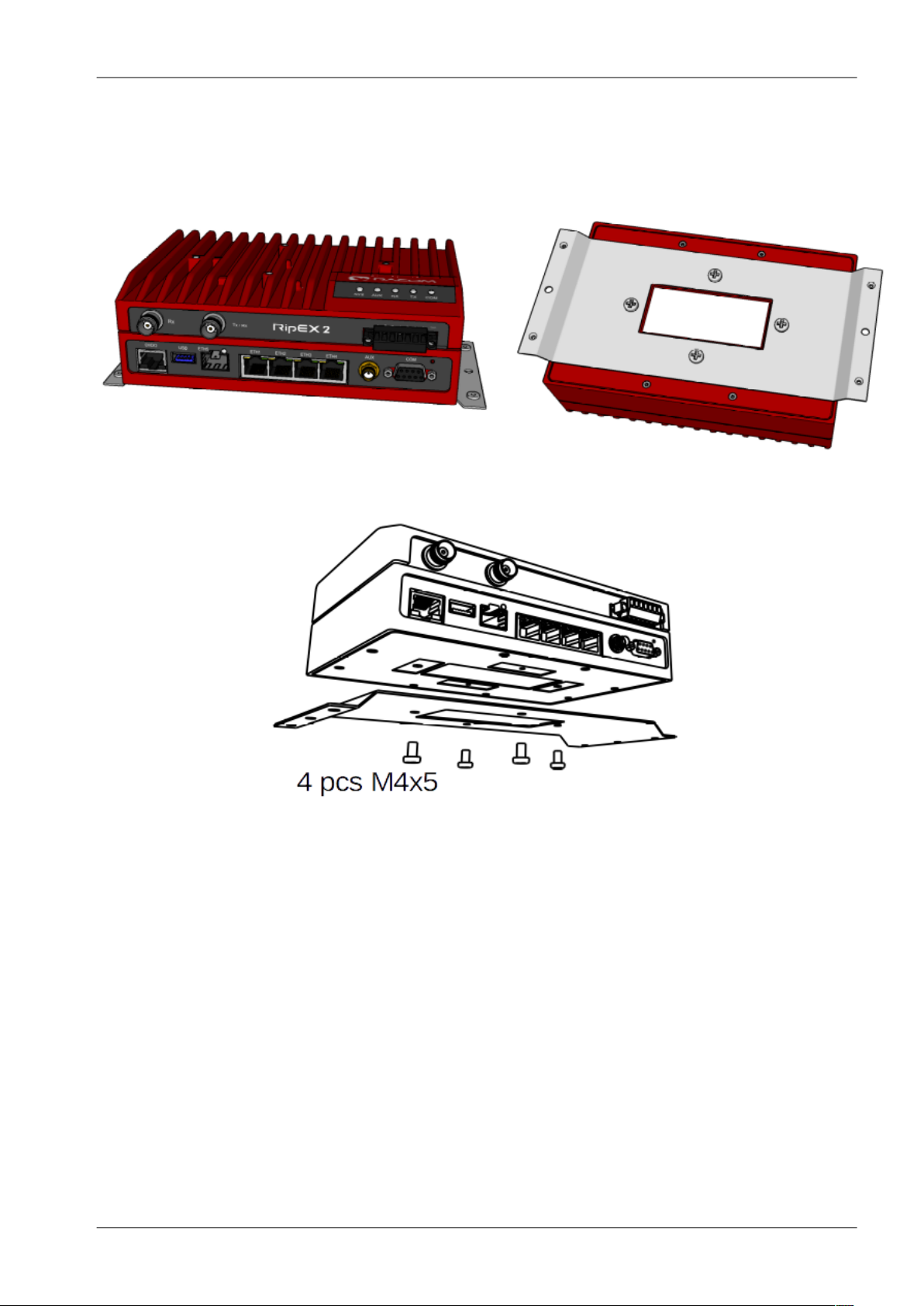

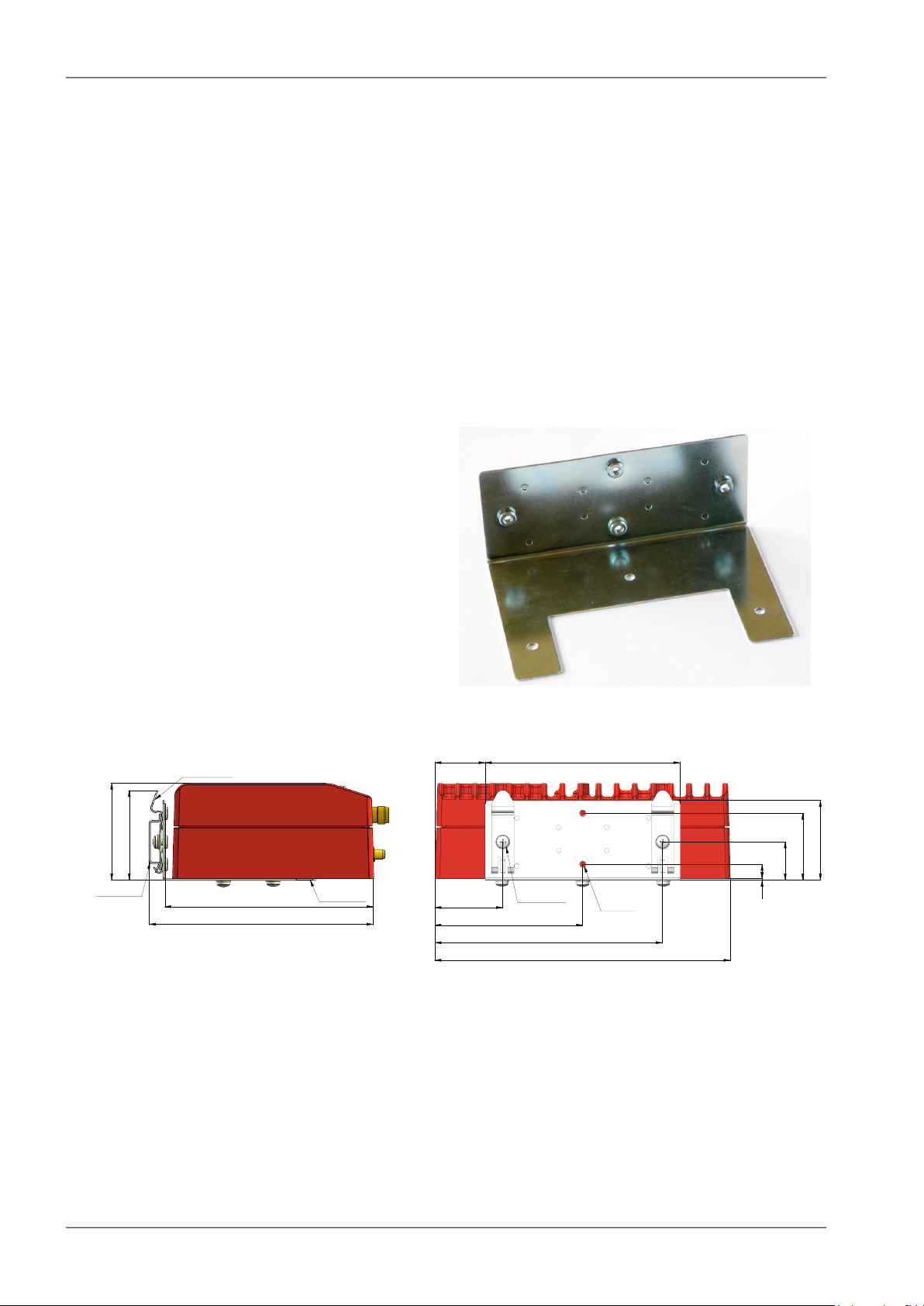

For more information see and Section 4.1.2, “Flat mounting”.

11© RACOM s.r.o. – RipEX2 Radio modem & Router

Product

1.2. Connectors

All connectors are located on the front panel. The upper side features an LED panel. The RESET button is located in an opening in the bottom side.

Fig. 1.5: Connectors

1.2.1. Antenna

An antenna can be connected to RipEX2 via TNC female 50Ω connector.

RipEX2 is equipped with two connectors. The Tx/Rx connector will be used for common transmitting and receiving single antenna installation (even with different Rx and Tx frequencies).

Both Rx and Tx/Rx connectors for split installation (two antennas or duplex operation with duplexer) - Rx for receiving and Tx/Rx for transmitting.

Warning: RipEX2 radio modem may be damaged when operated without an antenna or a dummy load.

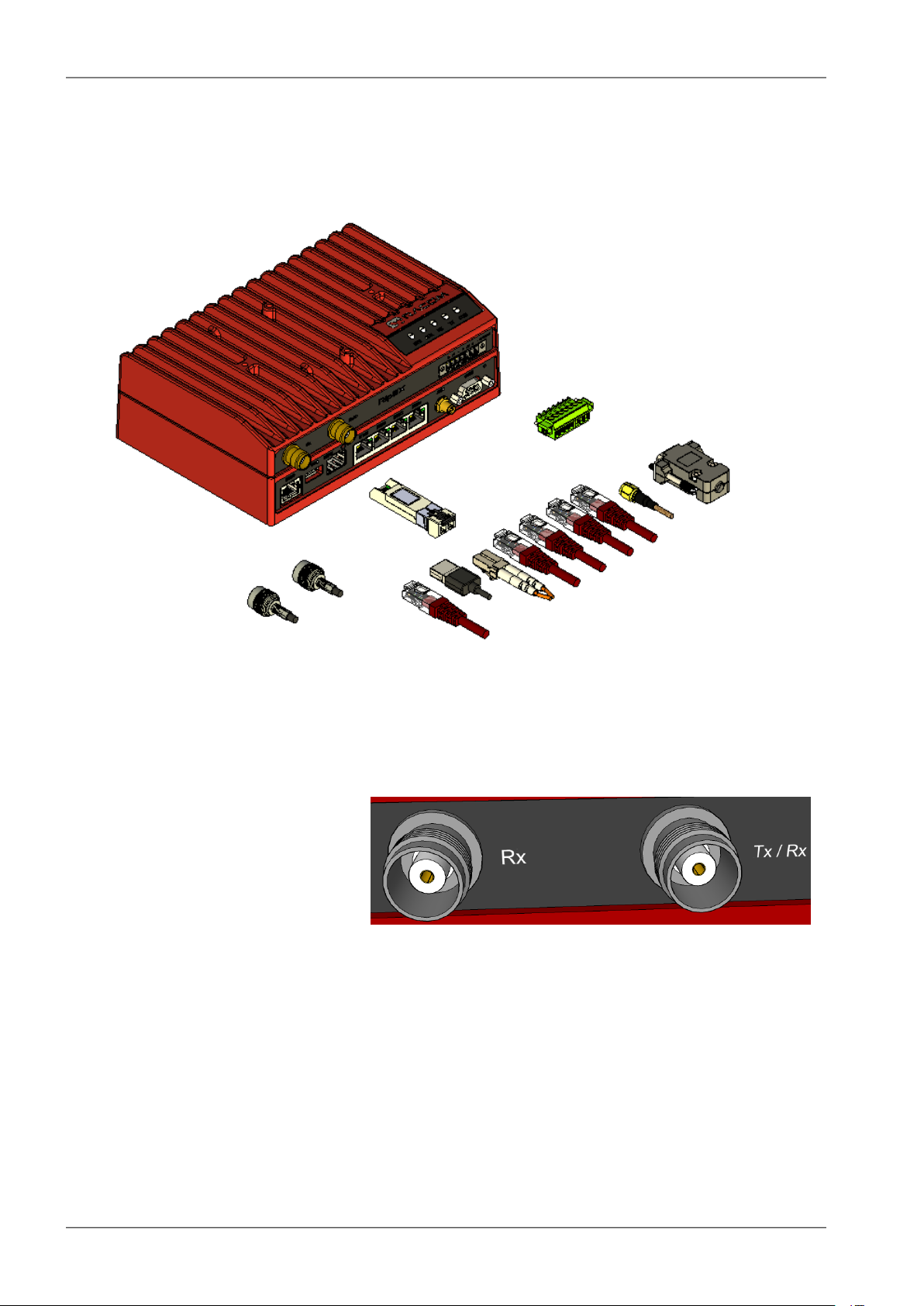

Fig. 1.6: Antenna connectors

RipEX2 Radio modem & Router – © RACOM s.r.o.12

Wire Ports(7)

Retaining Screws(2)

Lead Binding Screws(7)

Product

1.2.2. Power and Control

This rugged connector connects to a power supply and it contains control signals. A Plug with screwterminals and retaining screws for power and control connector is supplied with each RipEX2. It is Tyco 7 pin terminal block plug, part No. 1776192-7, contact pitch 3.81 mm. The connector is designed for electric wires with a cross section of 0.5 to 1.5 mm2. Strip the wire leads to 6 mm (1/4 inch). Isolated cables should receive PKC 108 or less end sleeves before they are inserted in the clip. Insert the cables in the wire ports, tightening securely.

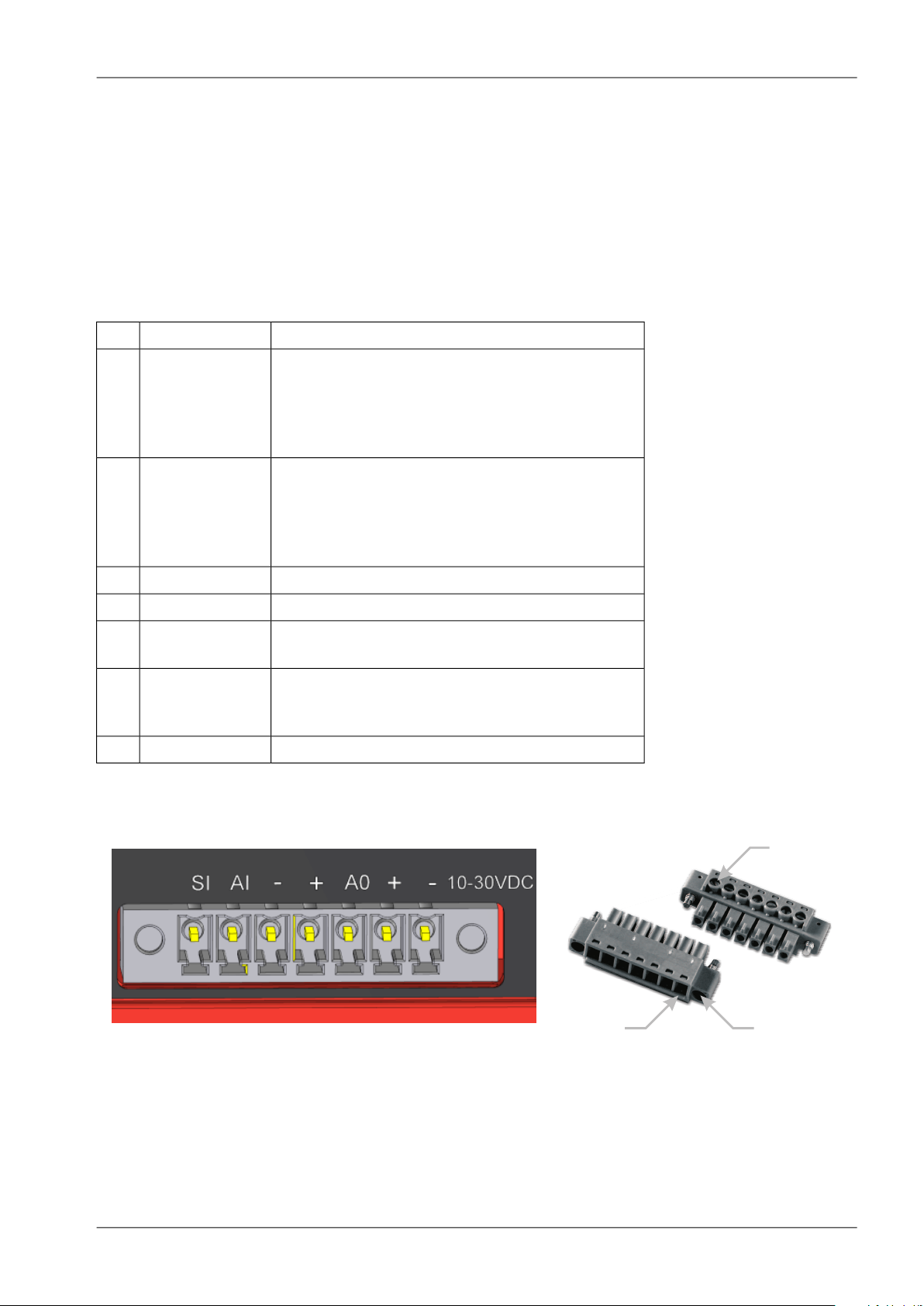

Tab. 1.1: Pin assignment

signallabeledpin

SLEEP INPUT Schmitt-triggered inverted input

SI1 • pull below 1.1VDC to activate (1.1VDC/1.9VDC

threshold hysteresis)

• max. 30VDC HW ALARM INPUT

Schmitt-triggered inverted input

AI2 • pull below 1.1VDC to activate (1.1VDC/1.9VDC

threshold hysteresis)

• max. 30VDC

−(GND) – for SLEEP IN, HW ALARM INPUT−3 +(POWER) – for HW ALARM OUTPUT+4

AO5

HW ALARM OUTPUT open drain output max. 30 VDC, 1 A

+ POWER (10 to 30 V)

Undervoltage threshold 8.5 VDC Overvoltage threshold 41 VDC

− POWER (GND)−7

Pins 3 and 7 are connected internally. Pins 4 and 6 are connected internally.

Fig. 1.7: Supply connector

Fig. 1.8: Power and Control - cable plug

13© RACOM s.r.o. – RipEX2 Radio modem & Router

1 2 3 4 5 6PinNo.: 7

SI AI - + A0

10– 30VD C

SleepInput

1 2 3 4 5 6PinNo.: 7

SI AI - + A0

10– 30VD C

AlarmInput

1 2 3 4 5 6PinNo.: 7

SI AI - + A0

10– 30VD C

AlarmOutput

max.30VDC,1 A

Product

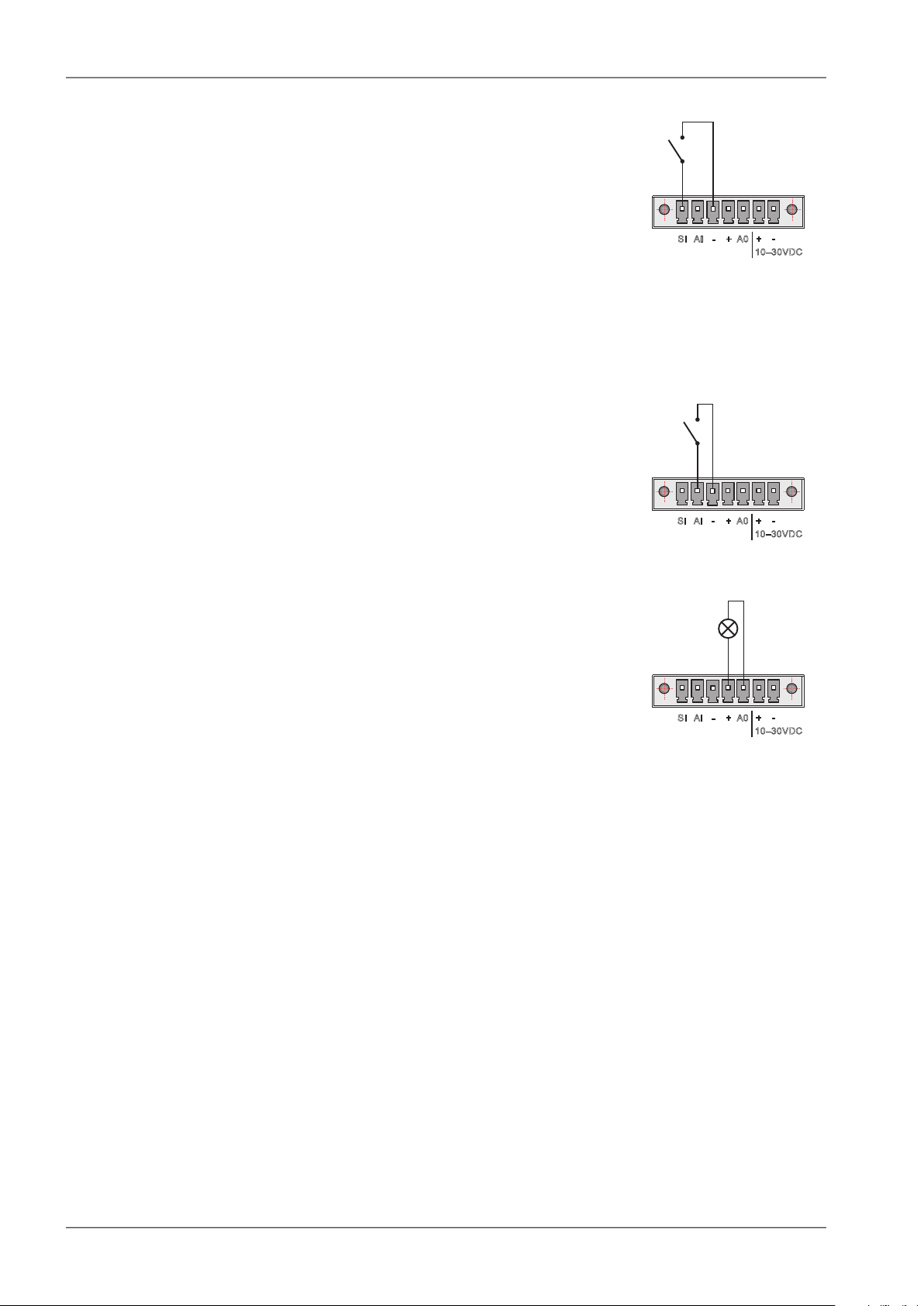

SLEEP INPUT

SLEEP INPUT is the digital input for activating the Sleep mode. When this pin is grounded (for example when connected to pin

3), the RipEX2 switches into the Sleep mode. Using Power management (Advanced Config.), the Entering the Sleep mode can be delayed by a set time. Disconnecting SLEEP INPUT from GND (-) ends the Sleep mode. Note that RipEX2 takes 48 seconds to wake up from the Sleep mode.

SLEEP INPUT can be also used for the wake-up from the Save state. For details see chapter (Advanced Config., Power manage- ment)

HW ALARM INPUT

HW ALARM INPUT is a digital input. If grounded (e.g. by connecting to PIN 3), an external alarm is triggered. This alarm can be used for example to transmit information using SNMP Notification, informing for instance about a power outage or RTU problem. For details about Alarm management see chapter Advanced Configuration.

HW ALARM OUTPUT

HW ALARM OUTPUT is a digital output. It can be activated in Alarm management settings, chapter Advanced Configuration. It may be used for instance to inform the connected RTU about a RipEX2 alarm or about the Unit ready status. If an alarm is triggered, HW ALARM OUTPUT is internally connected to GND. If the external device requires connection to positive terminal of the power supply, PIN 4 should be used.

POWER

The POWER pins labelled + and - serve to connect a power supply 10–30 VDC. The requirements for a power supply are defined in and Chapter 8, Technical parameters [48].

RipEX2 Radio modem & Router – © RACOM s.r.o.14

Product

1.2.3. ETH1 - ETH4

Standard RJ45 connectors for Ethernet connection. RipEX2 has 10/100 BaseT Auto MDI/MDIX interfaces so it can connect to 10 Mbps or 100 Mbps Ethernet network. The speed can be selected manually or recognized automatically by RipEX2. RipEX2 is provided with Auto MDI/MDIX function which allows it to connect over both standard and cross cables, adapting itself automatically.

Pin assignment

Tab. 1.2: Ethernet to cable connector connections

Crossed cableDirect cableSignalPIN

green – whiteorange – whiteTX+1 greenorangeTX−2 orange – whitegreen – whiteRX+3 blueblue—4 blue – whiteblue – white—5 orangegreenRx−6 brown – whitebrown – white—7 brownbrown—8

1.2.4. ETH5 (SFP)

ETH5 is a standard SFP slot for 10/100/1000 Mbps Ethernet SFP modules, user exchangeable. Both fibre optic and metallic Ethernet SFP modules are supported. For optical both single and dual mode fibre optics Ethernet modules (= 2 or 1 fibers) can be used. CSFP modules are not supported. RACOM offers all mentioned types of SFP modules, tested to be RipEX2 compatible as a standard accessory.

The SFP status LED is located just next to the slot. It is controlled by SFP module. Its function is specific for each SFP module. The typical behavior is an indication the received signal from the fibre optic or metallic link to be within operational range.

Important

Fig. 1.9: SFP slot

It is strongly recommended to use a high quality SFP module with industry temperature range. The SFP modules listed in Accessories are thoroughly tested by RACOM and are guaranteed to function with RipEX2 units. It is possible to use any other SFP module, but RACOM cannot guarantee they will be completely compatible with RipEX2 units.

15© RACOM s.r.o. – RipEX2 Radio modem & Router

Product

1.2.5. COM

RipEX2 provides serial interface COM terminated by DSUB9F connectors It can be configured as RS232 or RS485 (more in Adv. Conf., COM).

RipEX2‘s RS232 is a hard-wired DCE (Data Communication Equipment) device. Equipment connected to the RipEX2’s serial port should be DTE (Data Terminal Equipment) and a straight-through cable should be used. If a DCE device is connected to the RipEX2‘s serial port, a null modem adapter or cross cable has to be used.

Tab. 1.3: COM pin description

COM – RS485COM – RS232DSUB9F

In/ OutsignalIn/ Outsignalpin

—OutCD1

In/Outline BOutRxD2 In/Outline AInTxD3

—InDTR4

GNDGND5

—OutDSR6 —InRTS7 —OutCTS8 ———9

RipEX2 keeps pin 6 DSR at the level of 1 by RS232 standard permanently.

RipEX2 Radio modem & Router – © RACOM s.r.o.16

1.2.6. USB

RipEX2 uses USB 3.0, Host A interface. USB interface is wired as standard:

Tab. 1.4: USB A Pinout Cable Assembly

wiresignalPin

RedVBUS1

WhiteD-2

GreenD+3

BlackGND4

BlueStdA_SSRX-5

YellowStdA_SSRX+6

GROUNDGND_DRAIN7

PurpleStdA_SSTX-8

OrangeStdA_SSTX+9

Connector ShellShieldShell

Product

The USB interface is designed for the connection to an – external ETH/USB adapter or a Wifi adapter. They are optional accessories to RipEX2, for more details see Section 3.3, “Connecting RipEX2 to a programming PC”. The adapters are used for service access to RipEX2’s web configuration interface.

The USB interface can also be used for an external flash disc connection, which has been specifically designed to simplify complex maintenance tasks, so that these tasks can be performed by unqualified personnel in the field by simple plugging-in an USB stick and waiting until a LED flashes.

The USB connector also provides power supply (5 V/ 0.5 A). It can be used to temporarily power a connected device, for instance a telephone. The USB connector should not be used as permanent source of power supply.

External USB flash disc

An external USB flash disc can be used for firmware upgrade, SW keys upload, configuration backup and restore, ssl certificate and ssh keys upload and tech-support package download. Any common USB stick with several megabytes of free space can be used for these tasks.

1.2.7. AUX

AUX SMA female 50 Ohm connector is used for several purposes according to HW variant.

Standard basic model – the AUX is used as an synchronization signal input.

Input frequency range 1Hz (PPS) - 25 MHz

Input signal level >200 mVp-p @ 220R, up to 5V TTL levels

Fig. 1.10: AUX connector SMA

17© RACOM s.r.o. – RipEX2 Radio modem & Router

Product

RipEX2 can be equipped with an internal GPS. The GPS module is used for time synchronization of the NTP server inside RipEX2. See Adv. Conf., Time for more. In this case the AUX connector serves for connecting the GPS antenna:

• active antenna

• 3.3 VDC supply

RipEX2 Radio modem & Router – © RACOM s.r.o.18

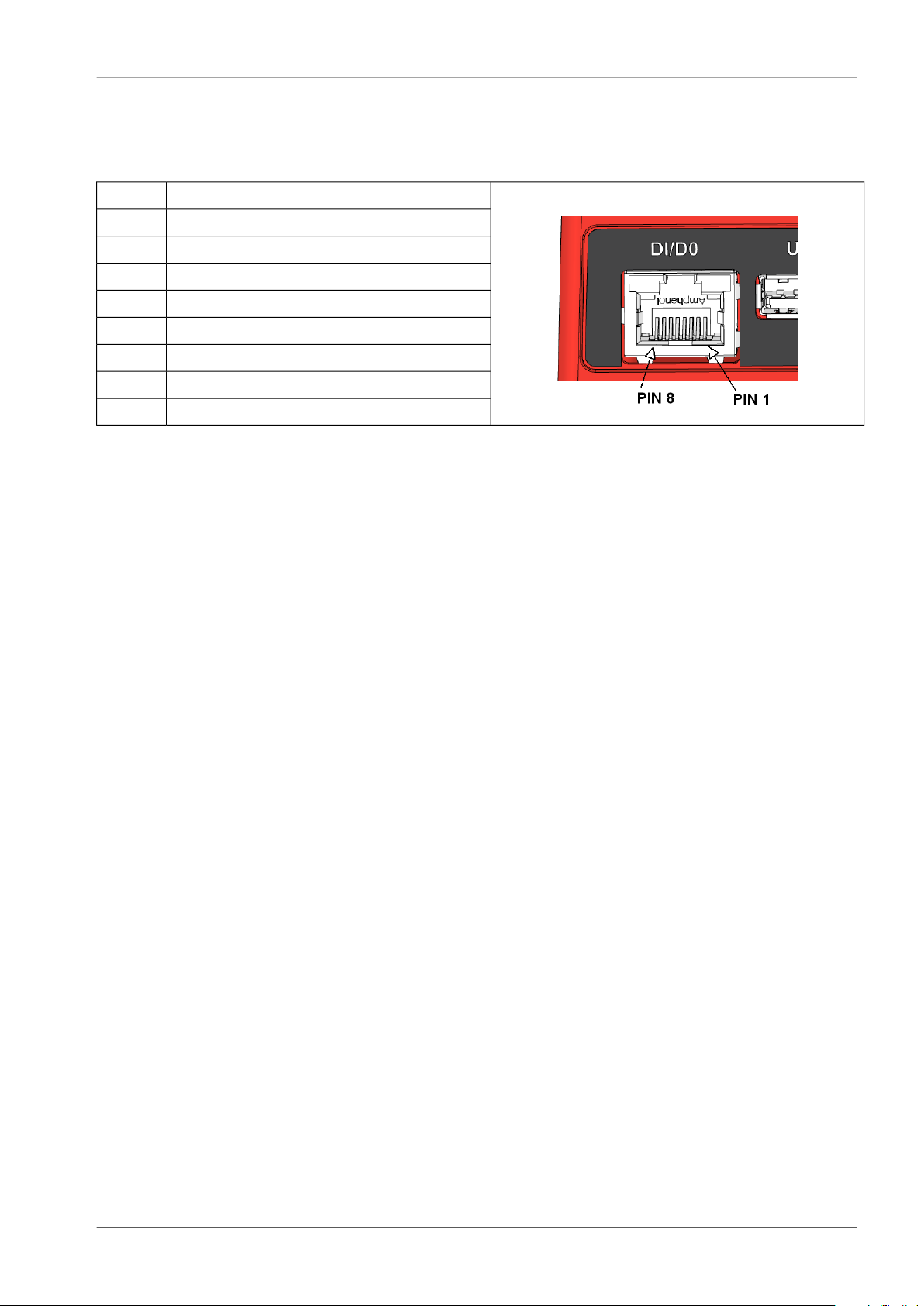

1.2.8. DI/DO

Tab. 1.5: Digital Inputs and Outputs

signalPin

Differential digital input - Positive - (P)1

Differential digital input - Negative - (N)2

GND3 Digital Output 14 Digital Output 25

GND6

Digital Input 17 Digital Input 28

• Digital Outputs:

○ Open drain output max. 30 VDC, 0.2A

Product

• Isolated differential digital input:

○ Input voltage difference (P-N) > 1.9 VDC Logic "H"

○ Input voltage difference (P-N) < 1.1 VDC Logic "L"

○ Maximum differential voltage 30 V

• Digital inputs:

○ Schmitt-triggered inverted input

○ Pull below 1.1 VDC to activate (1.1 VDC/1.9 VDC threshold hysteresis)

○ Max. 30 VDC

19© RACOM s.r.o. – RipEX2 Radio modem & Router

Product

1.2.9. HW button

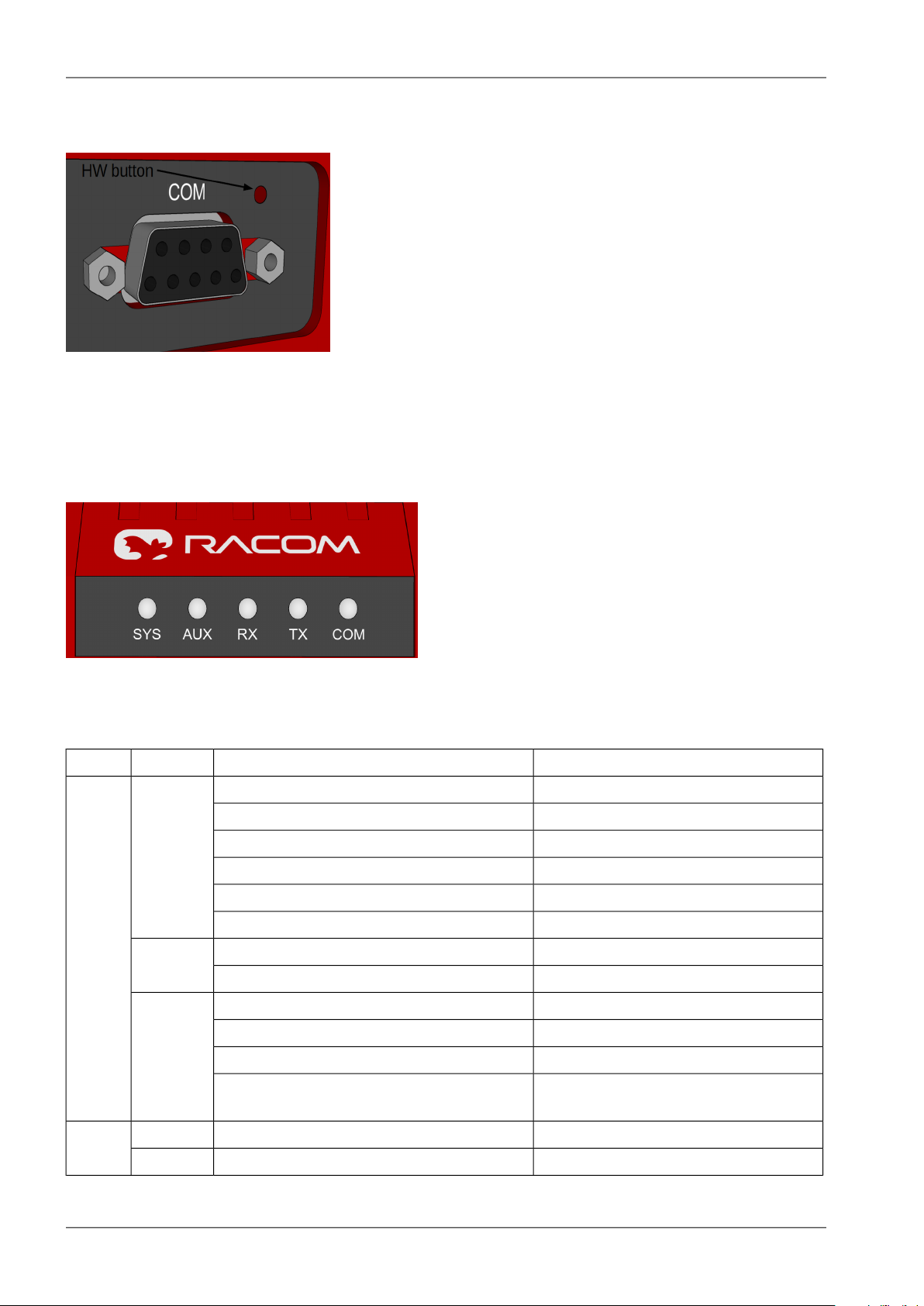

Fig. 1.11: HW button

HW button is placed on the right side of COM interface.

1.3. Indication LEDs

Fig. 1.12: Indication LEDs

Tab. 1.6: Key to LEDs

Green

SYS

Red

Orange

Flashing regularly - period 500 ms

AUX

FunctionStyleColourLED

System OKPermanently lit Reset button pushedFlashing - period 500ms Reset button to resetOne fast (50ms) flash - pause (500 ms) Reset button factory resetThree fast (50ms) flashes - pause (500ms) Save modeFlashing - period 1 sec Sleep modeFlashing - period 3 sec AlarmPermanently lit Serious system errorFlashing regularly - period 500ms Unit is startingPermanently lit USB attachedThree fast (50ms) flashes - pause (500 ms) Skip go to sleep mode, boot normallyFlashing - period 100 ms Firmware writing in progress

- DO NOT POWER OFF ! ActivityPermanently litGreen AlarmPermanently litRed

RipEX2 Radio modem & Router – © RACOM s.r.o.20

Product

FunctionStyleColourLED

Receiver is synchronized to a packetPermanently litGreen

Permanently litYellow

There is a signal stronger than -80 dBm on Radio channel

COM

Alarm – is “On” when any controlled item in Alarm management, (see Adv. Conf., Alarm man-

agement for more) is in alarm status (out of thresholds) and “SNMP Notification", "HW Alarm Output" or "Detail graphs start” for any line in the Alarm configuration table are checked.

Emergency – Emergency status is an undefined RipEX status either because of a SW or HW problem

when RipEX does not function properly. Maintenance web page is mostly accessible even in Emergency status. If the problem cannot be eliminated after a power cycle, send the unit to RACOM for repair.

Transmitting to radio channelPermanently litRed no functionno functionGreen Data receivingPermanently litGreen Data transmittingPermanently litYellow

21© RACOM s.r.o. – RipEX2 Radio modem & Router

Product

1.4. Ordering codes

RipEX radio modem has been designed to have minimum possible number of hardware variants. Different HW models are determined by frequency, internal GPS and separate connectors for RX and TX antennas.

Upgrade of functionality does not result in on-site hardware changes – it is done by activating software feature keys (see chapter RipEX in detail and Adv. Config., Maintenance).

All ordering codes are avaiable on Racom website. See http://www.racom.eu/eng/products/radio-modem-ripex.html#order-codes.

RipEX2 Radio modem & Router – © RACOM s.r.o.22

Accessories

2. Accessories

Whole accessory list is avaiable on Racom website. See http://www.racom.eu/eng/products/radio-modem-ripex.html#accessories.

1. RipEX2 Hot Standby

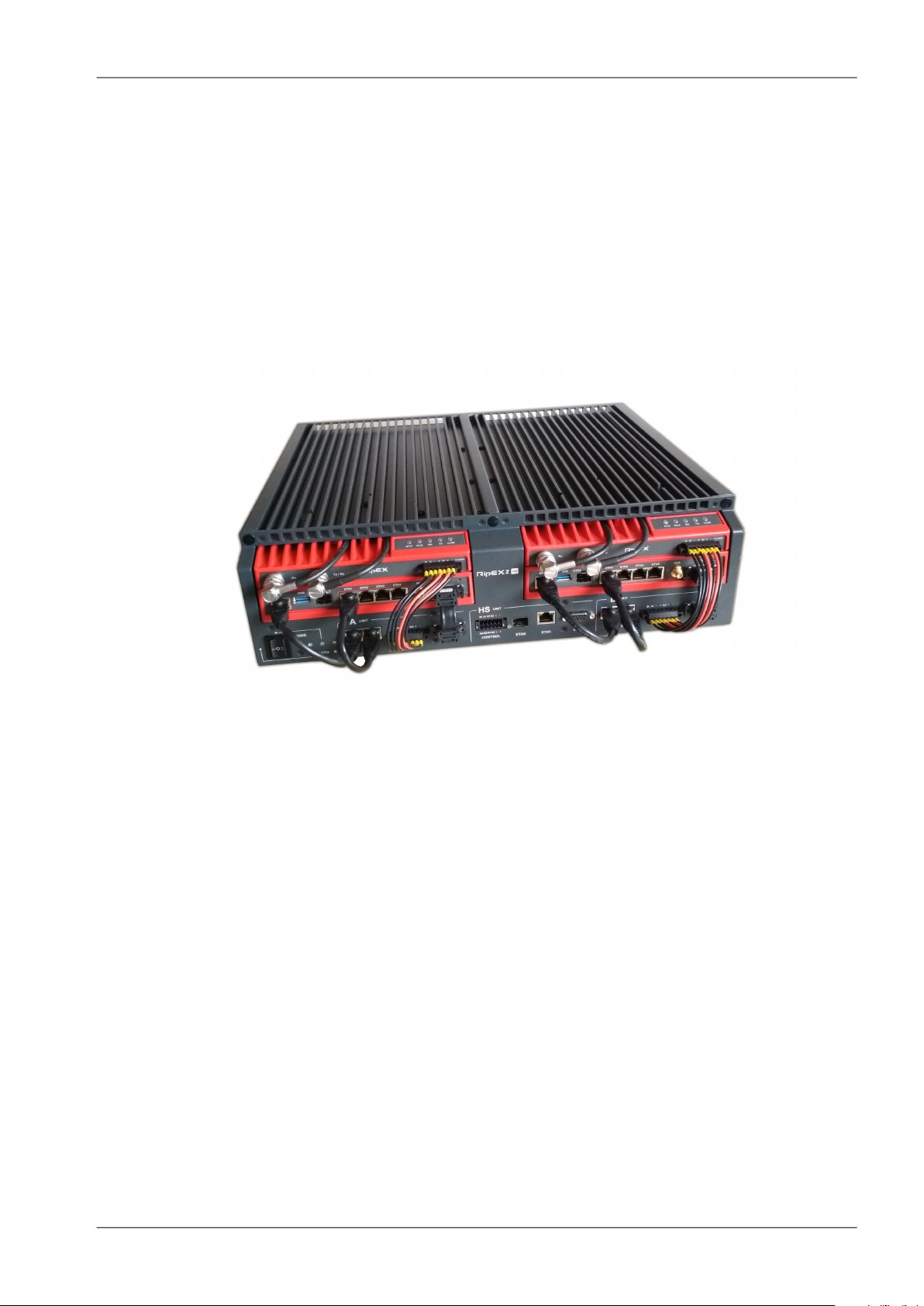

RipEX2-HS is redundant Hot Standby chassis. There are two Hot Standby standard RipEX2 units inside. In case of a detection of failure, automatic switchover between RipEX2 units sis performed. RipEX2-HS is suitable for Central sites, Repeaters or Important remote sites where no single point of failure is required.

Fig. 2.1: RipEX2-HS

23© RACOM s.r.o. – RipEX2 Radio modem & Router

Accessories

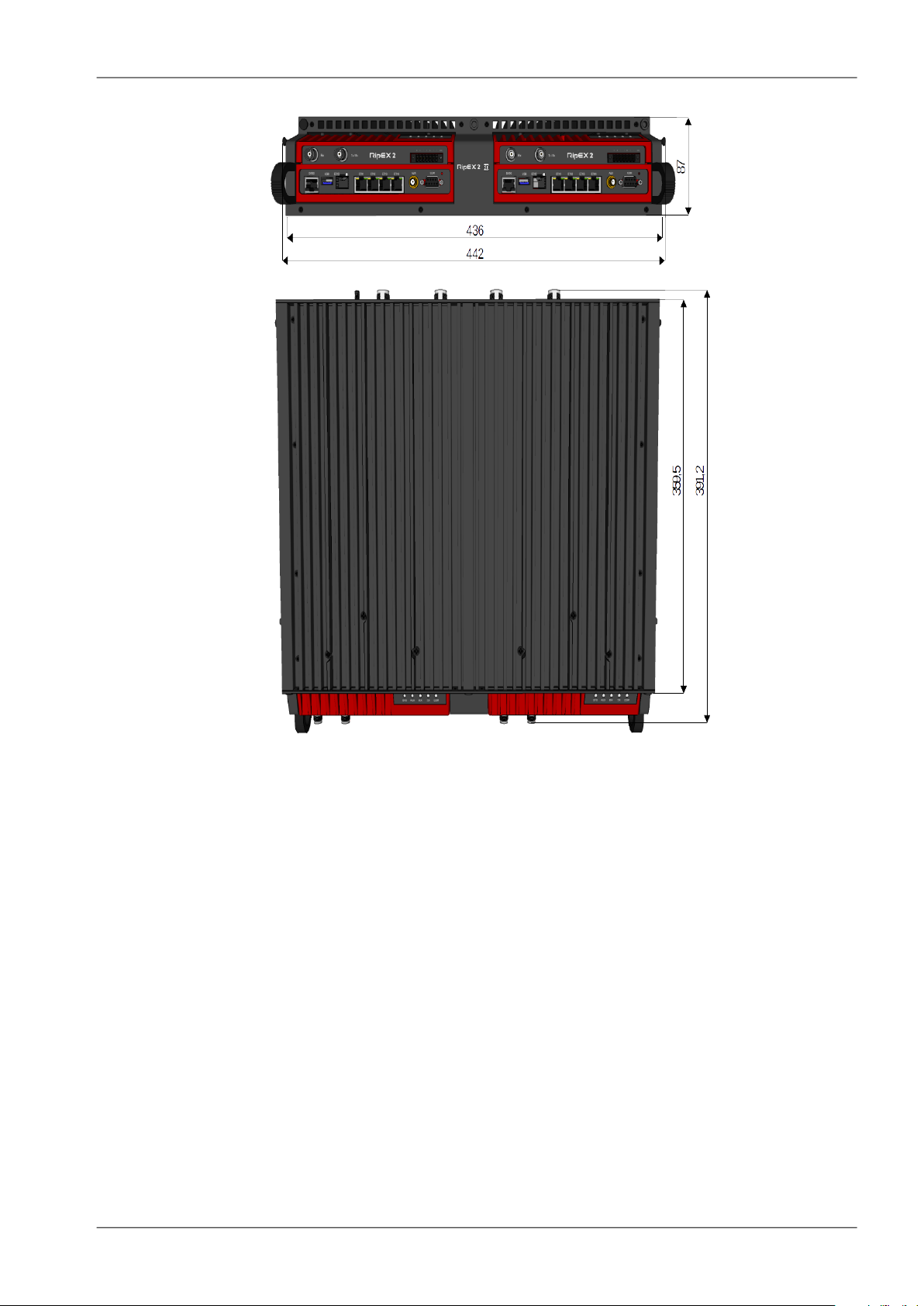

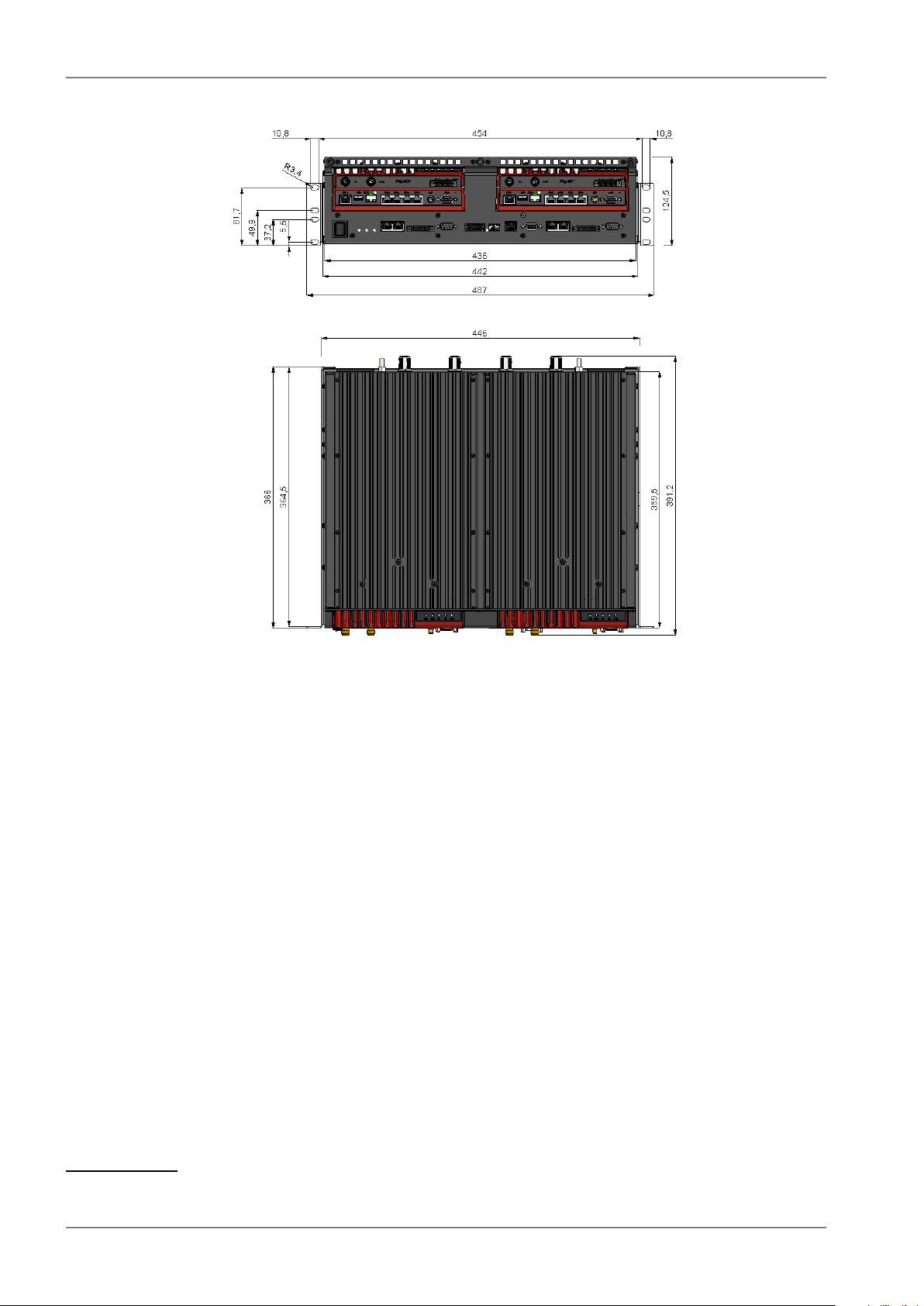

Fig. 2.2: RipEX2-HS dimensions

For more information see RipEX2-HS datasheet or User manual on www.racom.eu1.

2. RipEX2-RD

http://www.racom.eu

RipEX2 Radio modem & Router – © RACOM s.r.o.24

Accessories

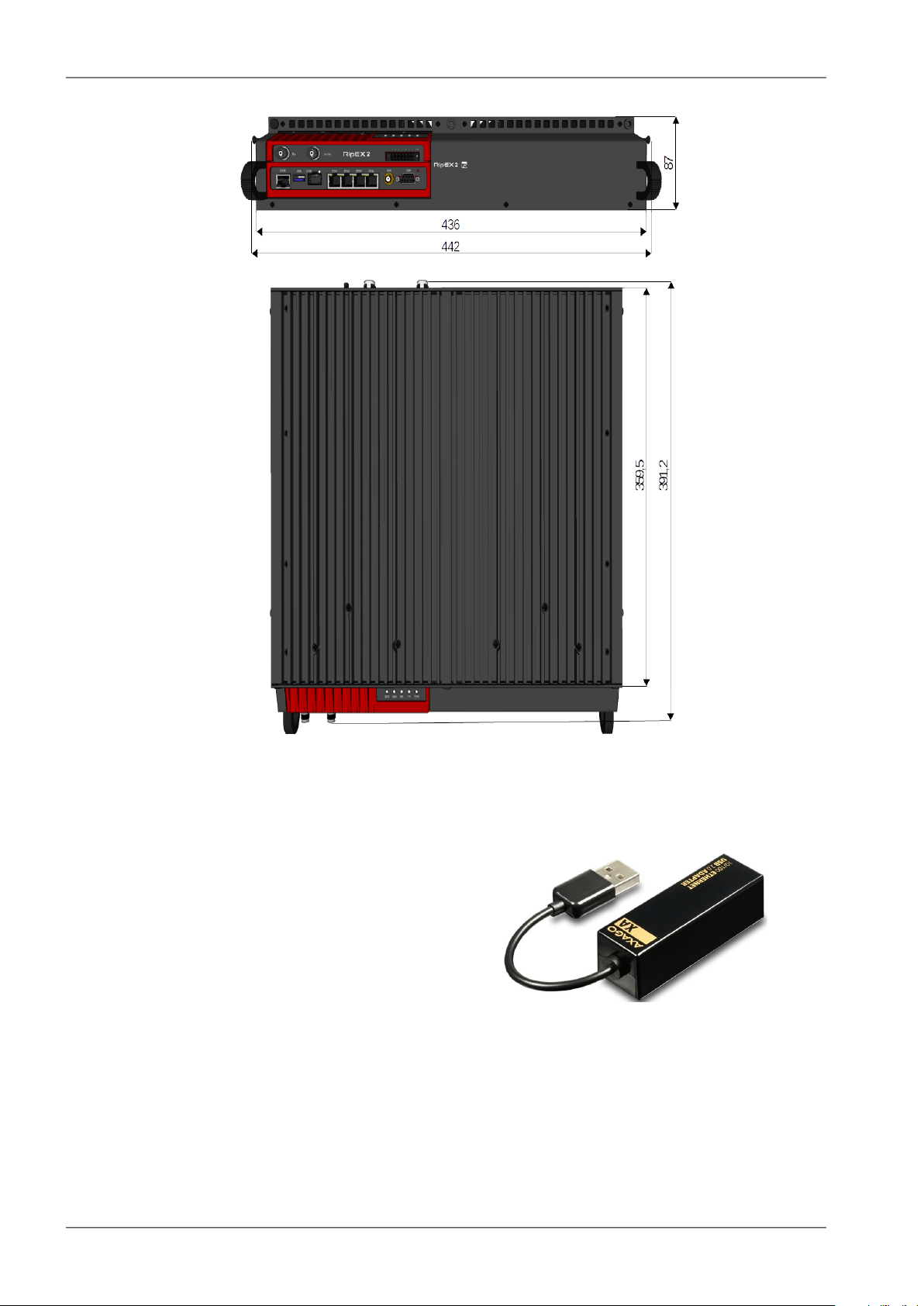

Fig. 2.3: RipEX2-RD

3. RipEX2-RS

25© RACOM s.r.o. – RipEX2 Radio modem & Router

Accessories

Fig. 2.4: RipEX2-RS

4. ETH/USB adapter

ETH/USB adapter for service access to the web interface via USB connector. Includes a built-in DHCP server which provides up to 5 leases. To access the RipEX always use the fixed IP

10.9.8.7. For details on use see Section 3.3, “Connecting RipEX2 to a programming PC”.

5. Wifi adapter

Fig. 2.5: ETH/USB adapter

RipEX2 Radio modem & Router – © RACOM s.r.o.26

Accessories

Wifi adapter for service access to the web interface via USB connector. Includes a built-in DHCP server which provides up to 5 leases. To access the RipEX always use the fixed IP

10.9.8.7. For details on use see Section 3.3, “Connecting RipEX2 to a programming PC”.

6. Demo case Fig. 2.6: WiFi adapter

A rugged plastic case for carrying up to three RipEX2's and one M!DGE2 4G SCADA router. It also contains all the accessories needed to perform an on-site signal measurement, complete application bench-test or a functional demonstration of both radiomodems and the 4G router.

Fig. 2.7: Demo case

Content:

• Brackets and cabling for installation of three RipEX2es and one M!DGE2 (units are not part of the delivery)

• 1× power supply Mean Well GST160A24-R7B (100-240 V AC 50-60 Hz/24 V DC)

• 1× Power cable (European Schuko CEE 7/7 to IEC 320 C13)

• 1× Ethernet patch cable (3 m, UTP CAT 5E, 2× RJ-45)

• Quick start guide

27© RACOM s.r.o. – RipEX2 Radio modem & Router

131

140

56,3

L - bracket

DIN Rail Clip

DIN 35 Rail

42,5

31,5

142,5

92,5

122

185

M4 (4x)

max. M4x6

Accessories

RipEX2 accessories:

• 3× Dummy load antennas

• 1× L-bracket, 1x Flat-bracket samples

• 1× ETH/USB adapter

• 1× Wifi adapter

M!DGE2 accessories:

• Stick antenna (900–2100 MHz, 2.2 dBi, vertical)

Mechanical properties of case

• Outside dimension: 455 × 365 × 185 mm

• Weight approx. 5,5 kg (excluding the RipEX and M!DGE units) / 10,6 kg (including 3x RipEX units and 1 M!dge unit)

7. L-bracket

Installation L bracket for vertical mounting. For details on use see chapter Mounting and chapter Dimensions.

Fig. 2.9: RipEX2 with L-bracket

8. Flat-bracket

Fig. 2.8: L-bracket

RipEX2 Radio modem & Router – © RACOM s.r.o.28

Installation bracket for flat mounting. For details

218

16,5

213

15,2

62,7

27,7

97,7

110,2

125,5

max. M4x8 mm

M3 (4x)

4,3 (2x)

2,5

on use see chapter Mounting.

Accessories

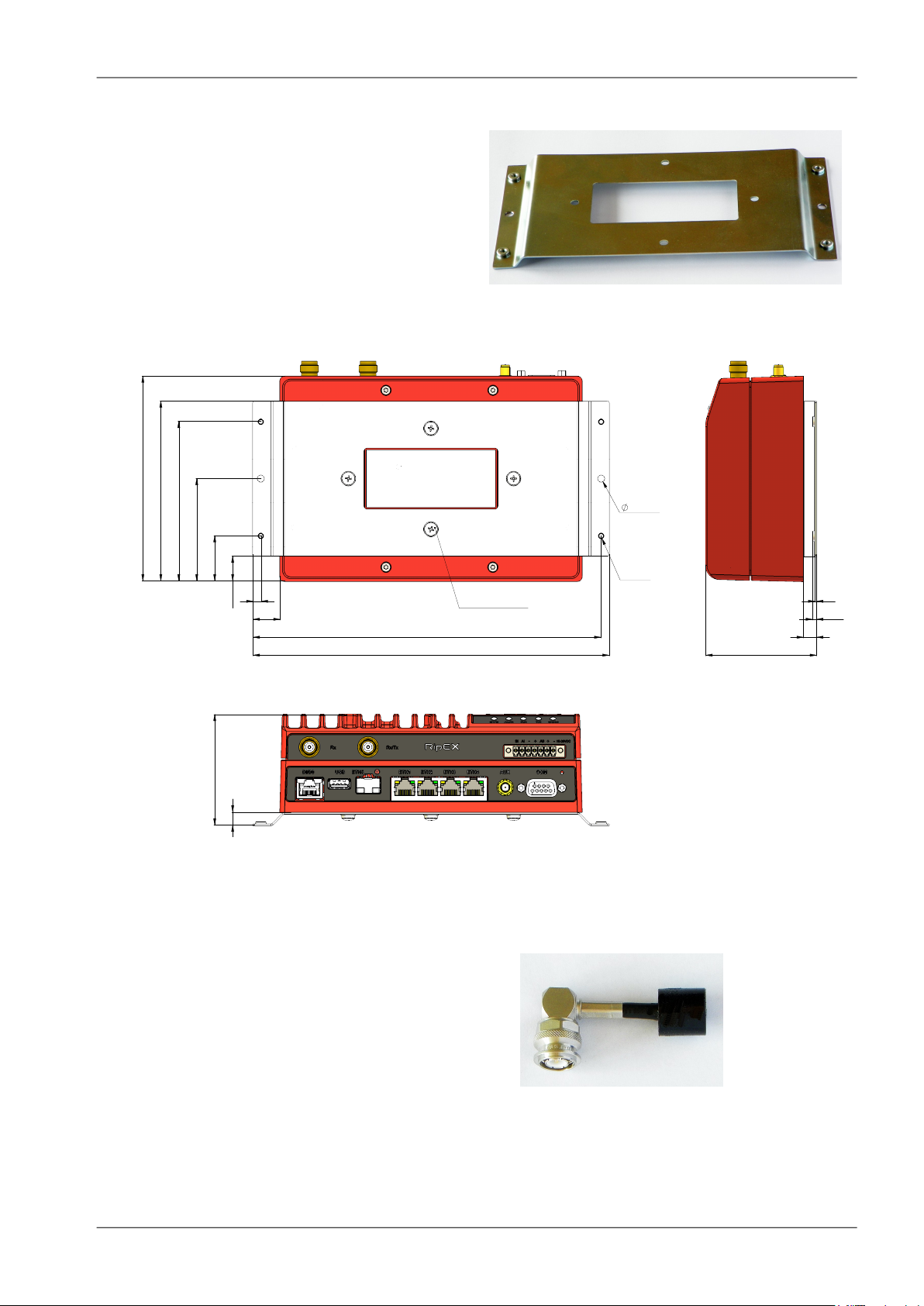

Fig. 2.10: Flat bracket

Fig. 2.11: RipEX2 with Flat-bracket

9. Dummy load antenna

Dummy load antenna for RipEX2 is used to test the configuration on a desk. It is unsuitable for higher output – use transmitting output of

1.0 W only.

Fig. 2.12: Dummy load antenna

29© RACOM s.r.o. – RipEX2 Radio modem & Router

Accessories

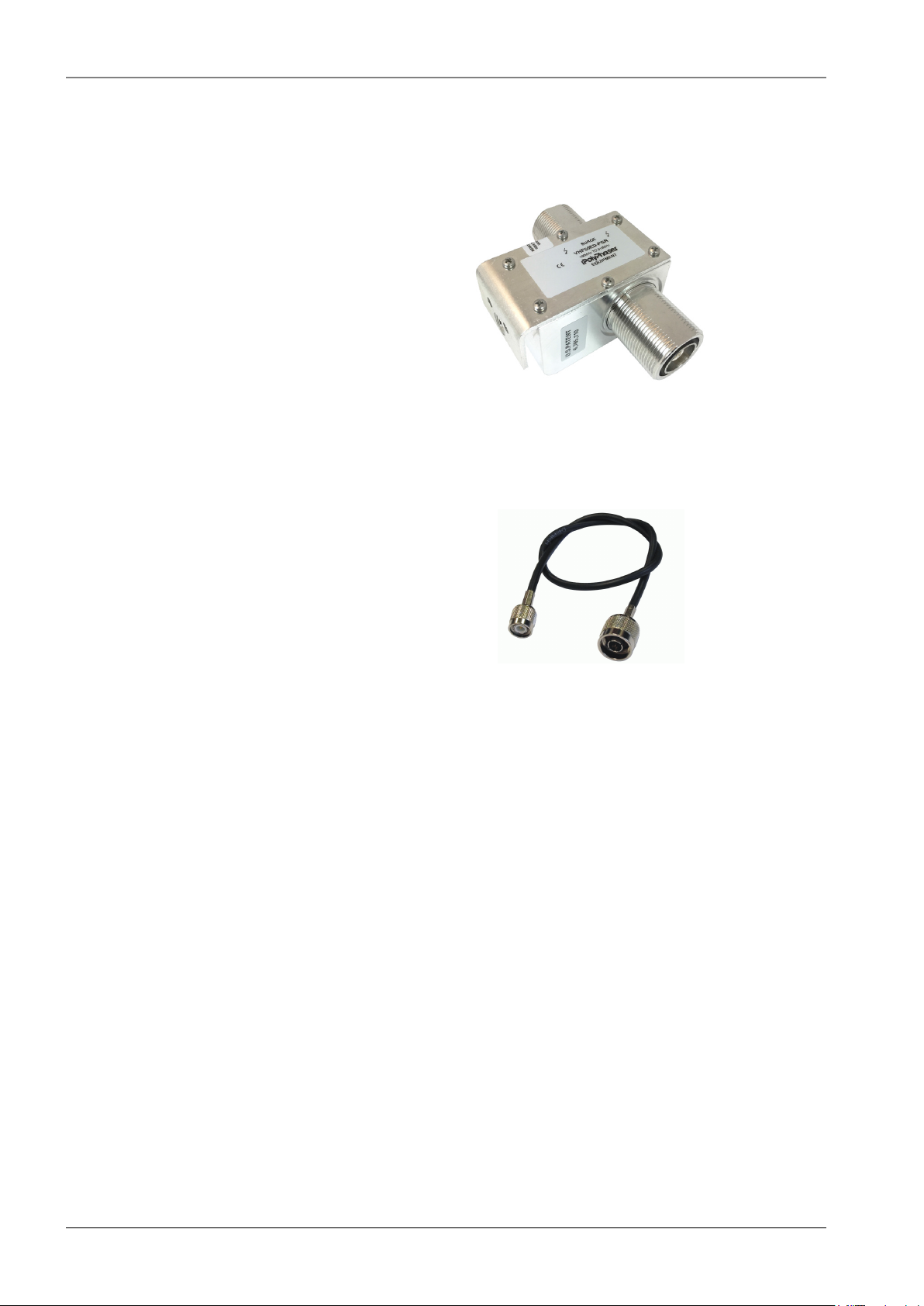

10. Coaxial overvoltage protection

Frequency range 100-512 MHz, connectors N(female) / N(female).

11. Feedline adapter cable

Fig. 2.13: Overvoltage protection

Feedline cable is 50 cm long and is made from the RG58 coaxial cable. There are TNC Male (RipEX2 side) and N Male connectors on the ends. It is intended for use between RipEX2 and cabinet panel.

Fig. 2.14: Feedline adapter cable

12. Others

For other accessories (Power supplies, Antennas, Coaxial overvoltage protection etc.) kindly visit

http://www.racom.eu/eng/products/radio-modem-ripex.html#accessories

2.1. Overview

2.2. Details

RipEX2 Radio modem & Router – © RACOM s.r.o.30

Center

24 VDC

Step-by-step guide

3. Step-by-step guide

3.1. Connecting the hardware

Before installing a RipEX2 network in the field, a bench-test should be performed in the lab. The RipEX2 Demo case is great for this as it contains everything necessary: 3 RipEX2’s, Power supply, dummy load antennas, etc.

If you use your own installation for lab tests, don’t forget:

• A dummy load or an actual antenna with 50 ohm impedance should be connected to the RipEX2

• The minimum RF output must be set to avoid overloading the dummy antenna and to keep the received signal at reasonable level, between -40 and -80 dBm.

• The power supplies must meet the requirements given in the specifications. Make sure the power supplies do not generate interference in the radio channel and that they can handle very fast changes in the load when RipEX2 switches from reception to transmission and back.

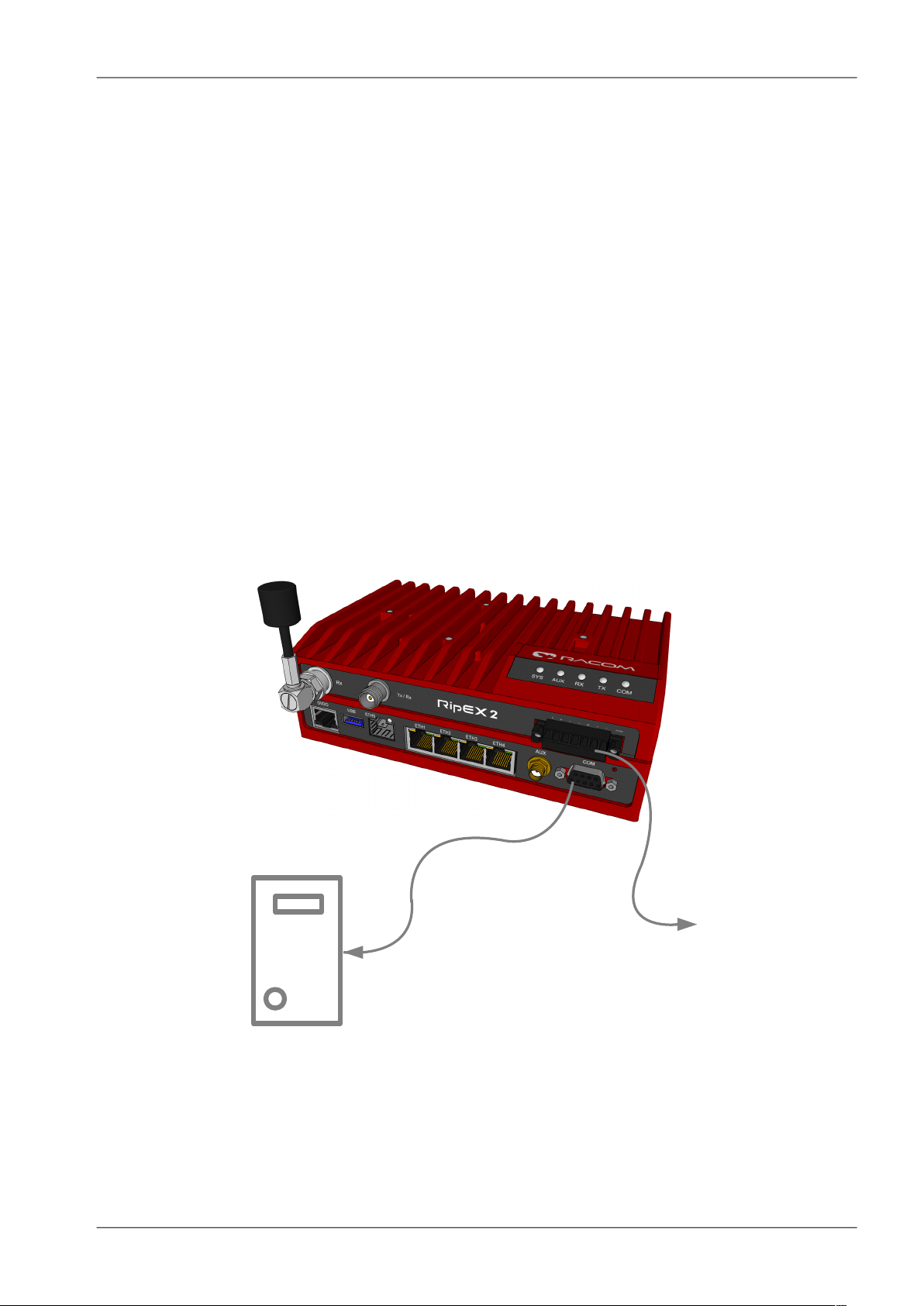

Bench test connection possibilities:

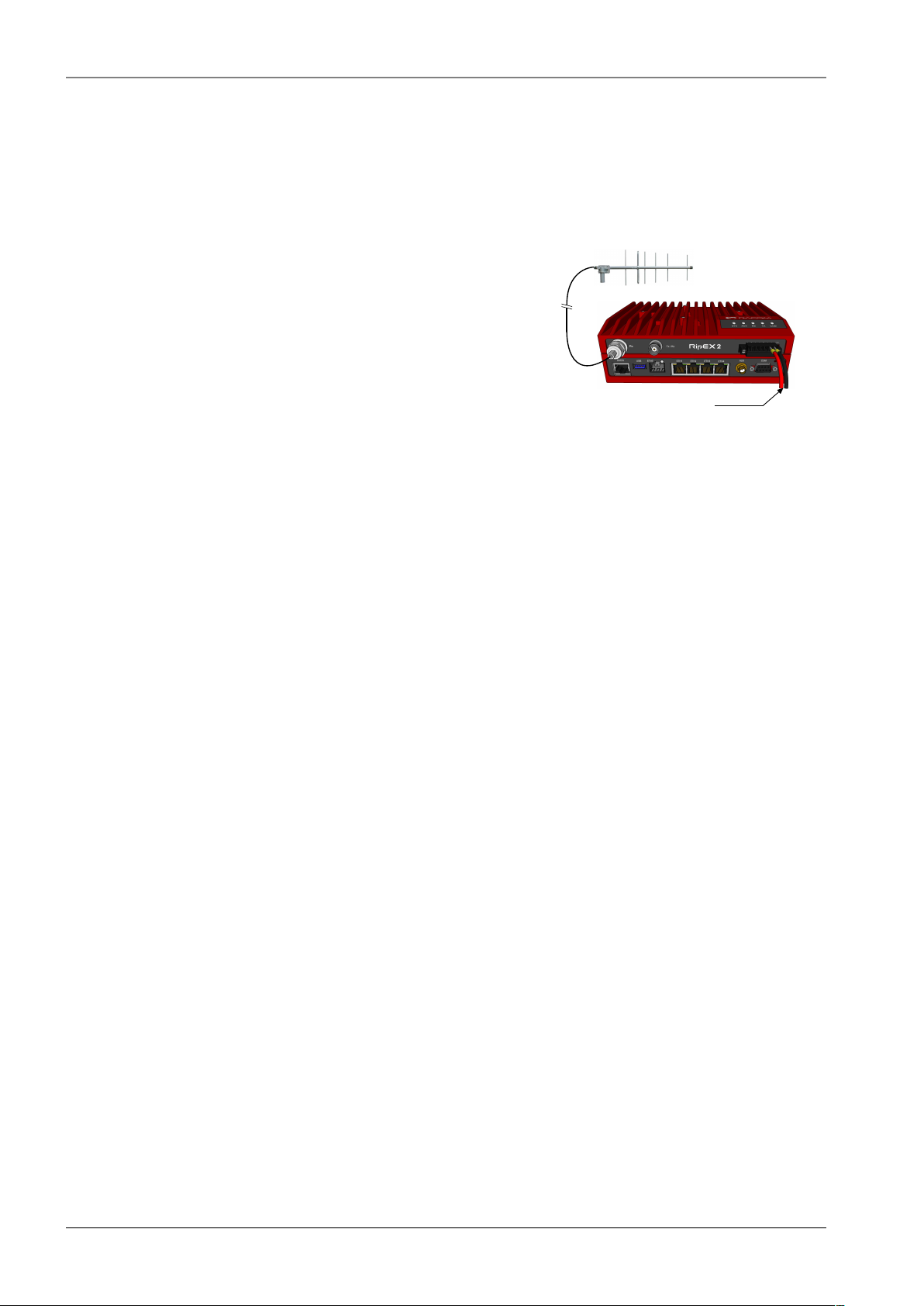

Fig. 3.1: 1.

31© RACOM s.r.o. – RipEX2 Radio modem & Router

RTU

24 VDC

Config PC

RTU

24 VDC

Step-by-step guide

Fig. 3.2: 2.

Fig. 3.3: 3.

3.2. Powering up your RipEX2

Switch on your power supply. LED PWR flashes quickly and after 8 seconds it switches to a green light. After approximately 30 seconds your RipEX will have booted and will be ready; the STATUS LED shines. You’ll find the description of the individual LED states in Section 1.3, “Indication LEDs”.

RipEX2 Radio modem & Router – © RACOM s.r.o.32

3.3. Connecting RipEX2 to a programming PC

https://10.9.8.7 PC DHCP

To configure a RipEX2 you can connect it to your PC in three ways:

1. Using the external Wifi adapter

2. Using the external ETH/USB adapter

3. Directly over the Ethernet interface

Step-by-step guide

Fig. 3.4: 1. Connecting to a PC over WiFi

Fig. 3.5: 2. Connecting to a PC over ETH.

33© RACOM s.r.o. – RipEX2 Radio modem & Router

https://192.168.168.169 PC 192.168.169.250

Step-by-step guide

Fig. 3.6: 3. Connecting to a PC over ETH/USB adapter.

1. PC connected via Wifi adapter

We recommend using the "W1" - external Wifi adapter (an optional accessory of the RipEX2). Connect your PC or tablet or smart phone to RipEX2 Wifi AP first. Its default SSID is “RipEX2 + Unit name + S/N”. The W1 contains a built-in DHCP server, so if you have a DHCP client in your PC (as most users do), you don’t need to set anything up. The RipEX2’s IP address for access over the ETH/USB adapter is fixed: 10.9.8.7.

Go to Login to RipEX.

2. PC connected via ETH/USB adapter

We recommend using the "XA" - external ETH/USB adapter (an optional accessory of the RipEX2). The ETH/USB contains a built-in DHCP server, so if you have a DHCP client in your PC as most users, you don’t need to set anything up. The RipEX2’s IP address for access over the ETH/USB adapter is fixed: 10.9.8.7.

Go to Login to RipEX.

3. PC connected directly to ETH port

Set a static IP address in PC, example for Windows XP:

Start > Settings > Network & Internet >Ethernet > Change adapter options > Ethernet (right click)

> Properties > Protocol IP version 4 (TCP/IPv4) > Properties > Use the following IP address: IP address 192.168.169.169 - for RipEX in the default state Subnet mask 255.255.255.0 Default gateway leave empty

RipEX2 Radio modem & Router – © RACOM s.r.o.34

OK (Internet Protocol Properties window) OK (Local Area Properties window) Some Operating systems may require you to reboot your PC.

Step-by-step guide

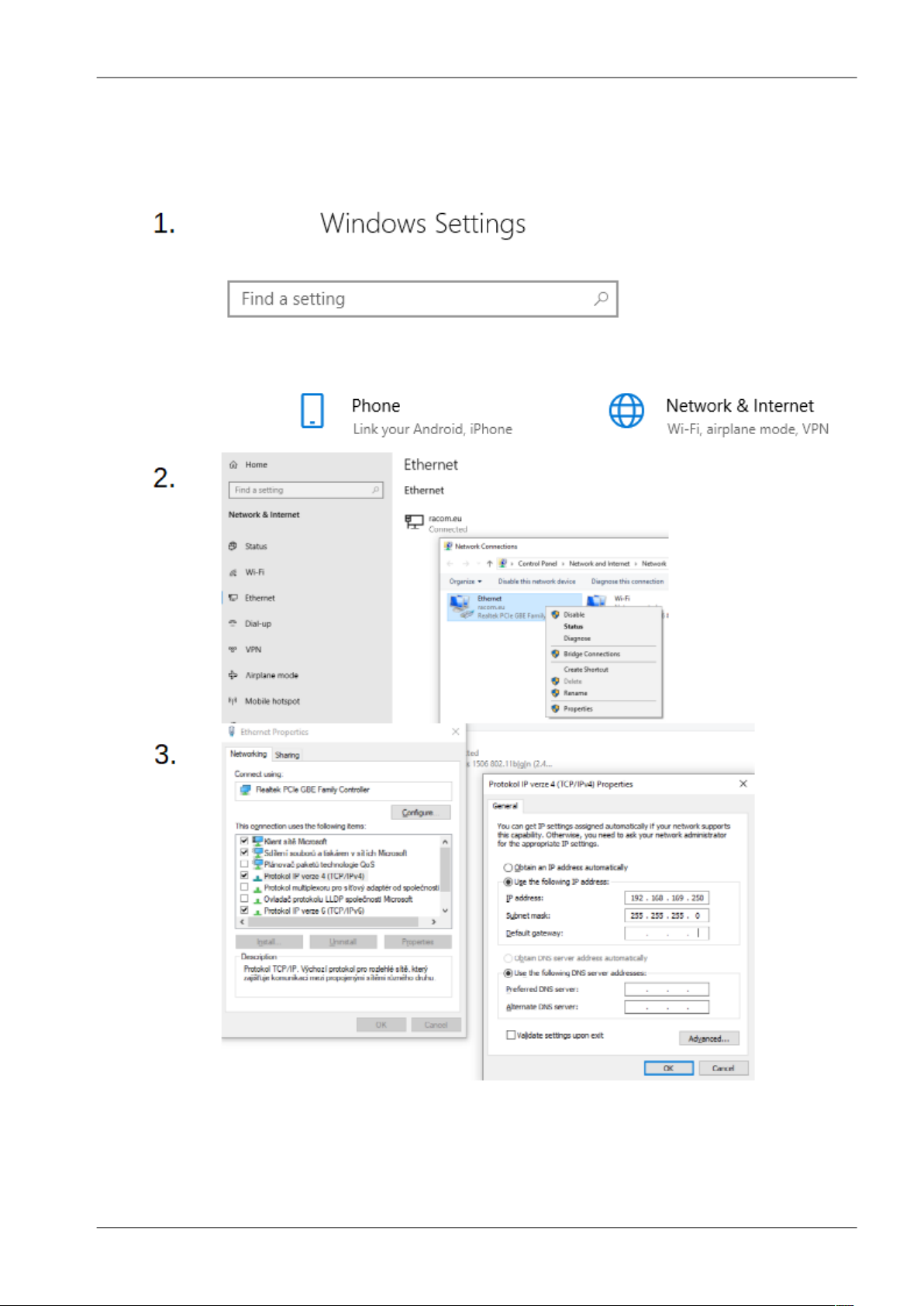

Fig. 3.7: PC address setting

35© RACOM s.r.o. – RipEX2 Radio modem & Router

Step-by-step guide

Important

When you change the RipEX2 ETH address from the default value later on and the new IP network does not include the default one, you will have to change your PC's static IP again to be able to continue configuring the RipEX2.

4. Login to RipEX2

Start a web browser (Mozilla Firefox, Internet Explorer - JavaScript enabled) on your PC and type the RipEX’s default IP in the address line default IP address in the address line field:

• 10.9.8.7 – when connected via external ETH/USB or Wifi adapter. IP address 10.9.8.7 is fixed

and cannot be changed; it is independent of the IP address of the RipEX’s Ethernet interface.)

• 192.168.169.169 – when connected directly to ETH

RipEX2 Radio modem & Router – © RACOM s.r.o.36

Step-by-step guide

Note

https - For security reasons the http protocol with ssl encryption can be used for the com-

munication between the PC and RipEX. The https protocol requires a security certificate. You must install this certificate into your web browser (Mozilla Firefox, Internet Explorer). The first time you connect to the RipEX, your computer will ask you for authorisation to import the certificate into your computer. The certificate is signed by the certification authority Racom s.r.o. It meets all security regulations and you need not be concerned about importing it into your computer. Confirm the import with all warnings and exceptions that your browser may display during installation.

The login screen appears:

TBD

The default entries for a new RipEX are:

TBD

Warning: Before you start any configuration, make sure only one unit is powered ON. Otherwise, a different radio modem could reply to your requests! (All units share the same IP address and are in Bridge mode when in factory settings.)

5. IP address unknown

If you don’t have the adapter or you have forgotten the password, you can reset the access parameters to defaults, see Section 1.2.9, “HW button”.

3.4. Basic setup

For the first functionality test we recommend that you use the setup wizard. The wizard will guide you

through basic functionality setup. Simply select Wizard in the web interface and proceed according to

the information on the screen. Repeat for all RipEX’s in the test network.

If you want to test applications which require a more complex setup, see ???. To setup the IP addresses

you can use the examples in Appendix A, Abbreviations [75] as your models, or the RipEX-App. notes,

Address planing1.

3.5. Functional test

To test radio communication between the RipEX’s you can use the Ping test, under Diagnostic/Ping

menu. Setting up and the output of this test are described in chapter Adv. Conf., Tools.

If the radio communication between RipEX’s is functional, you can proceed with a test of communication

between the connected devices.

You can monitor the status of configuration using the diodes on the LED panel, see Appendix A, Ab-

breviations [75].

http://www.racom.eu/eng/products/m/ripex/app/routing.html

37© RACOM s.r.o. – RipEX2 Radio modem & Router

Installation

4. Installation

Step-by-step checklist

Mount RipEX into cabinet (Section 4.1, “Mounting”).

Install antenna (Section 4.2, “Antenna installation”).

Install feed line (Section 4.3, “Antenna feed line”).

Ensure proper grounding (Section 4.4, “Grounding”).

Run cables and plug-in all connectors except from the SCADA equipment (Section 1.2, “Connectors”).

6. Apply power supply to RipEX2.

Connect configuration PC (Section 3.3, “Connecting RipEX2 to a programming PC”).

8. Configure RipEX2 (follow the SW manual).

9. Test radio link quality (follow the SW manual).

10. Check routing by the ping tool (follow the SW manual) to verify accessibility of all IP addresses with which the unit will communicate.

11. Connect the SCADA equipment

12. Test your application.

RipEX2 Radio modem & Router – © RACOM s.r.o.38

Installation

4.1. Mounting

4.1.1. DIN rail mounting

The radio modem RipEX2 is directly mounted using clips to the DIN rail. The mounting can be done lengthwise (recommended) or widthwise; in both cases with the RipEX2 lying flat. The choice is made by mounting the clips, one M4 screw per clip. RipEX2 is delivered with two clips, two screws and four threaded holes. Only use the M4×5 mm screws that are supplied.

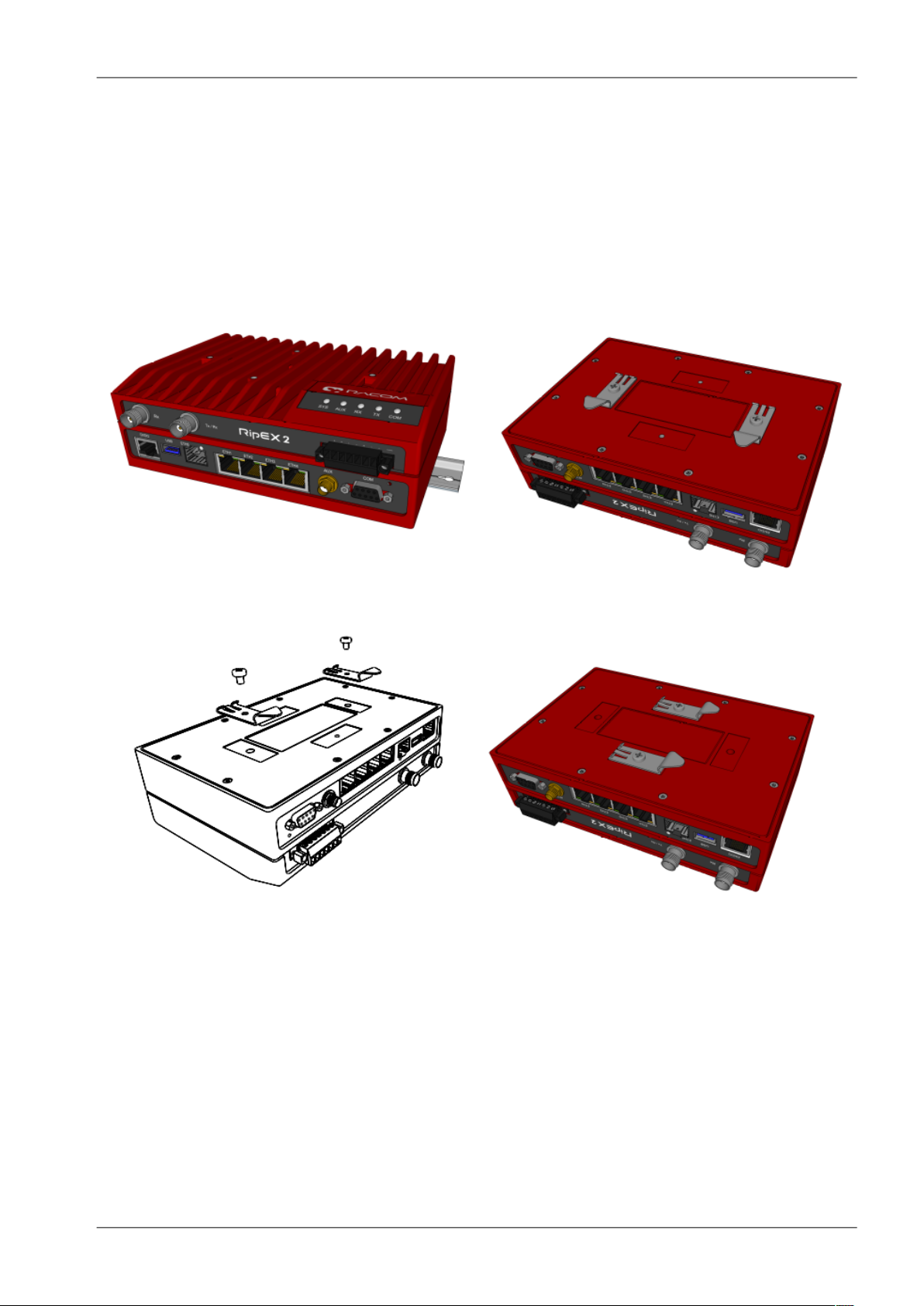

Fig. 4.1: Flat lengthwise mounting to DIN rail – recommended

Fig. 4.2: Flat widthwise mounting to DIN rail

When tightening the screw on the clip, leave a 0,5 mm gap between the clip and the washer.

39© RACOM s.r.o. – RipEX2 Radio modem & Router

Installation

Fig. 4.3: Clip mounting

For vertical mounting to DIN rail, L-bracket (optional accessory) is used. Only use the M4×5 mm screws that are supplied.

Fig. 4.4: Vertical widthwise mounting to DIN rail

Fig. 4.5: Vertical lengthwise mounting to DIN rail

For more information see Chapter 2, Accessories – L-bracket.

RipEX2 Radio modem & Router – © RACOM s.r.o.40

Installation

4.1.2. Flat mounting

For flat mounting directly to the support you must use the Flat bracket (an optional accessory). Only use the M4×5 mm screws that are supplied.

Fig. 4.6: Flat mounting using Flat bracket

Fig. 4.7: Flat mounting using Flat bracket

For more information see Chapter 2, Accessories – Flat-bracket.

41© RACOM s.r.o. – RipEX2 Radio modem & Router

Installation

4.1.3. IP52 mounting

To meet IP52 protection requirements RipEX2 unit must be physically installed with the connectors facing downward.

4.2. Antenna installation

The type of antenna best suited for the individual sites of your network depends on the layout of the network and your requirements for signal level at each site. Proper network planning, including field signal measurements, should decide antenna types in the whole network. The plan will also determine what type of mast or pole should be used, where it should be located and where the antenna should be directed to.

The antenna pole or mast should be chosen with respect to antenna dimensions and weight, to ensure adequate stability. Follow the antenna manufacturer’s instructions during installation.

The antenna should never be installed close to potential sources of interference, especially electronic devices like computers or switching power supplies. A typical example of totally wrong placement is mount a whip antenna directly on top of the box containing all the industrial equipment which is supposed to communicate via RipEX2, including all power supplies.

Additional safety recommendations

Only qualified personnel with authorization to work at heights are entitled to install antennas on masts, roofs and walls of buildings. Do not install the antenna in the vicinity of electrical lines. The antenna and brackets should not come into contact with electrical wiring at any time.

The antenna and cables are electrical conductors. During installation electrostatic charges may build up which may lead to injury. During installation or repair work all open metal parts must be temporarily grounded.

The antenna and antenna feed line must be grounded at all times.

Do not mount the antenna in windy or rainy conditions or during a storm, or if the area is covered with snow or ice. Do not touch the antenna, antenna brackets or conductors during a storm.

4.3. Antenna feed line

The antenna feed line should be chosen so that its attenuation does not exceed 3 to 6 dB as a rule of thumb. Use 50 Ω impedance cables only.

The shorter the feed line, the better. If RipEX2 is installed close to antenna, the data cable can be replaced by an Ethernet cable for other protocols utilizing the serial port, see Advanced Configuration, Terminal server. This arrangement is recommended especially when the feed line would be very long otherwise (more than 15 meters) or the link is expected to operate with low fading margin.

Always follow the installation recommendations provided by the cable manufacturer (bend radius, etc.). Use suitable connectors and install them diligently. Poorly attached connectors increase interference and can cause link instability.

RipEX2 Radio modem & Router – © RACOM s.r.o.42

Installation

4.4. Grounding

To minimize the odds of the transceiver and the connected equipment receiving any damage, a safety ground (NEC Class 2 compliant) should be used, which bonds the antenna system, transceiver, power supply, and connected data equipment to a single-point ground, keeping the ground leads short.

The RipEX2 radio modem is generally considered adequately grounded if the supplied flat mounting brackets are used to mount the radio modem to a properly grounded metal surface. If the radio modem is not mounted to a grounded surface, you should attach a safety ground wire to one of the mounting brackets or a screw on the radio modem’s casing.

A lightning protector should be used where the antenna cable enters the building. Connect the protector to the building grounding, if possible. All grounds and cabling must comply with the applicable codes and regulations.

4.5. Connectors

RipEX2 uses standard connectors. Use only standard counterparts to these connectors.

You will find the connectors’ pin-outs in chapter Section 1.2, “Connectors”.

43© RACOM s.r.o. – RipEX2 Radio modem & Router

+10 to +30 V

Installation

4.6. Power supply

We do not recommend switching on the RipEX2’s power supply before connecting the antenna and other devices. Connecting the RTU and other devices to RipEX2 while powered increases the likelihood of damage due to the discharge of difference in electric potentials.

RipEX2 may be powered from any well-filtered 10 to 30 VDC power source. The supply must be capable of providing the required input for the projected RF output. The power supply must be sufficiently stable so that voltage doesn’t drop when switching from receiving to transmission, which takes less than 1.5 ms. To avoid radio channel interference, the power supply must meet all relevant EMC standards. Never install a power supply close to the antenna. Maximal supply cable length is 3 m minus pole of the power supply. Connector is internally connected to the casing of the RipEX2 unit.

Fig. 4.8: 10–30 VDC Supplying

RipEX2 Radio modem & Router – © RACOM s.r.o.44

5. Advanced Configuration

For configuration please follow the SW manual.

Advanced Configuration

45© RACOM s.r.o. – RipEX2 Radio modem & Router

CLI Configuration

6. CLI Configuration

TBD

6.1. CLI Examples

TBD

RipEX2 Radio modem & Router – © RACOM s.r.o.46

7. Troubleshooting

TBD

Troubleshooting

47© RACOM s.r.o. – RipEX2 Radio modem & Router

Technical parameters

8. Technical parameters

Tab. 8.1: Technical parameters

Radio parameters

400-470 MHzFrequency bands

6.25 / 12.5 / 25 / 50 / 100 / 150 / 200 kHzChannel spacing ±1.0 ppm, ±0.01 ppm with GPS optionFrequency stability

Modulation

Data speed (up to)

Transmitter

RF Output power (Both Carrier and Modulated)

Receiver

QAM: 256QAM, 64QAM,16DEQAM, D8PSK, π/4DQPSK, DPSK FSK: 4CPFSK, 2CPFSK

>1.4 Mbps@200 kHz, >1.1 Mbps@150kHz, >700kbps@100kHz, > 400 kbps@50 kHz; >200 kbps@25 kHz; >100 kbps@12.5 kHz; >50 kbps@6,25 kHz

[1]

On/Off, 2/3, 3/4, 5/6 Trellis code with Viterbi soft-decoderFEC (Forward Error Correction)

QAM: 0.1- 5.0 W (20 - 37 dBm) in 1dB step FSK: 0.1 - 10 W (20 - 40 dBm) in 1 dB step

[2][3]

[4]

ContinuousDuty cycle < 1.5 ms / 25 kHz channelRx to Tx Time > 40 dB, > 70 dB (with external circulator/isolator)Intermodulation Attenuation < −36 dBmSpurious Emissions (Conducted) < −36 dBmRadiated Spurious Emissions < −60 dBcAdjacent channel power < −60 dBcTransient adjacent channel power

Sensitivity

Anti-aliasing Selectivity

see details

56 kHz @ −3 dB BW applicable for 6.25/12.5/25 kHz

500 kHz @ −3 dB BW applicable for 50/100/150/200 kHz < 1.5 ms / 25 kHz channelTx to Rx Time 20 dBm (100 mW)Maximum Receiver Input Power < −57 dBmRx Spurious Emissions (Conducted) < −57 dBmRadiated Spurious Emissions >-23 dBm @ 1MHz

Blocking or desensitization

>-19 dBm @ 2MHz >-15 dBm @ 5MHz >-13 dBm @ 10MHz

> 70 dBSpurious response rejection

[1]

This is gross data speed in above table. User data speed varies and depends heavily

on the data structure, optimization effectivity, protocol on Radio channel, signal budgets and many other parameters of the network. Practical tests are recommended.

[2]

Output power displayed as average power, Max peak envelope power (PEP) 10 W (40 dBm)

[3]

Modulation dependent (DPSK 5 W … QAM256 2W)

RipEX2 Radio modem & Router – © RACOM s.r.o.48

[4]

For output power 10 W it is recommended to use input power above 11 VDC.

Technical parameters

49© RACOM s.r.o. – RipEX2 Radio modem & Router

Technical parameters

Electrical

Interfaces

Ethernet

10 to 30 VDC, negative GNDPrimary power 8 W / 13.8 VRx typ. 40 W, max. 55 W @ 40 dBmTx - FSK typ. 33 W, max. 40 W @ 40 dBm PEPTx - QAM

0.01 WSleep mode 5 WSave mode

4×RJ45, 1×SFP10/100 Base-T Auto MDI/MDIX 10/100/1000 Base-T 1000Base-SX / 1000 Base-LX

COM

GPS

DB9FRS232/RS485 SW configurable 300 bps – 1 Mbps

Host AUSB 3.0USB

2×TNC female50 ΩAntenna

RJ452×DI, 2×DO, 1×DDIDI / DO active antenna 3.3 VDC SMA femaleGPS 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS

L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN

LED panel

SYS, AUX, RX, TX, COM5× tri-color status LEDs

Environmental

IP42, IP52IP Code (Ingress Protection) > 900.000 hours (> 100 years)MTBF (Mean Time Between Failure)

−40 to +70 °C (−40 to +158 °F)Operating temperature 5 to 95 % non-condensingOperating humidity

−40 to +85 °C (−40 to +185 °F) / 5 to 95 % non-condensingStorage

Mechanical

User protocols on COM

User protocols on Ethernet

Protocol on Radio channel

Rugged die-cast aluminiumCasing 60 H × 185 W × 125 mm D (2.34× 7.2 × 4.9 in)Dimensions

1.55 kg (3.4 lbs)Weight DIN rail, L-bracket, Flat-bracket, 19" Rack shelfMounting

Bridge / RouterOperating modes Modbus, IEC101, DNP3, PR2000, UNI, Comli, DF1, RP570,

Profibus, … Modbus TCP, IEC104, DNP3 TCP, Comli TCP,

Terminal server… Modbus RTU / Modbus TCP, DNP3 / DNP3 TCPSerial to IP convertors

RipEX2 Radio modem & Router – © RACOM s.r.o.50

Technical parameters

YesMulti master applications YesReport by exception YesCollision Avoidance Capability YesRemote to Remote communication

Addressed & acknowledged serial SCADA protocols

Diagnostic and Management

Watched values (Can be broadcast to neighbouring units. Received info displayed in Neighbours table)

Statistics

Graphs)

SNMP

Yes

CRC 32Data integrity control AES256Encryption up to 3× higher throughputOptimization

Yes (ping with RSS, Data Quality, Homogeneity)Radio link testing Device – Ucc, Temp, PWR, VSWR, *HW Alarm Input.

Radio channel – *RSScom, *DQcom, TXLost[%] User interfaces – ETH[Rx/Tx], COM[Rx/Tx] * not broadcast

For Rx/Tx Packets on User interfaces (ETH, COM) and for User data and Radio protocol (Repeats, Lost, ACK etc.) on Radio channel

For Watched values and StatisticsGraphs 20 periods (configurable, e.g. days)History (Statistics, Neighbours,

SNMPv1, SNMPv2c, SNMPv3 Trap / Inform alarms generation as per settings

Monitoring

Standards

Spectrum

EMC (electromagnetic compatibility)

ment

SAR

Real time/Save to file analysis of all physical interfaces (RADIO, ETH, COM) and some internal interfaces between software modules (e.g. Terminal servers, Modbus TCP server etc.)

RED, RoHS, WEEECE pendingFCC, ATEX ETSI EN 302 561 V2.1.1

ETSI EN 300 113 V2.2.1 ETSI EN 301 489-1 V2.1.1

ETSI EN 301 489-5 V2.1.1 IEEE 1613:2009 Class 1 - pendingElectric power substations environ-

EN 62 368-1:2004 + A1:2017Safety EN 50385:2017

EN 50383ed.2:2010 pendingVibration & shock pendingSeismic qualification EN 60529:1993 + A1:2001 + A2:2014IP rating

51© RACOM s.r.o. – RipEX2 Radio modem & Router

Technical parameters

Tab. 8.2: List of connected cables

Input, HW Alarm Output)

COM (RS232/485)

ETH (4 ports)

Optical Ethernet

Specified lengthInput / Output

15 m (RS232) or 1.2 km (RS485)

100 m

2 km

Shielded /

Nonshielded

Recommended

cable type

V03VH-H 2×0,5NAs neededDC power supply 10 – 30 V LiYCY 6×0,14SAs neededGPIO (Sleep Input, HW Alarm

CoaxialSAs neededAntenna connection Rx, Rx/Tx LiYCY 4×0,14SAs needed, typically up to

CoaxialSAs neededAUX (used for GPS) STP CAT 5eSAs needed, typically up to

Optical fibreN/AAs needed, typically up to

USB3SMax. 3 mUSB STP CAT 5eSAs neededDI / DO

RipEX2 Radio modem & Router – © RACOM s.r.o.52

8.1. Detailed Radio parameters

Tab. 8.3: 12.5 kHz

12.5 kHz Rx Baudrate 10.42 kBaud (ETSI EN 300 113)

ModulationFECkbps

BER 10

Technical parameters

Co-Channel

Rejection

RatioSensitivity [dBm]Classification

-2

BER 10

-3

BER 10

-6

-7-117-119-1202CPFSK0.753.91

-10-115-118-1202CPFSK1.005.21

-11-114-117-1194CPFSK0.757.81

-6-112-115-1184CPFSK1.0010.42

-6.5-114-118-119DPSK0.757.81

-5-112-117-119DPSK1.0010.42

-9-113-117-118π/4-DQPSK0.7515.62

-10-110-115-117π/4-DQPSK1.0020.83

12.5 kHz

Baudrate 5.21 kBaud (ETSI EN 300 113)

Baudrate 8.68 kBaud (ETSI EN 300 113)

-12-108-113-116D8PSK0.7523.44

-14-103-109-113D8PSK1.0031.25

-16-103-109-11216DEQAM0.7531.25

-18.5-99-106-10916DEQAM1.0041.67

-19-99-106-11064QAM0.7546.88

-22.5-94-101-10564QAM1.0062.50

-22-95-102-105256QAM0.7562.50

-28.5-90-97-100256QAM1.0083.33

OBW [kHz]Emmision codeModulationBitrate [kbps]

7.07K00F1DBN2CPFSK5.21

7.07K00F1DDN4CPFSK10.42

10.010K0G1DBNDPSK8.68

10.010K0G1DDNπ/4-DQPSK17.36

Baudrate 10.42 kBaud (ETSI EN 300 113)

10.010K0G1DEND8PSK26.04

10.010K0G1DEN16DEQAM34.72

10.010K0G1DEN64QAM52.08

10.010K0G1DEN256QAM69.44

11.911K9G1DBNDPSK10.42

11.911K9G1DDNπ/4-DQPSK20.83

11.911K9G1DEND8PSK31.25

53© RACOM s.r.o. – RipEX2 Radio modem & Router

Technical parameters

Tab. 8.4: 25 kHz

25 kHz Rx Baudrate 20.83 (ETSI EN 300 113)

ModulationFECkbps

BER 10

-2

BER 10

11.911K9G1DEN16DEQAM41.67

11.911K9G1DEN64QAM62.50

11.911K9G1DEN256QAM83.33

Co-Channel

Rejection

RatioSensitivity [dBm]Classification

-3

BER 10

-6

-6-115-117-1182CPFSK0.757.81

-7-113-116-1182CPFSK1.0010.42

-10-112-115-1174CPFSK0.7515.63

-6-109-113-1154CPFSK1.0020.83

-6-112-116-117DPSK0.7515.62

-6-110-115-117DPSK1.0020.83

25 kHz

Baudrate 10.42 kBaud (ETSI EN 300 113)

Baudrate 13.89 kBaud (ETSI EN 300 113)

-9-111-115-116π/4-DQPSK0.7531.25

-10-108-113-115π/4-DQPSK1.0041.66

-12-106-111-113D8PSK0.7546.87

-14.5-101-107-110D8PSK1.0062.49

-16-101-107-11016DEQAM0.7562.49

-18.5-98-105-10816DEQAM1.0083.32

-19-97-104-10864QAM0.7593.75

-22.5-92-99-10464QAM1.00125.00

-22-93-100-103256QAM0.75125.00

-28.5-88-95-98256QAM1.00166.67

OBW [kHz]Emmision codeModulationBitrate [kbps]

13.813K8F1DBN2CPFSK10.42

13.813K80F1DDN4CPFSK20.83

Baudrate 17.36 kBaud (ETSI EN 300 113, ETSI EN 302 561)

RipEX2 Radio modem & Router – © RACOM s.r.o.54

15.915K9G1DBNDPSK13.89

15.915K9G1DDNπ/4-DQPSK27.78

15.915K9G1DEND8PSK41.67

15.915K9G1DEN16DEQAM55.56

15.915K9G1DEN64QAM83.33

15.915K9G1DEN256QAM111.11

19.819K8G1DBNDPSK17.36

Tab. 8.5: 50 kHz

Technical parameters

19.819K8G1DDNπ/4-DQPSK34.72

19.819K8G1DEND8PSK52.08

19.819K8G1DEN16DEQAM69.44

19.819K8G1DEN64QAM104.17

19.819K8G1DEN256QAM138.89

Baudrate 20.83 kBaud (ETSI EN 302 561)

24.024K0G1DBNDPSK20.83

24.024K0G1DDNπ/4-DQPSK41.67

24.024K0G1DEND8PSK62.50

24.024K0G1DEN16DEQAM83.33

24.024K0G1DEN64QAM125.00

24.024K0G1DEN256QAM166.67

50 kHz Rx Baudrate 41.67 kBaud (ETSI EN 300 561)

[kbps]

Sensitivity [dBm]Classification

Co-Channel

Rejection

ModulationFECBitrate

BER 10

-2

BER 10

-3

-6

[dB]BER 10

-7-109-113-114DPSK0.7531.25

-7-107-112-114DPSK1.0041.67

-10-108-112-113π/4-DQPSK0.7562.50

-11-105-110-112π/4-DQPSK1.0083.33

-13-103-108-110D8PSK0.7593.75

-15-98-104-107D8PSK1.00125.00

-17-98-104-10716DEQAM0.75125.00

-19-95-102-10516DEQAM1.00166.67

-20-94-101-10564QAM0.75187.50

-23-89-96-10164QAM1.00250.00

-23-90-97-100256QAM0.75250.00

-31-85-92-95256QAM1.00333.33

50 kHz

Baudrate 34.72 kBaud (ETSI EN 302 561)

OBW [kHz]Emmision codeModulationBitrate [kbps]

40.040K0G1DBNDPSK34.72

40.040K0G1DDNπ/4-DQPSK69.44

40.040K0G1DEND8PSK104.17

40.040K0G1DEN16DEQAM138.89

40.040K0G1DEN64QAM208.33

40.040K0G1DEN256QAM277.78

55© RACOM s.r.o. – RipEX2 Radio modem & Router

Technical parameters

Tab. 8.6: 100 kHz

Baudrate 41.67 (ETSI EN 302 561)

45.045K0G1DBNDPSK41.67

45.045K0G1DDNπ/4-DQPSK83.33

45.045K0G1DEND8PSK125.00

45.045K0G1DEN16DEQAM166.67

45.045K0G1DEN64QAM250.00

45.045K0G1DEN256QAM333.33

100 kHz Rx Baudrate 69.44 kBaud (ETSI EN 300 561)

[kbps]

Sensitivity [dBm]Classification

Co-Channel

Rejection

ModulationFECBitrate

BER 10

-2

BER 10

-3

-6

[dB]BER 10

-7-106-110-112DPSK0.7552.08

-7-104-109-111DPSK1.0069.44

-10-105-109-111π/4-DQPSK0.75104.17

-11-102-108-110π/4-DQPSK1.00138.89

-13-100-105-108D8PSK0.75156.25

-15-95-101-105D8PSK1.00208.33

-17-95-101-10416DEQAM0.75208.33

-19-92-99-10216DEQAM1.00277.78

-20-91-98-10264QAM0,75312.50

-23-86-93-9864QAM1.00416.66

-23-86-94-98256QAM0,75416.66

-31-83-89-93256QAM1.00555.55

100 kHz

Tab. 8.7: 150 kHz

Baudrate 69.44 kBaud (ETSI EN 302 561)

150 kHz Rx Baudrate 115.74 kBaud (ETSI EN 300 561)

Sensitivity [dBm]Classification

RipEX2 Radio modem & Router – © RACOM s.r.o.56

OBW [kHz]Emmision codeModulationBitrate [kbps]

80.080K0G1DBNDPSK69.44

80.080K0G1DDNπ/4-DQPSK138.89

80.080K0G1DEND8PSK208.33

80.080K0G1DEN16DEQAM277.78

80.080K0G1DEN64QAM416.66

80.080K0G1DEN256QAM555.55

Co-Channel

Rejection

Technical parameters

[kbps]

ModulationFECBitrate

BER 10

-2

BER 10

-3

-6

[dB]BER 10

-7-104-108-110DPSK0.7586.71

-7-102-107-109DPSK1.00115.74

-10-103-107-109π/4-DQPSK0.75173.61

-11-100-106-108π/4-DQPSK1.00231.48

-13-98-103-106D8PSK0.75260.42

-15-93-99-103D8PSK1.00347.22

-17-93-99-10216DEQAM0.75347.22

-19-90-97-10016DEQAM1.00462.96

-20-89-96-10064QAM0,75520.83

-23-84-91-9664QAM1.00694.45

-23-84-92-96256QAM0,75694.45

-31-81-87-91256QAM1.00925.93

150 kHz

OBW [kHz]Emmision codeModulationBitrate [kbps]

Tab. 8.8: 200 kHz

[kbps]

Baudrate 115.74 kBaud (ETSI EN 302 561)

200 kHz Rx Baudrate 138.89 kBaud (ETSI EN 300 561)

Sensitivity [dBm]Classification

ModulationFECBitrate

BER 10

-2

BER 10

-3

125.0125KG1DBNDPSK115.74

125.0125KG1DDNπ/4-DQPSK231.48

125.0125KG1DEND8PSK347.22

125.0125KG1DEN16DEQAM462.96

125.0125KG1DEN64QAM694.45

125.0125KG1DEN256QAM925.93

-6

Co-Channel

Rejection

[dB]BER 10

-7-103-107-109DPSK0.75104.17

-7-101-106-108DPSK1.00138.89

-10-102-106-108π/4-DQPSK0.75208.33

-11-99-105-107π/4-DQPSK1.00277.78

-13-97-102-105D8PSK0.75312.50

-15-92-98-102D8PSK1.00416.67

-17-92-98-10116DEQAM0.75416.67

-19-89-96-9916DEQAM1.00555.55

-20-88-95-9964QAM0,75625.00

-23-83-90-9564QAM1.00833.33

Technical parameters

-23-83-91-95256QAM0,75833.33

-31-80-86-90256QAM1.001111.11

200 kHz

OBW [kHz]Emmision codeModulationBitrate [kbps]

Baudrate 138.89 kBaud (ETSI EN 302 561)

150.0150KG1DBNDPSK138.89

150.0150KG1DDNπ/4-DQPSK277.78

150.0150KG1DEND8PSK416.67

150.0150KG1DEN16DEQAM555.56

150.0150KG1DEN64QAM833.33

150.0150KG1DEN256QAM111.11

Tab. 8.9 Recommended MSE thresholds

Mean MSEFECModulation FEC

[dB][-]

For CPFSK dividing by 216was used

-100.752CPFSK

-111.002CPFSK

-120.754CPFSK

-151.004CPFSK

-100.75DPSK

-111.00DPSK

-120.75π/4-DQPSK

-141.00π/4-DQPSK

-170.758DPSK

-201.008DPSK

-190.7516DEQAM

-221.0016DEQAM

-240.7564QAM

-271.0064QAM

-300.75256QAM

-331.00256QAM

Technical parameters

Fig. 8.1: MSE recommended tresholds

Tab. 8.10 Maximal power for individual modulations

Average Power (RMS)PEP [dBm]Modulation

40 dBm40 dBm2CPFSK 40 dBm40 dBm4CPFSK 37 dBm40 dBmDPSK 37 dBm40 dBmπ/4DQPSK 36 dBm40 dBmD8PSK 35 dBm40 dBm16DEQAM 34 dBm40 dBm64QAM 33 dBm40 dBm256QAM

Safety, environment, licensing

9. Safety, environment, licensing

9.1. Frequency

The radio modem must be operated only in accordance with the valid frequency license issued by national frequency authority and all radio parameters have to be set exactly as listed.

Important

Use of frequencies between 406.0 and 406.1 MHz is worldwide-allocated only for International Satellite Search and Rescue System. These frequencies are used for distress beacons and are incessantly monitored by the ground and satellite Cospas-Sarsat system. Other use of these frequencies is forbidden.

9.2. Safety distance

Safety distances with respect to the health limits of the electromagnetic field intensity are in Minimum Safety Distance tables below, calculated for different antennas and RipEX2 power levels. The distances were calculated according to EN 50 385 and EN 50 383 and apply to the far-field region only. Whenever the result is comparable or smaller than the actual size of the respective antenna, the field intensity is even smaller than the far-field based calculation and the safety limit is never exceeded. For the output power 0.2 W or lower the safety limit is not exceeded at any distance and any of the antennas.

The minimal safe distance is typically ensured by the antenna position on a mast. When special installation is required, the conditions of the standard EN 50385: 2002 have to be met. The distance between the persons and antenna shown in the table below comply with all applicable standards for human exposure of general public to RF electromagnetic fields.

Tab. 9.1: Minimum Safety Distance 300–400 MHz

400 MHz/70 cm band – 10 W RF power

Dist. where the FCC limits are met for

Antenna

code

Antenna

code

Antenna description

400 MHz/70 cm band – 5 W RF power

Antenna description

Gain G

[dBi]

Gain G

[dBi]

Gain G

[–]

Gain G

[–]

General Population

/ Uncontrolled Ex-

posure [cm]

Dist. where the FCC limits are met for

General Population

/ Uncontrolled Ex-

posure [cm]

General Population / Controlled Expos-

ure [cm]

601302.94.6single dipoleOV380.1

801805.87.6stacked double dipoleOV380.2

801805.87.63 element directional YagiSA380.3

902007.48.75 element directional YagiSA380.5

14031017.812.59 element directional YagiSA380.9

General Population / Controlled Expos-

ure [cm]

Antenna

code

400 MHz/70 cm band – 5 W RF power

400 MHz/70 cm band – 4 W RF power

Antenna description

Gain G

[dBi]

Gain G

[–]

Safety, environment, licensing

40902.94.6single dipoleOV380.1

601305.87.6stacked double dipoleOV380.2

601305.87.63 element directional YagiSA380.3

701407.48.75 element directional YagiSA380.5

10022017.812.59 element directional YagiSA380.9

Dist. where the FCC limits are met for

General Population

/ Uncontrolled Ex-

posure [cm]

General Population / Controlled Expos-

ure [cm]

35802.94.6single dipoleOV380.1

501105.87.6stacked double dipoleOV380.2

501105.87.63 element directional YagiSA380.3

601307.48.75 element directional YagiSA380.5

Antenna

code

Antenna

code

400 MHz/70 cm band – 3 W RF power

Antenna description

400 MHz/70 cm band – 2 W RF power

Antenna description

Gain G

[dBi]

Gain G

[dBi]

Gain G

[–]

Gain G

[–]

9020017.812.59 element directional YagiSA380.9

Dist. where the FCC limits are met for

General Population

/ Uncontrolled Ex-

posure [cm]

Dist. where the FCC limits are met for

General Population

/ Uncontrolled Ex-

posure [cm]

General Population / Controlled Expos-

ure [cm]

30702.94.6single dipoleOV380.1

451005.87.6stacked double dipoleOV380.2

451005.87.63 element directional YagiSA380.3

501107.48.75 element directional YagiSA380.5

8017017.812.59 element directional YagiSA380.9

General Population / Controlled Expos-

ure [cm]

25602.94.6single dipoleOV380.1

Antenna

code

400 MHz/70 cm band – 1 W RF power

Antenna description

Gain G

[dBi]

35805.87.6stacked double dipoleOV380.2

35805.87.63 element directional YagiSA380.3

40907.48.75 element directional YagiSA380.5

7014017.812.59 element directional YagiSA380.9

Dist. where the FCC limits are met forGain G

[–]

Safety, environment, licensing

400 MHz/70 cm band – 1 W RF power

Antenna

code

400 MHz/70 cm band – 0.5 W RF power

Antenna description

Gain G

[dBi]

Gain G

[–]

General Population

/ Uncontrolled Ex-

posure [cm]

Dist. where the FCC limits are met for

General Population

/ Uncontrolled Ex-

posure [cm]

General Population / Controlled Expos-

ure [cm]

20402.94.6single dipoleOV380.1

25605.87.6stacked double dipoleOV380.2

25605.87.63 element directional YagiSA380.3

30707.48.75 element directional YagiSA380.5

5010017.812.59 element directional YagiSA380.9

General Population / Controlled Expos-

ure [cm]

15302.94.6single dipoleOV380.1

20405.87.6stacked double dipoleOV380.2

20405.87.63 element directional YagiSA380.3

20457.48.75 element directional YagiSA380.5

9.3. High temperature

If the RipEX2 is operated in an environment where the ambient temperature exceeds 55 °C, the RipEX2 must be installed within a restricted access location to prevent human contact with the enclosure heatsink.

9.4. RoHS and WEEE compliance

This product is fully compliant with the European Parlament's 2011/65/EU RoHS (Restriction of Certain Hazardous Substances in Electrical and Electronic Equipment) and 2012/19/EU WEEE (Waste Electrical and Electronic Equipment) environmental directives.

307017.812.59 element directional YagiSA380.9

Used equipment must be collected separately, and disposed of properly. Racom has instigated a programme to manage the reuse, recycling, and recovery of waste in an environmentally safe manner using processes that comply with the WEEE Directive.

Safety, environment, licensing

Battery Disposal - This product may contain a battery. Batteries must be disposed of properly, and may not be disposed of as unsorted municipal waste within the European Union. See the product documentation for specific battery information. Batteries are marked with a symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point.

EU DECLARATION OF CONFORMITY

ver. 1.0

Equipment RipEX,

RAy2, M!DGE, MRxxx, MDxxx

Manufacturer RACOM s.r.o.

Mirova 1283, 592 31 Nove Mesto na Morave, Czech Republic

RipEX2

RAy3

M!DGE2

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The equipment described above is in conformity with the Directive 2011/65/EU of the European Parliament and of the Council on the restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS), as amended by Directive (EU) 2015/863, and Directive 2012/19/EU of the European Parliament and of the Council on waste electrical and electronic equipment (WEEE).

RoHS Applicable Exemption: 7(b)

Compliance has been verified via internal design controls, supplier declarations and/or analytical test data.

Signed for and on behalf of the manufacturer:

Nove Mesto na Morave, 11 July 2019 Jiri Hruska, CEO

www.racom.eu

RACOM s.r.o. | Mirova 1283 | 592 31 Nove Mesto na Morave | Czech Republic

Tel.: +420 722 937 522 | E -mail: racom@racom.eu

Safety, environment, licensing

Fig. 9.1: EU Declaration of Conformity RoHS, WEEE

Safety, environment, licensing

9.5. Instructions for Safe Operation of Equipment

Please read these safety instructions carefully before using the product:

• The radio equipment can only be operated on frequencies stipulated by the body authorized by the radio operation administration in the respective country and cannot exceed the maximum permitted output power. RACOM is not responsible for products used in an unauthorized way.

• Equipment mentioned in this User manual may only be used in accordance with instructions contained in this manual. Error-free and safe operation of this equipment is only guaranteed if this equipment is transported, stored, operated and controlled in the proper manner. The same applies to equipment maintenance.

• In order to prevent damage to the radio modem and other terminal equipment the supply must always be disconnected upon connecting or disconnecting the cable to the radio modem data interface. It is necessary to ensure that connected equipment has been grounded to the same potential.

• Only undermentioned manufacturer is entitled to repair any devices.

9.6. Important Notifications

Sole owner of all rights to this User manual is the company RACOM s. r. o. (in this manual referred to under the abbreviated name RACOM). All rights reserved. Drawing written, printed or reproduced copies of this manual or records on various media or translation of any part of this manual to foreign languages (without written consent of the rights owner) is prohibited.

RACOM reserves the right to make changes in the technical specification or in this product function or to terminate production of this product or to terminate its service support without previous written notification of customers.

Conditions of use of this product software abide by the license mentioned below. The program spread by this license has been freed with the purpose to be useful, but without any specific guarantee. The author or another company or person is not responsible for secondary, accidental or related damages resulting from application of this product under any circumstances.

The maker does not provide the user with any kind of guarantee containing assurance of suitability and usability for his application. Products are not developed, designed nor tested for utilization in devices directly affecting health and life functions of persons and animals, nor as a part of another important device, and no guarantees apply if the company product has been used in these aforementioned devices.

Safety, environment, licensing

RACOM Open Software License

Everyone can copy and spread word-for-word copies of this license, but any change is not permitted.

The program (binary version) is available for free on the contacts listed on http://www.racom.eu. This product contains open source or another software originating from third parties subject to GNU General Public License (GPL), GNU Library / Lesser General Public License (LGPL) and / or further author licenses, declarations of responsibility exclusion and notifications. Exact terms of GPL, LGPL and some further licenses is mentioned in source code packets (typically the files COPYING or LICENSE). You can obtain applicable machine-readable copies of source code of this software under GPL or LGPL licenses on contacts listed on http://www.racom.eu. This product also includes software developed by the University of California, Berkeley and its contributors.

9.7. EU restrictions or requirements notice

There are restrictions on putting into service or any requirements for authorisation of use within the EU countries listed bellow.

Fig. 9.2: EU restrictions or requirements

The RipEX radio modem predominantly operates within frequency bands that require a site license be issued by the radio regulatory authority with jurisdiction over the territory in which the equipment is being operated.

9.8. EU Declaration of Conformity

EU DECLARATION OF CONFORMITY

ver. 1.0

www.racom.eu

RACOM s.r.o. | Mirova 1283 | 592 31 Nove Mesto na Morave | Czech Republic

Radio equipment type Radio modem

RipEX2-4

Manufacturer RACOM s.r.o.

Mirova 1283, 592 31 Nove Mesto na Morave, Czech Republic

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The radio equipment described above is in conformity with the Directive 2014/53/EU of the European Parliament and of the Council on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC.

Harmonised standards used for demonstration of conformity:

Spectrum EN 302 561 V2.1.1

EN 300 113 V2.2.1

EMC EN 301 489-1 V2.1.1

EN 301 489-4 V2.2.1 Safety EN 62368-1:2014 + A11:2017 SAR EN 50385:2017

EN 50383ed.2:2010

Radio SW version

1.0.0

Tel.: +420 722 937 522 | E -mail: racom@racom.eu

Signed for and on behalf of the manufacturer:

Nove Mesto na Morave, 22 of May 2019 Jiri Hruska, CEO

Safety, environment, licensing

Fig. 9.3: RED EU Declaration of Conformity

Safety, environment, licensing

9.9. Simplified EU declaration of conformity

BG С настоящото RACOM s.r.o. декларира, че този тип радиосъоръжение RipEX2 е в съответствие с Директива 2014/53/ЕС.

ES Por la presente, RACOM s.r.o. declara que el tipo de equipo radioeléctrico RipEX2 es conforme con la Directiva 2014/53/UE.

CS Tímto RACOM s.r.o. prohlašuje, že typ rádiového zařízení RipEX2 je v souladu se směrnicí 2014/53/EU.

DA Hermed erklærer RACOM s.r.o., at radioudstyrstypen RipEX2 er i overensstemmelse med direktiv 2014/53/EU.

DE Hiermit erklärt RACOM s.r.o., dass der Funkanlagentyp RipEX2 der Richtlinie 2014/53/EU entspricht.

ET Käesolevaga deklareerib RACOM s.r.o., et käesolev raadioseadme tüüp RipEX2 vastab direktiivi 2014/53/EL nõuetele.

EL Με την παρούσα ο/η RACOM s.r.o., δηλώνει ότι ο ραδιοεξοπλισμός RipEX2 πληροί την οδηγία 2014/53/ΕΕ.

EN Hereby, RACOM s.r.o. declares that the radio equipment type RipEX2 is in compliance with Directive 2014/53/EU.

FR Le soussigné, RACOM s.r.o., déclare que l'équipement radioélectrique du type RipEX2 est conforme à la directive 2014/53/UE.

HR RACOM s.r.o. ovime izjavljuje da je radijska oprema tipa RipEX2 u skladu s Direktivom 2014/53/EU.

IT Il fabbricante, RACOM s.r.o., dichiara che il tipo di apparecchiatura radio RipEX2 è conforme alla direttiva 2014/53/UE.

LV Ar šo RACOM s.r.o. deklarē, ka radioiekārta RipEX2 atbilst Direktīvai 2014/53/ES.

LT Aš, RACOM s.r.o., patvirtinu, kad radijo įrenginių tipas RipEX2 atitinka Direktyvą 2014/53/ES.

HU RACOM s.r.o. igazolja, hogy a RipEX2 típusú rádióberendezés megfelel a 2014/53/EU irányelvnek.

MT B'dan, RACOM s.r.o., niddikjara li dan it-tip ta' tagħmir tar-radju RipEX2 huwa konformi mad-Direttiva 2014/53/UE.

Safety, environment, licensing

NL Hierbij verklaar ik, RACOM s.r.o., dat het type radioapparatuur RipEX2 conform is met Richtlijn 2014/53/EU.

PL RACOM s.r.o. niniejszym oświadcza, że typ urządzenia radiowego RipEX2 jest zgodny z dyrektywą 2014/53/UE.

PT O(a) abaixo assinado(a) RACOM s.r.o. declara que o presente tipo de equipamento de rádio RipEX2 está em conformidade com a Diretiva 2014/53/UE.

RO Prin prezenta, RACOM s.r.o. declară că tipul de echipamente radio RipEX2 este în conformitate cu Directiva 2014/53/UE.

SK RACOM s.r.o. týmto vyhlasuje, že rádiové zariadenie typu RipEX2 je v súlade so smernicou 2014/53/EÚ.

SL RACOM s.r.o. potrjuje, da je tip radijske opreme RipEX2 skladen z Direktivo 2014/53/EU.

FI RACOM s.r.o. vakuuttaa, että radiolaitetyyppi RipEX2 on direktiivin 2014/53/EU mukainen.

SV Härmed försäkrar RACOM s.r.o. att denna typ av radioutrustning RipEX2 överensstämmer med direktiv 2014/53/EU.

Safety, environment, licensing

9.10. IP Certificate

Fig. 9.4: IP42 Certificate

Safety, environment, licensing

Fig. 9.5: IP52 Certificate

Safety, environment, licensing

9.11. Warranty

RACOM-supplied parts or equipment ("equipment") is covered by warranty for inherently faulty parts and workmanship for a warranty period as stated in the delivery documentation from the date of dispatch to the customer. The warranty does not cover custom modifications to software. During the warranty period RACOM shall, on its option, fit, repair or replace ("service") faulty equipment, always provided that malfunction has occurred during normal use, not due to improper use, whether deliberate or accidental, such as attempted repair or modification by any unauthorised person; nor due to the action of abnormal or extreme environmental conditions such as overvoltage, liquid immersion or lightning strike.

Any equipment subject to repair under warranty must be returned by prepaid freight to RACOM direct. The serviced equipment shall be returned by RACOM to the customer by prepaid freight. If circumstances do not permit the equipment to be returned to RACOM, then the customer is liable and agrees to reimburse RACOM for expenses incurred by RACOM during servicing the equipment on site. When equipment does not qualify for servicing under warranty, RACOM shall charge the customer and be reimbursed for costs incurred for parts and labour at prevailing rates.

This warranty agreement represents the full extent of the warranty cover provided by RACOM to the customer, as an agreement freely entered into by both parties.

RACOM warrants the equipment to function as described, without guaranteeing it as befitting customer intent or purpose. Under no circumstances shall RACOM's liability extend beyond the above, nor shall RACOM, its principals, servants or agents be liable for any consequential loss or damage caused directly or indirectly through the use, misuse, function or malfunction of the equipment, always subject to such statutory protection as may explicitly and unavoidably apply hereto.

9.12. RipEX maintenance

Visual check – Antenna:

Draining hole on dipole must be downward pointing There should be no damaged elements on the antenna Angle of elevation of antenna Azimuth (angle of horizontal deviation) in accordance with design

Visual check – Coaxial Cable:

Mechanical damage Solar degradation Entire cable correctly mounted to surface Connectors tightened to function optimally Self-vulcanizing tape used for all connections requiring insulation PSV & RF measurements

Visual check – Cabinet:

Safety, environment, licensing

NotePeriodAction

Quarterly

Annually

Mechanical damage Damage resulting in lower categorization for cabinet coverage Bushings for running cables

Visual check – Electricity Supply:

Insulation damage Connection to terminals

Visual check – Accumulator:

Capacity in accordance with customer requirements Condition of the accumulator

Functionality check – power source:

Overcharging Accumulator damage

Annually

AnnuallyFull utilization of provided protective coverings AnnuallyRemove any items which are not part of the installation

AnnuallyFix and secure makeshift installations correctly As requiredCheck grounding connections As requiredCheck lightning arrester : connectors must be tightened

AnnuallyCheck data connectors connected including securing screws

Evaluate the RSS and DQ values as a preventive measure against

the failure of the connection. RSS and DQ values be similar to those at time of comissioning.

Check that firmware is latest stable version – upgrading FW

recommended when new features required

If you are unsure on any of the above please contact RACOM technical support.

Monthly

MonthlyCheck activity logs to detect abnormalities in data transmissions MonthlyCheck if internal temperature alarm has been triggered

As required

Abbreviations

Appendix A. Abbreviations

MDIX Medium dependent interface crossoverACK Acknowledgement

AES Advanced Encryption Standard MIB Management Information Base

NMS Network Management SystemBER Bit Error Rate

CLI Command Line Interface N.C. Normally Closed

N.O. Normally OpenCRC Cyclic Redundancy Check

CTS Clear To Send NTP Network Time Protocol

MRU Maximum Reception UnitdBc decibel relative to the carrier

dBi decibel relative to the isotropic MTU Maximum Transmission Unit

OS Operation SystemdBm decibel relative to the milliwat

DCE Data Communication Equipment PC Personal Computer

PER Packet Error RateDHCP Dynamic Host Configuration Protocol

DNS Domain Name Server PWR Power

RF Radio FrequencyDQ Data Quality

DTE Data Terminal Equipment RoHS Restriction of the use of Hazardeous

Substances

EMC Electro-Magnetic Compatibility

RPT Repeater

FCC Federal Communications Commission

RSS Received Signal Strength

FEC Forward Error Correction

RTS Request To Send

FEP Front End Processor

RTU Remote Terminal Unit

GPL General Public License

RX Receiver

https Hypertext Transfer Protocol Secure

SCADA Supervisory control and data acquisition

IP Internet Protocol

SDR Software Defined Radio

kbps kilobit per second

SNMP Simple Network Management Protocol

LAN Local Area Network

LOS Line-of-sight

MAC Media Access Control

TCP Transmission Control Protocol

TS5 Terminal server 5

TX Transmitter

UDP User Datagram Protocol

VSWR Voltage Standing Wave Ratio

WEEE Waste Electrical and Electronic Equipment

Pomocná id, nutno umístit na správná místa.

sw-keys

conf-ex

dq-value

Abbreviations

h menu

leds

dq-value

accessories1

dimensions

mounting

"def-access"

Index

licensing, 60

accessories, 23 alarm

in/out, 14

antenna, 12

dummy load, 29, 31 mounting, 42 overvoltage, 30 separated, 22

AUX, 17

basic setup, 37 bench test, 31 box content, 8

configuration

CLI, 46 connect PC, 33 connecting HW, 31 connectors, 12 Copyright, 5

default

parameters, 6, 33

setting, 20 demo case, 27 dimensions, 9

model offerings, 22 mounting

bracket, 28, 40 DIN rail, 39 IP52, 42

ordering code, 22 output hw, 14

part number, 22 product

code, 22 conformity

CE, 67 EU, 68 IP51, 70

quick guide, 6

radio

parameters, 53 reset, 20 RipEX Hot Standby, 23 RipEX2 RD, 24 RipEX2-RS, 25 RoHS and WEEE, 62

environment, 60

feedline cable, 30

GNU licence, 65 GPS, 22 grounding, 43

important notifications, 65 input hw, 14 installation, 38

LED, 20

safety, 60

distance, 60 sensitivity, 52 sleep, 13, 50 supply

connection, 13, 15, 44

consumption, 50

technical parameters, 48 troubleshooting, 47

USB adapter, 26

Revision History

Appendix B. Revision History

Revision This manual was prepared to cover a specific version of firmware code. Accordingly, some screens and features may differ from the actual unit you are working with. While every reasonable effort has been made to ensure the accuracy of this publication, product improvements may also result in minor differences between the manual and the product shipped to you.

2018-11-11Revision 0.90

First issue

2019-07-30Revision 1.00

Chapter Technical parameters updated.

RACOM RipEX2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Important Notice

Quick guide

List of documentation

1. Product

1.1. Dimensions

1.2. Connectors

1.2.1. Antenna

1.2.2. Power and Control

1.2.3. ETH1 - ETH4

1.2.4. ETH5 (SFP)

1.2.5. COM

1.2.6. USB

External USB flash disc

1.2.7. AUX

1.2.8. DI/DO

1.2.9. HW button

1.3. Indication LEDs

1.4. Ordering codes

2. Accessories

2.1. Overview

2.2. Details

3. Step-by-step guide

3.1. Connecting the hardware

3.2. Powering up your RipEX2

3.3. Connecting RipEX2 to a programming PC

3.4. Basic setup

3.5. Functional test

4. Installation

4.1. Mounting

4.1.1. DIN rail mounting

4.1.2. Flat mounting

4.1.3. IP52 mounting

4.2. Antenna installation

4.3. Antenna feed line

4.4. Grounding

4.5. Connectors

4.6. Power supply

5. Advanced Configuration

6. CLI Configuration

6.1. CLI Examples

7. Troubleshooting

8. Technical parameters

8.1. Detailed Radio parameters

9. Safety, environment, licensing

9.1. Frequency

9.2. Safety distance

9.3. High temperature

9.4. RoHS and WEEE compliance

9.5. Instructions for Safe Operation of Equipment

9.6. Important Notifications

9.7. EU restrictions or requirements notice

9.8. EU Declaration of Conformity

9.9. Simplified EU declaration of conformity

9.10. IP Certificate

9.11. Warranty

9.12. RipEX maintenance

Appendix A. Abbreviations

Index

Appendix B. Revision History
