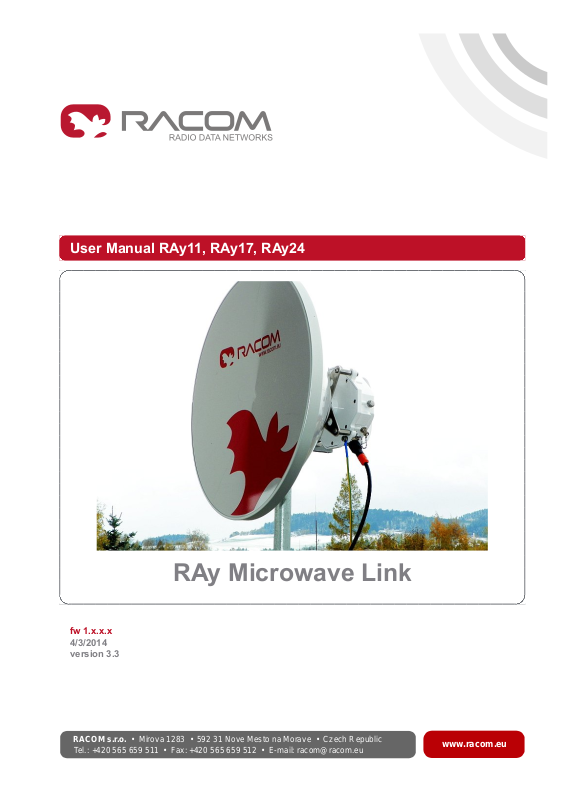

User Manual RAy11, RAy17, RAy24

www.racom.eu

RACOMs.r.o. •Mirova1283•59231NoveMestonaMorave•CzechRepublic

Tel.:+420565659511•Fax:+420565659512•E-mail: racom@racom.eu

RAy Microwave Link

fw 1.x.x.x

4/3/2014 version 3.3

Important Notice .................................................................................................................................. 5

Quick Start Guide ................................................................................................................................ 6

List of documentation .......................................................................................................................... 7

1. RAy – Microwave Link ..................................................................................................................... 8

2. Implementation Notes ................................................................................................................... 10

2.1. Link calculation ................................................................................................................... 10

2.2. Example of microwave link design ..................................................................................... 16

3. Product .......................................................................................................................................... 19

3.1. Range of models ................................................................................................................ 20

3.2. Installation .......................................................................................................................... 20

3.3. Status LEDs ....................................................................................................................... 22

3.4. Technical parameters ......................................................................................................... 22

3.5. Dimensions ......................................................................................................................... 23

3.6. Ordering codes ................................................................................................................... 24

3.7. Accessories ........................................................................................................................ 25

4. Step-by-step Guide ....................................................................................................................... 27

4.1. Service access ................................................................................................................... 28

4.2. Basic link configuration ....................................................................................................... 32

4.3. Link test .............................................................................................................................. 33

5. Installation ..................................................................................................................................... 35

5.1. Line of sight test ................................................................................................................. 35

5.2. Antenna mounting .............................................................................................................. 35

5.3. Connectors ......................................................................................................................... 47

5.4. Grounding ........................................................................................................................... 53

5.5. Start up ............................................................................................................................... 57

6. Configuration ................................................................................................................................. 62

6.1. Status bar ........................................................................................................................... 64

6.2. Status ................................................................................................................................. 65

6.3. Settings ............................................................................................................................... 68

6.4. Diagnostics ......................................................................................................................... 83

6.5. Tools ................................................................................................................................... 88

6.6. Help .................................................................................................................................... 98

7. Command Line Interface ............................................................................................................. 100

7.1. Connection via CLI ........................................................................................................... 100

7.2. Working with CLI .............................................................................................................. 101

7.3. Configuration with CLI ...................................................................................................... 103

8. Troubleshooting ........................................................................................................................... 105

9. Technical parameters .................................................................................................................. 106

9.1. General parameters ......................................................................................................... 106

9.2. RAy11 A,B parameters ..................................................................................................... 112

9.3. RAy11 C,D parameters ..................................................................................................... 127

9.4. RAy17 parameters ............................................................................................................ 133

9.5. RAy24 parameters ............................................................................................................ 143

10. Safety, environment, licensing ................................................................................................... 159

10.1. Frequency ...................................................................................................................... 159

10.2. RoHS and WEEE compliance ........................................................................................ 159

10.3. Conditions of Liability for Defects and Instructions for Safe Operation of Equipment .... 159

10.4. Important Notifications .................................................................................................... 160

10.5. Warranty ......................................................................................................................... 161

10.6. Declaration of Conformity ............................................................................................... 162

10.7. Country of Origin Declaration ......................................................................................... 165

3© RACOM s.r.o. – RAy Microwave Link

RAy Microwave Link

A. Antenna dimensions ................................................................................................................... 166

B. Rain Zone Map ........................................................................................................................... 167

C. IP address in the PC ................................................................................................................... 168

D. Linux key conversion .................................................................................................................. 172

E. Https certificate ........................................................................................................................... 174

Index ................................................................................................................................................ 175

F. Revision History ........................................................................................................................... 177

RAy Microwave Link – © RACOM s.r.o.4

Important Notice

© 2013 RACOM. All rights reserved. Products offered may contain software proprietary to RACOM s. r. o. (further referred to under the abbreviated name RACOM). The offer of supply of these products and services does not include or infer any transfer of ownership. No part of the documentation or information supplied may be divulged to any third party without the express written consent of RACOM.

Disclaimer

Although every precaution has been taken in preparing this information, RACOM assumes no liability for errors and omissions, or any damages resulting from the use of this information. This document or the equipment may be modified without notice, in the interests of improving the product.

Trademark

All trademarks and product names are the property of their respective owners.

Important Notice

• Due to the nature of wireless communications, transmission and reception of data can never be guaranteed. Data may be delayed, corrupted (i.e., have errors), or be totally lost. Significant delays or losses of data are rare when wireless devices such as the RAy are used in an appropriate manner within a well‐constructed network. RAy should not be used in situations where failure to transmit or receive data could result in damage of any kind to the user or any other party, including but not limited to personal injury, death, or loss of property. RACOM accepts no liability for damages of any kind resulting from delays or errors in data transmitted or received using RAy, or for the failure of RAy to transmit or receive such data.

• Under no circumstances is RACOM or any other company or person responsible for incidental, accidental or related damage arising as a result of the use of this product. RACOM does not provide the user with any form of guarantee containing assurance of the suitability and applicability for its application.

• RACOM products are not developed, designed or tested for use in applications which may directly affect health and/or life functions of humans or animals, norto be a component of similarly important systems, and RACOM does not provide any guarantee when company products are used in such applications.

5© RACOM s.r.o. – RAy Microwave Link

192.168.169.169/24 RAy17

192.168.169.170/24 RAy17

https://192.168.169.169

PC192.168.169.180/24

~ ~

PoE PoE

Quick Start Guide

• The default addresses of the RAy unit are 192.168.169.169/24 and 192.168.169.170/24.

• On your PC set up a similar address with the same mask, e.g. 192.168.169.180/24.

○

To configure your PC’s address in Windows XP do the following: Start – Settings – Network

Connections: Change properties of this connection – Internet Network Protocol (TCP/IP) – Properties – Use the following IP address – input 192.168.169.180 and use the mask 255.255.255.0. Click OK

twice.

• Connect both RAy units to a PoE source and connect to a PC via PoE for configuration, see Fig. Link Configuration.

• Input the address of the connected RAy unit into the address field of your internet browser (such as Mozilla Firefox), e.g. 198.168.169.169. Login as admin with password admin.

•

Status menu provides information on connection.

•

Settings – Radio menu enables you to change the parameters of the radio and ethernet channel, Settings – Service Access – Users menu lets you change login parameters.

• Continue as suggested by the Step-by-step Guide.

Fig. 1: Link Configuration

RAy Microwave Link – © RACOM s.r.o.6

List of documentation

User manuals

■ Microwave Link RAy - this document

User manual RAy11, RAy17, RAy24

List of documentation

■ Microwave Link RAy

User manual RAy10

Specifications

■ RAy10, 11, 17, 24 - Leaflet

http://www.racom.eu/eng/products/m/ray/index.html

http://www.racom.eu/download/hw/ray/free/eng/00_letaky/leaflet_RAy_en.pdf

7© RACOM s.r.o. – RAy Microwave Link

RAy – Microwave Link

1. RAy – Microwave Link

RAy Microwave link RAy is designed as high-speed point-to-point wireless bridge for data transmission under the latest requirements of modern wireless transmission equipment. It is built on a platform with a modern component base.

Ray works with ethernet interface and can be used in backhaul networks as well as a last-mile terminal.The design of microwave link RAy reflects effort on meeting the strictest criteria ETSI standards, particularly for durability against interference, high receiver sensitivity and high output power to achieve maximum link distance. Native gigabit Ethernet interface is able to cope with full speed user data throughput at low latency. High availability of the link (up to 99.999%) is able to be achieved with using hitless Adaptive coding and modulation.

The link properties can be summarised as:

• High data throughput

• Spectrum effeciency

• Robustness

• Security - cofiguration via http, https, ssh

• User friendly interface, advanced diagnostics

Key technical features

RAy11-A RAy11-B RAy11-C RAy11-D

RAy17 RAy24

11.20 – 11.45 GHz Upper10.70 – 10.96 GHz LowerFrequency range

11.45 – 11.70 GHz Upper10.96 – 11.20 GHz Lower

10.5915 – 10.6335 GHz Upper10.5005 – 10.5425 GHz Lower

10.6335 – 10.6755 GHz Upper10.5425 – 10.5845 GHz Lower

17.10 – 17.30 GHz

24.00 – 24.25 GHz

fixed or ACM16, 32, 64, 128, 256 QAMQPSK,Modulation

1.75, 3.5, 7, 14, 28, 30, 40, 56 MHzChannel spacing

user data rate up to 359 MbpsUser data rate LDPCForward Error Correction 1 Gb Eth (10,100,1000), (IEEE 802.3ac 1000BASE-T)User interface 100 Mbps (IEEE 802.3u 100BASE-TX)Optional service interface 40–60 VDC, IEEE 802.3at up to 100 mPower supply PoE FOD (full outdoor)Mechanical design configuration via https, sshSecurity

RAy Microwave Link – © RACOM s.r.o.8

Standards

RAy – Microwave Link

EMC

RAy11

RAy17 RAy24

ETSI EN 302 217-2-2 V1.3.1Radio parameters

ETSI EN 300 440-2 V 1.4.1 ETSI EN 300 440-2 V 1.4.1

ETSI EN 301 489-1 V1.8.1 (2008-04), ETSI EN 301 489 -17 V1.3.2 (2008-04)

EN 60 950-1: 2004Electrical safety

Note

Operation of the RAy11, RAy17 and RAy24 is described in this user manual. Operation of the RAy10 is described in the RAy10 User manual1.

http://www.racom.eu/eng/products/m/ray/index.html

9© RACOM s.r.o. – RAy Microwave Link

Implementation Notes

2. Implementation Notes

2.1. Link calculation

Before a microwave link can be installed, an analysis and calculation of the microwave link must be made first. The analysis should take place before the site survey itself to get a clear idea about the dimensions of the antennas. The analysis consists of the following steps:

• Free space loss calculation

• Link budget calculation

• Rain attenuation

• Multipath fading

• Fade margin

• Fresnel zones calculation

This chapter explains the individual steps and an example of link design is given at the end.

2.1.1. Free space loss calculation

As the electromagnetic waves travel through open space they are attenuated. This attenuation is described as Free-space Loss. This loss depends on the distance travelled by signal and its frequency. Longer distance means greater attenuation and higher frequency means greater attenuation. Freespace loss can be calculated thus:

FSL = 32.44 + 20log f + 20log D

Where:

FSL

free-space loss (dB)

frequency of the emitted signal (MHz)

length of the link (km)

2.1.2. Link budget calculation

To goal is to design a link so that the received signal is stronger than the receiver's sensitivity at the required BER (typically 10-6). Since every radio signal in earth atmosphere is subject to fading, some difference between received signal level under normal circumstances and receiver sensitivity is needed to serve as a fade margin. The minimum value of fade margin can be calculated from the requirement for link availability (e.g. 99.999% of the time). The required margin depends on the length of the link as well as other factors such as rain attenuation, diffraction and multipath propagation.

If we ignore the additional loss along the path, the received signal strenght can be calculated using the formula for signal propagation in free space as follows:

PR= PT+ GT+ GR- FSL

Where

received power level (dBm)

transmitted power (dBm)

RAy Microwave Link – © RACOM s.r.o.10

Implementation Notes

FSL

transmitting antenna gain (dBi)

receiving antenna gain (dBi)

free space loss (dB)

PRmust be:

PR> P

Where:

receiver sensitivity (dBm)

The receiver’s sensitivity defines the minimum level of the received signal at which the receiver is able to process the received signal without losses or affecting the transmitted data (for BER better then 10-6).

2.1.3. Fade margin

Determining sufficient fade margin is the most important step in microwave link design. If the margin is too small, the link will be unstable – as a result, sufficient availability of the link or quality of the provided services cannot be guaranteed. On the other hand, unnecessarily large margin makes the link more expensive (higher performance, larger and more expensive antennas) and increases the cost of creating the microwave link.

The following paragraphs describe the two most significant types of attenuation – rain and multipath attenuation, which are the most frequent along with free space loss. Mutual relation between rain and multipath attenuation rules out the possibility that the link could be affected by both types of attenuation at the same time – these types of attenuation do not add up. To determine the fade margin it is necessary to calculate both rain and multipath attenuation. The larger of the two types of attenuation determines the value of fade margin. In areas with high precipitation, rain attenuation can be expected to be more prominent. By contrast, links located in drier climates and little inclination, will suffer more from multipath attenuation.

2.1.4. Rain attenuation

FSL is not the only attenuation that influences the emitted signal. For frequencies of about 10 GHz rain attenuation starts to become increasingly effective. Precipitation is not identical in all areas which is why ITU released a recommendation Rec. ITU-R PN.837-1 for splitting the world into 15 regions according to precipitation intensity see Fig. 2.1, for more detail Appendix B, Rain Zone Map. In the areas with higher precipitation greater rain attenuation must be expected and a greater signal fade margin must be established, see the calculation of link availability.

The following properties are inherent to rain attenuation:

• It increases exponentially with rain intensity

• It becomes significantly larger as the distance travelled increases (>10 Km)

• Horizontal polarization causes greater rain attenuation than vertical polarization

• Rain outage increases dramatically with frequency and path length

11© RACOM s.r.o. – RAy Microwave Link

Implementation Notes

Fig. 2.1: Rain zone map, based on Rec.ITU-R PN.837-1

Rain attenuation can be calculated using ITU-R outage model, which consists of the following:

Obtain the rain rate R R

values are defined for 15 rain zones and different time percentages and they are given in ITU-R

0.01

exceeded for 0.01 per cent of the time (with an integration time of 1 min).

0.01

Recommendation P.837.

Tab. 2.1: Rain rate R (mm/h) ITU-R P.837

Percentage

of time (%)

QPNMLKJHGFEDCBA

1412542158231.70.62.10.70.5<0.11.0

4934151174213474.52.44.52.820.80.3

7265352215122010128685320.1

96105654033232818201512139650.03

11514595636042353230282219151280.01

14220014095105704555455441292621140.003

1702501801201501005583657870424232220.001

Compute specific attenuation γR(dB/km) for the frequency, polarization, specific rain rate using ITU-R recommendation P.838. Rain attenuation for rain rate γ

h,v

= k

0.01

h,v.R0.01

can be calculated as follows:

0.01

where:

RAy Microwave Link – © RACOM s.r.o.12

Implementation Notes

h,v

, α

constants for horizontal and vertical polarization. Constants are slightly different for each

h,v

polarization, see next table according to ITU-R P.838

Tab. 2.2: Constants k, α for horizontal and vertical polarization at 10, 11, 17 and 24 GHz

Fig. 2.2: Attenuation for 10 GHz, polarization H, V

1.220.011.260.0110 GHz

1.160.021.210.0211 GHz

1.010.071.090.0617 GHz

0.960.141.010.1424 GHz

Fig. 2.3: Attenuation for 11 GHz, polarization H, V

Fig. 2.4: Attenuation for 17 GHz, polarization H, V

Fig. 2.5: Attenuation for 24 GHz, polarization H, V

Fig. 2.2 shows that rain attenuation is greater for horizontal polarization. In regions with higher precipitation the difference in attenuation is more marked. The microwave links RAy17 and RAy24 uses both polarizations, hence the need to consider worse of the two, i.e. horizontal polarization. When ACM is

13© RACOM s.r.o. – RAy Microwave Link

Implementation Notes

active we recommend using horizontal polarization on the direction with lower data traffic (typically uplink).

2.1.5. Multipath fading

Multipath fading is another dominant fading mechanism. A reflected wave causes a phenomenon known as multipath, meaning that the radio signal can travel multiple paths to reach the receiver. Typically, multipath occurs when a reflected wave reaches the receiver at the same time in opposite phase as the direct wave that travels in a straight line from the transmitter.

Multipath propagation gives rise to two kinds of signal degrading effects, i.e., flat fading and frequency selective fading. Flat fading is a reduction in input signal level where all frequencies in the channel of interest are equally affected and is dependent on path length, frequency, and path inclination. In addition, it is strongly dependent on the geoclimatic factor K.

To calculate the probability of outage due to multipath propagation of microwave links ITU-R probability model can be used which describes a single frequency (or narrowband) fading distribution suitable for large fade depths A in the average worst month in any part of the world (based on ITU-R P.530-14) and for detailed link design is given as follows [1]:

P0= Kd

3.4

(1+|εP|)

-1.03f0.8

0.00067hL-A/10

×10

where:

link distance (km)

frequency (GHz)

altitude of lower antenna (m)

fade depth (dB)

K is geoclimatic factor and can be obtained from:

K = 10

-4.6-0.0027dN1

The term dN1 is provided on a 1.5° grid in latitude and longitude in ITU-R Recommendation P.453. The data are available in a tabular format and are available from the Radiocommunication Bureau (BR). E.g. in Central Europe the values dN1 range from -242 to -362.

From the antenna heights heand hr(meters above sea level), calculate the magnitude of the path inclination │εP│ (mrad) using the following expression:

where:

hr, h

link distance (km)

antenna heights above sea level (m)

RAy Microwave Link – © RACOM s.r.o.14

Implementation Notes

2.1.6. Fresnel zones calculation

The position of obstacles between points of the bridge can significantly influence the quality of the microwave link. The radio signal doesn't only radiate along the line of sight, but also in the area around it, i.e. in the so-called 1st Fresnel zone. Within this zone 90 % of the energy is transmitted between the transmitter and receiver antenna. This space has the shape of an ellipsoid. If it is disturbed the link has worse transmission properties and a higher quality antenna is required. For this reason the position of the antenna can be just as important as its height above ground. 60 % of the 1st Fresnel zone is considered as the most important.

Fig. 2.6: Fresnel zone

The general equation for calculating the first Fresnel zone radius at any point P in between the endpoints of the link is the following:

Where:

F1first Fresnel Zone radius in metres

d1distance of P from one end in metres

d2The distance of P from the other end in metres

λ wavelength of the transmitted signal in metres

The cross sectional radius of each Fresnel zone is the highest in the center of link, shrinking to a point at the antenna on each end. For practical applications, it is often useful to know the maximum radius of the first Fresnel zone. From the above formula calculation of the first Fresnel zone can be simplified to:

where:

max radius of first Fresnel zone (m)

15© RACOM s.r.o. – RAy Microwave Link

Implementation Notes

reducing the radius to 60% get values listed in the following table that define the space particularly sensitive to the presence of obstacles

total link distance (km)

frequency (GHz)

Tab. 2.3: 60 % of the 1st Fresnel zone

Radius of zone r for frequencyLength of link D

24 GHz17 GHz11 GHz

0.75 m0.89 m1.10 m0,5 km

1.06 m1.25 m1.56 m1 km

1.50 m1.77 m2.21 m2 km

2.12 m2.50 m3.13 m4 km

2.60 m3.07 m3.84 m6 km

3.00 m3.54 m4.43 m8 km

3.35 m3.96 m4.95 m10 km

11.07 m50 km

2.2. Example of microwave link design

Fig. 2.7: Design flowchart

Link parameters:

• Link distance: 4 km

• First antenna height above sea level: 295 m

• Second antenna height above sea level: 320 m

• Location: Central Europe (rain zone H, refraction gradient dN1= −300)

4.10 m4.85 m6.06 m15 km

4.74 m5.60 m7.00 m20 km

Transmission requirements:

• Required data rate: >160 Mbps

• Required availability: 99.99 %

RAy parameters:

• 17 GHz

RAy Microwave Link – © RACOM s.r.o.16

• 161 Mbps -> Modulation 16QAM; BW=56 MHz; PS(BER 10-6)= −79 dBm

• Tx power +5 dBm (max. Tx power)

• Antenna gain: ○ 30 cm ... 32.2 dBi ○ 60 cm ... 37.8 dBi ○ 99 cm ... 42 dBi

Step 1 - Free space loss calculation

FSL = 32.44 + 20log f + 20log D = 32.44 + 20log17.2·103+ 20log4 = 129.1 dB

Step 2 - Rain attenuation

Implementation Notes

For 99.99% availability in rain zone B the rain rate is R

=32 (see Fig. 2.1)

0.01

For f=17 GHz kh=0.06146; αh=1.0949; kv=0.06797; αv=1.0137 Vertical polarization:

R0.01

= kv.R

0.01

= 0.07 · 32

1.01

= 2.32 dB/km => for 4km distance 9.3 dB

Horizontal polarization:

R0.01

= kh.R

0.01

= 0.06 · 32

1.09

= 2.62 dB/km => for 4km distance 10.5 dB

Step 3 - Attenuation due to multipath propagation

We have to find required fade margin for reliability of the link 99.99 percent. Path inclination:

The percentage of time that fade depth A (dB) is exceeded in the average worst month is calculated as:

P0= Kd

P0= 10

3.4

(1+|εP|)

-4.6-0.0027×(-300)×43.4

P0= 0.022871×10

-1.03f0.8

×10

-0.19765-A/10

0.00067hL-A/10

(1+|6.25|)

-1.03

17.2

0.8

0.032×10-0.00067×295-A/10

×10

For reliability 99.99% is P0=0.01 we get exponential function for A:

A = -0.19765 - 10log(0.01/0.022871) = 3.4 dB

The minimum fade margin required to suppress multipath fading on this link would be 4 dB.

Step 4 - Link budget calculation

Calculation in steps 2 and 3 determines the minimum fade margin required for stable link operation as 11 dB (rain attenuation is dominant). If you use the maximum performance of antenna with diameter of 30 cm, complete the radio formula as follows:

PR= PT+ GT+ GR− FSL = 5 + 32.2 + 32.2 − 129.1 = −59.7 dB

Fade margin:

A = |PS| − |PR| = 79 − 59.7 = 19.3 dB

The resulting fade margin is larger than the required 11 dB. Current legislation in the Czech Republic allows maximum EIRP of +20, i.e. the sum of transmit power and antenna gain at the transmitter can be 20 dB at the most. For 99cm antennas, TX power can be up to 20 - 42 = -22 dB, the resultant equation is as follows:

17© RACOM s.r.o. – RAy Microwave Link

Implementation Notes

PR= PT+ GT+ GR− FSL = -22 + 42 + 42 − 129.1 = −67.1 dB

Fade margin:

A = |PS| − |PR| = 79 − 67.1 = 11.9 dB Fade margin is now only 12 dB which corresponds to link availability > 99.99% of the time in a year. Technical literature often gives the minimum fade margin of 20 dB. For very long links (more than

10 km) fade margin will, indeed, be approximately 20 dB. For shorter links, however, such large margin is not necessary. It is helpful to first conduct the calculation above to receive an idea of the attenuation affecting the link.

The result

To achieve the required transmission capacity and link availability for link distance of 4 km, transmit power -22 dBm and 99 cm antennas were selected for both sides of the link.

Sources for Chapter Chapter 2, Implementation Notes:

[1] Lehpamer, H.: Microwave transmission network, Second edition, ISBN: 0071701222, McGraw-Hill Professional, 2010.

ITU-R recommendation used:

• ITU-R P.453-10 – The radio refractive index: its formula and refractivity data

• ITU-R P.530-14 – Propagation data and prediction methods required for the design of terrestrial line-of-sight systems

• ITU-R P.837-1 and 6 – Characteristics of precipitation for propagation modelling

• ITU-R P.838-3 – Specific attenuation model for rain for use in prediction methods

• ITU-R P.310, ITU-R P.526, ITU-R P.676, ITU-R P.834, ITU-R P.835

RAy Microwave Link – © RACOM s.r.o.18

Product

3. Product

The RAy microwave links are designed for data transmissions in both licensed and unlicensed ISM bands. They work as a point-to-point link in full duplex regime with transfer speed up to 360 Mbps. Bandwidth is selectable from 1.75 up to 56 MHz. Modulation can be fixed or adaptive and can be adjusted from QPSK to 256QAM.

Fig. 3.1: RAy – Microwave link

The link is formed by two FOD (Full Outdoor) stations. In the case of links operating in the ISM bands (RAy17, RAy24), both stations have identical hardware. In the case of links operating in the licensed bands, one unit is transmitting in the Lower and receiving in the Upper part of the band. The other unit is operating vice versa.

RAy links are used with external parabolic antennas. Parabolic antennas from different producers are available.

Cross polarization - valid only for links operating in the ISM bands (RAy17, RAy24):

One side of the link uses one polarization for transmission (e.g. horizontal) and the opposite polarity for receiving (e.g. vertical). The other side of the link is turned by 90°. It therefore transmits and receives using opposite polarizations with respect to the other side.

19© RACOM s.r.o. – RAy Microwave Link

Product

3.1. Range of models

frequency 10.70 – 10.96 GHz, unit LRAy11-LA frequency 10.96 – 11.20 GHz, unit LRAy11-LB frequency 10.5005 – 10.5425 GHz, unit LRAy11-LC frequency 10.5425 – 10.5845 GHz, unit LRAy11-LD

frequency 11.20 – 11.45 GHz, unit URAy11-UA frequency 11.45 – 11.70 GHz, unit URAy11-UB frequency 10.5915 – 10.6335 GHz, unit URAy11-UC frequency 10.6335 – 10.6755 GHz, unit URAy11-UD

universal unit for 17.10 – 17.30 GHz bandRAy17 universal unit for 24.00 – 24.25 GHz bandRAy24

Every model can be supplied in two different versions:

• with one metal Ethernet port, e.g. RAy17

• with two metal Ethernet ports, e.g. RAy17-2

For details see Section 3.6, “Ordering codes”

A detailed table of frequencies can be found in Chapter 9, Technical parameters.

3.2. Installation

The antenna is attached to the mast using a holder adjustable in two planes. The RAy unit is then mounted on the antenna. There are two possible mounting positions – for horizontal and vertical polarization. Installation and adjustment of the holder is described in Chapter Antenna mounting.

Fig. 3.2: RAy Microwave link – antenna and FOD unit

LAN connection is possible using one or two connectors:

• The RAyXX version uses a single connector for user data, service access and PoE

RAy Microwave Link – © RACOM s.r.o.20

Product

• The RAyXX-2 version uses two connectors, one for user data and PoE power supply and one for service access. For assembly of connectors see chapter Connectors.

The third BNC connector serves for connecting voltmeter for RSS indication during the antenna adjustment process.

Fig. 3.3: RAy Microwave link – connectors

21© RACOM s.r.o. – RAy Microwave Link

Product

3.3. Status LEDs

Fig. 3.4: Status LEDs

Tab. 3.1: Meaning of LED status indicators

FunctionColourDiode

User port

Green

ETH

Yellow

Green

SYS

Red

AIR

Flashing slowly: Auto Negotiation in progress Flashing rapidly: Link Activity 10/100/1000 Permanently lit: Link 10/100/1000

Management port Flashing: Link Activity 10/100 Permanently lit: Link 10/100

Permanently lit: System OK Flashing rapidly: Booting Flashing slowly: Operating system in service mode

Permanently lit: Station is performing defaults.

Flashing slowly: Serious system error. Permanently lit: AIR link OKGreen Permanently lit: AIR LOSS, loss of connectivityRed

Firmware writing in progress. DO NOT POWER OFF.

3.4. Technical parameters

Basic technical parameters are stated in Chapter 9, Technical parameters

RAy Microwave Link – © RACOM s.r.o.22

3.5. Dimensions

Communication unit ODU

Outer size 245 x 245 x 150 mm•

Weight RAy11 — 2.8 kg•

• RAy17 — 2.5 kg

• RAy24 — 2.5 kg

Diameters of supplied antennas

RAy units are ready for direct mounting to Jirous1Class 2 antennas. Individual datasheets are accessible here2.

• 10, 11 GHz: ○ 38 cm, 29.0 dBi ○ 65 cm, 35.5 dBi ○ 90 cm, 37.5 dBi

Product

• 17 GHz: ○ 40 cm, 34.8 dBi ○ 68 cm, 38.6 dBi ○ 90 cm, 41.0 dBi ○ 120 cm, 43.7 dBi

• 24 GHz: ○ 40 cm, 36.8 dBi ○ 68 cm, 41.7 dBi

Andrew (Class 2 or 3) or Arkivator antennas are also possible to be used with antenna mounting kit. Flexible waveguide is a general-purpose option for any antenna usage.

Name plate

The plate contains name, bar code record, CE label, etc.:

• Type – RAy product line identification

• Code – detailed identification of the station type (see annex for details Section 3.6, “Ordering codes”)

• S/N – serial number, link contains stations with two different numbers

• MAC – HW address of user ethernet port

http://en.jirous.com/

http://www.racom.eu/eng/products/microwave-link.html#accessories_jirous

23© RACOM s.r.o. – RAy Microwave Link

Type

Licenced bands ISM bands

10 GHz 11 GHz 17 GHz 24 GHz

A 10.30 – 10.59 GHz A,B 10.70 – 11.70 GHz

B 10.15 – 10.65 GHz C,D 10.50 – 10.68 GHz

Sub-bands

Lower [GHz] Upper [GHz] Lower [GHz] Upper [GHz] no sub-bands no sub-bands

10.30-10.42 10.47-10.59 10.70-10.96 11.20-11.45

ordering code

RAy10-LA RAy10-UA RAy11-LA RAy11-UA RAy17 RAy24

10.15-10.30 10.50-10.65 10.96-11.20 11.45-11.70

ordering code

RAy10-LB RAy10-UB RAy11-LB RAy11-UB

10.5005-10.5425 10.5915-10.6335

ordering code

RAy11-LC RAy11-UC

10.5425-10.5845 10.6335-10.6755

ordering code

RAy11-LD RAy11-UD

ver. 3.1

Frequency range

17.10 – 17.30 GHz

24.00 – 24.25 GHz

Product

3.6. Ordering codes

3.6.1. Microwave units

The proper pair of Lower and Upper units should be selected when ordering the microwave link. This is not true for ISM bands units (RAy17, RAy24). In such a case the same unit is used for both sides of the link.

Note - The Lower and Upper unit has to be selected from the same sub-band (i.e. from the same row of the table).

The RAy10 ordering codes are stated here for clarity. The RAy10 User manual can be found here3.

In case of the two-port units, the “-2” label shall be connected to the end of the ordering code. Example:

• RAy11-LA-2

• RAy17-2

3.6.2. Feature keys

The Feature keys ordering code consists of three parts:

XXX-YYY-ZZZ

• RAy11-SW-100 ... RAy11 user data speed max. 100 Mbps.

• RAy17-SW-360 ... RAy17 user data speed max. 360 Mbps.

XXX - Product type, e.g. “RAy11”. YYY - Feature key type.

The "SW" key is available now. This key unlocks the User speed to given value.

ZZZ - Feature key value. In case of User speed it states Mbps. Example:

http://www.racom.eu/eng/products/m/ray/index.html

RAy Microwave Link – © RACOM s.r.o.24

Product

3.7. Accessories

The microwave bridge comes supplied as standard with:

• two FOD units

• two antenna dishes with brackets for mounting on a mast – based on the user requirements and specifications

• tub of NOVATO silicon lubricant (mixture of silicon grease, PTFE and other additives) for lubricating the antenna pin. (see Section 5.2.3, “Lubrication and preservation of the antenna pivot”)

Microwave bridge accessories need to be ordered separately, for further details please see www.racom.eu

• Two pieces of parabolic antennas with mast holder - according to user needs and specifications. The antenna from two different vendors are available currently (year 2013). The overview of different antenna types is listed in paragraph Dimensions. The antenna choice determines radio link properties. The radio link calculation should be performed to determine proper antenna size. Rough calculation can be done using simple on-line calculator.5. The other antenna producers can be used with RAy links as well. The RAy unit can be attached to the antenna by flexible waveguide or directly by means of special interconnetion part. There are several types of those parts for Andrew and Arkivator antennas. It is possible to develop the interconnetion part also for other antenna types.

• FOD unit power supplies – 30W PoE adapters

• two connectors (plastic IE-PS-V01P-RJ45-FH or metallicIE-PS-V01M-RJ45-FH) for connecting the FOD unit for outdoor use – these quality connectors allow the connection of cables with conductors of cross-sectional area 0.129–0.329 mm2(AWG 26 – AWG 22, i.e. ø0.4–ø0.64 mm). For assembly instructions see chapter Section 5.3.2, “Fitting an external IE-PS-V01P-RJ45-FH connector”

• two IE-PS-RJ45-BK connectors for connecting the FOD unit for indoor use.

• S/FTP Cat.7 cable for connecting FOD units to the network.

• AGC cable for connecting a voltmeter to the RAy unit for adjusting the antenna direction. (see g "Antenna mounting", point g)

• Grounding set for grounding the CAT7 cable. Manufactured by PEWTRONIC s.r.o., code S/FTP 4+2

• RAy grounding set for grounding RAy equipment to the mast. Contains a ZSA16 grounding terminal, grounding tape and a cable with grounding lugs.

Grounding set for grounding the CAT7 cable, RAy grounding set – see images Fig. 5.63 - "Grounding kit for S/FTP 4+2 cable" and Fig. 5.65 - "RAy grounding kit".

Additional microwave bridge accessories which have been specially selected for installation of RAy microwave bridges can also be ordered :

http://www.racom.eu/eng/products/microwave-link.html#accessories

http://www.racom.eu/eng/products/microwave-link.html#calculation

25© RACOM s.r.o. – RAy Microwave Link

Product

•

Set of tools for installation of the bracket and mounting of connectors in the RAy Tool set. Branded tools which allow complete installation of the microwave bridge.

Fig. 3.5: RAy Tool set

RAy Microwave Link – © RACOM s.r.o.26

Step-by-step Guide

4. Step-by-step Guide

The following chapters will guide you step by step through preparation, installation and activation of the RAy link:

• Pre-installation check out

• Installation

• Advanced configuration

• Troubleshooting

Pre-installation Checklist

Familiarise yourself with the controls and prepare your configuration ahead of the installation of the link on the mast tube.

Both units (without antennas) can lie on a desk with flanges running parallel and facing up at an angle, on a non-metal desk they can also face downward. In the case of units operating in the ISM band (RAy17, RAy24), turn unit holder so that they are roughly perpendicular to each other. In the case of units operating in licensed bands (RAy10, RAy11), turn unit holders so that they are roughly parallel to each other. Use an ethernet cable to connect each of the units to a PoE source and connect a PC to one of them for configuration.

Take the following steps to establish a connection between the PC and RAy and perform a basic setup.

27© RACOM s.r.o. – RAy Microwave Link

Step-by-step Guide

Fig. 4.1: Link Configuration

Warning

During operation, never bring waveguides of both stations close to each other. There is a risk of damaging sensitive input circuits.

4.1. Service access

RAy link is supplied with a default configuration of access parameters:

Unit L has the service IP address 192.168.169.169 and mask 255.255.255.0, Unit U has the service IP address 192.168.169.170 and mask 255.255.255.0, access is allowed over HTTP, HTTPS or SSH, the username is admin and the password is also admin.

On your PC setup an IP address that is within the mask, i.e. 192.168.169.180.

Then open the https configuration interface, e.g. https://192.168.169.169

Other access options are described in the chapter Settings – Service Access of this manual.

When connectionhas been established, use the Settings – Service access – Services menu to customise access parameters. Default IP addresses should be replaced with well-chosen operating addresses. Leaving default addresses in place can lead to network problems later.

RAy Microwave Link – © RACOM s.r.o.28

Step-by-step Guide

The menu contains parameters for the entire link, both for the Local and remote Peer units. If a connection has been established, both sets of parameters have been set. While working with an isolated unit, only Local parameters are functional for the currently connected unit.

Note

If link is OK and there are no parameters shown of the station Peer, it is necessary to click on Refresh.

Follows the description of basic settings. After entering values on the screen always save the content by clicking on Apply.

Note

If there is any problem with https certificate after completing the firmware upgrade, please see the Annex Appendix E, Https certificate for further steps.

29© RACOM s.r.o. – RAy Microwave Link

Step-by-step Guide

4.1.1. Menu Settings – General

• Station name – station can be assigned with a name, e.g. the place of installation.

• Station location – for easier inclusion the network hierarchy, it is possible to enter the station’s location

Fig. 4.2: Configuration Menu Settings - General

RAy Microwave Link – © RACOM s.r.o.30

Step-by-step Guide

4.1.2. Menu Settings – Service access – Services

• IPv4 address – enter a valid IP address to access the drive. The default IP address has to be replaced with a valid address. Keeping the default address will probably lead to future problems in the network.

• Netmask – enter the network mask.

• Gateway – if necessary, enter a gateway, otherwise leave blank

• Enable access protocols that you are going to need. For security reasons, do not enable more than what is necessary.

• HTTP(S) – allow access to the web interface.

• Telnet – enabling access to the CLI interface using telnet protocol.

• SSH – enabling access to the CLI interface using SSH protocol.

• Management VLAN – Enabling 802.1Q VLAN tag for separation of user and service operations.

• Management VLAN id – Defining 802.1Q VLAN tag for service operations.

Fig. 4.3: Configuration menu Settings – Service access – Services

31© RACOM s.r.o. – RAy Microwave Link

Step-by-step Guide

4.1.3. Menu Settings – Service access – Users

•

Edit - enter the menu.

•

New password – choose a password and enter it.

•

Confirm password – enter the password again to confirm.

Fig. 4.4: Configuration menu Settings – Service access – Services

4.1.4. Menu Maintenance – Feature keys

Firmware of the microwave link is capable of limiting the maximum user data speed. The Feature key to unlock specific user data speed should be installed prior to unit physical installation. The microwave link can be operated only at the lowest speed (according to link type down to 5 Mbps) without the installed Feature key. For further details see Feature keys.

4.2. Basic link configuration

Default radio parameters depend on the specific type of link and the specific channel allocation table. Channels are typically set in the lower part of the band, the smallest bandwidth, QPSK modulation, and low power. Both units in the pair should be capable of immediate communication. If it is possible to work with these radio parameters at the installation location, the link can be activated. On an operating link, required operating parameters can then be set up.

If a change in the parameters is necessary, it is done in the menu Settings – Radio and saved by clicking Apply. This applies when working on both units simultaneously if they are connected, otherwise each unit is configured individually. When configuring units individually, pay attention to correct settings of duplex pair for channels TX and RX. For example, if one station has TX channel L1, then the second station must also have the channel RX L1.

RAy Microwave Link – © RACOM s.r.o.32

Step-by-step Guide

4.3. Link test

Verify the functionality of the radio link. Switch in screen Status - Brief:

•

Status Bar displays Link: Ok. If the alarm message appears at Local or Peer, this doesn’t necessarily mean there is a problem. The message indicates that the limit at any of the monitored parameters has been exceeded. Essential is the Link: Ok message.

•

The Status screen contains values for both Local and Peer units. N/A next to Peer indicates that the data from the Peer unit has not been transferred. If Link is Ok, simply click Refresh at the bottom of the screen and Peer data will be updated.

•

Menu Status – Detailed – Radio indicates link RSS and SNR values, in case of ACM also the selected modulation and Netbitrate. If the ATPC function is enabled (menu Settings – Radio) it also indicates instantaneous / max. allowed power and for SNR and RSS values it indicates immediate / target value size.

•

Menu Tools – Graphics – Bar indicators display current size of RSS, SNR and BER.

•

Menu Tools – Ping allows you to send a ping test to the selected IP address.

Try out the possibility of modulation:

•

Modulation ACM. In menu Settings – Radio enable ACM. Set the TX modulation parameter to the required maximum value. In menu Status – Brief – Radio you can monitor (Refresh or Start) changes in used modulation based on the instantaneous SNR signal quality. Status and quality of modulation is demonstrated well in menu Tools – Graphics – RX constellation diagram, hit Refresh.

•

To set a fixed modulation go to Settings - Radio, switch off ACM and set the TX modulation to a value from the range of QPSK through 256-QAM based on the results of the previous test. If you choose modulation higher than allowed by SNR, the connection will be lost. Status Link will lose its Ok value. Both units will need to be moved closer to resume the link. If this is not possible, use ethernet to access each unit individually and set the basic modulation QPSK. You can monitor the quality of the received signal under Tools – Graphics – RX constellation diagram.

Verify the functionality of the entire link:

• If possible, connect user devices to both RAy units over PoE and test mutual communication.

• Another way of testing this is to connect a PC to the other unit and send a ping from one PC to the other.

• The minimum variant of this test is to use ethernet cable connection from the PC connected to the local RAy to the PC connected to the remote RAy and test communication between both units over ethernet. This will verify ethernet functionality.

Prepare installation configuration:

• Bandwidth e.g. 3.5 MHz. To get the highest possible receiver sensitivity, set the bandwidth as narrow as possible according to specific frequency band.

• TX channel: Use your allocated channel. If you don't have allocated channel yet, use for example channel L1.

• RX channel will setup automatically when channel lock activates.

• TX modulation QPSK to get the highest possible sensitivity.

• RF power according to selected antenna and according to individual frequency licence. Set the output power as high as possible.

• Record the access parameters from the Service access menu, especially the IP addresses.

33© RACOM s.r.o. – RAy Microwave Link

Step-by-step Guide

• Restart by interrupting power supply to verify that the parameters are stored correctly and the link works.

After this preparation phase you can continue to install your devices in working environment.

RAy Microwave Link – © RACOM s.r.o.34

Installation

5. Installation

5.1. Line of sight test

Before you install the device to a mast tube, verify visually that the view in direction of the remote unit is unobstructed. Watch out for these obstacles in particular:

• Free Fresnel zones. Signal needs space wider than the diameter of the antenna.

• Trees at the lower end of the Fresnel zone. They will be taller in a few years.

• Possible building development.

• Objects in the close proximity of the antenna such as edges of other antennas, their mounting racks, edges of the roof.

5.2. Antenna mounting

5.2.1. Mounting methods

• according to the method of mounting on the mast tube ○ right-side mounting ○ left-side mounting

• according to the method of mounting the FOD unit – antenna polarization ○ horizontal mounting ○ vertical mounting

In both cases mount the unit with the connectors facing downwards at an angle.

Fig. 5.1: Left-side mounting – horizontal polarization of receiving

Fig. 5.2: Left-side mounting – vertical RX polarization

35© RACOM s.r.o. – RAy Microwave Link

Installation

Fig. 5.3: Right-side mounting – horizontal RX polarization

Changing the mounting method

Antenna bracket is supplied as standard partly assembled, and ready for right-side mounting.

On changing the Jirous antenna bracket for left-side mounting the adjustment bolt (part No. 11) and swivel bolt (part No. 12) need to be unscrewed, then shift the bracket body (part No.13) to the other side of clamp plate (part No. 4), (do not turn upside down) and then insert bolt (part No. 12) into the second hole on the mounting plate holder and through the same hole on the clamp plate and secure in place with the nuts. The adjustment bolt (item No. 11) and nuts (item No. 9) are switched to the other side of the clamp plate (part No. 4). It is also necessary to switch the hanging bolt (part No. 7) on the mounting plate (part No. 5) to the second hole so that after switching sides with the antenna it is on the top again.

On changing the Arkivator type antenna bracket for left-side mounting the adjustment pin (part No.

17) needs to be unscrewed and switched to the other side of the bracket body (part No.3) and clamp plate (part No. 4). It is also necessary to switch the adjustment bolt (part No. 21) and U-plate (part No.

13) to the other side of the bracket body (part No.3). This ensures that there is still good access to the adjustment elements for changing the direction of the antenna when mounted on this opposite side.

In the case of the antenna when changing the method of mounting from right-side to left-side it is only necessary to change the eye hook on the top and rotate the plastic cover of the antenna. This is not only important from an aesthetic point of view, so that the RACOM logo is not upside down, but also because there is a discharge channel on the lower edge of the dish (except for ø380 mm dishes).

When changing the polarization from horizontal to vertical only the FOD unit needs to be turned through 90° around the central antenna pin by unscrewing the four bolts on the dish using a No. 6 Allen key. (or on the reducing crossplate (part No. 7) for the Arkivator type antenna)

Important

The RAy17 and RAy24 links are equipped with a polarization duplexer and work in both polarizations simultaneously, see Cross polarization. One side of the link must therefore be installed in vertical polarization and the other in the horizontal polarization.

RAy Microwave Link – © RACOM s.r.o.36

Installation

5.2.2. Mounting the FOD unit on the antenna

RAy microwave bridge equipment is generally supplied as several component parts packaged separately in a box.

• Two parabolic antennas.

• Two brackets for mounting the antenna to the mast.

• Two FOD stations, each separate in a box, in a single package.

• Other accessories based on the order placed (for more detailed information see chapter Section 3.7, “Accessories”)

When ordering a RAy microwave bridge there is a choice of antennas from two manufacturers to be connected to the RACOM FOD unit.

Mounting the FOD unit on the Jirous antenna

A No. 17 spanner and a No. 6 Allen key are required for mounting the mechanical parts of the antenna. Spanner No. 17 serves for precisely setting the direction of the antenna. Both spanner and key can be found in the RAy Tool set for installing RAy microwave bridges.

Fig. 5.4: Close up image of the mounted bracket showing numbered parts

37© RACOM s.r.o. – RAy Microwave Link

Installation

a. Prepare the antenna bracket based on the diameter of the mast tube. For smaller diameters face

the bent part of the saddle plate (part No. 3) inwards. For larger diameters it should face outwards. Screw the bolts (part No. 1) into the clamp plate (part No. 4) so that they protrude approx. 1 cm through the clamp plate. Clamp the saddle plate to the mast by tightening the nuts (part No. 2) on the bolts.

Fig. 5.5: Position of the saddle plate for ø 40–80 mm

b. Slide the antenna bracket onto the mast tube and clamp to the mast by tightening the nuts.

Fig. 5.6: Position of the saddle plate for ø 65–115 mm

Fig. 5.7: Attaching the bracket to the mast tube

RAy Microwave Link – © RACOM s.r.o.38

Installation

c. The second part of the bracket – mounting plate (part No. 5), is screwed to the antenna dish with

three bolts (part No. 6). Screw the eye hook into the upper threaded hole of the dish to ease handling of the dish during installation. The position of the eye hook on the dish and hanging bolts on the plate change according to the type of installation, see Section 5.2.1, “Mounting methods”.

Fig. 5.8: Dish without mounting plate Fig. 5.9: Dish with mounting plate

d. Screw the hanging bolt (part No. 7) into the upper hole of the mounting plate so that the antenna

can be hung on the mounting plate holder. Hang the antenna on it and tighten the lower bolt. (part No. 8)

Fig. 5.10: Hanging the bolt on the holder Fig. 5.11: Correct position of the mounting plate

39© RACOM s.r.o. – RAy Microwave Link

Installation

e. Tighten both bolts to the plate before continuing with installation to prevent any unnecessary

movements of the whole equipment. Before precisely adjusting the vertical direction of the antenna upon completing installation it will be necessary to unscrew them again as the lower bolt passes through the adjustment block and the upper one serves as the axis of rotation.

Fig. 5.12: Tightening the upper bolt to the mounting plate

f. Before installing the FOD unit on the antenna first unscrew the 4 bolts on the back of the antenna

enough so that the unit can be slid on to them. Then check whether the "O" ring is correctly fitted on the antenna pin, and make sure it is not damaged and has been lubricated with grease – see Section 5.2.3, “Lubrication and preservation of the antenna pivot”. Then remove the protective plastic cover from the central pin of the antenna and fit the FOD unit to it carefully so as not to damage the "O" ring. Secure it in place with the four bolts. Carefully ensure the correct polarization of the antenna – see Section 5.2.1, “Mounting methods”. Finally tighten the bolts with a No. 6 Allen key.

Fig. 5.13: Tightening the lower bolt to the mounting plate

Fig. 5.14: Dish before installing the FOD unit Fig. 5.15: Tightening bolts on the FOD unit

RAy Microwave Link – © RACOM s.r.o.40

Installation

g. The precise horizontal direction the antenna is pointing in can be adjusted using the bolt with two

nuts (part No. 9). Once the direction has been set the antenna is fixed in place by tightening the nuts against the bracket to prevent further movement of the antenna. The vertical direction the antenna is pointing in can be adjusted by turning the fine adjustment bolt (part No. 10) by the bracket mounting plate. After selecting the correct direction the position is secured by tightening the bolt – see point e (part No. 7 and 8). The correct position in both directions is found by monitoring RSS – voltmeter, or with an audible alarm (if equipped) – see Section 5.5.2, “Antennas directing”.

Fig. 5.16: Horizontal adjustment of the antenna direction

h. After pointing the antenna in the right direction tighten the bolts on the bracket on the axes of rotation

(part No. 11 and 12). Then check again that all other bolts have been sufficiently tightened. We can now proceed to connecting the FOD unit to the user network.

Fig. 5.18: Tightening the axis at the fine adjustment bolt

Fig. 5.17: Vertical adjustment of the antenna direction

Fig. 5.19: Tightening the axis at the bracket

41© RACOM s.r.o. – RAy Microwave Link

3333

1515

1111

2828

28 24

2424

2222

2323

2727

1313

2020

1010

7777

1414

2121

2626

2222

2929

2525

5555 8888

9999

5555

1212

1211

1111

116666 4444

Installation

Mounting the FOD unit on the Arkivator antenna

Installation of a RAy microwave bridge with an Arkivator type antenna is very similar to the installation described above, and is clear fromthe following images. The tools required for installation can be found in the RAy Tool kit for installation of RAy microwave bridges. No. 13, 16 and 17 spanners and No. 4 and 6 Allen keys are required for installation. For an antenna with a nominal diameter of 120 cm a No. 14/24 double open ended spanner, supplied with the antenna.

From 2013 Arkivator antenna is delivered with a slightly different bracket, see Fig. 5.24, “Arkivator antenna bracket, version 2013”. Assembly process is similar.

Fig. 5.20: Installation diagram for the Arkivator antenna, 30 and 60 cm, version 2012

RAy Microwave Link – © RACOM s.r.o.42

2828

8888

44445555

2424

2323

2020

2222

3333

2121

1111 30

3030

2626

1414

2727

1010

9999

3333

1111

1515

2525

1212

1313

7777

3131

6666

Installation

Fig. 5.21: Installation diagram for the Arkivator antenna, 99 cm, version 2012

The antenna bracket (part No. 3 and 4) is supplied assembled as per the following image. The bracket is installed on the mast tube in a similar way to that of the Jirous antenna (point a). The bracket is ready for tube diameters up to 115 mm. The bolts (part No. 6) should be screwed to the clamp plate (part No. 4) in such a way that the end of the bolt protrudes approx. 6-10 mm through the other side of the clamp plate. Saddle plates (part No. 5) are then clamped against the mast tube by tightening nuts (part No. 7).

Warning

Before mounting the adapter (part No. 25) to be removed the green foil from the antenna (part No. 1). This film covers the transport of the center hole in the waveguide.

After mounting the bracket on the mast tube, bolt the bent plate (part No. 2, for Arkivator 30 and 60) or (part No. 30, for Arkivator 99) to the bracket. The actual antenna (part No. 1) is then bolted to this plate.

43© RACOM s.r.o. – RAy Microwave Link

Installation

Fig. 5.22: Arkivator antenna bracket (2012)

A reducing adapter (part No. 25), a reducing crossplate (part No. 21) and sleeves (part No. 22) are used for mounting the FOD unit (part No. 20) on the antenna. During installation do not forget "O" rings (part No. 26 and 27) and to lubricate the "O" ring (part No. 27), see Section 5.2.3, “Lubrication and preservation of the antenna pivot”.

Bolt (part No. 14) serves for accurately setting the vertical direction of the antenna. When setting the direction release bolt (part No. 12 and 13), and then tighten it again once you have the correct position. The nuts on bolt (part No. 10) serves for setting the horizontal direction. Once the direction is set these nuts (part No. 11), pivot bolt (part No. 9) in the hanging eye of bolt and two pivot bolts (part No. 8) where the tilt bracket is need to be tightened.

Fig. 5.23: Bracket on the mast, version 2012

Fig. 5.24: Arkivator antenna bracket, version 2013

Fig. 5.25: Arkivator antenna bracket (2013)

RAy Microwave Link – © RACOM s.r.o.44

Fig. 5.26: 30 and 60 cm diameter Arkivator antenna

1111

2525

4040

2222

4545

2424

2121

5656

5454

4343

4747

6060

4242

4646

2727

5050

4141

41 45

4545

5252

4949

4444

5858

2828

5555

5757

2323

5353

2020

2626

4848

Installation

Fig. 5.27: Installation diagram for the Arkivator antenna, 120 cm

45© RACOM s.r.o. – RAy Microwave Link

Installation

5.2.3. Lubrication and preservation of the antenna pivot

Before fitting the FOD unit bush onto the antenna pivot ensure that the "O" ring (part No. 1) is in the correct position. It is also essential to prevent moisture getting in between these two parts. This moisture could cause oxidation which would complicate disassembly of this mechanical coupling in the future. For this reason we need to treat these surfaces with the lubricant grease which is supplied in the box marked RAy bridge accessories. If you use a different grease for lubrication then it should be a Teflon grease or a silicon lubricant grease.

Fig. 5.28: Grease points on the antenna pivot and FOD unit bush

Grease the internal area of the bush on the FOD unit (2) and the "O" ring (1) with a thin even layer that allows the pin to slide easily into the bush without damaging the "O" ring. Grease the area beyond the "O" ring on the antenna pin (3) with a thicker layer so that it fills the gap caused by the play between the pin and the bush (max. 0.1 mm/ø) thus preventing moisture getting in. Installation should be carried out according to the antenna installation description – see point f of this description.

RAy Microwave Link – © RACOM s.r.o.46

Installation

5.3. Connectors

5.3.1. Connecting the FOD communication unit to the user network

The FOD communication unit is connected to the user network by an Ethernet cable via interfaces GbE, IEEE802.3ac 1000BASE-T. As standard, RACOM recommends using an S/FTP CAT 7 cable and two RJ45 connectors for outdoor installations. One for the internal (IE-PS-RJ45-FH-BK) and the second for the external (plastic IE-PS-V01P-RJ45-FH or metallic IE-PS-V01M-RJ45-FH) end of the cable.

Based on the PoE standard the station is powered over the Ethernet cable.

If the station is equipped with two connectors, the right one carries user data, and the left connector is to be used for servicing.

The middle BNC type connector serves for connecting a voltmeter for precisely setting direction.

Fig. 5.29: Connecting the FOD communication unit

Important

Before connecting the FOD communication unit to the supply (to the user network) the FOD unit must be grounded according to Section 5.4, “Grounding”.

It is necessary to install the antenna lead so that there is no excessive mechanical stress applied on the Ethernet connector.

Fig. 5.30: Example of a correct lead installation.

47© RACOM s.r.o. – RAy Microwave Link

Installation

5.3.2. Fitting an external IE-PS-V01P-RJ45-FH connector

We recommend using an S/FTP 4×(2×23AWG) Cat.7 + 2×(2×24 AWG) cable for connecting the FOD unit, as it is designed for external use. The cable contains two additional twisted pairs, 2x(2x24 AWG), which are not used. The following images show the internal cable without these additional pairs.

a. Use the tools from the RAy Tool set for fitting connectors. See Section 3.7, “Accessories”.

Fig. 5.31: Tools for fitting connectors Fig. 5.32: IE-PI-RJ45-FH connector before

fitting

b. Undo the nut on the connector cover and push it on to the cable. Then trim at least 20 mm of insu-

lation from the end of the cable.

Fig. 5.33: Tool for removing insulation Fig. 5.34: Insulation removed

c. Twist the braid forming the cable shielding together and wrap around the cable so that 2-3 loops

are next to each other at the end of the insulation.

Fig. 5.35: Twisted shielding Fig. 5.36: Shielding wrapped around the cable

RAy Microwave Link – © RACOM s.r.o.48

Installation

d. Separate individual pairs of conductors, remove the aluminium shielding from them, cut it off, and

separate individual conductors. Cut off the two additional twisted pairs from the thinner wire in the middle (not seen on these images).

Fig. 5.37: Trimming shielding Fig. 5.38: Separated pairs of conductors

e. Push the lower layer of conductors into the openings as per the pinout sticker (T568B) attached

to the connector. Take care not to confuse white conductors from individual pairs.

Fig. 5.39: Pushing the lower pairs into the connector

the connector according to the pinout sticker and trim them. The cable must be pushed in far enough so that the braided shielding is inside the metal part of the connector.

Fig. 5.41: Cutting off of the upper conductors Fig. 5.42: All conductors in the connector

Fig. 5.40: Lower pairs pushed in

Then from above push the upper conductors into

49© RACOM s.r.o. – RAy Microwave Link

Installation

g. Remove the pinout sticker and fit the complementary half of the connector. Squeeze the parts to-

gether until the locks snap into place. Use the pair of pliers with parallel jaws from the RAy Tool set for this. Standard pliers would damage the connector.

Fig. 5.43: Fitting the complementary half of the connector

h. Then slide the protective cover onto the connector. It must fit into the grooves after snapping into

place. Finally tighten the nut on the cover to seal the point where the cable enters the connector.

Fig. 5.45: Sliding the cover onto the connector Fig. 5.46: Finished IE-PI-RJ45-FH connector

Fig. 5.44: Squeezing the connector until the locks snap into place

5.3.3. Fitting an internal IE-PS-RJ45-FH-BK connector

a. Use the same tools as for fitting the external connector. The internal connector does not have a

cover.

Fig. 5.47: IE-PS-RJ45-FH-BK connector before fitting

Fig. 5.48: Finished connector IE-PS-RJ45-FH-BK

RAy Microwave Link – © RACOM s.r.o.50

Installation

b. Trim at least 20 mm of insulation from the end of the cable.

Fig. 5.49: Removing insulation Fig. 5.50: Removed insulation

c. Twist the braid forming the cable shielding together and wrap around the cable so that 2-3 loops

are next to each other at the end of the insulation. Separate individual pairs of conductors, remove the aluminium shielding from them, cut it off, and separate individual conductors. Cut off the two additional twisted pairs from the thinner wire in the middle (not seen on these images).

Fig. 5.51: Twisted shielding Fig. 5.52: Removing aluminium conductor

shielding

d. Prepare individual pairs according to the pinout sticker attached to the connector (T568B) and

unwind the two pairs for the bottom part of the connector. Take care not to confuse white conductors from individual pairs.

Fig. 5.53: Separated pairs of conductors Fig. 5.54: Lower two pairs ready for inserting

51© RACOM s.r.o. – RAy Microwave Link

Installation

e. First insert the lower row of conductors from the back. Then unwind the others and insert them

into the holes for the upper row of conductors, as per the pinout sticker. Ensure that the wrapped around shielding braid is inserted sufficiently to create a good contact with the second part of the connector fitted with sprung contacts. Snap the plastic clamp onto the cable. Squeeze it together tight enough so that it doesn't allow movement of the cable.

Fig. 5.55: Lower pairs pushed in Fig. 5.56: All conductors in the connector

f. Trim the overhanging conductors.

Fig. 5.57: Trimming conductors Fig. 5.58: Inserted and trimmed conductors

g. Remove the pinout sticker from the connector and slide on the mate. Clamp the whole connector

together until the locks snap into place. Use a pair of pliers with flat heads from the RAy Tool set. Ordinary pliers could damage the connector.

Fig. 5.59: Fitting the mate to the internal connector

Fig. 5.60: Clamping the internal connector together with pliers

RAy Microwave Link – © RACOM s.r.o.52

Installation

5.4. Grounding

The lightning and overvoltage protection system example, designed in accordance with regulation CSN EN 62305.

1. Where possible the antenna should be located in an LPZ 0B protection zone with the use of a

local or artificial air termination device for protection against direct lightning strikes.

2. When meeting conditions for ensuring electrical insulation (distance from the lightning conductor)

in accordance with article 6.3, it is not recommended to ground the load-bearing structure and antenna to the external air termination network. Ground should be connected to the protective system of the internal LV wiring or grounded internal structures using a CYA 6 mm2bonding conductor , see Fig. 5.61, “Grounding installation 1”

3. If it is not possible to set up conditions of electrical insulation in accordance with article 6.3 we re-

commend connecting the load-bearing structure at roof level to the external air termination network via an 8mm diameter FeZn conductor and shielding the data cable before entry to the building with a grounding kit and CYA 6 mm2conductor to the bonding bus, and if not already set up then also to the external air termination network, see Fig. 5.62, “Grounding installation 2”

4. If there is not an external LPS on the building we recommend routing lightning current through an

8mm FeZn conductor to a common grounding system, or to a separate grounding electrode with a ground resistance up to 10 Ω.

5. For limiting the overvoltage transferred over the data cable and into the building we recommend

fitting surge protection at the interface between zones LPZ 0 and LPZ 1 connected via a CYA 4 mm2conductor to the same grounding point as the antenna or the antenna mast.

6. We recommend protecting the PoE power supply from overvoltage on the LV side with suitable

class D surge protection.

53© RACOM s.r.o. – RAy Microwave Link

ETH

230V~

PoE

LPZ0

LPZ1

LIGHTNING

ARRESTER

ETH

230V~

PoE

LPZ0

LPZ1

GROUNDINGKIT

LIGHTNING

ARRESTER

Bondingbar

Installation

Fig. 5.61: Grounding installation 1

Fig. 5.62: Grounding installation 2

The RAy unit is grounded to the flange by the Ethernet connector using an M6 screw. An insulated copper cable with a minimum diameter of 6 mm2terminated with a terminal lug is used as a protective

RAy Microwave Link – © RACOM s.r.o.54

Installation

conductor. The conductor should have a green/yellow sheath across its whole length. For grounding a RAy grounding kit can be ordered as an accessory (see Section 3.7, “Accessories”) containing a grounding terminal ZSA16, 40 cm grounding strip 15 mm wide, and 100 cm of cable with grounding lugs. For instructions on installing terminals see the datasheet RAy grounding kit1. A qualified person must install the antenna.

Racom supplies surge protection for installationon Ethernet cables entering buildings. For more details see Surge protection2.

Additional safety recommendations

• Only qualified personnel with authorisation to work at heights are entitled to install antennas on masts, roofs and walls of buildings.

• Do not install the antenna in the vicinity of electrical wiring. The antenna and bracket should not come into contact with electrical wiring at any time.

• The antenna and cables are electrical conductors. During installation electrostatic charges may build up which may lead to injury. During installation or repair work to parts of the antenna lead open metal parts must be temporarily grounded.

• The antenna and antenna cable must be grounded at all times. See Section 5.4, “Grounding”.

• Do not mount the antenna in windy or rainy conditions or during a storm, or if the area is covered with snow or ice.

• Do not touch the antenna, antenna brackets or conductors during a storm.

Fig. 5.63: Grounding kit for S/FTP 4+2 cable Fig. 5.64: Grounding kit detail

http://www.racom.eu/download/hw/ray/free/eng/07_prislusenstvi/ZSA16-en.pdf

http://www.racom.eu/eng/products/microwave-link.html#accessories

55© RACOM s.r.o. – RAy Microwave Link

Installation

Fig. 5.65: RAy grounding kit Fig. 5.66: Grounding the FOD unit

Fig. 5.67: Protective conductor at the FOD unit Fig. 5.68: Protective conductor at the mast on

a ZSA16 terminal

RAy Microwave Link – © RACOM s.r.o.56

Installation

Fig. 5.69: Separated lightning conductor

5.5. Start up

Connect a power supply to the installed FOD unit and connect the configuration PC. Use an internet browser (such as Mozilla Firefox) to enter the configuration menu.

5.5.1. Noise on the site

This chapter is particularly true for installation of links working in free bands, where the user has no secured frequency.

Analyse the level of noise in the individual channels using the spectrum analyzer under Tools – Graphics – Frequency analyzer. If necessary adjust the choice of working channel on the basis of the results.

While doing so respect the rule that in one location all units emit signal in the Upper part of the range and receive it in the Lower part of the range, or the other way round. A transmitter must not be installed in the part of the spectrum where other units function as receivers.

5.5.2. Antennas directing

If it is possible, use narrow channel, low modulation and high power for the first antenna directing. Working on both ends of thelink simultaneously is favourable. Connect voltmeter to the BNC connector and observe RSS changes in 2 V DC range. Stronger signal corresponds to lower voltage. Alternate units on both sides and slowly adjust the antenna vertically and horizontally to find the position with

57© RACOM s.r.o. – RAy Microwave Link

Installation

the strongest reception. At the same time look for the main signal maximums. To differentiate between the main and the side maximums refer to Main and side lobes paragraph.

RSS measurement

For correctly setting the bridge and positioning it in the right direction it is advisable to connect a PC and use the diagnostic capabilities of the RAy station. In uncomplicated cases it is enough to connect a voltmeter via a BNC connector and adjust to the lowest indicated voltage. Voltage is calibrated according to signal strength. E.g.: RSS -65 dBm corresponds to voltage 0.65 V, RSS -80 dBm corresponds to voltage 0.80 V etc.

Fig. 5.70: Connecting a voltmeter to the BNC connector.

RAy Microwave Link – © RACOM s.r.o.58

Main and side lobes

-40°

-10

G[dbi]

-20° 20° 40°0°

-40°

-10

G[dbi]

-20° 20° 40°0°

-40°

-10

G[dbi]

-20° 20° 40°0°

A – A

B–B C–C

CROSS-SECTION A –A

CROSS-SECTION C – C

-40°

G[dbi]

-20° 20°0°

MAIN BEAM

SIDE LOBE

A A B B

C C

40°

Installation

Fig. 5.71: Radiation diagrams

Both antennas should be oriented towards each other using the peaks of radiation diagram. Adjust the antenna alternately in the horizontal and vertical axes and monitor the resulting signal strength. Use the calculation of the expected RSS with the precision of several dBm as guidance. Side lobes transmit signal ca 20 dBm weaker, see the Microwave link Calculation3.

http://www.racom.eu/eng/products/microwave-link.html#calculation

59© RACOM s.r.o. – RAy Microwave Link

Installation

The resulting RSS helps distinguish between the states A-A and C-C which appear similar. It also helps in situations where simple search for a maximum doesn’t work as shown in the illustration “incorrect adjustment”.

Real radiation diagrams are more complex, especially in that they run differently in horizontal and vertical axes. The basic steps for determining the main radiation lobe however stay valid. For example:

Fig. 5.72: Radiation diagram – incorrect adjustment

Fig. 5.73: 3D example of more complicated Radiation Pattern

RAy Microwave Link – © RACOM s.r.o.60

Installation

5.5.3. Link test

Basic parameters of the link are shown in the menu Status – Brief, its quality is characterized by RSS and SNR. Values on Status screens can be refreshed manually by pressing the Refresh button or in real time with a period of several seconds after activating the Start button. Press the Stop button to terminate the periodic refresh of values.

The RSS, SNR and BER values can also be viewed on the screen Tools – Graphics – Bar indicators. After pressing the Start button, values will be refreshed with a period of one second.

After installation, it is good to reset the statistics using the Clear stats button in menu Status – Detailed. This allows easier diagnostics of the link’s reliability over time.

5.5.4. Parameters setup

After both antennas have been directed, setup operation parameters for the link. In case of links operating in the free band, setup the parameters based on survey results from the tool Tools – Graphics – Frequency analyser. In case of links operating in licensed band,setup the parameters based on assigned license:

• Bandwidth

• Channel Selection (TX / RX channel)

• Modulation (TXmodulation) – ACM is recommended. When selecting fixed modulation it is necessary to account for the fade margin. If fixed modulation is setup close to a possible maximum, then a deterioration in RSS could endanger the link both for data transfer as well as service access.

• Transmit power (RF power), or ATPC

• Verify and record IP addresses

• Define access channels – https / telnet / ssh / ssh with password

Restart both units by interrupting their power supply and verify the status of the link. This verifies that all parameters have been stored correctly in the memory.

Select Tools – Maintenance – Backup – Settings – Backup - Download and save the configuration to backup file “cnf_backup.tgz”.

This completes the installation. Further configuration can be performed remotely.

61© RACOM s.r.o. – RAy Microwave Link

Configuration

6. Configuration

Controls

The following configuration buttons are used for configuration:

Apply and save parameters.Apply Set parameters are overwritten with original values.Cancel

Refresh

Load defaults

Load custom

Start

Stop

Fig. 6.1: Info Refresh

Reload the current values of the station / both stations. Should the configuration be changed from other management session, the message Info: Configuration changed, please click refresh is displayed at the status bar (see screenshot lower). The Refresh button reloads valid data and refreshes web browser screen.

Load default values of the parameters on the screen. To use any of these values, you must use the Apply button.

Loads values of individual parameters from backup configuration.To use any of these values, you must use the Apply button. For loading backup configuration see menu Tools – Maintenance – Backup – Settings – Upload.

Use the Start button to start automatic refresh of displayed information. Information subject to this update are highlighted with a refresh icon.

Use the Stop button to stop automatic refresh of displayed information.

Help

The microwave link configuration system is equipped with built in Help - see Help section. The Help is accessible in two forms:

• Configuration parameter context help. The help text is displayed in the pop up window after clicking the parameter name.

• The whole user interface help. The help text is displayed within the configuration screen after clicking the Help menu.

RAy Microwave Link – © RACOM s.r.o.62

Configuration

Secure login

You can login into the configuration interface either using the insecure http protocol or the secure https protocol - by click to go to secured version. You can select the connection method on the login

screen. If the https protocol is used, it is not possible to tap the network communication and acquire the station’s login information.

Fig. 6.2: Login

Rollback function

If you interrupt the connection on an operating link by entering inappropriate radio link parameters, the original parameters will be restored after 1 minute. The connection is automatically restored.

63© RACOM s.r.o. – RAy Microwave Link

Configuration

6.1. Status bar

Fig. 6.3: Status bar 1

Status bar is located on the upper part of the screen below the title bar. It consist of 3 fields:

• Local station status (station, user is directly connected to via its management IP address).

• Local to Peer link status.

• Peer station status.

Local and Peer field displays:

• Station name according to configuration.

• Actual time valid for respective station.

• Warning or Alarm icon in case a warning or alarm occurs.

Link field displays:

• Status of the link between both sides of the station.

• Warning icon when the link is not capable of user data transfer.

Link status can be one of the following values:

Station start up. The initialization is not yet finished.UNKNOWN Station initialization according to valid configuration.SETUP Station in operation status. Link to peer station is not established.SINGLE Connection to peer station in progress.CONNECTING Authorization of the peer station in progress.AUTHORIZING Link is connected. Peer station is authorized.OK Spectrum analyzer mode active. User data are not transferred.ANALYZER

All states, except the OK state, are highlighted by warning icon:

Fig. 6.4: Status bar 2

RAy Microwave Link – © RACOM s.r.o.64

6.2. Status

Configuration

Fig. 6.5: Menu Status

Menu Status – Brief and Status – Detailed contains basic information about local and remote (Peer) station. Information is refreshed manually by pressing the Refresh button, or automatically after pressing the Start button.

Status – Brief shows only the most important values. Status – Detailed provides further details. Below is a list of all values - according to the menu Status – Detailed.

6.2.1. Status – Device

The Device menu provides basic information about local and remote station. Informations are valid at the moment the page is open, or the Refresh button is pushed.

Station type indicator.Unit code Station serial number.Serial no. Station name selected by user.Station name Unit location assigned by user.Station location

65© RACOM s.r.o. – RAy Microwave Link

Configuration

Station’s firmware version.Firmware version

Date, Time

6.2.2. Status – Radio

Polarization

Bandwidth [MHz]

TX channel [GHz] RX channel [GHz]

TX modulation

The internal real-time clock. The clock is set manually or it is synchronized with NTP server and set for both stations.

Temperature inside the station.Inside temperature [°C] Station’s power supply voltage level.Voltage [V]

Radio unit type: L (Lower) or U (Upper) part of the frequency band.Radio type Horizontal or vertical polarization based on the physical installation. Indic-

ates the polarization of received signal. Local and Peer are indicated separately. The proper position of the cable is sideways down. Notice for ISM connections (RAy17, RAy24): One side of the link must be installed in vertical polarization and the other in the horizontal polarization.

Displays the currently selected frequency table.Frequency table Nominal width of the channel. Both units in a link have to use the same

bandwidth. Used channels. Both number of the channel and frequency in GHz are

listed. Modulation type currently used for transmitting. When adaptive modulation

is enabled, the ACM letters are displayed as well as information about maximum permitted modulation: “current modulation ACM / maximum modulation”

TX power [dBm]

RSS [dBm]

SNR [dB]

6.2.3. Status – Ethernet

Ethernet link mode

MDIX

Current output power on the RF channel in dBm. If ATPC is enabled, the ATPC letters are displayed as well as information about maximum permitted power: “current power ATPC / maximum power”

Current transfer capacity of radio channel for user data.Net bitrate [Mbps] The maximum RF channel capacity according to installed feature key.Max. net bitrate [Mbps] Received signal strength. If ATPC is enabled, the ATPC letters are dis-

played as well as information about threshold value for activation of power control loop: “current RSS ATPC / threshold RSS”

Signal to Noise Ratio. If ATPC is enabled, the ATPC letters are displayed as well as information about threshold value for activation of power control loop: “current SNR ATPC / threshold SNR”

Bit Error Rate registered at the receiving end. Instantaneous value.BER [-] Time elapsed since the current link connection has been established.Link uptime

Status of ethernet interface. Current bit rate (10 = 10BASE-T, 100 = 100BASE- TX and 1000 = 1000BASE-T) and state of duplex (FD = full duplex, HD = half duplex).

Status of the internal crossover of ethernet cables. (MDIX = internally crossed pairs, MDI = direct connection, N/A means an unknown state).

Switch blocking protection status.Storm control Switch Quality of Service status.QoS

RAy Microwave Link – © RACOM s.r.o.66

6.2.4. Status – Service access

HW address of the ethernet module.MAC address

Configuration

IPv4 address

Services

IP address in the standard dotted decimal notation, including the bit width of netmask after the forward slash.

Services enabled for station management and monitoring (HTTPS, SSH, Telnet SNMP, NTP).

Service access via VLAN management only.Management VLAN

6.2.5. Status – Statistics

Detailed traffic statistics in the user interface.

Number of all received packets.In All Packets Counter of unicast packets received.In Unicast Packets Counter of multicast packets received.In Multicast Packets Counter of broadcast packets received.In Broadcast Packets Counter of all packet errors (including dropped).In All Errors Counter of received packets, dropped.In Dropped Packets

In Crc Errors

Counter of corrupted packets (CRC error) received. Usually indicates a problem on Eth cable or connector.

Number of all outgoing packets.Out All Packets Counter of outgoing unicast packets.Out Unicast Packets Counter of outgoing multicast packets.Out Multicast Packets Counter of outgoing broadcast packets.Out Broadcast Packets Number of outgoing packet errors.Out All Errors Counter of dropped outgoing packets.Out Dropped Packets Counter of detected collisions in transmission.Out Collision Packets

Information on statistical data

Time of log clearing.Statistics cleared Period of log refresh.Statistics period

Radio link statistics

Overall time the link has been connected.Overall Link Uptime Overall time the link has been disconnected.Overall Link Downtime The ratio of “Uptime" and "Downtime".Reliability [%] Current time the link has been connected.Current Link Uptime The longest downtime period recorded.The Longest Drop Length of the last link interruption.The Last Drop Number of link interruptions.No of Drops

Configuration

6.3. Settings

6.3.1. Settings – General

Fig. 6.6: Menu Settings – General

Setup of general parameters of the link.

Station type indicator.Unit code Station serial number.Serial no. Station name selected by user.Station name Unit location assigned by user.Station location

LED indicators

Date, Time

Time source

Enable LED status indicators on the body of the station. You can turn off all LEDs with this option.

The internal real-time clock. The clock is set manually or it is synchronized with NTP server and set for both stations.

Time synchronization source setup. Manual setup or NTP protocol use. For easier diagnostics of link operation, it is recommended to use the NTP time synchronization.

Configuration

Adjust time

Note

When the time zone and/or daylight saving time is changed, the original values set in the RAy unit are kept. The actual change takes place after OS restart in order to prevent unexpected states related with local time change.

6.3.2. Settings – Radio

Manual time setup. Use the dialog box to manually set the current date and time. You can copy time from browser (local PC).

IP address of the time synchronization server.NTP source IP Time synchronization interval.NTP period Time zoneTime zone Enable daylight saving timeDaylight saving

Fig. 6.7: Configuration menu Settings – Radio

Setup of general parameters of the radio link.

Information about the type of radio unit: L(ower) or U(pper) band.Radio type

Configuration

Polarization

Bandwidth [MHz]

TX channel [GHz]

RX channel [GHz]

TX modulation

Horizontal or vertical polarization based on the physical installation. Indicates the polarization of received signal. Local and Peer are indicated separately. The proper position of the cable is sideways down. Notice for ISM connections (RAy17, RAy24): One side of the link must be installed in vertical polarization and the other in the horizontal polarization.

One of standard channel widths can be selected. This parameter must be set identically in local and remote.

TX and RX channels are selected from a list of channels. The basic configuration has the TX and RX options interconnected. In this case the basic duplex spacing between channels is preserved and by selecting one channel, the other three are defined as well. For stations operating in free bands, it is possible to disconnect the TX-RX lock and select TX and RX channels individually. Corresponding channels at peer station are set automatically. Notice – Non-standard duplex setting leads to non-effective use of the spectrum.

Information about duplex spacing of TX and RX channel.Duplex spacing [MHz] Enable automatic control of modulation.ACM Modulation level for TX channel. You can select in range from QPSK (high

sensitivity for difficult conditions) to 256QAM (high speed under appropriate conditions). In case of enabled ACM it has the meaning of the maximum (highest) allowed modulation.

ATPC

TX power [dBm]

Antenna gain [dBi]

EIRP ?= limit [dBm]

Enable automatic control of RF power. Power is regulated towards lower values while maintaining highest modulation level. Maximum output power is limitted by Tx power parameter. The power control loop is primarily controlled by RSS. The SNR value is taken into account as well, because the situation of high interference value can lead to high RSS but low SNR.

Desired output RF power. In case of enabled ATPC it has the meaning of the maximum allowed power.

Only for links operating in the ISM band (RAy17, RAy24). Gain of used antenna. It is used to calculate approximate EIRP.

Only for links operating in the ISM band (RAy17, RAy24). Approximate calculation of EIRP. Number on the right shows the allowed EIRP limit. Sign between numbers gives information on compliance/noncompliance with allowed EIRP limits.

6.3.3. Settings – Ethernet

Fig. 6.8: Configuration menu Settings – Ethernet

Configuration

Management

Ethernet interface physical layer parameters setup.

Ethernet link mode

MDIX

Flow control

MTU

Internal VLAN id

Storm control

Switching between transfer speed and flow control automatic negotiation or manual setting.

Media DependentInterface Crossover enables working with both types of ethernet cables, straight-through and crossover. The default option "auto“ switches on automatic detection and performs an internal crossover if necessary.

Mechanism for temporarily stopping the transmission of data on an ethernet network. Enabling flow control allows use of buffers of connected active network elements for levelling uneven flow of user data. If flow control is enabled, you cannot use the built-in QoS functions. For correct operation it is necessary to also enable Flow control on the connected device.

Setup of maximum allowed length of Ethernet frame. If transfer of tagged frames is not needed, you can choose smaller MTU. If you select smaller MTU, more storage space is available for QoS.

The RAy unit uses one VLAN id for internal needs. It can be changed if there is a conflict with user data.

Protection against packet flooding and subsequent device input switch blocking:

traffic directed to broadcast address (DA=FFFFFFFFFFFFH)Broadcast traffic directed to multicast addresses (DA[40]=1B)Multicast un-learned unicast trafficUn-learned unicast

100Mb/1Gb 10Mb threshold [pkts/50ms]

Setting the threshold to activate protection. Set as number of packets per 50ms. Set separately for 10Mb link speed, or for 100Mb and 1Gb link speeds.

Configuration

6.3.4. Settings – QoS

The Quality of Service (QoS) menu groups together multiple options of manipulating user data flow.

Ingress policing

Fig. 6.9: Configuration menu Settings – QoS

Ingress policing – causes user data flow to be limitted to certain value. The excessive packets are discarded.

Ingress policing Enable Ingress policing. Applies to the device user port.

Speed [Mbps] Data rate to limit the Ethernet traffic to. If this speed is exceeded, Flow control

is initiated. If packets are still incoming, they are dropped.

Mode Ingress policer operation mode:

• soft – Flow control is activated at low fill of input buffer. Good to use if the connected device has Flow control enabled and has a large buffer.

• default – Universal settings. Close to “hard” settings, but with Flow control enabled at connected device, packet loss is not possible.

• hard – Flow control is activated only after the input buffer is completely full. Good to use if the connected device has a small buffer.

Warning

The Ingress policing activation deactivates the switch QoS functions.

802.1p

Configuration

Fig. 6.10: Configuration menu Settings – QoS – 802.1p

Setup of QoS controlled by priority bits according to IEEE 802.1p.

802.1p Enabling QoS according to 802.1p

Prefer DSCP If priority control is enabled according to DSCP and incoming packet is

coloured both by 802.1p priority and by DSCP – prioritization is governed (when enabling this option) by the DSCP rules.

Class of service 0..7 Arranging individual priorities (coded in priority bits according to IEEE

802.1p) into selected output queue (0..3).

Warning

The QoS activation deactivates the Flow control and Ingress policing.

Configuration

DSCP

Fig. 6.11: Configuration menu Settings – QoS – DSCP

Setting of QoS governed by DSCP priority bits (Differentiated Services, or DiffServ) in the IP header.

DSCP Enabling QoS according to DSCP

DSCP 0..63 Arranging individual priorities (coded in DS field of IP header) into selected output

queue (0..3).

Warning

The QoS activation deactivates the Flow control and Ingress policing.

TCP/UDP ports

Configuration

Fig. 6.12: Configuration menu Settings – QoS – TCP/UDP ports

Setting of QoS governed by number or range of TCP/UDP ports.

TCP/UDP ports Enabling QoS according to TCP/UDP ports.

Prefer DSCP If priority control is enabled according to DSCP and incoming packet is coloured

both by DSCP priority and matches one of the rules listed here – prioritization is governed (with this option enabled) by the DSCP rules.

Stream 0..7 Up to 8 ranges of TCP/UDP ports can be configured. The range applies to both

protocols: TCP and UDP.

• From – Start of TCP/UDP ports range.

• To – End of TCP/UDP ports range If we want to prioritize only one port, use same values for “From” and “To”. The range of TCP/UDP ports can be up to

255.

• Side – Defines whether it is a source or destination TCP/UDP port(s).

• Queue – The target output queue for packets matching the rule.

Warning

The QoS activation deactivates the Flow control and Ingress policing.

Configuration

Queue management

Fig. 6.13: Configuration menu Settings – QoS – Queue management

Setting the operation mode of output queues. These are internal switch queues for organization of packets based on individual QoS rules.

Note

To enable configuring output queues, you must enable at least one of the QoS rules.

Mode Regime for sending out packets from individual queues.

• Strict – If there are packets in a high priority queue, packets from that queue are sent out. Only after this queue is completely empty, packets from a lower priority queue are sent out.

• WFQ – Weighted Fair Queuing. Packets from individual queues are sent out accord- ing to set ratios (see below).

Ratio Mode Turns on the WFQ regime sending out ratio.

Queue 0..3 Setting parameters (ratios) of packets sending out for individual queues.

• Strict column – Maximum output speed [Mbps] for individual queues. Allowed range 0 .. 400 [Mbps]

• WFQ Column – Packet sending out ratios for individual queues. Higher values means more frequent sending out from the given queue.

Configuration

Smart discard

Setting mode for packet dropping in case of insufficient output channel capacity. Packets are dropped with certain probability before the queue is filled completely. For example, this mechanism prevents blocking of high priority packets by low priority packets. The “early random discard” mechanism is proving to be useful particularly for TCP traffic.

Smart discard mode can be used independently of QoS. To ensure correct function of Smart discard (i.e. Mode 1..3) Flow control is off.

Queue 0..3 Setting drop mode for individual output queues

• Mode 0 (0/0) – Packets are dropped only after output queue is fully congested. Smart discard mode is therefore turned off.

• Mode 1 (0/25) – When the queue is full to 3/4, packets will be dropped with 25% probability.

• Mode 2 (25/50) – When the queue is full to 2/3, packets will be dropped with 25% probability. When the queue is full to 3/4, packets will be dropped with 50% probability.

• Mode 3 (50/75) – When the queue is full to 2/3, packets will be dropped with 50% probability. When the queue is full to 3/4, packets will be dropped with 75% probability.

Warning

The Smart discard mode activation deactivates the Flow control.

Configuration

6.3.5. Settings – Service access

Services

Access routes for link configuration.

Fig. 6.14: Configuration menu Settings – Service access – Services

IPv4 address

Unknown IP address

HTTP(S)

Service IP address, by default 192.168.169.169 for L station and 192.168.169.170 for U station. Four addresses 169.254.173.236/30 are used for internal communication. Must not be used as service IP address.

For easier identification of service IP address, RAy is equipped with LLDP protocol. Protocol sends a broadcast every 60 seconds with the following information:

- IP address – under LLDP: Management address

- Serial number – LLDP: System Description

- Type (e.g. RAY17_L) – LLDP: Chassis Subtype

- DATA_PORT for version with 1 eth or SERVICE_PORT for version with 2 eth – under LLDP: Port Subtype Message can be recorded and converted into a readable form using a LLDP client. A suitable tool for this purpose is Wireshark IP traffic analysing tool, with free licenses available both for Windows and Linux. To locate the message easily, use the Capture filter "ether proto 0x88cc” in Wireshark.

Mask for service access, 24 by default.Netmask Default gateway for service access, empty by default.Gateway Allowing access via HTTP server (for HTTP and HTTPS protocol). Attention: after

disabling access via HTTP server, you will not be able to access the unit using a web browser!

Configuration

Telnet

SSH

Management VLAN

Management VLAN id

SNMP community string

Internal link watchdog

Enabling access via Telnet server. Provides access to CLI (Command Line Interface) for simple telnet clients. Disabled by default.

Enabling access via SSH server. Provides secure access to CLI. If preventing unauthorized access to the station is number one priority, leave only this server on.

Enabling access via VLAN management. Blocks access for https, ssh and telnet configuration viauntagged packets (without VLAN) making only VLAN access possible. VLAN management is off by default. In case of RAy unit with two ports, VLAN management applies to the service port.

- ATTENTIONBy enabling VLAN management, ALL accesses are blocked for configuration using normal (untagged) LAN! During tests, you may enable VLAN management on one unit only. Then it is possible to access the link via LAN and VLAN either directly or via radio link.

VLAN management id, by default 1. This field has to be filled out even when VLAN management is not active.

Enabling SNMP server. Off by default.SNMP SNMP community string. Can contain both lower and uppercase letters, numbers,

four characters . : _ - and can be up to 256 characters long. Address for sending SNMP traps.SNMP trap IP Watching over connection of both link units. In case of prolonged failure (10 min) a

cold restart is done (the equivalent of turning off the power). Off by default.

Users

List and setup of users. There can be different users on either side of the link.

Configuration

Fig. 6.15: Configuration menu Settings – Service access – Users

List of users on Local and Peer stations.Local, Peer

User name. This name is entered as Login to log into the link management.Username

Group

User group to which the user belongs.

cli_guest

cli_admin

cli_super

Information about whether user has a passwordPassword

This group has the right to only view the setting of the link. Does not have rights to modify the settings. A group can contain a maximum of 10 users.

The group has all the rights of group cli_guest plus: Right to configure the link. Has the right to view and modify all settings (except for user accounts and special actions of the user distributor). A group can contain a maximum of 10 users.

Same rights as cli_admin plus: Right to configure user accounts including SSH keys.. This group contains only two users:

User super. User distributor has an additional right to change special configur-

ation items. The password for this user cannot be changed.

Information about whether user has at least one ssh key defined.SSH key

Edit user

Clicking Edit next to a username opens a screen with configuration of the given account.

Configuration menu Settings – Service access – Users – Edit

Configuration

User nameUsername The group to which the user belongs.Group

Password

SSH key

Save the menu content by clicking on the button Apply.

Delete user

Users from the group cli_super have a Delete button next to them. You can delete a user using that button. User is removed without further queries. Users from the group cli_super cannot be deleted.

Password can be set or deleted.

Delete – User will not have a password. The user will only be able to log in with a ssh key. In order to delete the password, you must first upload ssh key.

Set – Password settings. New password.New password Repeat password.Confirm password Working with ssh key.

Delete – Clear all ssh keys of the user.

Set/replace – Add a new key. If there already was any key(s), it will

be overwritten.

Add – Add a new key. You can enter multiple ssh keys this way. Insert key file.Key file

Add user

The button is located on the bottom bar. For users from the group cli_super, the Add user button is active. You can use it to create a new

user from groups cli_quest or cli_admin.

Configuration

Name of new user.Username The group to which this user will belong.Group Password for this user.New password Repeat password.Confirm password

SSH key

Create a new user by clicking on the button Apply.

Mirror users

The button is located on the bottom bar. For users from the group cli_super, the Mirror users button is active. Selecting this function will

copy all user accounts from Local station to Peer station. Existing user accounts on the Peer station are deleted (except for the password of distributor, which is unique for each station).

If you want the user to have access using ssh protocol and identity verification using ssh key, enter the ssh key here.

6.3.6. Settings – Alarm limits

Fig. 6.16: Configuration menu Settings – Alarm limits

Diagnostic system of the link monitors the operation of the station. It generates various events as output. There are two kinds of events: Warnings and Alarms. The event is always written to the system log and indicated in the status bar. Some events have configurable thresholds. For each event you can choose whether a SNMP trap should be sent if the event occurs.

List of configurable events with default thresholds:

Warning

Configuration

Temperature inside the station (on the modem board.)>80Inside temperature [°C] Memory usage.>90Memory usage [%] Lower threshold of supply voltage.<40Voltage min [V]

>70Voltage max [V]

Alarm

BER

6.4. Diagnostics

6.4.1. Diagnostics – Graphs

Upper threshold of supply voltage, SNMP trap on/off is generated same as for Voltage min.

Received signal strength.<−80RSS [dBm] Signal to Noise Ratio.<10SNR [dBm]

−6

Bit Error Rate registered at the receiving end. Instantaneous value.>10e Interruption of radio link.Peer disconnect User eth link on Peer station interrupted.Peer eth link down Loss of transmit power (not for RAy17 neither RAy24).RF power fail

Fig. 6.17: Configuration menu Diagnostics – Graphs

Configuration

Station continuously stores information about the values of important variables:

Temperature inside the station Instantaneous value of temperature inside the station. Measured

on the modem board. Temperature of radio board is available via SNMP.

Supply voltage Instantaneous value of station supply voltage.

RSS Received signal strength.

SNR Signal-to-noise ratio of the received signal.

BER Instantaneous bit error rate on link.

Net bitrate Instantaneous transmission capacity.

Ethernet in throughput Instantaneous speed (20s average) of incoming user data on the

user Ethernet port.

Ethernet out throughput Instantaneous speed (20s average) of outgoing user data on the

user Ethernet port.

TX power Instantaneous value of transmission power.

The values are saved in the following resolutions and history lengths

• Resolution 1 minute, length of history 1 week

• Resolution 15 minutes, length of history 30 days

• Resolution 1 day, length of history about 180 days

Stored values can be viewed using three methods:

Preview all values for the last 24 hoursThumbnails Detailed graphical view of one or two selected values for the given intervalViewer Numerical view of all valuesData

Viewer

Configuration

Fig. 6.18: Configuration menu Diagnostics – Graphs – Viewer

Detailed graphical view of one or two selected values for the given interval. You can choose to view data from Local or Peer or both.

Selecting one of the observed values.Primary Y axis Selecting a second value.Secondary Y axis Enables the display of alarms, if there were any.Alarm Displays graph from Local unit.Local Displays graph from Peer unit.Peer

Interval

Selecting width of interval to be displayed. Based on the interval width, data are displayed in a suitable grid: Up to 3 hours in at one minute. Up to 4 days at 15 minutes. For longer intervals at one day.

Move by one width of selected interval towards older values.Previous Move by one width of selected interval towards newer values.Next Move to the newest values.Last

Configuration

Data

Fig. 6.19: Configuration menu Diagnostigs – Graphs – Data

Detailed graphical view of values for selected interval.

Shows only the values that are selected for the graph.Plotted Shows all logged values. Filtering of values from local, remote or both.Local

Peer

All

6.4.2. Diagnostics – Logs

Configuration

Fig. 6.20: Configuration menu Diagnostics – Logs

Shows internal station logs. Individual tabs allow total or filtered view.

When you first open the screen, it is necessary to start browsing logs by pressing the Refresh button.

Listings of all logs can be filtered. You can enter text in the upper left corner window for filtering listings. For example, you want to know when was the configuration of the station modified: On the Local events screen, enter “Configuration” and hit Enter.

You can use plain text or regular expressions for filtering (JavaScript format).

Displays the last 3 records from all types of logs.Overall Events from Local or Peer station.Local events, Peer events

Local ACM, Peer ACM

Maximum length of displayed logs is 250 entries. If you need to display longer history, use of CLI interface is needed.

History of modulation switching if ACM is enabled. Local and Peer station.

Alarms from Local or Peer station.Local alarms, Peer alarms

Configuration

6.5. Tools

Menu Tools contains several support tools for link diagnostics and management.

6.5.1. Tools – Ping

Fig. 6.21: Configuration menu Tools – Ping

The Ping tool allows sending ICMP pings to a selected address

Destination

Start the test by clicking on Send. The result is displayed in the text window.

Destination address in dotted decimal notation. The default address

127.0.0.1 is the localhost address - i.e. the station itself. Length of sent data 7 to 1500 bytes, 8 bytes of the header will be added.Size [B] The period for sending pings is constant: 1000 ms.Timeout Number of sent pings.Count

6.5.2. Tools – Graphics

Bar indicators

Configuration

Fig. 6.22: Configuration menu Tools – Graphics – Bar indicators

Graphical indication of BER, SNR and RSS.

One-time update of displayed values.Refresh

Start, Stop

Use the Start button to start automatic update of displayed values with a period of 1 second. Use the Stop button to stop it.

Configuration

RX constellation diagram

Fig. 6.23: Configuration menu Tools – Graphics – RX constellation diagram

Constellation diagram shows the quality of received signal.

Number of plotted points.Buffer One-time update of diagram.Refresh

Frequency analyser

Configuration

Fig. 6.24: Configuration menu Tools – Graphics – Frequency analyser

A very useful tool for identifying in-band interference and locating a free channel. It is not a full-blown spectrum analyser as it scans the spectrum with 7MHz channel resolution. The accuracy of measured results is given by the accuracy of measuring RSS.

Warning

Running spectrum measurement causes interruption of user data flow between stations!

Spectrum measure time

Start

Selection of measurement length in range: single sweep … up to 15 min

The deactivation of Peer station transmission during measurement.Mute peer TX Opening analyser functionsEnable Interrupts communication on the link and starts scanning frequencies in

the band.

Configuration

6.5.3. Tools – Maintenance

■ Restart

Fig. 6.25: Configuration menu Tools – Maintenance – Restart

Restart of selected unit, Local or Peer.Target

Restart mode

■ Backup

Warm – reboot management system. Cold – restart the whole station as if power was removed.

Performs the selected restart.System restart

Fig. 6.26: Configuration menu Tools – Maintenance – Backup

Settings

Saving and restoring configuration.

Configuration

Saving configuration to backup file.Backup

Upload

Custom settings

Upload configuration from a backup file into buffer. RAy continues to run with the current configuration.

Restoring the configuration parameters from the buffer. Parameters must be prepared using Upload.

Applying default values to all configuration parameters.Default settings

Factory settings

Using the factory settings function will return the unit to its original state. All configuration items, user accounts, measured values and system messages (logs) will be irreversibly deleted.

Warning

This task takes a few minutes to complete. Do not interrupt the power supply during the operation.

Applying Factory settings to Local station.Local

Users

Saving and restoring user accounts.

Saving user accounts to backup file.Backup Restoring user accounts from a backup file.Restore

Management Information Base

Provides MIB table.SNMP MIB

Diagnostic package

To facilitate communication with the technical support you can create an archive file with detailed information about the station. If connection with Peer station is functional, information from both stations is saved.

Saving a file with information about the station (Local and Peer).Backup

Configuration

■ Feature keys

Fig. 6.27: Configuration menu Tools – Maintenance – Firmware

The sub-set of RAy parameters is affected by use of Feature keys. The feature keys limiting data transfer speed [Mbps] are now available. Speed of the transferred data is determined by a combination of the radio channel bandwidth (parameter Bandwidth [MHz]) and modulation order (parameter TX modulation). The Feature key limiting the data transfer speed enables only certain combinations of the channel bandwidth and modulation order to get the data transfer speed according to the Feature key. The data transfer speed is typically slightly higher than declared. When installed, the Feature key is activated after the station restart. The station can be restarted using the Tools-Maintenance-Restart menu. Choose the warm Restart mode.

Local

The active Feature keys in the Local station.

Name of the function controlled by the Feature key.Feature The numeric value set by the key.Limit

Remove

The specific Feature key can be deleted using the Delete button. The parameters controlled by this Feature key are reset to their default values after the station restart. Note: The link radio parameters can be changed subsequently (e.g. to a different operating frequency)!

Feature keys are installed into the station from the binary files.Upload local feature keys Dialog for the Feature key binary file selection is open.Open file upload

Configuration

Peer

Peer station active Feature keys. Feature keys of the Peer station are only displayed. They can be neither added, nor deleted. To be able to manipulate the Feature keys, it is necessary to access directly management interface of the relevant station - use the IP address of the relevant station.

Name of the function controlled by the Feature key.Feature The numeric value set by the key.Limit

■ Firmware

Fig. 6.28: Configuration menu Tools – Maintenance – Firmware

If a new firmware version is released for the given microwave link type, you can upload it to your RAy units.

Firmware upgrade

Information about the current firmware version on Local and Peer station.Current version

Version in buffer

Clean buffer

Information about firmware version prepared in the buffer for installation into the unit (Local, Peer). This firmware must first be prepared in the Firmware upload section (see below).

You can use the Clean buffer button to delete prepared firmware package in the buffer.

Firmware upload

Name of the firmware fileFile name Size of the firmware fileFile size [B]

Configuration

Open file upload

Upgrade

Warning

Installing the firmware takes several minutes (about 10 minutes). During this time, transmission of user data is interrupted (for about 8 minutes). Do not interrupt the power supply during firmware installation!

■ Radio adaptation

Opens a dialog for uploading firmware package to the unit buffer. Only after firmware has been prepared in the buffer, you can perform the actual upgrade.

Use the Upgrade button on the bottom bar to perform the firmware installation.

Fig. 6.29: Configuration menu Tools – Maintenance – Radio adaptation

Radio type

Important

Applies only to links operating in the ISM band (RAy17, RAy24).

Hardware of these links is universal for the entire frequency band. To facilitate the configuration of radio parameters, units are coded for L (Lower) and U (Upper) part of the band. L or U band assignment can be modified.

Radio type

Radio unit type: L (Lower) or U (Upper) part of the frequency band. Use the Change button to change the radio type.

Configuration

Frequency tables

The microwave link contains one or more frequency tables. These tables contain the following information:

• List of available bandwidths and modulations.

• Assignment of frequencies to the channels and the names of these channels. These channels are used to configure radio parameters of the link (see screen Settings-Radio).

• Default values of radio parameters.

• A set of radio parameters, needed for the ATPC operation.

Name of the currently used frequency table.Active

New

Select a new frequency table. Use the Change button to change the table.

Warning

Using the wrong frequency table can lead to violation of the corresponding telecommunications regulations.

Configuration

6.6. Help

The Help screen displays contents of the embedded help. The help text is displayed in the whole configuration window. The text structure corresponds to individual configuration screens.

Fig. 6.30: Menu Help

Every item of this Help opens the specific menu help.

Configuration

Clicking the name of the specific parameter in the configuration menu brings the help belonging to this parameter. The help text is displayed in the pop up window:

Fig. 6.31: Parameter help

The window can be moved by dragging the Hints bar. Resize it by dragging the bottom corner.

There is a Go to help link within the help text. The whole configuration menu help text is displayed by clicking this link:

Fig. 6.32: Configuration menu help

There is a link at the beginning and end of each help screen which points to the respective configuration screen.

Command Line Interface

7. Command Line Interface

Command Line Interface (CLI) provides an alternative to HTTPS access. CLI allows you to work in text regime using a ssh (putty) or telnet client.

7.1. Connection via CLI

Using the telnet client to connect to unit with service IP address 192.168.169.169. Type this in the command prompt:

telnet 192.168.169.169

Then use the username and password from the menu Service access/Users for https access (by default admin, admin). Works if Service access/Services/Telnet is checked in https access.

Connection using putty client. Type this into the Host Name (or IP address) field:

admin@192.168.169.169

Click Open. Then enter the password admin. This procedure (without key) is subject to selection Service access/Services/SSH on in https access.

If you own the private key part, then you do not need a password. In putty, continue by selecting Connection/SSH/Auth and selecting path to file with key e.g. key.ppk. Use Session/Logging to save the putty configuration. To access the unit via CLI simply select the connection in putty and click Open.

Connection using client ssh in Linux.

ssh admin@192.168.169.169 -i key

If you know the password and it is enabled in Service access/Services/SSH onlykey in https access, you can skip the key and use password in the next query.

RACOM RAy11, RAy17, RAy24 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

RAy Microwave Link

Table of Contents

Important Notice

Quick Start Guide

List of documentation

1. RAy – Microwave Link

2. Implementation Notes

2.1. Link calculation

2.1.1. Free space loss calculation

2.1.2. Link budget calculation

2.1.3. Fade margin

2.1.4. Rain attenuation

2.1.5. Multipath fading

2.1.6. Fresnel zones calculation

2.2. Example of microwave link design

3. Product

3.1. Range of models

3.2. Installation

3.3. Status LEDs

3.4. Technical parameters

3.5. Dimensions

3.6. Ordering codes

3.6.1. Microwave units

3.6.2. Feature keys

3.7. Accessories

4. Step-by-step Guide

4.1. Service access

4.1.1. Menu Settings – General

4.1.2. Menu Settings – Service access – Services

4.1.3. Menu Settings – Service access – Users

4.1.4. Menu Maintenance – Feature keys

4.2. Basic link configuration

4.3. Link test

5. Installation

5.1. Line of sight test

5.2. Antenna mounting

5.2.1. Mounting methods

5.2.2. Mounting the FOD unit on the antenna

Mounting the FOD unit on the Jirous antenna

Mounting the FOD unit on the Arkivator antenna

5.2.3. Lubrication and preservation of the antenna pivot

5.3. Connectors

5.3.1. Connecting the FOD communication unit to the user network

5.3.2. Fitting an external IE-PS-V01P-RJ45-FH connector

5.3.3. Fitting an internal IE-PS-RJ45-FH-BK connector

5.4. Grounding

5.5. Start up

5.5.1. Noise on the site

5.5.2. Antennas directing

5.5.3. Link test

5.5.4. Parameters setup

6. Configuration

6.1. Status bar

6.2. Status

6.2.1. Status – Device

6.2.2. Status – Radio

6.2.3. Status – Ethernet

6.2.4. Status – Service access

6.2.5. Status – Statistics

6.3. Settings

6.3.1. Settings – General

6.3.2. Settings – Radio

6.3.3. Settings – Ethernet

Management

Storm control

6.3.4. Settings – QoS

Ingress policing

802.1p

DSCP

TCP/UDP ports

Queue management

Smart discard

6.3.5. Settings – Service access

Services

Users

6.3.6. Settings – Alarm limits
