WPLED52 INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: [email protected]
WPLED52
Standard (15 Deg)
WPLEDC52
Cuto (7.5 Deg)
WPLEDFC52
Full Cuto (0 Deg)
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB xtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding
is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A
PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining xture. No user serviceable parts inside.

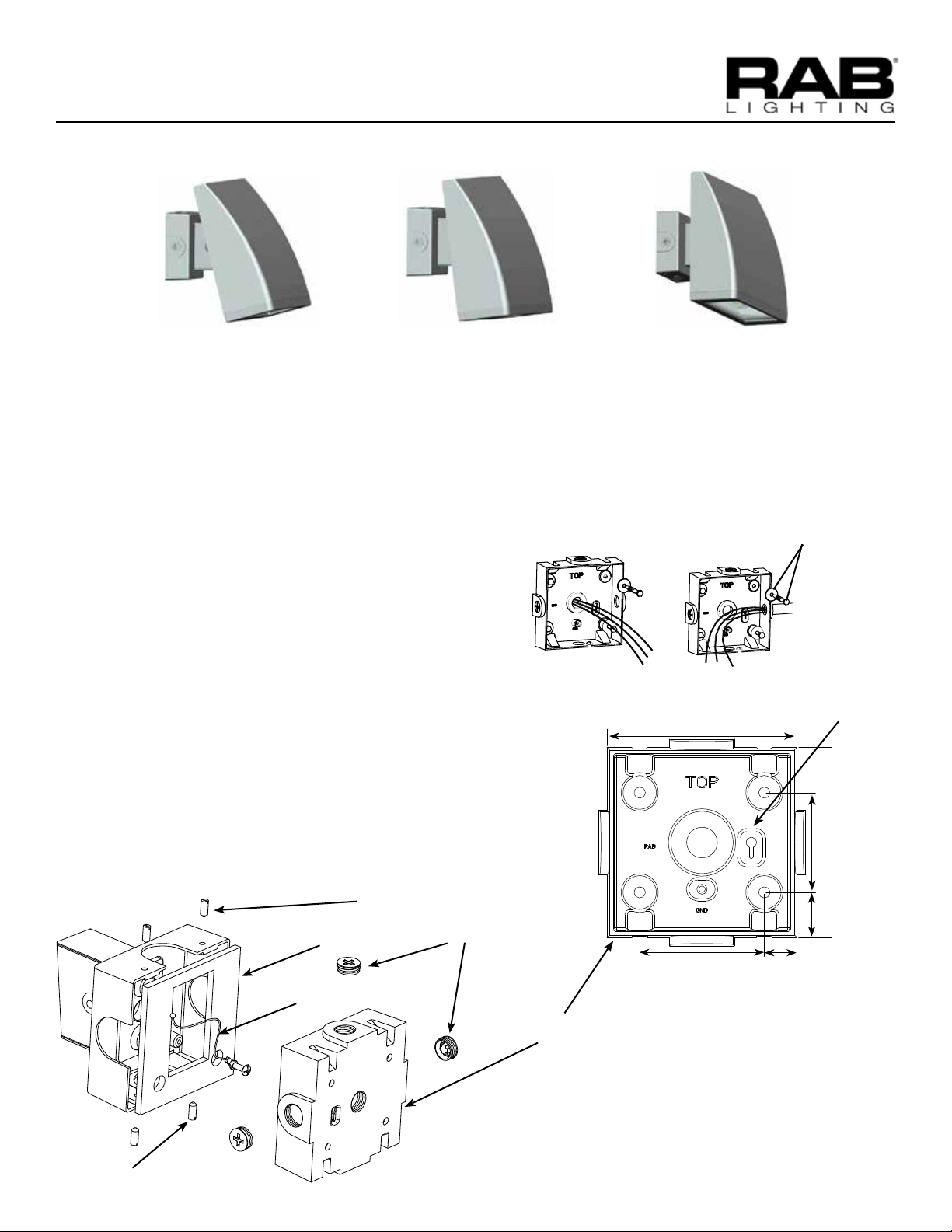

MOUNTING TO A WALL
1. Orient box so that “TOP” is on top.
2. Secure Wall Mounting Box to a sturdy wall. Use
appropriate mounting hardware such as lag bolts and
anchors with washers suitable for the mounting surface.
3. Feed supply wires through Wall Mounting Box. Check
that Gasket is fully sealed.
4. Bring xture up to the Wall Mounting Box and slide the
stainless steel Tether from the xture into the Key Hole
Slot for hands free wiring.
5. Wire the xture using suitable wire connectors.
6. Place wired xture over the Wall Mounting Box and
tighten the Top Screws. Now tighten the Lower Screws.
7. Tighten Close Up Plugs and apply weatherproof silicone
sealant to all unused conduit entry points. Also use
sealant between the wall and Wall Mount Box.
Wall Feed
Conduit Feed
4.57”
Hardware
(not supplied)
Key Hole Slot
2.4”
Lower Screws
Tether
Gasket
Top Screws
Close Up
Plugs (4)
Wall Mount
Box
3.0”
1.09”
.79”
Page 2
WPLED52 INSTALLATION INSTRUCTIONS
Easy Installation & Product Help
Tech Help Line
Call our experts 888 RAB-1000
©2013 RAB LIGHTING Inc.
Northvale, New Jersey 07647 USA
rabweb.com
Visit our website for product info
email
Answered promptly [email protected]
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: [email protected]

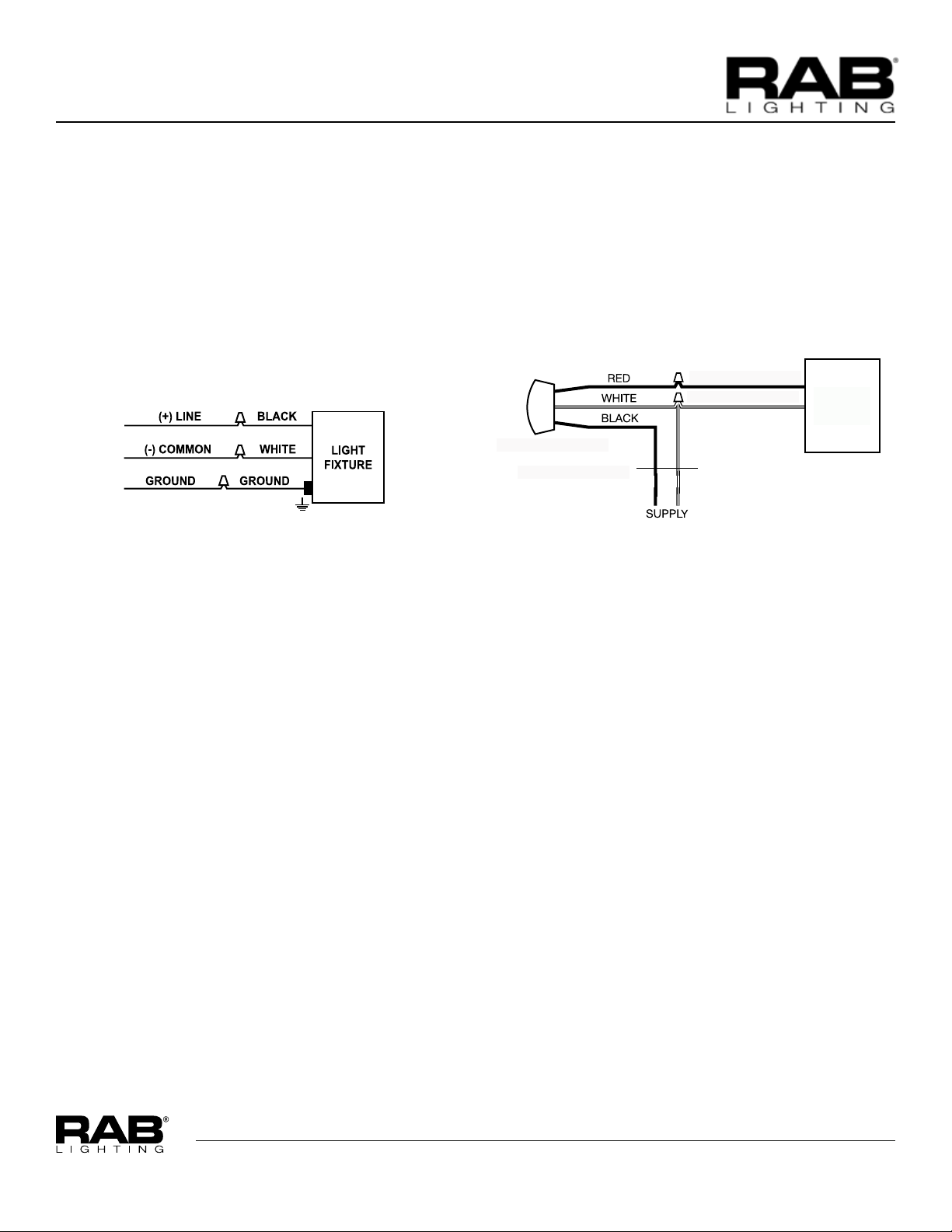

WIRING
Universal voltage driver permits operation at 120V to 277VAC,
50 or 60 Hz except xtures factory ordered with a 120V swivel
photocell (/PCS) or 277V swivel photocell (/PCS2)
1. Connect the BLACK xture lead to the (+) LINE supply lead.
2. Connect the WHITE xture lead to the (-) COMMON supply
lead.
3. Connect the bare copper Ground wire from xture to
supply ground.
CLEANING & MAINTENANCE
CAUTION: Be sure xture temperature is cool enough
to touch. Do not clean or maintain while xture is
energized.
1. Clean glass lens with non-abrasive glass cleaning
solution.
2. Do not open the xture to clean the LED. Do not touch
the LED.
PHOTOCELL INSTALLATION
Photocell may be installed in the eld. Apply weatherproof
silicone sealant to all plugs and unused conduit entries.
1. Remove close up plug on top of the wall mounting box.
2. Install photocell and wire as per diagram.
3. Use photocell rated for your supply voltage.
BLACK
LIGHT
WP2FC
FIXTURE
PHOTOCELL
PHOTOCELL
“COM”
WHITE
TROUBLESHOOTING
1. Check that the line voltage at the xture is correct. Refer
to wiring directions.
2. Is the xture is grounded properly?
3. Is the photocell, if used, functioning properly?
Note: These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during
installation, operation or maintenance.
WPLED52 IN 0813
Page 3
WPLED52 INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: [email protected]

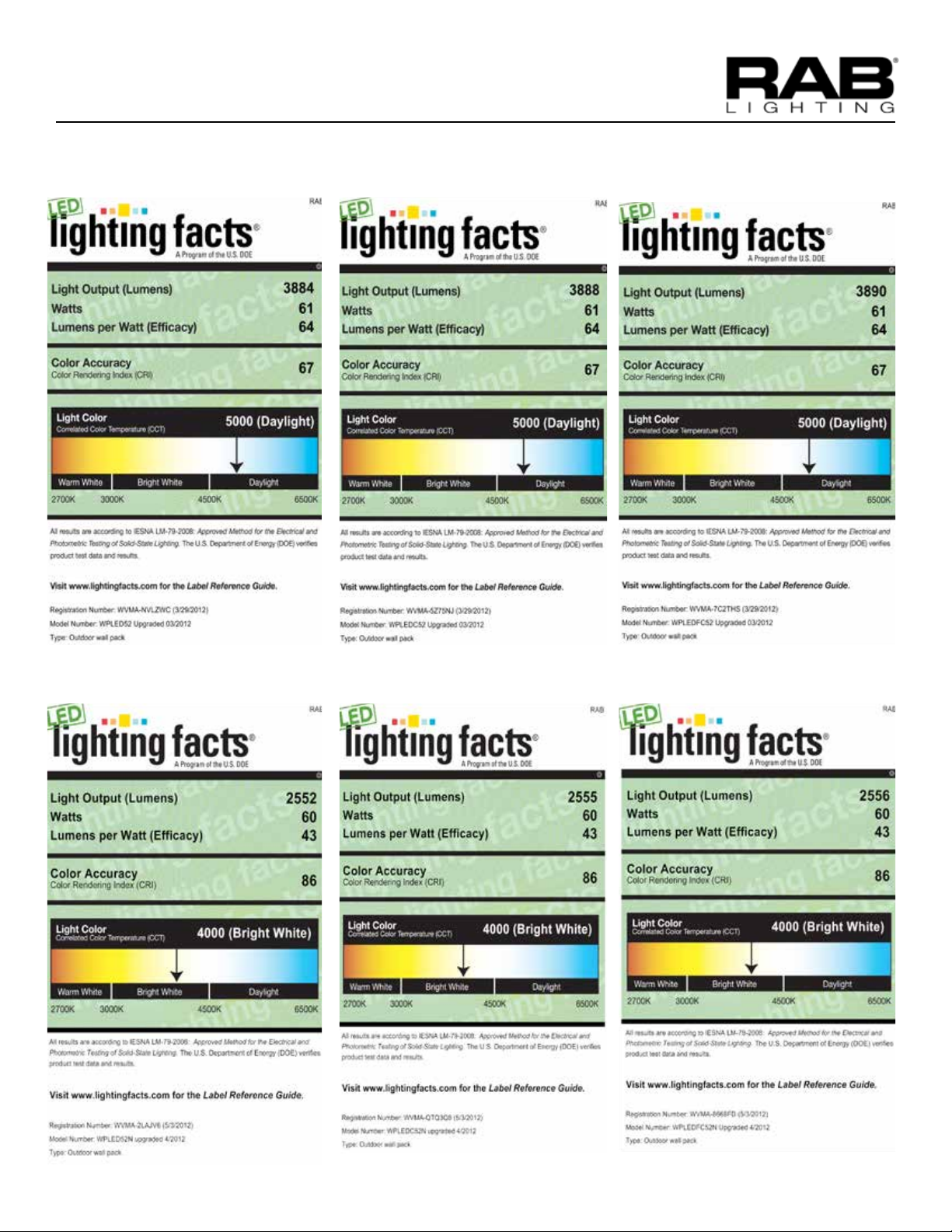

WPLED52 Cool
WPLEDFC52 CoolWPLEDC52 Cool
WPLED52N Neutral
WPLEDC52N Neutral WPLEDFC52N Neutral
