WP3LED INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required
for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining xture.
CAUTION: FOR PROPER WEATHERPROOF FUNCTION ALL GASKETS MUST BE SEATED PROPERLY AND ALL SCREWS INSERTED
AND TIGHTENED FIRMLY. APPLY WEATHERPROOF SILICONE SEALANT AROUND THE EDGE OF THE WALL BOX. THIS IS
ESPECIALLY IMPORTANT WITH AN UNEVEN WALL SURFACE. SILICONE ALL PLUGS AND UNUSED CONDUIT ENTRIES.

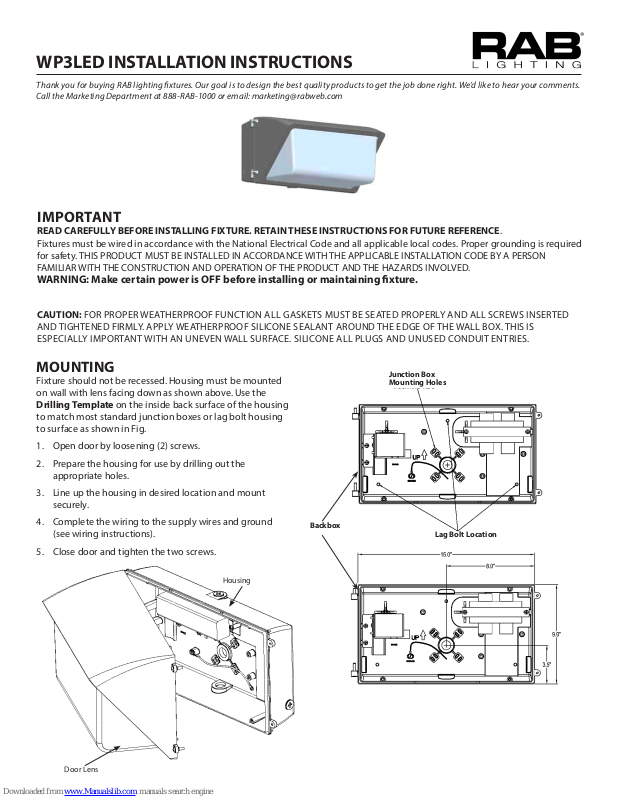

MOUNTING
Fixture should not be recessed. Housing must be mounted
on wall with lens facing down as shown above. Use the
Drilling Template on the inside back surface of the housing
to match most standard junction boxes or lag bolt housing
to surface as shown in Fig.
1. Open door by loosening (2) screws.
2. Prepare the housing for use by drilling out the
appropriate holes.
3. Line up the housing in desired location and mount
securely.
4. Complete the wiring to the supply wires and ground
(see wiring instructions).
5. Close door and tighten the two screws.
Housing
Junction Box
Mounting Holes
Backbox
Lag Bolt Location
Door Lens
Page 2
WP3LED INSTALLATION INSTRUCTIONS
Northvale, New Jersey 07647 USA
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com
ON-OFF WIRING
Universal voltage driver permits operation at 120V to 277VAC,
50 or 60 Hz except xtures factory ordered with a 120V swivel
photocell (/PCS) or 277V swivel photocell (/PCS2) or 480V
swivel photocell (/PCS4). Units ordered with (/480V) sux are
480V.
1. Connect the BLACK xture lead to the (+) LINE supply lead.
2. Connect the WHITE xture lead to the (-) COMMON supply
lead.
3. Connect the bare copper Ground wire from xture to
supply ground.
PHOTOCELL INSTALLATION
Photocell may be installed in the eld. Apply weatherproof
silicone sealant to all plugs,, around photocell and unused
conduit entries.
1. Remove close up plug on top of the wall mounting box.
2. Install photocell and wire as per diagram.
3. Use photocell rated for your supply voltage.
PHOTOCELL
BLACK
“COM”
WHITE
LIGHT
WP2FC
FIXTURE
0-10V DIMMABLE WIRING
For 0-10V Dimming, follow the wiring directions
1. For Junction Box Mount, feed wires through silicone
wiring plug into the junction box.
2. Connect the black xture lead to the (+) LINE supply lead.
3. Connect the white xture lead to the (-) COMMON supply
lead.
4. Connect the GROUND wire from xture to supply ground.
Do NOT connect the GROUND of the dimming xture to
the output.
5. Connect the purple xture lead to the (V+) DIM lead.
6. Connect the gray xture lead to the (V-) DIM lead.
7. Cap the yellow xture lead, if present. Do NOT connect.
TROUBLESHOOTING
1. Check that the line voltage at the xture is correct. Refer
to wiring directions.
2. Is the xture grounded properly?
3. Be sure the photocell, if used, is functioning properly.
CLEANING & MAINTENANCE
CAUTION: Be sure xture temperature is cool enough
to touch. Do not clean or maintain while xture is
energized.
1. Clean glass lens with non-abrasive glass cleaning
solution.
2. Do not open the xture to clean the LED. Do not touch
the LED.
ACCESSORIES
Wire Guard: GDWP3W
Note: These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during
installation, operation or maintenance.
