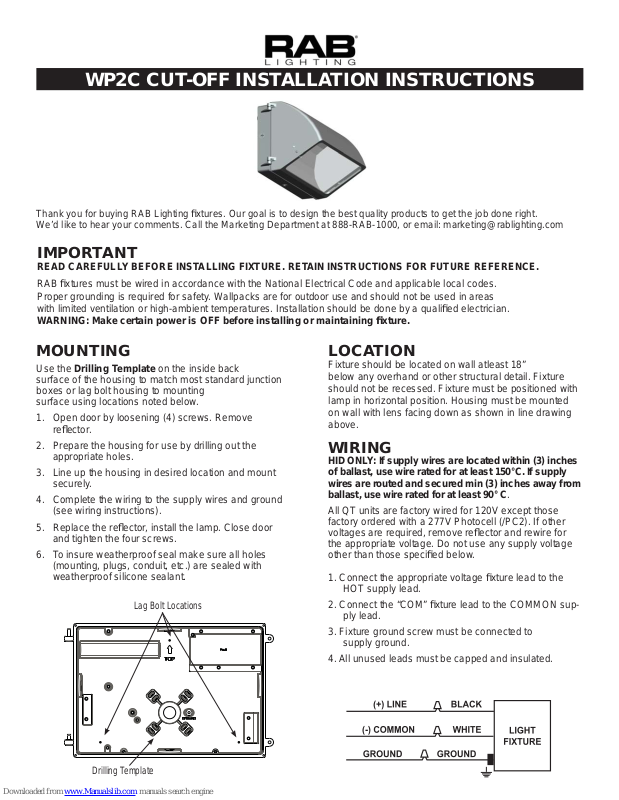

WP2C CUT-OFF INSTALLATION INSTRUCTIONS
Thank you for buying RAB Lighting fi xtures. Our goal is to design the best quality products to get the job done right.
We’d like to hear your comments. Call the Marketing Department at 888-RAB-1000, or email: marketing@rablighting.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
RAB fi xtures must be wired in accordance with the National Electrical Code and applicable local codes.
Proper grounding is required for safety. Wallpacks are for outdoor use and should not be used in areas
with limited ventilation or high-ambient temperatures. Installation should be done by a qualifi ed electrician.
WARNING: Make certain power is OFF before installing or maintaining fi xture.
MOUNTING
Use the Drilling Template on the inside back
surface of the housing to match most standard junction
boxes or lag bolt housing to mounting
surface using locations noted below.
1. Open door by loosening (4) screws. Remove
refl ector.
2. Prepare the housing for use by drilling out the
appropriate holes.
3. Line up the housing in desired location and mount
securely.
4. Complete the wiring to the supply wires and ground
(see wiring instructions).
5. Replace the refl ector, install the lamp. Close door
and tighten the four screws.
6. To insure weatherproof seal make sure all holes
(mounting, plugs, conduit, etc.) are sealed with
weatherproof silicone sealant.
Lag Bolt Locations
LOCATION
Fixture should be located on wall atleast 18”
below any overhand or other structural detail. Fixture
should not be recessed. Fixture must be positioned with
lamp in horizontal position. Housing must be mounted
on wall with lens facing down as shown in line drawing
above.
WIRING
HID ONLY : If supply wires are located within (3) inches
of ballast, use wire rated for at least 150°C. If supply
wires are routed and secured min (3) inches away from
ballast, use wire rated for at least 90° C.
All QT units are factory wired for 120V except those
factory ordered with a 277V Photocell (/PC2). If other
voltages are required, remove refl ector and rewire for
the appropriate voltage. Do not use any supply voltage
other than those specifi ed below.
1. Connect the appropriate voltage fi xture lead to the
HOT supply lead.
2. Connect the “COM” fi xture lead to the COMMON sup-
ply lead.
3. Fixture ground screw must be connected to
supply ground.
4. All unused leads must be capped and insulated.
Drilling Template
Page 2
WP2C CUT-OFF INSTALLATION INSTRUCTIONS
PHOTOCELL INSTALLATION
A PHOTOCELL MAY BE INSTALLED IN THE FIELD.
1. Remove door and refl ector
2. Remove close up plug on top of fi xture
3. Install photocell and wire as per diagram
RED
COMMONWHITE
BLACK
SUPPLY
FIXTURE
CLEANING
Caution: Be sure fi xture temperature is cool
enough to touch. Be sure power is off.
Clean refl ector and refractor with a cloth
moistened with non abrasive glass cleaning solution.
TROUBLESHOOTING
1. Is the proper lamp is installed? Check the
wattage and ANSI code on the fi xture label
against markings on the lamp. Refer to
Replacement Lamp table above for verifi cation.
2. Make sure the lamp is not defective. Try a lamp
known to be in operating condition.
3. Check that the line voltage at fi xture is correct.
Refer to wiring directions.
4. Is there voltage at the lamp socket? If there is no
voltage, check all connections.
RE-LAMPING
CAUTION: Prior to installing, check that the lamp is of proper
type and wattage. Observe lamp
manufacturer’s recommendations on lamp operation, burning
position and ballast type.
1. Disconnect power
2. Make sure fi xture and lamp are cool enough to touch.
3. Loosen two screws holding door frame.
4. Open by swinging door to the left, letting hinge hold door.
5. Replace lamp.
6. Close door and tighten screws.
REPLACEMENT LAMPS AND
BALLASTS
RAB Lamp ANSI RAB Ballast
Wattage Catalog# Code Catalog#
High Pressure Sodium
70 LHPS70 S62 BHPSH70
70 LHPS70 S62 BHPSH70QT
100 LHPS100 S54 BHPSN100
100 LHPS100 S54 BHPSH100
100 LHPS100 S54 BHPSH100QT
150 LHPS150 S55 BHPSN150
150 LHPS150 S55 BHPSH150QT
Metal Halide
70PS LMH70 M98 BMHH70QT
100PS LMH100 M90 BMHH100QT
125PS LMH125PS M150 BMHH125PSQ
150PS LMH150PS M102 BMHH150PSQ
150 LMH150 M107 BMHH150QT
Compact Fluorescent Base
26 LCFL26 GX24-q3 BCFL42
32 LCFL32 GX24-q3 BCFL42
42 LCFL42 GX24-q4 BCFL42
5. Is the fi xture grounded properly?
6. Is the photocell functioning properly (if used)?
WP2C-IN-0911
Note: These instructions do not cover all details or variations
in equipment nor do they provide for every possible situation
during installation, operation or maintenance.
