REMODELER & NEW CONSTRUCTION TRIM
2IN 10W ROUND & SQUARE INSTRUCTIONS
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
RDDLED2R RDDLED2S
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB xtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding
is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A
PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining xture.
WARNING: Suitable for wet location with covered ceiling mount.
WARNING: Suitable for installation in Non-Accessible and Accessible Ceilings.
WARNING: Suitable for installation in Non-Insulated Ceilings.
SURFACE PREPARATION
• This xture can be installed with minimum plenum height of 5”.
• The xture can be used to replace an existing unit or for new construction.
• For both round and square xture, cutout must be accurate not undersized or oversized. A hole saw is recommended.
CEILING CUT OUT MUST BE FREE OF ANY DEBRIS AND BURRS.

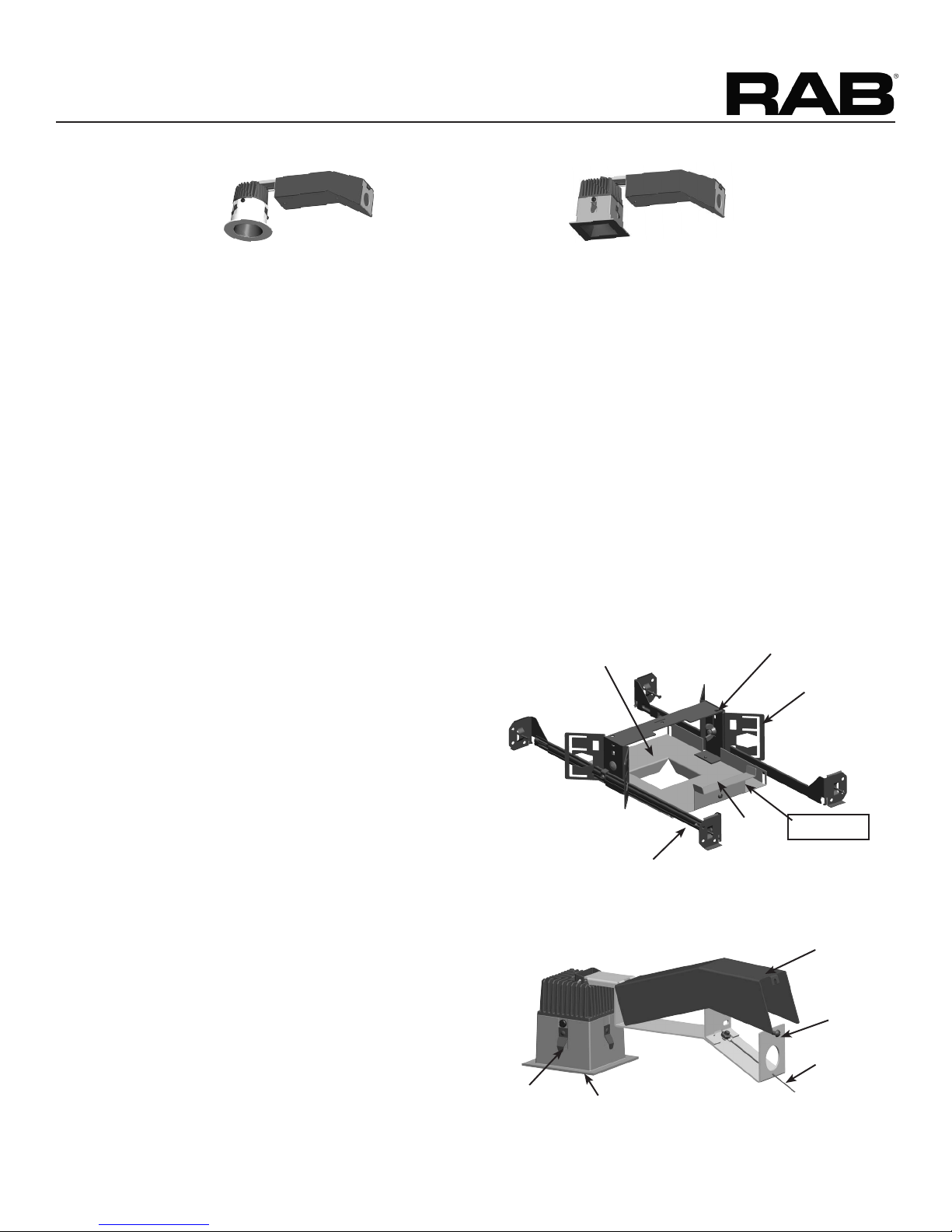

ROUGHIN MOUNTING FOR
ND2RT & ND2ST
For round ceiling cut out 2-1/2” dia. For square ceiling use
the 2-1/2” sq cut out template from packaging material.
1. Nailer bars are provided for use with wood joist
installations. Insert through nailer bar slots and secure
accordingly.
2. Buttery brackets provided to use C-Channels.
(optionally available, consult factory). Consult local
building codes for nal support of xture.
3. The xture can be adjusted from 1/2” to 1” max ceiling
thickness. For height adjustment, loosen the Wing Nut
and slide the Buttery Bracket. If necessary remove the
Wing Nut and insert in screw in dierent hole provided
on the Buttery Bracket. (Fig: 1)
4. Adjust both the Buttery Brackets such that the
downturn collar of Rough-In Section is ush with the
nished ceiling surface. Tighten the Wing nuts.
5. Drop down Supply Wire must be atleast 9” long to allow
xture removal.
6. Loosen the Junction Box Screw and open the Junction
Box (Fig.2). Attach Supply Wires into Junction Box and
connect to the xture. See wiring section for details.
7. Push up and slide the Junction Box section into the
ceiling. Be sure the Spring Clips is snapped in and Trim
Ring is ush and secure. Allow the Junction Box section
of housing to rest on the Leg support of the Rough-in
Section.
Spring Clip
Downturn Collar
Trim Ring
Nailer Bar
Fig: 1
Fig: 2
Wing Nut
Leg
Buttery Brackets
Rough-in
Section
Junction Box
Junction Box
Screw
Supply wires
Page 2
REMODELER & NEW CONSTRUCTION TRIM
2IN 10W ROUND & SQUARE INSTRUCTIONS
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com

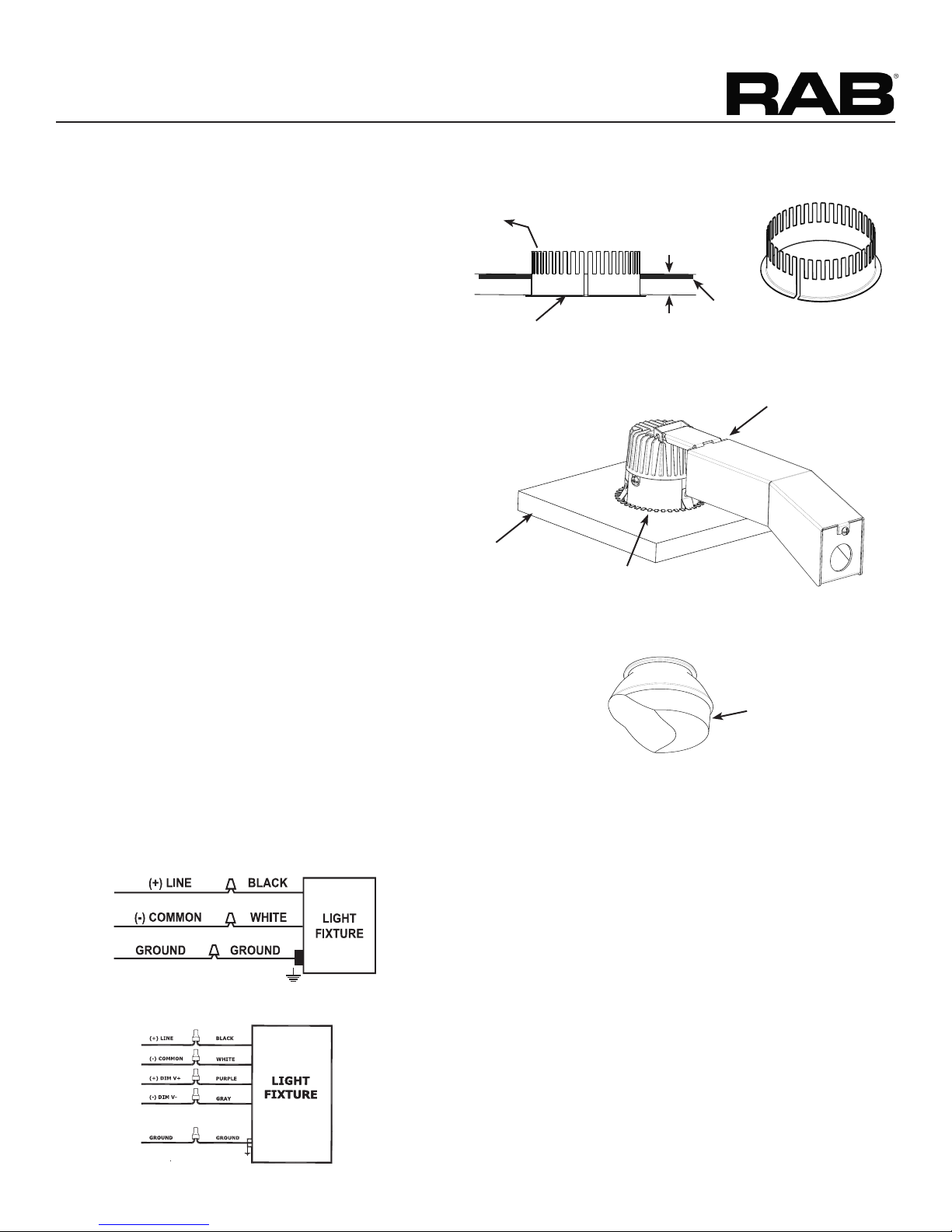

REMODELER MOUNTING
5/8” TYP
3/4”MAX
For round ceiling cut out 2-3/8” dia. For square ceiling use
the 2-3/8” sq cut out template from packaging material.
1. Install Ceiling Collar into opening. Secure Ceiling Collar
by pushing ngertabs down tightly over ceiling. Fig. (3)
Note: Ceiling Collar is intended for 5/8”-3/4” sheet rock
ceilings. For 1/2” ceiling applications, use 1/8” shim to secure
trim module.
2. Loosen the Junction Box Screw and open the Junction
Box (Fig.2). Attach Supply Wires into Junction Box and
connect to the xture. See wiring section for details.
3. Push up and slide the Junction Box section into the
Ceiling Collar. Be sure the Spring Clips are snapped in
and Trim Ring is ush and secure.
WALLWASH MOUNTING
1. For the Wallwash Model, orient the xture such that
the Lens such that the thin section is aimed in correct
orientation.
2. If necessary, rotate of the wall wash lens to orient in
certain direction.
Ceiling Collar
Ceiling
Ceiling Collar
use wood
Shim (if
necessary)
Fig: 3
Remodeler Unit
Fig: 4
WIRING
RISK OF FIRE. Universal voltage driver permits operation
at 120V thru 277V, 50 or 60 Hz. Drop down supply wires
must be at least 9” long to allow xture removal. For NonDimming (on/o), Electronic Low Voltage (ELV) and Triac
Dimming follow the wiring directions in Fig. 6. For 0-10V
dimming, Fig. 7.
1. Connect GROUND wire from xture to supply ground.
2. Connect black xture lead to the (+) LINE supply lead.
3. Connect white xture lead to the (-) COMMON supply lead.
Fig: 6
This side away
from wall
Wall Wash lens
Fig: 5
CLEANING & MAINTENANCE
CAUTION: Be sure xture temperature is cool enough to
touch. Do not clean or maintain while xture is energized.
1. Do not open xture to clean the LED. Do not touch
the LED.
2.
Do not touch reector, lens or trim cone.
3. Do not clean any xture surface with wood base cleaning
material such as paper towels or tissues.
TROUBLESHOOTING
Fig: 7
1. Check that the line voltage at the xture is correct. Refer
to wiring directions.
2. Is the xture grounded properly?
Page 3
REMODELER & NEW CONSTRUCTION TRIM
2IN 10W ROUND & SQUARE INSTRUCTIONS
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com

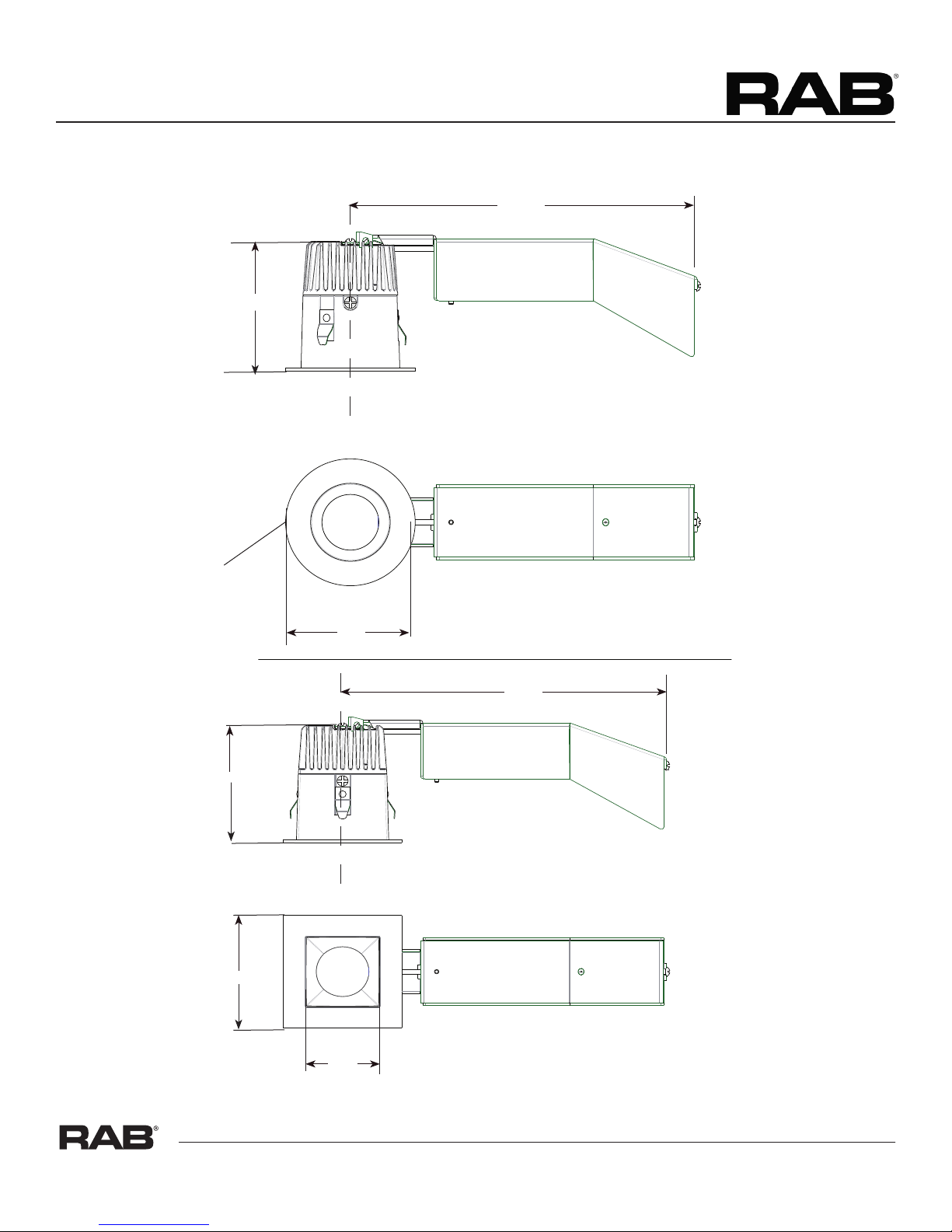

DIMENSIONAL DRAWING
RDDLED2R
3.25”
Ø1.875”
7.9”
2.95”
RDDLED2S
3.25”
2.9X2.9”
1-1/4”
7.9”
Note: These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during installation,
operation or maintenance.
© 2018 RAB LIGHTING Inc.
Northvale, New Jersey 07647 USA
RDDLED2T-IN 0918
Easy Answers
rablighting.com
Visit our we bsite for produc t info
Tech Help Line
Call our ex perts: 888 722-1000
e-mail
Answered promptly - sales@rablighting.com
Free Lighting Layouts
Answered o nline or by reques t
Page 4
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
REMODELER & NEW CONSTRUCTION TRIMLESS
2IN 10W ROUND & SQUARE INSTRUCTIONS
RDDLED2R RDDLED2S
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
RAB xtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding
is required for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A
PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining xture.
WARNING: Suitable for wet locations with covered ceiling mount.
WARNING: Suitable for installation in Non-Accessible and Accessible Ceilings.
WARNING: Suitable for installation in Non-Insulated Ceilings.
SURFACE PREPARATION
• This xture can be installed with minimum plenum height of 5”.
• The xture can be used to replace an existing unit or for new construction.
• Cutout must be accurate not undersized or oversized. A hole saw is recommended. CEILING CUT OUT MUST BE FREE
OF ANY DEBRIS AND BURRS.

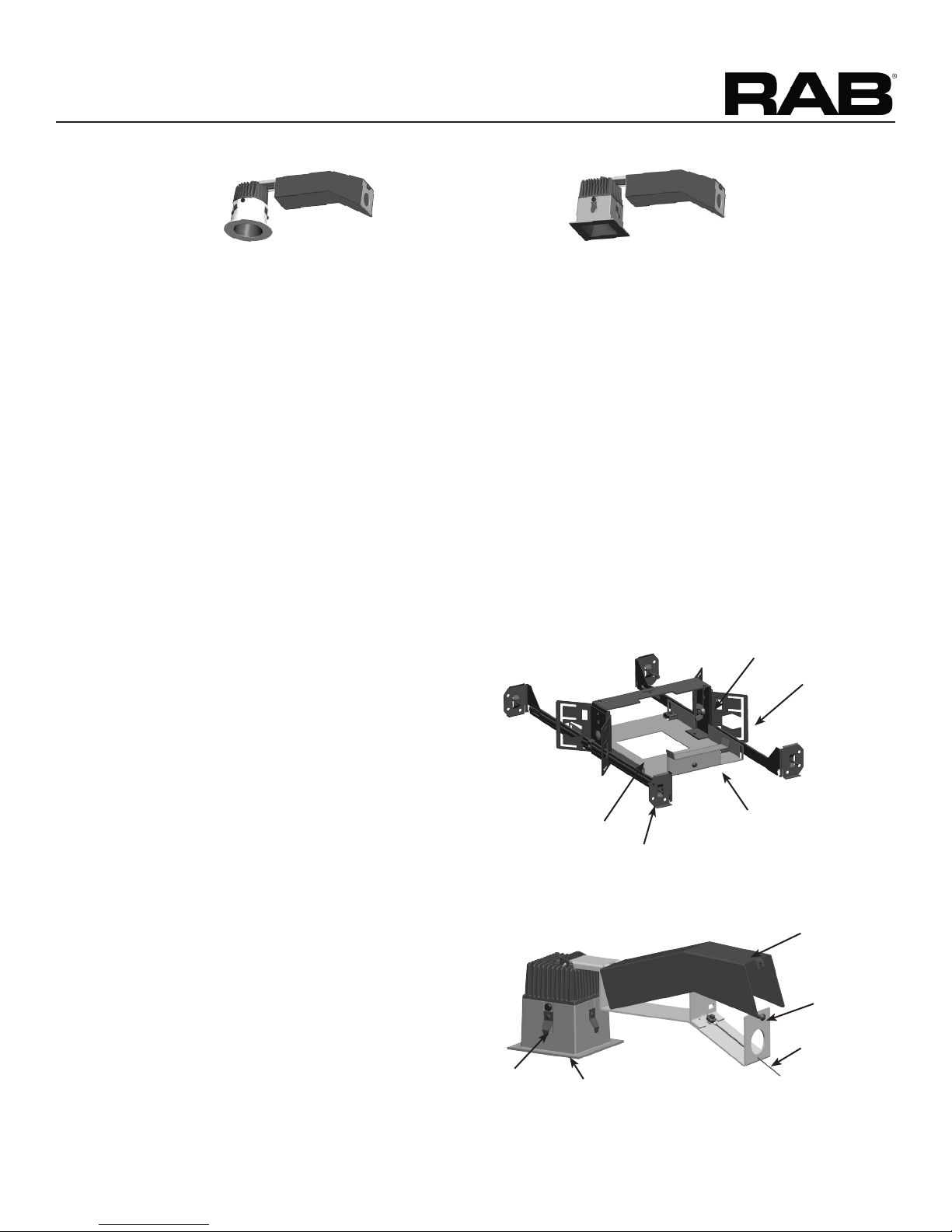

ROUGHIN MOUNTING FOR
ND2RTL & ND2STL
For round ceiling cut out 3-3/16” dia. For square ceiling use
the 3-3/16” sq cut out template from packaging material.
1. Nailer bars are provided for use with wood joist
installations. Insert through nailer bar slots and secure
accordingly.
2. Buttery brackets provided to use C-Channels.
(optionally available, consult factory). Consult local
building codes for nal support of xture.
3. The xture can be mounted into max 3/4” ceiling
thickness. For height adjustment, loosen the Wing Nut
and slide the Buttery Bracket. If necessary remove the
Wing Nut and insert in screw in dierent hole provided
on the Buttery Bracket. (Fig: 1)
4. Adjust both the Buttery Brackets such that the frame
of Rough-In Section is ush with the nished ceiling
surface. Tighten the Wing nuts.
5. Drop down Supply Wires must be atleast 9” long to
allow xture removal.
6. Loosen the Junction Box Screw and open the Junction
Box (Fig.2). Attach Supply Wires into Junction Box and
connect to the xture. See wiring section for details.
7. Push up and slide the Junction Box section into the
ceiling. Be sure the Spring Clips is snapped in and Trim
Ring is ush and secure. Allow the Junction Box section
of housing to rest on the Leg support of the Rough-in
Section.
Spring Clip
Rough-in
Section
Trim Ring
Wing Nut
Buttery Brackets
Leg
Nailer Bar
Fig: 1
Junction Box
Junction Box
Screw
Supply wires
Fig: 2
Page 5
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
REMODELER & NEW CONSTRUCTION TRIMLESS
2IN 10W ROUND & SQUARE INSTRUCTIONS

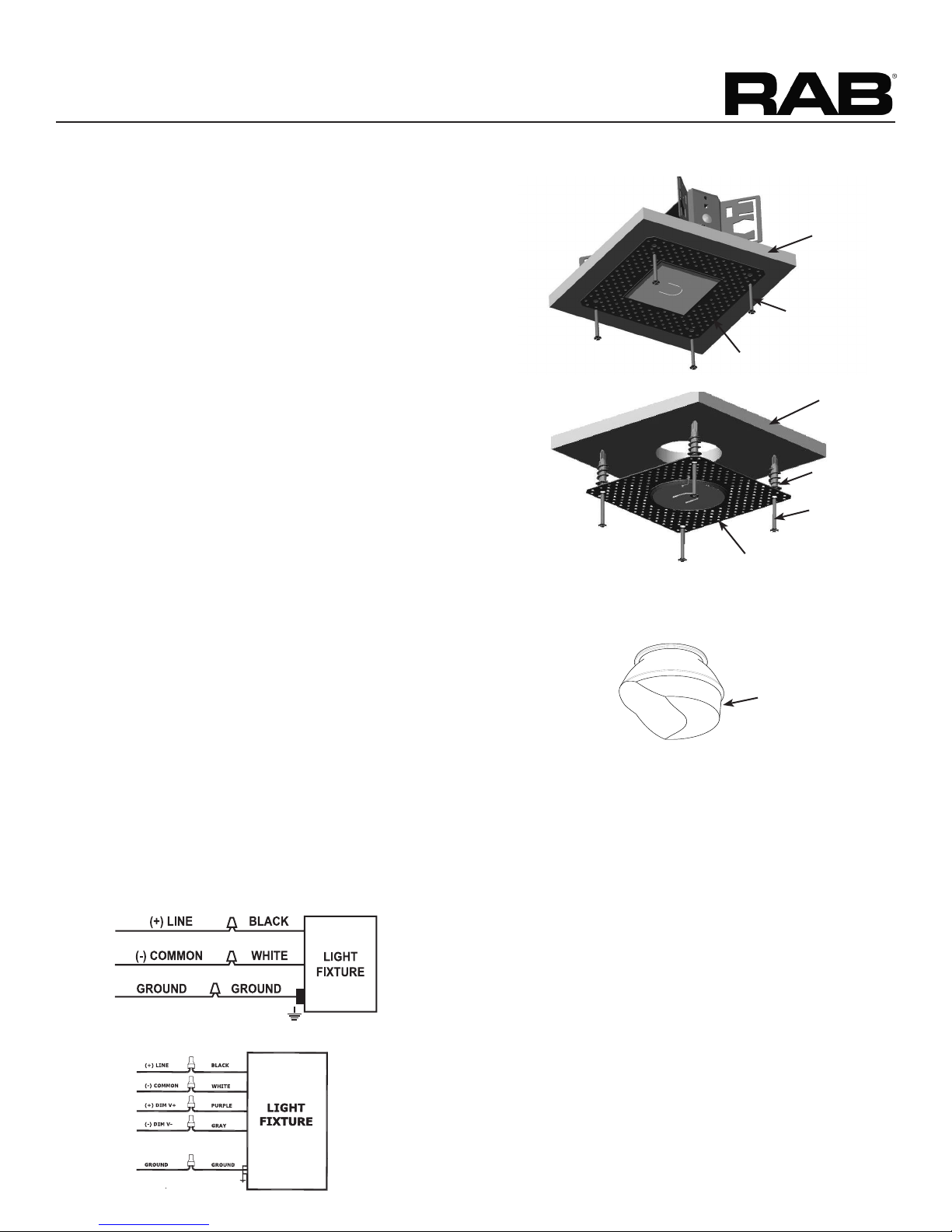

SPACKLED FLANGE MOUNTING
1. Place Spackle Flange on ceiling and align the opening
with the ceiling cutout. Carefully mark the (4) hole
pattern on ceiling and remove Spackle Flange.
2. For New Construction (Fig: 3): Use a 7/32” drill bit to drill
ceiling typical 5/8” ceiling depth. Align rib of Spackle
Flange to rib in Rough-in. Insert the Spackle Flange and
secure with 8-32 x 1-1/2” at head counter shank machine
screws. NOTE: DO NOT DRILL HOLES DEEPER THAN THE
CEILING THICKNESS.
3. For Remodeler Unit (Fig4): Use 5/16” drill bit and drill
ceiling at 4 marked places. Install Wall Anchors and
secure Spackled Flange with 8-32 X 1-1/4” at head
counter shank sheet metal screws.
4. Apply joint compound to spackle frame edge. Remove
Dust protector and remove small debries and make it
ush to ceiling.
WALLWASH MOUNTING
1. For the Wallwash Model, orient the xture such that
the Lens such that the thin section is aimed in correct
orientation.
2. If necessary, rotate of the wall wash lens to orient in
certain direction.
Ceiling
8-32 x 1-1/2” counter
shank machine screws
(4)
Spackled Flange
Fig: 3
Ceiling
Wall Anchors (4)
8/32 X 1-1/4” counter
shank sheet metal
screws (4)
Spackled Flange
Fig: 4
WIRING
RISK OF FIRE. Universal voltage driver permits operation
at 120V thru 277V, 50 or 60 Hz. Drop down supply wires
must be at least 9” long to allow xture removal. For NonDimming (on/o), Electronic Low Voltage (ELV) and Triac
Dimming follow the wiring directions in Fig. 6. For 0-10V
dimming, Fig. 7.
1. Connect GROUND wire from xture to supply ground.
2. Connect black xture lead to the (+) LINE supply lead.
3. Connect white xture lead to the (-) COMMON supply lead.
Fig: 6
CLEANING & MAINTENANCE
CAUTION: Be sure xture temperature is cool enough to
touch. Do not clean or maintain while xture is energized.
1. Do not open xture to clean the LED. Do not touch
the LED.
2.
Do not touch reector, lens or trim cone.
3. Do not clean any xture surface with wood base cleaning
material such as paper towels or tissues.
TROUBLESHOOTING
1. Check that the line voltage at the xture is correct. Refer
Fig: 7
to wiring directions.
2. Is the xture grounded properly?
This side away
from wall
Wall Wash lens
Fig: 5
Page 6
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rablighting.com
REMODELER & NEW CONSTRUCTION TRIMLESS
2IN 10W ROUND & SQUARE INSTRUCTIONS
DIMENSIONAL DRAWING
RDDLED2R
3.25”
Ø1.875”
7.9”
2.95”
RDDLED2S
3.25”
2.9X2.9”
1-1/4”
7.9”
Note: These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during installation,
operation or maintenance.
Easy Answers
© 2018 RAB LIGHTING Inc.
Northvale, New Jersey 07647 USA
RDDLED2TL-IN 0918
rablighting.com
Visit our we bsite for produc t info
Tech Help Line
Call our ex perts: 888 722-1000
e-mail
Answered promptly - sales@rablighting.com
Free Lighting Layouts
Answered o nline or by reques t
Loading...
