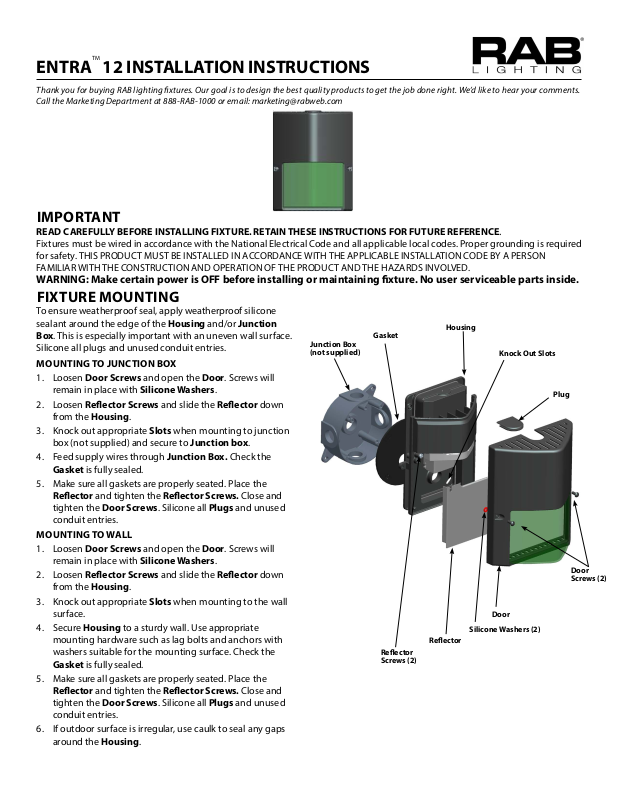

ENTRA 12 INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required
for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining xture. No user serviceable parts inside.
FIXTURE MOUNTING
To ensure weatherproof seal, apply weatherproof silicone
sealant around the edge of the Housing and/or Junction
Box. This is especially important with an uneven wall surface.
Silicone all plugs and unused conduit entries.
MOUNTING TO JUNCTION BOX
1. Loosen Door Screws and open the Door. Screws will
remain in place with Silicone Washers.
2. Loosen Reector Screws and slide the Reector down
from the Housing.
3. Knock out appropriate Slots when mounting to junction
box (not supplied) and secure to Junction box.
4. Feed supply wires through Junction Box. Check the
Gasket is fully sealed.
5. Make sure all gaskets are properly seated. Place the
Reector and tighten the Reector Screws. Close and
tighten the Door Screws. Silicone all Plugs and unused
conduit entries.
MOUNTING TO WALL
1. Loosen Door Screws and open the Door. Screws will
remain in place with Silicone Washers.
2. Loosen Reector Screws and slide the Reector down
from the Housing.
3. Knock out appropriate Slots when mounting to the wall
surface.
4. Secure Housing to a sturdy wall. Use appropriate
mounting hardware such as lag bolts and anchors with
washers suitable for the mounting surface. Check the
Gasket is fully sealed.
5. Make sure all gaskets are properly seated. Place the
Reector and tighten the Reector Screws. Close and
tighten the Door Screws. Silicone all Plugs and unused
conduit entries.
6. If outdoor surface is irregular, use caulk to seal any gaps
around the Housing.
Junction Box
Gasket
(not supplied)
Reector
Screws (2)
Housing
Knock Out Slots
Plug
Door
Screws (2)
Door
Silicone Washers (2)
Reector
Page 2
TM
Easy Installation & Product Help
©2014 RAB LIGHTING Inc.
No
ENTRA 12 INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com
WIRING
Universal voltage driver permits operation at 120V to 277VAC,
50 or 60 Hz except xtures factory ordered with a (PC)
120V photocell or (/PC2) 277V photocell.
1. Connect the black xture lead to the (+) LINE supply lead.
2. Connect the white xture lead to the (-) COMMON supply
lead.
3. Connect the GROUND wire from xture to supply ground.
ENTRA12 COOL
ENTRA12N NEUTRAL ENTRA12Y WARM
CLEANING & MAINTENANCE
CAUTION: Be sure xture temperature is cool enough to
touch. Do not clean or maintain while xture is
energized.
1. Clean lens & xture with non-abrasive glass cleaning
solution.
2. Do not open xture to clean the LED. Do not touch the
LED.
TROUBLESHOOTING
1. Check that the line voltage at xture is correct. Refer to
wiring directions.
2. Is the xture grounded properly?
Note: These instructions do not cover all details or variations in
equipment nor do they provide for every possible situation during
installation operation or maintenance.
