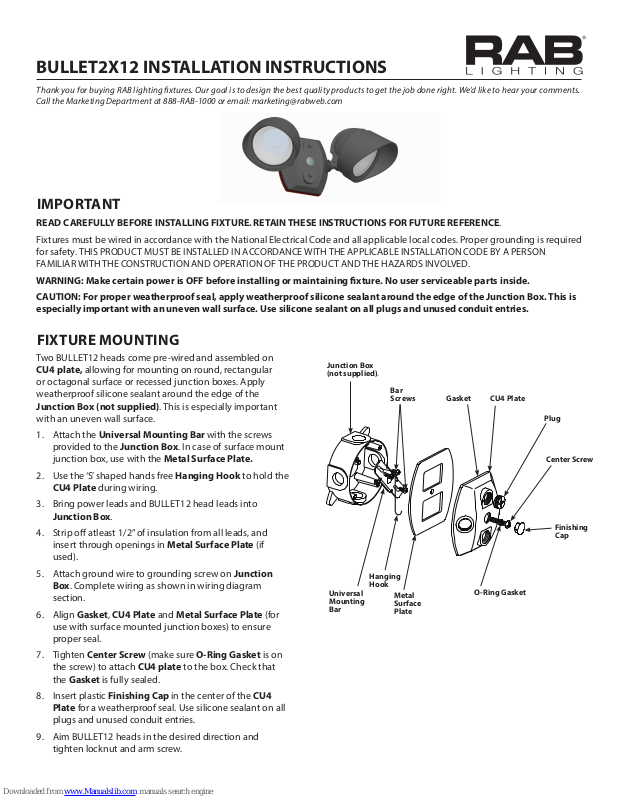

BULLET2X12 INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com
IMPORTANT
READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Fixtures must be wired in accordance with the National Electrical Code and all applicable local codes. Proper grounding is required
for safety. THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED.
WARNING: Make certain power is OFF before installing or maintaining xture. No user serviceable parts inside.
CAUTION: For proper weatherproof seal, apply weatherproof silicone sealant around the edge of the Junction Box. This is
especially important with an uneven wall surface. Use silicone sealant on all plugs and unused conduit entries.
FIXTURE MOUNTING
Two BULLET12 heads come pre-wired and assembled on
CU4 plate, allowing for mounting on round, rectangular
or octagonal surface or recessed junction boxes. Apply
weatherproof silicone sealant around the edge of the
Junction Box (not supplied). This is especially important
with an uneven wall surface.
1. Attach the Universal Mounting Bar with the screws
provided to the Junction Box. In case of surface mount
junction box, use with the Metal Surface Plate.
2. Use the ‘S’ shaped hands free Hanging Hook to hold the
CU4 Plate during wiring.
3. Bring power leads and BULLET12 head leads into
Junction Box.
4. Strip o atleast 1/2” of insulation from all leads, and
insert through openings in Metal Surface Plate (if
used).
5. Attach ground wire to grounding screw on Junction
Box. Complete wiring as shown in wiring diagram
section.
6. Align Gasket, CU4 Plate and Metal Surface Plate (for
use with surface mounted junction boxes) to ensure
proper seal.
7. Tighten Center Screw (make sure O-Ring Gasket is on
the screw) to attach CU4 plate to the box. Check that
the Gasket is fully sealed.
8. Insert plastic Finishing Cap in the center of the CU4
Plate for a weatherproof seal. Use silicone sealant on all
plugs and unused conduit entries.
9. Aim BULLET12 heads in the desired direction and
tighten locknut and arm screw.
Junction Box
(not supplied).
Hanging
Hook
Universal
Mounting
Bar
Bar
Screws
Metal
Surface
Plate
Gasket
CU4 Plate
Plug
Center Screw
Finishing
Cap
O-Ring Gasket
Page 2
BULLET2X12 INSTALLATION INSTRUCTIONS
Easy Installation & Product Help
Tech Help Line
Call our experts 888 RAB-1000
©2016 RAB LIGHTING Inc.
Northvale, New Jersey 07647 USA
rabweb.com
Visit our website for product info
email
Answered promptly sales@rabweb.com
LIGHT
FIXTURE
(+)LINE BLACK
(-)COMMON WHITE
GROUND GROUND
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com
ONOFF WIRING
Operates only at 120V, 60 Hz. Fixture can be dimmed with most
forward phase incandescent dimmers. For list of compatible
dimmers see www.rablighting.com.
1. Connect the black xture lead to the (+) LINE supply lead.
2. Connect the white xture lead to the (-) COMMON supply
lead.
3. Connect the GROUND wire from xture to supply ground.
TROUBLESHOOTING
1. Check that the line voltage at xture is correct. Refer
to wiring section.
2. Check the xture is grounded properly.
CLEANING & MAINTENANCE
CAUTION: Be sure xture temperature is cool enough
to touch. Do not clean or maintain while xture is
energized.
1. Clean lens & xture with non-abrasive cleaning
solution.
2. Do not open xture to clean the LED. Do not touch
the LED.
3. Keep leaves and debris out of hood.
Patent: US: D747,525; CA: D RAB Lighting Inc; CN: ZL201430359253.9; MX: 45200; TW: D171128, D173134
Note: These instructions do not cover all details or variations in equipment nor do they provide for every possible situation during
installation, operation or maintenance.
BULLET2X12-IN-0816
