Q.V.P. VM2FS, VM4FS, VM6FS User Manual

E

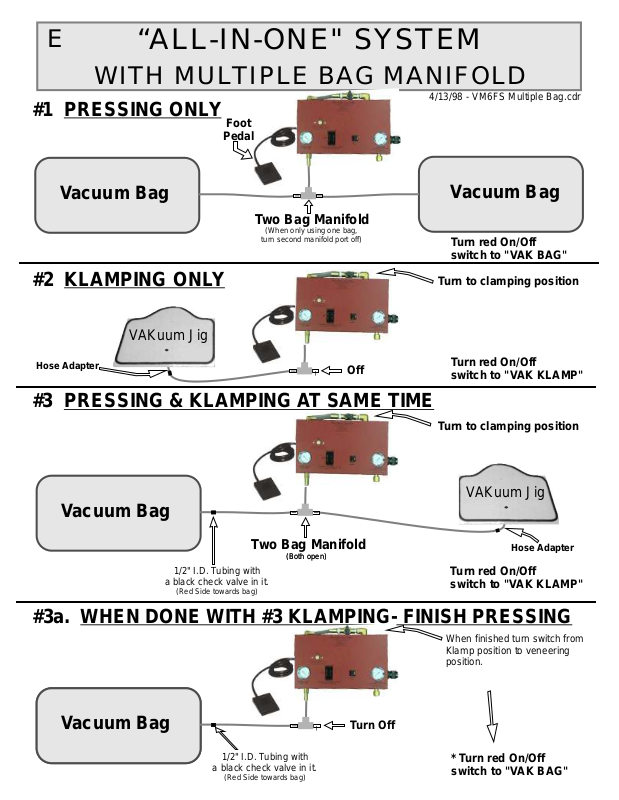

“ALL-IN-ONE" SYSTEM

WITH MULTIPLE BAG MANIFOLD

#1 PRESSING ONLY

4/13/98 - VM6FS Multiple Bag.cdr

Foot

Pedal

Vacuum Bag

Two Bag Manifold

(When only using one bag,

turn second manifold port off)

#2 KLAMPING ONLY

VAKuum Jig

Hose Adapter

Off

#3 PRESSING & KLAMPING AT SAME TIME

Vacuum Bag

Turn red On/Off
switch to "VAK BAG"

Turn to clamping position

Turn red On/Off
switch to "VAK KLAMP"

Turn to clamping position

VAKuum Jig

Vacuum Bag

Two Bag Manifold

1/2" I.D. Tubing with

a black check valve in it.

(Red Side towards bag)

(Both open)

(Both open)

Turn red On/Off
switch to "VAK KLAMP"

Hose Adapter

#3a. WHEN DONE WITH #3 KLAMPING- FINISH PRESSING

When finished turn switch from
Klamp position to veneering
position.

Vacuum BagVacuum Bag

1/2" I.D. Tubing with

a black check valve in it.

(Red Side towards bag)

Turn Off

* Turn red On/Off
switch to "VAK BAG"
