BNC Connector
Power Connector
Camera
Output to TV
or Monitor
BNC Connecto r
to DVR
Power Adaptor
4-Way Split Cable
Power
Connecto r
BEFORE INSTALLING ANYTHING WE
STRONGLY RECOMMEND THAT YOU
CONNECT YOUR CAMERAS TO YOUR DVR
AND TEST YOUR SYSTEM FIRST.
WE CHECK EVERYTHING TO MAKE SURE IT
IS WORKING WHEN IT LEAVES US BUT
OCCASIONALLY THINGS FAIL AND IT IS
BETTER TO KNOW NOW THAN AFTER YOU
HAVE FITTED EVERYTHING!

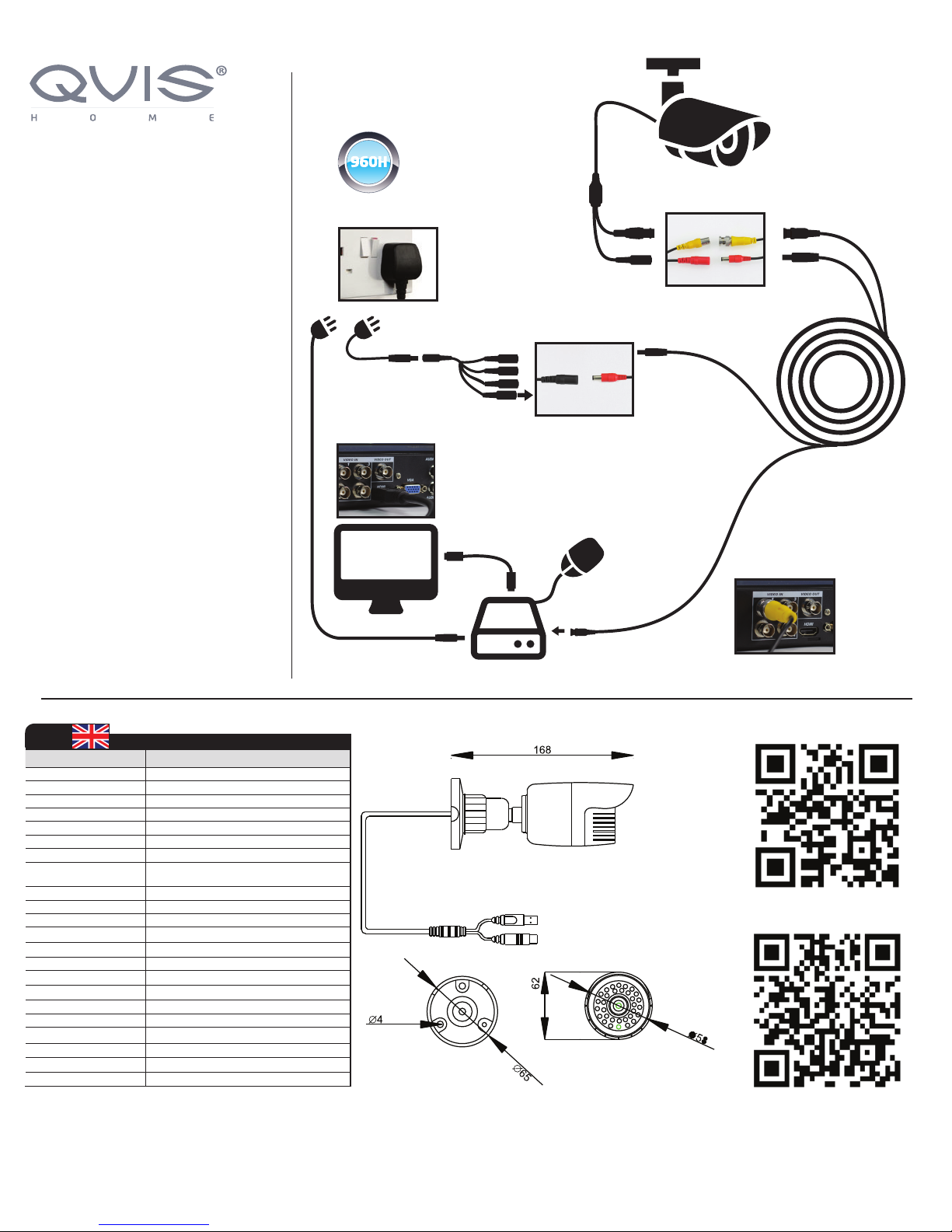

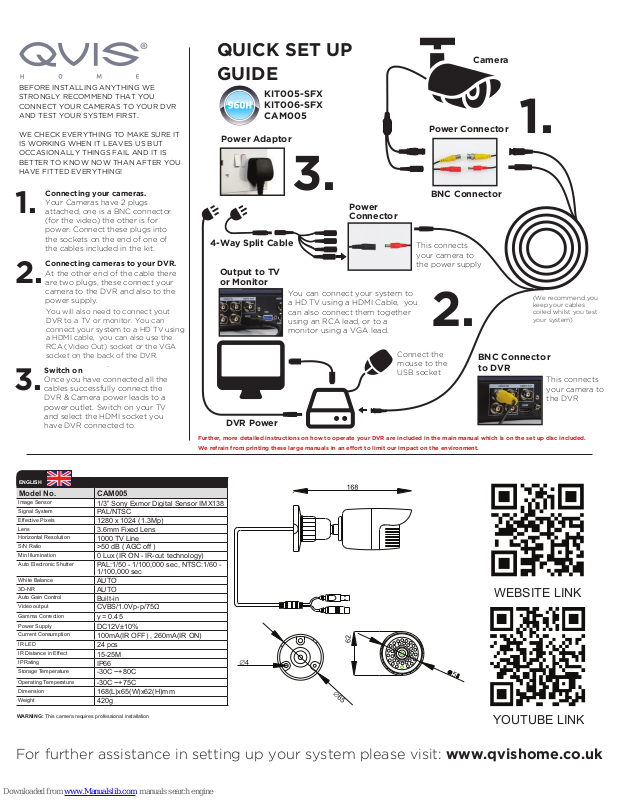

QUICK SET UP
GUIDE
This connects
your camera to
the DVR
This connects
your camera to
the power supply
Connect the
mouse to the
USB socket
(We recommend you
keep your cables
coiled whilst you test
your system)
1.
2.
3.
Connecting your cameras.
Your Cameras have 2 plugs
attached, one is a BNC connector
(for the video) the other is for
power. Connect these plugs into
the sockets on the end of one of
the cables included in the kit.
1.
Switch on
Once you have connected all the
cables successfully connect the
DVR & Camera power leads to a
power outlet. Switch on your TV
and select the HDMI socket you
have DVR connected to.
3.
Connecting cameras to your DVR.
At the other end of the cable there
are two plugs, these connect your
camera to the DVR and also to the
power supply.
.
2.
DVR Power
You can connect your system to
a HD TV using a HDMI Cable, you
can also connect them together
using an RCA lead, or to a
monitor using a VGA lead.
You will also need to connect yout
DVR to a TV or monitor. You can
connect your system to a HD TV using
a HDMI cable, you can also use the
RCA (Video Out) socket or the VGA
socket on the back of the DVR.
Further, more detailed instructions on how to operate your DVR are included in the main manual which is on the set up disc included.
We refrain from printing these large manuals in an effort to limit our impact on the environment.
KIT005-SFX
KIT006-SFX
CAM005
ENGLISH
Model No. CAM005
Image Sensor
1/3” Sony Exmor Digital Sensor IMX138
Signal System
PAL/NTSC
Effective Pixels
1280 x 1024 (1.3Mp)
Lens
3.6mm Fixed Lens
Horizontal Resolution
1000 TV Line
S/N Ratio
>50 dB ( AGC off )
Min Illumination
0 Lux (IR ON - IR-cut technology)
Auto Electronic Shutter
PAL:1/50 - 1/100,000 sec, NTSC:1/60 1/100,000 sec
White Balance
AUTO
3D-NR
AUTO
Auto Gain Control
Built-in
Video output
CVBS/1.0Vp-p/75Ω
Gamma Correction
γ = 0.45
Power Supply
DC12V±10%
Current Consumption
100mA(IR OFF) , 260mA(IR ON)
IR LED
24 pcs
IR Distance in Effect
15-25M
IP Rating
IP66
Storage Temperature
-30C ~+80C
Operating Temperature
-30C ~+75C
Dimension
168(L)x65(W)x62(H)mm
Weight
420g
WARNING: This camera requires professional installation
WEBSITE LINK
YOUTUBE LINK
For further assistance in setting up your system please visit: www.qvishome.co.uk
