QuWireless QuSpot DATASHEET

DATASHEET / QUSPOT FOR RUT900/950 / A950S

OUTDOOR

Use Teltonika router wherever

you want

ANTENNA

Maximize your signal with

QuWireless antennas

SOLUTION

Plug Teltonika router and you

are good to go

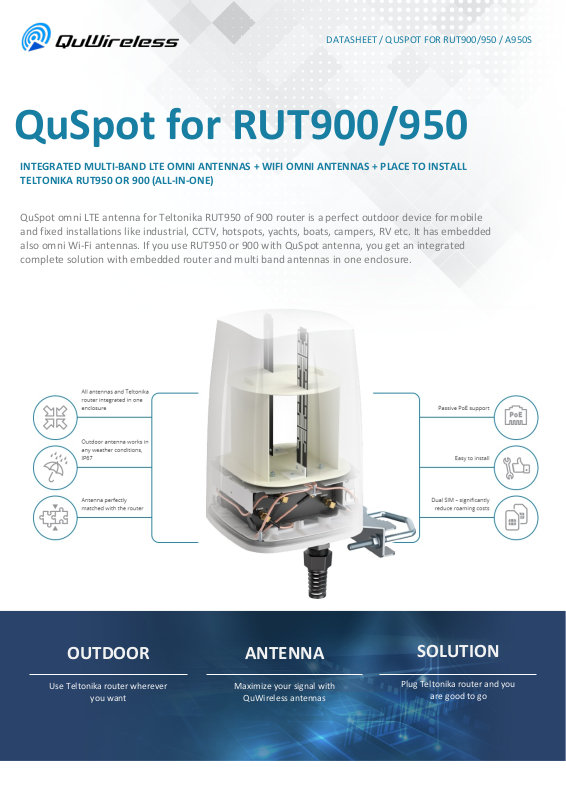

QuSpot for RUT900/950

INTEGRATED MULTI-BAND LTE OMNI ANTENNAS + WIFI OMNI ANTENNAS + PLACE TO INSTALL
TELTONIKA RUT950 OR 900 (ALL-IN-ONE)

QuSpot omni LTE antenna for Teltonika RUT950 of 900 router is a perfect outdoor device for mobile
and fixed installations like industrial, CCTV, hotspots, yachts, boats, campers, RV etc. It has embedded
also omni Wi-Fi antennas. If you use RUT950 or 900 with QuSpot antenna, you get an integrated
complete solution with embedded router and multi band antennas in one enclosure.

LTE SPECIFICATION

FREQUENCY

0.694-0.96 GHz

1.7 - 2.2 GHz

2.2 - 2.7 GHz

GAIN

2 dBi
2 dBi
4 dBi

VSWR

<1.70, max <2.00
<1.60, max <2.00
<1.60, max <2.00

BEAMWIDTH

360°/35° +/- 5°
360°/35° +/- 5°
360°/35° +/- 5°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

WI-FI SPECIFICATION

FREQUENCY

2.40-2.50 GHz

4.70 - 6.00 GHz

GAIN

6 dBi
7 dBi

VSWR

<1.70, max <2.00
<1.70, max <2.00

BEAMWIDTH

360°/25° +/- 5°
360°/25° +/- 5°

POLARIZATION

Vertical

IMPEDANCE

50 Ω

MECHANICAL SPECIFICATION

MATERIALS

ABS, aluminum, PTFE

INGRESS PROTECTION

IP67

DIMENSIONS

160 x 160 x 240 mm

6.3 x 6.3 x 9.45 inch

WEIGHT

1.5 kg

3.31 lbs

OPERATING TEMPERATURE

From -40°C to 75°C
From -40°F to 167°F

DATASHEET / QUSPOT FOR RUT900/950 / A950S
