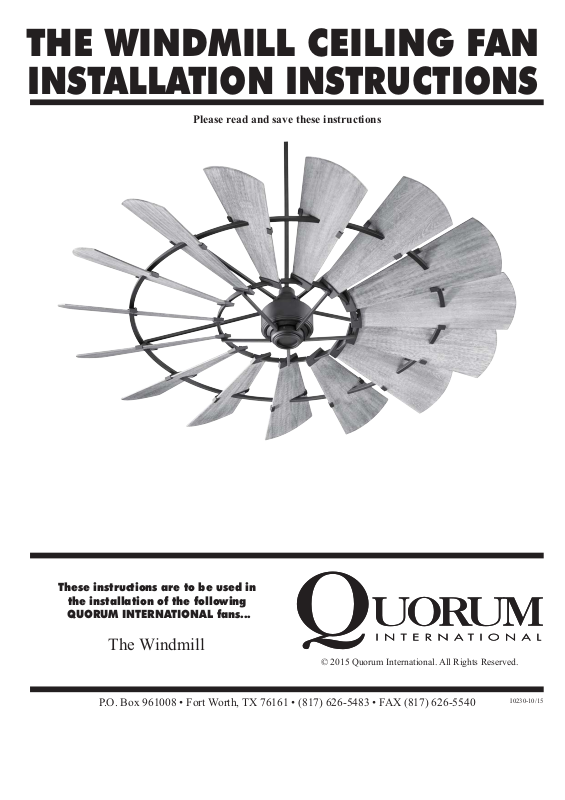

THE WINDMILL CEILING FAN

INSTALLATION INSTRUCTIONS

Please read and save these instructions

These instructions are to be used in

the installation of the following

QUORUM INTERNATIONAL fans...

The Windmill

P.O. Box 961008 • Fort Worth, TX 76161 • [phone] • FAX [phone]

© 2015 Quorum International. All Rights Reserved.

I0230-10/15

QUORUM'S UNIQUE LIMITED
LIFETIME WARRANTY

This warranty gives you specific legal
rights, and you may also have other rights
which vary from state to state.

WHAT IS COVERED-

Except as specified below, the manufacturer
of this product warrants it to be free of all
defects in workmanship and material.

WHAT IS NOT COVERED BY THIS
WARRANTY-

1. All costs of removal or reinstallation

of the fan.

2. Damage resulting from failure to
follow instructions contained herein.

3. Damage occurring during shipment of
the product (claims must be presented to
the carrier).

4. Damage resulting from accident,
misuse, abuse, or neglect.

5. Damage resulting from the application
of any exterior coating, or by the addition
of any unapproved accessories.

6. Damage resulting from repair or
attempted repair by anyone other than the
manufacturer.

technical skill, competence, or experience
of the user.

8. Light bulbs, glass or acrylic
components or accessories.

9. Minor occurrences of wobble are
accepted as normal and should not
necessarily be considered a defect.

WHO MAY ENFORCE WARRANTY-

This warranty may be enforced only by
the original purchaser. The end user must
possess a dated proof of purchase from an
authorized Quorum dealer to establish a
warranty claim.

LENGTH OF THE WARRANTY -

1. For the fan motor - for the lifetime of

the original purchaser.

2. For everything else, except blades and
finish - one year from the date of
purchase.

3. For fan blades and finish - 90 days
from the date of purchase.

WHAT WE WILL PAY FOR -

We agree to correct defects outlined in the
warranty without charge, or at our option
replace the fan with an equivalent or

superior product if the defective unit is
returned prepaid to us.

TO GET WARRANTY SERVICE -

To obtain warranty service, the product
must be returned prepaid to Quorum.
(This warranty is not enforceable outside
the United States.) Details regarding
return shipment are explained elsewhere
in this manual. Whenever warranty
service is required, you must present a

copy of the original dated sales receipt as
proof of coverage.

There is no other express warranty.
Quorum hereby disclaims any and all
implied warranties, including but not
limited to those of merchantability of
fitness for a particular purpose to the
extent permitted by law. Quorum shall
not be liable for incidental,
consequential, or special damages
arising out of or in connection with the
product use or performance except as
may otherwise be accorded by law. The
duration of any implied warranty which
cannot be disclaimed is limited to the
periods specified above in the express
warranty.

7. Damage resulting from causes other
than product defects, including lack of

WARRANTY SERVICE

1. Most problems can be handled by our
customer service agents over the
telephone. Customers seeking warranty
repair or replacement for any fan or
component are encouraged to call us for
assistance. All returns must be issued a
Return Goods Authorization number
(RGA) prior to returning the defective
unit or part. Call [phone] ­Monday thru Friday 8:00 a.m. - 5:00 p.m.
CST to obtain a RGA number.

2. Arriving shipments will be refused if
they do not bear a valid RGA number on
the outside packaging.

3. A dated proof of purchase must
accompany any fan or component clearly
indicating the name of the original
purchaser.

4. To avoid damage in transit, the
product should be returned in its original
box and packaging. Quorum will not bear
responsibility for any shipping damage.

5. Any return of a fan or component
must be shipped freight and insurance
prepaid.

FOR YOUR RECORDS

Purchased From
City State
Fan Model No.
Date Purchased

Complete and mail the enclosed
warranty card within 10 days to ensure
your warranty is registered.

If you have any questions regarding the
warranty, or the procedures for
obtaining service, please call us at
[phone] - Monday thru Friday
8:00 a.m. - 5:00 p.m. CST.

1. SAFETY RULES

Model #96015-xx: 37.5 lbs

97215-xx: 44.6 lbs

1. To avoid possible electric shock, turn
off the electricity at the main fuse box or

circuit panel before you begin the fan
installation or before servicing the fan or
installing accessories.

2. Read all instructions and safety
information carefully before installing
your fan and save these instructions.

3. Make sure all electrical connections
comply with local codes or ordinances as
well as the National Electrical Code. If
you are unfamiliar with electric wiring,
please use a qualified and licensed
electrician.

4. Make sure you have a location
selected for your fan which allows clear
space for the blades to rotate, and at lease
seven (7) feet of clearance between the
floor and the fan blade tips.

5. To reduce the risk of fire, electric
shock, or other personal injury, mount fan
only on an outlet box or supporting system
marked acceptable for fan support of 50
lbs (22.7 kg) or less and use mounting
screws provided with the outlet box. Most
outlet boxes commonly used for the support
of lighting fixtures are not acceptable for
fan support and may need to be replaced.
Consult a qualified electrician if in doubt.

6. To reduce the risk of personal injury
use only approved hanging brackets and
screws supplied with the outlet box for
mounting to the outlet box.

7. After installation is complete, check
that all connections are absolutely secure.

8. Do not insert anything into the fan
blades while they are rotating.

9. To operate the reverse function on the
fan, press the reverse button on the wall
transmitter while the fan is running.

10. Do not attempt to control the
operation of the fan (or an optional light
kit) from any wall control that is not
approved by Quorum for use with its fans.
Do not use solid state wall controls. The
use of any unapproved control voids the
fan's warranty.

TOOLS REQUIRED
FOR INSTALLAITON

Phillips Screwdriver
Wire Cutters
Electrical Tape
Step Ladder

2. UNPACKING YOUR FAN

CAUTION: DO NOT LIFT MOTOR ASSEMBLY BY THE OUTER RING.
LIFTING BY THE OUTER RING PORTION WILL LIKELY CAUSE DAMAGE.

Unpack your fan and check the contents. Do not discard the carton. If warranty
replacement or repair is ever necessary the fan should be returned in original packaging.
Remove all parts and hardware. Do not lay motor housing on its side - because the
decorative casing may shift. Check all visible screws, bolts and nuts for tightness.
Examine all parts. The following parts should be included:

1. Set of blades (15 pcs) (a)

2. Blade deco plates (15 pcs) (b)

3. Blade deco bars (15 pcs) (c)

4. Blade arms (5 pcs) (d)

5. Hanging bracket (e)

6. Canopy (f)

7. Canopy cover (g)

8. Downrod assembly (6") (h)

9. Yoke cover (i)

10. Fan motor assembly (j)

11. Control cup plate (k)

12. Control cup (l)

13. Wall transmitter incl. 2 mounting screws and 3 wire nuts (m)

14. 2 wall plates (white and almond), 1 face plate (almond), 2 sets
of mounting screws, and machine screws (n)

15. Battery (o)

16. Parts bags (p) containing:

Blade attachment hardwares (5 pcs)

Screw No. 1: Blade deco plate screws (5/32”x22mm) (31 pcs)
Screw No. 2: Blade deco bar screws (5/32”x8mm) (31 pcs)
Screw No. 3: Blade secure screws with fiber washers
(3/16"x7.5mm) (31 pcs)
Screw No. 4: Blade arm screws with lock washers
(1/4"x38mm) (6 pcs)
Screw No. 5: Blade arm screws with lock washers
(3/16"x15mm) (11 pcs)

Mounting hardware (3 wire nuts)

a.

b.

c.

NOTE:

Some Quorum fan models will have slightly
different parts than what is shown here
depending upon the design you have chosen.
Basic installation procedures are similar for
all models.

k.

d.

e.

l.

m.

f.

g.

n.

h.

o.

i.

j.

p.

IF YOU FIND THAT PARTS ARE MISSING. CONTACT YOUR DEALER FOR REPLACEMENT, OR CALL QUORUM DIRECTLY AND WE WILL MAIL REPLACEMENTS TO YOU IMMEDIATELY.

3. MOUNTING OPTIONS

1. Disconnect the power by removing fuses or turning off circuit breakers.

Fig. 1

2. If there is an existing outlet box, ensure it is clearly marked "Suitable for Fan
Support of 50 lbs (22.7 kg) or lesse". If it is not so marked, it must be replaced with an

approved one.
WARNING: Most outlet boxs commonly used for support of lighting fixtures are not

acceptable for fan support, and may need to be replaced. Due to the complexity of the
installation of this fan, a qualified licensed electrician is strongly recommened.

3. Secure the outlet box (or make sure the existing box is secured) directly to the
building structure. Use appropriate fasteners and building materials.

4. Figures 1 and 2 are examples of different ways to mount the outlet box in different

Fig. 2

situations. A longer downrod may be required in sloped ceiling situations to maintain
proper blade clearance.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, FIRE, OR PERSONAL INJURY,

MOUNT THE FAN ONLY TO AN OUTLET MARKED ACCEPTABLE FOR FAN SUPPORT OF 50 LBS
(22.7 KG) OR LESS AND USE MOUNTING SCREWS PROVIDED WITH THE OUTLET BOX.

CAUTION: DO NOT MOUNT THIS FAN ON SLOPE CEILING.

4. HANGING YOUR FAN

Ceiling Joists

Outlet Boxes

Ceiling Joists

Outlet Boxes

WARNING -Turn off the power!

CAUTION: ALL PARTS ASSEMBLY SHOULD

BE WORKED AT THE FLOOR.

1. If not already affixed to the hanger
bracket, place the rectangular rubber isolators
between the hanger bracket and outlet box.
Secure the hanger bracket to the outlet box
using the 2 long steel screws supplied with
the outlex box.

2. Remove the set pin and safety lock clip
from the yoke on top of the motor assembly.
Slide the downrod through the canopy and
canopy cover. Slide the yoke cover onto the
downrod (Fig. 3). Feed the wires from the fan
motor through the downrod assembly.

3. (Fig. 4) Attach the downrod assembly
(downrod, yoke cover, canopy and canopy
cover) to the motor by sliding the downrod
into the yoke on top of the motor assembly.
Slide the set pin through the hole in the yoke,
downrod and secure it with the safety lock
clip. Tighten the set screws on yoke. The
yoke cover will lower down to conceal the
yoke. Feed the wires through the downrod
ball.

Fig. 3

Downrod
assembly

Canopy
cover

Yoke cover

Ceiling
canopy

Fig. 4

Set pin

Yok e

Downrod

Canopy

Canopy cover

Yoke cover

Set screw

Safety
lock clip
