ToolsRequired: Flathead screwdriver,Phillips screwdriver,pliers, wire cutters,wire
strippers,electrical tape, safetyglasses.
BulbRecommended: (8) CandelabraBase60W Maximum
EstimatedAssemblyTime:20-30 minutes
Preparation:Identify and inspectallparts before beginninginstallation.Check package
contentlist and diagramsbelowto be sureallparts are present.Ifany parts aremissing
ordamaged, do notattemptto assemble, install,oroperate the fixture.Contactcustomer
servicefor replacement parts.

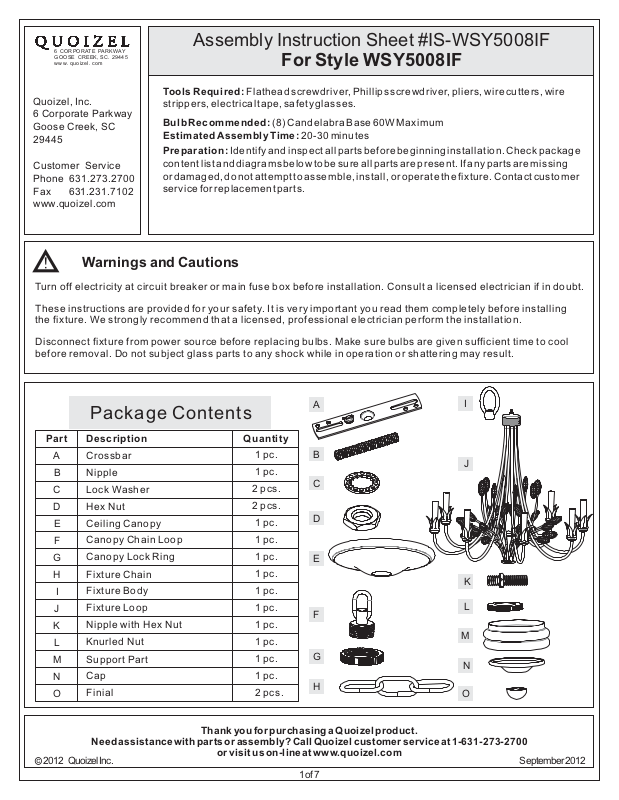

Assembly Instruction Sheet #IS-WSY5008IF
For Style WSY5008IF
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
A
I
Package Contents
Part
A Crossbar
B
C
D
E
F
G
H
I
J
K
L
M
N
O
Description
Nipple
Lock Washer
Hex Nut
Ceiling Canopy
Canopy Chain Loop
Canopy Lock Ring
Fixture Chain
Fixture Body
Fixture Loop
Nipple with Hex Nut
Knurled Nut
Support Part
Cap
Finial
Quantity
1pc.
1pc.
2 pcs.
2 pcs.
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
2 pcs.
B
C
D
E
F
G
H
J
K
L
M
N
O
Thank youfor purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2012 Quoizel Inc. September2012
or visit us on-line at www.quoizel.com
1of7
WSY5008IF
FINISH: ITALIAN FRESCO
QUIOZEL
GND
2.4 m m 13 G a
5.5” Dia.
1"
Overall Height 128.5”
2
(Includes 96” Chain)
1
30”
(8) 60W Candelabra
Base Bulbs
(No Supplied)
PART NUMBER
NO.
1
15008IFWSY
2
M2375CHIF
3
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
BASE WSY5008IFITALIAN FRESCO
CHAIN 3.8MM X 4’ITALIAN FRESCO
18” Dia.
REQ.
1
1
2of7
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-WSY5008IF
For Style WSY5008IF
STEP 1 Adjust Fixture Assembly-
A. Unfold support arms on fixture assembly to proper
locations. Thread the Lock Ball secure the side arms,
hand tighten until snug.
STEP 2 - Attach Fixture Loop Assembly to
Fixture Body
A. Thread Fixture Loop (I) to the Nipple on the Fixture
Body (J). Hand tighten until snug.
Lock Ball
Fixture Loop
Figure 1
Figure 2
Nipple
Fixture
Body
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2012 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
