6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
,.
Assembly Instruction Sheet #IS-UPTR8701WT
For Style UPTR8701WT
ToolsRequired: Flathead screwdriver,Phillips screwdriver,pliers, wire cutters,wire
strippers,electrical tape, safetyglasses.
BulbRecommended: (1)Edson Bulb 60WMaximum
EstimatedAssemblyTime:20-30 minutes
Preparation:Identify and inspectallparts before beginninginstallation.Check package
contentlist and diagramsbelowto be sureallparts are present.Ifany parts aremissing
ordamaged, do notattemptto assemble, install,oroperate the fixture.Contactcustomer
servicefor replacement parts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
A
Package Contents
Part
A Crossbar
B
C
D
E
F
G
Description
Nipple
Lock Washer
Hex Nut
Mounting Ball
Fixture Body
Edson Bulb
Quantity
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
B
C
D
E
G
F
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank youfor purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
1of5
November2011
UPTR8701WT
FINISH: WESTERN BRONZE
10" Dia.
GND
2.4mm
13Ga
QUOIZEL
R
4”
10"
(1)60W Edson Bulb
(Supplied)
PART NUMBER
NO.
1
I1101EC
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
REPLACE PRODUCT 1910 INCANDESCENT BULB
2of5
REQ.
1
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-UPTR8701WT
For Style UPTR8701WT

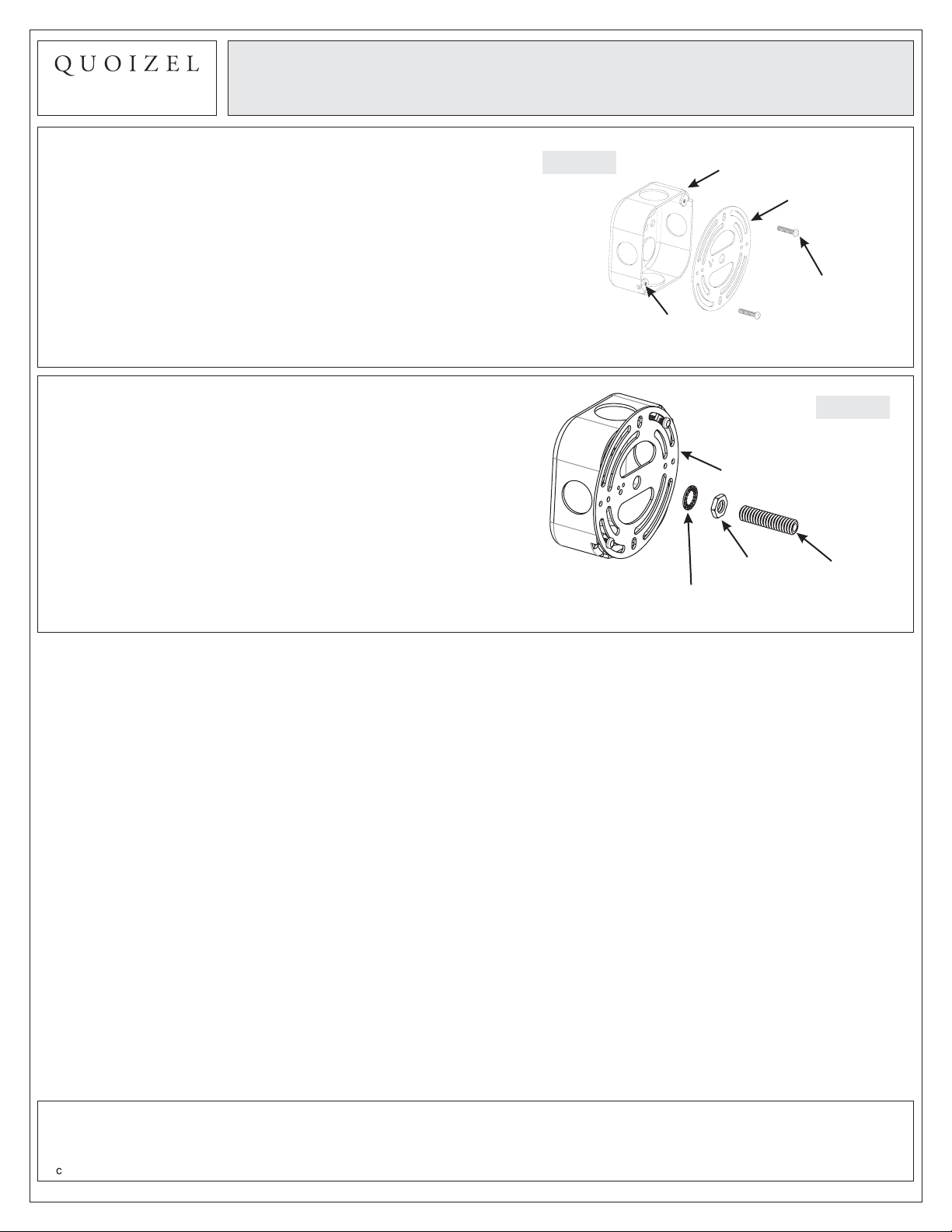

STEP 1 - Attach Crossbar to Outlet Box
A. Secure the Crossbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
STEP 2 Attach Nipple to Crossbar-
A. Thread one Hex Nut (D) onto the top end of the Nipple
(B).
B. Place one Lock Washer (C) over the top end of the
Nipple (B) and then thread the Nipple (B) into the center
lock hole of the Crossbar (A).
C. Using pliers, thread the Hex Nut (D) against the
Crossbar (A) and hand tighten until snug.
Figure 1
Mounting
Hole
Lock Washer
Outlet Box
Crossbar
Outlet Box Screw
(not Supplied)
Crossbar
Hex Nut
Figure 2
Nipple
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
3of5
November2011
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-UPTR8701WT
For Style UPTR8701WT
STEP 3 Make Wire Connections-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
White wire from supply White wire from fixture
Figure 3
Black wire from supply
(or Red)
Ground wire from supply Ground wire from fixture
Black wire from fixture
Figure 4
STEP 4 - Attach Fixture Body to Nipple
Figure 5
A. Place the Backplate of the Fixture Body (F) over the
Nipple (B) and secure with the Mounting Ball (E). Hand
tighten until snug.
Outlet Box
Fixture
Body
Backplate
Nipple
Mounting
Ball
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
4of5
November2011
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-UPTR8701WT
For Style UPTR8701WT
STEP 5 - Install Bulb
A. This fixture uses Edson bulb with a screw base.
Maximum 60 watts.
B. Insert bulb and screw snugly into place.
Your fixture wall lamp is now assembled and ready to
use. Enjoy!
Figure 6
Bulb
Socket
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
5of5
November2011
