6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-UPTR5007IS
For Style UPTR5007IS
ToolsRequired: Flathead screwdriver,Phillips screwdriver,pliers, wire cutters,wire
Quoizel, Inc.
strippers,electrical tape, safetyglasses.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
BulbRecommended: (6) bulbs60W Maximum and 1 MR-16 GU10 Base
Edson
5
0WMaximum
EstimatedAssemblyTime:30-45 minutes
Preparation:Identify and inspectallparts before beginninginstallation.Check package
contentlist and diagramsbelowto be sureallparts are present.Ifany parts aremissing
ordamaged, do notattemptto assemble, install,oroperate the fixture.Contactcustomer
servicefor replacement parts.
()
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank youfor purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
1of9
October2011
UPTR5007IS
FINISH: IMPERIAL SILVER
2.4mm
13Ga
QUOIZEL
GND
R
6”
12”
2
3
NOTE: ONE SIDE ARM SHOWN FOR
ILLUSTRATION PURPOSES ONLY.
6.5" Dia.
1"
71.5"
OVERALL HEIGHT INCLUDES
(2) 6" AND 12" RODS
(1)50W MR-16
Gu10 Base Bulbs
(Supplied)
(6)60W Edson Bulbs
(Supplied)
PART NUMBER
NO.
1
2
3
I820GU
9007EXIS
9008EXIS
28" Dia.
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
BULB 50W HALOGEN GU10 BASE
ROD EXT IMPERIAL SILVER 6"L X 0.63"D
ROD EXT IMPERIAL SILVER 12"L X 0.63"D
29"
1
REQ.
1
2
2
2of9
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-UPTR5007IS
For Style UPTR5007IS
Package Contents
Part
A Crossbar
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
Description
Nipple
Lock Washer
Hex Nut
Ceiling Canopy
Canopy Lock Ring
6" Rod
12" Rod
Fixture Loop Assembly
Center Rod Assembly
Socket Assembly
MR-16
Edson Bulb
Fixture Chain
Fixture Loop
Plastic Suction Cup
Short Nipple
Coupling
Cap
Half Ball
Side Arm
Quantity
1pc.
1pc.
2 pcs.
2 pcs.
1pc.
1pc.
2 pcs.
2 pcs.
1pc.
1pc.
1pc.
1pc.
6 pcs.
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
3 pcs.
3 pcs.
A
B
C
D
E
F
G
H
I
U
J
K
L
M
N
O
S
P
Q
R
T
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
3of9
September2011
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-UPTR5007IS
For Style UPTR5007IS
STEP 1 Assemble Side Arm to Center Rod
-
Assembly
A. Pass the Nipple on the Side Arm (U) through the Hole on
the Pan, Secure by threading the Half Ball (T) onto the
Nipple on the SideArm (U). Hand tighten until snug.
Pan
Center Rod
Assembly
Half Ball
Hole
Nipple
Figure 1
Side Arm
STEP 2 Assemble Cap-
A. Place the Cap (S) over the Pan, Secure by threading the
Coupling (R) to the Nipple on the top of Center Rod
Assembly (J). Hand tighten until snug.
B. Thread the Short Nipple (Q) into the Coupling (R).
Short Nipple
Coupling
Cap
Pan
Figure 2
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
4of9
October2011
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-UPTR5007IS
For Style UPTR5007IS
STEP 3 Assemble Socket Assembly to Fixture
-
Body
To avoid scratching the Socket Assembly and Side Arms
during assembly, please DO NOT remove the package
material (Plastic film) until the fixture is assembled
completely.
A. Thread the Lock Ring on Side Arm onto the Coupling
inside of Socket Assembly (K) to get Socket Assembly (K)
and Fixture Body (J) together, Hand tighten until snug.
Side Arm
Socket
Assembly
Lock Ring
Coupling
Figure 3
STEP 4 Assemble Rods-
A. Determine the Rods (G/H) to be assembled to the Socket
Assembly (I) according to your hanging height.
B. Pass Supply Wires and Ground Wire through the chosen
Rods (G/H) and then thread the chosen Rods (G/H) and
the Socket Assembly (I) together. Hand tighten until snug.
Figure 4
6” Rod
6” Rod
12” Rod
12” Rod
Supply Wire and
Ground Wire
Socket
Assembly
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
5of9
October2011
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-UPTR5007IS
For Style UPTR5007IS

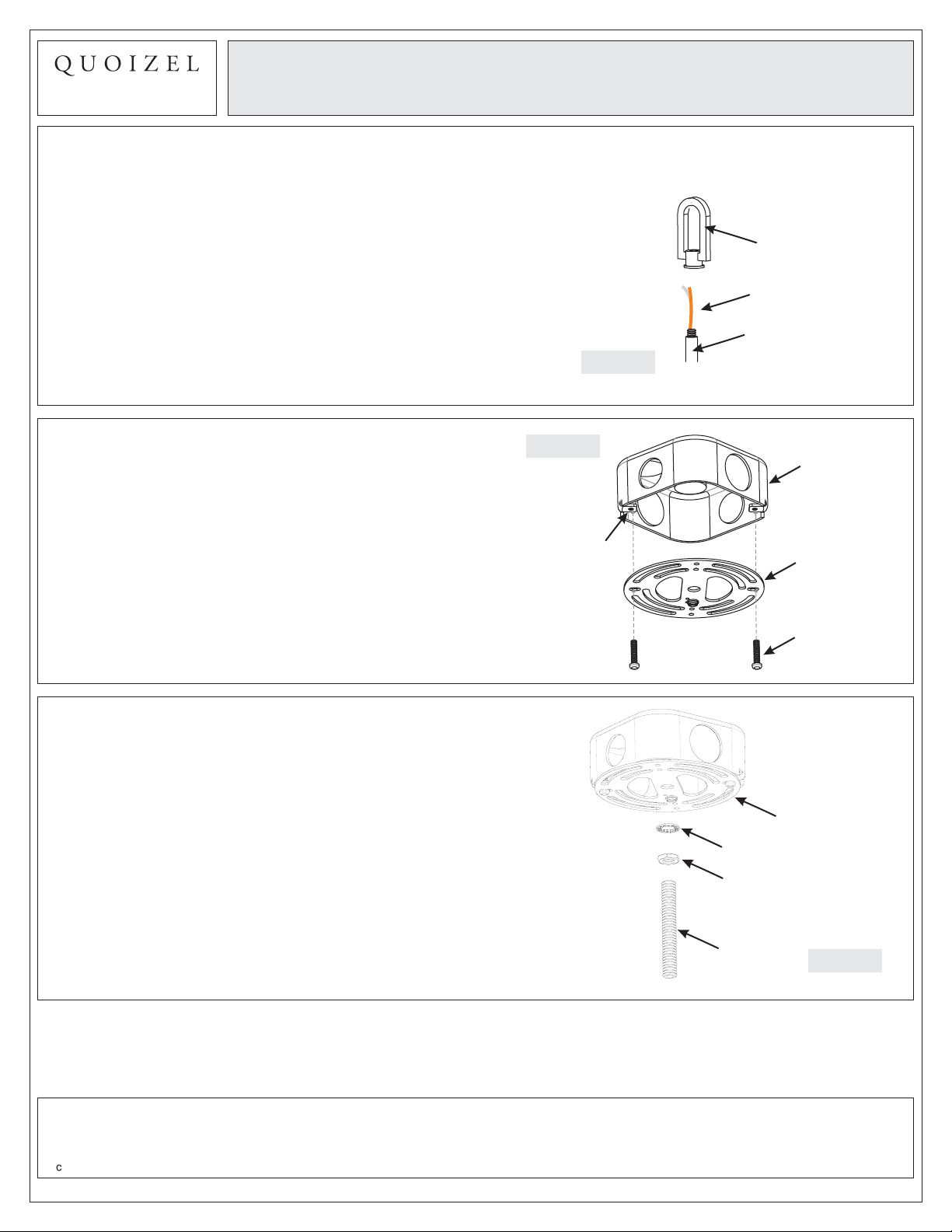

STEP 5 Assemble to Upper Rod- Fixture Loop
A. Pass Supply Wires and Ground Wire through the Fixture
Loop (O) then thread the Fixture Loop (O) and the Upper
Rod together. Hand tighten until snug.
Fixture Loop
Supply Wire and
Ground Wire
Upper Rod
Figure 5
STEP 6 - Attach Crossbar to Outlet Box
A. Secure the Crossbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
STEP 7 Attach Nipple to Crossbar-
A. Thread one Hex Nut (D) onto the top end of the Nipple
(B).
B. Place one Lock Washer (C) over the top end of the
Nipple (B) and then thread the Nipple (B) into the center
lock hole of the Crossbar (A).
C. Using pliers, thread the hex Nut (D) against the
Crossbar (A) and hand tighten until snug.
Figure 6
Mounting
Hole
Outlet Box
Crossbar
Outlet Box
Screw (not
Supplied)
Crossbar
Lock Washer
Hex Nut
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
6of9
Nipple
Figure 7
October2011
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-UPTR5007IS
For Style UPTR5007IS
STEP 8 - Attach Canopy Chain Loop to Nipple
A. Thread another Hex Nut (D) onto the end of the Nipple
(B).
B. Place the Lock Washer (C) over the end of the Nipple
(B) and then thread the Canopy Chain Loop (I) onto the
end of the Nipple (B).
C. Using pliers, thread the Hex Nut (D) against the
Canopy Chain Loop and hand tighten until snug.
STEP 9 Assemble Ceiling Canopy-
A. Push the Ceiling Canopy (E) upward over the Outlet
Box. Thread the Canopy Lock Ring (F) onto the Canopy
Chain Loop (I) and tighten until snug to secure the
Ceiling Canopy (E).
Outlet Box
Nipple
Crossbar
Hex Nut
Lock Washer
Canopy
Chain Loop
Figure 8
Outlet Box
Canopy Chian Loop
STEP 10 Attach Fixture Chain to Canopy
-
Chain Loop and Fixture Loop
A. You may need to use plier to open the chain links. If so,
put a cloth over the chain to protect the finish from the
pliers.
B. Attach one end of the Fixture Chain (N) onto the
Canopy Chain Loop (I) and then attach the other end of
the Fixture Chain (N) onto the Fixture Loop (O) on the
top of the fixture.
Ceiling Canopy
Canopy
Lock Ring
Fixture Loop
Figure 9
Canopy Chain Loop
Fixture Chain
Supply Wire and
Ground Wire
Figure 10
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
7of9
October2011
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-UPTR5007IS
For Style UPTR5007IS

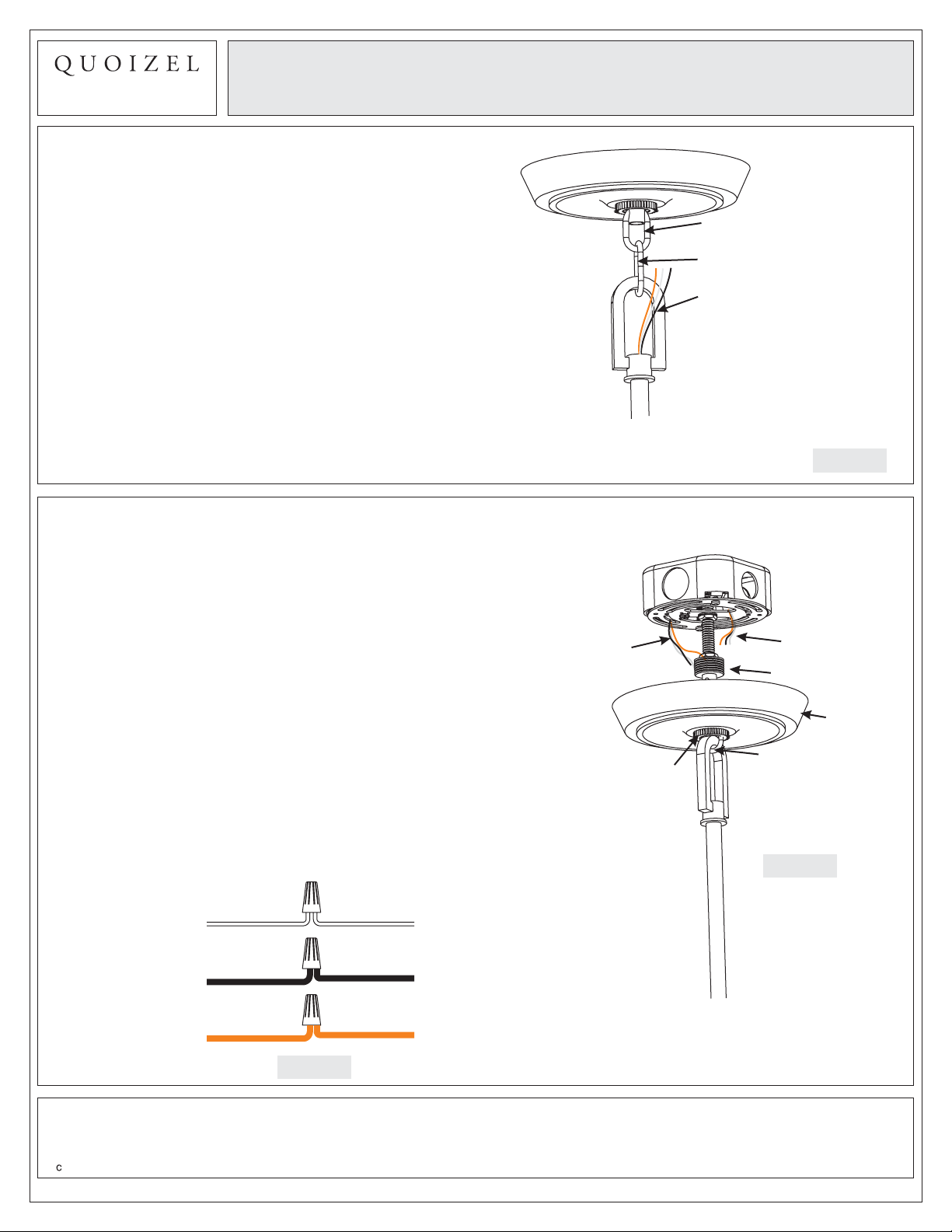

STEP 11 Pass Supply Wires through Fixture
-
Chain
A. Pull the Supply Wires and Ground Wire up through the
Fixture Chain (N) alternating links. Push the wires up
through the Canopy Chain Loop (I) into the outlet box.
STEP 12 - Make Wire Connections
A. Un-thread the Canopy Lock Ring (F) and slide Canopy Lock
Ring (F) and Ceiling Canopy (E) down the Fixture Chain.
B. Push all slack fixture wire through Canopy Chain Loop into
Outlet Box. Trim excess fixture wire leaving a minimum of 6
inch. Hanging out of the Outlet Box.
C. Use standard wire connectors to make all wire connections.
(Connectors are not included with fixture.) Strip and prepare
wire ends according to instructions supplied with connectors.
D. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
E. Connect Black (or Red) Supply Wire from the Outlet Box to
Black Wire from fixture.
F. Connect Ground Wire from the Outlet Box to Ground Wire
from fixture.
G. Twist connectors until wires are tightly joined together.
H. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
G. Re-attach the Ceiling Canopy (E) as shown in Step 5.
Supply Wire
and Ground
Wire from
Outlet Box
Canopy Lock Ring
Canopy Chain
Loop
Fixture Chain
Supply Wire
and Ground Wire
Figure 11
Supply Wire and
Ground Wire
Canopy Chain
Loop
Ceiling
Canopy
Fixture Chain
Figure 12
White wire from supply White wire from fixture
Black wire from supply
(or Red)
Ground wire from supply Ground wire from fixture
Black wire from fixture
Figure 13
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
or visit us on-line at www.quoizel.com
8of9
October2011
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-UPTR5007IS
For Style UPTR5007IS
STEP 13 - Install Bulb
A. Edson bulbs
This fixture uses with a standard screw base.
Maximum watts
B. Insert bulb and screw snugly into place.
60
Socket
Edson
Bulb
Socket
Figure 14
STEP 14 - Install MR-16 Bulb
A. Put the Plastic Suction Cup onto the MR16 - GU10 Bulb
as shown.
B. Install the MR16 - GU10 Bulb into the Socket by aligning
the pins on the Bulb with the keyholes in the Socket. Once
they are aligned, gently push the MR16 - GU10 Bulb into
the keyholes and twist the MR16 - GU10 Bulb to lock it in
place
.
C. Remove the Plastic Suction Cup from the MR16 -GU10
Bulb.
D. Remove the package material (plastic film) from the
Socket Assembly and Side Arms.
Your fixture chandelier lamp is now assembled and ready
to use. Enjoy!
Socket
MR-16 Bulb
Plastic
Suction Cup
Figure 15
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
9of9
October2011
