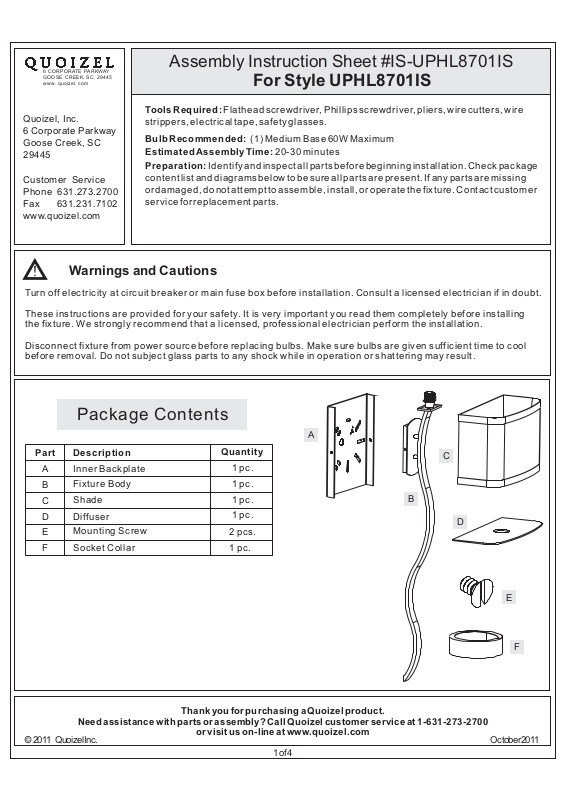

Page 1
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
,.
Assembly Instruction Sheet #IS-UPHL8701IS
For Style UPHL8701IS
ToolsRequired:Flatheadscrewdriver,Phillips screwdriver,pliers,wirecutters,wire
strippers,electricaltape,safetyglasses.
BulbRecommended: 6(1)MediumBase 0WMaximum
EstimatedAssemblyTime:20-30 minutes
Preparation:Identifyandinspectallpartsbeforebeginninginstallation. Check package
contentlistanddiagramsbelowtobesure all parts are present. If any parts are missing
ordamaged,donotattempttoassemble,install,oroperate the fixture. Contact customer
serviceforreplacementparts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
Package Contents
A
Part
A Inner Backplate
B
C
D
E
F
Description
Fixture Body
Shade
Diffuser
Mounting Screw
Socket Collar
Quantity
1pc.
1pc.
1pc.
1pc.
2 pcs.
1pc.
C
B
D
E
Need assistance with partsor assembly? Call Quoizelcustomer service at 1-631-273-2700
2011 Quoizel Inc.
Thank you for purchasinga Quoizel product.
or visit us on-lineat www.quoizel.com
1of4
F
October2011
Page 2
UPHL8701IS
FINISH: IMPERIAL SILVER
1
6”
12”
5”
2
8”
47.5”
8”
(1)60W A19
Medium Base Bulb
(Not Supplied)
PART NUMBER
NO.
G3213DI
1
S1355BE
2
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
DIFFUSER SANDBLAST ONE INSIDE
SHADE LIGHT BEIGE 8"H X 5.5"W
2of4
5”
REQ.
1
1
Page 3
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-UPHL8701IS
For Style UPHL8701IS
STEP 1 - Attach Inner Backplate to Outlet
Box
A. Inner BackplateAttach the (A) to Outlet Box and secure
by threading Outlet Box Screws (not supplied) into the
Mounting Holes on the Outlet Box. Tighten until snug.
STEP 2 Make Wire Connections-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
Figure 1
Outlet Box
Inner
Backplate
Outlet Box Screw
(not supplied)
White wire from supply White wire from fixture
Black wire from supply
(or Red)
Ground wire from supply Ground wire from fixture
Black wire from fixture
Figure 3
Thank you for purchasinga Quoizel product.
Need assistance with partsor assembly? Call Quoizelcustomer service at 1-631-273-2700
2011 Quoizel Inc.
or visit us on-lineat www.quoizel.com
3of4
Figure 2
October2011
Page 4
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-UPHL8701IS
For Style UPHL8701IS
STEP 3 - Attach Fixture Body to Outlet Box
A. Attach the Backplate of Fixture Body (B) over the Inner
Backplate (A) and secure with the Mounting Screws (E).
tighten until snug.Flathead screwdriver
STEP 4 - Attach Shade to Fixture Body
Inner Backplate
Outlet Box
Mounting Screw
Backplate
Fixture Body
Figure 4
A. Place the Diffuser (D) over the Socket as shown.
Thread the Socket Collar (F) onto the Socket to secure
the Diffuser (D). Hand tighten until snug.
B. Place the shade over the Diffuser properly.(C) (D)
STEP 5 - Install Bulb
A. bulbs with a standard screw
This fixture uses standard
base
. Maximum 100 watts.
B. Insert bulb and screw properly into place.
Shade
Socket Collar
Diffuser
Socket
Figure 5
Bulb
Your fixture wall lamp is now assembled and ready to
use. Enjoy!
Thank you for purchasinga Quoizel product.
Need assistance with partsor assembly? Call Quoizelcustomer service at 1-631-273-2700
2011 Quoizel Inc.
or visit us on-lineat www.quoizel.com
Socket
October2011
4of4
