Assembly Instruction Sheet #IS-UPCN5003WT
For Style UPCN5003WT
ToolsRequired: Flathead screwdriver,Phillips screwdriver,pliers, wire cutters,wire
strippers,electrical tape, safetyglasses.
BulbRecommended: (3) T8 CandelabraBase 60W Maximum
EstimatedAssemblyTime:20-30 minutes
Preparation:Identify and inspectallparts before beginninginstallation.Check package
contentlist and diagramsbelowto be sureallparts are present.Ifany parts aremissing
ordamaged, do notattemptto assemble, install,oroperate the fixture.Contactcustomer
servicefor replacement parts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
Package Contents
Part
A Crossbar
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Description
Nipple
Lock Washer
Hex Nut
Ceiling Canopy
Canopy Chain Loop
Canopy Lock Ring
Fixture Chain
Fixture Loop
6” Rod
12” Rod
5.5” Rod
Lathing Part
Stem 4.5”L
Socket Assembly
Bulb
Quantity
1pc.
1pc.
2 pcs.
2 pcs.
1pc.
1pc.
1pc.
1pc.
1pc.
2 pcs.
2 pcs.
12 pcs.
1pc.
1pc.
1pc.
3 pcs.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 QuoizelInc.
Thank youfor purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
1of7
September2013
UPCN5003WT
FINISH: WESTERN BRONZE
2.4mm
13Ga
QUOIZEL
GND
R
6.5" Dia.
1"
53.5”
OVERALL HEIGHT INCLUDES
(2) 6” AND 12” RODS
6”
12”
2
(3)60W Candelabra
T8
Filament Bulbs
( Supplied)
3
1
13”
13” Dia.
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
PART NUMBER
NO.
1
2
9008EXWT
3
9007EXWT
I1101EC
REPLACEMENT PART DESCRIPTION
REPRODC 60W 1910 INCANDESCENT BULB
ROD EXT WESTERN BRONZE 12"L X 0.63"D
ROD EXT WESTERN BRONZE 6"L X 0.63"D
2of7
REQ.
1
2
2
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-UPCN5003WT
For Style UPCN5003WT
STEP 1 Assemble Center Stem to Socket
-
Assembly
A. Thread Stem 4.5”L (N) onto Socket Assembly (O). Hand
tighten until sung.
STEP 2 Assemble Rods-
A. Place the Lathing Part (M) onto the
Nipple
B. Determine the Rods (J/K) to be assembled to the fixture
according to your hanging height.
C. Pass Supply Wires and Ground Wire through the chosen
Rods (J/K) and then thread the chosen Rods (J/K) and the
Socket Assembly (N) together. Hand tighten until snug.
(N).
Stem 6” with Long
6” Rod
12” Rod
Stem 4.5”L
Figure 1
Socket
Assembly
Figure 2
6” Rod
12” Rod
STEP 3 Assemble to Upper Rod- Fixture Loop
A. Pass Supply Wires and Ground Wire through the Fixture
Loop (I) then thread the Fixture Loop (I) and the Upper
Rod together. Hand tighten until snug.
Lathing Part
Supply Wire and
Ground Wire
Stem
Fixture Loop
Supply Wire and
Ground Wire
Upper Rod
Figure 3
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
3of7
September2013
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-UPCN5003WT
For Style UPCN5003WT

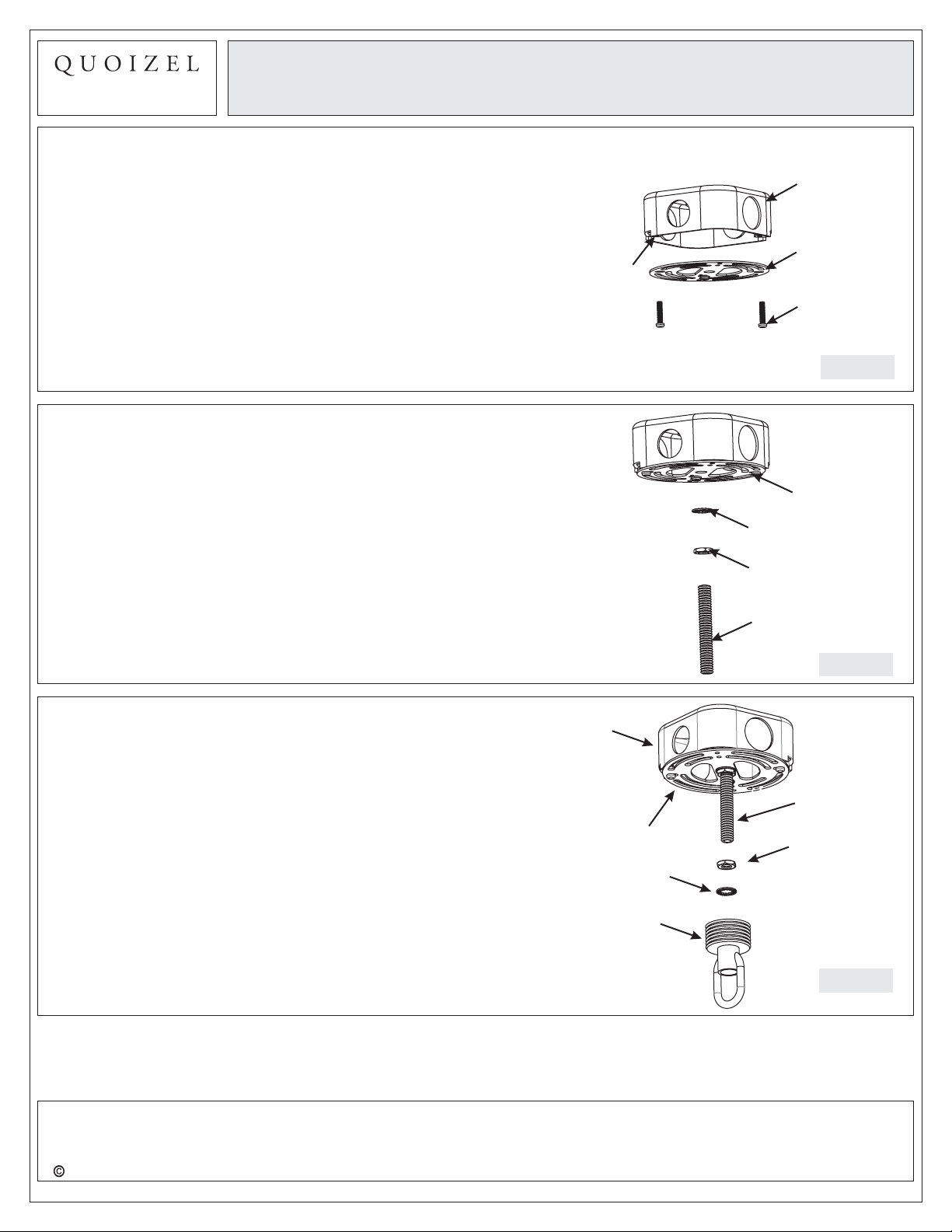

STEP 4 - Attach Crossbar to Outlet Box
A. Secure the Crossbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
Outlet Box
Crossbar
STEP 5 Attach Nipple to Crossbar-
A. Thread one Hex Nut (D) onto the top end of the Nipple
(B).
B. Place one Lock Washer (C) over the top end of the
Nipple (B) and then thread the Nipple (B) into the center
lock hole of the Crossbar (A).
C. Using pliers, thread the Hex Nut (D) against the
Crossbar (A) and hand tighten until snug.
STEP 6 - Attach Canopy Chain Loop to Nipple
Mounting
Hole
Outlet Box
Outlet Box
Screw (not
Supplied)
Figure 4
Crossbar
Lock Washer
Hex Nut
Nipple
Figure 5
A. Thread another Hex Nut (D) onto the end of the Nipple
(B).
B. Place the Lock Washer (C) over the end of the Nipple
(B) and then thread the Canopy Chain Loop (F) onto the
end of the Nipple (B).
C. Using pliers, thread the Hex Nut (D) against the
Canopy Chain Loop and hand tighten until snug.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 QuoizelInc.
or visit us on-line at www.quoizel.com
4of7
Nipple
Crossbar
Hex Nut
Lock Washer
Canopy
Chain Loop
Figure 6
September2013
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-UPCN5003WT
For Style UPCN5003WT
STEP 7 Assemble Ceiling Canopy-
A. Push the Ceiling Canopy (E) upward over the Outlet
Box. Thread the Canopy Lock Ring (G) onto the Canopy
Chain Loop and tighten until snug to secure the Ceiling
Canopy (E).

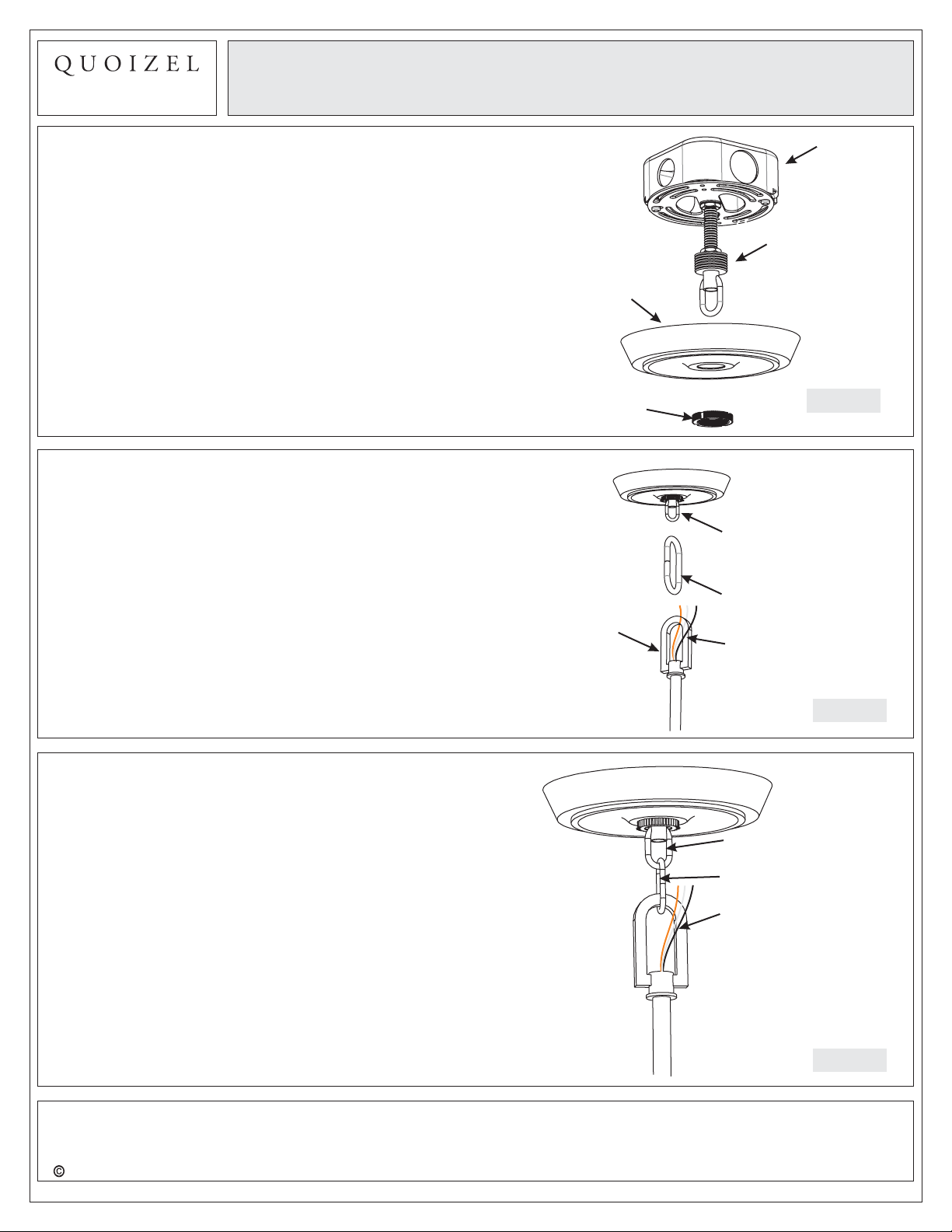

STEP 8 Attach Fixture Chain to Canopy
-
Chain Loop and Fixture Loop
A. You may need to use plier to open the chain links. If so,
put a cloth over the chain to protect the finish from the
pliers.
B. Attach one end of the Fixture Chain (H) onto the
Canopy Chain Loop (F) and then attach the other end of
the Fixture Chain (H) onto the Fixture Loop (I) on the
top of the fixture.
Ceiling Canopy
Canopy
Lock Ring
Fixture Loop
Outlet Box
Canopy Chian Loop
Figure 7
Canopy Chain Loop
Fixture Chain
Supply Wire and
Ground Wire
STEP 9 Pass Supply Wires through Fixture
-
Chain
A. Pull the Supply Wires and Ground Wire up through the
Fixture Chain (H) alternating links. Push the wires up
through the Canopy Chain Loop (F) into the outlet box.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 QuoizelInc.
or visit us on-line at www.quoizel.com
5of7
Figure 8
Canopy Chain
Loop
Fixture Chain
Supply Wire
and Ground Wire
Figure 9
September2013
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-UPCN5003WT
For Style UPCN5003WT
STEP 10 - Make Wire Connections
A. Un-thread the Canopy Lock Ring (G) and slide Canopy Lock
Ring (G) and Ceiling Canopy (E) down the Fixture Chain.
B. Push all slack fixture wire through Canopy Chain Loop into
Outlet Box. Trim excess fixture wire leaving a minimum of 6
inch. Hanging out of the Outlet Box.
C. Use standard wire connectors to make all wire connections.
(Connectors are not included with fixture.) Strip and prepare
wire ends according to instructions supplied with connectors.
D. Connect White Supply Wire from the Outlet Box to Ribbed
side Wire from fixture.
E. Connect Black (or Red) Supply Wire from the Outlet Box to
Smooth side Wire from fixture.
F. Connect Ground Wire from the Outlet Box to Ground Wire
from fixture.
G. Twist connectors until wires are tightly joined together.
H. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
G. Re-attach the Ceiling Canopy (E) as shown in Step 7.
Supply Wire
and Ground
Wire from
Outlet Box
Canopy Lock Ring
Supply Wire and
Ground Wire
Canopy Chain
Loop
Ceiling
Canopy
Fixture Chain
Figure 11
White wire from supply Ribbed side wire from fixture
Black wire from supply
(or Red)
Ground wire from supply Ground wire from fixture
Smooth side wire from fixture
Figure 10
STEP 11 Attach 10.5” Rod to Fixture-
A. Thread 5 (L) onto the Bolt on the Socket Assembly
(O). Hand tighten until sung.
5. ” Rod
Socket Assembly
Figure 12
Bolt
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
6of7
5.5” Rod
September2013
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-UPCN5003WT
For Style UPCN5003WT
STEP 12 - Install Bulb
A. This fixture uses T8 Candelabra Filament Bulb with a
screw base. Maximum 60 watts.
B. Insert bulb and screw properly into place.
Your fixture is now assembled and ready to use.
Enjoy!
Figure 13
Bulb
Socket
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
7of7
September2013
