INSTRUCTION SHEET IS-TY2821
STYLE NUMBER: TY2821AN, TY2821WT
PACKAGE CONTENTS
PART
A Crossbar
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
DESCRIPTION
Green Ground Screw
Mounting Screw
Lock Washer
Small Hex Nut
Mounting Ball
Lock Screw
1/8IP Hex Nut
Flat Washer
Rubber Washer
Cap
6” Rod
12” Rod
Ring
Shade
Ceiling Canopy
Finial A
Check Ring
Finial B
Center Column
Side Arm
Center Stem
Spacer Tube
QUANTITY
1pc
1pc
2pcs
2pcs
2pcs
2pcs
3pcs
1pc
2pcs
2pcs
1pc
2pcs
2pcs
1pc
1pc
1pc
3pcs
1pc
1pc
1pc
3pcs
1pc
1pc
ISSUED 07-2010 REVISED 2011-01-27
P
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
Q
R
S
T
U
V
W
WARNINGS AND CAUTIONS
WARNING:
● Before beginning the installation, turn off electricity at the circuit breaker box or the main fuse box by switching
off the circuit breaker or removing the fuse.
CAUTION:
● These instructions are provided for your safety. It is very important that they are read completely before the
installation of your fixture. We strongly recommend that a professional electrician install the fixture.
● Disconnect fixture from the power source before replacing the bulb(s), making sure that bulb(s) had sufficient
time to cool down. DO NOT subject the lamp to any shock while lit as shattering of lamp may result.
1OF6
Page 2
PREPARATION
STYLE NUMBER: TY2821AN, TY2821WT
● Before beginning installation of product, make sure all parts are present. Compare parts with package contents
list and diagram above. If any part is missing or damaged, do not attempt to assemble, install or operate the
product. Contact customer service for replacement part.
● Estimated Assembly Time: 30 - 45 minutes
● Tool Required forAssembly (not included): Flathead screwdriver, Phillips screwdriver, Pliers, Electrical tape,
Wire cutter, Safety glasses and (4) 100W Type-A medium base bulbs
.
● Helpful Tools (not included): Wire strippers.
INSTALLATION INSTRUCTIONS
STEP 1:
a. (Refer to DETAIL A) Place the hole on the top end of the
Side Arm over the Pipe at the side of the Center
Column. Thread the Finial A onto the end of the Pipe to
secure the Side Arm.
b. (Refer to DETAIL B) Attach the Connectors on the Ring
to the bottom of the Side Arms. Line up mounting holes
on the Connectors and holes on the SideArms. Using
screwdriver, thread Lock Screws into the mounting
holes on the Connectors to secure them together.
Hand-tighten until snug.
DETAIL A
Finial A
Side Arm
Pipe
Finial A
Side Arm
Center Column
Lock Screw
2OF6
Ring
Lock Screw
Ring
DETAIL B
Connector
Side Arm
Connector
Page 3
INSTALLATION INSTRUCTIONS
STEP 2:
a. Determine the Rods to be assembled according to your
desired hanging height.
b. Pass the Supply Wires with Ground Wire through the
chosen Rods and then thread Rods and Center Column
together as shown. Hand-tighten until snug.
STYLE NUMBER: TY2821AN, TY2821WT
6” Rod
6” Rod
12” Rod
12” Rod
STEP 3:
a. Pass the Supply Wires with Ground Wire through the
Swivel and Ceiling Canopy.
b. Thread the Swivel onto the top end of the Upper Rod.
Hand-tighten until snug.
Coupling
Supply Wires with
Ground Wire
Center Column
Ceiling Canopy
Swivel
Supply Wire with
Ground Wire
3OF6
Upper Rod
Page 4
INSTALLATION INSTRUCTIONS
STYLE NUMBER: TY2821AN, TY2821WT
STEP 4:
a. Screw the Mounting Screws into the Crossbar place
the Lock Washers over the Mounting Screws and
thread the Hex Nuts onto the Mounting Screws as
shown Secure the position of the Mounting Screws by
.
tightening the Hex Nuts against the Crossbar
b. Secure the Crossbar to the Outlet Box with Outlet Box
Screws
.
,
.
STEP 5:
a. Locate the Ceiling Canopy onto the Crossbar and slip
the Button Stop on the end of Lanyard into the Slot on
the Crossbar as shown.
Mounting Screw
Crossbar
Hex Nut
Lock Washer
Outlet Box
Outlet Box Screw
Crossbar
Slot
Button Stop
Lanyard
Ceiling Canopy
STEP 6:
Use Wire Connectors (not supplied) to connect the
wires.
a. Connect the House Ground Wire to the Fixture Ground
Wire.
b. Connect the House White (or Ribbed) Wire to the
Fixture Supply Wire (Black or Smooth Side).
c. Connect the House Black (or Red) Wire to the Fixture
Supply Wire (Black or Smooth Side).
d. Wrap each connection with approved electrical tape
and carefully stuff all of the connected wires into the
Outlet Box.
WHITE OR RIBBED
FROM HOUSE
BLACK (OR RED) WIRE
FROM HOUSE
GROUND WIRE
FROM HOUSE
WHITE OR RIBBED
FROM FIXTURE
BLACK OR SMOOTH
FROM FIXTURE
GROUND WIRE
FROM FIXTURE
4OF6
Page 5
INSTALLATION INSTRUCTIONS

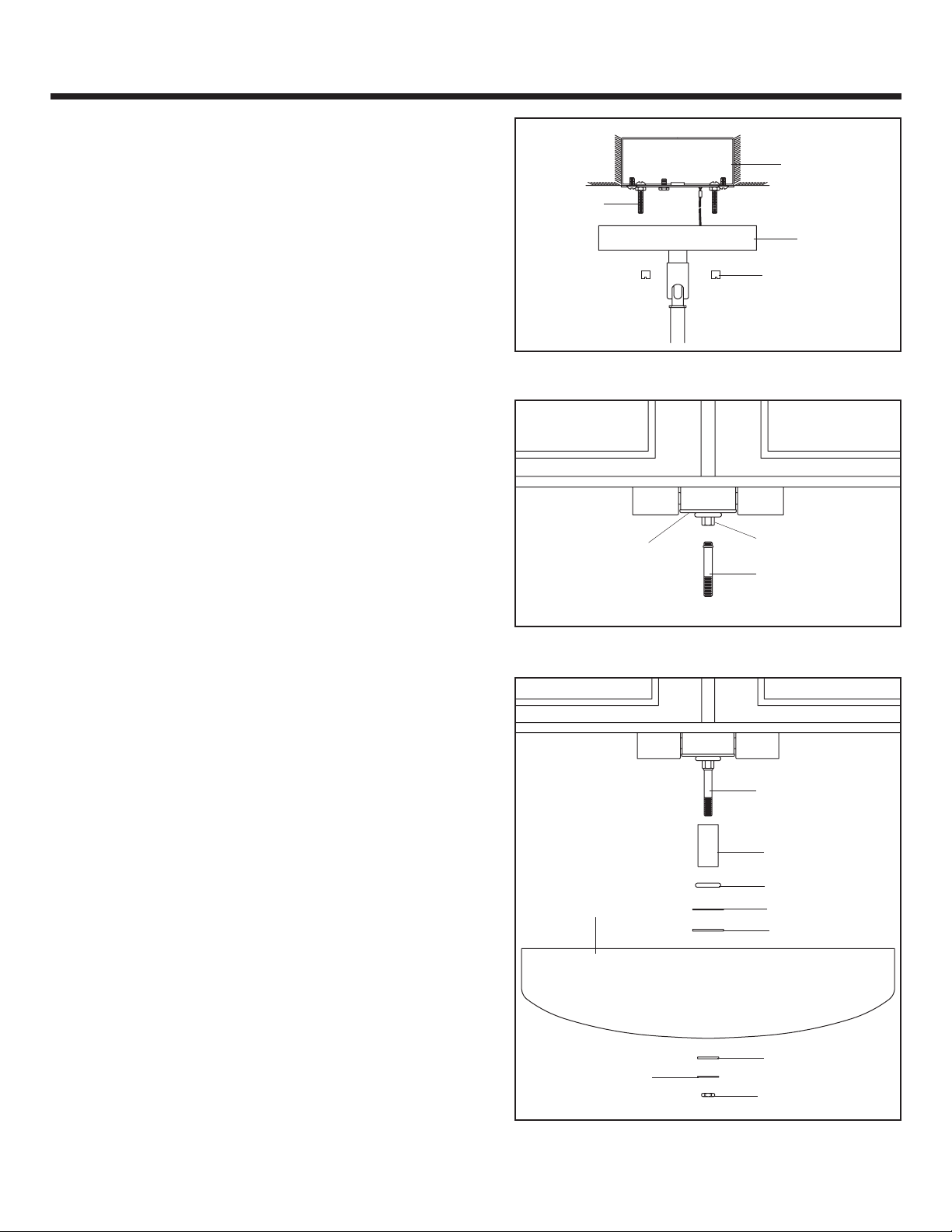

STEP 7:
a. Place the Ceiling Canopy over the Mounting Screws
and secure with the Mounting Balls. Hand-tighten until
snug.
STEP 8:
a. Screw the beaded end of the Center Stem into the Hex
Coupling underside of the Junction Box. Hand-tighten
until snug.
STYLE NUMBER: TY2821AN, TY2821WT
Outlet Box
Mounting
Screw
Ceiling
Canopy
Mounting Ball
STEP 9:
a. Place the Spacer Tube, the Check Ring, the Flat
Washers, the Rubber Washers and the Shade over the
end of the Center Stem as shown. Secure them by
threading the 1/8 IP Hex Nut onto the Center Stem.
Hand-tighten until snug.
Junction Box
Shade
Hex Coupling
Center Stem
Center Stem
Spacer Tube
Check Ring
Flat Washer
Rubber Washer
5OF6
Rubber Washer
Flat Washer
1/8 IP Hex Nut
Page 6
INSTALLATION INSTRUCTIONS
STYLE NUMBER: TY2821AN, TY2821WT
STEP 10:
a. Place the Cap over the end of the Center Stem and
secure with the Finial B. Hand-tighten until snug.
STEP 11:
a. Install correct bulbs referring to fixture markings and/or labels for maximum wattage.
Your installation is completed now. Restore electricity. Retain this sheet for future reference.
Center Stem
Cap
Finial B
6OF6
