Quoizel TFEC1506VB User Manual

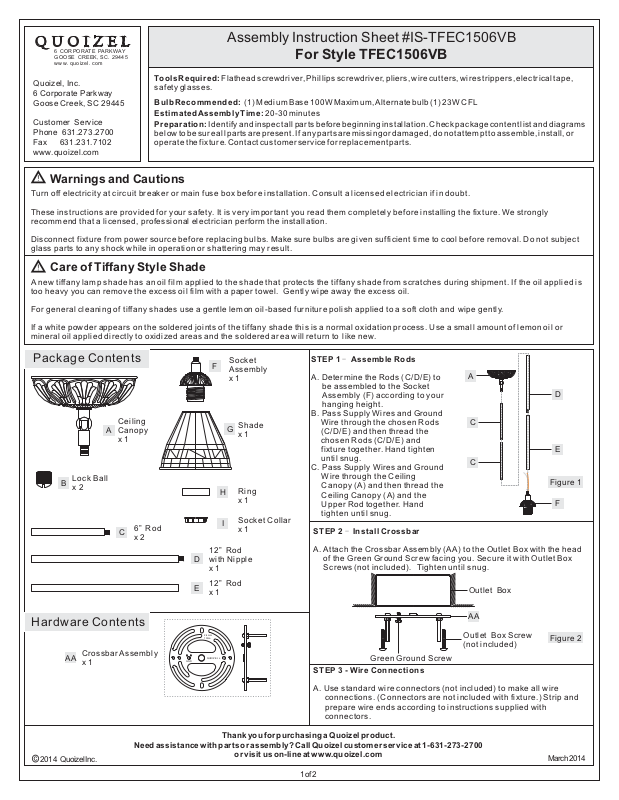

Assembly Instruction Sheet #IS-TFEC1506VB
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC 29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal. Do not subject
glass parts to any shock while in operation or shattering may result.
Care of Tiffany Style Shade
A new tiffany lamp shade has an oil film applied to the shade that protects the tiffany shade from scratches during shipment. If the oil applied is
too heavy you can remove the excess oil film with a paper towel. Gently wipe away the excess oil.
For general cleaning of tiffany shades use a gentle lemon oil-based furniture polish applied to a soft cloth and wipe gently.
If a white powder appears on the soldered joints of the tiffany shade this is a normal oxidation process. Use a small amount of lemon oil or
mineral oil applied directly to oxidized areas and the soldered area will return to like new.
,.
For Style TFEC1506VB
ToolsRequired: Flatheadscrewdriver, Phillipsscrewdriver,pliers,wire cutters, wire strippers, electricaltape,
safetyglasses.
BulbRecommended: (1) MediumBase 100W Maximum,Alternatebulb (1) 23W CFL
EstimatedAssembly Time:20-30minutes
Preparation:Identify and inspect all partsbeforebeginning installation. Check package contentlist and diagrams
belowto be sure all partsarepresent. If any parts aremissing or damaged, do not attemptto assemble, install, or
operatethe fixture. Contact customer serviceforreplacement parts.
Package Contents
Ceiling
A
Canopy
x1
Lock Ball
B
x2
6” Rod
C
x2
Hardware Contents
Crossbar Assembly
AA
x1
D
E
GND
Socket
F
Assembly
x1
G
H
I
12” Rod
with Nipple
x1
12” Rod
x1
2.4mm
13Ga
QUOIZEL
R
Shade
x1
Ring
x1
Socket Collar
x1
STEP 1 Assemble Rods-
A. Determine the Rods (C/D/E) to
be assembled to the Socket
Assembly (F) according to your
A
D
hanging height.
B. Pass Supply Wires and Ground
Wire through the chosen Rods
C
(C/D/E) and then thread the
chosen Rods (C/D/E) and
fixture together. Hand tighten
until snug.
C. Pass Supply Wires and Ground
Wire through the Ceiling
Canopy (A) and then thread the
C
E
Figure 1
Ceiling Canopy (A) and the
Upper Rod together. Hand
F
tighten until snug.
STEP 2 Install Crossbar-
A. Attach the Crossbar Assembly (AA) to the Outlet Box with the head
of the Green Ground Screw facing you. Secure it with Outlet Box
Screws (not included) Tighten until snug
..
Outlet Box
AA
Outlet Box Screw
(not included)
Figure 2
Green Ground Screw
STEP 3 - Wire Connections
2014 Quoizel Inc.
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Strip and
prepare wire ends according to instructions supplied with
connectors.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
1of2
March2014
B. Connect White Supply Wire from the Outlet Box to Ribbed side
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box to Smooth
side Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground Wire from
fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
White wire
from supply
Black wire from
supply (or Red)
Ground wire
from supply
Ribbed side wire
from fixture
Smooth side wire
from fixture
Ground wire
from fixture
Figure 3
STEP 4 Attach Fixture Body to Mounting Screw-
A. Place the Backplate of the Ceiling Canopy (A) over the Mounting
Screws and secure with Lock Ball (B). Hand tighten until snug.
Mounting Screw
A
B
Figure 4
STEP 5 Attach Shade to fixture-
A. Place the Shade (G) and the
Ring (H) over the Socket,
secure with Socket Collar (I).
Hand tighten until sung.
STEP 6 Install Bulb-
A. This fixture uses standard bulb
with medium screw base.
Maximum 100 watts.
B. Insert bulb and screw snugly
into place.
Your fixture is now assembled
and ready to use.
Enjoy!
Socket
Socket
Figure 5
F
G
H
Figure 6
Socket
Bulb
TFEC1506VB
FINISH: VINTAGE BRONZE
GND
2.4mm
13Ga
QUOIZEL
R
Base
Medium
Bulbs
(1) 100W
(Not Supplied)
PART NUMBER
NO.
9012EXVB
1
9006EXVB
2
G3791SH
3
5” Dia.
1.5”
2
OVERALL HEIGHT INCLUDES
46”
(2) 6” AND 12” RODSAND 2 QUICK LINKS
1
7”
5”
6.5” Dia.
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
ROD EXT 12"L X 0.5"DVINTAGE BRONZE
ROD EXT 6"L X 0.5"DVINTAGE BRONZE
SHADE TIFFANY 6.5"D
3
REQ.
2
2
1
2014 Quoizel Inc.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
2of2
March2014
