Assembly Instruction Sheet #IS-TF1571TIB
For Style TF1571TIB
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
ToolsRequired:None
BulbRecommended: (2) Medium Base 75W Maximum
EstimatedAssemblyTime:15-20 minutes
Preparation:Identifyandinspectallpartsbeforebeginninginstallation.Checkpackage
contentlistanddiagramsbelowtobesureallpartsarepresent.Ifanypartsaremissing
ordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomer
serviceforreplacementparts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
Part
A
B
C
D
E
F
Package Contents
Description
Shade
Socket Assembly
Base
Finial
Flat Washer
Stem
Quantity
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
D
A
E
B
F
C
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2012 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
1of4
December2012
TF1571TIB
FINISH: IMPERIAL BRONZE
16” Dia.
9”
6.5” Sq.
28”
17”
(2)75W
Medium Base Bulb
(Not Supplied)
PART NUMBER
NO.
1
2
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
2of4
REQ.
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-TF1571TIB

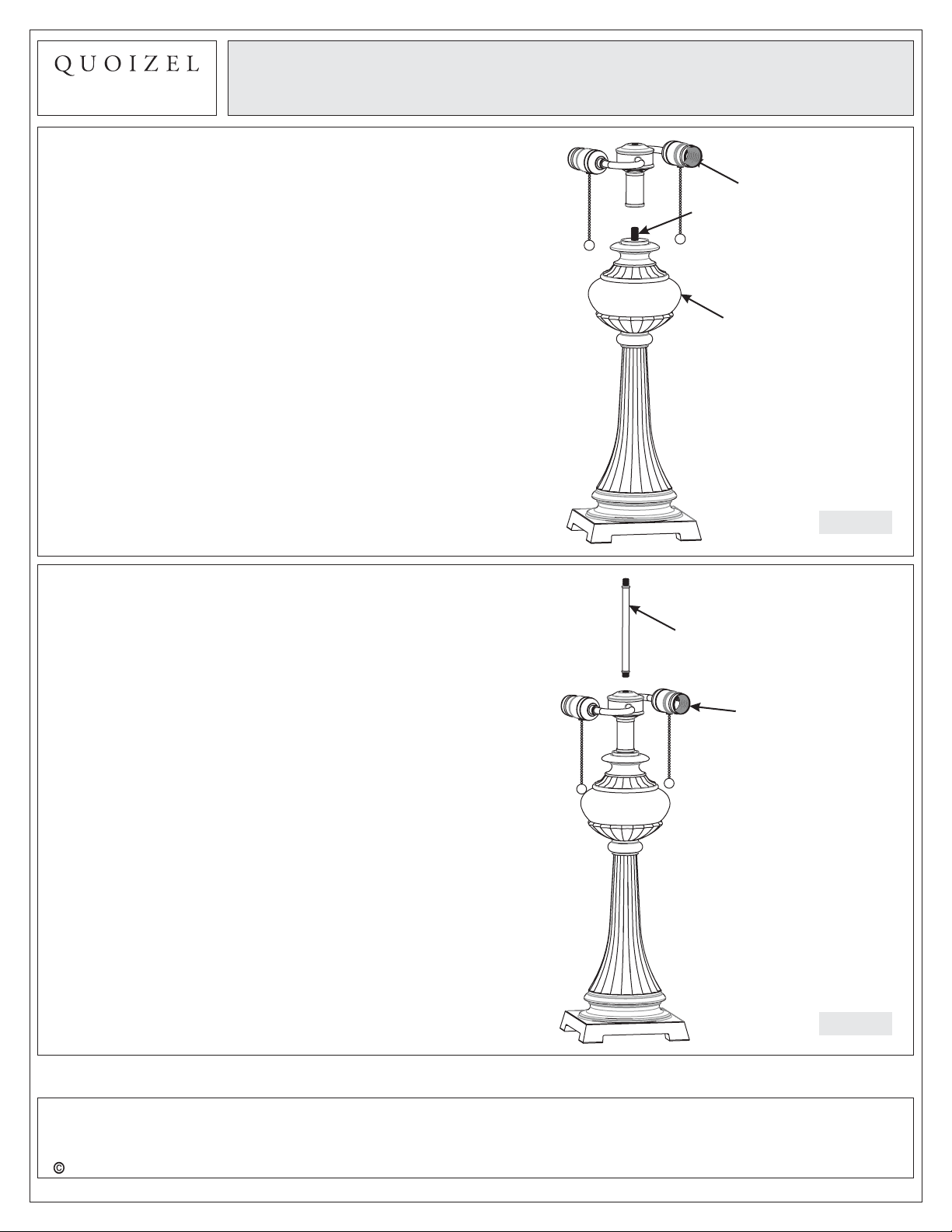

STEP 1 - Install Socket Assembly
For Style TF1571TIB
A. Thread the Socket Assembly (B) onto the Nipple on the
top of Base (C). Hand tighten until snug.
STEP 2 - Install Stem
A. Thread the short nipple end of Stem (F) into the Socket
Assembly (B). Hand tighten until snug.
Socket Assembly
Nipple
Base
Figure 1
Stem
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2012 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
3of4
Socket Assembly
Figure 2
December2012
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-TF1571TIB
For Style TF1571TIB

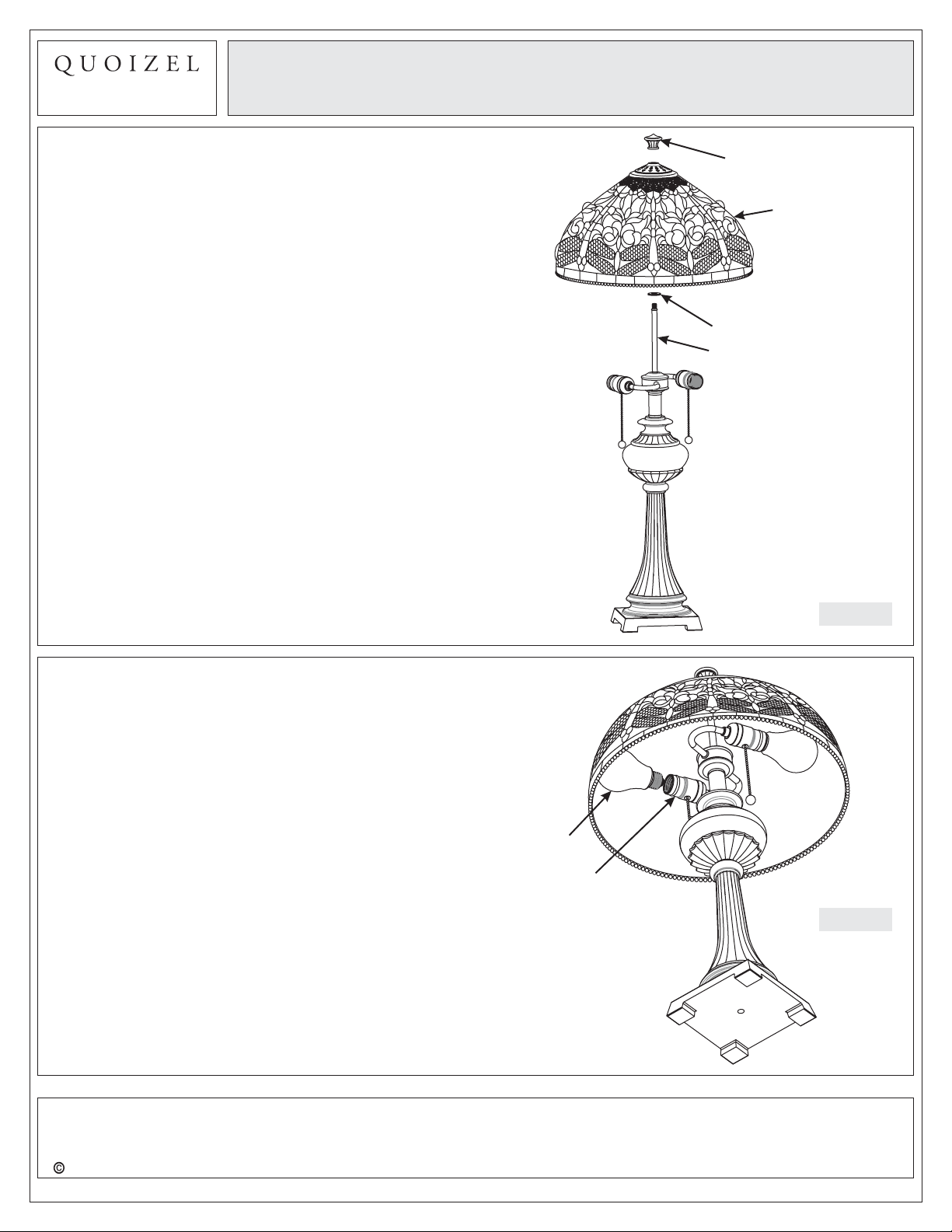

STEP 3 Assemble Shade-
A. Place the Flat Washer (E) and Shade (A) over the Stem
(F). Secure by thread the Finial (D) onto the Stem. Hand
tighten until snug.
Finial
Shade
Flat Washer
Stem
STEP 4 Install Bulb-
A. This fixture uses standard bulbs with medium screw
bases. Maximum 75 watts.
B. Insert bulb and screw snugly into place.
Your fixture is now assembled and ready to use.
Enjoy!
Figure 3
Bulb
Socket
Figure 4
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2012 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
4of4
December2012
