6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-TF1176TVB
For Styles TF1176TVB
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
ToolsRequired:None
BulbRecommended: (2) Medium Base 75W Maximum
EstimatedAssemblyTime:15-20 minutes
Preparation:Identifyandinspectallpartsbeforebeginninginstallation.Checkpackage
contentlistanddiagramsbelowtobesureallpartsarepresent.Ifanypartsaremissing
ordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomer
serviceforreplacementparts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
Part
A
B
C
D
E
F
Package Contents
Description
Shade
Check Ring
Finial
Spacer Tube
Nipple with Knurled Nuts
Base
Quantity
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
A
B
D
F
C
E
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
1of3
August2011
TF1176TVB
FINISH: VINTAGE BRONZE
16” SQ.
8”
(2)Medium Base
Bulbs
(Not Supplied)
24.5”
14”
6.5” SQ.
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
PART NUMBER
NO.
REPLACEMENT PART DESCRIPTION
2of3
REQ.
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-TF1176TVB
For Styles TF1176TVB

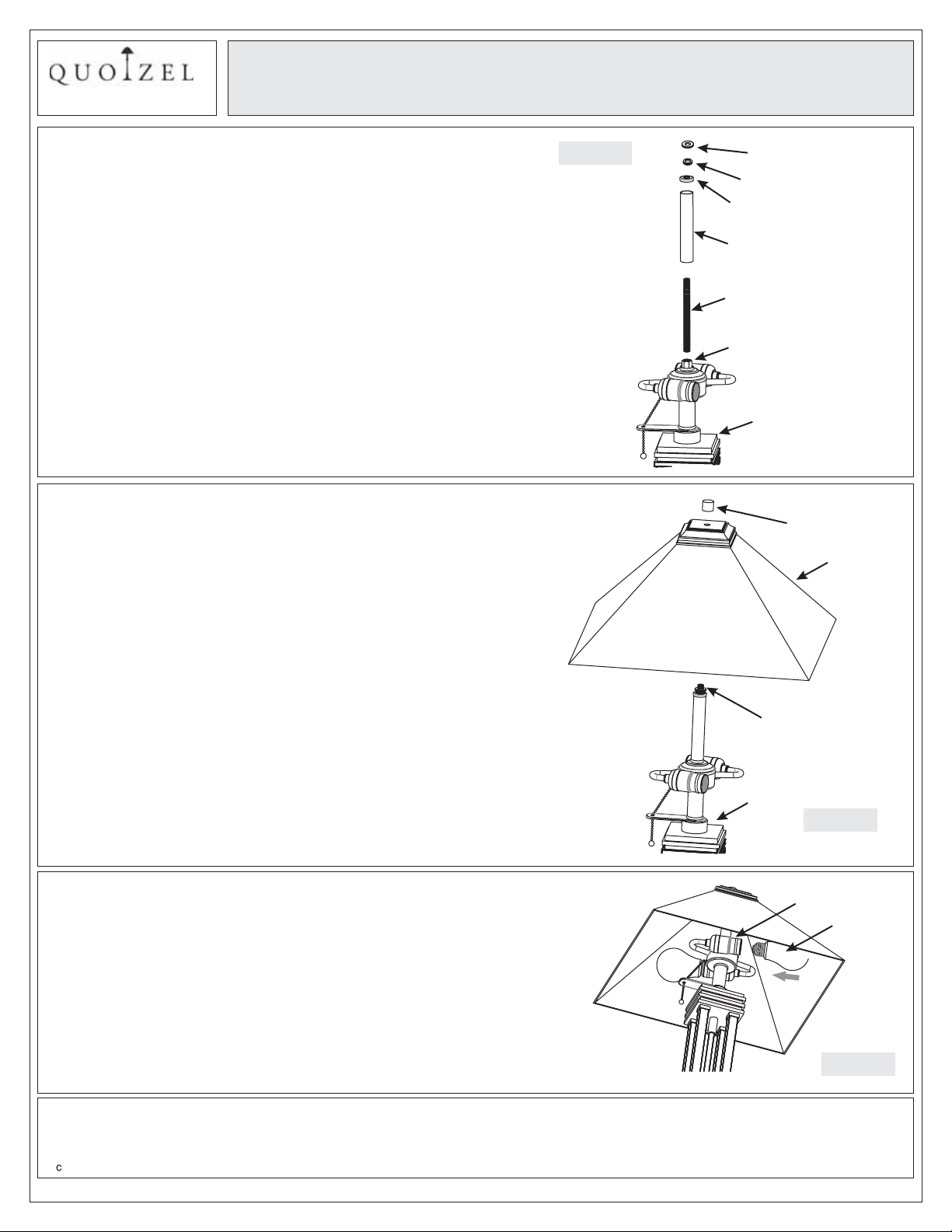

STEP 1 - Attach Spacer Tube, Check Ring and
Nipple with Knurled Nuts to Base
A. Remove Knurled Nuts from the Nipple. Screw one end
of the Nipple into the Hex Coupling on the top center of
the Base (F). Hand tighten until snug.
B. Place the Spacer Tube (D) and Check Ring (B) over the
top end of the Nipple. Secure by threading the Small
Knurled Nut onto the Nipple. Hand tighten until snug.
C. Thread the Big Knurled Nut onto the top end of the
Nipple and adjust to proper location for the Shade (A)
STEP 2 - Attach Shade and Finial
A. Place the Shade (A) over the top end of the Nipple.
Secure by threading the Finial (C) onto the Nipple.
Hand tighten until snug.
Figure 1
Big Knurled Nut
Small Knurled Nut
Check Ring
Spacer Tube
Nipple
Hex Coupling
Base
Finial
Shade
Nipple
Base
Figure 2
STEP 3 Install Bulb-
A. This fixture uses standard bulb with medium base .
Maximum 75 watts.
B. Insert bulb and screw snugly into place.
Your table lamp is now assembled and ready to use.
Enjoy!
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 Quoizel Inc. August2011
or visit us on-line at www.quoizel.com
3of3
Socket
Bulb
Figure 3
