6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
,.
Assembly Instruction Sheet #IS-SPH8704BN
For Style SPH8704BN
ToolsRequired:Flatheadscrewdriver,Phillips screwdriver,pliers,wirecutters,wire
strippers,electricaltape,safetyglasses.
BulbRecommended: (4) Medium Base 100W Maximum
EstimatedAssemblyTime:20-30 minutes
Preparation:Identifyandinspectallpartsbeforebeginninginstallation.Checkpackage
contentlistanddiagramsbelowtobesureallpartsarepresent.Ifanypartsaremissing
ordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomer
serviceforreplacementparts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
A
B
E
C
Part
A
B
C
D
E
F
Package Contents
Description
Inner Backplate
Fixture Body
Mounting Screw
Shade
Socket Collar
Socket Collar Tool
Quantity
1pc.
1pc.
3 pcs.
4 pcs.
4 pcs.
1pc.
Need assistance with partsor assembly? Call Quoizelcustomer service at 1-631-273-2700
2011 Quoizel Inc.
D
Thank you for purchasinga Quoizel product.
or visit us on-lineat www.quoizel.com
1of4
F
December2011
SPH8704BN
FINISH: BRUSHED NICKEL
35"
8"
6"Dia.
5"
9"
(4)100W A19
Medium Base Bulb
(Not Supplied)
PART NUMBER
NO.
1
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
2of4
REQ.
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-SPH8704BN
For Style SPH8704BN
STEP 1 - Attach Inner Backplate to Outlet
Box
A. Attach the Inner Backplate (A) to Outlet Box and secure
by threading Outlet Box Screws (not supplied) into the
Mounting Holes on the Outlet Box. Tighten until snug.
STEP 2 Make Wire Connections-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
Mounting
Hole
Outlet Box
Figure 1
Inner
Backplate
Outlet Box Screw
(not supplied)
White wire from supply White wire from fixture
Black wire from supply
(or Red)
Ground wire from supply Ground wire from fixture
Black wire from fixture
Figure 3
Thank you for purchasinga Quoizel product.
Need assistance with partsor assembly? Call Quoizelcustomer service at 1-631-273-2700
2011 Quoizel Inc.
or visit us on-lineat www.quoizel.com
3of4
Figure 2
December2011
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-SPH8704BN
For Style SPH8704BN

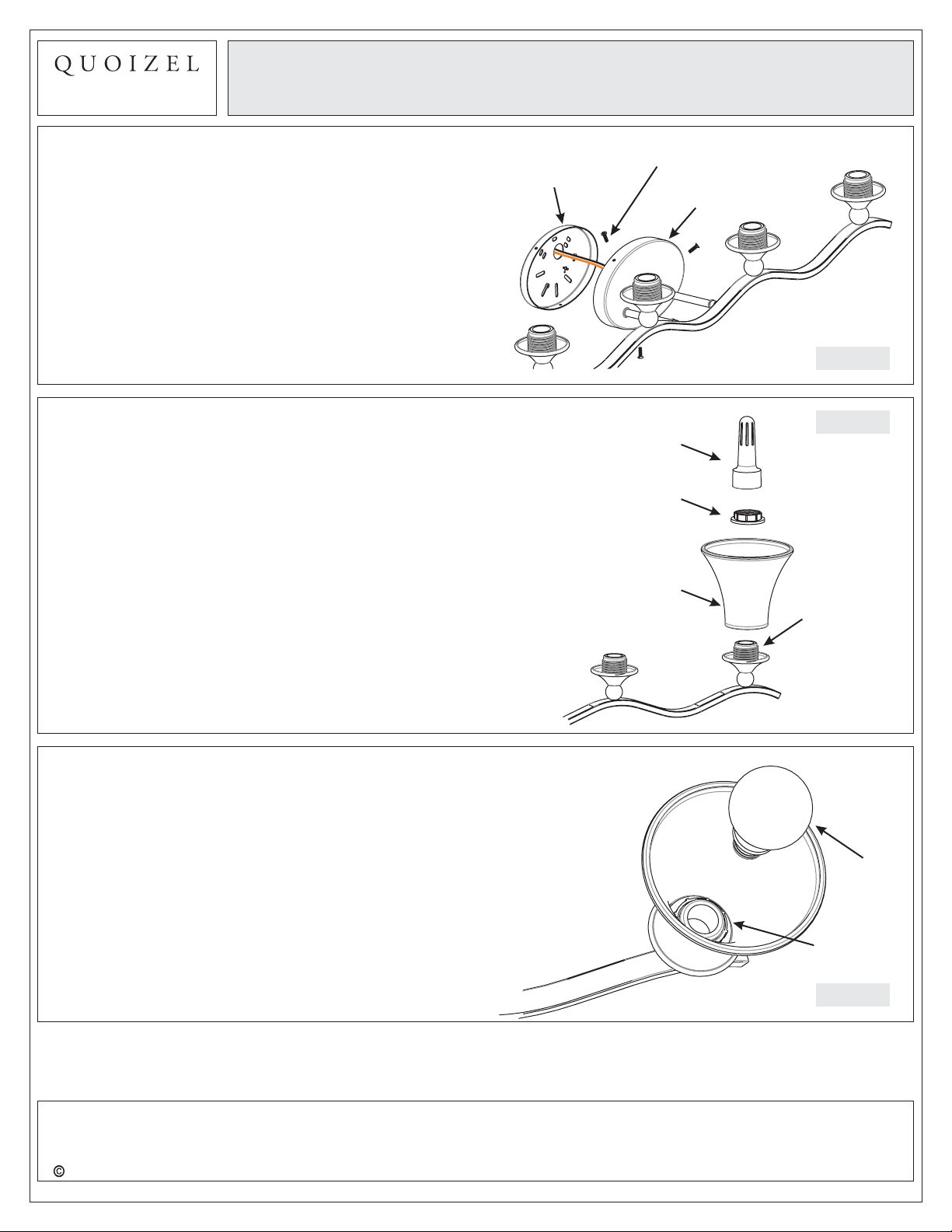

STEP 3 - Attach Fixture Body to Outlet Box
A. Attach the Backplate over the Inner Backplate (A) and
secure with the Mounting Screws (F).
screwdriver
tighten until snug.
Flathead
STEP 4 - Attach Shade to Fixture Body
A. Place the Shade (D) over the Socket as shown. By using
the Socket Collar Tool (F), thread the Socket Collar (E)
onto the Socket to secure the Shade (D). Hand tighten until
snug.
Mounting Screw
Inner Backplate
Backplate
Figure 4
Figure 5
Socket Collar
Tool
Socket Collar
Shade
STEP 5 - Install Bulb
A. bulbs with a standard screw
This fixture uses standard
base
. Maximum 100 watts.
B. Insert bulb and screw properly into place.
Your fixture is now assembled and ready to use.
Enjoy!
Socket
Bulb
Socket
Figure 6
Need assistance with partsor assembly? Call Quoizelcustomer service at 1-631-273-2700
2011 Quoizel Inc.
Thank you for purchasinga Quoizel product.
or visit us on-lineat www.quoizel.com
4of4
December2011
