Quoizel RBN1616SG User Manual
6CORPORATEPARKWAY
GOOSECREEKSC29445
wwwquoizelcom
..
Quoizel,Inc.
6CorporateParkway
GooseCreek,SC
29445
CustomerService
Phone631.273.2700
Fax631.231.7102
www.quoizel.com
,.

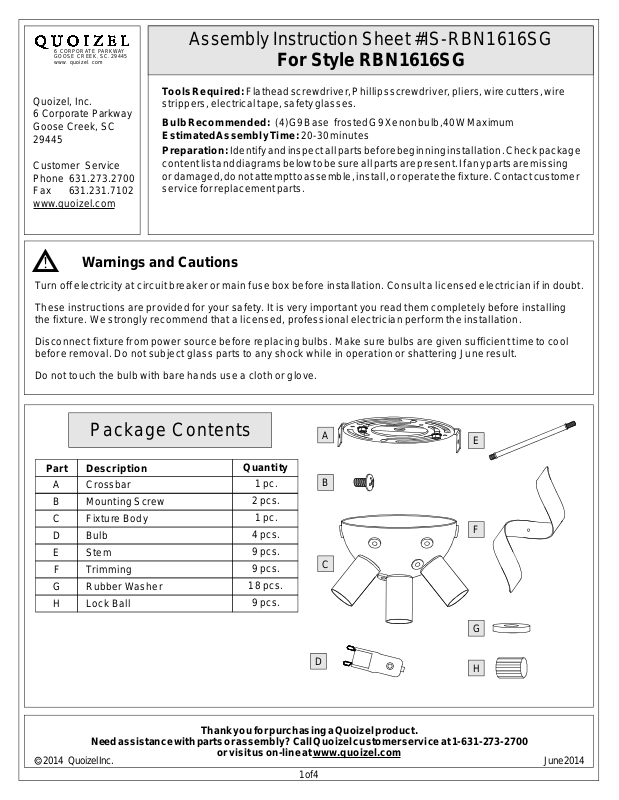

AssemblyInstructionSheet#IS-RBN1616SG
ForStyleRBN1616SG
ToolsRequired:Flatheadscrewdriver,Phillipsscrewdriver,pliers,wirecutters,wire
strippers,electricaltape,safetyglasses.
BulbRecommended: (4)G9BasefrostedG9Xenonbulb,40WMaximum
EstimatedAssemblyTime: 20-30minutes
Preparation: Identifyandinspectallpartsbeforebeginninginstallation.Checkpackage
contentlistanddiagramsbelowtobesureallpartsarepresent.Ifanypartsaremissing
ordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomer
serviceforreplacementparts.
WarningsandCautions
Turnoffelectricityatcircuitbreakerormainfuseboxbeforeinstallation.Consultalicensedelectricianifindoubt.
Theseinstructionsareprovidedforyoursafety.Itisveryimportantyoureadthemcompletelybeforeinstalling
thefixture.Westronglyrecommendthatalicensed,professionalelectricianperformtheinstallation.
Disconnectfixturefrompowersourcebeforereplacingbulbs.Makesurebulbsaregivensufficienttimetocool
beforeremoval.DonotsubjectglasspartstoanyshockwhileinoperationorshatteringJuneresult.
Donottouchthebulbwithbarehandsuseaclothorglove.
PackageContents
Part Description
A Crossbar
B
C
D
E
F
G
H
MountingScrew
FixtureBody
Bulb
Stem
Trimming
RubberWasher
LockBall
Quantity
1pc.
2pcs.
1pc.
4pcs.
9pcs.
9pcs.
18pcs.
9pcs.
A
B
C
E
F
G
Needassistancewithpartsorassembly?CallQuoizelcustomerserviceat1-631-273-2700
2014QuoizelInc.
D
ThankyouforpurchasingaQuoizelproduct.
orvisituson-lineat www.quoizel.com
1of4
H
June2014
RBN1616SG
FINISH:SATINCOPPER
16.5”
8.5”
1
(4)40W
frostedG9Xenon
NO.
1
Maximum
(Supplied)
PARTNUMBER
I1203SF
NOTE:ALLDIMENSIONSAREROUNDEDUPTOTHENEAREST1/2"
REPLACEMENTPARTDESCRIPTION
BULB40WXENONG9FROSTED
2of4
REQ.
4
