Assembly Instruction Sheet #IS-QF1214SPN
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
,.
ToolsRequired:Flatheadscrewdriver,Phillipsscrewdriver,pliers, wire cutters,wire
strippers,electricaltape,safety glasses.
BulbRecommended: (2) MediumBase60WMaximum
EstimatedAssemblyTime: 20-30minutes
Preparation:Identifyandinspect all partsbeforebeginninginstallation. Check package
contentlistanddiagrams below tobesureall parts arepresent.Ifany parts aremissing
ordamaged,donot attempt toassemble,install,or operate thefixture.Contactcustomer
serviceforreplacementparts.
Warnings and Cautions
For Style QF1214SPN
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
A
Package Contents
Part
A Crossbar
B
C
D
E
F
G
H
Description
Mounting Screw
Lock Washer
Hex Nut
Mounting Ball
Ceiling Canopy
Shade
Cage
Quantity
1pc.
2 pcs.
2 pcs.
2 pcs.
2 pcs.
1pc.
1pc.
1pc.
B
C
D
E
F
G
H
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
1of5
September2011
QF1214SPN
FINISH: PALLADIAN BRONZE
1
13" Dia.
12" Dia.
GND
2.4mm
13Ga
QUOIZEL
R
(2)60W medium
base bulbs
(not Supplied)
4.5"
4"
2
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
PART NUMBER
NO.
1
2
G2877SH
REPLACEMENT PART DESCRIPTION
9378KIT MTG HARDWARE PLLD BRNZ 4"D
SHADE OPAL ETCHED GLS 12"D
2of5
REQ.
1
1
Assembly Instruction Sheet #IS-QF1214SPN
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
STEP 1 - Attach Mounting Screws, Lock
A. Line up a set of holes on the Crossbar (A) and Holes on
the Ceiling Canopy (F).
B. Thread Mounting Screws (B) into the holes on the
Crossbar (A), pass Lock Washers (C) and thread Hex Nut
(D) onto the Mounting Screws (B). Hand tighten until
snug.
,.
For Style QF1214SPN
Washers and Hex Nuts to Crossbar
Mounting Screw
Lock Washer
Ceiling Canopy
Crossbar
Hex Nut
Figure 1
STEP 2 - Attach Crossbar to Outlet Box
A. Attach the Crossbar (A) to Outlet Box and secure by
threading Outlet Box Screws (not supplied) into the
Mounting Holes on the Outlet Box. Tighten until snug.
Figure 2
Outlet
Box
Crossbar
Mounting
Hole
Outlet Box
Screw
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
3of5
September2011
Assembly Instruction Sheet #IS-QF1214SPN
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..

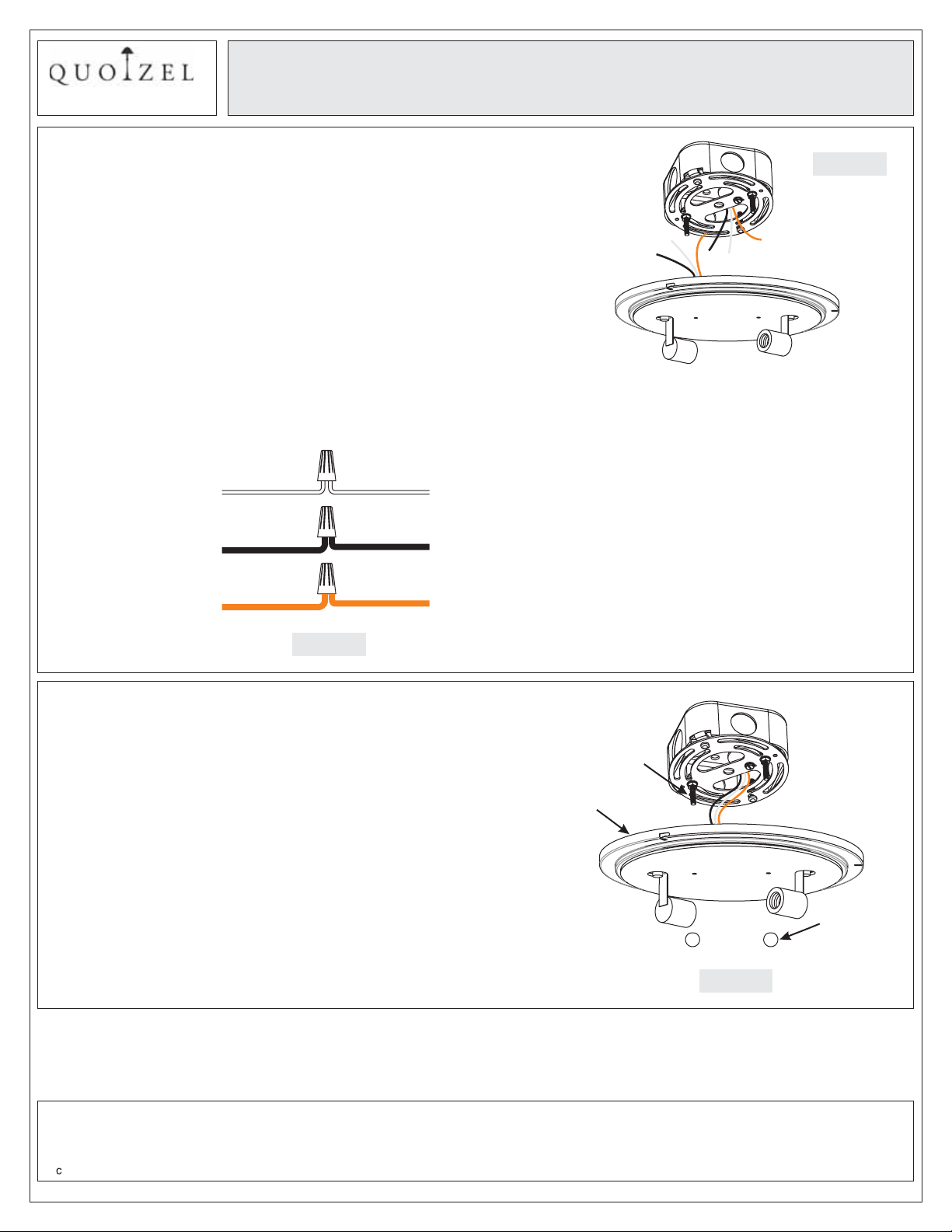

STEP 3 Make Wire Connections-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
White wire from supply White wire from fixture
,.
For Style QF1214SPN
Figure 3
Black wire from supply
(or Red)
Ground wire from supply Ground wire from fixture
Black wire from fixture
Figure 4
STEP 4 - Attach Ceiling Canopy to Mounting
Screw
A. Place the Ceiling Canopy (F) over the Mounting Screws
(B) and secure with Mounting Balls (E). Hand tighten
until snug.
Ceiling
Canopy
Mounting Screw
Mounting
Ball
Figure 5
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
4of5
September2011
Assembly Instruction Sheet #IS-QF1214SPN
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
STEP 5 Install Bulb-
A. This fixture uses standard bulb with a standard screw base.
Maximum 60 watts.
B. Insert bulb and screw properly into place.
,.
For Style QF1214SPN
STEP 6 Assemble Shade and Cage-
A. Place the Shade (G) inside of the Cage (H).
B. Lift the Cage (H) with Shade (G) upward. Insert the Studs in
the top edge of the Cage (H) into the Slots on the Ceiling
Canopy (F).
Your lamp semi-flush fixture is now assembled and ready to
use. Enjoy!
Ceiling
Canopy
Ceiling
Canopy
Stud
Stud
Slot
Bulb
Socket
Figure 6
Ceiling
Canopy
Shade
Stud
Cage
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 Quoizel Inc.
Figure 8
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
5of5
Figure 7
September2011
