Assembly Instruction Sheet #IS-Q1702TBN
For Style Q1702TBN
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
ToolsRequired:None
BulbRecommended: (1) Medium Base 150W Maximum (3-Way)
EstimatedAssemblyTime:15-20 minutes
Preparation:Identifyandinspectallpartsbeforebeginninginstallation.Checkpackage
contentlistanddiagramsbelowtobesureallpartsarepresent.Ifanypartsaremissing
ordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomer
serviceforreplacementparts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
Package Contents
Part
A
B
C
D Finial
E Shade
Description
Harp 8.5”L
Socket Assembly
Base
Quantity
1pc.
1pc.
1pc.
1pc.
1pc.
D
A
E
B
C
Need assistance with partsor assembly? Call Quoizelcustomer service at 1-631-273-2700
2014 Quoizel Inc.
Thank you for purchasinga Quoizel product.
or visit us on-lineat www.quoizel.com
1of4
July2014
Q1702TBN
FINISH: BRUSHED NICKEL
16” Dia.
2
10”
26 5”.
1
6.5” Dia.
(1)150W Medium
Base Bulb (3-Way)
(Not Supplied)
PART NUMBER
NO.
1
11702TBNQ
2
S1563OW
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
BASE BRUSHED NICKEL Q1702TBN
SHADE FABRIC OFF-WHITE 16"D
2of4
REQ.
1
1
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..

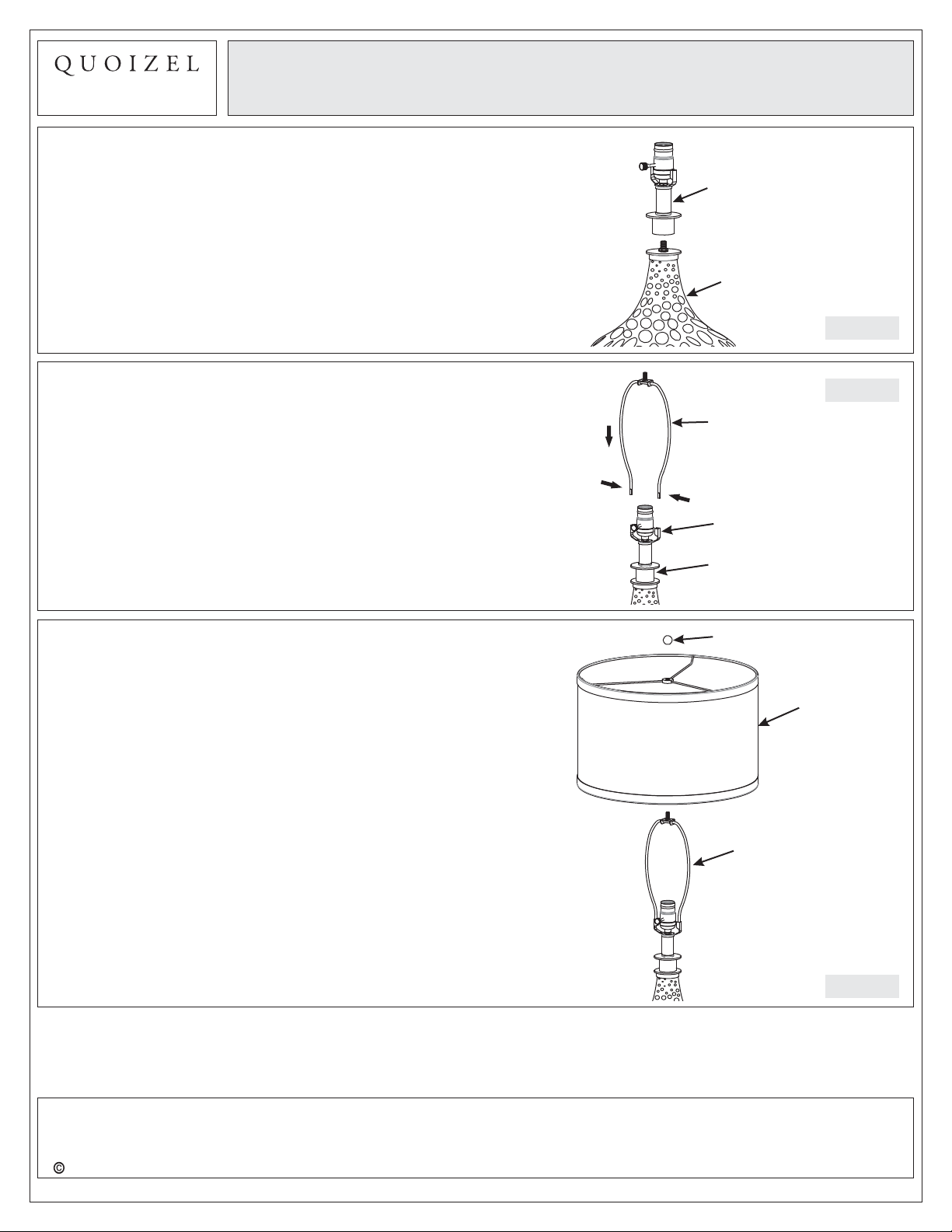

STEP 1 Install Socket Assembly-
,.
Assembly Instruction Sheet #IS-Q1702TBN
For Style Q1702TBN
A. Thread the Socket Assembly (B) onto the nipple on the
top center of the Base (C). Hand tighten until snug.
STEP 2 Install Harp-
A. Install the Harp (A) onto the Socket Assembly (B) by
pressing the ends of the Harp (A) into the Harp Clips.
STEP 3 Install Shade-
Socket Assembly
Base
Figure 1
Figure 2
Harp
Harp Clip
Socket Assembly
Finial
A. Place the Shade (E) onto the top end of the Harp (A) and
secure with the Finial (D). Hand tighten until snug.
Thank you for purchasinga Quoizel product.
Need assistance with partsor assembly? Call Quoizelcustomer service at 1-631-273-2700
2014 Quoizel Inc.
or visit us on-lineat www.quoizel.com
3of4
Shade
Harp
Figure 3
July2014
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-Q1702TBN
For Style Q1702TBN
STEP 4 Install Bulb-
A. This fixture uses standard bulb (3-Way) with medium
screw bases. Maximum 150 watts.
B. Insert bulb and screw snugly into place.
Your fixture is now assembled and ready to use.
Enjoy!
