Assembly Instruction Sheet #IS-MC1706TPN
For Style MC1706TPN
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
ToolsRequired:None
BulbRecommended: (2) Medium Base 60W Maximum
EstimatedAssemblyTime:15-20 minutes
Preparation:Identifyandinspectallpartsbeforebeginninginstallation.Checkpackage
contentlistanddiagramsbelowtobesureallpartsarepresent.Ifanypartsaremissing
ordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomer
serviceforreplacementparts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
Part
A
B
C
D
Package Contents
Description
Finial
Shade
Stem 4.5”L
Base
Quantity
1pc.
1pc.
1pc.
1pc.
A
B
D
C
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
1of3
October2013
MC1706TPN
FINISH: PALLADIAN BRONZE
16” Dia.
11” Dia.
9”
3
2
27”
(2)60W Medium
Base Bulb
(Not Supplied)
17”
1
1”
6”
10”
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
PART NUMBER
NO.
11706TPNMC
1
2
3
S1558MC
S1559RT
REPLACEMENT PART DESCRIPTION
BASE PALLADIAN BRONZE MC1706TPN
SHADE MICA 11"D
SHADE RATTAN 16"D
2of3
REQ.
1
1
1
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-MC1706TPN
For Style MC1706TPN

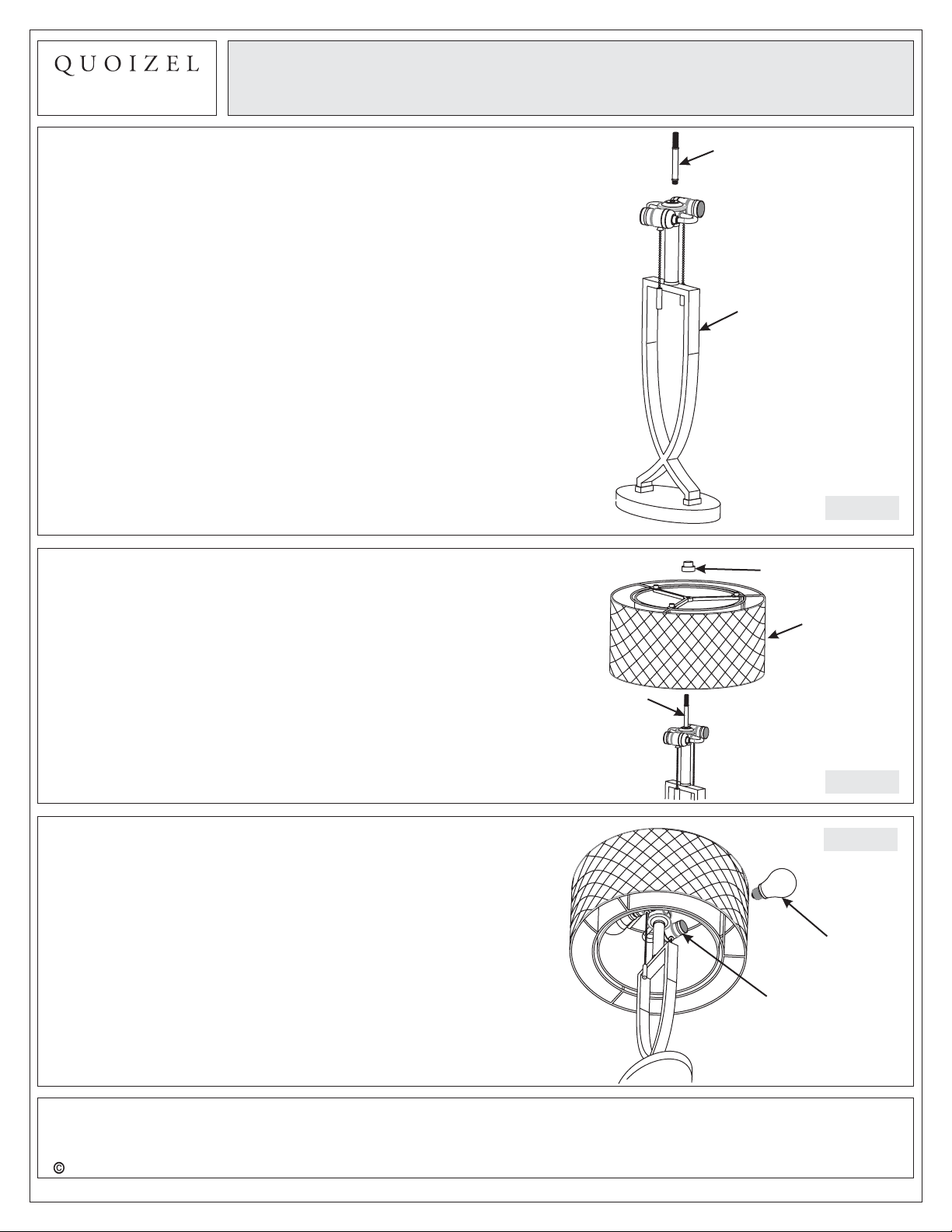

STEP 1 Install Stem to Fixture-
A. Thread the Stem (C) into the Base (D). Hand tighten
until snug.
STEP 2 Install Shade to Fixture-
Stem
Base
Figure 1
Finial
A. Place the Shade (B) over the Stem (C), secure by thread
Finial (A) onto the Stem (C). Hand tighten until snug.
STEP 3 Install Bulb-
A. This fixture uses standard bulb with medium screw
bases. Maximum 60 watts.
B. Insert bulb and screw snugly into place.
Your fixture is now assembled and ready to use.
Enjoy!
Shade
Stem
Figure 2
Figure 3
Bulb
Socket
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
3of3
October2013
