Assembly Instruction Sheet #IS-LNG8409CHB
For Style LNG8409CHB
ToolsRequired:Flatheadscrewdriver,Phillipsscrewdriver,pliers,wire cutters, wire
strippers,electricaltape,safety glasses.
BulbRecommended: (1) MediumBase100WMaximum
EstimatedAssemblyTime: 20-30minutes
Preparation:Identifyandinspect all partsbeforebeginninginstallation. Check package
contentlistanddiagrams below tobesureall parts arepresent.Ifany parts aremissing
ordamaged,donot attempt toassemble,install,or operate thefixture.Contactcustomer
serviceforreplacementparts.
Fixturecanonlybe mounted inthedirectionindicated on page2.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering January result.
A
Package Contents
Part
A Crossbar
B
C
D
E
F
G
H
I
J
Description
Mounting Screw
Lock Washer
Hex Nut
Tab
Knob
Fixture Body
Shade
Shade Frame
Lock Screw
Quantity
1pc.
2 pcs.
2 pcs.
2 pcs.
4 pcs.
4 pcs.
1pc.
1pc.
1pc.
4 pcs.
B
C
D
E
F
G
H
I
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2014 Quoizel Inc.
J
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
1of6
January2014
LNG8409CHB
FINISH: CHOCOLATE BRONZE

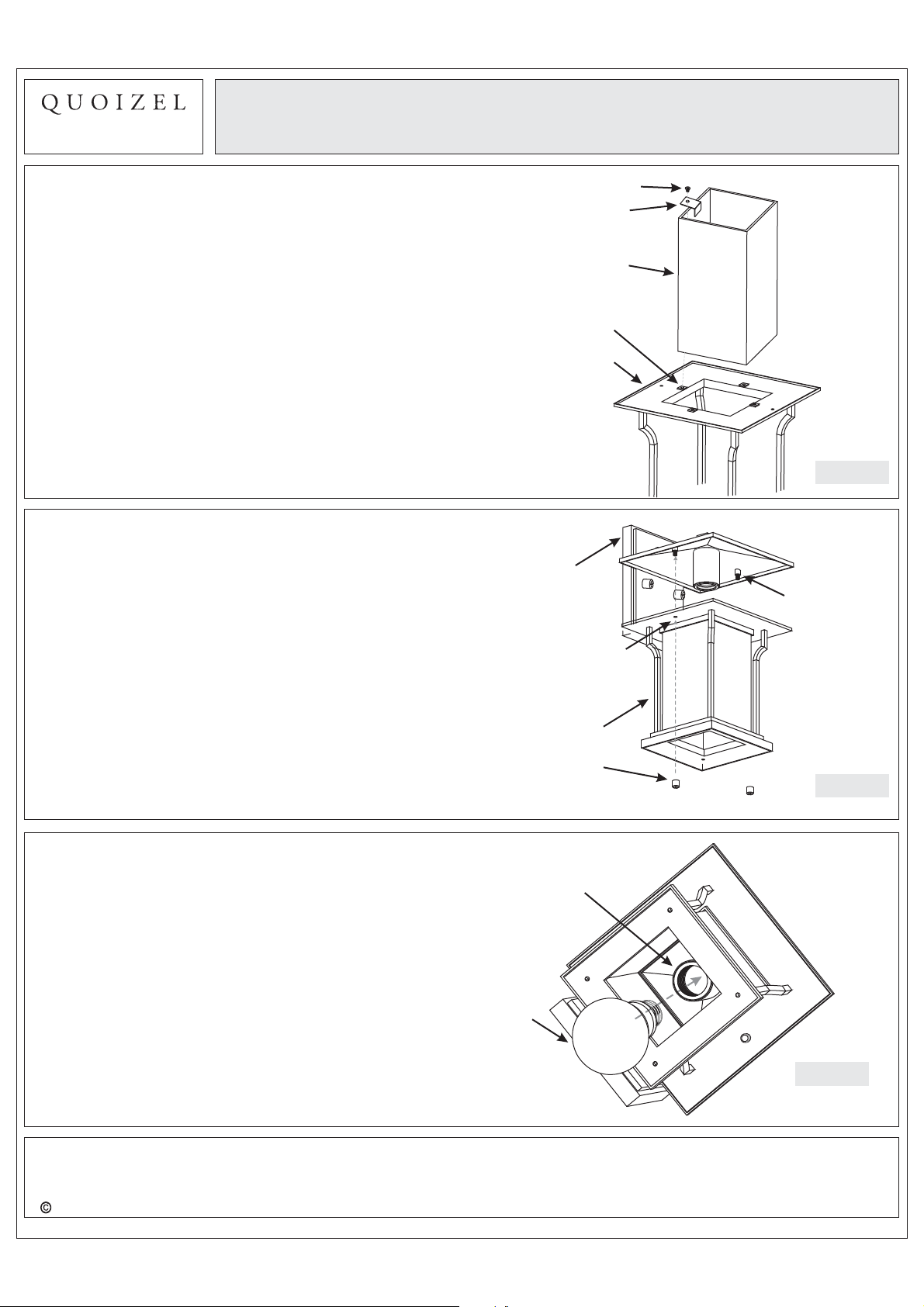

Fixturecanonlybe
7"
mountedinthe
directionindicated
1
10"
9.5"
13"
GND
2.4mm
13Ga
QUOIZEL
R
9"
(1)100W A19
Medium Base Bulb
(Not Supplied)
2
5" Sq.
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
PART NUMBER
NO.
1
18409CHBLNG
2
G2963SH
REPLACEMENT PART DESCRIPTION
BASE CHOCOLATE BRONZE LNG8409CHB
SHADE ART/CLEAR WATER SEEDY
2of6
REQ.
1
1
