Quoizel KY5006IN User Manual
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
,.
ToolsRequired: Flathead screwdriver,Phillips screwdriver,pliers, wire cutters,wire
strippers,electrical tape, safetyglasses.
BulbRecommended: (6)100W A19Medium Base
EstimatedAssemblyTime:20-30 minutes
Preparation:Identify and inspectallparts before beginninginstallation.Check package
contentlist and diagramsbelowto be sureallparts are present.Ifany parts aremissing
ordamaged, do notattemptto assemble, install,oroperate the fixture.Contactcustomer
servicefor replacement parts.
Assembly Instruction Sheet #IS-KY5006IN
For Style KY5006IN
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
A
Package Contents
Part
A Crossbar
B
C
D
E
F
G
H
I
J
K
Description
Nipple
Lock Washer
Hex Nut
Ceiling Canopy
Canopy Chain Loop
Canopy Lock Ring
Fixture Chain
Fixture Loop
Fixture Assembly
Shade
Quantity
1pc
1pc
2pcs
2pcs
1pc
1pc
1pc
1pc
1pc
1pc
6pcs
B
C
D
E
F
G
I
J
K
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2012 QuoizelInc.
H
Thank youfor purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
March 2012
1of7
KY5006IN
FINISH: IRON GATE
QUIOZEL
GND
2.4 m m 13 G a
5.5” Dia.
1.5”
NOTE: THREE LIGHTS SHOWN FOR
ILLUSTRATION PURPOSES ONLY.
4.5” Dia.
Overall Height 127.5
(Includes 96 Chain)
"
28”
8”
"
(6)100W Medium
Base Bulbs
(Not Supplied)
PART NUMBER
NO.
1
2
3
4
15006INKY
9558KIT
G3325SH
M2353CHIN
28” Dia.
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
BASE KY5006IN
MOUNTING HARDWARE/CANOPY IRON GATE 5.5"D
SHADE WHITE ONYX 4.5"D X 8"H
SQUARE CHAIN IRON GATE 4MM X 4’
2of7
REQ.
1
1
6
1
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-KY5006IN
For Style KY5006IN
STEP 1 - Attach Fixture Loop to Fixture
Assembly
A. Thread the Fixture Loop (I) on to the Nipple on the top
of Fixture Assembly (J). Tighten until snug.
STEP 2 - Attach Crossbar to Outlet Box
A. Secure the Crossbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
Fixture Loop
Figure 1
Nipple
Fixture
Assembly
Outlet Box

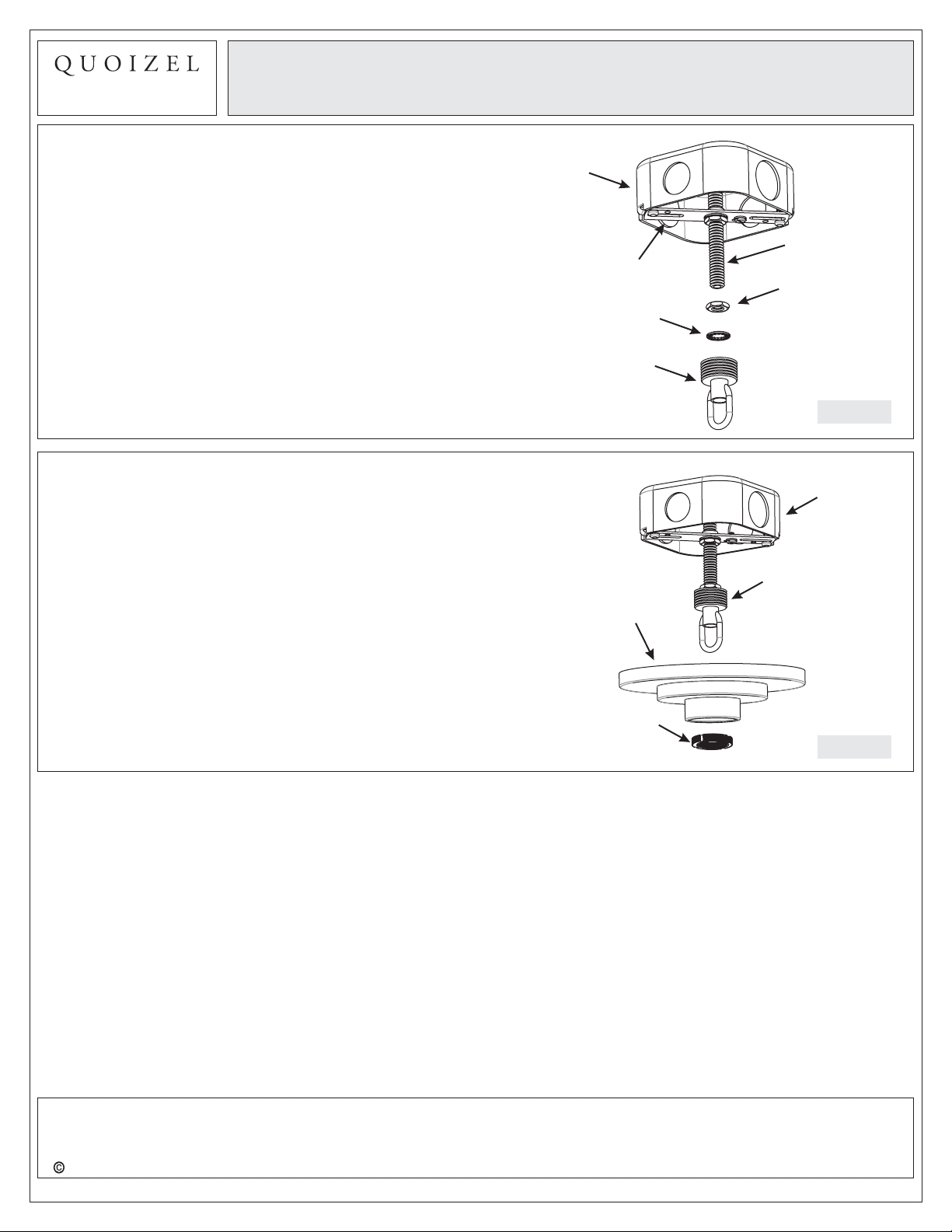

STEP 3 Attach Nipple to Crossbar-
A. Thread one Hex Nut (D) onto the top end of the Nipple
(B).
B. Place one Lock Washer (C) over the top end of the
Nipple (B) and then thread the Nipple (B) into the center
lock hole of the Crossbar (A).
C. Using pliers, thread the Hex Nut (D) against the
Crossbar (A) and hand tighten until snug.
Mounting
Hole
Crossbar
Outlet Box
Screw (not
Supplied)
Figure 2
Crossbar
Lock Washer
Hex Nut
Nipple
Figure 3
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2012 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
3of7

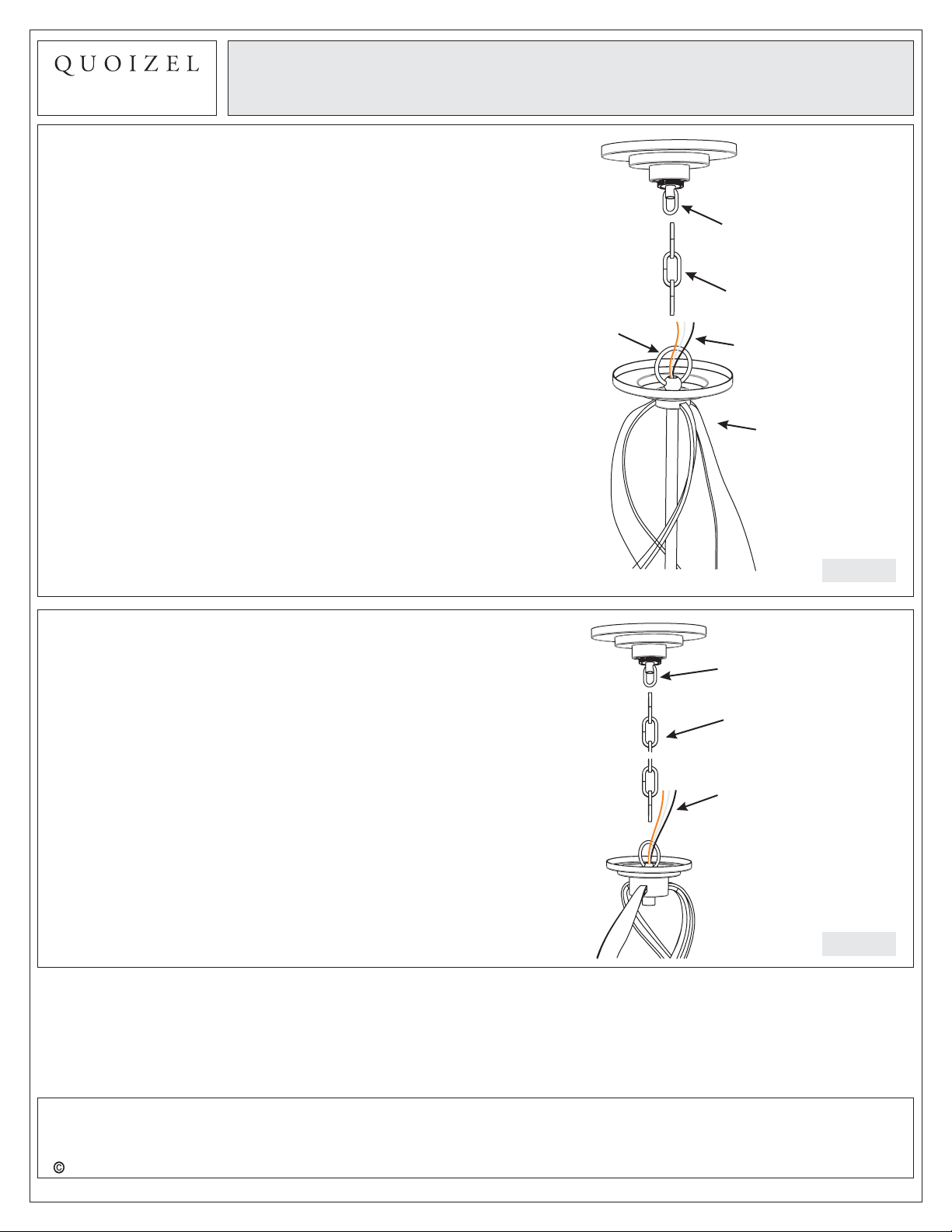

March 2012
