6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
,.
Assembly Instruction Sheet #IS-KPR5005BN
For Style KPR5005BN
ToolsRequired:Flatheadscrewdriver,Phillipsscrewdriver,pliers,wire cutters, wire
strippers,electricaltape,safety glasses.
BulbRecommended: (5) MediumBase100W Maximum, (1)MR-16 GU10 Base
50WMaximum
EstimatedAssemblyTime: 20-30minutes
Preparation:Identifyandinspect all partsbeforebeginninginstallation. Check package
contentlistanddiagrams below tobesureall parts arepresent.Ifany parts aremissing
ordamaged,donot attempt toassemble,install,or operate thefixture.Contactcustomer
serviceforreplacementparts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
A
Package Contents
Part
A Crossbar
B
C
D
E
F
G
H
I
J
K
L
M
N
Description
Mounting Screw
Lock Washer
Hex Nut
Mounting Ball
Ceiling Canopy
6” Rod
12” Rod
Fixture Body
Shade
Socket Collar
MR-16
Plastic Suction Cup
Socket Collar Tool
Quantity
1pc.
2 pcs.
2 pcs.
2 pcs.
2 pcs.
1pc.
2 pcs.
2 pcs.
1pc.
5 pcs.
5 pcs.
1pc.
1pc.
1pc.
I
B
C
D
E
J
F
K
G
H
L
M
N
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
1of6
September2013
KPR5005BN
FINISH: BRUSHED NICKEL
2
6”
NOTE: TWO LIGHTS SHOWN FOR
ILLUSTRATION PURPOSES ONLY.
3
12”
6.5” Dia.
1”
GND
2.4mm
13Ga
QUOIZEL
R
53.5”
OVERALL HEIGHT INCLUDES
(2) 6” AND 12” RODS
(1)50W MR-16
Gu10 Base Bulbs
(Supplied)
(5)100W
Medium Base Bulb
(Not Supplied)
PART NUMBER
NO.
6” Dia.
18.5”
5”
1
25” Dia.
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
REQ.
1
2
3
G3644SH
9006EXBN
9012EXBN
GLASS WHITE PAINTED INSIDE 6"D
ROD EXT BRUSHED NICKEL 6"L X 0.5"D
ROD EXT BRUSHED NICKLE 12"L X 0.5"D
5
2
2
2of6
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-KPR5005BN
For Style KPR5005BN

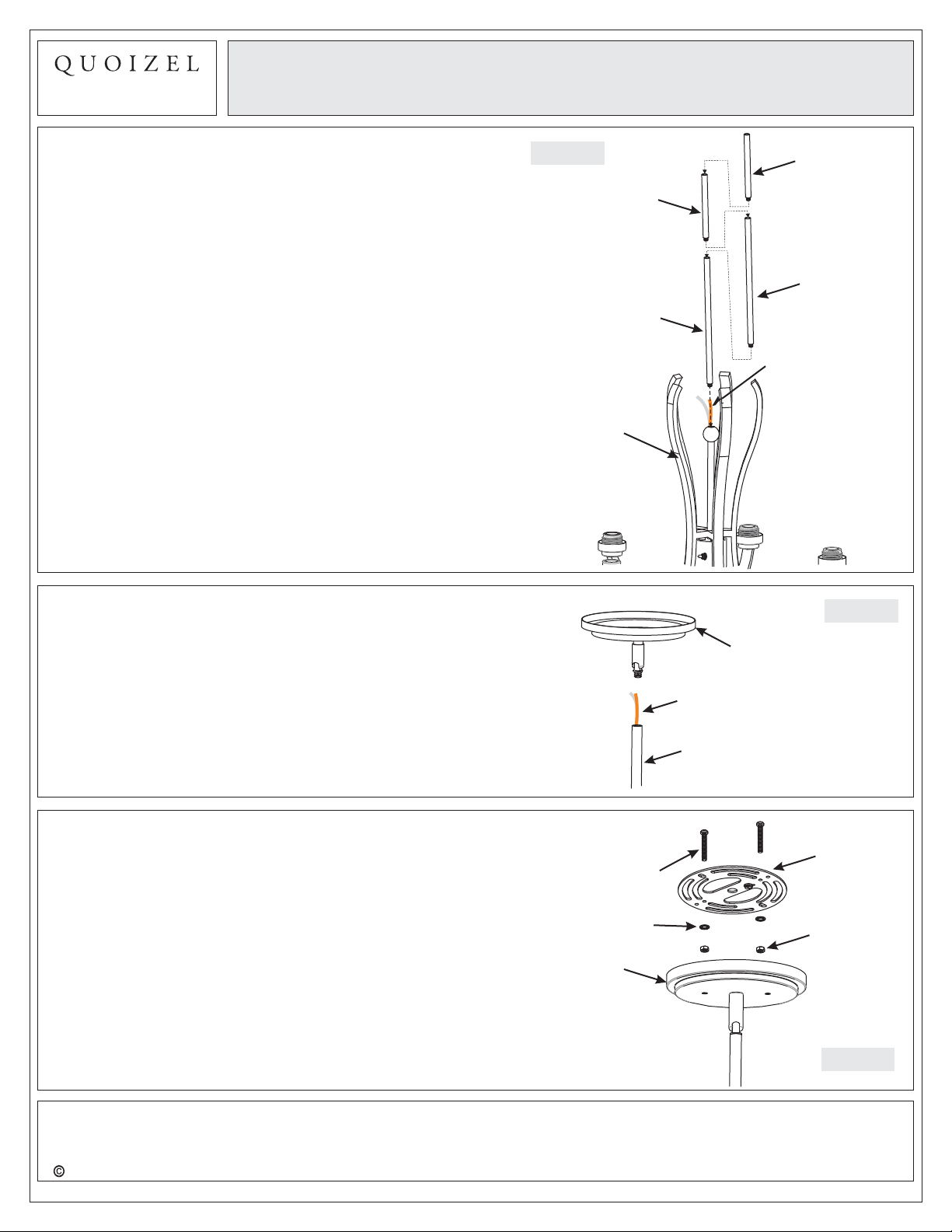

STEP 1 Assemble Rods-
A. Determine the Rods (G/H) to be assembled to the Fixture
Body (I) according to your hanging height.
B. Pass Supply Wires and Ground Wire through the chosen
Rods (G/H) and then thread the chosen Rods (G/H) and
the Socket Assembly (I) together. Hand tighten until snug.
Figure 1
6” Rod
12” Rod
Fixture Body
6” Rod
12” Rod
Supply Wire and
Ground Wire
STEP 2 Assemble Ceiling Canopy to Upper
-
Rod
A. Pass Supply Wires and Ground Wire through the Ceiling
Canopy (F) and then thread the Ceiling Canopy (F) and
the Upper Rod together. Hand tighten until snug.
STEP 3 - Attach Mounting Screws, Lock
Washers and Hex Nuts to Crossbar
A. Line up a set of holes on the Crossbar (A) and Holes on
the Ceiling Canopy (F).
B. Thread Mounting Screws (B) into the holes on the
Crossbar (A), pass Lock Washers (C) and thread Hex Nut
(D) onto the Mounting Screws (B). Hand tighten until
snug.
Mounting Screw
Lock Washer
Ceiling
Canopy
Figure 2
Ceiling
Canopy
Supply Wire and
Ground Wire
Upper Rod
Crossbar
Hex Nut
Figure 3
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 Quoizel Inc. September2013
or visit us on-line at www.quoizel.com
3of6
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-KPR5005BN
For Style KPR5005BN
STEP 4 - Attach Crossbar to Outlet Box
A. Attach the Crossbar (A) to Outlet Box and secure by
threading Outlet Box Screws (not supplied) into the
Mounting Holes on the Outlet Box. Tighten until snug.
STEP 5 Make Wire Connections-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
Figure 4
Outlet
Box
Crossbar
Mounting
Hole
Outlet Box
Screw
Figure 5
White wire from supply White wire from fixture
Black wire from supply
(or Red)
Ground wire from supply Ground wire from fixture
Black wire from fixture
Figure 6
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 Quoizel Inc.
or visit us on-line at www.quoizel.com
4of6
September2013
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-KPR5005BN
For Style KPR5005BN
STEP 6 - Attach Ceiling Canopy to Mounting
Screw
A. Place the Ceiling Canopy (F) over the Mounting Screws
(B) and secure with Mounting Balls (E). Hand tighten
until snug.
STEP 7 - Attach Shade to Fixture Body
A. Place Shade (J) over the Socket, secure by using the Socket
Collar Tool (N), thread the Socket Collar (K) onto the Socket
to secure the Shade (J). Hand tighten until snug.
Figure 7
Mounting
Screw
Ceiling Canopy
Mounting
Ball
Socket
Collar Tool
Socket
Collar
Shade
STEP 8 Install Bulb-
A. This fixture uses standard bulb with a standard screw base.
Maximum 100 watts.
B. Insert bulb and screw properly into place.
Socket
Figure 8
Figure 9
Bulb
Socket
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
5of6
September2013
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-KPR5005BN
For Style KPR5005BN
STEP 9 - Install MR-16 Bulb
A. Put the Plastic Suction Cup onto the MR16 - GU10 Bulb
as shown.
B. Install the MR16 - GU10 Bulb into the Socket by aligning
the pins on the Bulb with the keyholes in the Socket. Once
they are aligned, gently push the MR16 - GU10 Bulb into
the keyholes and twist the MR16 - GU10 Bulb to lock it in
place
.
C. Remove the Plastic Suction Cup from the MR16 -GU10
Bulb.
D. Remove the package material (plastic film) from the
Socket Assembly and Side Arms.
Note: the Switch control the MR-16 Bulb ON/OFF
Your fixture is now assembled and ready to use.
Enjoy!
Figure 10
Switch
Socket
MR-16 Bulb
Plastic
Suction Cup
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 Quoizel Inc. September2013
or visit us on-line at www.quoizel.com
6of6
