Quoizel HGN9010WT Installation Manual

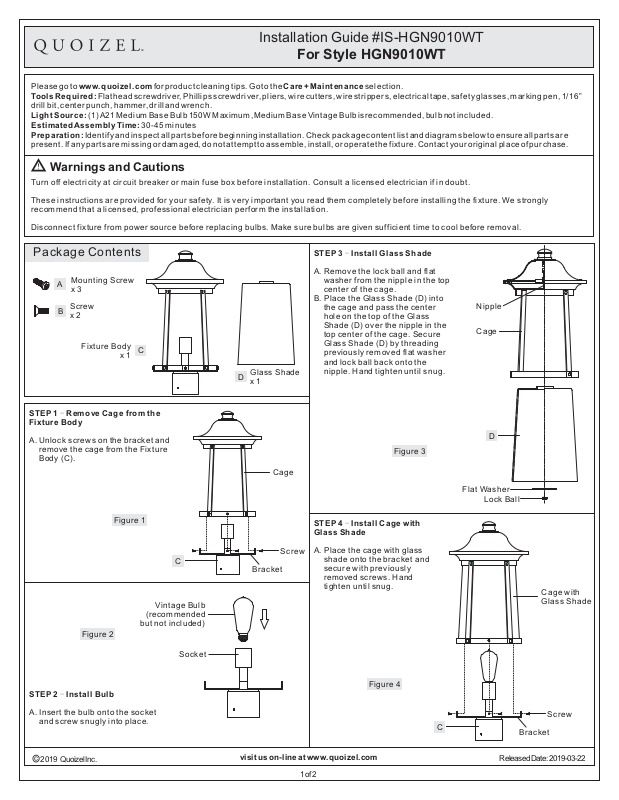

Installation Guide #IS-HGN9010WT
For Style HGN9010WT
Pleasegoto forproductcleaning tips.Go tothe selection.
ToolsRequired: Flathead screwdriver, Phillips screwdriver,pliers, wire cutters, wire strippers,electrical tape, safety glasses,
drillbit,center punch,hammer, drilland wrench.
LightSource:
EstimatedAssembly Time:
Preparation:
present.If any parts are missingor damaged, do not attemptto assemble, install, or operatethe fixture. Contact your originalplace of purchase.
www.quoizel.com Care+ Maintenance
markingpen,1/16”
(1)A21 MediumBaseBulb 150W Maximum, Medium BaseVintageBulb is recommended, bulb notincluded.
30-45minutes
Identifyand inspect all parts beforebeginning installation. Check package contentlist and diagrams below toensure all parts are
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Package Contents
Mounting Screw
A
x3
Screw
B
x2
Fixture Body
x1
C
Glass Shade
D
x1
STEP 3 Install Glass Shade-
A. Remove the lock ball and flat
washer from the nipple in the top
center of the cage.
B. Place the Glass Shade (D) into
the cage and pass the center
hole on the top of the Glass
Shade (D) over the nipple in the
top center of the cage. Secure
Glass Shade (D) by threading
previously removed flat washer
and lock ball back onto the
nipple. Hand tighten until snug.
Nipple
Cage
STEP 1 Remove Cage from the
Fixture Body
A. Unlock screws on the bracket and
STEP 2 Install Bulb-
-
remove the cage from the Fixture
Body (C).
Figure 1
Vintage Bulb
(recommended
but not included)
Figure 2
C
Socket
Cage
Bracket
Screw
Figure 3
STEP 4 Install Cage with
Glass Shade
A. Place the cage with glass
-
shade onto the bracket and
secure with previously
removed screws. Hand
tighten until snug.
Figure 4
D
Flat Washer
Lock Ball
Cage with
Glass Shade
A. Insert the bulb onto the socket
and screw snugly into place.
2019 QuoizelInc.
visit us on-line at www.quoizel.com
1of2
Screw
C
Bracket
ReleasedDate: 2019-03-22
STEP 5 - Mark the Location for the 3 Mounting Holes
STEP 9 Attach the fixture to the Post Mount-
A. Place the light fixture onto the post and mark the location of the 3
mounting holes on the fixture fitter onto the post with the marking
pen.
Post Lighting
Fixture
Fitter
Marking Pen
Fixture
Fitter
Post
Mounting Hole
Post
Figure 5
STEP 6 M C
EM H
- arking the enter of
ach ounting ole
Figure 6
A. Remove the light fixture. Using
the center punch and hammer
marking the center of each
mounting hole location that is
marked with the marking pen.
Hammer
Marking
A. Place the fixture on the post lining up the mounting holes on the
fixture fitter with the holes on the post. Use the Mounting Screws (A)
to attach the fixture to the post.
Your fixture is now assembled and ready to use. Enjoy!
Post Lighting
Fixture Fitter
A
Mounting Hole
Figure 9
Hole
Post
HGN9010WT
FINISH: WESTERN BRONZE
Center Punch
Post
STEP 7 Drill Holes-
A. Using the 1/16” bit and drill, drill a pilot hole completely through the
post at each (3) locations marked in step 6 above.
1/16” bit and drill
Figure 7
Post
STEP 8 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
White wire
from outlet box
Black wire from
outlet box (or Red)
Bare, or Green
Ground wire
from outlet box
White wire
from fixture
Black wire
from fixture
Ground wire
from fixture
Figure 8
9.5” Dia.
17.5”
11”
7.5” Dia.
NOTE: ALL DIMENSIONS ARE ROUNDED UP
TO THE NEAREST 1/4"
2019 QuoizelInc.
visit us on-line at www.quoizel.com
2of2
ReleasedDate: 2019-03-22
