Assembly Instruction Sheet #IS-HCE8409IBGU
For Style HCE8409IBGU
ToolsRequired:Flatheadscrewdriver,Phillipsscrewdriver,pliers,wire cutters, wire
strippers,electricaltape,safety glasses.
BulbRecommended: (1)18W CFLSpring Self-ballastedGU24 Maximum
EstimatedAssemblyTime: 20-30minutes
Preparation:Identifyandinspect all partsbeforebeginninginstallation. Check package
contentlistanddiagrams below tobesureall parts arepresent.Ifany parts aremissing
ordamaged,donot attempt toassemble,install,or operate thefixture.Contactcustomer
serviceforreplacementparts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
A

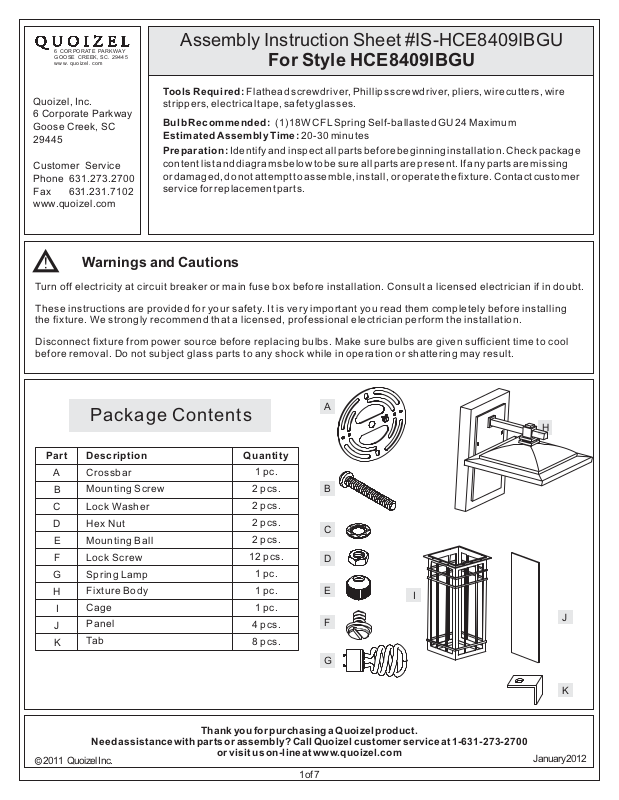

Package Contents
H
Part
A Crossbar
B
C
D
E
G
H
I
J
K
Description
Mounting Screw
Lock Washer
Hex Nut
Mounting Ball
Lock ScrewF
Spring Lamp
Fixture Body
Cage
Panel
Tab
Quantity
1pc.
2 pcs.
2 pcs.
2 pcs.
2 pcs.
12 pcs.
1pc.
1pc.
1pc.
4 pcs.
8 pcs.
B
C
D
E
F
I
J
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 Quoizel Inc.
G
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
1of7
K
January2012
HCE8409IBGU
FINISH: IMPERIAL BRONZE
2
Q
U
D
N
G
O
I
Z
E
L
R
4
9" Sq.
5"
6
10"
5
3
13"
20"
16"
1
(1)18W CFL Spring
Self-ballasted GU 24
Bulb( Supplied)
PART NUMBER
NO.
1
2
3
4
5
6
I9002GU
M280KTIB
J957OR O-RING 0.5"D
G8210PA
J376CVR
K145SW
7
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
BULB 18W SPRING LAMP
KIT IMPERIAL BRONZE REPLACEMENT
PANEL OPAQUE LINEN 16H X 6.5W
PHOTO CELL LENS COVER
PHOTOELECTRIC SWITCH TOP MOUNT
2of7
6.5" Sq.
REQ.
1
1
1
4
1
1
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-HCE8409IBGU
For Style HCE8409IBGU
STEP 1 - Attach Mounting Screws, Lock
Washers and Hex Nuts to Crossbar
A. Line up a set of holes on the Crossbar (A) and Holes on
the backplate of the Fixture Body (H).
B. Thread Mounting Screws (B) into the holes on the
Crossbar (A), pass Lock Washers (C) and thread Hex
Nut (D) onto the Mounting Screws (B). Hand tighten
until snug.
STEP 2 - Attach Crossbar to Outlet Box
A. Attach the Crossbar (A) to Outlet Box and secure by
threading Outlet Box Screws (not supplied) into the
Mounting Holes on the Outlet Box. Tighten until snug.
Crossbar
Mounting
Screw
Outlet Box
Hex Nut
Lock Washer
Mounting Hole
Fixture
Body
Figure 1
Figure 2
Crossbar
Outlet Box
Screw
STEP 3 - Attach panel to Cage
A. Insert Panels (J) into the Slot in the bottom of the Cage (I)
properly.
B . Line up the hole on the Tabs (K) and the Mounting Hole on
the top of Cage (I). By using screwdriver threading the
Lock Screws (F) to secure the Panels (J). Tighten until
snug.
Lock Screw
Panel
Figure 3
Tab
Mounting
Hole
Cage
Slot
