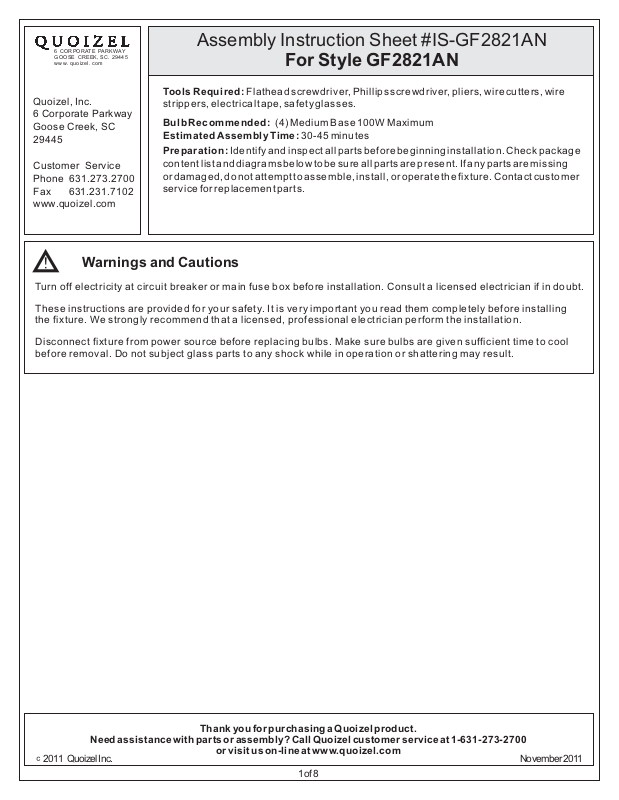

Page 1
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-GF2821AN
For Style GF2821AN
ToolsRequired: Flathead screwdriver,Phillips screwdriver,pliers, wire cutters,wire
Quoizel, Inc.
strippers,electrical tape, safetyglasses.
6 Corporate Parkway
Goose Creek, SC
29445
BulbRecommended: (4)Medium Base 100WMaximum
EstimatedAssemblyTime:30-45 minutes
Preparation:Identify and inspectallparts before beginninginstallation.Check package
Customer Service
Phone 631.273.2700
Fax 631.231.7102
contentlist and diagramsbelowto be sureallparts are present.Ifany parts aremissing
ordamaged, do notattemptto assemble, install,oroperate the fixture.Contactcustomer
servicefor replacement parts.
www.quoizel.com
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank youfor purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
1of8
November2011
Page 2
GF2821AN
FINISH: ANTIQUE NICKEL
2.4mm
13Ga
QUOIZEL
GND
R
6" Dia.
1.5"
1
Overall Height 121"
(Includes 96” Chain)
(4)100W A19
Medium Base Bulbs
(Not Supplied)
22"
4”
2
18” Dia.
21" Dia.
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
PART NUMBER
NO.
1
M451CHAN
2
G2445SH
REPLACEMENT PART DESCRIPTION
CHAIN 3.8MM X 4'ANTIQUE NICKEL
SHADE OPAL ETCHED GLASS 18”D
2of8
REQ.
1
1
Page 3
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Package Contents
Assembly Instruction Sheet #IS-GF2821AN
For Style GF2821AN
A
F
Part
A Crossbar
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
Description
Nipple
Lock Washer
Hex Nut
Ceiling Canopy
Canopy Chain Loop
Canopy Lock Ring
Fixture Chain
Fixture Loop
Check Ring
Spacer Tube
Rubber Washer
Flat Washer
Socket Assembly
Lock Ball
Center Stem
Cap
Finial
Ring
Shade
Quantity
1pc.
1pc.
2 pcs.
3 pcs.
1pc.
1pc.
1pc.
1pc.
1pc.
2 pcs.
1pc.
2 pcs.
2 pcs.
1pc.
3 pcs.
1pc.
1pc.
1pc.
1pc.
1pc.
G
B
C
D
E
J
K
N
L
M
H
I
O
P
Q
R
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
3of8
S
T
November2011
Page 4
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-GF2821AN
For Style GF2821AN
STEP 1 Attach Ring to Socket Assembly-
A. Unfold Side Arms on the Socket Assembly (N) to proper
locations.
B. Place the holes on the Ring (S) over the Bolts on the
ends of Side Arms. Secure by threading Lock Balls (O)
onto the Bolts. Hand tighten until snug.
STEP 2 Install- Fixture Loop
A. Thread the Fixture Loop (I) onto the nipple on the top
center of the SocketAssembly (N). Hand tighten until
snug.
Figure 1
Figure 2
Socket Assembly
Side Arm
Bolt
Ring
Lock
Ball
Fixture
Loop
Socket
Assembly
STEP 3 - Attach Crossbar to Outlet Box
A. Secure the Crossbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
or visit us on-line at www.quoizel.com
4of8
Figure 3
Mounting
Hole
Outlet Box
Crossbar
Outlet Box
Screw (not
Supplied)
November2011
Page 5
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-GF2821AN
For Style GF2821AN
STEP 4 Attach Nipple to Crossbar-
A. Thread one Hex Nut (D) onto the top end of the Nipple
(B).
B. Place one Lock Washer (C) over the top end of the
Nipple (B) and then thread the Nipple (B) into the center
lock hole of the Crossbar (A).
C. Using pliers, thread the hex Nut (D) against the
Crossbar (A) and hand tighten until snug.
Crossbar
Lock Washer
Hex Nut
STEP 5 - Attach Canopy Chain Loop to Nipple
A. Thread another Hex Nut (D) onto the end of the Nipple
(B).
B. Place the Lock Washer (C) over the end of the Nipple
(B) and then thread the Canopy Chain Loop (F) onto the
end of the Nipple (B).
C. Using pliers, thread the Hex Nut (D) against the
Canopy Chain Loop (F) and hand tighten until snug.
STEP 6 Assemble Ceiling Canopy-
A. Push the Ceiling Canopy (E) upward over the Outlet
Box. Thread the Canopy Lock Ring (G) onto the Canopy
Chain Loop (F) and tighten until snug to secure the
Ceiling Canopy (E).
Outlet Box
Crossbar
Lock Washer
Canopy
Chain Loop
Nipple
Figure 4
Nipple
Hex Nut
Figure 5
Outlet Box
Canopy Chian Loop
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Ceiling Canopy
Canopy
Lock Ring
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
5of8
Figure 6
November2011
Page 6
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-GF2821AN
For Style GF2821AN
STEP 7 Attach Fixture Chain to Canopy
-
Chain Loop and Fixture Loop
A. Adjust the Fixture Chain (H) to your desired length by
removing the links if needed. You may need to use plier
to open the chain links. If so, put a cloth over the chain
to protect the finish from the pliers.
B. Attach one end of the Fixture Chain (H) onto the
Canopy Chain Loop (F) and then attach the other end of
the Fixture Chain (H) onto the Fixture Loop (I).
STEP 8 Pass Supply Wires through Fixture
-
Chain
A. Pull the Supply Wires and Ground Wire up through the
Fixture Chain (H) alternating links. Push the wires up
through the Canopy Chain Loop (F) into the outlet box.
Fixture Loop
Canopy Chain Loop
Fixture Chain
Supply Wire and
Ground Wire
Figure 7
Canopy Chain
Loop
Fixture Chain
Supply Wire
and Ground Wire
Figure 8
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
6of8
November2011
Page 7
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-GF2821AN
STEP 9 - Make Wire Connections
For Style GF2821AN
A. Un-thread the Canopy Lock Ring (G) and slide Canopy Lock
Ring (G) and Ceiling Canopy (E) down the Fixture Chain (H).
B. Push all slack fixture wire through Canopy Chain Loop (F)
into Outlet Box. Trim excess fixture wire leaving a minimum
of 6 inch. Hanging out of the Outlet Box.
C. Use standard wire connectors to make all wire connections.
(Connectors are not included with fixture.) Strip and prepare
wire ends according to instructions supplied with connectors.
D. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
E. Connect Black (or Red) Supply Wire from the Outlet Box to
Black Wire from fixture.
F. Connect Ground Wire from the Outlet Box to Ground Wire
from fixture.
G. Twist connectors until wires are tightly joined together.
H. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
G. Re-attach the Ceiling Canopy (E) as shown in Step 6.
White wire from supply White wire from fixture
Black wire from supply
(or Red)
Black wire from fixture
Supply Wire and
Ground Wire
Supply Wire
and Ground
Wire from
Outlet Box
Canopy Chain Loop
Fixture Chain
Ceiling Canopy
Canopy Lock Ring
Ground wire from supply Ground wire from fixture
Figure 10
STEP 10 Install Center Stem-
A. Place one Check Ring (J) over the beaded end of the Center
Stem (P) and then thread the beaded end of the Center Stem
(P) into the Hex Coupling underside of the Socket Cluster.
Hand tighten until snug.
Figure 11
Hex Coupling
Figure 9
Socket Cluster
Check Ring
Center Stem
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
7of8
November2011
Page 8
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-GF2821AN
For Style GF2821AN
STEP 11 - Install Shade
A. Place the Spacer Tube (K), the Check Ring (J), Flat
Washers (M), Rubber Washers (L) and the Shade (J) over
the end of the Center Stem (P) in turn. Secure by
threading the Hex Nut (D) onto the Center Stem (P).
Tighten until snug.
STEP 12 - Install Cap
Rubber
Washer
Rubber
Washer
Figure 12
Center Stem
Spacer Tube
Check Ring
Flat Washer
Shade
Flat Washer
Hex Nut
A. Place the Cap (Q) over the end of the Center Stem (P) and
secure with the Finial (R). Hand tighten until snug.
STEP 13 - Install Bulb
A. standard bulb with a medium screw
This fixture uses
base 100
. Maximum watts.
B. Insert bulb and screw snugly into place.
Your fixture pendant lamp is now assembled and ready to
use. Enjoy!
Center Stem
Cap
Finial
Socket
Shade
Figure 13
Bulb
Figure 14
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
8of8
November2011
