Page 1
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
,.
ToolsRequired: Flathead screwdriver,Phillips screwdriver,pliers, wire cutters,wire
strippers,electrical tape, safetyglasses.
BulbRecommended: (4)Medium Base 100WMaximum
EstimatedAssemblyTime:20-30 minutes
Preparation:Identify and inspectallparts before beginninginstallation.Check package
contentlist and diagramsbelowto be sureallparts are present.Ifany parts aremissing
ordamaged, do notattemptto assemble, install,oroperate the fixture.Contactcustomer
servicefor replacement parts.
Assembly Instruction Sheet #IS-FE2816WT
For Style FE2816WT
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
Package Contents
Part
A Crossbar
B
C
D
E
F
G
H
I
J
K Shade
Description
Mounting Screw
Lock Washer
Hex Nut
Mounting Ball
Ceiling Canopy with Nipple
6” Rod
12” Rod
Socket Assembly
Lock Screw
Quantity
1pc.
2 pcs.
2 pcs.
2 pcs.
2 pcs.
1pc.
2 pcs.
2 pcs.
1pc.
4 pcs.
1pc.
A
F
B
C
D
E
J
I
G
H
K
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2012 QuoizelInc.
Thank youfor purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
1of5
October2012
Page 2
FE2816WT
FINISH: WESTERN BRONZE
6”
GND
2.4mm
13Ga
QUOIZEL
6” Dia.
R
1”
60”
OVERALL HEIGHT INCLUDES
(2) 6” AND 12” RODS
4
12”
(4)100W Medium
Base Bulbs
(Not Supplied)
PART NUMBER
NO.
12816WTFE
1
2
G3467SH
1
3
2
13” Sq.
16” Sq.
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
BASE WESTERN BRONZE FE2816WT
CLEAR SEEDY GLASS AND INNER GLASS
5”
21”
6”
REQ.
1
1
3
4
9008EXWT
9007EXWT
ROD 0.63D 12” WESTERN BRONZE
ROD 0.63D 6” WESTERN BRONZE
2
2
2of5
Page 3
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-FE2816WT
For Style FE2816WT
STEP 1 Install Shade-
A. Unfold Side Arms on the Socket Assembly (I) to quarter
locations.
B. Place the Socket Assembly (I) inside of the Shade (K)
sideways. Attach Mounting Holes on to
the Holes on the triangle plate at the Shade (K). Secure
them together with Lock Screws (J). Hand tighten until
snug.
the Side Arms
Mounting
Hole
Shade
Hole
Socket
Assembly
Side Arm
Shade
Figure 1
Socket
Assembly
Lock Screw
STEP 2 Assemble Rods-
A. Determine the Rods (G/H) to be assembled to the Socket
Assembly (I) according to your hanging height.
B. Pass Supply Wires and Ground Wire through the chosen
Rods (G/H) and then thread the chosen Rods (G/H) to the
Socket Assembly (I). Hand tighten until snug.
Supply Wire and
Ground Wire
6” Rod
6” Rod
12” Rod
12” Rod
Socket
Assembly
Figure 2
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2012 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
3of5
October2012
Page 4
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-FE2816WT
For Style FE2816WT
STEP 3 - Attach Ceiling Canopy with Loop to
Rod
A. Pass Supply Wire and Ground Wire through the Loop and
the Ceiling Canopy. Thread the Loop underside of the
Ceiling Canopy onto the Upper Rod and hand tighten until
snug.
STEP 4 - Attach Mounting Screws, Lock
Washers and Hex Nuts to Crossbar
A. Line up a set of holes on the Crossbar (A) and Holes on
the Ceiling Canopy (F).
B. Thread Mounting Screws (B) into the holes on the
Crossbar (A), pass Lock Washers (C) and thread Hex
Nut (D) onto the Mounting Screws (B). Hand tighten
until snug.
Ceiling Canopy
Loop
Mounting
Screw
Ceiling Canopy
Figure 3
Supply Wire and
Ground Wire
Upper Loop
Crossbar
Lock Washer
Hex Nut
STEP 5 - Attach Crossbar to Outlet Box
A. Secure the Crossbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
Figure 5
Mounting
Hole
Figure 4
Outlet Box
Crossbar
Outlet Box
Screw
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2012 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
3of5
October2012
Page 5
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-FE2816WT
For Style FE2816WT

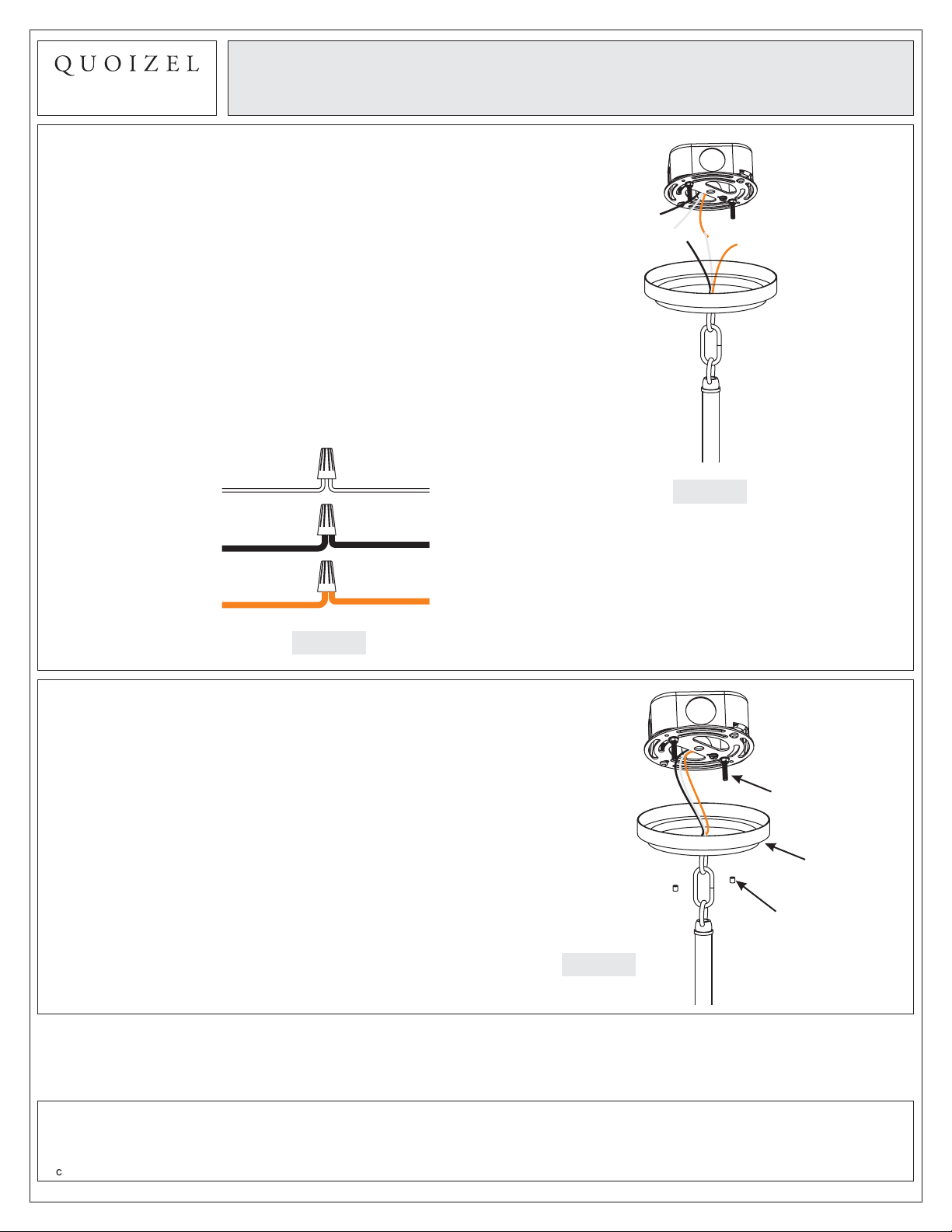

STEP 6 Make Wire Connections-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
White wire from supply White wire from fixture
Black wire from supply
(or Red)
Ground wire from supply Ground wire from fixture
Black wire from fixture
Figure 7
STEP 7 Assemble Ceiling Canopy to Outlet
-
Box
A. Push the Ceiling Canopy (F) upward over the Outlet
Box. Thread Mounting Balls (E) onto Mounting Screws
and tighten until snug to secure the Ceiling Canopy
(B)
(F).
Figure 6
Mounting Screw
Ceiling
Canopy
Mounting Ball
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2012 QuoizelInc.
Figure 8
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
4of5
October2012
Page 6
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-FE2816WT
For Style FE2816WT
STEP 8 - Install Bulb
A. This fixture uses standard bulb with a medium screw
base. Maximum 100 watts.
B. Insert bulb and screw snugly into place.
Your fixture is assembled and ready to use. Enjoy!
Figure 9
Bulb
Socket
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2012 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
5of5
October2012
