Assembly Instruction Sheet #IS-CY1718PN
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
,.
ToolsRequired:Flatheadscrewdriver,Phillipsscrewdriver,pliers, wire cutters,wire
strippers,electricaltape,safety glasses.
BulbRecommended: (3) MediumBase100WMaximum
EstimatedAssemblyTime: 20-30minutes
Preparation:Identifyandinspect all partsbeforebeginninginstallation. Check package
contentlistanddiagrams below tobesureall parts arepresent.Ifany parts aremissing
ordamaged,donot attempt toassemble,install,or operate thefixture.Contactcustomer
serviceforreplacementparts.
Warnings and Cautions
For Style CY1718PN
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
A
Package Contents
Part
A Crossbar
B
C
D
E
F
G
H
I
J
Description
Mounting Screw
Lock Washer
Hex Nut
Mounting Ball
Socket Assembly
Shade
Lock Screw
Rubber Washer
Ball
Quantity
1pc.
2 pcs.
2 pcs.
2 pcs.
2 pcs.
1pc.
1pc.
3 pcs.
3 pcs.
3 pcs.
B
C
D
E
F
G
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 Quoizel Inc.
H
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
1of6
I
J
August2011
Page 2
CY1718PN
FINISH: PALLADIAN BRONZE
2.4mm
13Ga
QUOIZEL
GND
R
6” Dia.
1”
(3)100W Medium
Base Bulbs
(Not Supplied)
12”
5”
1
16” Dia.
18” Dia.
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
PART NUMBER
NO.
1
G2979SH
REPLACEMENT PART DESCRIPTION
SHADE ETCHED WITH PAINTED WHITE INSIDE
2of6
REQ.
1
Page 3
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-CY1718PN
For Style CY1718PN
STEP 1 Unfold Side Arms-
A. Unfold Side Arms to proper location as shown.
STEP 2 - Attach Mounting Screws, Lock
Washers and Hex Nuts to Crossbar
A. Line up a set of holes on the Crossbar (A) and Holes on
the Ceiling Canopy.
B. Thread Mounting Screws (B) into the holes on the
Crossbar (A), pass Lock Washers (C) and thread Hex Nut
(D) onto the Mounting Screws (B). Hand tighten until
snug.
Figure 1
Figure 2
Side Arm
Side Arm
Mounting
Screw
Crossbar
Lock Washer
Hex Nut
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
3of6
Ceiling
Canopy
August2011
Page 4
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-CY1718PN
For Style CY1718PN

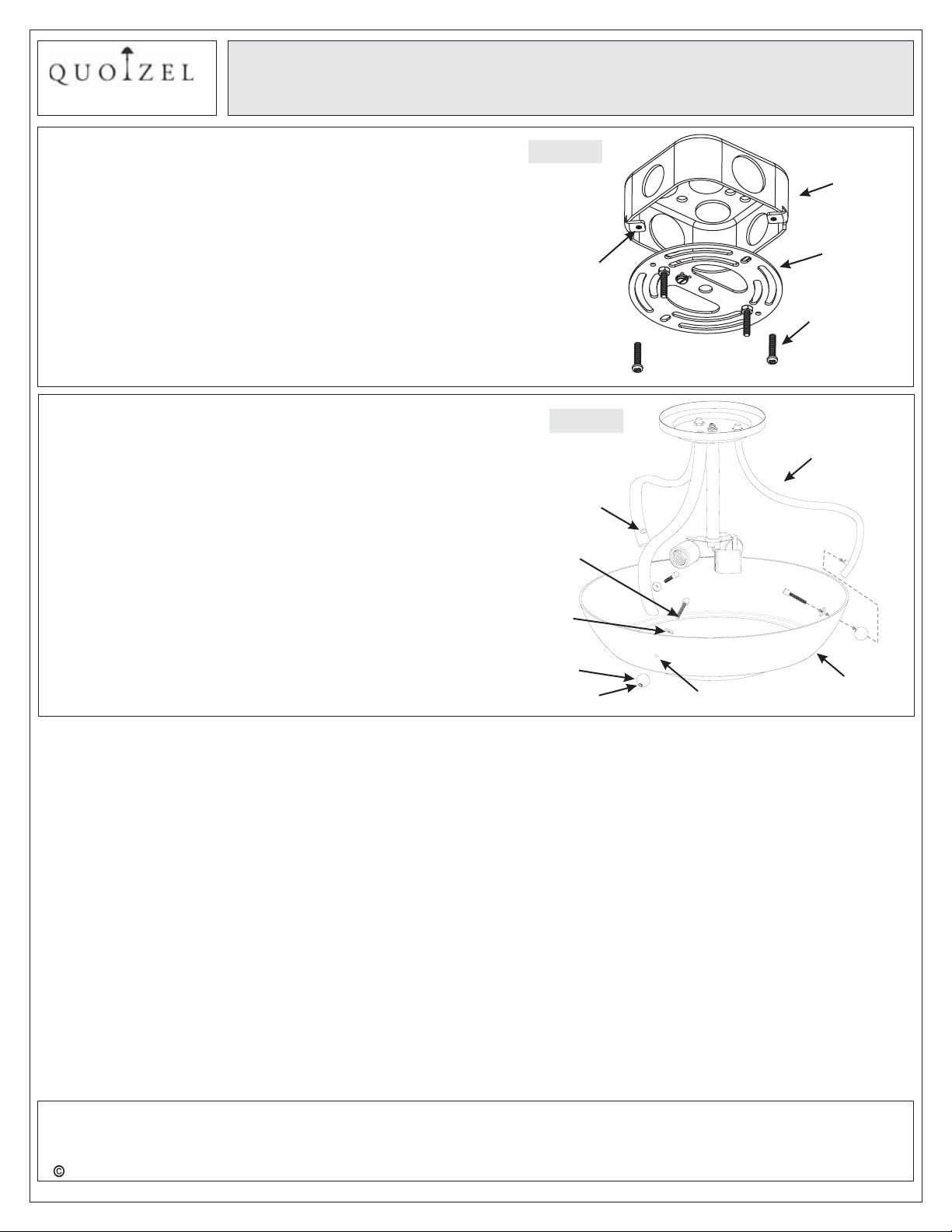

STEP 3 - Attach Crossbar to Outlet Box
A. Attach the Crossbar (A) to Outlet Box and secure by
threading Outlet Box Screws (not supplied) into the
Mounting Holes on the Outlet Box. Tighten until snug.
STEP 4 - Attach Shade to Socket Assembly
A. Pass the Lock Screw (H) through the Rubber Washer
(I), the side Hole of the Shade (G) and the Ball (J).
B. Insert the Blot on the Side Arm into the Counterbore on
the Ball (J). Thread the Lock Screw (H) into the Bolt and
hand tighten until snug to secure the Shade (G) and the
Socket Assembly (F) together.
Figure 3
Outlet
Box
Crossbar
Mounting
Hole
Outlet Box
Screw
Figure 4
Side Arm
Bolt
Lock
Screw
Rubber
Washer
Ball
Counterbore
Shade
Hole
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
4of6
August2011
Page 5
Assembly Instruction Sheet #IS-CY1718PN
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
STEP 5 Make Wire Connections-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
White wire from supply White wire from fixture
,.
For Style CY1718PN
Figure 5
Black wire from supply
(or Red)
Ground wire from supply Ground wire from fixture
Black wire from fixture
Figure 6
STEP 6 - Attach Ceiling Canopy to Mounting
Screw
A. Place the Ceiling Canopy over the Mounting Screws (B)
and secure with Mounting Balls (E). Hand tighten until
snug.
Ceiling Canopy
Figure 7
Mounting Screw
Mounting
Ball
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
5of6
August2011
Page 6
Assembly Instruction Sheet #IS-CY1718PN
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
STEP 7 Install Bulb-
A. This fixture uses standard bulb with a standard screw base.
Maximum 100 watts.
B. Insert bulb and screw properly into place.
Your lamp semi-flush fixture is now assembled and ready to
use. Enjoy!
,.
For Style CY1718PN
Socket
Figure 8
Bulb
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 Quoizel Inc. August2011
or visit us on-line at www.quoizel.com
6of6
