6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-CRE5004FR
For Style CRE5004FR
ToolsRequired: Flathead screwdriver,Phillips screwdriver,pliers, wire cutters,wire
Quoizel, Inc.
strippers,electrical tape, safetyglasses.
6 Corporate Parkway
Goose Creek, SC
29445
BulbRecommended: (4) CandelabraBase60W Maximum
EstimatedAssemblyTime:20-30 minutes
Preparation:Identify and inspectallparts before beginninginstallation.Check package
Customer Service
Phone 631.273.2700
Fax 631.231.7102
contentlist and diagramsbelowto be sureallparts are present.Ifany parts aremissing
ordamaged, do notattemptto assemble, install,oroperate the fixture.Contactcustomer
servicefor replacement parts.
www.quoizel.com
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
Thank youfor purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 Quoizel Inc. May2013
or visit us on-line at www.quoizel.com
1of9
FINISH:
CRE5004FR
FRENCH BRONZE
NOTE: TWO LIGHTS SHOWN FOR
ILLUSTRATION PURPOSES ONLY.
QUIOZEL
GND
2.4 m m 13 G a
5.5” Dia.
1”
2
Overall Height 122.5”
(Includes 96” Chain)
1
3
6.5”
24”
(4) 60W Candelabra
Base Bulbs
(No Supplied)
PART NUMBER
NO.
1
15004FRCRE
2
M2301CHFR
3
S1400CF SHADE CHIFFON 24"X 6.75"
24” Dia.
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
BASE CRE5004RFFRENCH BRONZE
CHAIN FRENCH BRONZE 3.8MM X4'
2of9
REQ.
1
1
1
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-CRE5004FR
For Style CRE5004FR
Package Contents
Part
Description
A Crossbar
Nipple
B
Lock Washer
C
Hex Nut
D
Ceiling Canopy
E
Canopy Chain Loop
F
Canopy Lock Ring
G
Fixture Chain
H
Fixture Loop
I
Lock Ball
J
Fixture Body
K
Shade
L
D40mm Crystal Ball with 4
M
Beads and Loop
D35mm Crystal Ball with 2
N
Beads and Loop
D30mm Crystal Ball with 2
O
Beads and Loop
D30mm Crystal Ball with 2
P
Beads and Hook
D35mm Crystal Ball with 3
Q
Beads and Loop
D35mm Crystal Ball with 4
R
Beads and Loop
D35mm Crystal Ball with 5
S
Beads and Loop
D35mm Crystal Ball with 5
T
Beads and Hook
Central Assembly
U
Socket Assembly
V
Quantity
1pc.
1pc.
2 pcs.
2 pcs.
1pc.
1pc.
1pc.
1pc.
1pc.
4 pcs.
1pc.
1pc.
1pc.
8 pcs.
4 pcs.
8 pcs.
4 pcs.
4 pcs.
4 pcs.
4 pcs.
1pc.
1pc.
A
M N O
B
C
P Q
R
D
E
S
T
F
U
G
H
I
V
J
K
L
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 Quoizel Inc. May2013
or visit us on-line at www.quoizel.com
3of9
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-CRE5004FR
For Style CRE5004FR
STEP 1 Assemble Central Assembly and
-
Socket Assembly together
A. Thread the Nipple on the bottom of Central Assembly
(U) onto the SocketAssembly (V). Tighten until snug.
B. Thread the Knurled (K) onto the Nipple on the top of
Central Assembly (U), hand tighten until sung.
Knurled Nut
Nipple
Central Assembly
Nipple
Socket
Assembly
Figure 1
STEP 2 - Attach Fixture Loop Assembly to
Fixture Body
A. Thread Fixture Loop (I) to Fixture Body (K). Tighten
until snug.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 Quoizel Inc.
or visit us on-line at www.quoizel.com
Figure 2
Fixture Loop
Fixture
Body
May2013
4of9
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-CRE5004FR
For Style CRE5004FR
STEP 3 - Attach Shade to Fixture Body
A. Place the Bolt on the Fixture Body (K) through the Hole
on the Shade (L), secure by thread Lock Balls (J) onto
the Bolt. Tighten until snug.
Lock Ball
Hole
Bolt
Fixture Body
Figure 3
Shade
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
5of9
May2013
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-CRE5004FR
For Style CRE5004FR
Bottom Side Arm
Scroll
Crystal Ball
with 2 Beads
Lower Side Arm
Support Arm
Scroll End 1
Scroll End 2
D30mm Crystal Ball
with 2 Beads and Loop
Side Arm
Scroll
D35mm Crystal Ball
with 2 Beads and Loop
Finial
Figure 4
Cup
Scroll End 3
D30mm Crystal Ball
with 2 Beads and Hook
Junction Box
D35mm Crystal Ball
with 4 Beads and Loop
D35mm Crystal Ball
with 3 Beads with Loop
STEP 4 - Attach Crystal Ball with Beads onto
the Fixture Body
A. Attach 0 O)
onto the Scroll End1 on the Support Arm.
Crystal Ball with 2 Beads and ( ) onto the .
D3 mm Crystal Ball with 2 Beads and Loop (N) onto the
Scroll on the Arm
Arm
B. Attach D35mm 3
onto Lower Side Arm.
C. Attach D35mm 4 )
onto Scroll End 2 on the Support Arm. 40
Ball with 4 Beads and Loop (M) onto
Finial
D. Attach D35mm Crystal Ball with 5 Beads and ook (T)
on
Beads and (
Arm.
D3 mm Crystal Ball with 2 Beads and Loop (
D30mm
Hook P Cup
5
Side and Scroll on the Bottom Side
.
Crystal Ball with Beads and Loop (Q)
Crystal Ball with Beads and Loop (R
D mm Crystal
the bottom of
.
H
side of Junction Box. D35mm Crystal Ball with 5
Loop S) onto croll End 3 on the Support
S
D35mm Crystal Ball
with 5 Beads and Loop
D35mm Crystal Ball
with 5 Beads and Hook
D40mm Crystal Ball
with 4 Beads and Loop
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
6of9
May2013
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-CRE5004FR
For Style CRE5004FR
STEP 5 - Attach Crossbar to Outlet Box
A. Secure the Crossbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
STEP 6 Attach Nipple to Crossbar-
A. Thread one Hex Nut (D) onto the top end of the Nipple
(B).
B. Place one Lock Washer (C) over the top end of the
Nipple (B) and then thread the Nipple (B) into the center
lock hole of the Crossbar (A).
C. Using pliers, thread the hex Nut (D) against the
Crossbar (A) and hand tighten until snug.
Figure 5
Mounting
Hole
Outlet Box
Crossbar
Outlet Box
Screw (not
Supplied)
Crossbar
Lock Washer
Hex Nut
Nipple
STEP 7 - Attach Canopy Chain Loop to Nipple
A. Thread another Hex Nut (D) onto the end of the Nipple
(B).
B. Place the Lock Washer (C) over the end of the Nipple
(B) and then thread the Canopy Chain Loop (F) onto the
end of the Nipple (B).
C. Using pliers, thread the Hex Nut (D) against the
Canopy Chain Loop (F) and hand tighten until snug.
Figure 6
Outlet Box
Nipple
Crossbar
Hex Nut
Lock Washer
Canopy
Chain Loop
Figure 7
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
7of9
May2013
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-CRE5004FR
For Style CRE5004FR
STEP 8 Assemble Ceiling Canopy-
A. Push the Ceiling Canopy (E) upward over the Outlet
Box. Thread the Canopy Lock Ring (G) onto the Canopy
Chain Loop (F) and tighten until snug to secure the
Ceiling Canopy (E).
STEP 9 Attach Fixture Chain to Canopy
-
Chain Loop and Fixture Loop
A. Adjust the Fixture Chain (H) to your desired length by
removing the links if needed. You may need to use plier
to open the chain links. If so, put a cloth over the chain
to protect the finish from the pliers.
B. Attach one end of the Fixture Chain (H) onto the
Canopy Chain Loop (F) and then attach the other end of
the Fixture Chain (H) onto the Fixture Loop on the top of
the Fixture Loop Assembly (J).
Ceiling Canopy
Canopy
Lock Ring
Fixture Loop
Outlet Box
Canopy Chian Loop
Figure 8
Figure 9
Canopy Chain Loop
Fixture Chain
Supply Wire and
Ground Wire
STEP 10 Pass Supply Wires through Fixture
-
Chain
A. Pull the Supply Wires and Ground Wire up through the
Fixture Chain (H) alternating links. Push the wires up
through the Canopy Chain Loop (F) into the outlet box.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 Quoizel Inc.
or visit us on-line at www.quoizel.com
8of9
Canopy Chain
Loop
Fixture Chain
Supply Wire
and Ground Wire
Figure 10
May2013
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-CRE5004FR
For Style CRE5004FR

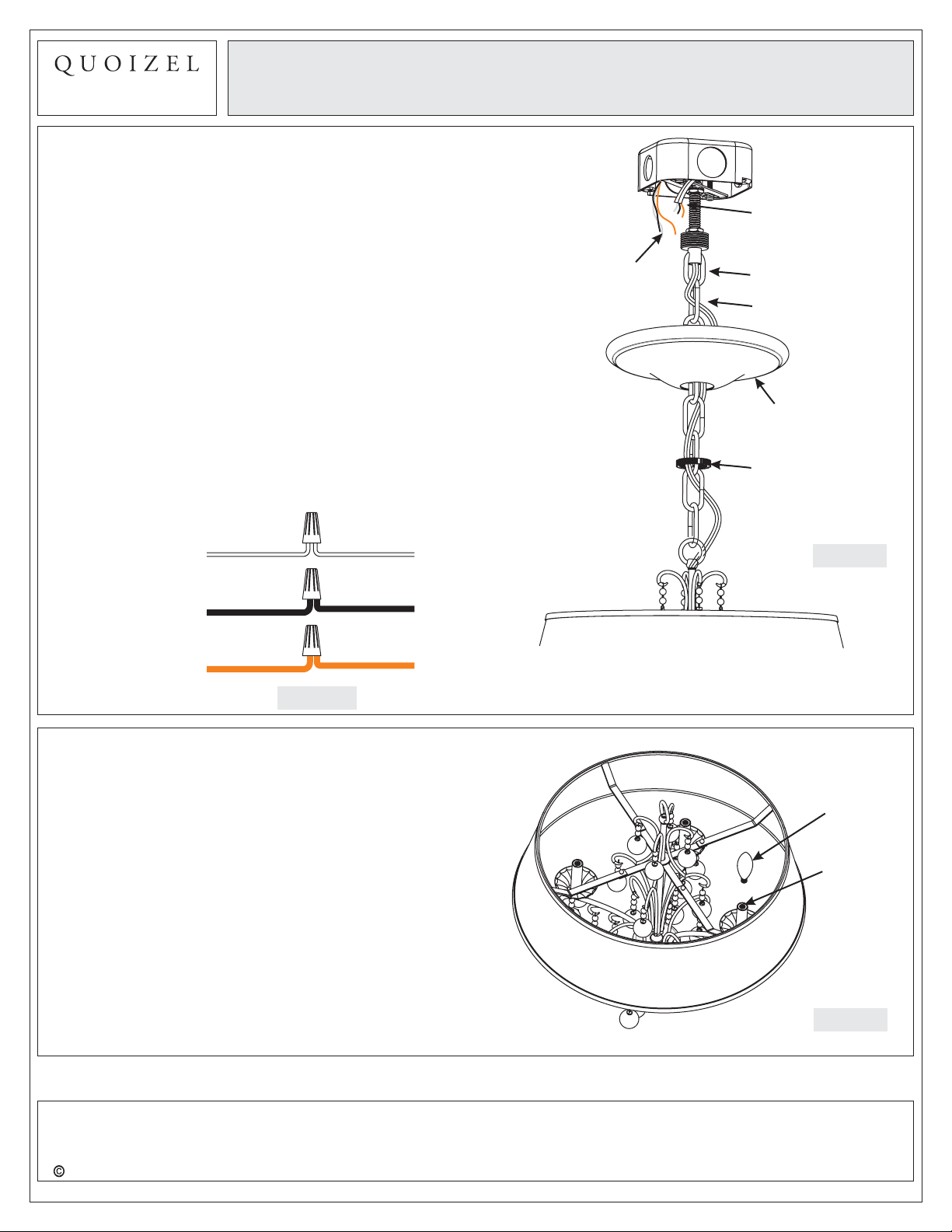

STEP 11 - Make Wire Connections
A. Un-thread the Canopy Lock Ring (G) and slide Canopy Lock
Ring (G) and Ceiling Canopy (E) down the Fixture Chain (H).
B. Push all slack fixture wire through Canopy Chain Loop (F)
into Outlet Box. Trim excess fixture wire leaving a minimum
of 6 inch. Hanging out of the Outlet Box.
C. Use standard wire connectors to make all wire connections.
(Connectors are not included with fixture.) Strip and prepare
wire ends according to instructions supplied with connectors.
D. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
E. Connect Black (or Red) Supply Wire from the Outlet Box to
Black Wire from fixture.
F. Connect Ground Wire from the Outlet Box to Ground Wire
from fixture.
G. Twist connectors until wires are tightly joined together.
H. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
G. Re-attach the Ceiling Canopy (E) as shown in Step 8.
Supply Wire
and Ground
Wire from
Outlet Box
Supply Wire and
Ground Wire
Canopy Chain Loop
Fixture Chain
Ceiling Canopy
Canopy Lock Ring
White wire from supply Ribbed side
Black wire from supply
(or Red)
Ground wire from supply Ground wire from fixture
wire from fixture
Smooth side
wire from fixture
Figure 12
STEP 12 - Install Bulb
A. This fixture uses standard bulbs with a standard screw
base. Maximum 60 watts.
B. Insert bulb and screw properly into place.
Your fixture is now assembled and ready to use.
Enjoy!
Figure 11
Bulb
Socket
Figure 13
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2013 Quoizel Inc. May2013
or visit us on-line at www.quoizel.com
9of9
