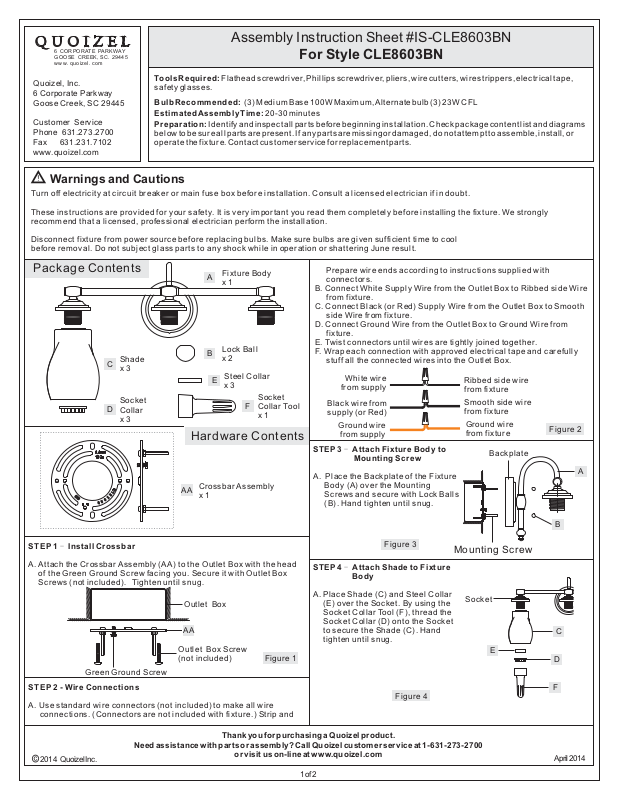

Quoizel CLE8603BN User Manual
Assembly Instruction Sheet #IS-CLE8603BN
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC 29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering June result.
,.
For Style CLE8603BN
ToolsRequired: Flatheadscrewdriver, Phillipsscrewdriver,pliers,wire cutters, wire strippers, electricaltape,
safetyglasses.
BulbRecommended: (3) MediumBase 100W Maximum,Alternatebulb (3) 23W CFL
EstimatedAssembly Time:20-30minutes
Preparation:Identify and inspect all partsbeforebeginning installation. Check package contentlist and diagrams
belowto be sure all partsarepresent. If any parts aremissing or damaged, do not attemptto assemble, install, or
operatethe fixture. Contact customer serviceforreplacement parts.
Package Contents
Shade
C
x3
Socket
D
Collar
x3
Fixture Body
A
x1
Lock Ball
B
x2
Steel Collar
E
x3
Socket
F
Collar Tool
x1
Hardware Contents
R
L
GN
D
E
Z
O
U
Q
STEP 1 Install Crossbar-
A. Attach the Crossbar Assembly (AA) to the Outlet Box with the head
of the Green Ground Screw facing you. Secure it with Outlet Box
Screws (not included) Tighten until snug
..
Green Ground Screw
STEP 2 - Wire Connections
A. Use standard wire connectors (not included) to make all wire
connections. (Connectors are not included with fixture.) Strip and
Crossbar Assembly
AA
x1
Outlet Box
AA
Outlet Box Screw
(not included)
Figure 1
Prepare wire ends according to instructions supplied with
connectors.
B. Connect White Supply Wire from the Outlet Box to Ribbed side Wire
from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box to Smooth
side Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground Wire from
fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
White wire
from supply
Black wire from
supply (or Red)
Ground wire
from supply
STEP 3 Attach Fixture Body to
-
Mounting Screw
Ribbed side wire
from fixture
Smooth side wire
from fixture
Ground wire
from fixture
Backplate
Figure 2
A. Place the Backplate of the Fixture
Body (A) over the Mounting
Screws and secure with Lock Balls
(B). Hand tighten until snug.
B
Figure 3
STEP 4 Attach Shade to Fixture
-
Mounting Screw
Body
A. Place Shade (C) and Steel Collar
(E) over the Socket. By using the
Socket
Socket Collar Tool (F), thread the
Socket Collar (D) onto the Socket
to secure the Shade (C). Hand
tighten until snug.
C
E
D
F
Figure 4
A
2014 Quoizel Inc.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
1of2
April2014
STEP 5 Install Bulb-
A. This fixture uses standard bulb with medium screw base. Maximum
100 watts.
B. Insert bulb and screw snugly into place.
Your fixture is now assembled and ready to use. Enjoy!
Socket
CLE8603BN
FINISH: BRUSHED NICKEL
R
L
GN
D
E
Z
O
U
Q
Figure 5
Bulb
9.5”
1
6”
21”
4” SQ.
7.5”
(3) 100W
Base
(Not Supplied)
PART NUMBER
NO.
G3657SH GLASS OPAL FROSTED 3
1
2014 Quoizel Inc.
Medium
Bulbs
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
REQ.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2of2
April2014
