Page 1
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-CKSY9370DL
For Style CKSY9370DL
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
ToolsRequired:None
BulbRecommended: (1) Medium Base (3-Way) 150W Maximum
EstimatedAssemblyTime: 15-20 minutes
Preparation:Identify andinspect all partsbefore beginninginstallation. Check package
contentlist anddiagrams below tobe sureall parts arepresent. Ifany parts aremissing
ordamaged, donot attempt toassemble, install,or operate thefixture. Contactcustomer
servicefor replacementparts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
Part
A
B
C
D
E
F
G
H
I
J
K
Package Contents
Description
Socket Assembly
Center Column with Stem
Stem
Big Washer
Small Washer
Hex Nut
Base
Finial
Shade
Harp
Wrench
Quantity
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
H
I
A
B
C
D
E
F
G
J
K
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2012Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
1of4
October2012
Page 2
CKSY9370DL
FINISH: DARK CINNAMON LEATHER
17” Sq.
8” Sq.
2
11”
69”
1
(1)150W Medium
Base (3-Way) Bulb
(Not Supplied)
PART NUMBER
NO.
1
19370DLCKSY
2
S1429TN
11” Sq.
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
BASE DARK CINNAMON LEATHER CKSY9370DL
TAN FABRIC SHADE 17"SQ
REPLACEMENT PART DESCRIPTION
2of4
REQ.
1
1
Page 3
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-CKSY9370DL
For Style CKSY9370DL
STEP 1 Attach Center Column with Stem to
-
Socket Assembly
A. Thread the Stem with Hex Nut into the Hex Coupling in
the end of the Socket Assembly (A). Hand tighten until
snug.
B. Attache the Center Column (B) to the bottom end of the
Socket Assembly (A).
STEP 2 Attach Base to Center Column-
A. Thread the Stem (C) into the Hex Coupling in the
bottom of the Center Column (B). Hand tighten until
snug.
B. Pass the Base (G), the Big Washer (D) and the Small
Washer (E) over the end of the Stem (C) in turn. By
using the Wrench (K), thread the Hex Nut (F) onto the
Stem (C) to secure the above parts together. Hand
tighten until snug.
Figure 1
Hex Coupling
Socket
Assembly
Stem with
Hex Nut
Center Column
Hex Coupling
Stem
STEP 3 Install the Harp-
A. Install the Harp (J) by pressing the ends of the Harp (J)
into the Harp Clips as shown.
Wrench
Big Washer
Small Washer
Hex Nut
Base
Figure 2
Figure 3
Harp
Harp Clip
Base
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2012 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
3of4
October2012
Page 4
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-CKSY9370DL
For Style CKSY9370DL

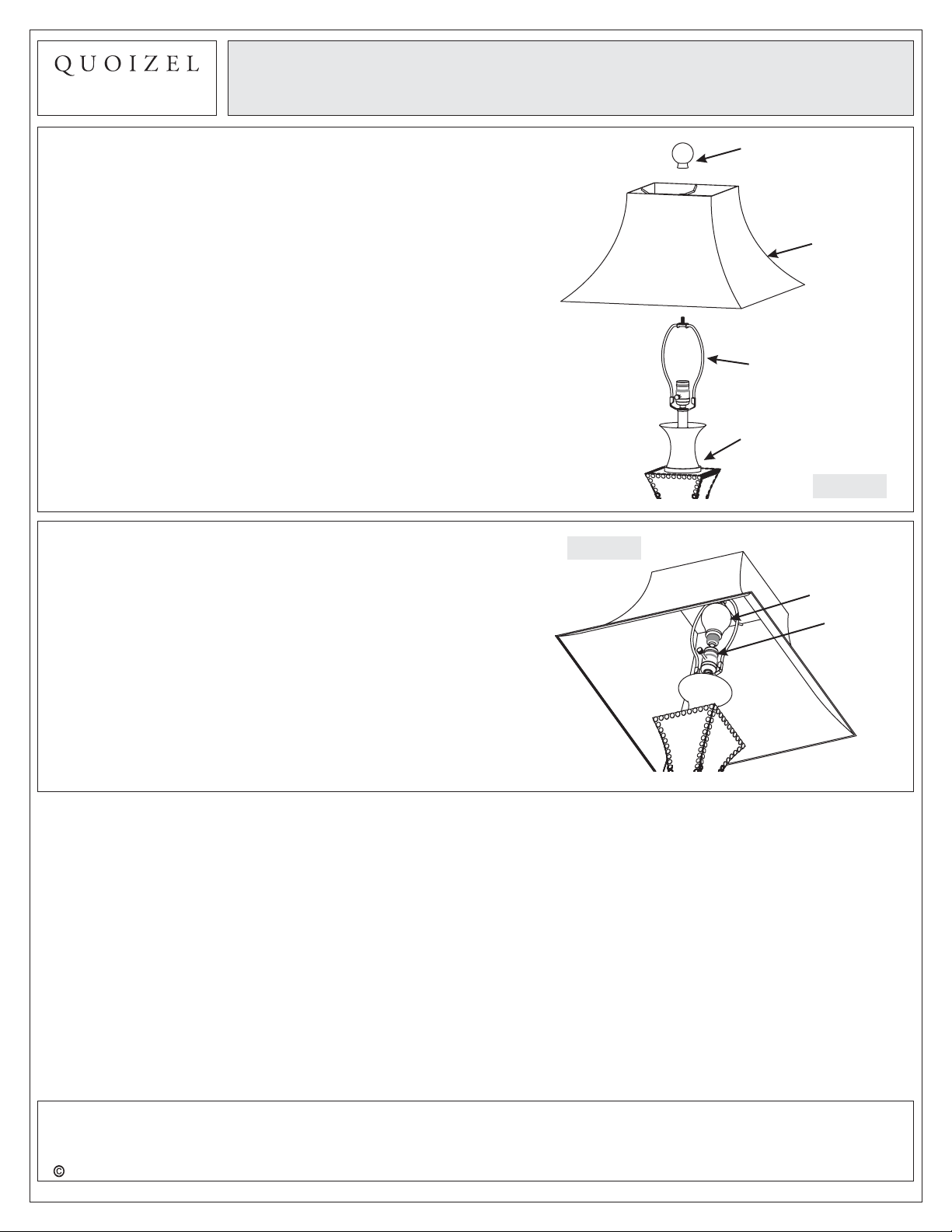

STEP 4 - Attach Shade
A. Place the Shade (I) onto the top end of the Harp (J) and
secure with the Finial (H). Hand tighten until snug.
STEP 5 Install Bulb-
A. This fixture uses standard bulb (3-Way) with medium
base . Maximum 150 watts.
B. Insert bulb and screw snugly into place.
Finial
Shade
Harp
Base
Figure 4
Figure 5
Bulb
Socket
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2012 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
4of4
October2012
