6CORPORATEPARKWAY
GOOSECREEKSC29445
wwwquoizelcom
..
Quoizel,Inc.
6CorporateParkway
GooseCreek,SC
29445
CustomerService
Phone631.273.2700
Fax631.231.7102
www.quoizel.com
,.
ToolsRequired:Flatheadscrewdriver,Phillipsscrewdriver,pliers,wirecutters,wire
strippers,electricaltape,safetyglasses.
BulbRecommended: (1)MediumBase100WMaximum
EstimatedAssemblyTime: 20-30minutes
Preparation: Identifyandinspectallpartsbeforebeginninginstallation.Checkpackage
contentlistanddiagramsbelowtobesureallpartsarepresent.Ifanypartsaremissing
ordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomer
serviceforreplacementparts.

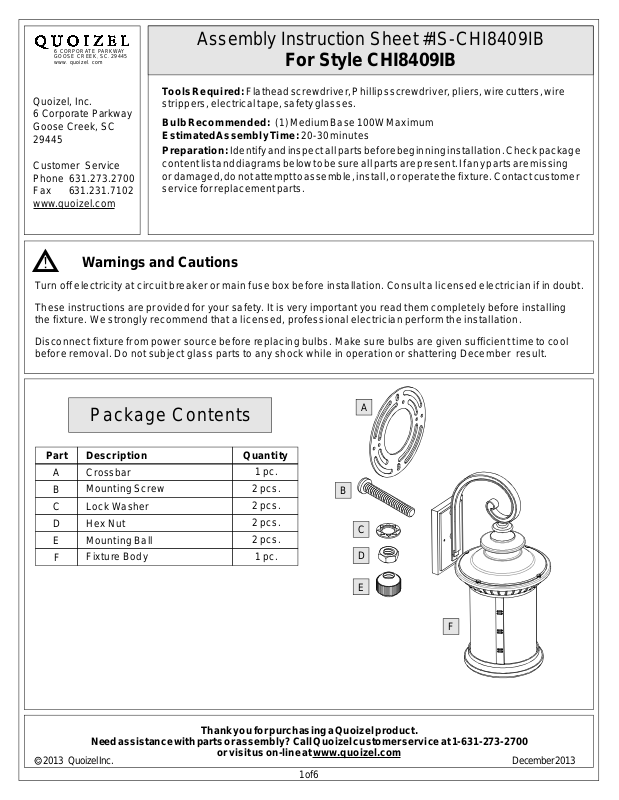

AssemblyInstructionSheet#IS-CHI8409IB
ForStyleCHI8409IB
WarningsandCautions
Turnoffelectricityatcircuitbreakerormainfuseboxbeforeinstallation.Consultalicensedelectricianifindoubt.
Theseinstructionsareprovidedforyoursafety.Itisveryimportantyoureadthemcompletelybeforeinstalling
thefixture.Westronglyrecommendthatalicensed,professionalelectricianperformtheinstallation.
Disconnectfixturefrompowersourcebeforereplacingbulbs.Makesurebulbsaregivensufficienttimetocool
beforeremoval.DonotsubjectglasspartstoanyshockwhileinoperationorshatteringDecemberresult.
A
PackageContents
Part Description
A Crossbar
B
C
D
E
F
MountingScrew
LockWasher
HexNut
MountingBall
FixtureBody
Quantity
1pc.
2pcs.
2pcs.
2pcs.
2pcs.
1pc.
B
C
D
E
F
Needassistancewithpartsorassembly?CallQuoizelcustomerserviceat1-631-273-2700
2013QuoizelInc.
ThankyouforpurchasingaQuoizelproduct.
orvisituson-lineat www.quoizel.com
1of6
December2013
CHI8409IB
FINISH:IMPERIALBRONZE
9"Dia.
4.5"
1
19.5"
GND
11.5"
2.4mm
13Ga
QUOIZEL
R
8"
2
(1)100WA19
MediumBaseBulb
(NotSupplied)
PARTNUMBER
1
2
9465KIT
G2860SH
NOTE:ALLDIMENSIONSAREROUNDEDUPTOTHENEAREST1/2"
REPLACEMENTPARTDESCRIPTION REQ.NO.
MTGHARDWAREIMPRBRNZ4"D
SHADECLEARWATERGLASS
2of6
1
1
6CORPORATEPARKWAY
GOOSECREEKSC29445
wwwquoizelcom
..
,.
AssemblyInstructionSheet#IS-CHI8409IB
ForStyleCHI8409IB
STEP1TakeCagewithShadeapart-
A.TaketheCagewithShadeapartbyunscrewingSocket
HeadCapScrew.
Figure1
FixtureBody
SocketHead
CapScrew
Cagewith
Shade
STEP2RemovePEFoam,Spongeand
-
Styrofoam
A.RemovetheStyrofoaminsideoftheCage.
B.TakeouttheGlassbyunscrewingLockScrewsand
Tabs.RemovePEFoamsandSpongesaroundthe
Glass.
C.PlacetheGlassbackintotheCageandsecurewiththe
TabsandtheLockScrews.
D.UnscrewtheSocketHeadCapScrewsfromthetop
edgeoftheCage.
Sponge
Styrofoam
(Remove)
PEFoam
PEFoam
(Remove)
Glass
SocketHead
CapScrew
Sponge
(Remove)
Lock
Screw
Tab
Needassistancewithpartsorassembly?CallQuoizelcustomerserviceat1-631-273-2700
2013QuoizelInc.
Figure2
ThankyouforpurchasingaQuoizelproduct.
orvisituson-lineat www.quoizel.com
3of6
Cage
December2013
6CORPORATEPARKWAY
GOOSECREEKSC29445
wwwquoizelcom
..
,.
AssemblyInstructionSheet#IS-CHI8409IB
ForStyleCHI8409IB
STEP3InstallCagebackFixtureBody-
A.PlacetheCagewithShadeovertheHoodonFixture
Body(I).SecurebythreadingtheSocketHeadCap
Screwsintothemountingholesonthetopedgeofthe
Cage.Handtightenuntilsnug.
STEP4- AttachMountingScrews,Lock
WashersandHexNutstoCrossbar
A.LineupasetofholesontheCrossbar(A)andHoleson
thebackplateoftheFixtureBody(F).
B.ThreadMountingScrews(B)intotheholesonthe
Crossbar(A),passLockWashers(C)andthreadHex
Nut(D)ontotheMountingScrews(B).Handtighten
untilsnug.
Figure3
Mounting
Screw
Crossbar
FixtureBody
SocketHead
CapScrew
Hood
Cagewith
Shade
LockWasher
HexNut
STEP5- AttachCrossbartoOutletBox
A.AttachtheCrossbar(A)toOutletBoxandsecureby
threadingOutletBoxScrews(notsupplied)intothe
MountingHolesontheOutletBox.Tightenuntilsnug.
ThankyouforpurchasingaQuoizelproduct.
Needassistancewithpartsorassembly?CallQuoizelcustomerserviceat1-631-273-2700
2013QuoizelInc.
orvisituson-lineat www.quoizel.com
4of6
Figure4
Figure5
OutletBox
Fixture
Body
MountingHole
Crossbar
OutletBox
Screw
December2013
6CORPORATEPARKWAY
GOOSECREEKSC29445
wwwquoizelcom
..
,.
AssemblyInstructionSheet#IS-CHI8409IB
ForStyleCHI8409IB
STEP6MakeWireConnections-
A.Usestandardwireconnectorstomakeallwire
connections.(Connectorsarenotincludedwithfixture.)
Stripandpreparewireendsaccordingtoinstructions
suppliedwithconnectors.
B.ConnectWhiteSupplyWirefromtheOutletBoxtoWhite
Wirefromfixture.
C.ConnectBlack(orRed)SupplyWirefromtheOutletBox
toBlackWirefromfixture.
D.ConnectGroundWirefromtheOutletBoxtoGround
Wirefromfixture.
E.Twistconnectorsuntilwiresaretightlyjoinedtogether.
F.Wrapeachconnectionwithapprovedelectricaltapeand
carefullystuffalltheconnectedwiresintotheOutletBox. Figure6
Whitewirefromsupply Whitewirefromfixture
Blackwirefromsupply
(orRed)
Groundwirefromsupply Groundwirefromfixture
Blackwirefromfixture
Figure7
STEP7- AttachFixtureBodytoMounting
Screw
A.PlacethebackplateoftheFixtureBody(F)overthe
MountingScrews(B)andsecurewithMountingBalls
(E).Handtightenuntilsnug.
Backplate
Mounting
Screw
MountingBall
Needassistancewithpartsorassembly?CallQuoizelcustomerserviceat1-631-273-2700
2013QuoizelInc.
Figure8
ThankyouforpurchasingaQuoizelproduct.
orvisituson-lineat www.quoizel.com
5of6
December2013
6CORPORATEPARKWAY
GOOSECREEKSC29445
wwwquoizelcom
..
,.
AssemblyInstructionSheet#IS-CHI8409IB
ForStyleCHI8409IB
STEP8- InstallBulb
A.standardbulbwithamediumscrew
Thisfixtureuses
base0
.Maximum10watts.
B.Insertbulbandscrewsnuglyintoplace.
STEP9ApplySiliconeSealertoMounting
-
Balls
A.Topreventmoisturefromenteringthewire
compartment,applyasmallamountofsiliconesealer
(notincluded)tothethreadedsideofthemounting
balls(E)andtheninstallthemontothemounting
screws(B).Wipeoffexcesscaulk.
Bulb
MountingBall
Figure10
Figure9
Socket
STEP10ApplySiliconeSealertoBackplate-
A.Makesureexteriorwallsurfaceandfixturebackplate
arefreeofdirtbeforeapplyingcaulk.Usingexterior
gradecaulk,startononesideoffixturebackplateand
followcontour,wherethefixturebackplatemeetsthe
exteriorwallsurfaceupward.Proceedtocaulkovertop
ofbackplateanddownotherside.Donotcaulkbottom
offixturebackplatetoensurepropermoisture
drainage.
Yourlampwallfixtureisnowassembledandreadyto
use.Enjoy!
ThankyouforpurchasingaQuoizelproduct.
Needassistancewithpartsorassembly?CallQuoizelcustomerserviceat1-631-273-2700
2013QuoizelInc.
orvisituson-lineat www.quoizel.com
Figure11
Exterior
GradeCaulk
ExteriorWall
Surface
OutdoorFixture
Backplate
December2013
6of6
