ToolsRequired: Flathead screwdriver,Phillips screwdriver,pliers, wire cutters,wire
strippers,electrical tape, safetyglasses.
BulbRecommended: (1) Edson Bulb60WMaximum
EstimatedAssemblyTime:20-30 minutes
Preparation:Identify and inspectallparts before beginninginstallation.Check package
contentlist and diagramsbelowto be sureallparts are present.Ifany parts aremissing
ordamaged, do notattemptto assemble, install,oroperate the fixture.Contactcustomer
servicefor replacement parts.
Assembly Instruction Sheet #IS-BRN8408IB
For Style BRN8408IB
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
Package Contents
Part
A Inner Backplate
B
C
D
Description
Mounting Screw
Fixture Body
Edson Bulb
Quantity
1pc.
2 pcs.
1pc.
1pc.
C
A
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2012 Quoizel Inc.
B
Thank youfor purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
1of5
D
October2012
BRN8408IB
FINISH: IMPERIAL BRONZE
2
6.5”
7”
8”
6.5”
4
14.5”
9”
3
1
5.5”
8”
(1)60W Edson Bulb
(Supplied)
PART NUMBER
NO.
1
2
3
4
G3405PA
18408IBBRN
G3403PA
G3404PA
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
BACK CLEAR BEVELED GLASS PANEL
BASE IMPERIAL BRONZE
FRONT CLEAR BEVELED GLASS PANEL
SIDE CLEAR BEVELED GLASS PANEL
2of5
REQ.
1
1
1
2
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-BRN8408IB
For Style BRN8408IB
STEP 1 - Attach Inner Backplate to Outlet
Box
A. Attach the Inner Backplate (A) to Outlet Box and secure
by threading Outlet Box Screws (not supplied) into the
Mounting Holes on the Outlet Box. Tighten until snug.
STEP 2 Make Wire Connections-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
Outlet Box
Inner Backplate
Mounting Hole
Outlet Box
Screw
Figure 1
White wire from supply White wire from fixture
Black wire from supply
(or Red)
Ground wire from supply Ground wire from fixture
Black wire from fixture
Figure 3
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2012 Quoizel Inc.
3of5
Figure 2
October2012
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-BRN8408IB
For Style BRN8408IB
STEP 3 - Attach Fixture Body to Inner
Backplate
A. Place the backplate of the Fixture Body (C) onto the
Inner Backplate (A). Line up holes on both of them.
Thread Mounting Screws (B) into the mounting holes on
the Inner Backplate (A) and hand tighten until snug to
secure them.
STEP 4 - Install Bulb
Mounting
Hole
Inner
Backplate
Mounting
Backplate
Screw
Figure 4
Figure 5
A. This fixture uses Edson bulbs with a standard screw
base. Maximum 60 watts.
B. Insert bulb and screw snugly into place.
Socket
Bulb
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2012 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
4of5
October2012
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-BRN8408IB
For Style BRN8408IB

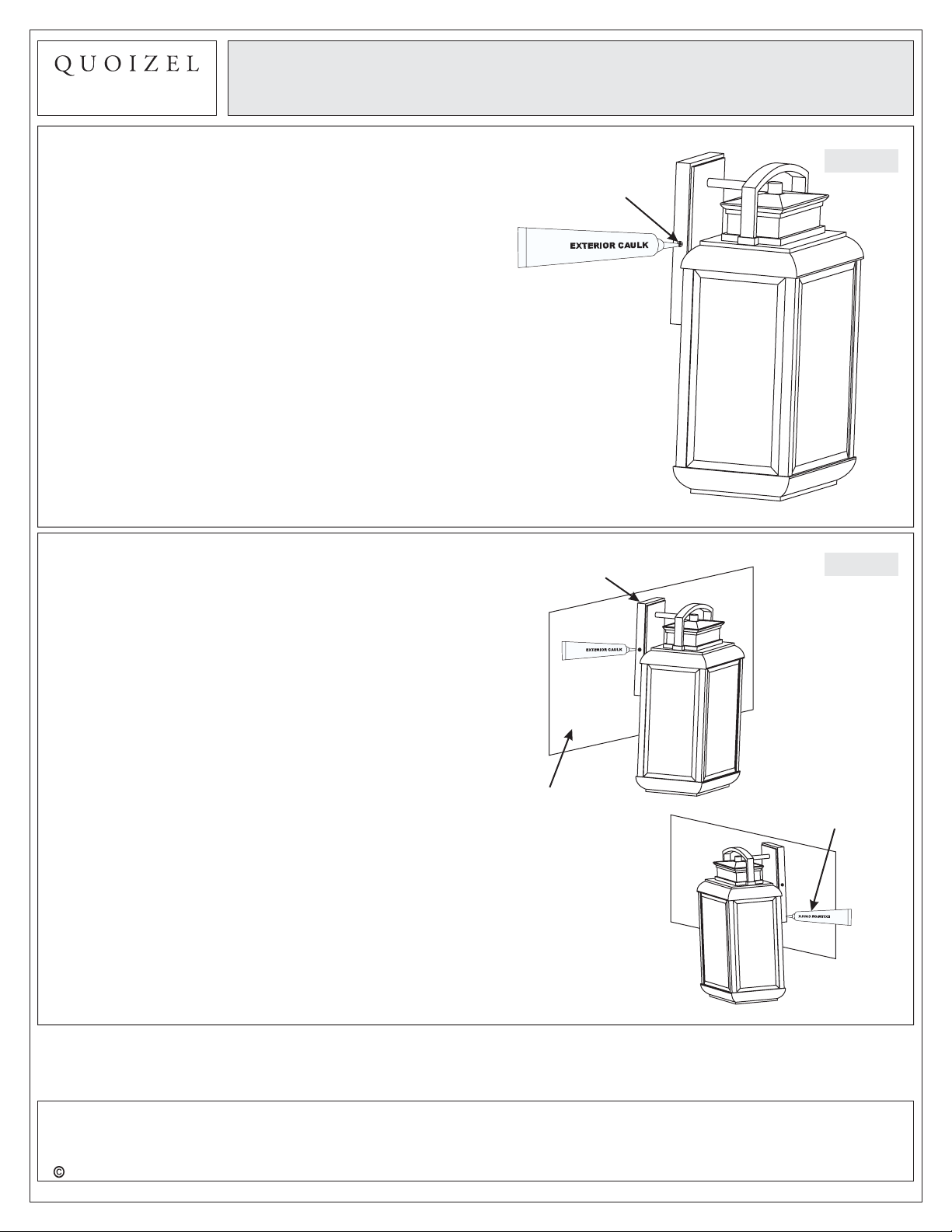

STEP 5 Apply Silicone Sealer to Mounting
-
Screws
A. To prevent moisture from entering the wire
compartment, apply a small amount of silicone sealer
(not included) to the threaded side of the mounting
Screws (B) and then install them onto the mounting
Hole on the side of inner (A). Wipe off
excess caulk.
Backplate
STEP 6 Apply Silicone Sealer to Backplate-
A. Make sure exterior wall surface and fixture backplate
are free of dirt before applying caulk. Using exterior
grade caulk, start on one side of fixture backplate and
follow contour, where the fixture backplate meets the
exterior wall surface upward. Proceed to caulk over top
of backplate and down other side. Do not caulk bottom
of fixture backplate to ensure proper moisture
drainage.
Mounting
Screw
Outdoor
Fixture
Backplate
Figure 6
Figure 7
Your fixture is now assembled and ready to use.
Enjoy!
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
or visit us on-line at www.quoizel.com
2012 Quoizel Inc.
5of5
Exterior Wall
Surface
Exterior
Grade Caulk
October2012
