6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
,.
ToolsRequired:Flatheadscrewdriver,Phillipsscrewdriver,pliers,wire cutters, wire
strippers,electricaltape,safety glasses.
BulbRecommended: (3) MediumBaseBulbs100W Maximum
EstimatedAssemblyTime: 20-30minutes
Preparation:Identifyandinspect all partsbeforebeginninginstallation. Check package
contentlistanddiagrams below tobesureall parts arepresent.Ifany parts aremissing
ordamaged,donot attempt toassemble,install,or operate thefixture.Contactcustomer
serviceforreplacementparts.
Assembly Instruction Sheet #IS-ARH1717C
For Style ARH1717C
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
Package Contents
A
Part
A Crossbar
B
C
D
E
F
G
H
I
J
K
L
M
N
Description
Mounting Screw
Lock Washer
Hex Nut
Mounting Ball
Stem
Socket Assembly
Diffuser
Rubber Washer
Flat Washer
Hex Nut (1/8 IP)
Cap
Bracket
Finial with Nipple
Quantity
1pc.
2 pcs.
2 pcs.
2 pcs.
2 pcs.
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
1pc.
B
C
D
E
F
I
J
K
L
G
H
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2014 Quoizel Inc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
1of5
M
N
May 2014
ARH1717C
FINISH: POLISHED CHROME
6” Dia.
2
1”
14.5”
6”
1
17” Dia.
(3)100W Medium
Base Bulbs
(Not Supplied)
PART NUMBER REPLACEMENT PART DESCRIPTION
NO.
1
2
G3674DI ETCHED GLASS DIFFUSER 17.50"D FOR ARH1717C
S3882WH SHADE FABRIC 15"X17"X6"
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
2of5
REQ.
1
1
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-ARH1717C
For Style ARH1717C
STEP 1 Install Stem-
A. Thread the beaded end of the Stem (F) into the Hex
Coupling in the bottom center of the Socket Assembly (G).
Hand tighten until snug.
STEP 2 Install Diffuser-
A. Place the (H), and
Rubber Washer (I)
shown. Secure by threading the Hex Nut (1/8 IP) (K)
onto the Stem (F). Hand tighten until snug.
Diffuser the Flat Washer (J) the
over the end of the Stem (F) as
Figure 1
Stem
Stem
Socket
Assembly
Hex Coupling
Figure 2
Shade
Diffuser
STEP 3 Install Bracket-
A. Place the Cap (L) and the Bracket (M) over the end of
the Stem (F). Secure by threading the
(N) onto the Stem (F). Hand tighten until snug.
Finial with Nipple
Flat Washer
Stem
Rubber Washer
Hex Nut (1/8 IP)
Figure 3
Cap
Bracket
Finial with Nipple
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2014 Quoizel Inc. May 2014
or visit us on-line at www.quoizel.com
3of5
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-ARH1717C
For Style ARH1717C

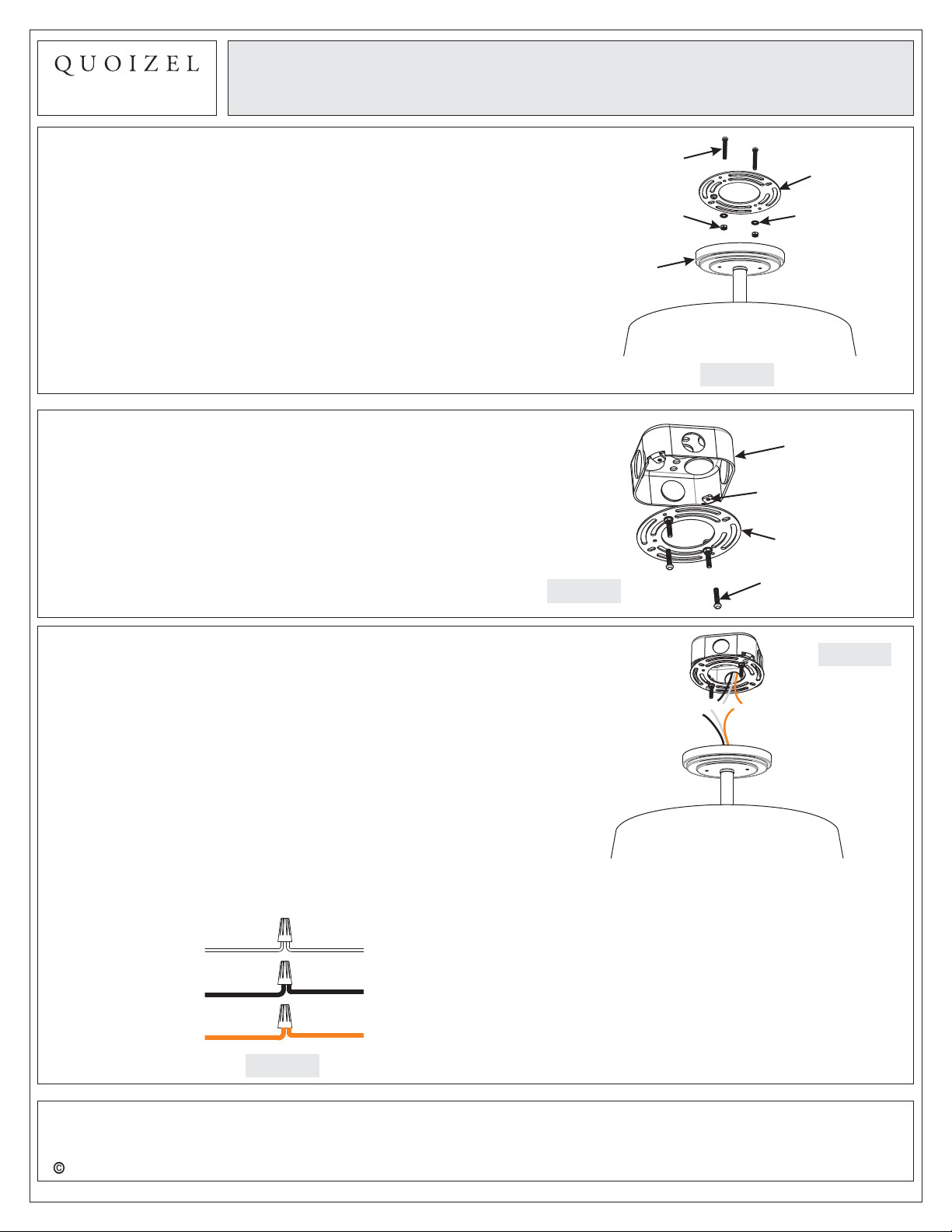

STEP 4 - Attach Mounting Screws, Lock
Washers and Hex Nuts to Crossbar
A. Line up a set of holes on the Crossbar (A) and Holes on
the Ceiling Canopy of the Socket Assembly (G).
B. Thread Mounting Screws (B) into the holes on the
Crossbar (A), pass Lock Washers (C) and thread Hex Nut
(D) onto the Mounting Screws (B). Hand tighten until
snug.
STEP 5 - Attach Crossbar to Outlet Box
A. Attach the Crossbar (A) to Outlet Box and secure by
threading Outlet Box Screws (not supplied) into the
Mounting Holes on the Outlet Box. Tighten until snug.
Mounting Screw
Hex Nut
Ceiling
Canopy
Figure 5
Crossbar
Lock Washer
Figure 4
Outlet Box
Mounting Hole
Crossbar
Outlet Box Screw
(not supplied)
STEP 6 Make Wire Connections-
A. Use standard wire connectors to make all wire
connections. (Connectors are not included with fixture.)
Strip and prepare wire ends according to instructions
supplied with connectors.
B. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
C. Connect Black (or Red) Supply Wire from the Outlet Box
to Black Wire from fixture.
D. Connect Ground Wire from the Outlet Box to Ground
Wire from fixture.
E. Twist connectors until wires are tightly joined together.
F. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
White wire from supply
Black wire from supply
(or Red)
Ground wire from supply Ground wire from fixture
Figure 7
White wire from fixture
Black wire from fixture
Figure 6
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2014 Quoizel Inc. May 2014
or visit us on-line at www.quoizel.com
4of5
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-ARH1717C
For Style ARH1717C
STEP 7 - Attach Ceiling Canopy to Mounting
Screw
A. Place the Ceiling Canopy of the Socket Assembly (G)
over the Mounting Screws (B) and secure with
Mounting Balls (E). Hand tighten until snug.
STEP 8 - Install Bulb
A. This fixture uses standard bulb with a standard screw
base. Maximum 100 watts.
B. Insert bulb and screw properly into place.
Your fixture is now assembled and ready to use. Enjoy!
Figure 8
Mounting Screw
Ceiling Canopy
Mounting Ball
Socket
Bulb
Figure 9
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2014 Quoizel Inc. May 2014
or visit us on-line at www.quoizel.com
5of5
