Page 1
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
Quoizel, Inc.
6 Corporate Parkway
Goose Creek, SC
29445
Customer Service
Phone 631.273.2700
Fax 631.231.7102
www.quoizel.com
,.
Assembly Instruction Sheet #IS-ALZ5009PN
For Style ALZ5009PN
ToolsRequired: Flathead screwdriver,Phillips screwdriver,pliers, wire cutters,wire
strippers,electrical tape, safetyglasses.
BulbRecommended: (9)100W A19Medium Base
EstimatedAssemblyTime:20-30 minutes
Preparation:Identify and inspectallparts before beginninginstallation.Check package
contentlist and diagramsbelowto be sureallparts are present.Ifany parts aremissing
ordamaged, do notattemptto assemble, install,oroperate the fixture.Contactcustomer
servicefor replacement parts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing
the fixture. We strongly recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool
before removal. Do not subject glass parts to any shock while in operation or shattering may result.
A
F
Package Contents
Part
A Crossbar
B
C
D
E
F
G
H
I
J
K
L
M
Description
Nipple
Lock Washer
Hex Nut
Ceiling Canopy
Canopy Chain Loop
Canopy Lock Ring
Fixture Chain
Fixture Loop
Socket Collar
Socket Collar Tool
Shade
Fixture Assembly
Quantity
1pc.
1pc.
2 pcs.
2 pcs.
1pc.
1pc.
1pc.
1pc.
1pc.
9 pcs.
1pc.
9 pcs.
1pc.
B
C
D
E
L
I
J
K
M
G
H
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank youfor purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
1of7
September2011
Page 2
ALZ5009PN
FINISH: PALLADIAN BRONZE
NOTE: FOUR LIGHTS SHOWN FOR
ILLUSTRATION PURPOSES ONLY.
6.5" Dia.
1.5"
Overall Height 133.5”
(Includes 96” Chain)
1
20.5" Dia.
6.5" Dia.
34.5"
2
34.5" Dia.
5.5"
(9)100W Medium
Base Bulbs
(Not Supplied)
PART NUMBER
NO.
M451CHPN CHAIN PALLADIAN BRNZ 4.5MMX4'
G2970SH SHADE GRADIEN AMBER MIST GLS
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"
REPLACEMENT PART DESCRIPTION
REQ.
1pc.
5 pcs.
2of6
Page 3
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
STEP 1 Adjust Fixture Assembly-
,.
Assembly Instruction Sheet #IS-ALZ5009PN
For Style ALZ5009PN
A. Unfold support arms on fixture assembly to proper
locations.
STEP 2 - Attach Fixture Loop to Fixture
Assembly
A. Thread the Fixture Loop (I) onto the nipple on the top
center of the FixtureAssembly (M). Hand tighten until
snug.
Figure 1
Figure 2
Fixture Loop
Fixture
Assembly
STEP 3 - Attach Crossbar to Outlet Box
A. Secure the Corssbar (A) to the outlet box with outlet
box screws (not supplied). Tighten until snug.
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
or visit us on-line at www.quoizel.com
3of7
Mounting
Hole
Outlet Box
Crossbar
Outlet Box
Screw (not
Supplied)
Figure 3
September2011
Page 4
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-ALZ5009PN
For Style ALZ5009PN
STEP 4 Attach Nipple to Crossbar-
A. Thread one Hex Nut (D) onto the top end of the Nipple
(B).
B. Place one Lock Washer (C) over the top end of the
Nipple (B) and then thread the Nipple (B) into the center
lock hole of the Crossbar (A).
C. Using pliers, thread the Hex Nut (D) against the
Crossbar (A) and hand tighten until snug.
Crossbar
Lock Washer
Hex Nut
Nipple
Figure 4
STEP 5 - Attach Canopy Chain Loop to Nipple
A. Thread another Hex Nut (D) onto the end of the Nipple
(B).
B. Place the Lock Washer (C) over the end of the Nipple
(B) and then thread the Canopy Chain Loop (F) onto the
end of the Nipple (B).
C. Using pliers, thread the Hex Nut (D) against the
Canopy Chain Loop (F) and hand tighten until snug.
STEP 6 Assemble Ceiling Canopy-
A. Push the Ceiling Canopy (E) upward over the Outlet
Box. Thread the Canopy Lock Ring (G) onto the Canopy
Chain Loop (F) and tighten until snug to secure the
Ceiling Canopy (E).
Outlet Box
Nipple
Crossbar
Hex Nut
Lock Washer
Canopy
Chain Loop
Figure 5
Outlet Box
Canopy Chian Loop
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Ceiling Canopy
Canopy
Lock Ring
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
4of7
Figure 6
September2011
Page 5
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-ALZ5009PN
For Style ALZ5009PN

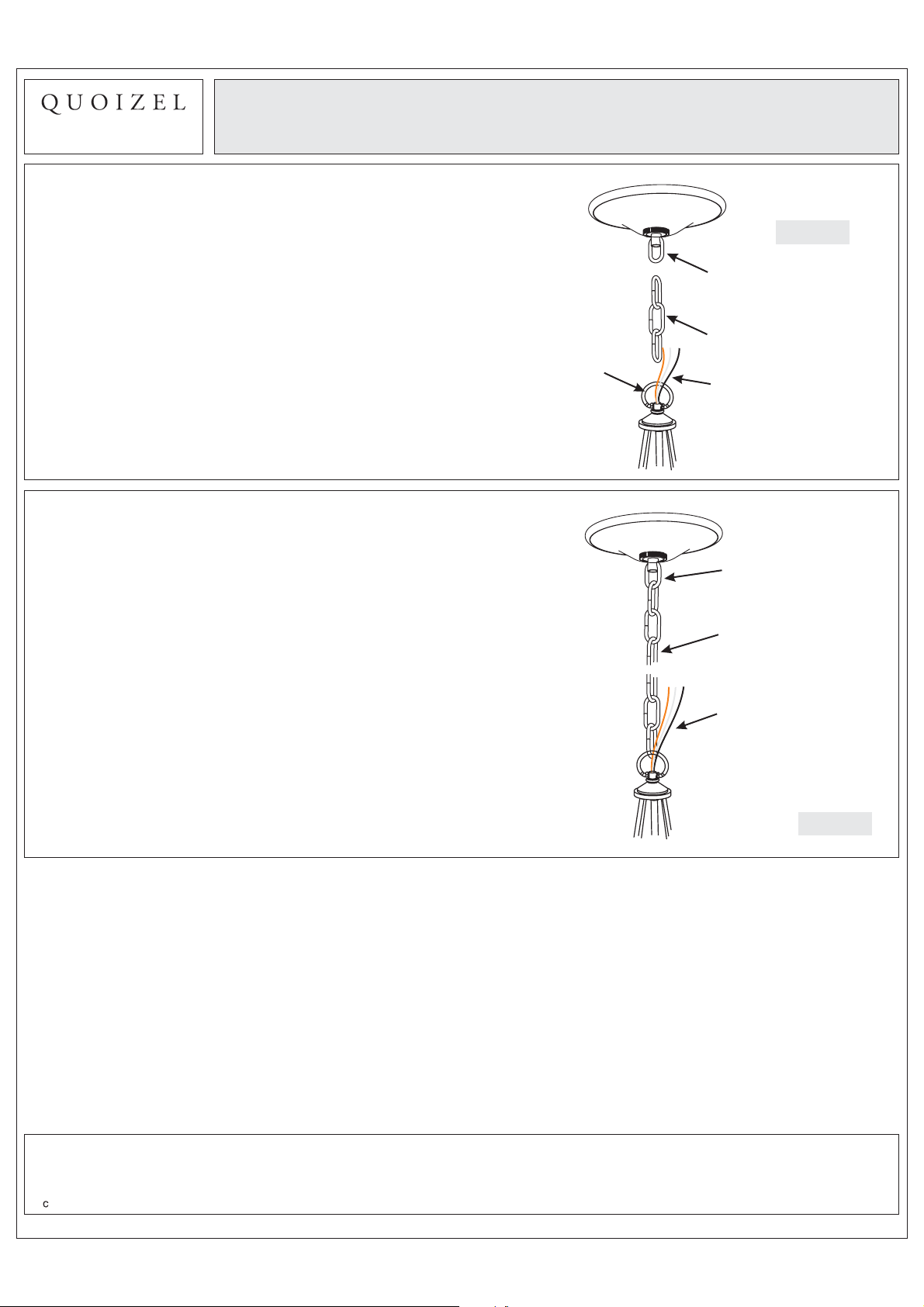

STEP 7 Attach Fixture Chain to Canopy
-
Chain Loop and Fixture Loop
A. Adjust the Fixture Chain (H) to your desired length by
removing the links if needed. You may need to use plier
to open the chain links. If so, put a cloth over the chain
to protect the finish from the pliers.
B. Attach one end of the Fixture Chain (H) onto the
Canopy Chain Loop (F) and then attach the other end of
the Fixture Chain (H) onto the Fixture Loop (I) on the
top of the fixture.
STEP 8 Pass Supply Wires through Fixture
-
Chain
A. Pull the Supply Wires and Ground Wire up through the
Fixture Chain (H) alternating links. Push the wires up
through the Canopy Chain Loop (F) into the outlet box.
Fixture Loop
Figure 7
Canopy Chain Loop
Fixture Chain
Supply Wire and
Ground Wire
Canopy Chain
Loop
Fixture Chain
Supply Wire
and Ground Wire
Figure 8
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
5of7
September2011
Page 6
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-ALZ5009PN

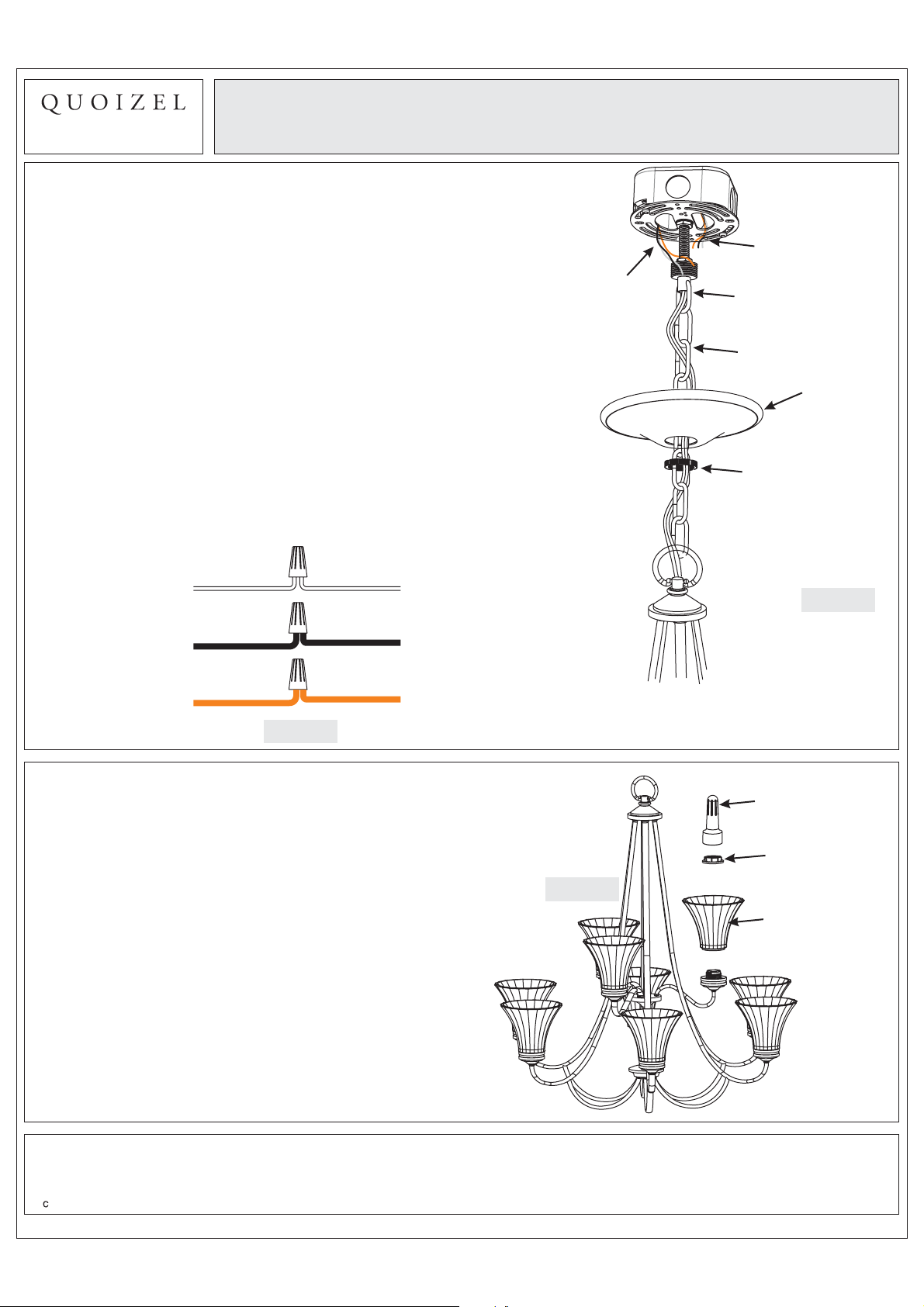

STEP 9 - Make Wire Connections
For Style ALZ5009PN
A. Un-thread the Canopy Lock Ring (G) and slide Canopy Lock
Ring (G) and Ceiling Canopy (E) down the Fixture Chain (H).
B. Push all slack fixture wire through Canopy Chain Loop (F)
into Outlet Box. Trim excess fixture wire leaving a minimum
of 6 inch. Hanging out of the Outlet Box.
C. Use standard wire connectors to make all wire connections.
(Connectors are not included with fixture.) Strip and prepare
wire ends according to instructions supplied with connectors.
D. Connect White Supply Wire from the Outlet Box to White
Wire from fixture.
E. Connect Black (or Red) Supply Wire from the Outlet Box to
Black Wire from fixture.
F. Connect Ground Wire from the Outlet Box to Ground Wire
from fixture.
G. Twist connectors until wires are tightly joined together.
H. Wrap each connection with approved electrical tape and
carefully stuff all the connected wires into the Outlet Box.
G. Re-attach the Ceiling Canopy (E) as shown in Step 5.
White wire from supply White wire from fixture
Black wire from supply
(or Red)
Black wire from fixture
Supply Wire
and Ground
Wire from
Outlet Box
Supply Wire and
Ground Wire
Canopy Chain Loop
Fixture Chain
Ceiling
Canopy
Canopy Lock Ring
Figure 9
Ground wire from supply Ground wire from fixture
Figure 10
STEP 10 Attach Shade to Socket-
A. Place the Shade (L) over the Socket as shown. By using the
Socket Collar Tool (K), thread the Socket Collar (J) onto the
Socket to secure the Shade (L). Hand tighten until snug.
Socket Collar
Tool
Socket Collar
Figure 11
Shade
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
6of7
September2011
Page 7
6 CORPORATE PARKWAY
GOOSE CREEK SC 29445
www quoizel com
..
,.
Assembly Instruction Sheet #IS-ALZ5009PN
For Style ALZ5009PN

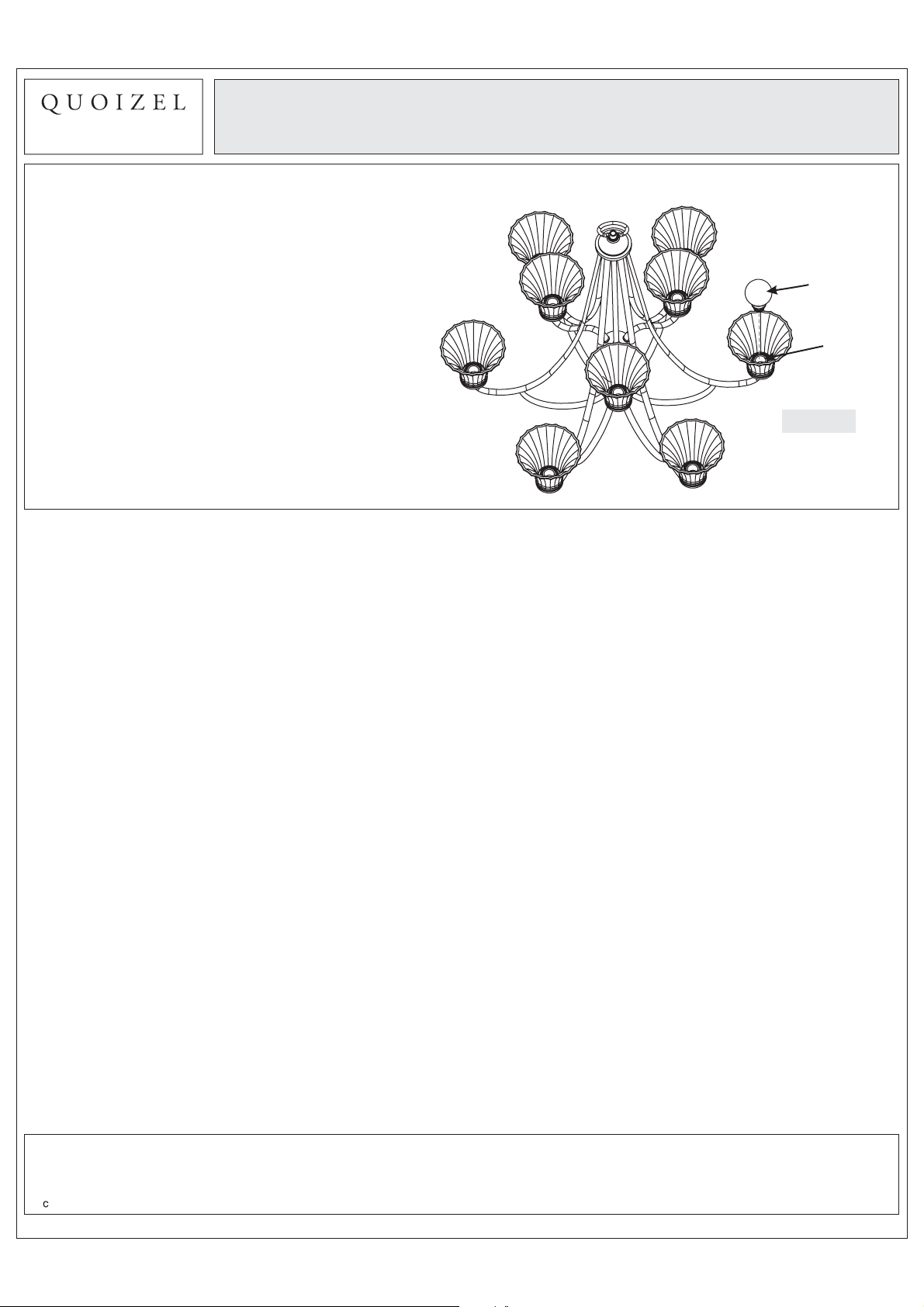

STEP 12 Install Bulb-
A. This fixture uses standard bulb with a standard screw
base. Maximum 100 watts.
B. Insert bulb and screw properly into place.
Your lamp wall fixture is now assembled and ready to
use. Enjoy!
Bulb
Socket
Figure 13
Need assistance with parts or assembly? Call Quoizel customer service at 1-631-273-2700
2011 QuoizelInc.
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
7of7
September2011
