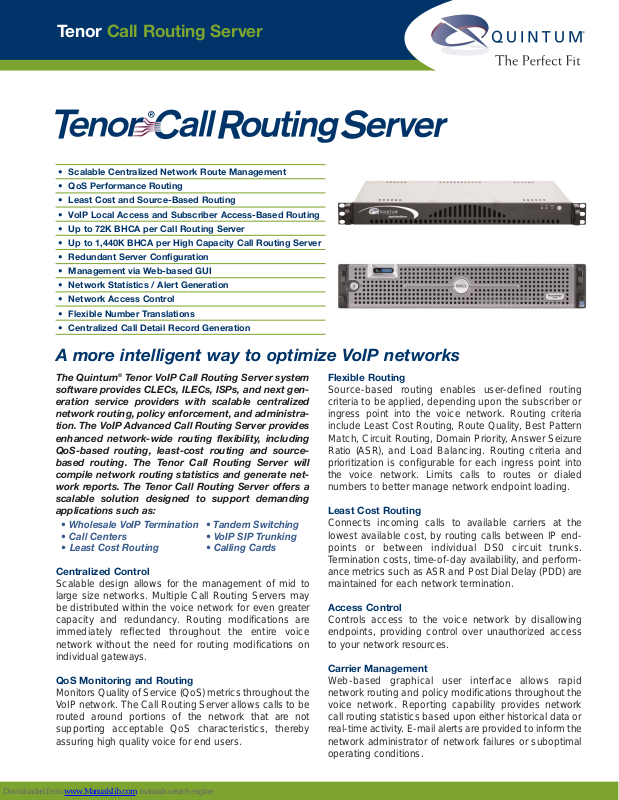

Tenor Call Routing Server
• Scalable Centralized Network Route Management
• QoS Performance Routing
• Least Cost and Source-Based Routing
• VoIP Local Access and Subscriber Access-Based Routing
• Up to 72K BHCA per Call Routing Server
• Up to 1,440K BHCA per High Capacity Call Routing Server
• Redundant Server Configuration
• Management via Web-based GUI
• Network Statistics / Alert Generation
• Network Access Control
• Flexible Number Translations
• Centralized Call Detail Record Generation
A more intelligent way to optimize VoIP networks
The Quintum®Tenor VoIP Call Routing Server system
software provides CLECs, ILECs, ISPs, and next generation service providers with scalable centralized
network routing, policy enforcement, and administration. The VoIP Advanced Call Routing Server provides
enhanced network-wide routing flexibility, including
QoS-based routing, least-cost routing and sourcebased routing. The Tenor Call Routing Server will
compile network routing statistics and generate network reports. The Tenor Call Routing Server offers a
scalable solution designed to support demanding
applications such as:
• Wholesale VoIP Termination • Tandem Switching
• Call Centers
•
Least Cost Routing
Centralized Control
Scalable design allows for the management of mid to
large size networks. Multiple Call Routing Servers may
be distributed within the voice network for even greater
capacity and redundancy. Routing modifications are
immediately reflected throughout the entire voice
network without the need for routing modifications on
individual gateways.
QoS Monitoring and Routing
Monitors Quality of Service (QoS) metrics throughout the
VoIP network. The Call Routing Server allows calls to be
routed around portions of the network that are not
supporting acceptable QoS characteristics, thereby
assuring high quality voice for end users.
•
VoIP SIP Trunking
•
Calling Cards
Flexible Routing
Source-based routing enables user-defined routing
criteria to be applied, depending upon the subscriber or
ingress point into the voice network. Routing criteria
include Least Cost Routing, Route Quality, Best Pattern
Match, Circuit Routing, Domain Priority, Answer Seizure
Ratio (ASR), and Load Balancing. Routing criteria and
prioritization is configurable for each ingress point into
the voice network. Limits calls to routes or dialed
numbers to better manage network endpoint loading.
Least Cost Routing
Connects incoming calls to available carriers at the
lowest available cost, by routing calls between IP endpoints or between individual DS0 circuit trunks.
Termination costs, time-of-day availability, and performance metrics such as ASR and Post Dial Delay (PDD) are
maintained for each network termination.
Access Control
Controls access to the voice network by disallowing
endpoints, providing control over unauthorized access
to your network resources.
Carrier Management
Web-based graphical user interface allows rapid
network routing and policy modifications throughout the
voice network. Reporting capability provides network
call routing statistics based upon either historical data or
real-time activity. E-mail alerts are provided to inform the
network administrator of network failures or suboptimal
operating conditions.
Page 2
Tenor Call Routing Server
TECHNICAL SPECIFICATIONS - SYSTEM SOFTWARE
Call Routing
• Source or carrier-based call treatment
• Time-based routes with full time zone support
• User Defined Criteria Ordering
• Least Cost, Route Quality, Best Pattern Match,
Circuit Routing, Time of Day, Load Balancing, ASR
• Limit maximum number of calls per route or
dialed number
• Up to 72K BHCA per Call Routing Server
• Up to 1,440K BHCA per High Capacity Call Routing Server
• Automatic alternate route generation
Access Control
• Dialed Number Blocking
• Origination Endpoint Call Blocking
Subscribers
• Maintain network-wide or trunk group-based
subscriber directories
• Subscriber-based routing policy
Route Directories
• High Capacity - 100,000+ Routes
• POSIX regular expression pattern matching
• Direct Inward Dialing Support
• Import/Export Routes
Digit Translation
• Ingress and Egress Number Translation
• Automatic appending and stripping of digits in
dialed number
IP Network Specifications
• 1 Fast autosensing Ethernet port (10/100 Base-T)
• IP network performance monitoring
Endpoint Compatibility
• Tenor®AS Series
®
• Tenor
• Tenor
• Tenor
• Tenor
• Tenor
• Tenor
• Tenor
AF Series
®
AX Series
®
BX Series
®
DX Series
®
Call Relay 60 & Call Relay SP
®
CMS
®
GateKeeper+
• Third party gateways (via Quintum GateKeeper+)
Configuration / Management
• Web-based graphical user interface
• E-mail alert generation on network conditions
• Call routing activity logging and real-time event monitoring
Report Generation
• Statistics history includes ASR, % Loading, Active Calls,
Average PDD, and Average Call Duration per Trunk Group
• Web-based statistics generation
• API for connecting external report generation software
GENERAL SPECIFICATIONS - APPLICATION SERVER
Dimensions
W 16 3/4" x H 1 3/4" x D 14"
W 42.6cm x H 4.4cm x 35.6cm
• Maximum weight: 16.1 lbs. (7.3 kg)
• AC Power: 100-240 Volts AC, 50/60Hz, 250 watts
• Operating Temperature: 40°F - 104°F (5°C - 40°C)
• Operating Humidity: 20% - 80% non-condensing
• EMC: FCC Part 15 Class A, EN55022:97, EN55024:98,
EN61000-3-2, and -3-3:95, AS/NZS 3548:1995
• Safety: EN60950:92 + A1:92 + A2:93 + A3:95 + A4:96
GENERAL SPECIFICATIONS - HIGH CAPACITY CALL ROUTING SERVER
Dimensions
W 17.5" x H 3.4" x D 29.31”
W 44.43cm x H 8.64cm x D 74.4cm
• Rack Weight 50.71 lbs (23 Kg), maximum configuration
• Auto-switching universal 110/220 Volts AC, 50/60 Hz, 750 watts max
• 2U Rack-mountable chassis
• Operating Temperature: 10º C to 35º C (50º F to 95º F)
• Operating Relative Humidity (non-condensing twmax=29C): 20% to 80% non-condensing
• FCC (U.S. only) Class A
• CE Mark (EN 55022 Class A, EN55024, EN61000-3-2, EN61000-3-3)
• C-Tick (Australia/New Zealand) Class A
• CCC (China) Class A
• EN 60950-1
71 James Way, Eatontown, New Jersey 07724
1-877-SPEAK-IP .Tel 732.460.9000 .Fax 732.544.9119
www.Quintum.com
Rev. 6
