Quintum AS Series ASM200, AS Series ASM400, ASG200, ASG400, ASM200 Specifications

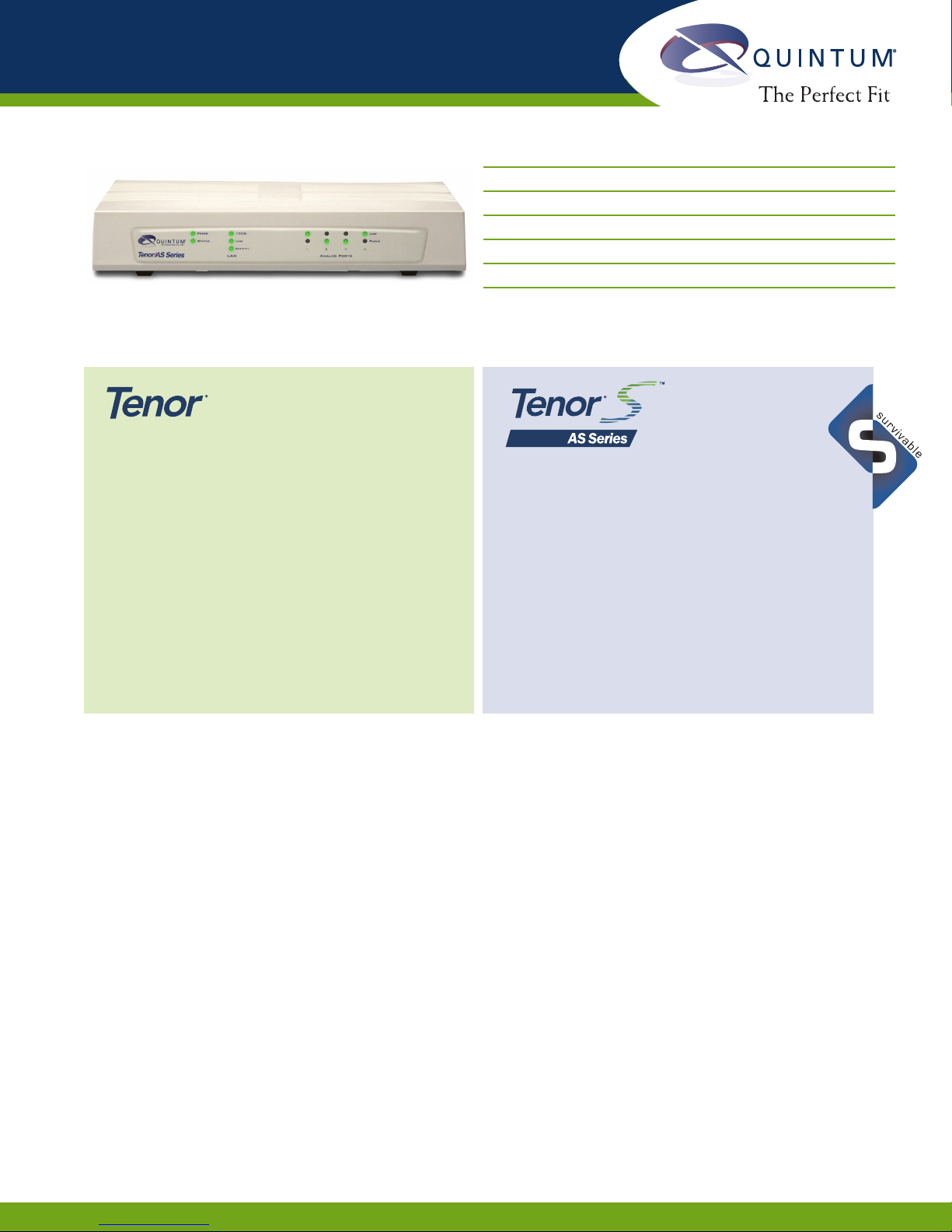

Tenor AS MultiPath Switch

• 2 or 4 Analog line and trunk interfaces

• Up to 4 simultaneous VoIP calls

• Available in MultiPath or Gateway configurations

• Support for external Quintum Tenor Monitor

• Support for external Remote Management Session Server*

Intelligent VoIP Access Solutions for remote offices and SOHO environments

The Tenor VoIP MultiPath Switch
Offers a Robust VoIP Switching Solution
For Remote Offices and SOHO Environments

Quintum's Tenor switching/gateway solutions are deployed
worldwide to provide highly reliable, easy-to-implement VoIP
connectivity in a full range of enterprise and service provider
environments. These highly adaptable solutions work with
traditional PBXs, legacy analog equipment, IP PBXs and IP
phones, IVR and ACD systems, RADIUS servers, and other
critical components of end-to-end H.323- and SIP-based
communications environments. They are perfect for deploying
VoIP in small enterprises, SOHO or remote offices of larger
enterprises, where analog and modem-based devices are
common.

Tenor S (Survivable MultiPath Switch)
Offers a Survivable Branch Office VoIP
Access Solution for IP PBXs and IP Centrex

Quintum's Tenor S line is a complete SIP-based VoIP solution
for the branch office or for service provider customer premise
equipment, providing full survivability in the event that access
to the central and/or hosted IP PBX is lost. Because it delivers
a complete solution in a single device - and because it offers
such easy, scalable implementation and management - the
Tenor S line significantly reduces the total lifecycle cost of VoIP
deployment, while optimizing service reliability. Tenor S also
offers PSTN connectivity and legacy equipment integration for
both analog and modem based devices.

Both versions of Tenor still include the features that made Quintum the VoIP market value leader.

• MultiPath architecture for easy integration with existing voice and data infrastructure, meaning little or no re-programming

of the PBX, or upgrades are required and no need for special dialing plans.

• Transparent MultiPath Call Routing to intelligently route calls between the PBX, the PSTN, and the IP network to achieve
the best combination of cost and quality. The Tenor can also route calls over IP to reduce costs, and then transparently
"hop off" to the PSTN, to reach off-net locations.

• PacketSaver™ Technology multiplexing to reduce bandwidth consumption by up to 57% by combining voice packets
from multiple calls into a single packet.

• Universal Dial Plan that provides a programmable dial plan so Tenor can be integrated into any network environment

•NATAccess™ to allow Tenor to operate behind NAT firewalls to translate internal IP addresses into public addresses

when a VoIP call is established with an outside party.

• Remote Management for anywhere, anytime remote management even behind NAT firewalls with Quintum's Remote
Management Session Server.

Tenor and Tenor S now assure that VoIP can be deployed easily in existing voice and data networks, offering unmatched voice
quality and survivability, network-wide scalability, and easy, secure remote management for installation, configuration, upgrades,
troubleshooting and repair. All this adds up to lower TCO than any other VoIP solution on the market!

* Available for an additional cost

Tenor AS MultiPath Switch

CALL MANAGEMENT FEATURES

• Automatic call type detection: Voice/Modem/Fax

• Answer and Disconnect Supervision

• Trunk group support

• Public and private dial plan support

• User programmable dial plan support

• Forced IP routing and IP port mapping

• Pass-through support for calls to Toll-Free, local and
special service numbers (ie. emergency services)

TECHNICAL SPECIFICATIONS

Telephony Specifications

• Voice algorithms: G.723.1a, G.729ab, G.711

• Auto codec negotiation

• Fax Support: Group III at 2.4, 4.8, 7.2, 9.6, 14.4 Kbps,
using industry standard T.38; Super G3 compatible up
to 33.6 Kbps

• Modem support with G.711

• Choice of 2 or 4 FXS and/or FXO configurations

• Standard RJ-11 connectors

• Loop Start, Reverse Battery, Battery Disconnect

• Maximum Call Rate: 900 calls/hour

IP Network Specifications

• LAN Interface: Fast Ethernet port (10/100Base-T)

• Standard RJ-45 Interface (IEEE 802.3) for 10Base-T
or 100Base-TX connections

• DHCP Client

• QoS Support: IP TOS, DiffServ

• Coding: A law, µ law

• Enhanced (Carrier Grade) Echo Cancellation: ITU Rec.
G168, up to 128 msec tailsize

• Automatic appending and stripping of digits to dialed
numbers

• Call Detail Records

• Least cost routing with external Quintum VoIP Call
Routing Server*

• Type I Caller ID/Name support (Telcordia, ETSI, NTT
and DTMF)

VoIP Network Specifications

• H.323 v.3 Gateway and Integrated Gatekeeper+

• Support for multiple SIP User Agents (RFC3261 compliant endpoint)

• DTMF Signaling via RFC2833 or SIP Info

• SIP Supplementary Services

• Message Waiting Indicator

• SIP Refer Method support

• IVR/RADIUS server support for AAA with integrated multi-lingual IVR

• Adaptive Voice Activity Detection (VAD) with Comfort
Noise Generation (CNG)

• Adaptive Jitter Buffer

• Packet Loss Concealment

• NATAccess™ - NAT/Firewall

• Security: IP Filtering

• Up to 4 simultaneous VoIP calls

• Support for DNS-SRV

• Survivability - (Option only available in ASM Series)

• SIP Outbound Proxy

• Supports up to 50 SIP endpoints

Configuration / Management

• Quintum Tenor Configuration Manager (GUI) for
configuration of remote individual Tenors

• Quintum Tenor Monitor (GUI) for alarm monitoring,
call monitoring and CDR monitoring

• SNMP-v2 Agent

• Command Line Interface

GENERAL SPECIFICATIONS

Dimensions: 1U High Chassis

W 10 1/8" x H 2" x D 7"
W 24.5cm x H 5.1cm x D 18.73cm

• Maximum weight: 3.5 lbs. (1.6kg)

• AC Power: 100-240 Volts AC, 50/60 Hz, 35 watts

• Operating temperature: 40° - 104° F (5° - 40° C)

• Operating humidity: 10% - 90% non-condensing

• Telco: FCC Part 68, AS/NZ 3260:
1997: AS/ACIFS002:2001

• EMC: FCC Part 15 Class B

• Safety: UL-1950, ACA TS001:1997

71 James Way, Eatontown, New Jersey 07724
1-877-SPEAK-IP .Tel [phone] .Fax [phone]

www.Quintum.com

Tenor AS

Series

2 Simultaneous

VoIP Calls

4 Simultaneous

VoIP Calls

MultiPath

ASM Series

2 FXS / 2 FXO 2 FXS / 0 FXO

4 FXS / 4 FXO 4 FXS / 0 FXO

Station Gateway

ASG Series

* Quintum product purchased separately

+ Original Quintum Tenor Only

Rev. 7
