Quiksilver Technical Division FL370, FL502 Users Manual

USER’S MANUAL

http://www.quiksilver-europe.com/deepx

1

?fnkfn\XipflinXkZ_

()*

+,-

?fnkfi\dfm\pflinXkZ_

(

+

)

*

Introduction

The ”DEEP X System” (patent pending) is Quiksilver’s most advanced tide watch. It features a tide data library for up to
2000 surf spots around the world (Deep model), the most accurate tide information available and also includes a numeric value for
tide height. The tide information contained in your DVD (and then in yout watch) was calculated by a professional oceanographer
based on the exact latitude/longitude of the coastline shape, islands and coast retraction.

Your DeepX tide watch was developed with the help of our Quiksilver team riders around the world and passed all our tests in
the heaviest waves on the planet. DeepX is more accurate than most tide charts for individual locations because our tide information
was calculated specifically for every surf spot, instead of using the tide information of the closest harbour like most tide charts do.

The DEEP X system has been developed to produce consistent tide data globally. In addition, data for the DEEP X has been
calculated for each specific surf spot to render the most accurate tide predictions possible. Please consider that tide predictions are
based on specific harmonics and unpredictable conditions do affect the tides.

This data is not to be used for navigation.

Wear your new DeepX tide watch by Quiksilver and enjoy being at the right place at the right tide. Happy surfing!

2

DEEP X pack includes

DVD
including Tide & Sunset/Sunrise data, surf
spot information and multimedia for 2.000
beaches worldwide

for Radio Frequency transmission

DEEP X watch

USB Stick

DVD content

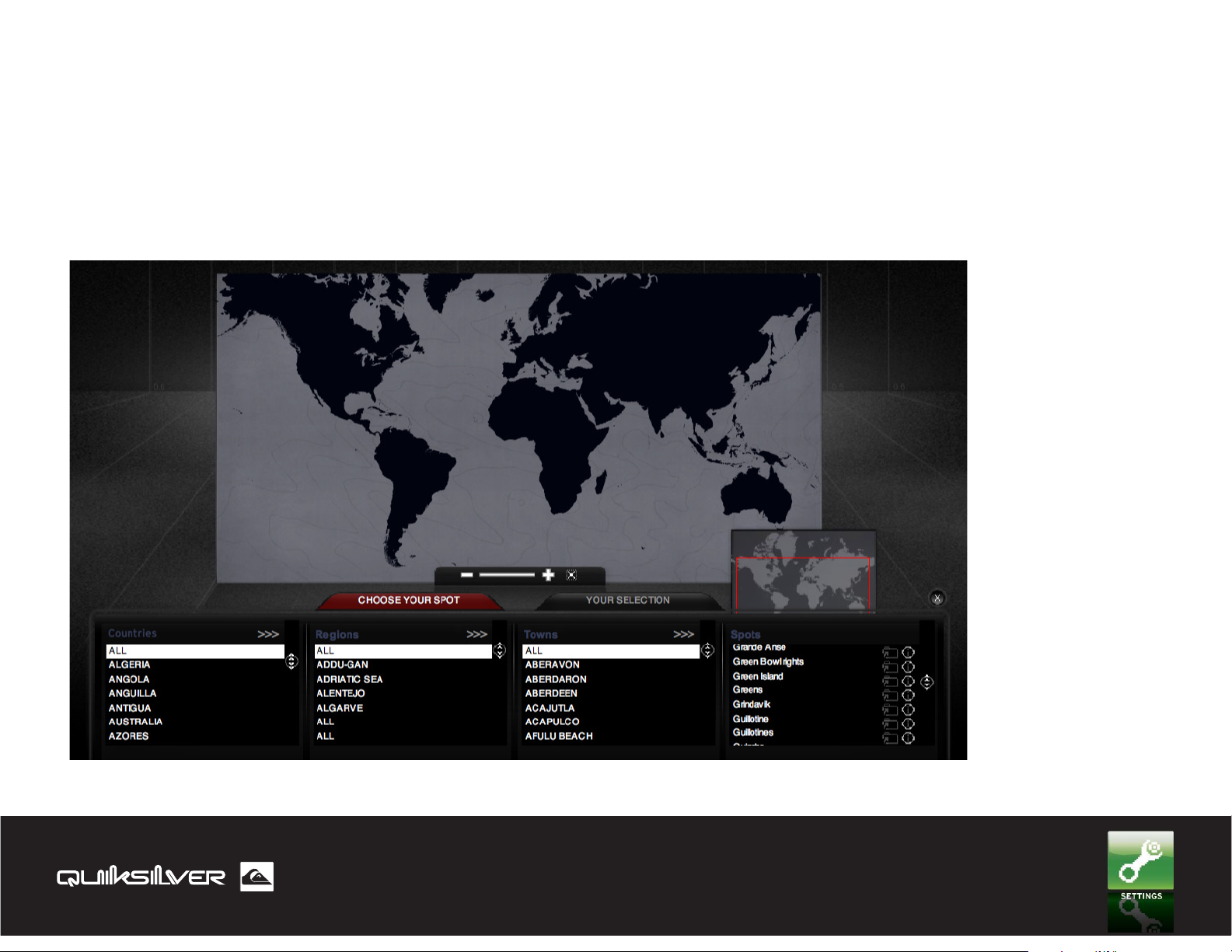

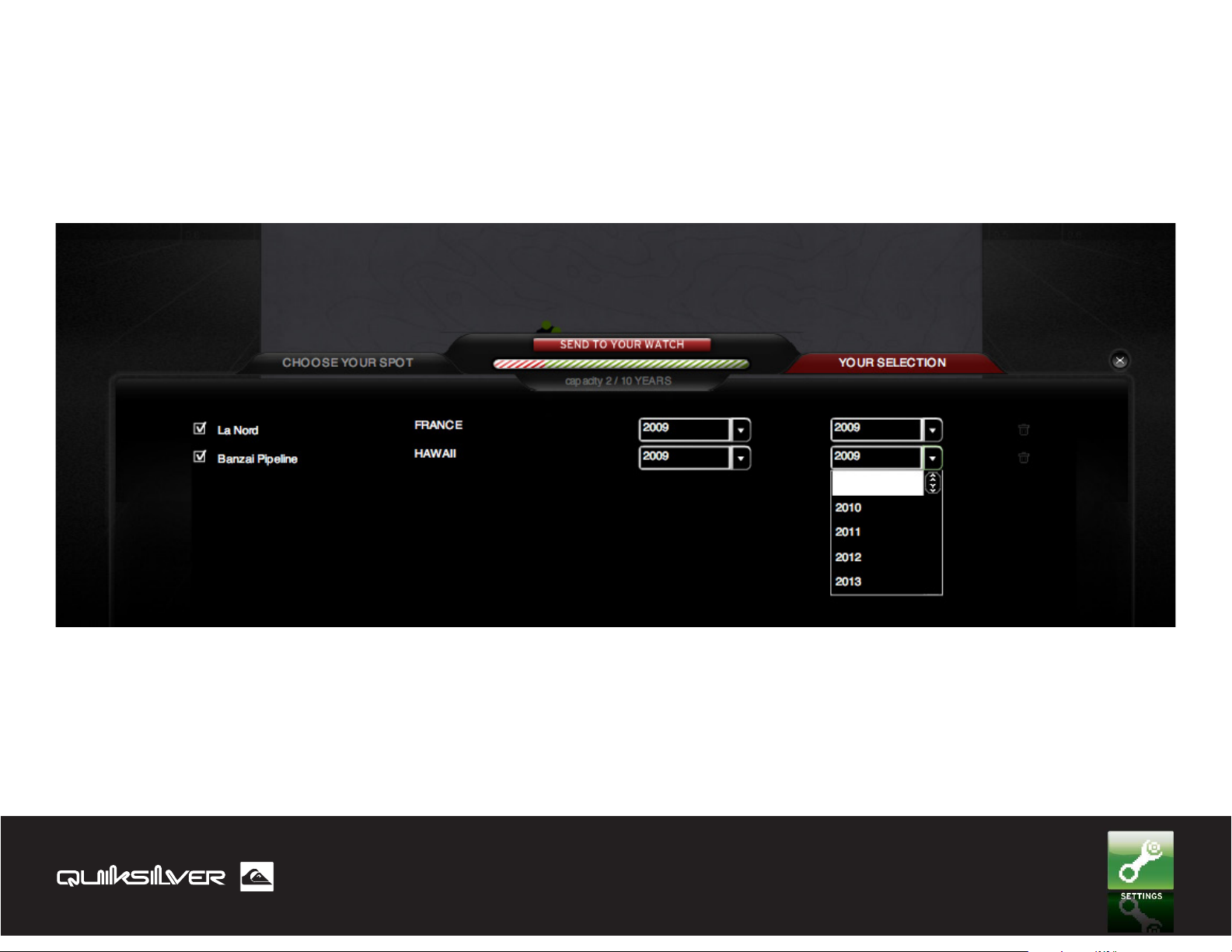

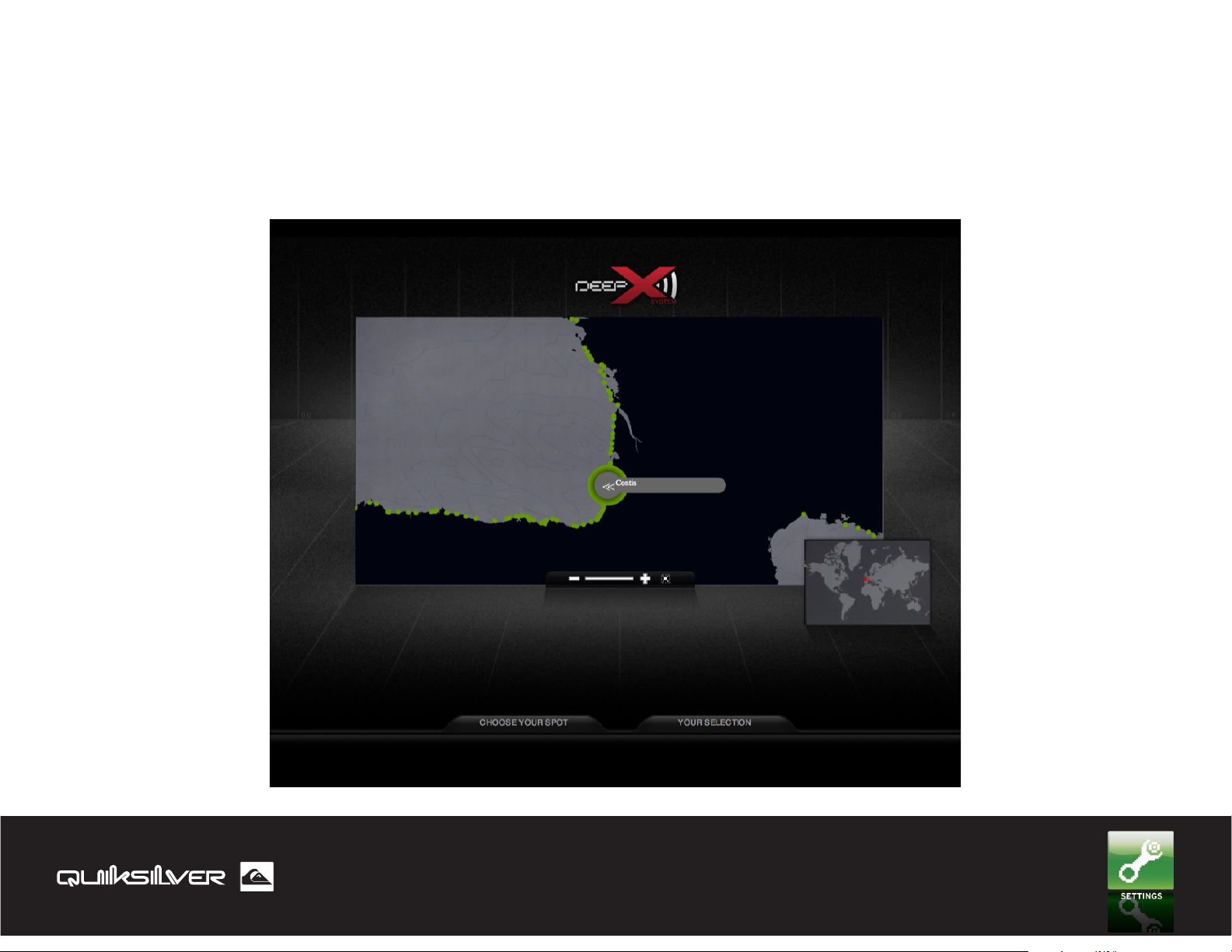

Data upload software Windows & Mac OS compatible
Tide, Sunset/Sunrise data for 2.000 spots worldwide
Map & spot photos

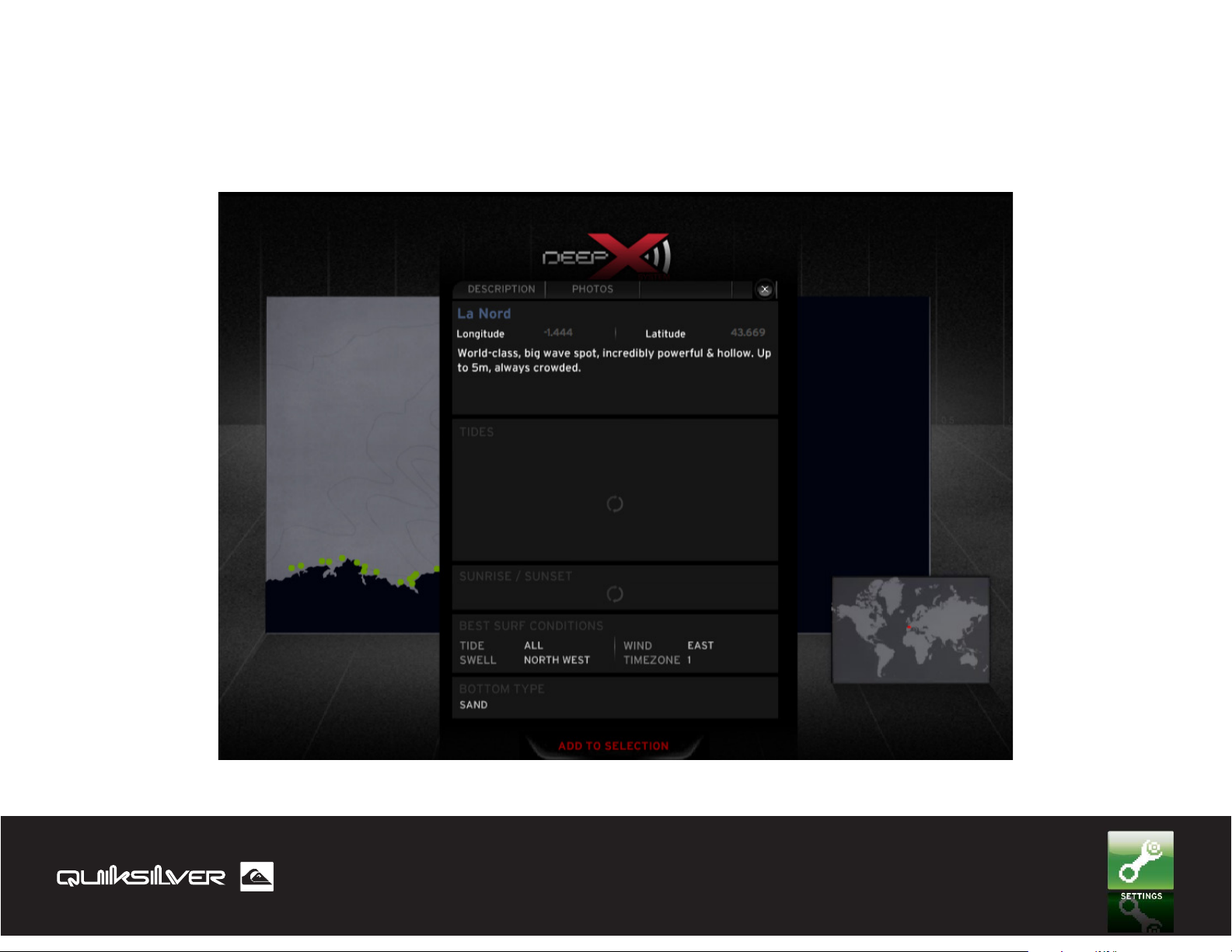

Specific spot descriptions: longitude, latitude, time zone, best surf conditions such as best tide range, best swell & wind
direction and ocean floor variations for each spot
DeepX tutorial & instruction manual
Quiksilver movie clips

3

Tide movement feature

USER FRIENDLY MENU

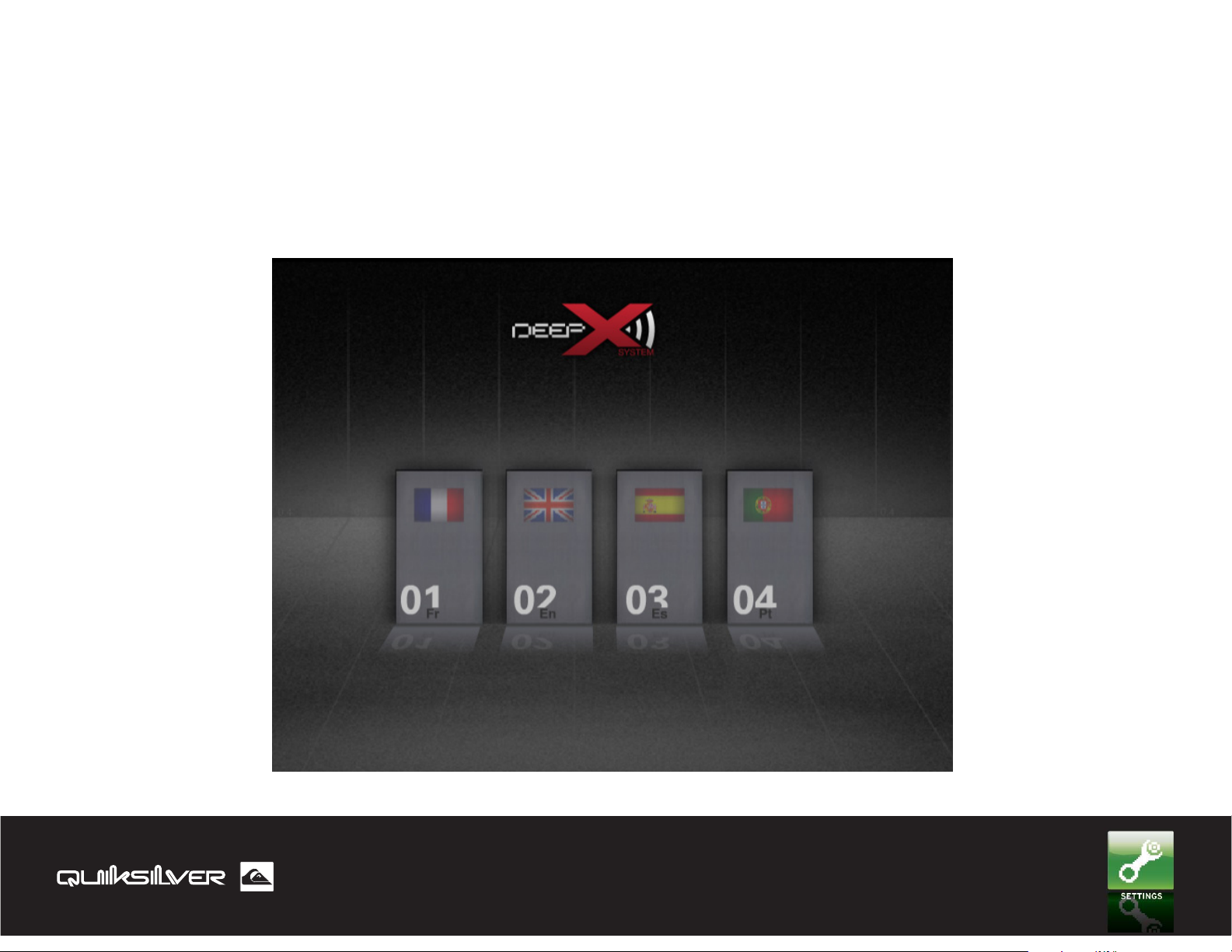

DIFFERENT OPERATION SYSTEM LANGUAGES
(English, Spanish, French, Portuguese)

WIRELESS DATA TRANSMISSION WITH INFORMATION FROM
DVD/ COMPUTER TO DEEP X

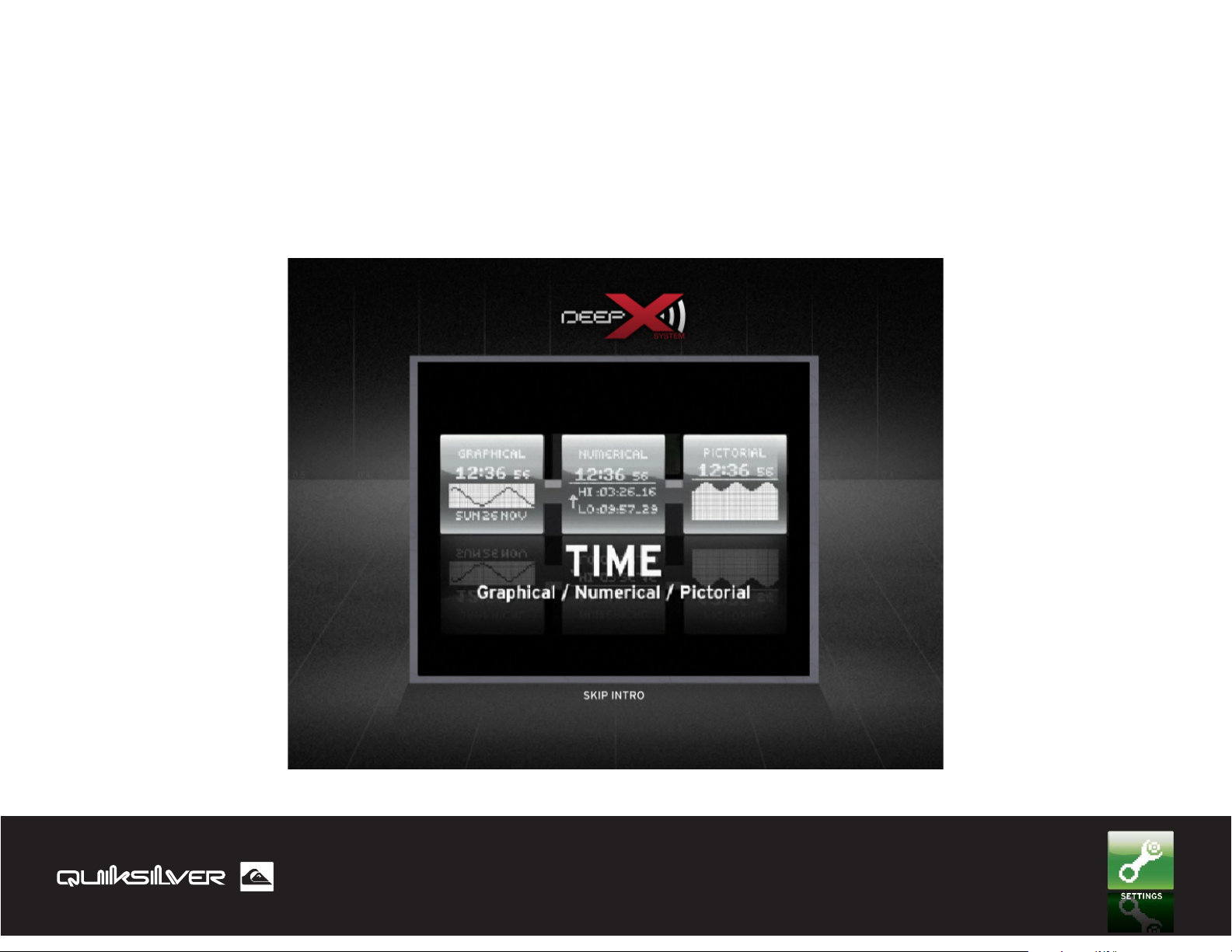

TIME

Display time (hours, minutes
& seconds) in 12 or 24h format,
date, tide, Sunset/Sunrise
& moon phase information

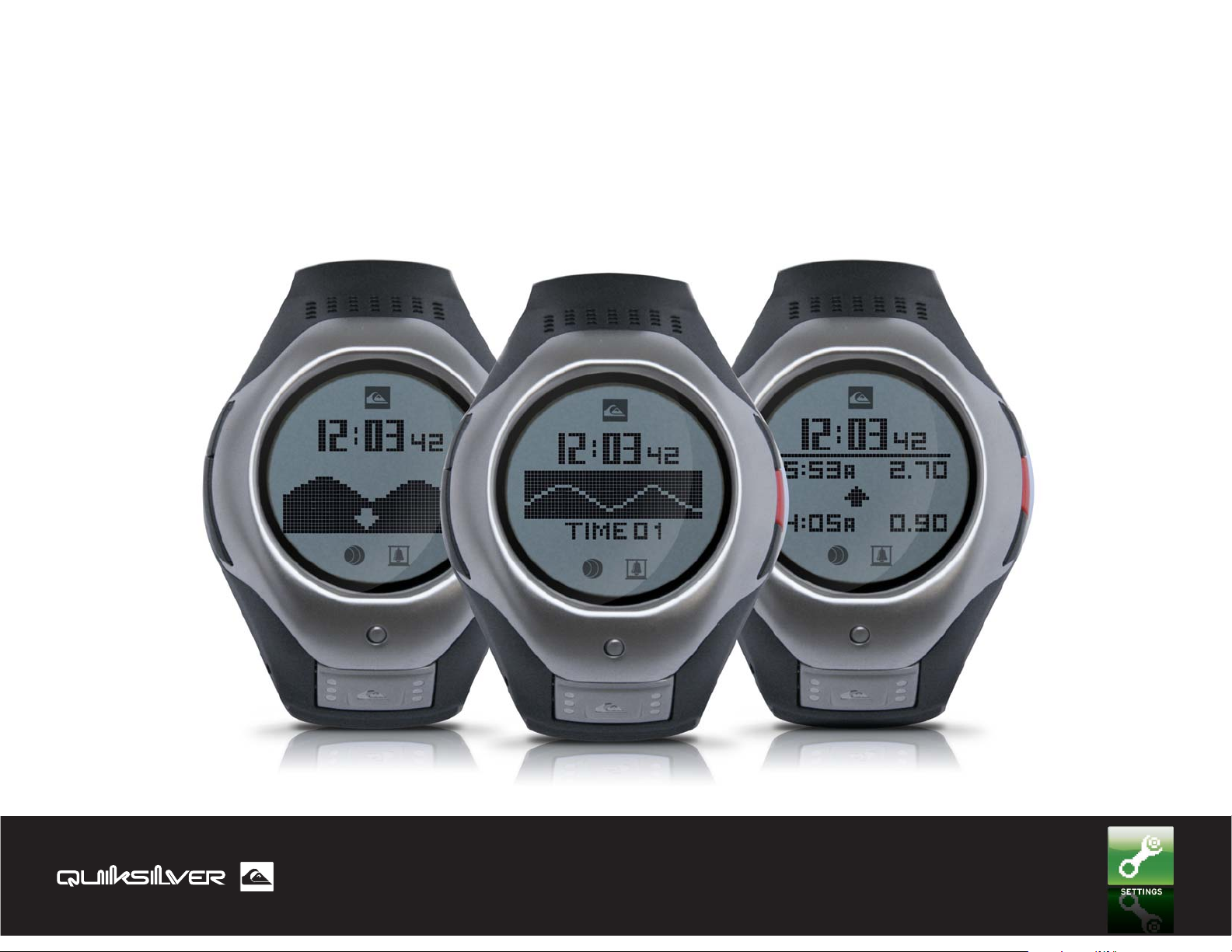

3 different display modes:
graphical, numerical, pictorial
World time (24 cities)
DST setting

4

TIDE

Stores a maximum of 10 years
of data (1 spot on 10 years to 10
spots on 1 year).

Today’s tide: with numeric
water height reading.

Future tide: set your date to
get the tide information
instantaneously.

Spot info: best swell direction, best
wind orientation, best tide range,
bottom tide

Sunset / Sunrise

Customised spot: use published
informations to set the tide for your
own secret spot

Tide Alarm: designed to notify the
best tide to go surfing.

COMPASS

TEMPERATURE

HEAT TIMER

CHRONOGRAPH

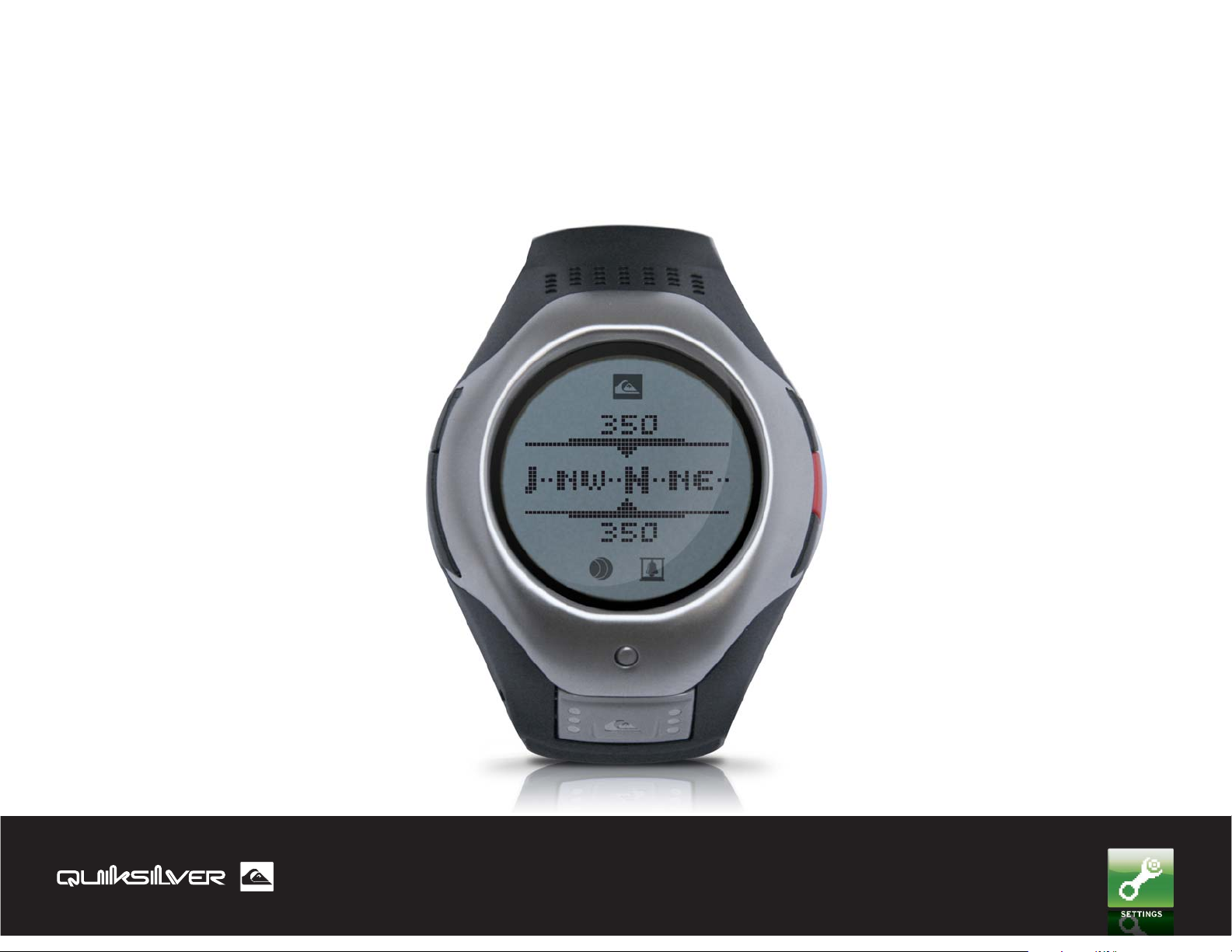

Digital compass
(1° resolution) with graphical
animation showing the 8
cardinal points.

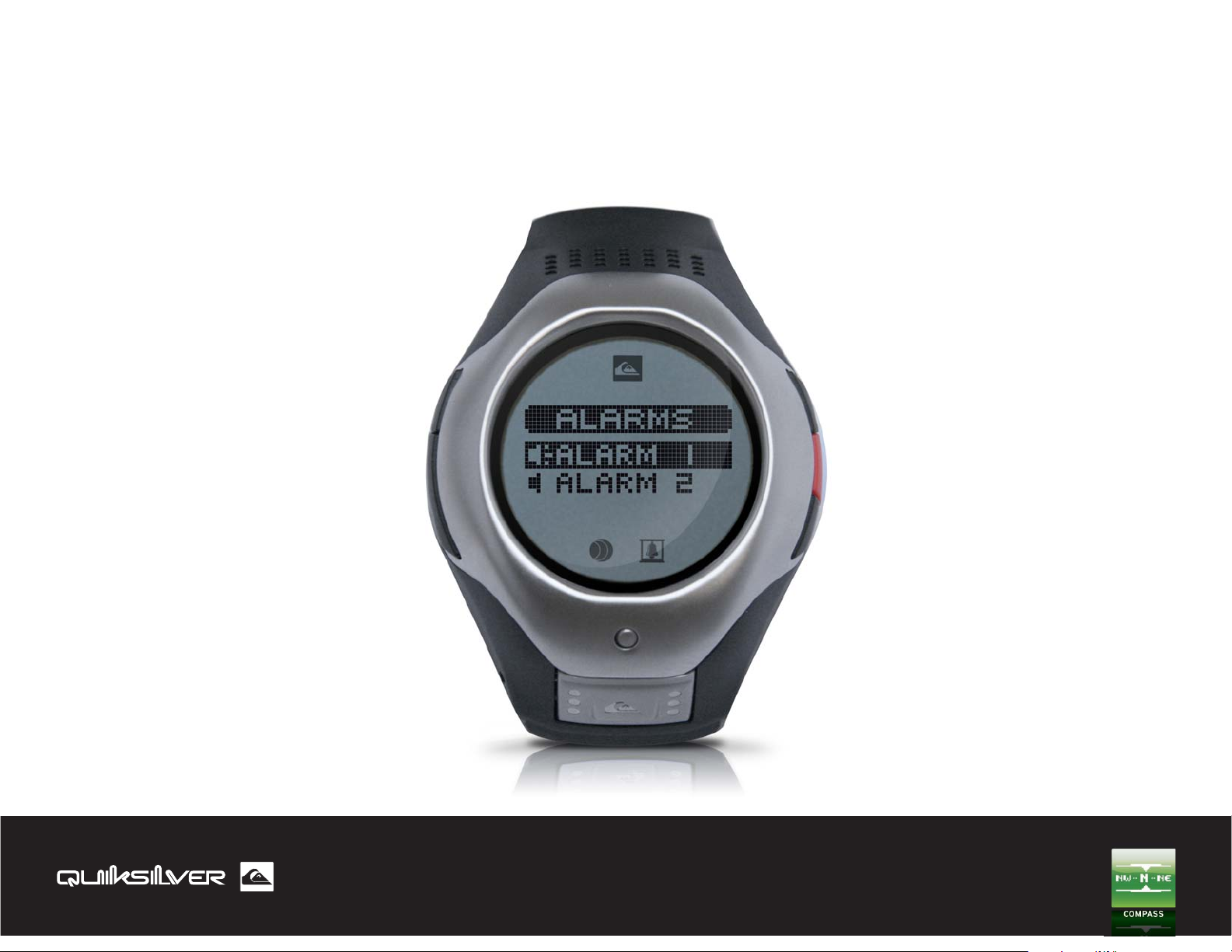

ALARM

2 independent alarms
Each alarm is programmable to
3 alerts: daily, weekly or once.

KEY LOCK FUNCTION

designed to prevent accidental
settings being made to your
watch while you’re engaged in
your favourite sport.

Digital thermometer with
graphical animation.

SLEEP MODE (for saving
power)

ONE TOUCH BACK-LIGHTING

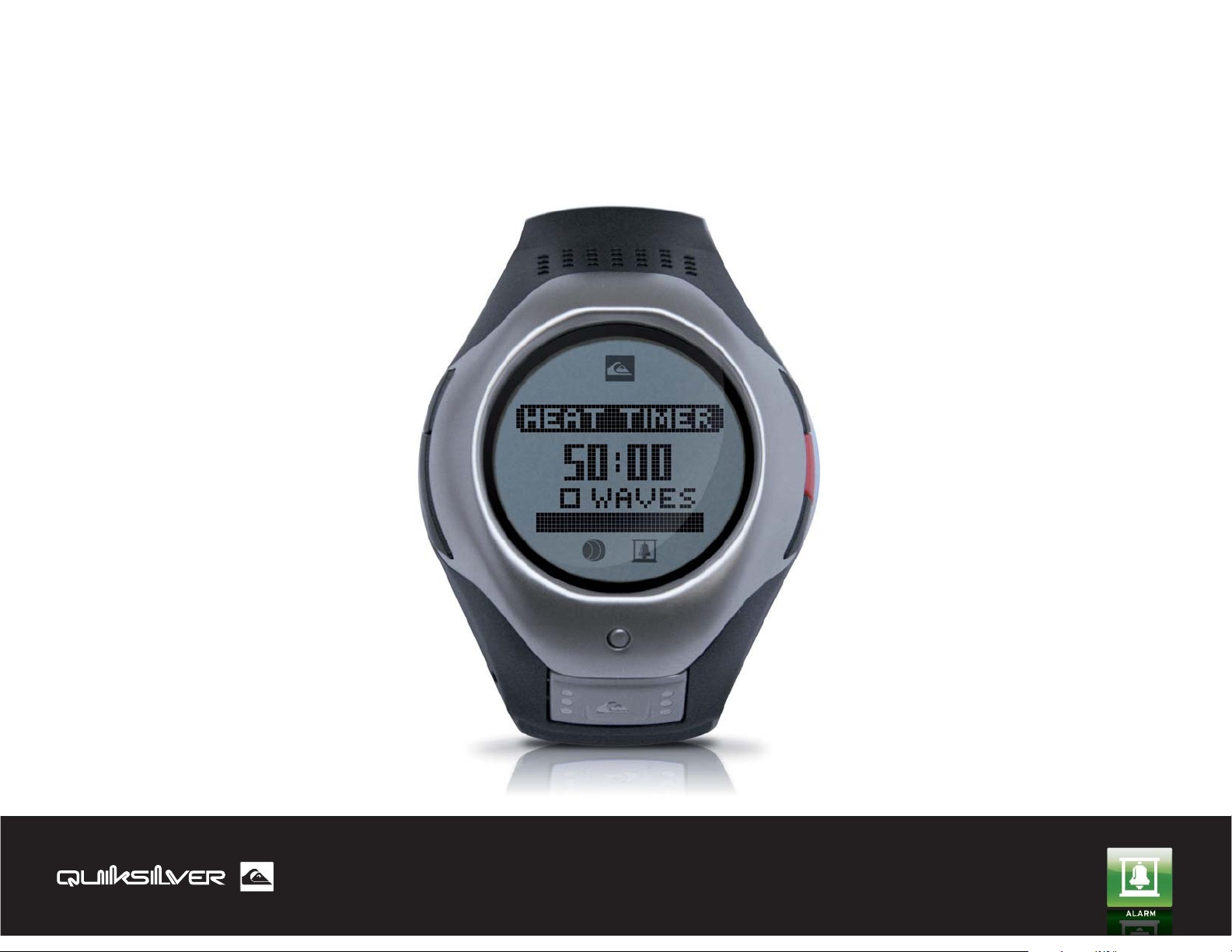

Special countdown timer with
graphical animation designed
for surf contests. It can also
be used for timing your surf
sessions and counting the
number of waves you catch.

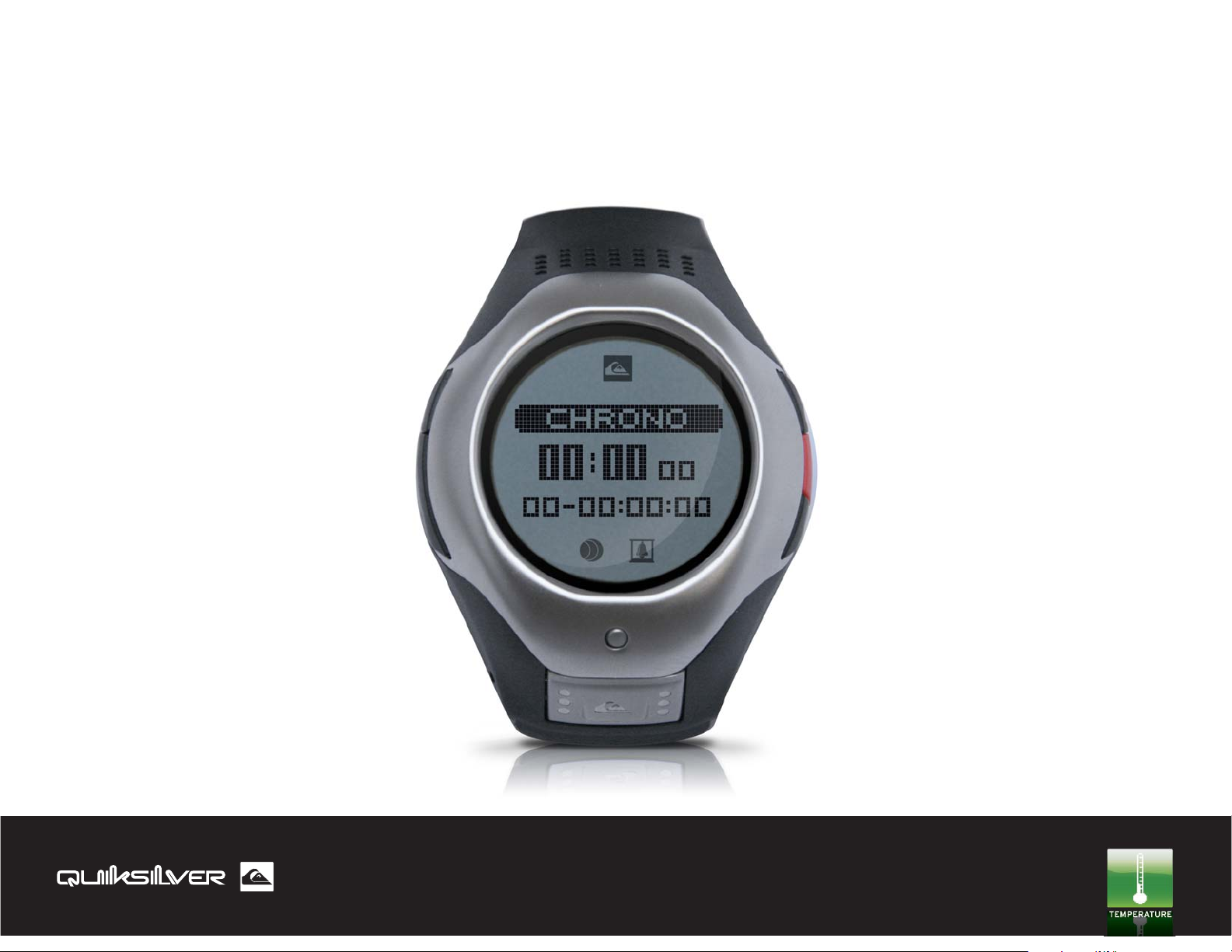

1/100 seconds resolution up
to one hour, 1 second resolu­tion up to 100 hours.
Track your work out perfor­mances by analyzing and
storing your results (numbers
of laps, time/lap, fastest lap)

5

Navigation

(+)UP,

Light

Menu/Back

Increase value

Set/Select

(-) DOWN
Decrease value

DeepX consists of 8 different modes, namely:

1. Menu

2. Time of Day

3. Tide

4. Compass

6

5. Temperature

6. Heat Timer

7. Chrono

8. Alarm

9. Settings

APP MENU

7

APP MENU

1.0 Display Map

8

APP MENU

1.1 Menu Hierarchy

MENU TIDE

TODAY'S TIDE

FUTURE TIDE

SPOT INFO

CUSTOMIZE

LOCAL SPOT

<beach list>

<beach list>

<beach list>

SET NAME
SET SPOT
SET DATA
CLEAR

<beach list>

<date list>

Removes
the
Custom
Beach
from the
beach list

TIDE ALARM

<beach list>

ALARM
ON/OFF

SET
TIDE

<tide events>

9

APP MENU

1.1 Menu Hierarchy

BACK

MENU COMPASS

MENU TEMPERATURE

MENU

DECLINATION
CALIBARATION

HEAT TIMER

BACK
RESET
SET TIMER

10

APP MENU

1.1 Menu Hierarchy

Saves
and
Resets
the
current
Chrono
Run

MENU

CHRONO

BACK

SAVE

RESET

VIEW LOG

DELETE LOG

DELETE ALL

<log list>

<log list>

Resets
the
current
Chrono
Run
without
saving

CONFIRM
DELETE

NO
YES

11

APP MENU

1.1 Menu Hierarchy

MENU

ALARM

ALARM 2

ALARM 1

ALARM ON/OFF
SET TIME
SET TYPE

SET DAYS

ALARM ON/OFF
SET TIME

SET TYPE

SET DAYS
MON
ON/OFF
TUE
ON/OFF
WED
ON/OFF
THU
ON/OFF
FRI
ON/OFF
SAT
ON/OFF
SUN
ON/OFF

MON
ON/OFF
TUE
ON/OFF
WED
ON/OFF
THU
ON/OFF
FRI
ON/OFF
SAT
ON/OFF
SUN
ON/OFF

12

APP MENU

1.1 Menu Hierarchy

12/24HR

TIME

SET TIME

SET DATE

°C
°F

UNITS

TEMPERATURE

TIDE

METERS
FEET

ENGLISH

MENU

SETTINGS

LANGUAGE

<downloaded

COEF

language>

TONES

KEYTONES
HOURLY

CHIME

SLEEP

SLEEP ON/OFF

TIDE CHIME

SET TIME

DOWNLOAD

1.2 Notes

If a banner or a selected menu item is long enough to go beyond the display area, it will scroll down.
By default, pressing the MENU button goes up one level the menuhierarchy, while pressing the SET button goes down one level.
Pressing and holding the MENU button for 3 seconds directly goes back to the Time App, regardless of what mode or level one
is in.

13

TIME APP

14

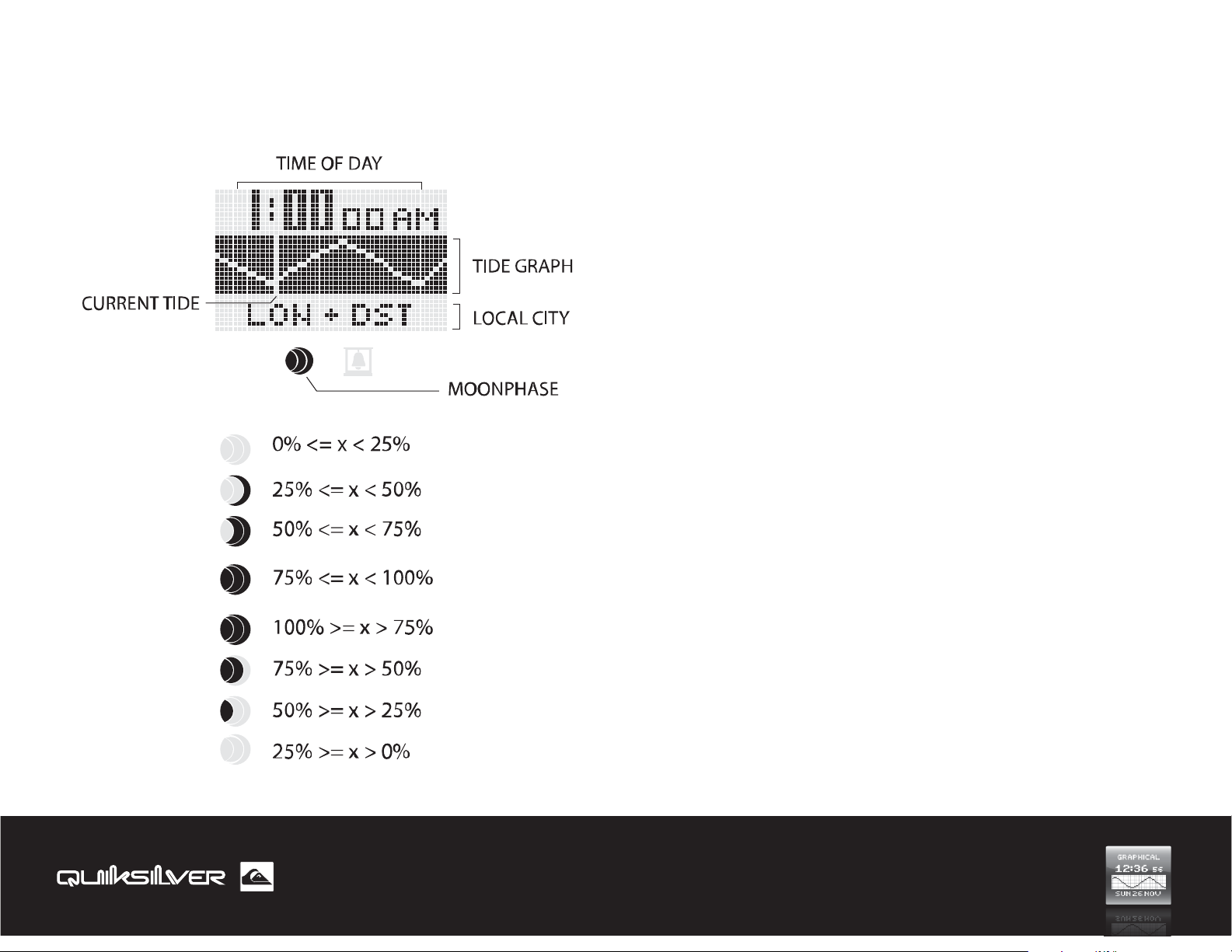

TIME APP

1.1 Display Map 1.2 Quick Tide

Pressing the SET button while in Time mode will go to the Quick
tide function and will allow you to get tide, water height,
sunrise/Sunset information (for the local spot) by pressing only 1
pusher.

In Time mode, pressing the (+) button will scroll through the
next tide status with a 30mins interval. Both the Time displayed
and the tide graph rendered will be updated.

Pressing the MENU button or if a 3 sec timeout occurs will
change the screen back to the Time.

15

TIME APP

1.3 World Time & DST

Pressing the (-) button while in Time mode will go to the World time function and will allow you to know the
actual time all over the world. Pressing the (-) button again will scroll through the next world cities.
See below the list of cities:

Time Zone City Name City Code Time Reference
1 London LON 0:00
2 Paris PAR 1:00
3 Cairo CAI 2:00
4 Moscow MCW 3:00
5 Dubai DXB 4:00
6 Aktyubinsk AKT 5:00
7 Almaty AMY 6:00
8 Bangkok BKK 7:00
9 Hong Kong HKG 8:00
10 Tokyo TYO 9:00
11 Brisbane BRI 10:00
12 Sydney SYD 11:00

If DST is ON, the word “+ DST” will appear beside the World Time City code.

Time Zone City Name City Code Time Reference
13 Anadyr ANR 12:00
14 Wellington WLG 13:00
15 Honolulu HNL 14:00
16 Anchorage ANC 15:00
17 Los Angeles LOS 16:00
18 Denver DEN 17:00
19 Chicago CHI 18:00
20 New York NYC 19:00
21 Caracas CCS 20:00
22 Rio de Janeiro RIO 21:00
23 Fernando de Noronha FER 22:00
24 Praia PRA 3:00

16

TIME APP

1.4 Key lock function

1.6 Boundary Conditions

This mode is designed to prevent accidental settings being
made to the Deep X while you’re engaged in your favourite
sport.
Press and hold MENU & SET buttons and « KEYS LOCKED »
will be displayed confirming that the buttons are locked.
To deactivate the function, again press and hold MENU & SET
buttons. « KEYS UNLOCKED » will be displayed confirming
that the buttons are unlocked.
You will be able to use all your Deep X’s functions again.

1.5 Power-On Defaults

Time - 12:00AM
Date - 01 JAN 2007
Format - 12H
DST - OFF
World Time City - London

Hour 1 to 12 (12H); 0 to 23 (24H)
Minute 0 to 59
Second 0 to 59
Year 2000 to 2099
Month JAN, FEB, MAR, APR, MAY, JUN, JUL, AUG, SEP, OCT,
NOV,DEC
Date 01 to 28, 29, 30, 31 (depending on MONTH)
DST ON or OFF
Format 12H or 24H
World Time Cities

17

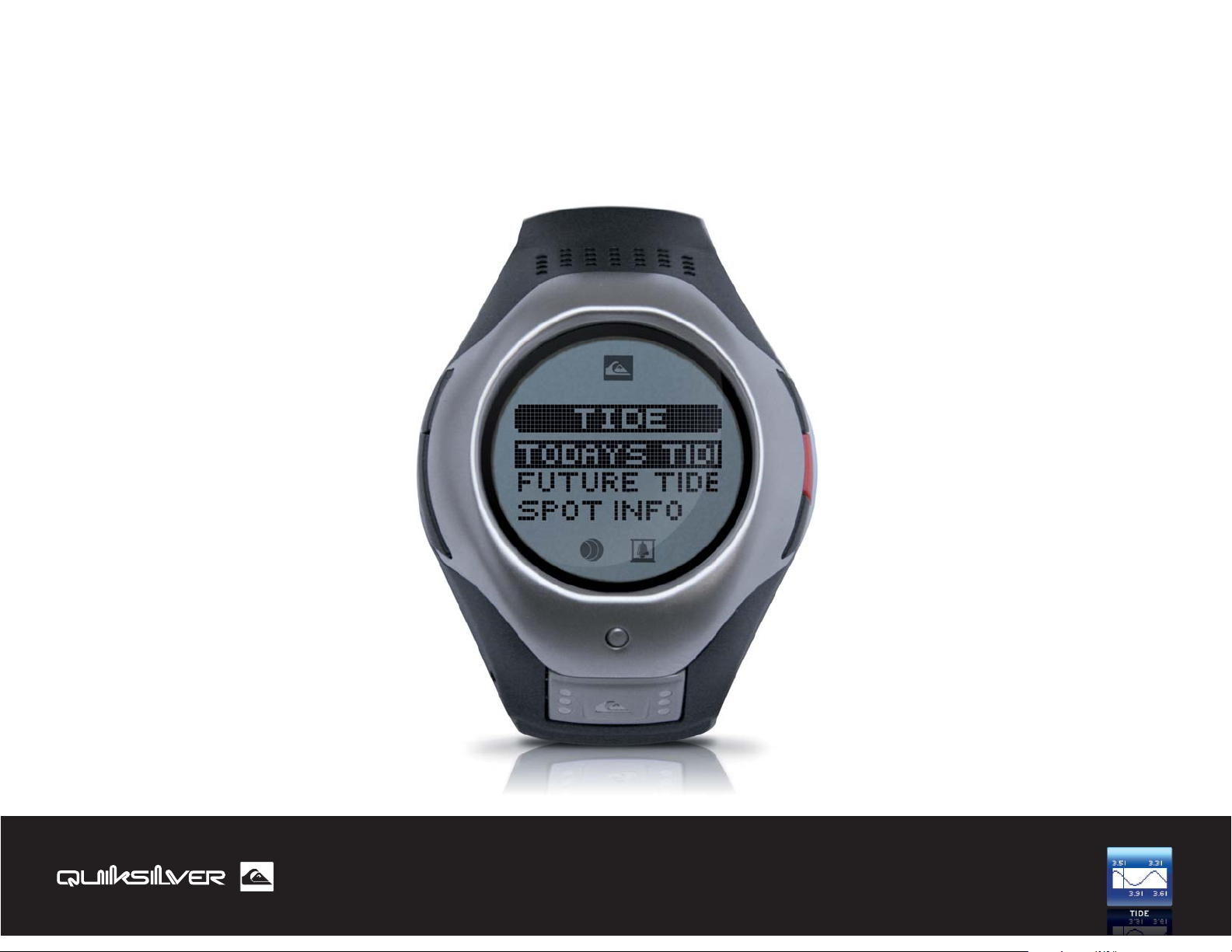

TIDE APP

18

TIDE APP

1.1 Today’s Tide

1.3 Spot Info

This function allows you to know the tide information of the
day.
You can browse the spots, between the beaches you uploaded
to the Deep X, by pressing (+)/(-) buttons. The local spot will
always be the first to be highlighted. Once the spot selected by
pressing on SET pusher, pressing the (+) or (-) button will scroll
through the next/previous tide info with a 30mins interval.
Both the Time displayed and the tide graph rendered will be
updated. Pressing SET will display in sequence tide info
banner, tide time, tide height, sunrise/sunset of selected spot.

1.2 Future Tide

This function allows you to know the tide information of a
specific date. You can browse the spot between the beaches
you uploaded to the Deep X by pressing (+)/(-) buttons.
The local spot will always be the first to be highlighted. Once
the spot selected by pressing the SET pusher, press (+)/(-)
button to scroll through the calendar. Select a date by pressing
SET and it will display in sequence tide info banner, tide time,
tide height, sunrise/sunset.

This function will give you the surf best or ideal
conditions for a selected spot: BEST TIDE RANGE, BEST
SWELL & WIND ORIENTATION AND KIND OF BOTTOM
(ocean floor).

1.4 Customise

There is a huge tide, sunrise/Sunset & spot info data Library
that features some of the most popular surf spots around the
world. If you cannot find your target beach from the list of tide
Library, you can customize the beach that acts as your target
beach. What you can do is:

 =`e[k_\eXd\f]k_\Y\XZ_fek_\;M;k_Xk`jZcfj\jk

to your target beach and look up the time difference on the 1st
High tide between these 2 beaches. You can easily find this
information published on the Internet

 LgcfX[k_\k`[\[XkXf]k_`jZcfj\jkjgfk]ifdk_\;M;kf

your Deep X.

 >fkfK@;<]leZk`fek_\ekf:LJKFD@J<%?\i\pfln`ccY\

able to customise your spot name by selecting SET NAME func­tion: use (+), (-) & SET buttons to enter new spot name. Then,
go back to CUSTOMISE menu and go to SET SPOT to select the
closest beach to your target one. And finally now, you can input
the time difference between these two beaches in SET DATA
mode using (+), (-) & SET buttons.

You can erase a customised spot by using CLEAR function

19

TIDE APP

1.5 Local Spot

1.8 Boundary Conditions

This function will be used to select a beach as local spot. Local
spot corresponds to the graph displayed at the bottom of the
display in time mode. QUICK TIDE function will display tide,
water height, Sunrise/Sunset information for this spot.

1.6 Tide Alarm

This function will help you to set up an alarm based on the tide
of your local spot. You can toggle the alarm ON/OFF pressing
(+) and (-) keys. Then select the tide of day you want the alarm
to based on and input a time difference if you want to be
alerted before or after the exact tide.

1.7 Power-On Defaults

Custom Beach - <cleared>
Custom Beach Name - CUSTOM
Custom Beach Offset - 0min
Tide Alarm - OFF

Max # of custom beach name characters - 8 characters
Character set used: A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,
T,U,V,W,X,Y,Z,
0,1,2,3,4,5,6,7,8,9,<space>,’:’,’.’,’,’,’°’,’-‘,?’,’Ð’,’+‘

20

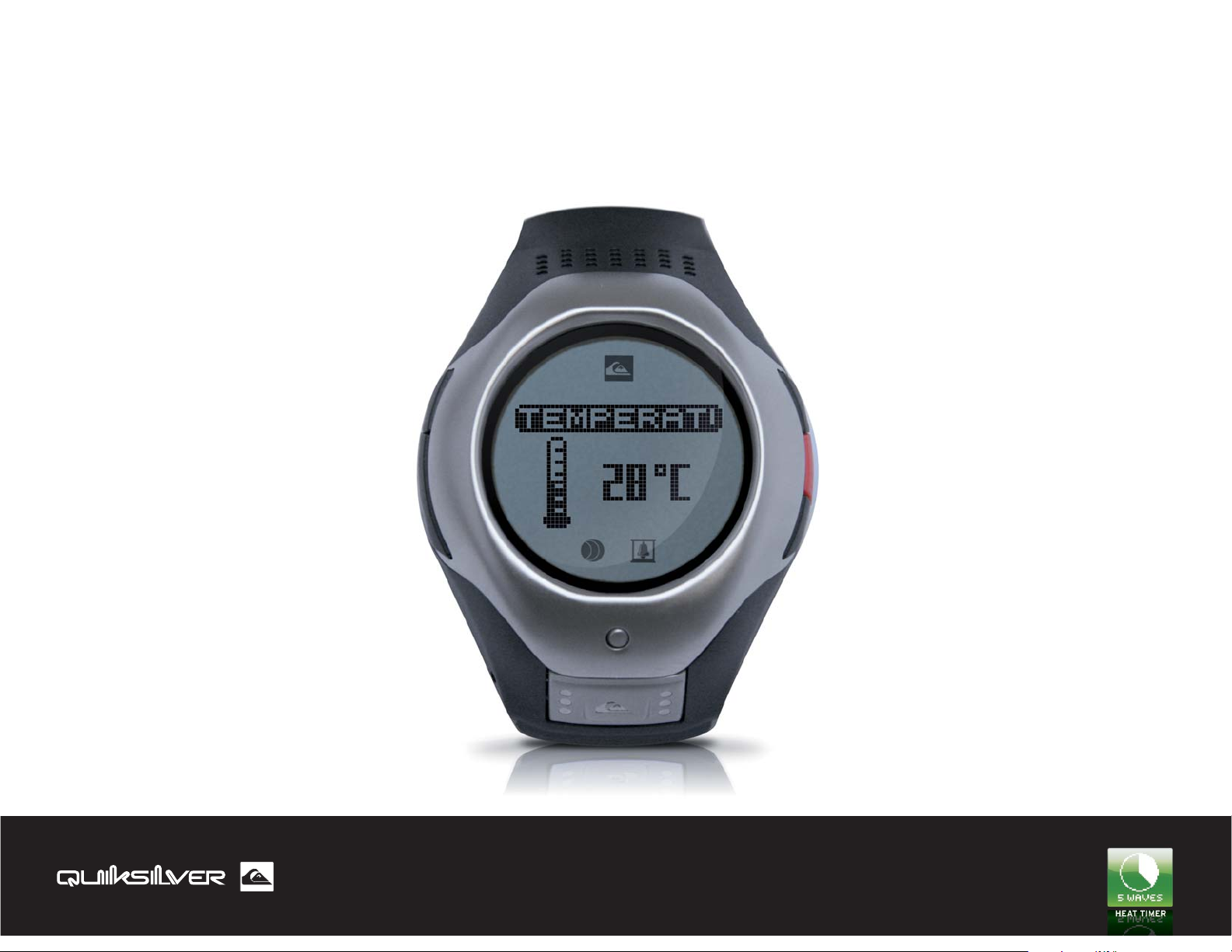

TEMPERATURE APP

21

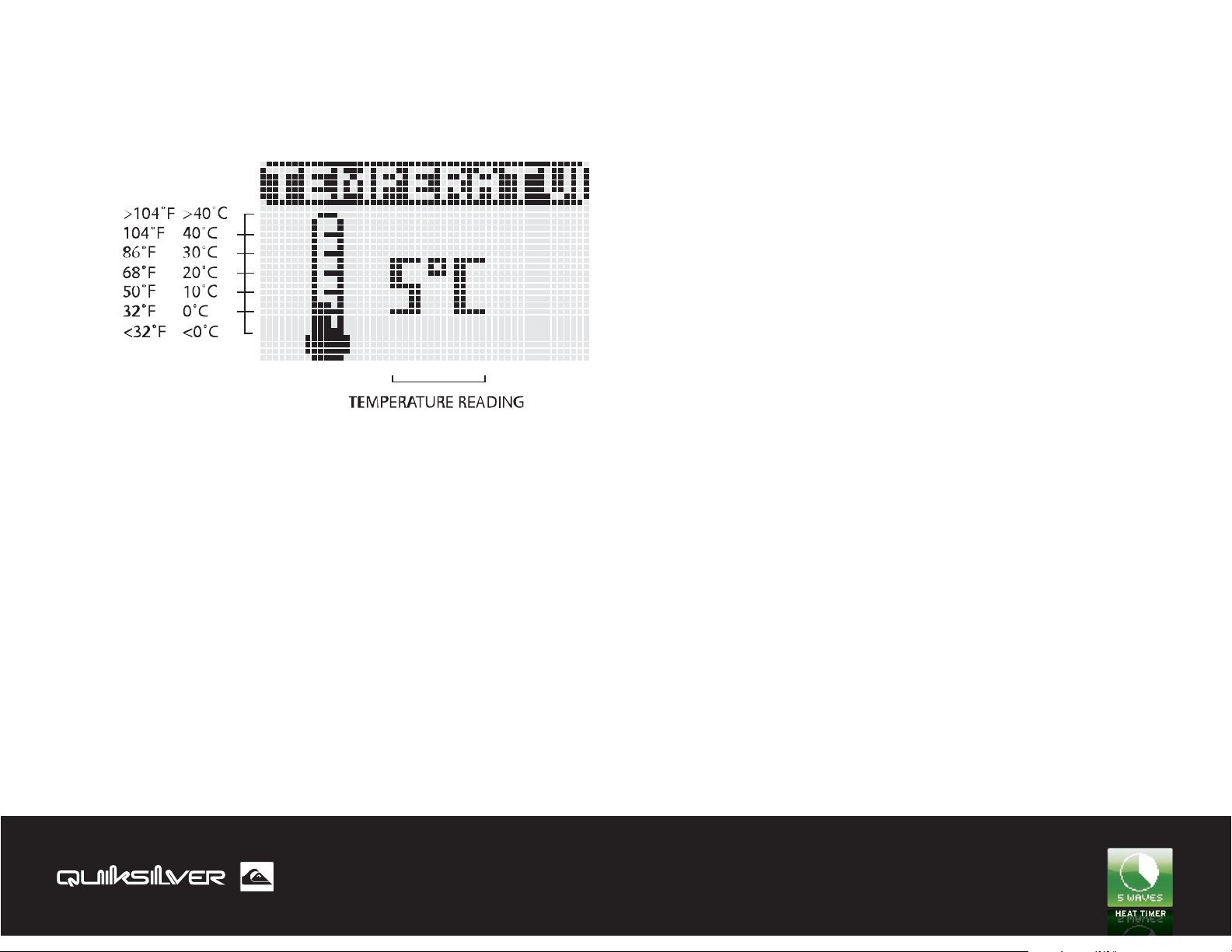

TEMPERATURE APP

1.0 Display Map

1.1 Changing Temperature Unit

You can toggle the unit of measurement between CELCIUS/
FAHRENHEIT pressing (+) and (-) keys, hold for 3 seconds, it
displays back the default unit of temperature set in the Set­tings App.

1.2 Power-On defaults

Value - temperature sensor reading
Unit of Measure - see temperature entries at Settings App

1.3 Boundary Conditions

Value -10°C to 60°C (14°F to 140°F)
Unit of Measure - see temperature entries at Settings App

22

COMPASS APP

23

COMPASS APP

1.0 Display Map 1.3 Power-On defaults

In COMPASS mode, the direction is displayed in the centre
part of the Deep X face.
The angle in degrees is displayed in the upper part of the
display.

While in COMPASS mode, press SET button to go to the
calibrating function. Select CALIBRATE, then from the screen
with arrows, do a complete turn (360°) and press SET button.

Your compass is now calibrated.

1.2 Declination

To compensate for the deviation between magnetic North &
geographic North, you can adjust the offset of the compass.
While in COMPASS mode, press SET button then select
DECLINATION; use (+)/(-) keys to adjust the declination (West
or East). Press SET once complete.

Unit of Measure - Degrees
Calibration Status – Un-calibrated
Declination 0°

1.4 Boundary Conditions1.1 Calibrating

Range - 0-359°
Cardinal Points - N, NE, E, SE, S, SW, W, NW
Declination - 45°W - 0° - 45°E

24

HEAT TIMER APP

25

HEAT TIMER APP

The surf heat timer was designed for surfing in contests, however you can also use
it for timing your sessions and counting the numbers of waves you catch.

1.0 Set Timer 1.2 Notes

While in HEAT TIMER mode, press (-) key and select SET
TIMER, then use (+)/(-) to increase or decrease the flashing
digits.
Timer Menu SET TIMER option could only be set from 5:00 to
55:00 with an interval of 5:00 on each increment/decrement.
Press SET once complete.
Select BACK to go back to HEAT TIMER mode.

1.1 Heat Timer

Press SET button to start the heat timer. You can use this
watch to count the number of waves you catch in your heat.
Press SET key to add waves to your counter. An audio signal
will be displayed at the last 5 minutes and last 30 seconds. A
long signal will be displayed at the end of the timer. When the
Timer is running, the progress bar will decrease in fill, from
right to left, until the Timer expires.
The Heat Timer cannot be stopped or exited from by pressing
any button unless if it is reset. You can reset the heat timer by
pressing on (+) key and selecting RESET function.

The SET TIMER option is only allowed when Heat Timer is
Reset
The BACK option simply exits the Heat Timer menu back to
the Heat Timer Default State. The user cannot stop a running
timer, but can simply reset it.

1.3 Power-On Defaults

Timer Value - 00hr, 00min (reset state)
Wave Count - 0

1.4 Boundary Conditions

Hour - 0 to 99
Minute - 0 to 59
Wave Count - 0 to 99

26

CHRONO APP

27

CHRONO APP

The chronograph in your Deep X is the stop watch, it will help you to track your work out performances by
analyzing and storing your results (lap chrono, total, best lap)

1.0 Chronograph 1.2 Delete Logs

In CHRONOGRAPH mode press SET to start the chronograph.
The lap/split time display begins with 1/100 seconds, then
seconds, then minutes. Press SET to stop the stopwatch. You
can press the SET key to resume the stopwatch. While the
stopwatch is running, press (+) to set a lap.

1.1 Chronograph Info

The SAVE and RESET menu items are only visible when the
Chrono is at Stop state. Once the chronograph is stopped,
press (+) key and select SAVE to store your run info into the
watch memory. Press again (+) key to go back into the chro­nograph menu and select VIEW LOG. Select the correct RUN
# and press SET to go through the data lap by lap. After going
through the lap time of each lap, it will display the total time
and the best lap time.

You can either delete log by log or delete all logs at once. To
delete a specific log, go into stopwatch menu and select DE­LETE LOG. Then select the run # you want to delete and press
SET. To delete all logs, select DELETE ALL and press SET. A
YES/NO prompt will appear, select YES if ok.

1.3 Power-On Defaults

Total Time Value - 00hr, 00min, 00sec (reset state)
Lap Time Value - 00hr, 00min, 00sec (reset state)
Lap Count - 0

1.4 Boundary Conditions

Hour - 0 to 99
Minute - 0 to 59
Second - 0 to 59
Millisecond - 00 to 99
No of Laps - 0 to 99
No of Runs - 0 to 99

28

ALARM APP

29

ALARM APP

DEEP X is offering you 2 different alarms: ALARM 1 & ALARM 2. The alarm icon will be displayed, if one alarm is enabled

1.0 3 Different Alarms Types

The alarm can be daily, weekly or at once.

1.1 Set Up The Alarm

While in ALARM mode, press SET button to go to the alarm
menu. Here you can select Alarm 1 or Alarm 2. In this setting
alarm menu, you can toggle the alarm ON/OFF by pressing the
SET key. Go down with (-) button and select SET TIME to ad­just the alarm, then go back to alarm menu by pressing
MENU/BACK key and select the type of alarm you want to use.

1.2 Power-On Defaults

Alarm time – 12:00 am
Day/s – ALL OFF
Alarm type - DAILY
Status - OFF

1.3 Boundary Conditions

Hour – 1 to 12 (12h format) or 0 to 23 (24h format)
Minute - 0 to 59
Day – MON, TUE, WED, THU, FRI, SAT, SUN
Alarm type – DAILY, WEEKLY, ONCE

30

SETTINGS APP

31

SETTINGS APP

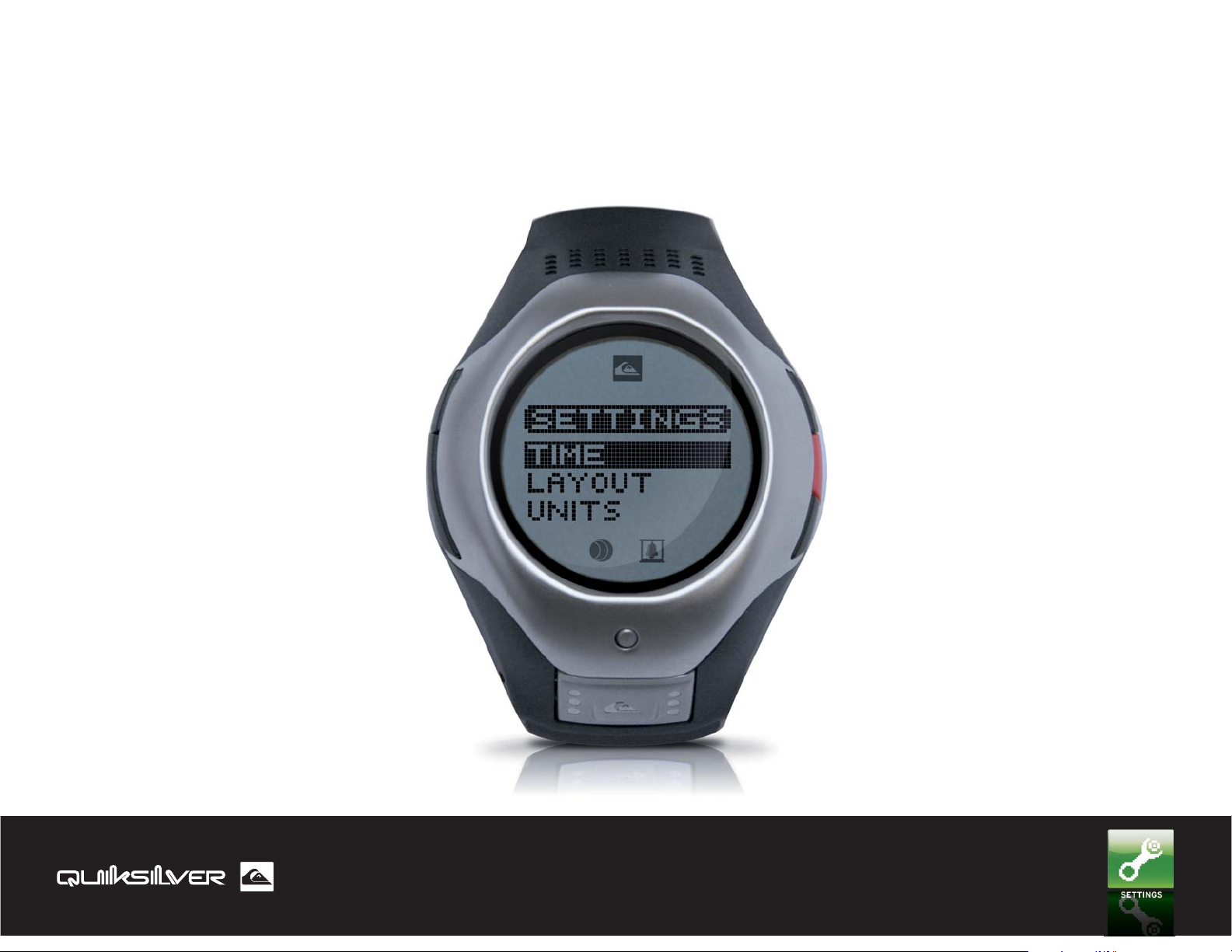

In SETTINGS Menu, you will be able to set all parameters of your watch: Time & date, Tide layout, Units (metric / imperial),
Language, Tone & Sleep mode. A DOWNLOAD function will be used for downloading the tide date from a computer to your DEEP X.

1.0 Time & Date

Go into the time menu and set the 12 / 24h format. Then set
the time & and date using (+) / (-) and SET keys. Once the time
set up is done, go into LOCAL CITY menu to select your time
zone.

Time Zone City Name City Code Time Reference
1 London LON 0:00
2 Paris PAR 1:00
3 Cairo CAI 2:00
4 Moscow MCW 3:00
5 Dubai DXB 4:00
6 Aktyubinsk AKT 5:00
7 Almaty AMY 6:00
8 Bangkok BKK 7:00
9 Hong Kong HKG 8:00
10 Tokyo TYO 9:00
11 Brisbane BRI 10:00
12 Sydney SYD 11:00

Finally, you can set the DST (Day Savings Time / Summer
time) per cities. Go into SET DST and you can toggle the DST
ON/OFF by pressing the SET key

Time Zone City Name City Code Time Reference
13 Anadyr ANR 12:00
14 Wellington WLG 13:00
15 Honolulu HNL 14:00
16 Anchorage ANC 15:00
17 Los Angeles LOS 16:00
18 Denver DEN 17:00
19 Chicago CHI 18:00
20 New York NYC 19:00
21 Caracas CCS 20:00
22 Rio de Janeiro RIO 21:00
23 Fernando de Noronha FER 22:00
24 Praia PRA 3:00

32

SETTINGS APP

1.1 Layout

You can change the way to display the tide in the time mode. You can choose between graphical, pictorial &
numerical. Go into LAYOUT and use (+) / (-) and SET keys to select the tide layout.

33

SETTINGS APP

1.2 Units

You can change the unit for the temperature and tide information.
Go in the UNITS menu, select TEMPERATURE and you can toggle the unit °C / °F by using (+) / (-) and SET keys.
Same thing for tide, select TIDE and you can set the water height unit with METERS, FEET or COEF.

1.3 Languages

Quiksilver developed the DEEP X to be user friendly. You can set here the menu language and choose between En­glish, French, Spanish or Portuguese. Set your correct language and all DEEP X menus will be translated!

1.4 Tones

In this setting mode, you can toggle the key tone, hourly chime & tide chime ON/OFF by using (+) / (-) and SET keys.
The TIDE CHIME function will help you to know if the tide is high or dead low using different tones: increasing bip
tones when tide is low and going to come in and decreasing bip tones when tide is high and out going.

1.5 Sleep

Sleep mode is a bettery saving mode that allows you to set your watch so it turns the display off while you are
sleeping. The watch can be turned back on by simply pressing any button. If any key is pressed including EL while in
Sleep the display will wake up temporarily, and will go back to Sleep after 30 seconds of no key press.
Normal display will resume immediately after the Sleep setting has been turned OFF. If an Alarm occurs while in
Sleep, the display will temporarily wake up for the duration of the Alarm, and goes back to Sleep afterwards.

34

SETTINGS APP

1.6 Download

Once you’re ready to upload data from your computer to DEEP X, press SET key to signal to the computer that DEEP
X is ready to download information. Then press SEND INFORMATION TO DEEP X in the Quiksilver computer software.
While downloading, DEEP X will display a download indicator (from 0 to 100%) and “DONE” message once comple­ted. If any error, DEEP X will display “COM ERROR” message. You can also cancel the download process by pressing
MENU/BACK key and DEEP X will display “CANCELLED” message.

1.7 Power-On Defaults 1.8 Boundary Conditions

Hour format – 12h
Time – 12:00am
Date – 1JAN2007
Temperature unit - °C
Tide unit – METERS
Keytone – OFF
Hourly chime – OFF
Tide chime – OFF
Sleep setting – OFF
Language - ENGLISH

Hour – 1 to 12 (12h format) or 0 to 23 (24h format)
Minute - 0 to 59
Date – 1 to 28, 29, 30 or 31 (depending on month)
Month – JAN, FEB, MAR, APR, MAY, JUN, JUL, AUG, SEP, OCT,
NOV, DEC
Temperature unit - °C, °F
Tide unit – METERS, FEET, COEF
Key tone – ON, OFF
Hourly chime – ON, OFF
Tide chime – ON, OFF
Sleep setting – ON, OFF
Language – ENGLISH, FRENCH, SPANISH, PORTUGUESE

35

SETTINGS APP

RESET FUNCTION

Your DeepX by Quiksilver is equipped with a mini computer and like most computers,
there’s a slight chance that your watch may « freeze » during an operation. In this case,
reset by pressing the LIGHT, MODE, (+), and the (-) button for 5 seconds.

CARE FOR YOUR WATCH

Never try to open the watch case or remove the back.

Avoid exposing the watch to extremes of temperature.

To clean the watch and the wristband, use a soft dry cloth, or a
soft cloth moistened with a solution of water and dilute neutral
detergent. Never use volatile products (benzene, solvents,
powdered cleaning products, etc.)

Store your watch in a dry place whenever you are not wearing
it.

NOTES

The information contained in your DEEP X was calculated by a professional oceanographer. Actual tidal changes may vary due
to unpredicted changes in the weather, climate and coastal environment and Quiksilver accepts no responsibility or liability in
relation to those or any other variations. Always study the ocean, beach and weather conditions before going into the water.
Happy surfing!

36

Avoid getting the watch in direct contact with body lotions, eau
de Cologne, sun cream and other toiletries that might damage
the plastic parts of the watch. Each Vtime that the watch is put
in contact with one of the above products or other toile
tries, wipe it immediately with a clean dry cloth.

Do not make the wristband too tight. You should be able to fit
your f inger between the wristband and your wrist.

Rinse the watch with fresh water after every time you use it in
salt water.

DeepX Computer Software

The ”DEEP X System” (patent pending) is Quiksilver’s most advanced tide watch. It features a tide data library for up to 2000
surf spots around the world (Deep model), the most accurate tide information available and also includes a numeric value for tide
height. For sure, you won’t use all of them, that’s why you can upload the tide and spot information you need from the DVD to the
DEEP X. For example, you can get the tide data for your home spot and also the ones you will need for your next surf trip.

COMPUTER REQUIREMENTS

DEEP X software needs the Adobe flash player 9 to run. Before you launch DEEP X software for the first time, make sure this player
has been installed on your computer or you can install it from the DEEP X DVD. Go into setup directory and install the player. Select
the correct version Windows or Mac according to your computer operating system.

37

DeepX Computer Software

Following your computer operating system, click on DEEPX4win or DEEPX4mac icon to launch the software (you will find those
icons at the root of your DVD).
You can skip the introduction movie by clicking on SKIP INTRO link. This movie clip is introducing all you can do with DEEP X.

38

DeepX Computer Software

Then, click on the language icon (English, French, Spanish or Portuguese).

39

DeepX Computer Software

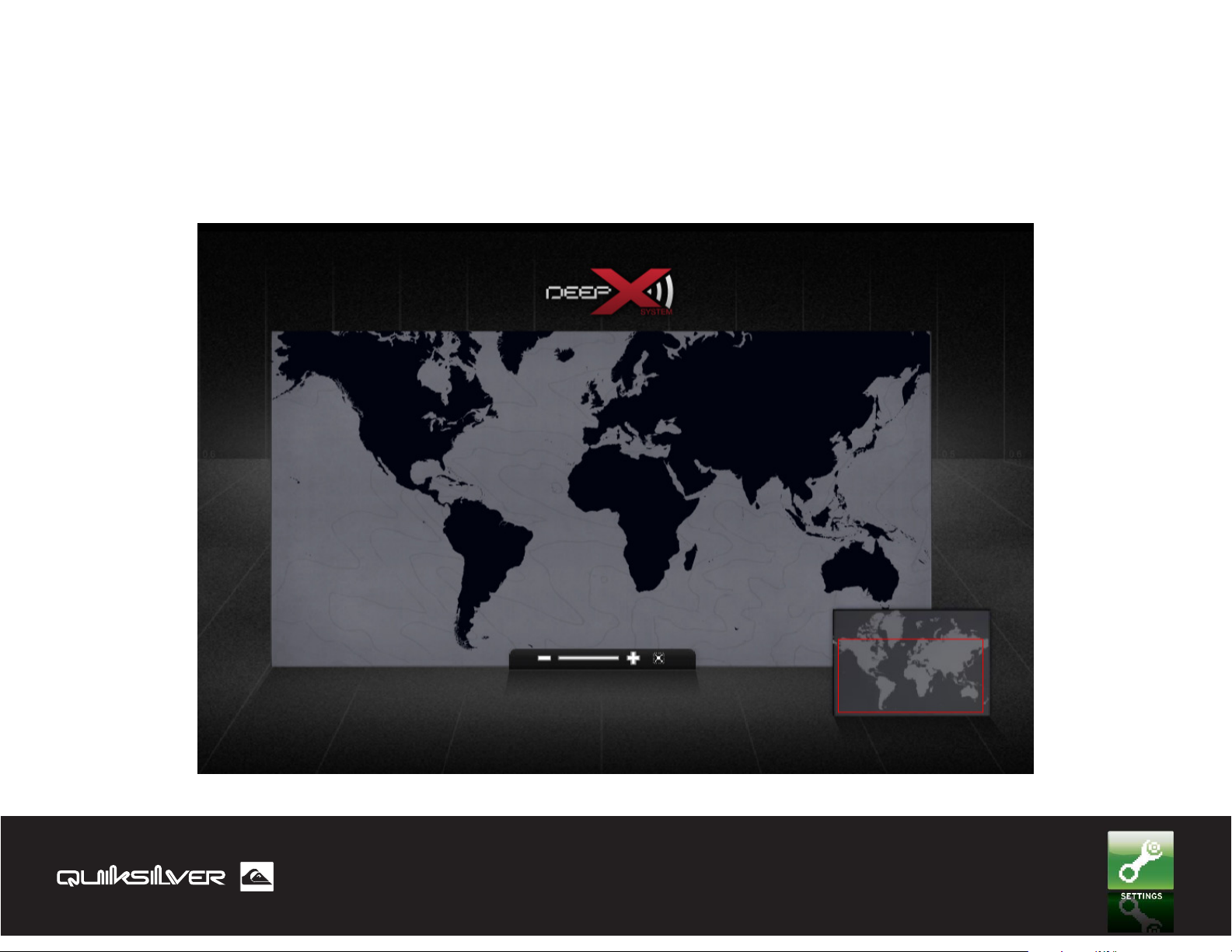

You can choose and select your spots by using the general map or the list at the bottom of the software window

The map

40

DeepX Computer Software

You can choose and select your spots by using the general map or the list at the bottom of the software windown

The map

41

DeepX Computer Software

Click on the spot to get tide and spot information

42

DeepX Computer Software

You can get here more detailed information about the spot: spot description, tide data, sunrise/sunset, best surf conditions,
bottom type and photos of the spot. Click on “ADD TO SELECTION” if you want to add this spot to your selection.

The spot list

You can select the spot by using the list sorted per country, region, town & spot name.

Click on the (i) icon
to get tide and spot
information or on the
folder icon to add the
spot directly to your
selection.

43

DeepX Computer Software

Selection / send data to the watch

In this window you will be able to select the tide range (in years) you want to upload to the DEEP X. You can store 10 years of data
in total into the DEEP X. Check the check box of the spot(s) you want to upload.

Once you’re ready to upload data from your computer to DEEP X, go into the menu of the watch to SETTING, then DOWNLOAD and
press SET key to signal to the computer that DEEP X is ready to download information. Then click on “SEND TO YOUR WATCH” icon
in the Quiksilver computer software. While downloading, DEEP X will display a download indicator (from 0 to 100%) and “DONE”
message once completed.

Wear your new DeepX tide watch by Quiksilver and enjoy being at the right place at the right tide. Happy surfing!

44
