Quiksilver DEEP X System User Manual

USER’S MANUAL

http://www.quiksilver-europe.com/deepx

1

()*

+,-

?fnkfn\XipflinXkZ_

?fnkfi\dfm\pflinXkZ_

(

)

*

+

Introduction

The ”DEEP X System” (patent pending) is Quiksilver’s most advanced tide watch. It features a tide data library for up to
2000 surf spots around the world (Deep model), the most accurate tide information available and also includes a numeric value for
tide height. The tide information contained in your DVD (and then in yout watch) was calculated by a professional oceanographer
based on the exact latitude/longitude of the coastline shape, islands and coast retraction.

Your DeepX tide watch was developed with the help of our Quiksilver team riders around the world and passed all our tests in
the heaviest waves on the planet. DeepX is more accurate than most tide charts for individual locations because our tide information
was calculated specifically for every surf spot, instead of using the tide information of the closest harbour like most tide charts do.

The DEEP X system has been developed to produce consistent tide data globally. In addition, data for the DEEP X has been
calculated for each specific surf spot to render the most accurate tide predictions possible. Please consider that tide predictions are
based on specific harmonics and unpredictable conditions do affect the tides.

This data is not to be used for navigation.

Wear your new DeepX tide watch by Quiksilver and enjoy being at the right place at the right tide. Happy surfing!

2

DEEP X watch

DVD
including Tide & Sunset/Sunrise data, surf
spot information and multimedia for 2.000
beaches worldwide

USB Stick

for Radio Frequency transmission

DEEP X pack includes

DVD content

Data upload software Windows & Mac OS compatible

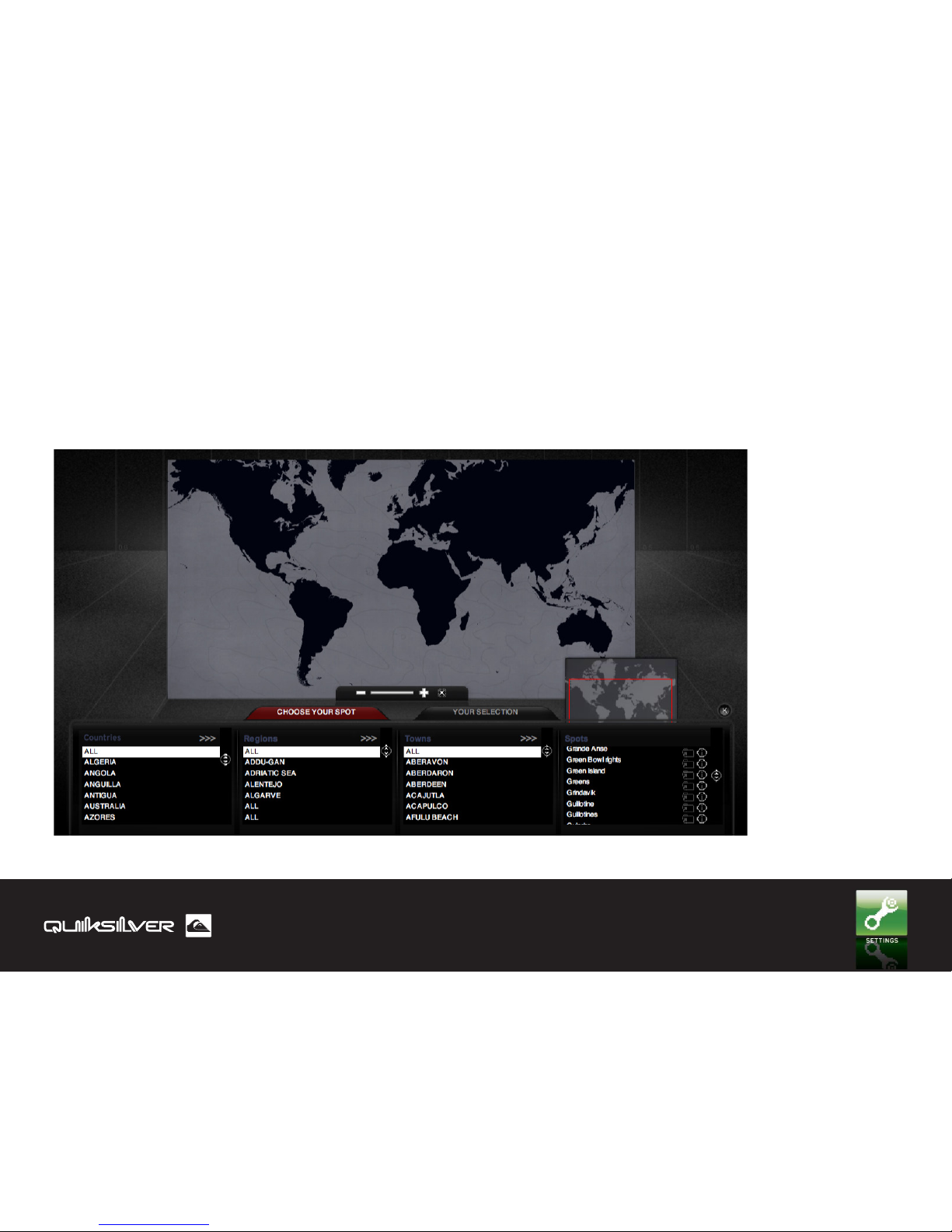

Tide, Sunset/Sunrise data for 2.000 spots worldwide

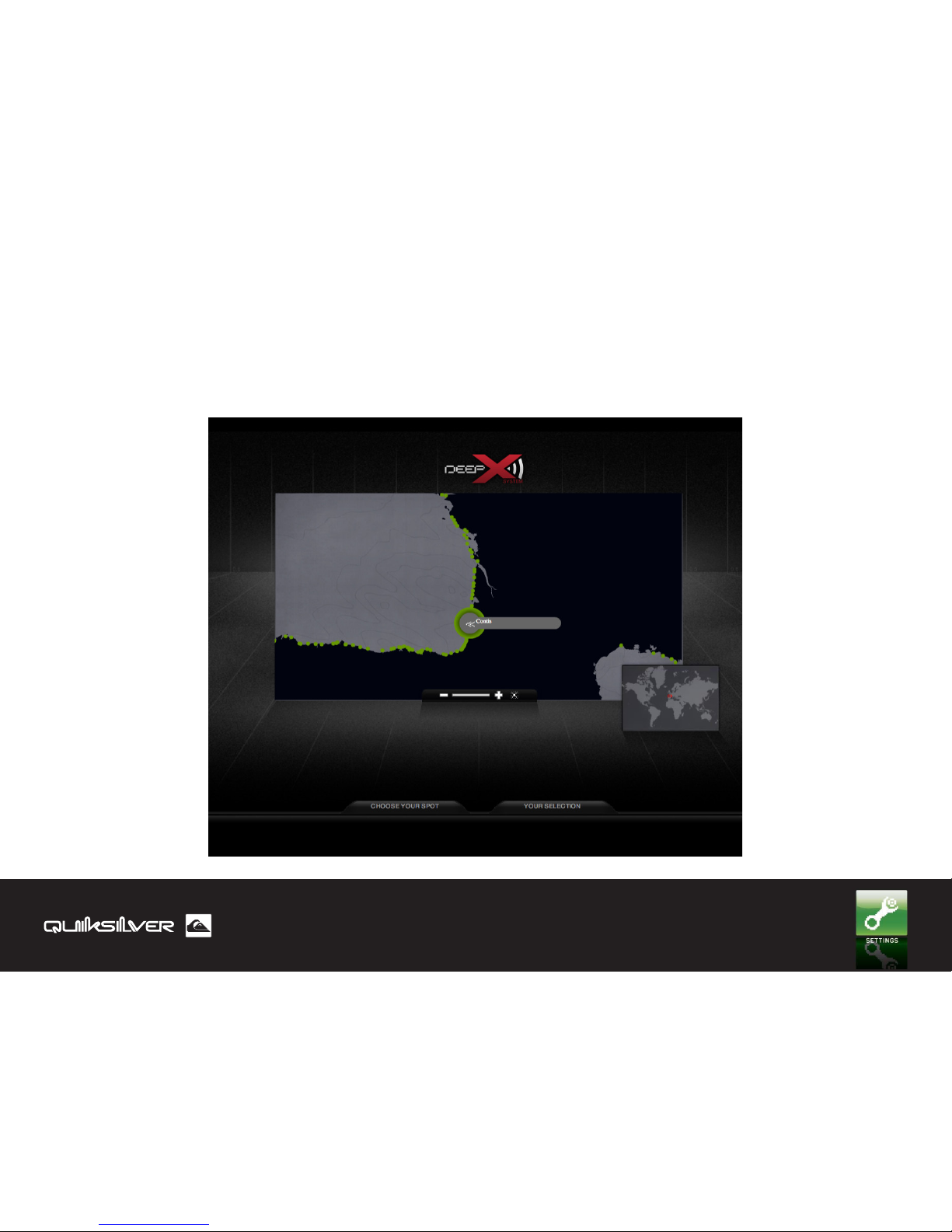

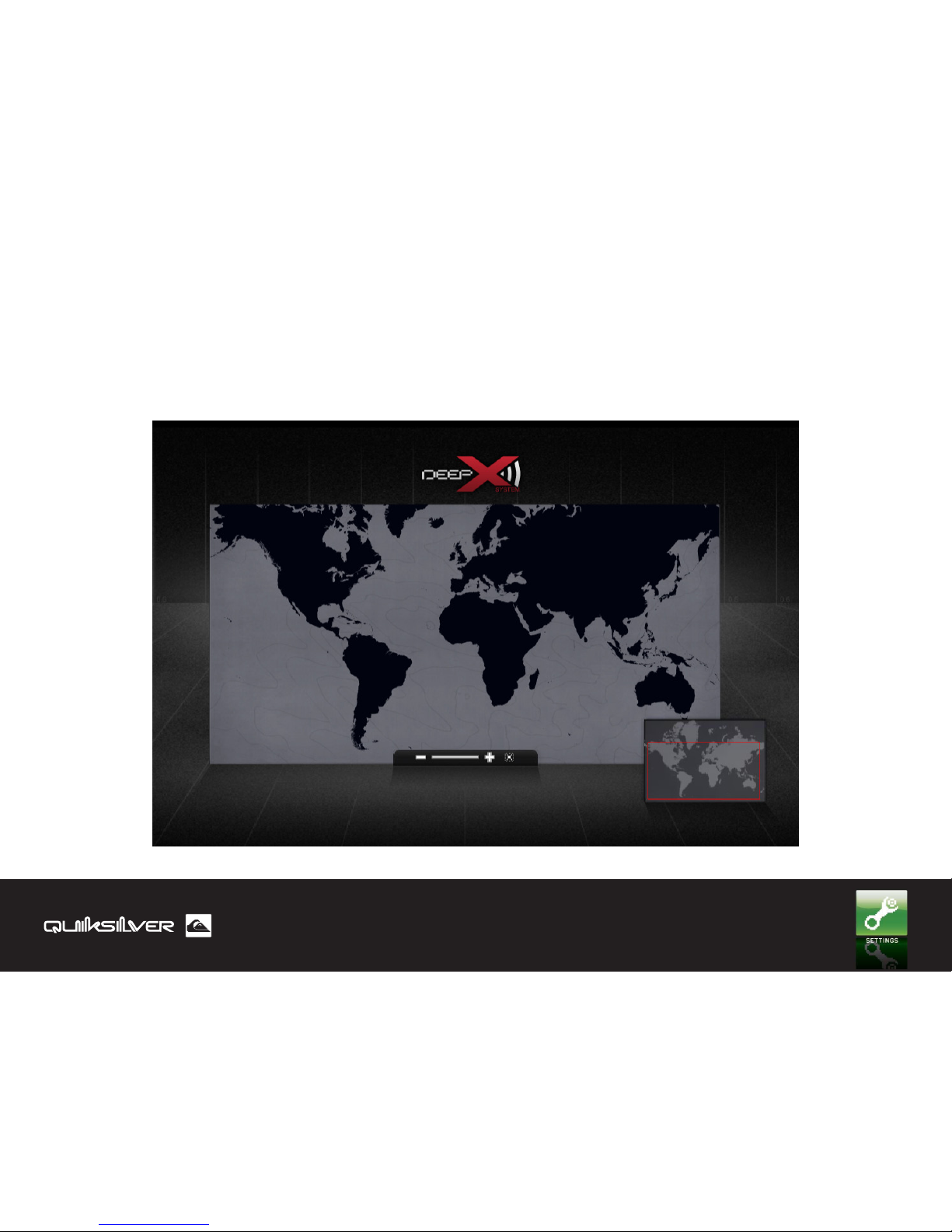

Map & spot photos

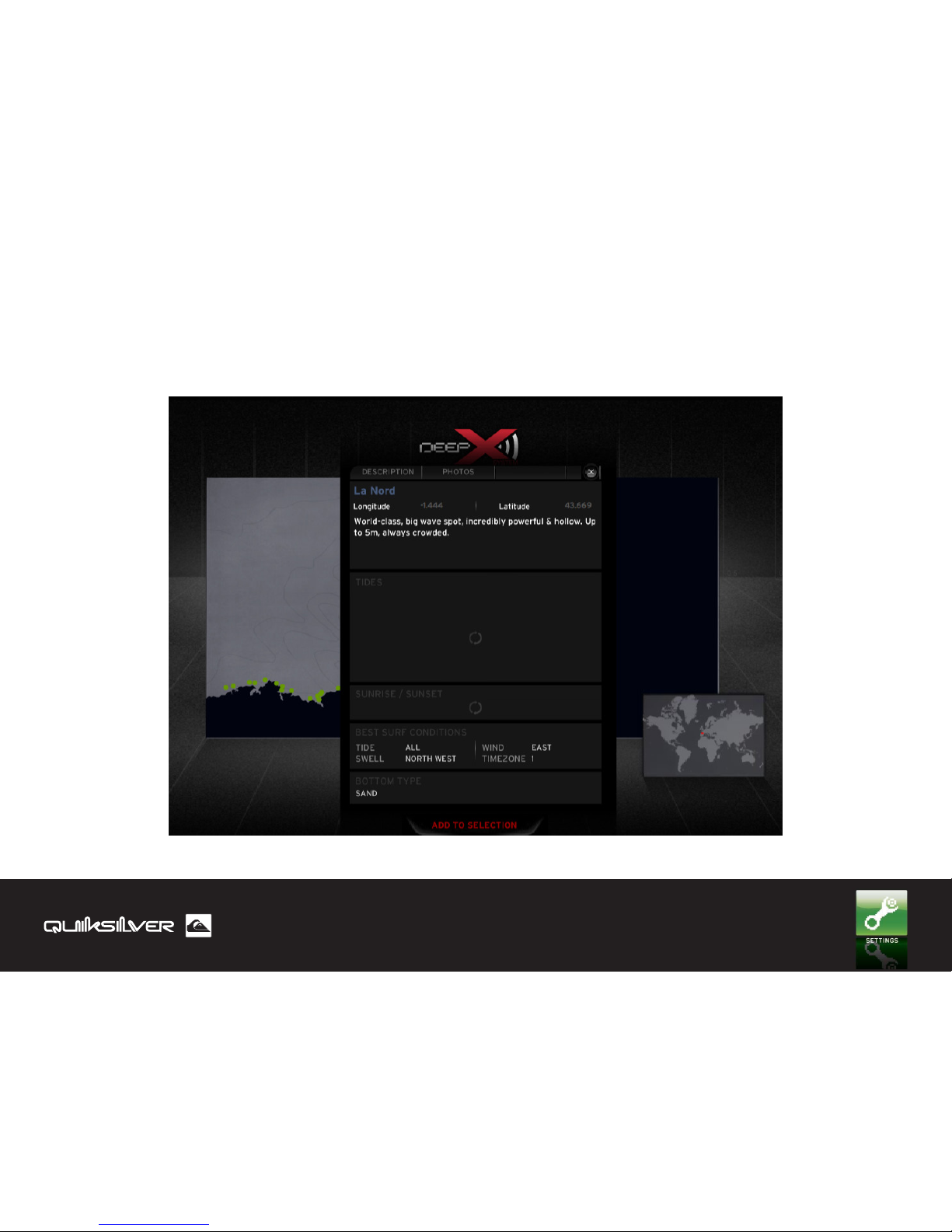

Specific spot descriptions: longitude, latitude, time zone, best surf conditions such as best tide range, best swell & wind
direction and ocean floor variations for each spot
DeepX tutorial & instruction manual
Quiksilver movie clips

3

Tide movement feature

USER FRIENDLY MENU

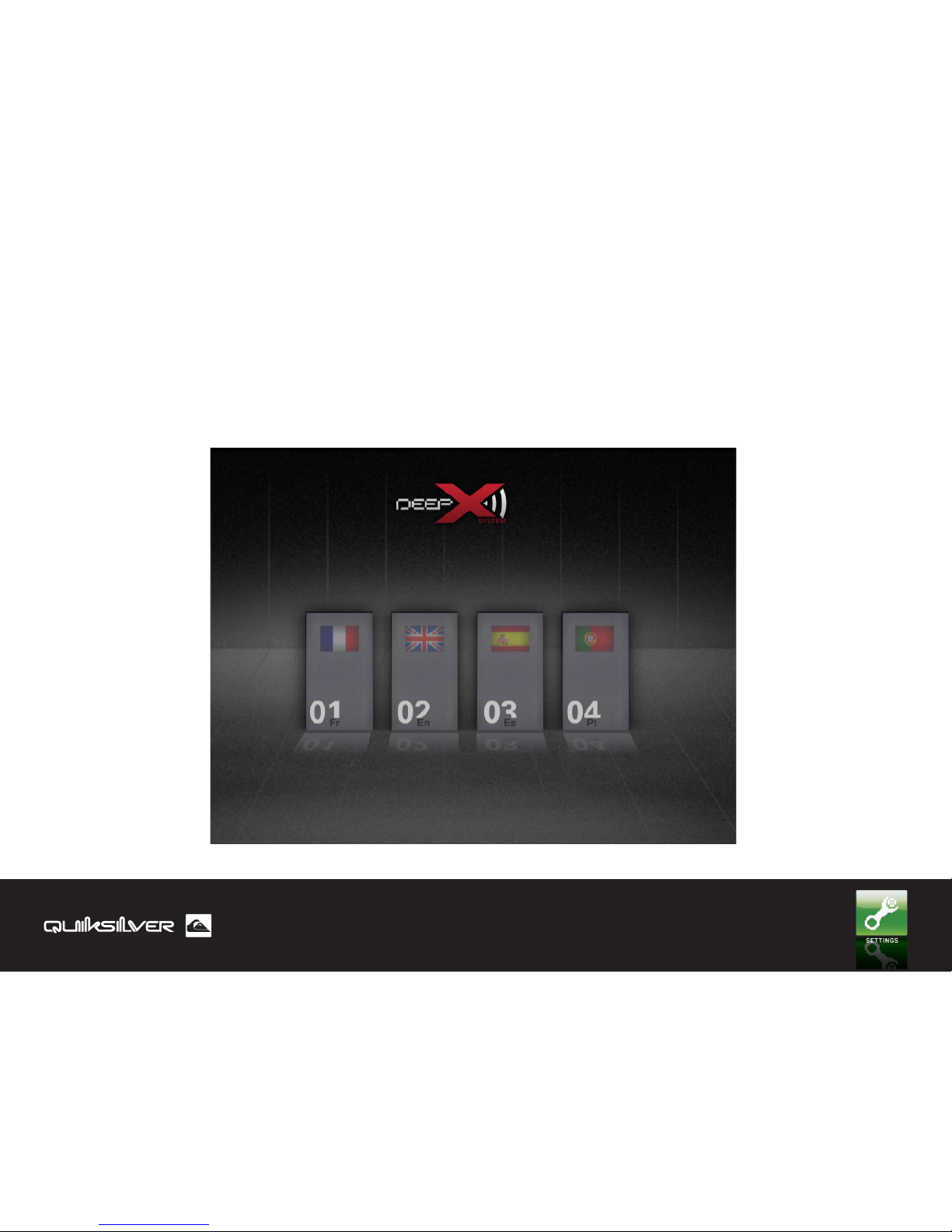

DIFFERENT OPERATION SYSTEM LANGUAGES
(English, Spanish, French, Portuguese)

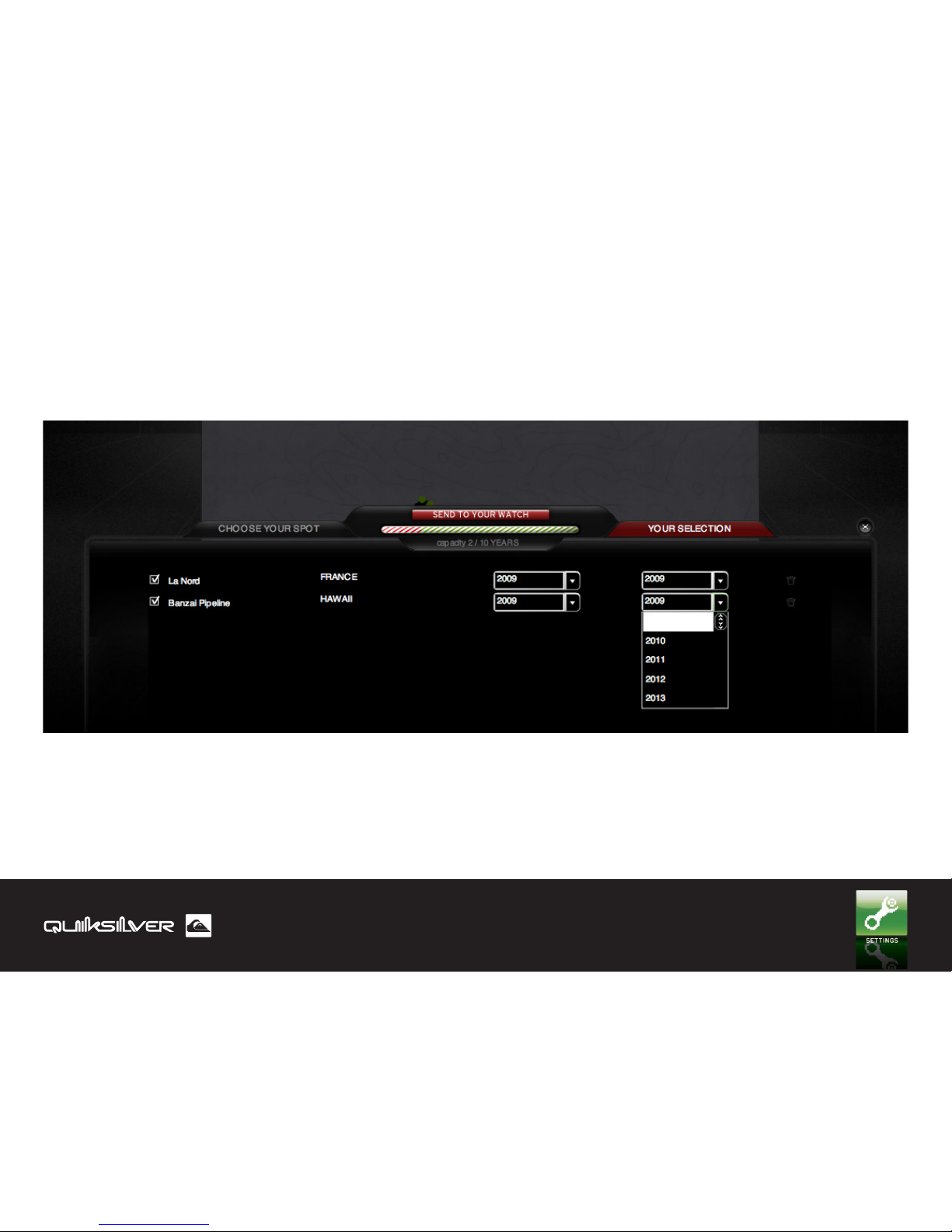

WIRELESS DATA TRANSMISSION WITH INFORMATION FROM
DVD/ COMPUTER TO DEEP X

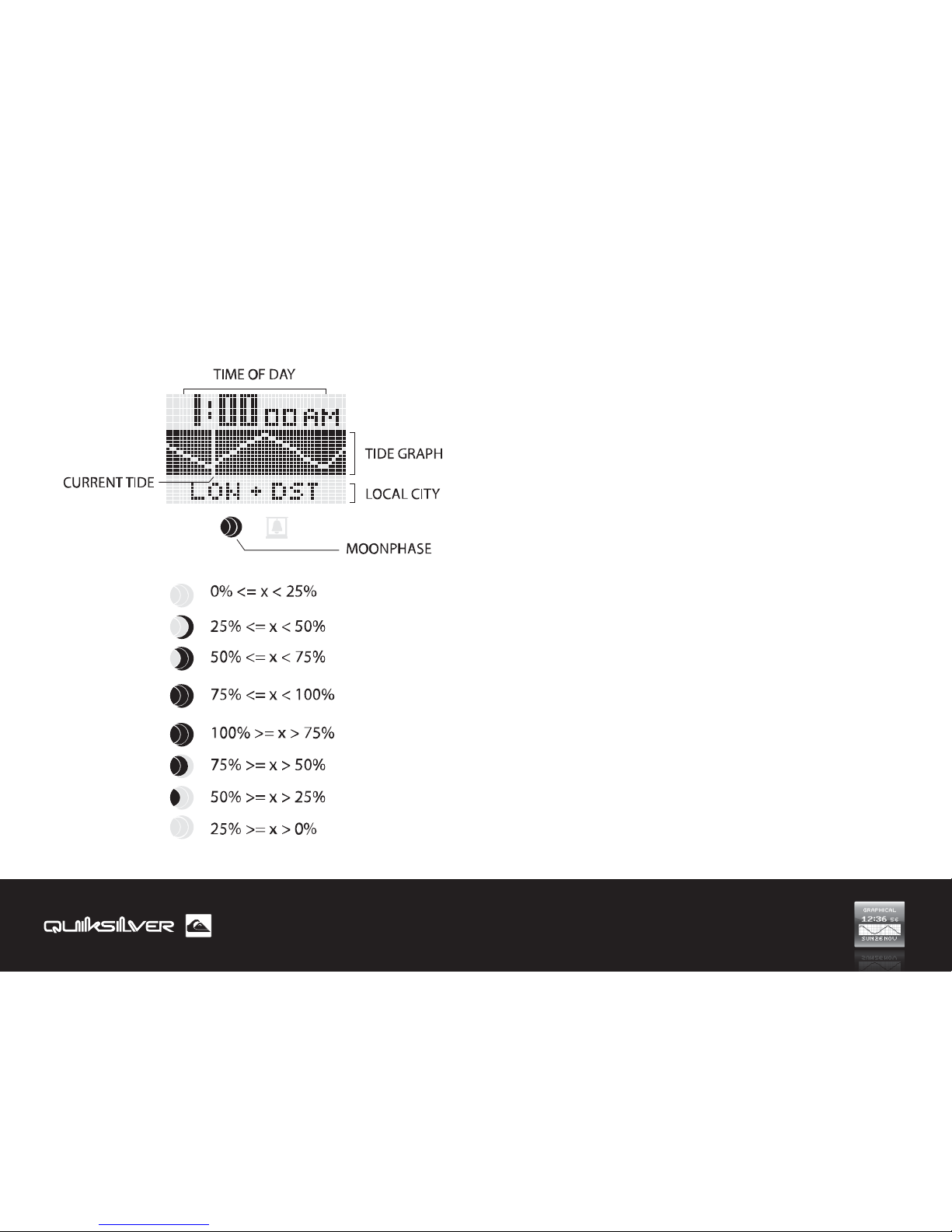

TIME

Display time (hours, minutes
& seconds) in 12 or 24h format,
date, tide, Sunset/Sunrise
& moon phase information

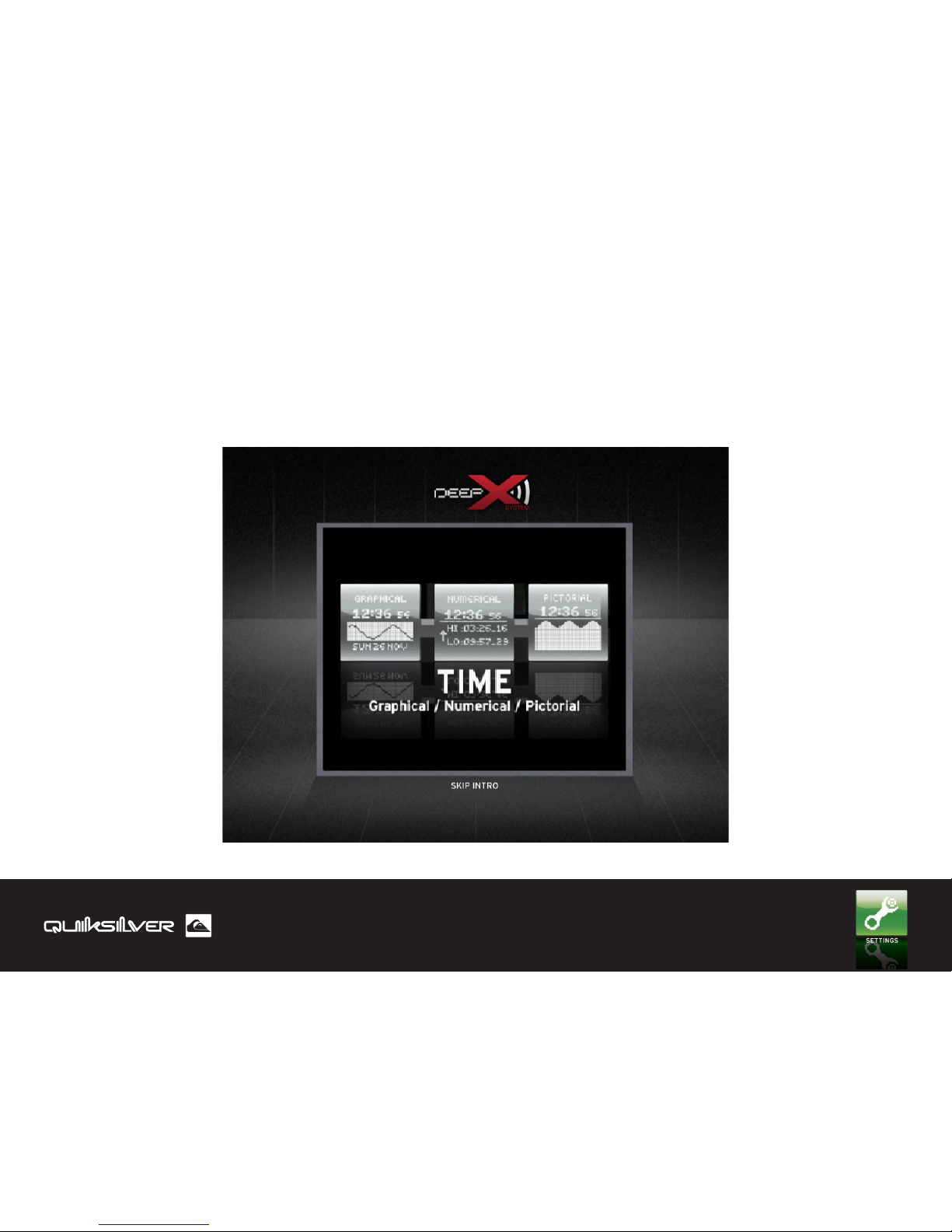

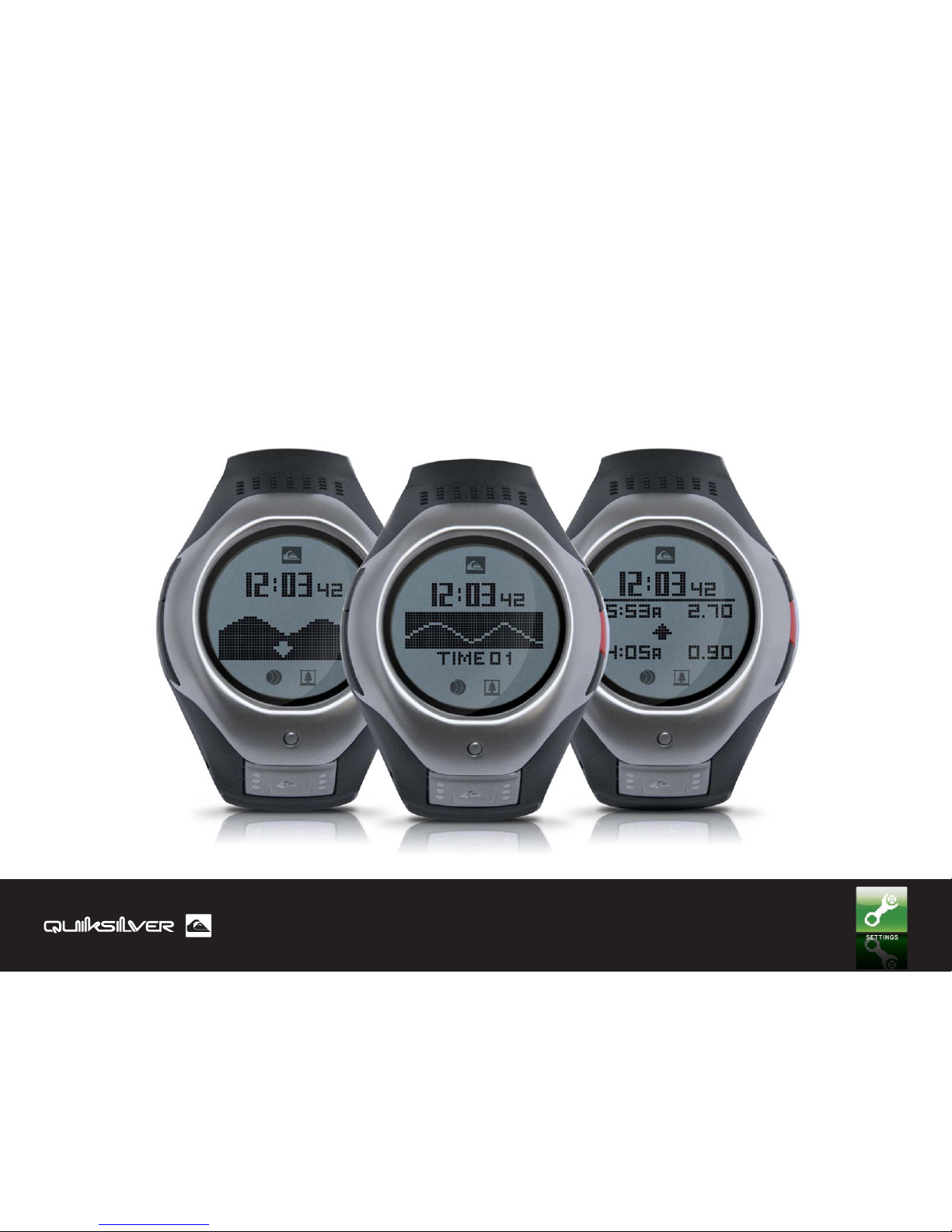

3 different display modes:
graphical, numerical, pictorial
World time (24 cities)
DST setting

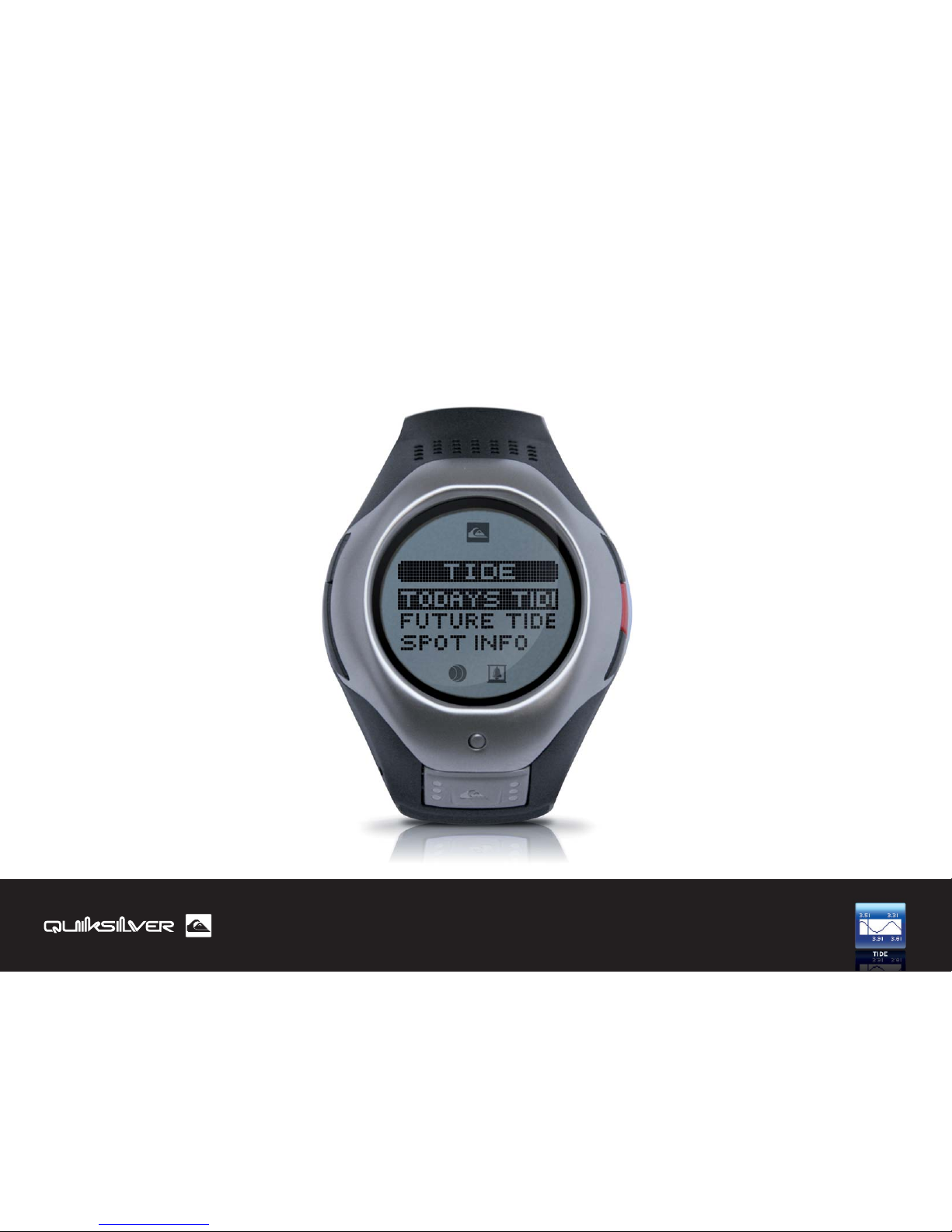

TIDE

Stores a maximum of 10 years
of data (1 spot on 10 years to 10
spots on 1 year).

Today’s tide: with numeric
water height reading.

Future tide: set your date to
get the tide information
instantaneously.

Spot info: best swell direction, best
wind orientation, best tide range,
bottom tide

Sunset / Sunrise

Customised spot: use published
informations to set the tide for your
own secret spot

Tide Alarm: designed to notify the
best tide to go surfing.

4

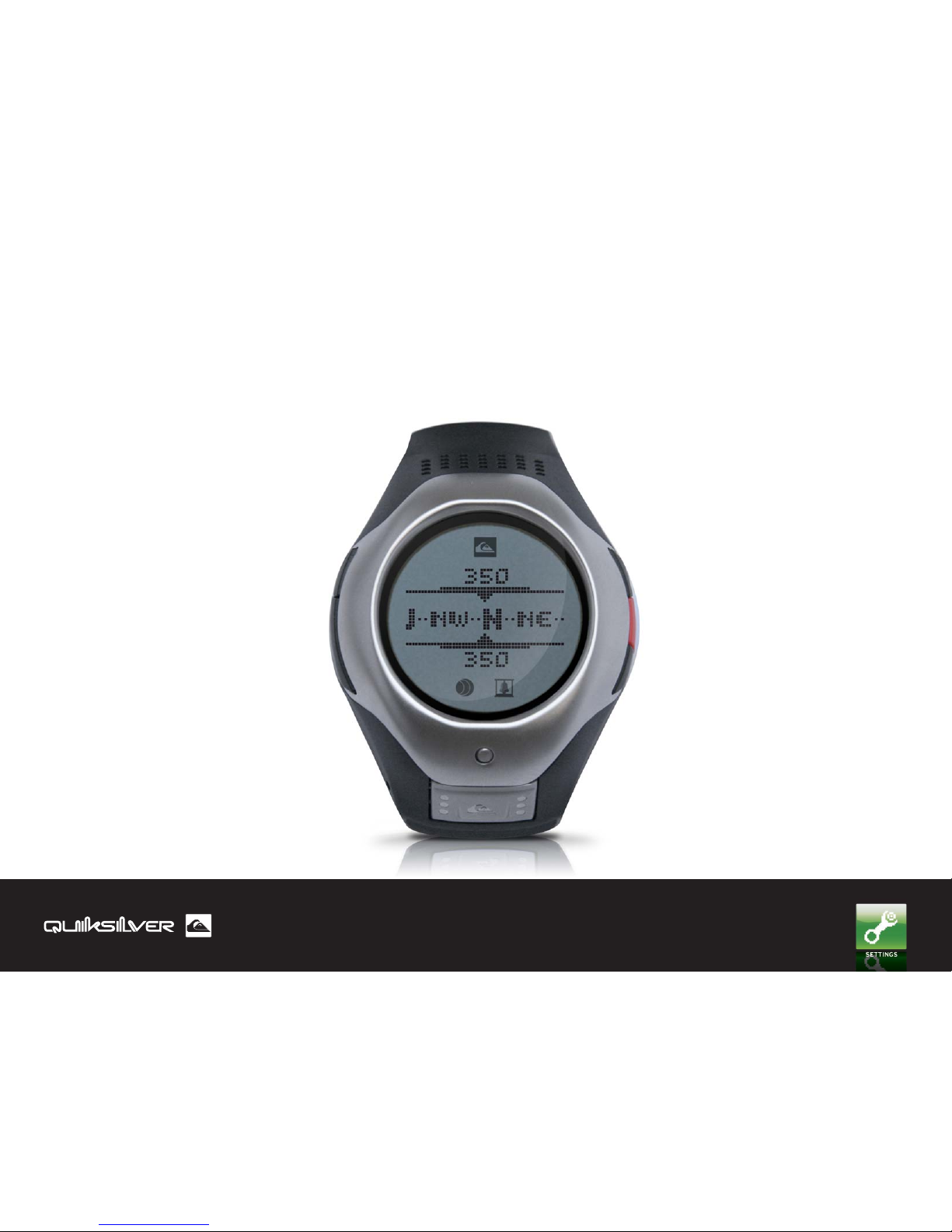

COMPASS

Digital compass
(1° resolution) with graphical
animation showing the 8
cardinal points.

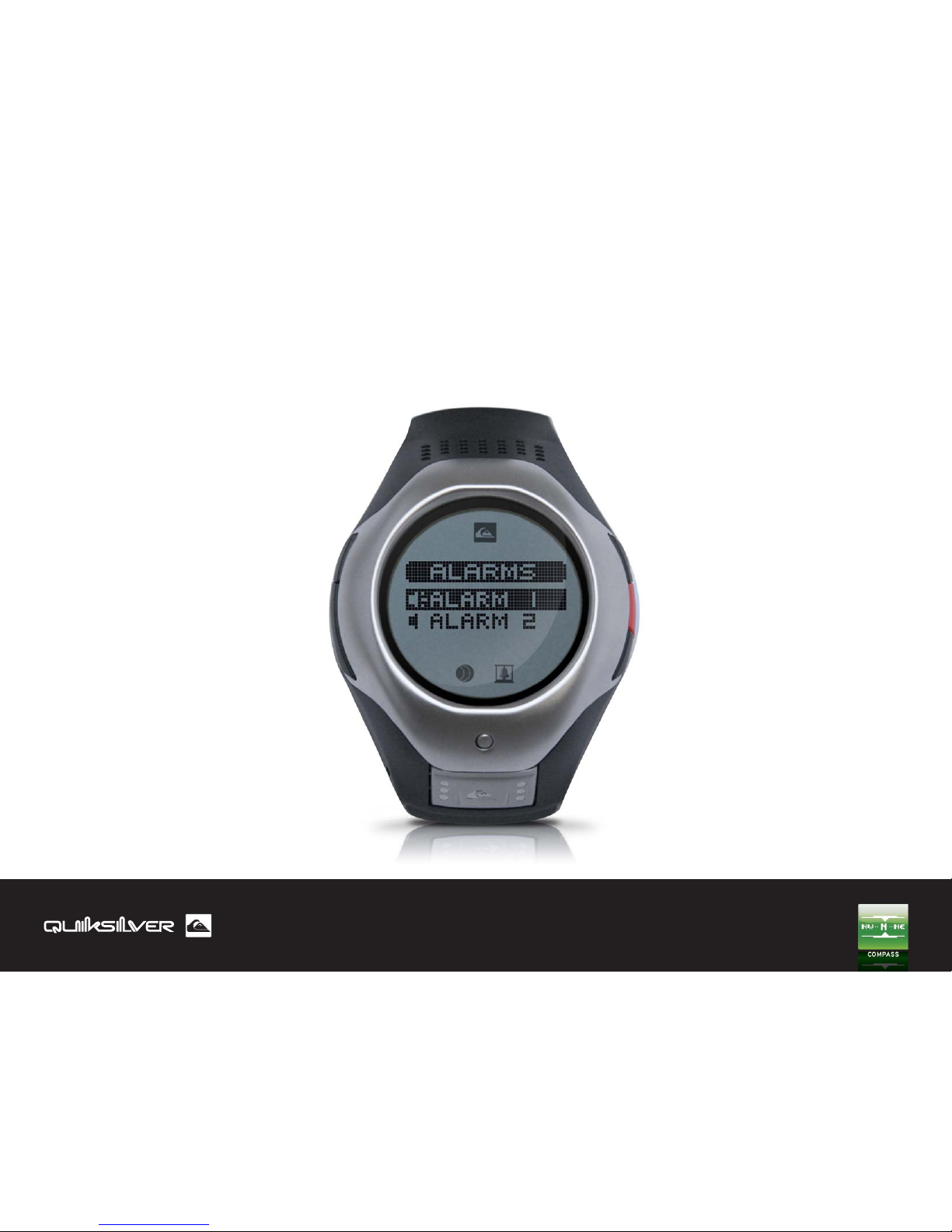

ALARM

2 independent alarms
Each alarm is programmable to
3 alerts: daily, weekly or once.

KEY LOCK FUNCTION

designed to prevent accidental
settings being made to your
watch while you’re engaged in
your favourite sport.

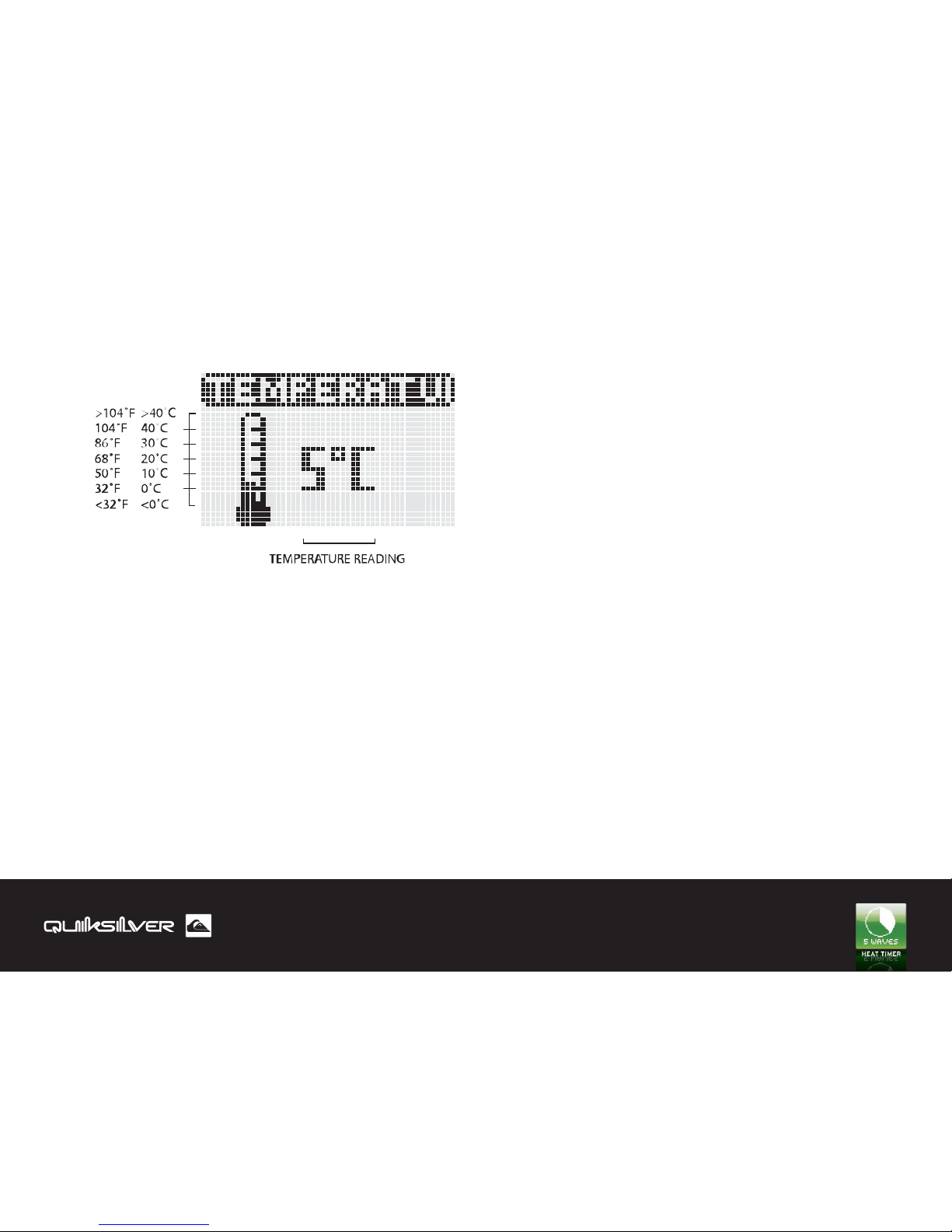

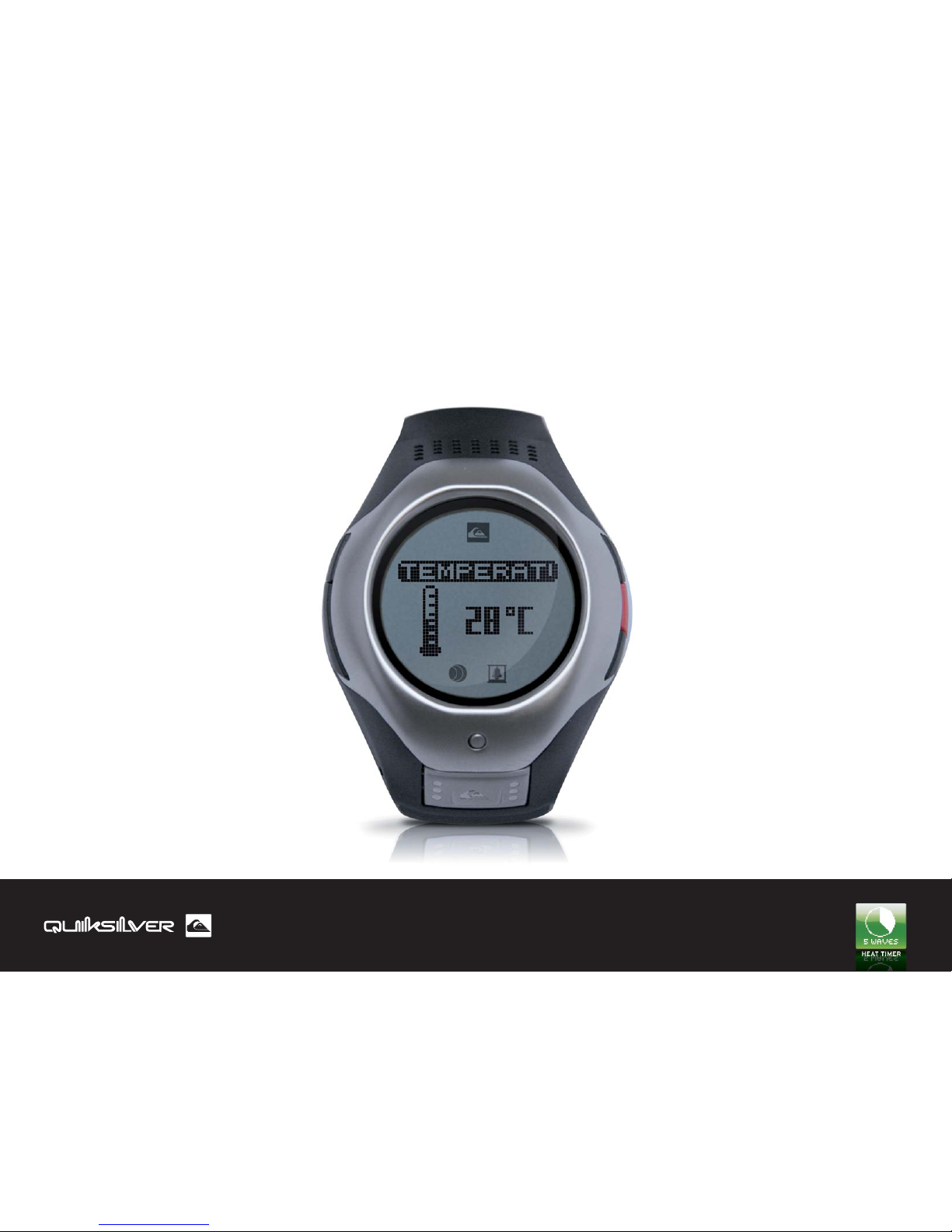

TEMPERATURE

Digital thermometer with
graphical animation.

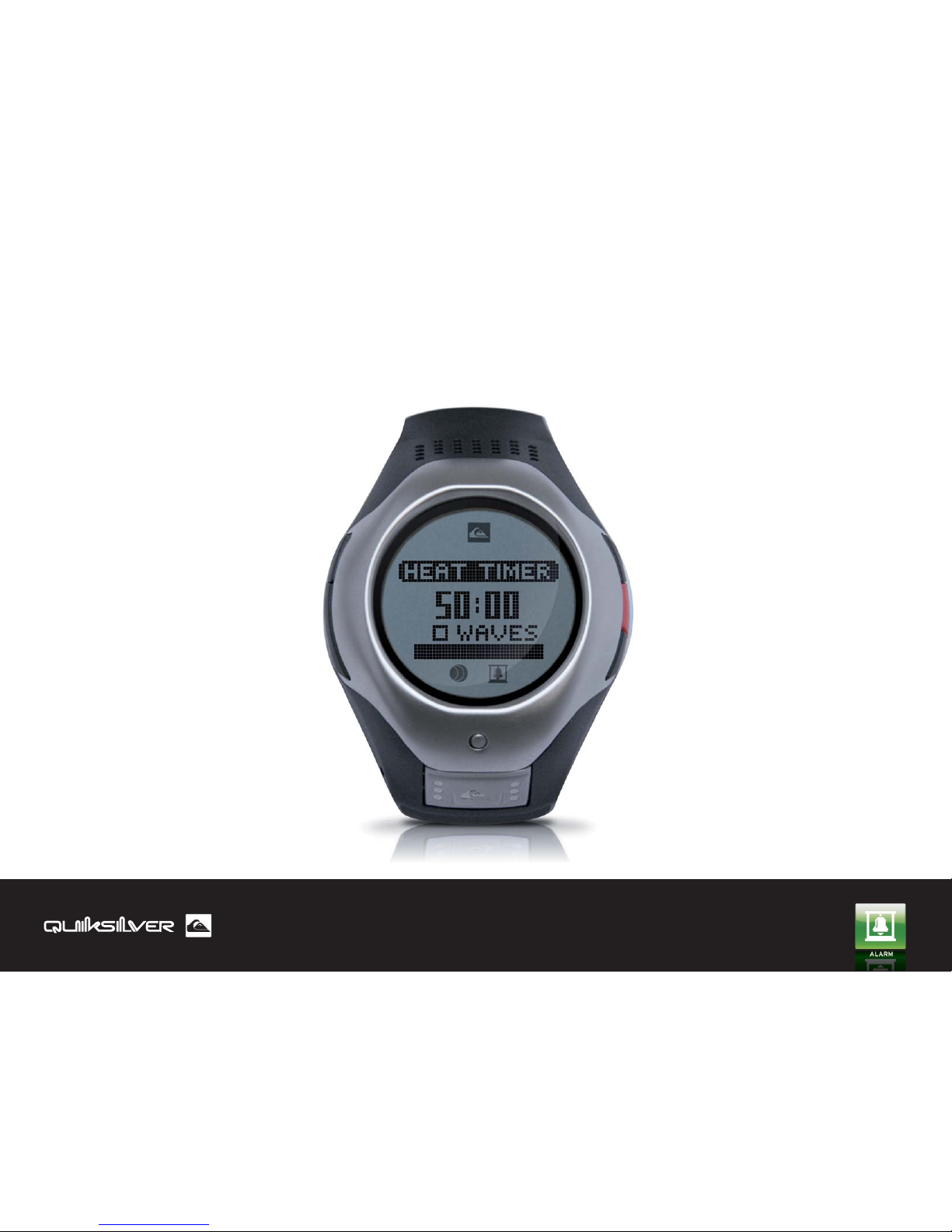

HEAT TIMER

Special countdown timer with
graphical animation designed
for surf contests. It can also
be used for timing your surf
sessions and counting the
number of waves you catch.

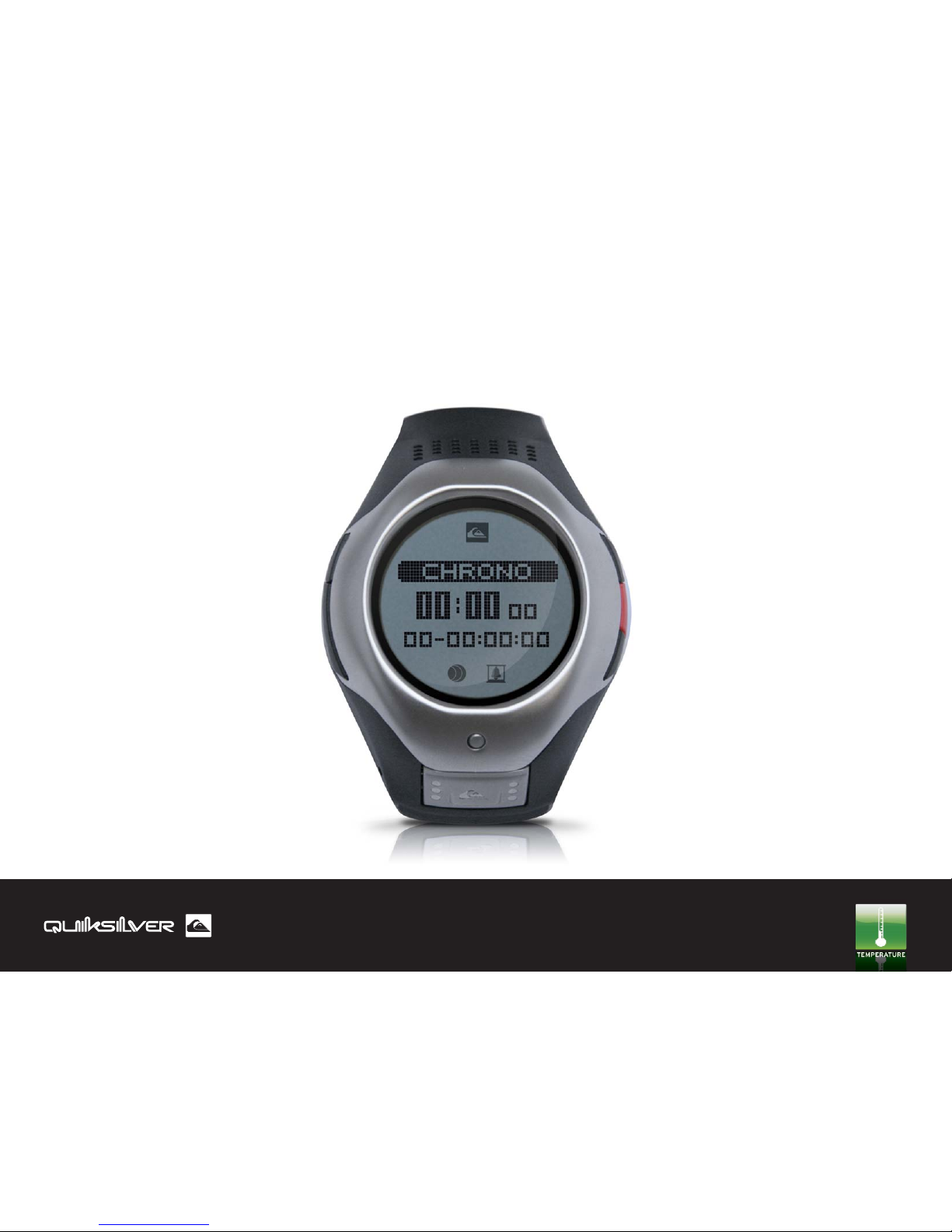

CHRONOGRAPH

1/100 seconds resolution up
to one hour, 1 second resolu­tion up to 100 hours.
Track your work out perfor­mances by analyzing and
storing your results (numbers
of laps, time/lap, fastest lap)

SLEEP MODE (for saving
power)

ONE TOUCH BACK-LIGHTING

5

Light

Menu/Back

(+)UP,
Increase value

(-) DOWN
Decrease value

Set/Select

DeepX consists of 8 different modes, namely:

1. Menu

2. Time of Day

3. Tide

4. Compass

5. Temperature

Navigation

6. Heat Timer

7. Chrono

8. Alarm

9. Settings

6

APP MENU

7

APP MENU

1.0 Display Map

8

APP MENU

1.1 Menu Hierarchy

MENU TIDE

TODAY'S TIDE

FUTURE TIDE

SPOT INFO

CUSTOMIZE

LOCAL SPOT

<beach list>

<beach list>

<beach list>

SET NAME
SET SPOT
SET DATA
CLEAR

<beach list>

<date list>

Removes
the
Custom
Beach
from the
beach list

<beach list>

ALARM
ON/OFF
SET
TIDE

<tide events>

TIDE ALARM

9

APP MENU

1.1 Menu Hierarchy

MENU COMPASS

BACK
DECLINATION
CALIBARATION

MENU

HEAT TIMER

BACK
RESET
SET TIMER

MENU TEMPERATURE

10

APP MENU

1.1 Menu Hierarchy

MENU

CHRONO

BACK

SAVE

RESET

VIEW LOG

DELETE LOG

DELETE ALL

Saves
and
Resets
the
current
Chrono
Run

Resets
the
current
Chrono
Run
without
saving

<log list>

<log list>

CONFIRM
DELETE

NO
YES

11

APP MENU

1.1 Menu Hierarchy

MENU

ALARM

ALARM 1

ALARM ON/OFF
SET TIME

SET TYPE

SET DAYS

MON

TUE
ON/OFF

ON/OFF

WED
ON/OFF
THU
ON/OFF
FRI
ON/OFF
SAT
ON/OFF
SUN
ON/OFF

ALARM 2

ALARM ON/OFF
SET TIME
SET TYPE

SET DAYS

MON
ON/OFF
TUE
ON/OFF
WED
ON/OFF
THU
ON/OFF
FRI
ON/OFF
SAT
ON/OFF
SUN
ON/OFF

12

APP MENU

1.1 Menu Hierarchy

1.2 Notes

If a banner or a selected menu item is long enough to go beyond the display area, it will scroll down.
By default, pressing the MENU button goes up one level the menuhierarchy, while pressing the SET button goes down one level.
Pressing and holding the MENU button for 3 seconds directly goes back to the Time App, regardless of what mode or level one
is in.

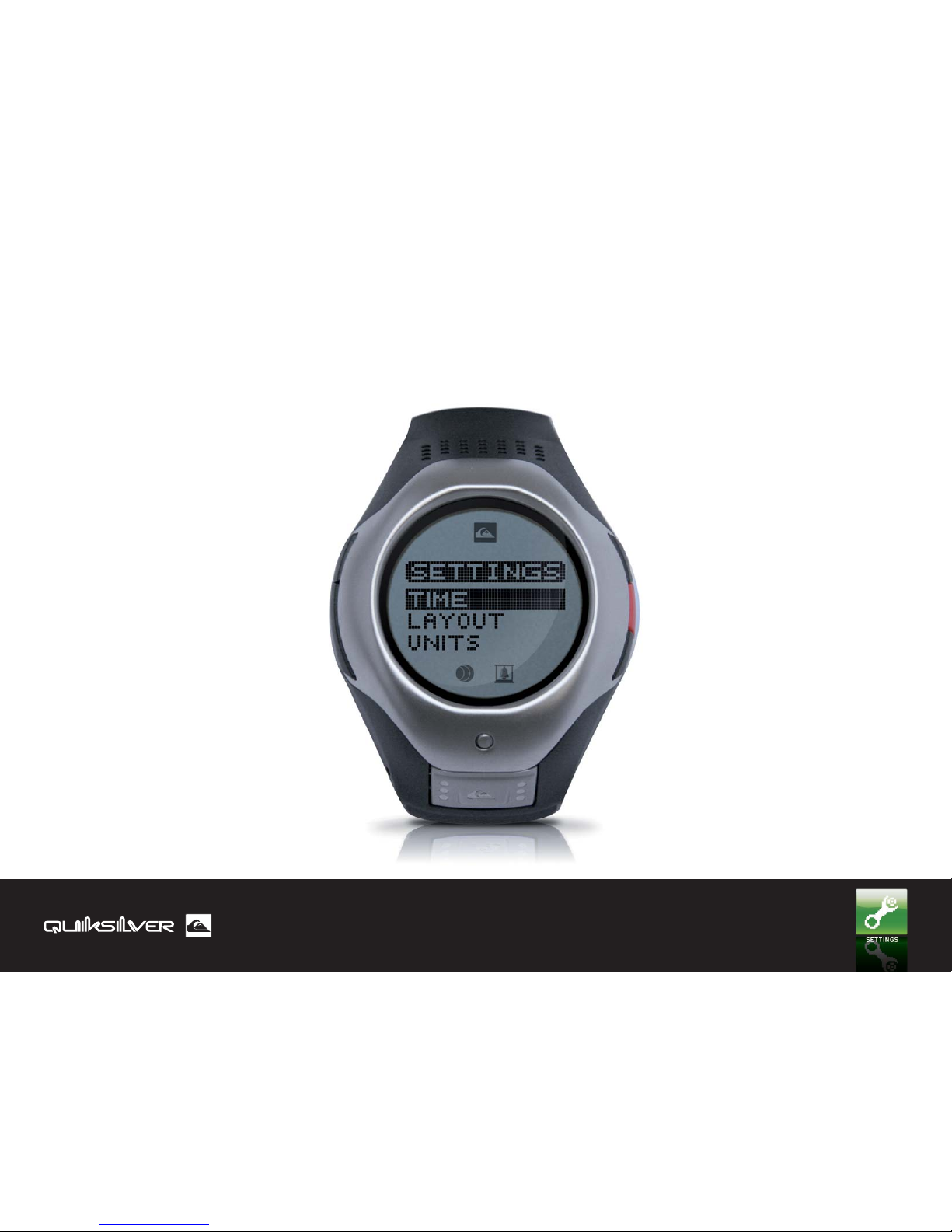

SETTINGS

TIME

UNITS

LANGUAGE

TONES

SLEEP

TIDE

12/24HR

SET DATE

TEMPERATURE

ENGLISH
<downloaded
language>

KEYTONES
HOURLY
CHIME

TIDE CHIME

SLEEP ON/OFF
SET TIME

SET TIME

°C
°F

METERS
FEET
COEF

DOWNLOAD

MENU
