Page 1

085955 07642 3

677599 33417 7

677599 33421 4

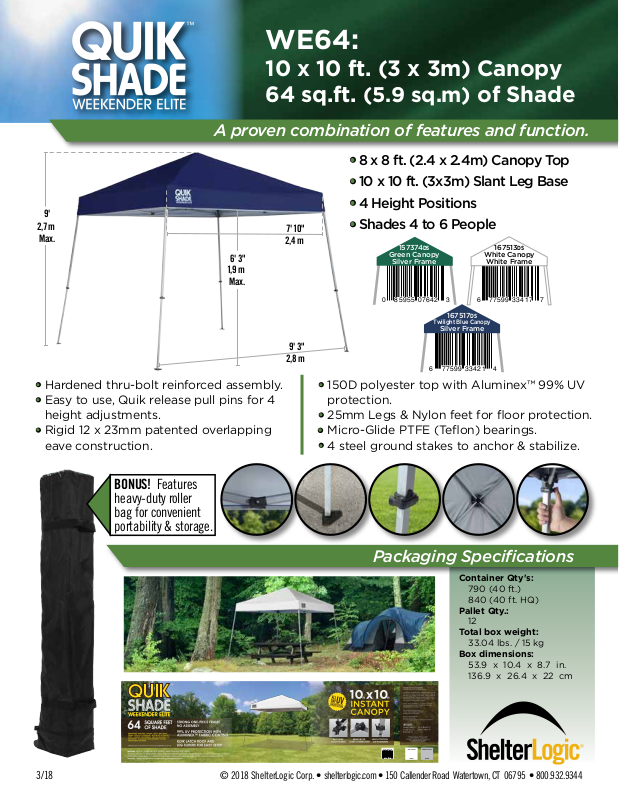

WE64:

10 x 10 ft. (3 x 3m) Canopy 64 sq.ft. (5.9 sq.m) of Shade

A proven combination of features and function.

• 8 x 8 ft. (2.4 x 2.4m) Canopy Top

• 10 x 10 ft. (3x3m) Slant Leg Base

2,7 m

Max.

6' 3"

1,9 m

Max.

• Hardened thru-bolt reinforced assembly.

• Easy to use, Quik release pull pins for 4

height adjustments.

• Rigid 12 x 23mm patented overlapping

eave construction.

BONUS! Features heavy-duty roller bag for convenient portability & storage.

7' 10 "

2,4 m

9' 3"

2,8 m

• 4 Height Positions

• Shades 4 to 6 People

15 73 74

Green Canopy

Silver Frame

167517

Twilight Blue Canopy

Silver Frame

• 150D polyester top with Aluminex™ 99% UV

protection.

• 25mm Legs & Nylon feet for ﬂoor protection.

• Micro-Glide PTFE (Teﬂon) bearings.

• 4 steel ground stakes to anchor & stabilize.

167513

White Canopy

White Frame

3/18

Packaging Speciﬁcations

Container Qty's:

790 (40 ft.) 840 (40 ft. HQ)

Pallet Qty.: 12 Total box weight:

33.04 lbs. / 15 kg

Box dimensions:

53.9 x 10.4 x 8.7 in.

136.9 x 26.4 x 22 cm

ITEM #167513

677599 33417 7
