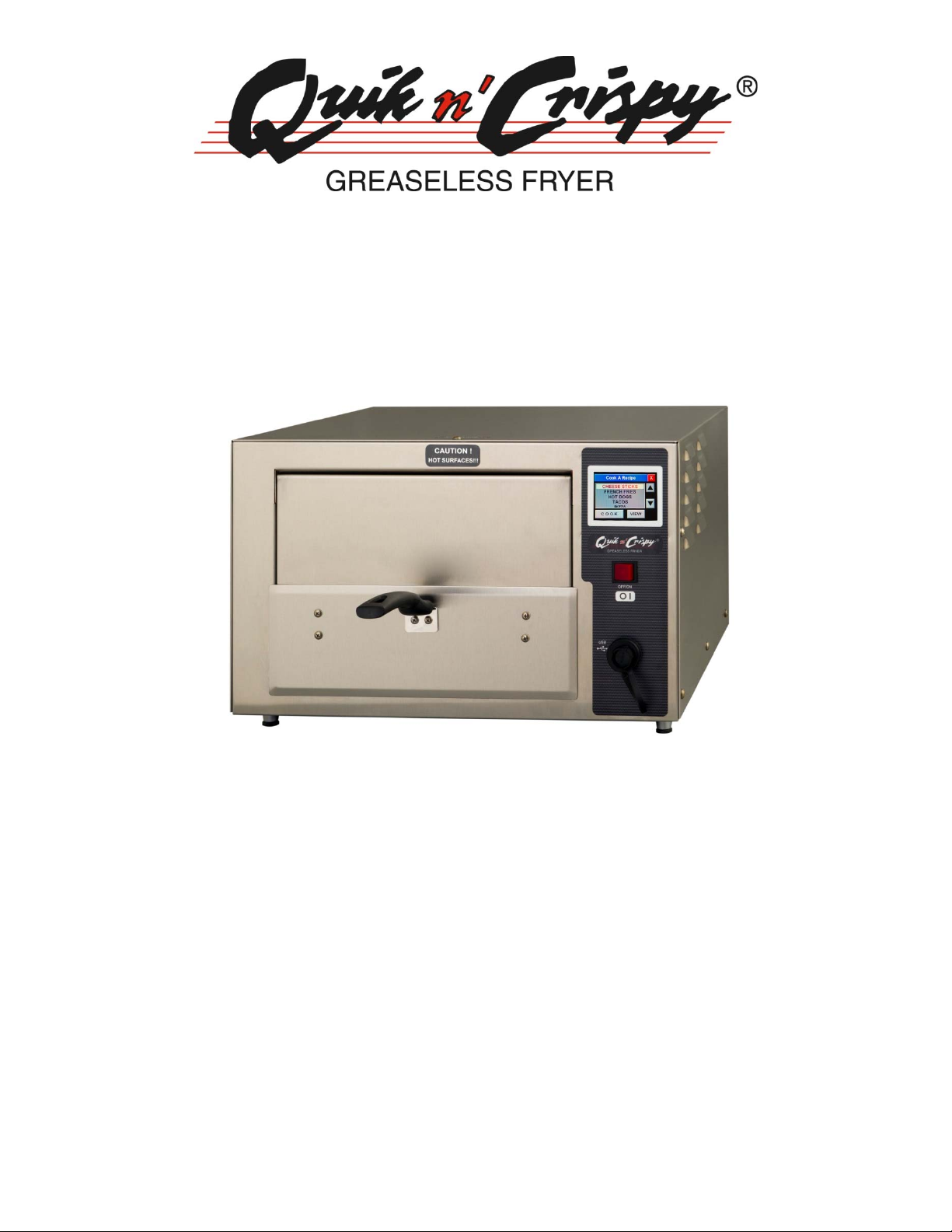

Quik n' Crispy 600020, 600015 Manual

Download

Page 1

  

MODELGF–II

OPERATOR’SMANUAL



CoveringQuikn’Crispy

PartNumbers:

600015 600020 600025 600035



Page 2

Page 3

TableofContents

INTRODUCTION.....................................................................................................................4

PACKINGLIST.........................................................................................................................5

INSTALLATIONINSTRUCTIONS...............................................................................................6

INSTALLATIONPROCEDURES.................................................................................................7

POSITIONINGTHESEPARATIONWALLANDSPLASHGUARD...................................................9

THEINITIALOPERATIONOFYOURQUIKN'CRISPY®............................................................11

RECIPETIMEANDTEMPERATURESETTINGS........................................................................12

CONFIGURATION.................................................................................................................13

RECIPEEDITING...................................................................................................................14

NAME&COOKSEGMENTEDITING......................................................................................16

COOKINGARECIPE..............................................................................................................18

QUICKCOOKWINDOW........................................................................................................20

SETBACKCONFIGURATION..................................................................................................21

COOKINGPROCEDURES.......................................................................................................22

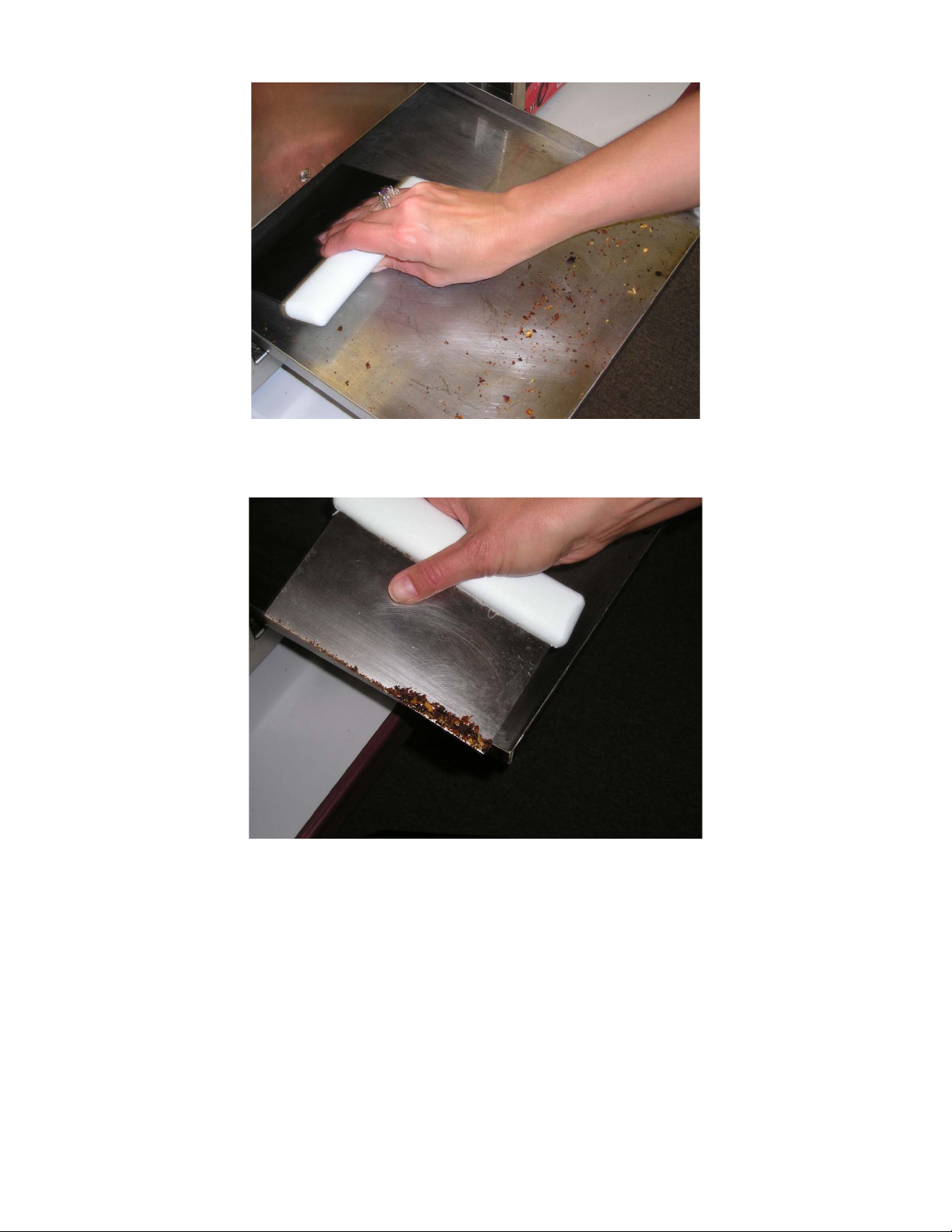

CLEANINGPROCEDURES......................................................................................................26

PRODUCTREGISTRATION....................................................................................................29

SERVICE...............................................................................................................................29

WIRINGDIAGRAMS.............................................................................................................30

 



Page 4



INTRODUCTION



Marketedsince1990,theQuikn'Crispy®FatFreeFryeristheresultofyearsofresearch, development,andrefinement.Byusingtheprinciplesofforcedhotairandradiantheat,the Quikn'Crispycanquicklycookandbrownanumberof"ovenready"conveniencefoods.This easy‐to‐usecountertopgreaselessfryersafelyandefficientlyeliminatesthehealthconcerns, expense,andoperatingdifficultiesinherentwithhotoilcookingprocesses.  WearepleasedtoannouncethatstartinginJuly2020,wearemanufacturingallofour GreaselessFryerswithanupgradedcontrollerplatform.Thisupgradedplatformincludesa morepowerfulmicrocontroller,increasedcodestorage,andamoresophisticatedgraphics system.Someotherkeybenefitsforourcustomersinclude: 

 USBFirmwareUpdates:OwnerscaneasilyperformfirmwareupdatesusingonlytheUSB

port.

 OperationLogging:Storestotalhoursofoperation,heatinghours,heatercycles,

cookinghours,recipescooked,idlehour,andreadytocookhours(idlingatsetpoint)

 QuikCookfeature.Thisprovidestheoperatorwithaneasywaytoevaluatenewmenu

itemsbyeasilysettingthepreheatandcookingtemperatures,andthecookingtime withouthavingtocreateanewrecipe.

 SetbackConfigurationprovidestheusewiththreenewfeatures.

o Thefirstfeatureisthe“HOLDSTAGE”option.Withthisfeature,theQuikn’Crispy

willholdthecookingtemperaturethatwasusedduringthepreviousrecipes.

o ThesecondfeatureistheSETBACKfeature.Whenthisfeatureisturnedon,your

Quikn’Crispywillmaintainthisminimumtemperatureforthetimethatyou

enteredintothisscreen.  Moreinformationontheenhancementstotheupgradedcontrollerareexplainedfurtherin thefollowingpages.   

Page 5

PACKINGLIST



 IncludedintheQuikn'Crispy®GreaselessFryerpackingcartonarethefollowingitems:   1Quikn'Crispy®GreaselessFryer   1CookingBasketAssembly   1CookingBasketHandle&MountingScrews  1DripTray   1SeparationWallPanel   1RemovableFrontPanel   1SplashGuardforCookingChamberCeiling   4AdjustableLegs   1Operator'sManual   1ProductRegistrationForm   

Page 6

INSTALLATIONINSTRUCTIONS



BeforetheinstallationofyourQuikn'Crispy®,asuitablepositioninyourretaillocationshould beselected.Pointstoconsiderwhenselectingalocationare:   1. Accessibilitybystoreemployees   2. Proximitytocustomers   3. Proximitytorefrigeratorandfreezerequipment   4. Proximity to other retail points of sale to take advantage of cross merchandising

opportunities   5. Sight‐lineofcustomer(toenhancecustomerperceptionof"fresh"preparation).  TheQuikn'Crispy® shouldbemounted onasturdyfood serviceappropriatetable.Stainless steel wouldbethe preferable material.  Allow foracertain amountofworkspacenearthe Quikn'Crispy®GreaselessFryersothatoperatorswillnothavetoworkinaconfinedlocation. Werecommendaminimumof1”or2.54cm.ofspacebetweentherear,sidesandtopofthe Quikn'Crispy,andthewalls,ceilingorotherstructuralsurfacesofyourfacility.  In addition to suitable locations, accommodation must be made for the necessary electrical hookups.Pleasenotethefollowingelectricalspecifications. 

ElectricalSpecifications

Singlephaseonly•50/60Hz.

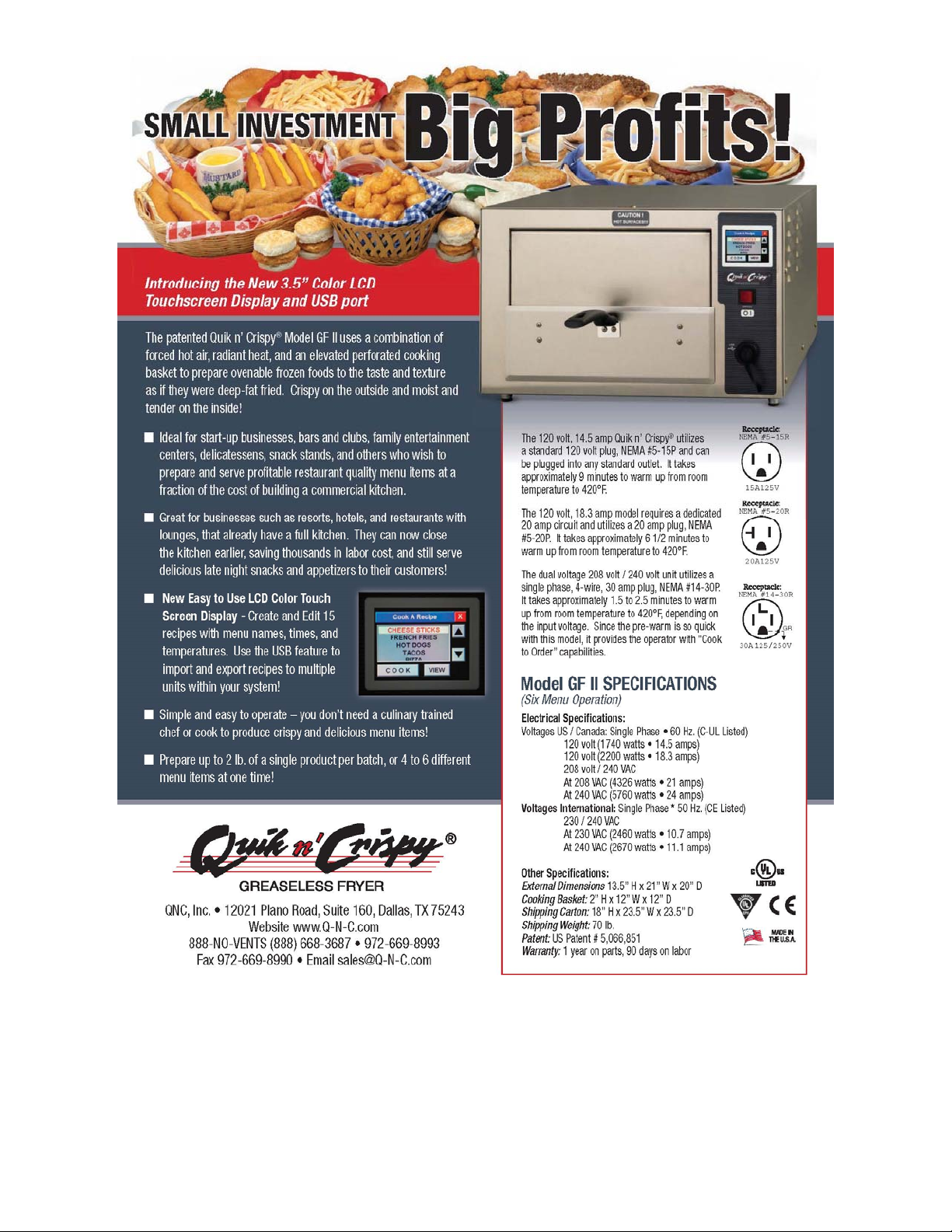

USAdomesticunitplugsandpowercords(6’)areshownonPage2ontheSpecificationSheet.

InternationalunitInformationisbelow.

 Cord: 2m.length

  HO7RN‐F3G1.5mm2   Plug: BritishStandard 240volt,50Hz.;13ampmax.   OrContinentalEuropean"Schuko"   220volt‐230volt,50Hz.;16ampmax.

Page 7

INSTALLATIONPROCEDURES

  1. TheweightoftheQuikn’Crispyisapproximately70lb./25kg.Theuseofasecond

personisadvisedforportionsofthisinstallation.   2. Open the shipping carton and fold back the shipping carton flaps.  With the flaps

foldedback,rotatethecartonupsidedownonthefloor.   3. LiftthecartonleavingtheQuikn'Crispy®andthecorrugatedpackingsetinplaceon

thefloor.   4. RemovethecorrugatedpackingsetfromaroundtheQuikn'Crispy®.   5. Removethecooking baskethandle, mountingscrews,and adjustablelegs from the

OperatorsManualziplockbag.   6. Screwthe4adjustablelegsintothebottomofthefryer.   7. Lift the fryer into position on the designated counter.  Again, we recommend

minimumof1”/2.54cm.clearancefromanyadjacentwallsorequipment.   8. Adjustthelegstobalancethefryeronthedesignatedcounter.   9. Attach the cooking basket handle to the cooking basket.  A #2 Phillips head

screwdriveranda5/16"wrencharerecommended.   10. Inspect the separation wall panel and look to see that it is mounted properly.

Because this is a five‐step process, we have included a separate installation

procedureonpages5to7.Pleaseturntopage5atthistimeand install the

separationwallpanel.   11. Once the separation wall panel is installed, place the drip tray onto the bottom

drawerguides,angleitupwardstoa45°angletoclearthestopandslideitin.This

trayshouldslideinfreely.   12. Placethecookingbasketontothedriptray.Thetwopartsshould nowslideinand

outofthehot‐airfryerinunison. 

Page 8

 13. Atthispoint,besurethattheelectricalbreakerforthe Quik n' Crispy® Greaseless

Fryerisinthe"OFF"position.PluginyourQuikn'Crispy®GreaselessFryer,thenturn

thecircuitbreakertothe"ON"position.

Page 9

POSITIONINGTHESEPARATIONWALLANDSPLASHGUARD



WARNING!

 Beforeproceeding,makesuretheQuikn'Crispypowerswitchisinthe“OFF”position(thisis theleftpositionoftheOn/OffSwitch)andthatthefanblowerisstationaryandthatthe cookingchamberandheatingelementarenothot! 

1. LifttheRemovableFrontPanel(RFP)thatislocateddirectlyabovetheCookingBasket

byapplyingslightupwardpressure.Itshouldslideoutatanupwardangle.



2. PulltheSplashguardoutofthetopofthecookingchamber.Thisisaformedpieceof

stainlesssteelthatislocatedbetweentheheatingelementandtheceilingoftheinner chamber.Wheninsertedintothecookingchamber,thesurfaceofthesplashguard shouldbeincontactwiththeceilingofthechamber.Thesplashguardshouldbe removeddailyforcleaningwiththeotherremovableitemslocatedintheinner

chamber.  



SeparationWallCutawayView



3. TheSeparationWallwaspositionedproperlyintherearoftheinnerchamberofyour

Quikn’Crispypriortoshipping.Itisheldinplacebygravitywithtwoinverted“U”

channelsthatareformedonthebackoftheSeparationWall,matingwithtwo“U”

channeltabsthatarelocatedoneithersideofthefan(Seepictureabove)ontherear

wallofthecookingchamber.TheSeparationWallcanoftencomeoffthetabsthathold

itinplaceduringshipping.Pleasecheckandconfirmthatitisinstalledproperlyby

Page 10

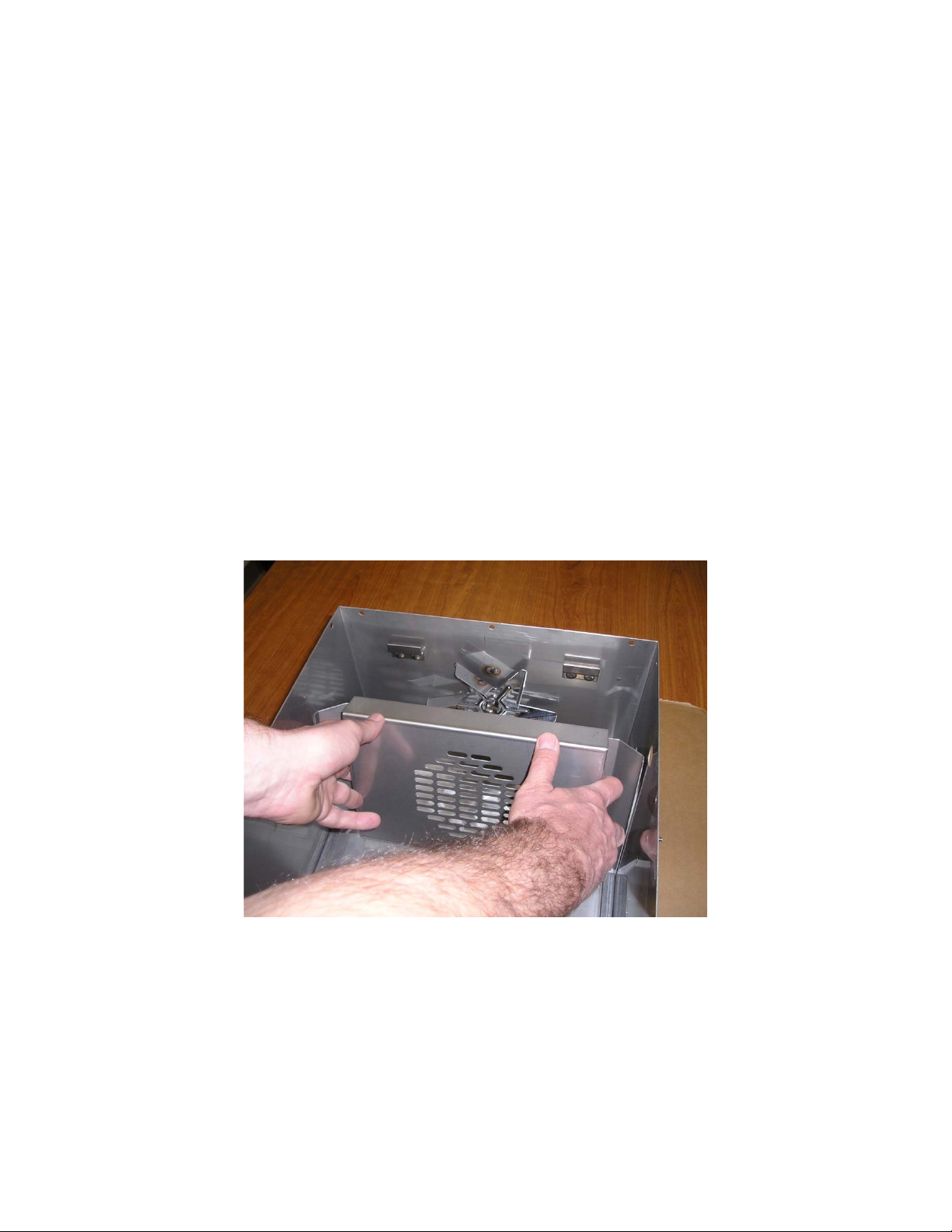

removingandreplacingtheSeparationWallatthistime.Thephotoaboveillustrates

howtheseparationwallisinstalled.ItwastakenwiththetopoffoftheQuikn’Crispyin

ordertoclearlyshowtheinstallation.Itisnotnecessarytoremovethetopto

accomplishthisprocedure. 

4. PlaceyourhandsoneachsideoftheSeparationWallandliftitstraightuptotheceiling

ofthechambertoclearthemountingtabs.PulltheSeparationWalltowardsyouuntilit

makescontactwiththeHeatingElement.NowpullthebottomoftheSeparationWall

outfirstandangleitoutoftheinnerchamberwiththebottomoftheSeparationWall

comingoutoftheinnerchamberfirst. 

5. ReversetheprocessandreinstalltheSeparationWallbygraspingitbythesideswith

bothhandsandinsertitintothefrontopeningoftheQuikn'Crispy,enteringthefront

openingjustabovethetopsetofDripTrayguides.Insertthewallstraightbackintothe

Quikn'Crispyuntilyoutouchtherearwallofthecookingchamberkeepingthe

SeparationWallparalleltotheflooroftheQuikn'Crispy. 

6. AnglethetopportionoftheSeparationWallupwardtowardstheceilingoftheinner

chamberuntilitcomesincontactwiththeceiling.SlidetheSeparationWallfurther

backintotheinnerchambersothatitcomesincontactwiththerearwalloftheinner

chamber.NowlowertheSeparationWallsothatthetwotabsoftheSeparationWall

catchontothetabsonthetoprightandleftsidesoftherearwallofthecooking

chamber.TheSeparationWallshouldnowbehangingupright,withthebottomofthe

SeparationWallapproximately.25"/.635cmupoffthefloorofthecookingchamber. 

7. SlidetheSplashguardbackintothetopoftheinnerchamber.Pleasenotethatthe

surfaceofthesplashguardshouldbeclosesttotheceilingoftheinnerchamber. 

8. PlacetheRemovableFrontPanelbackontothefrontoftheQuikn’Crispy.Itwillslide

downatanangleontothefourpinsthatarelocatedonthefrontoftheunit.



9. PleasenotethatontheINTERNATIONALUNITSONLY,thereisasafetyswitchinstalled

ontherightrearwallofthecookingchamber.Thisswitchwillbedepressedwhenthe

SeparationWallisproperlyinstalled.IftheSeparationisnotinstalledproperly,the

safetyswitchwillremainintheOpenPosition,andthecookingblowerwillnotoperate.

EnsurethatwhentheSeparationWallisinstalledthattheflatpartismakingsolid

contactwiththerearwalloftheovenchamberanddepressingthesafetyswitch. 

Page 11

THEINITIALOPERATIONOFYOURQUIKN'CRISPY®

 Thefirstoperatingcycleafterinstallationshouldbeaconfirmationofthehot‐airfryer'sproper workingorder.Todothis,werecommendthatyoudepresstheswitchtotheright"POWER ON"position.ThecontrollershoulddisplaytheQuikn’Crispylogowiththecaption“Touchto Start”. 



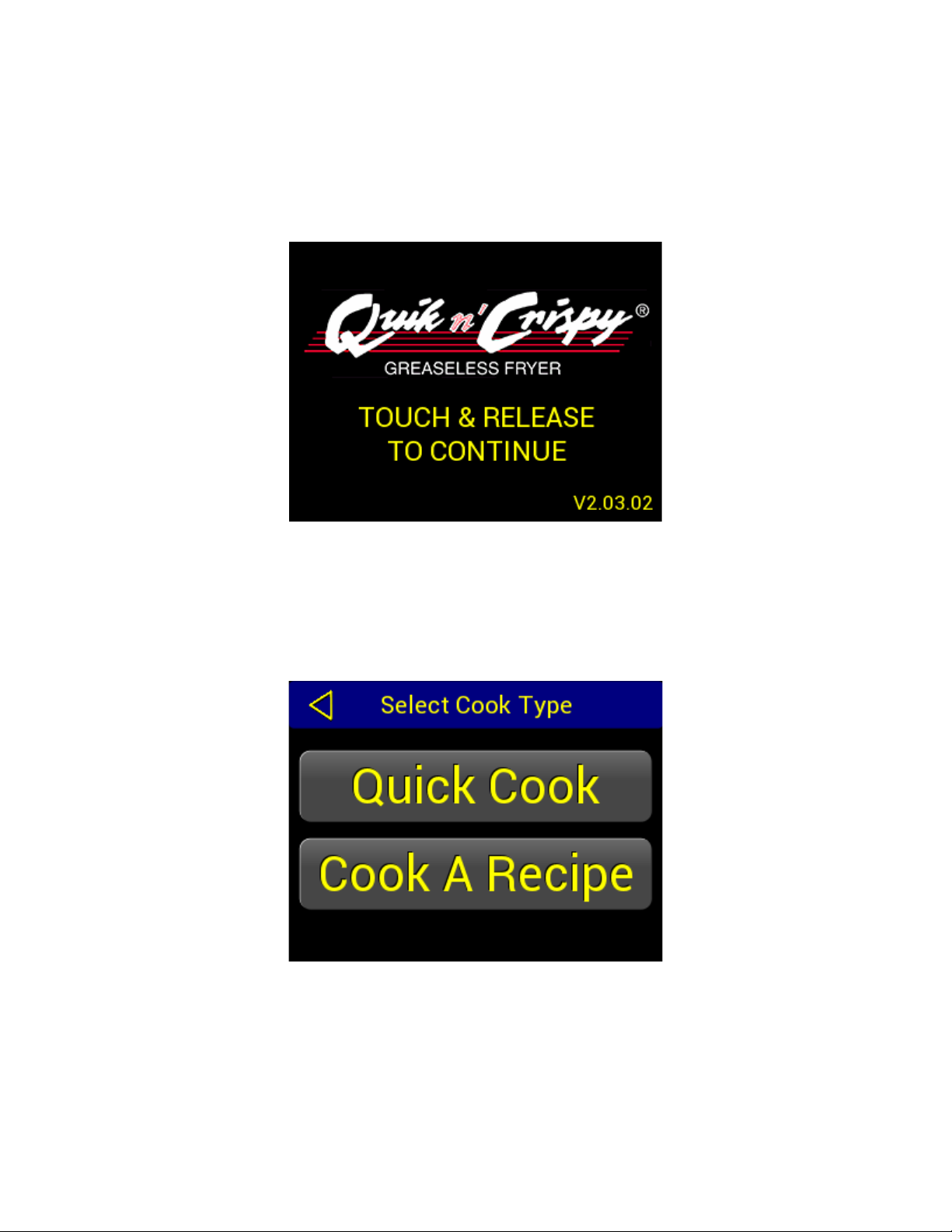

 Next,touchthescreenandthenextscreenwillprovideyouwiththeoptionof “QuickCook” (Wewillexplainthisoptionlaterinthemanual)or“CookARecipe”.Click“CookARecipeand itwilldisplaythe15Recipesthathave beenpreprogrammedintoyourQuikn’Crispy.These settingsareshownonthenextpage: 



Page 12

RECIPETIMEANDTEMPERATURESETTINGS

 Belowarethecookingtimeandtemperaturesthathavebeenpreprogrammedintoeachof the15menus.Ifyoudesiretochangeanyofthesesettings,pleaseseethefollowingsection.  

Menu TemperatureF° TemperatureF° TemperatureC° Time

 120VoltUnits 208/240VoltUnits International 

    

1 420° 400° 215° 1:00

2 420° 400° 215° 2:00

3 420° 400° 215° 2:30

4 420° 400° 215° 3:00

5 420° 400° 215° 3:30

6 420° 400° 215° 4:00

7 420° 400° 215° 4:30

8 420° 400° 215° 5:00

9 420° 400° 215° 5:30

10 420° 400° 215° 6:00

11 400° 370° 205° 6:30

12 400° 370° 205° 7:00

13 400° 370° 205° 7:30

14 400° 370° 205° 8:00

15 400° 370° 205° 8:30



Thefollowingsectionwillexplaininmoredetailhowtoaccesstheprogrammablefeatures oftheLCDController.Pleasenotethattoaccesstheconfigurationscreen,thebottom righthandcornerofthedisplaymustbehelduntiltheoperatorhearsadoublechirp.   



Page 13

CONFIGURATION

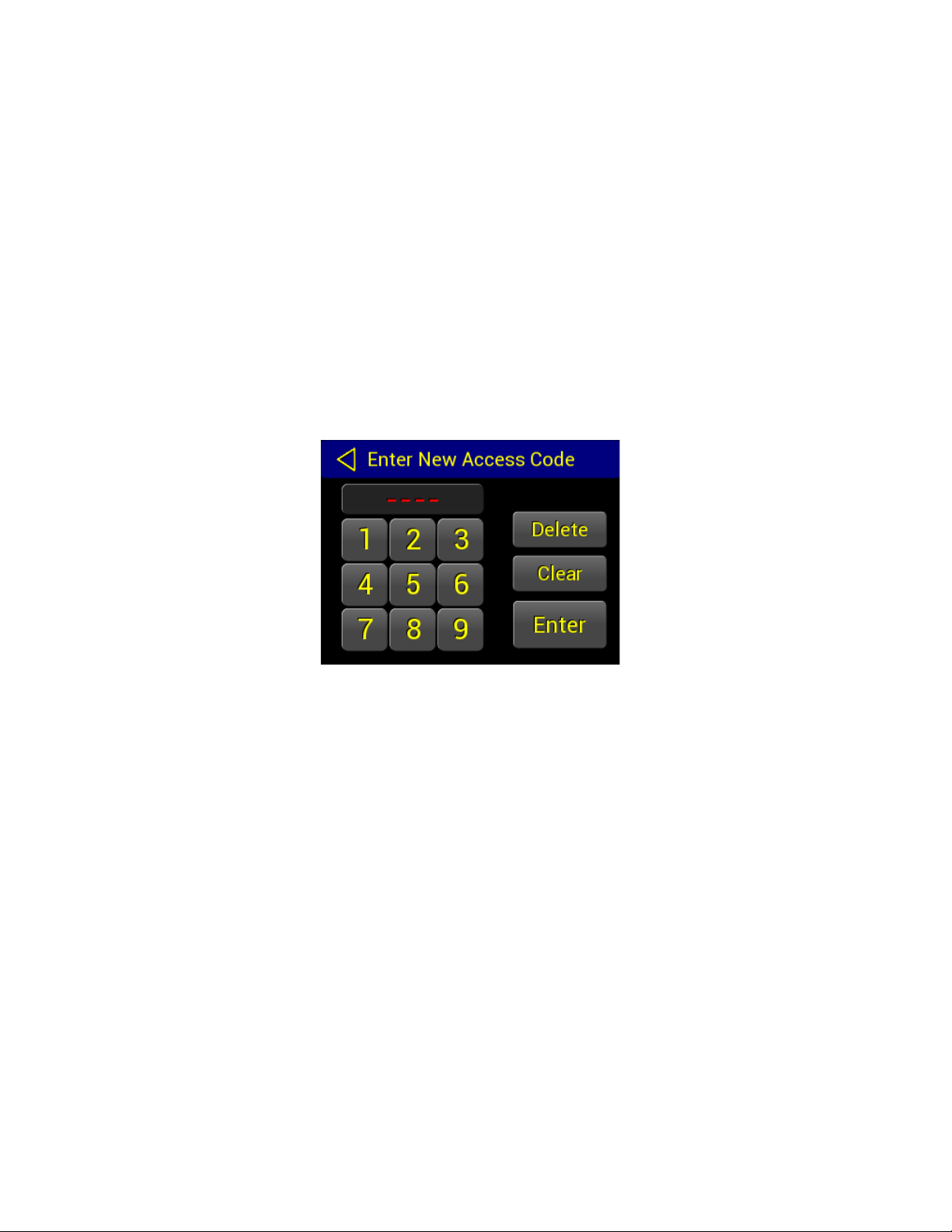

 Accesstothecontrollerconfigurationhasthreesecuritylevels:Supervisor,Technician,and Factory.ThismanualwillonlyaddresstheSupervisorlevel.Thislevelhasaccesstothe History,SetClock,USBImport,USBExport,Recipes,andSettings.  Togainaccesstotheconfiguration,pressandholdthebottomrighthandcornerofthedisplay for2seconds.Thecontrollerwillemitadoublechirp.Theinitialpresswillnotcauseaninitial chirptopreventaccidentalaccesstothesefeatures.Oncethecontrollerchirpstwice,release yourfingerandtheaccesscodeentrywindowappearsasshownbelow.Thedefault supervisoraccesscodeis1234.Enterthecodeusingthenumerickeysandpressthe“Enter” button. 

Page 14

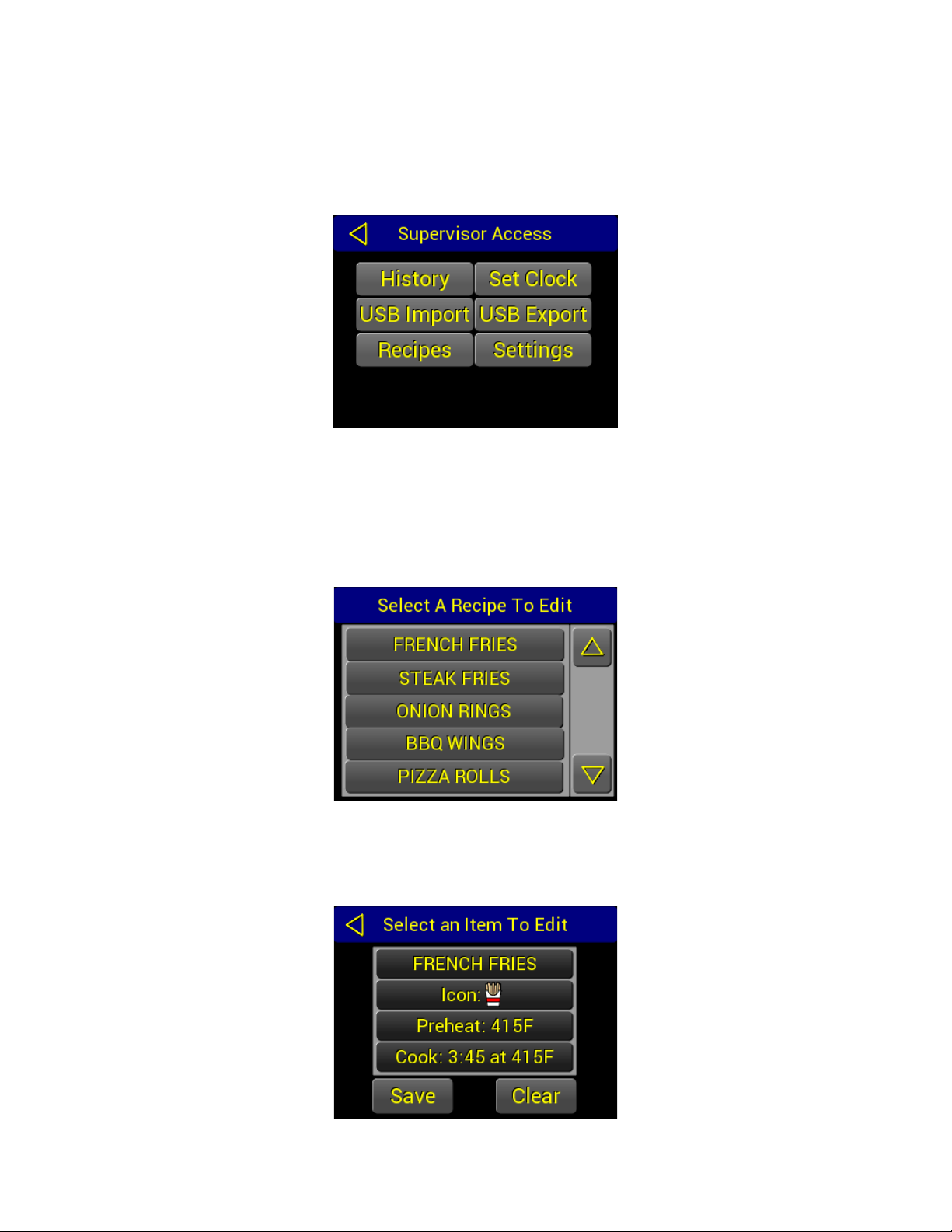

RECIPEEDITING

 Accesstotheeditingofthesystemrecipesfollowsthesameinstructionsasaccessingthe supervisorconfiguration:Pressandholdinthemaincookingwindow,enterthesupervisor accesscode(1234),andthentheSupervisorAccesswindowappears… 



 Pressthe“Recipes”buttonandthe15recipeswillappearonthescreen.Yourinitialscreen willdisplay“NotUsed”forall15recipesbutfordisplaypurposesbelow,wehaveinserted recipenames.Usetheupanddownarrowstoscrolltherecipelistuntilthedesiredrecipeis shown.Touchtherecipetobeedited. 



 TheSelectItemwindowshowstheitemsthatmakeupthatrecipe.Thefirstitemisthename oftherecipe,followedbythe“Icon”field,thePreheatfield,andtheCookfield. 



Page 15



Page 16

NAME&COOKSEGMENTEDITING

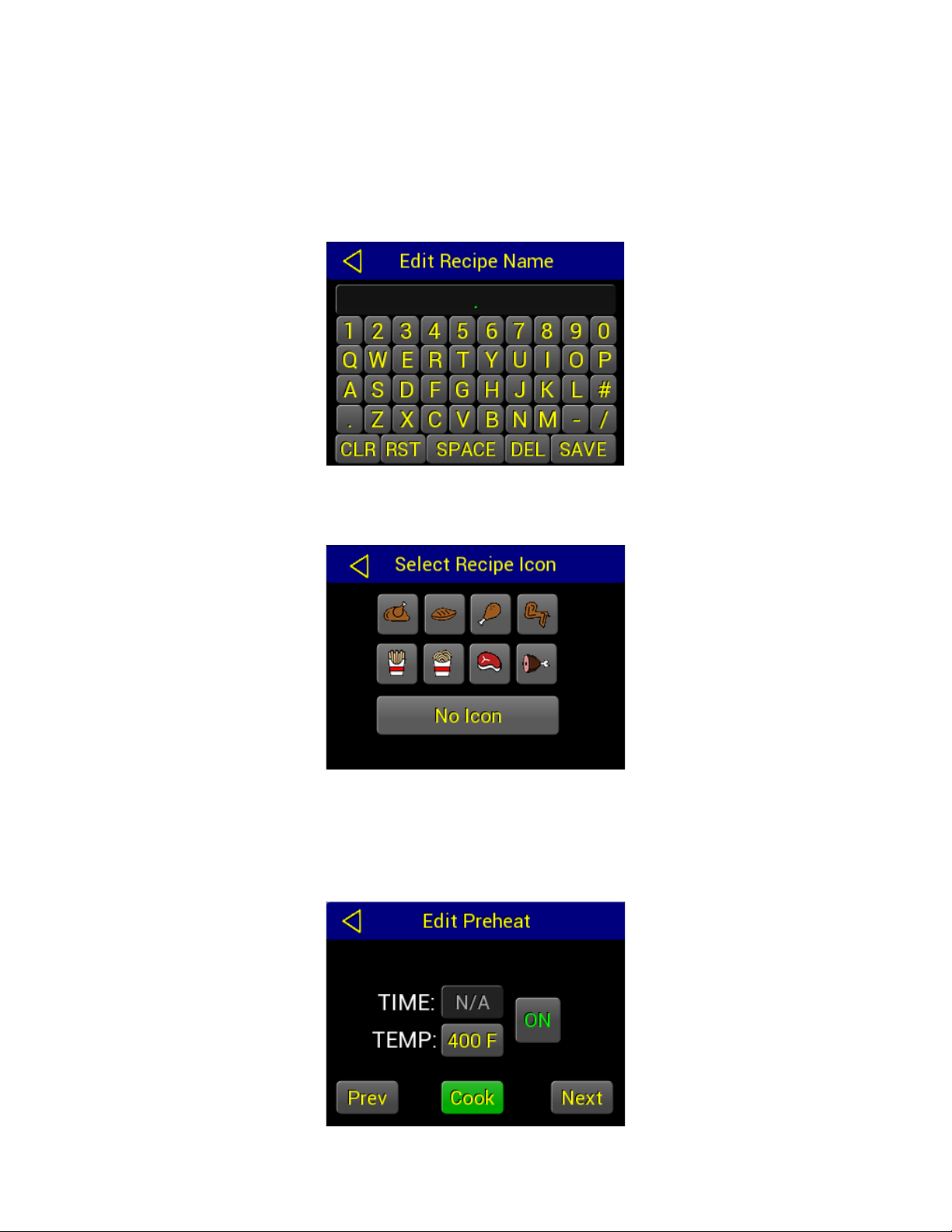

 Touchandhighlighttherecipenameintheselectionwindow.Ifyouwishtochangeorcreate thenameoftherecipe,usethekeyboardthatwillpopuponthedisplayandenterthenew name.Afteryouhaveenteredthename,makesurethathit“SAVE”atthebottomrighthand corner. 



ToenterorchangeanIconforthisrecipe,touchtheIconfield. 



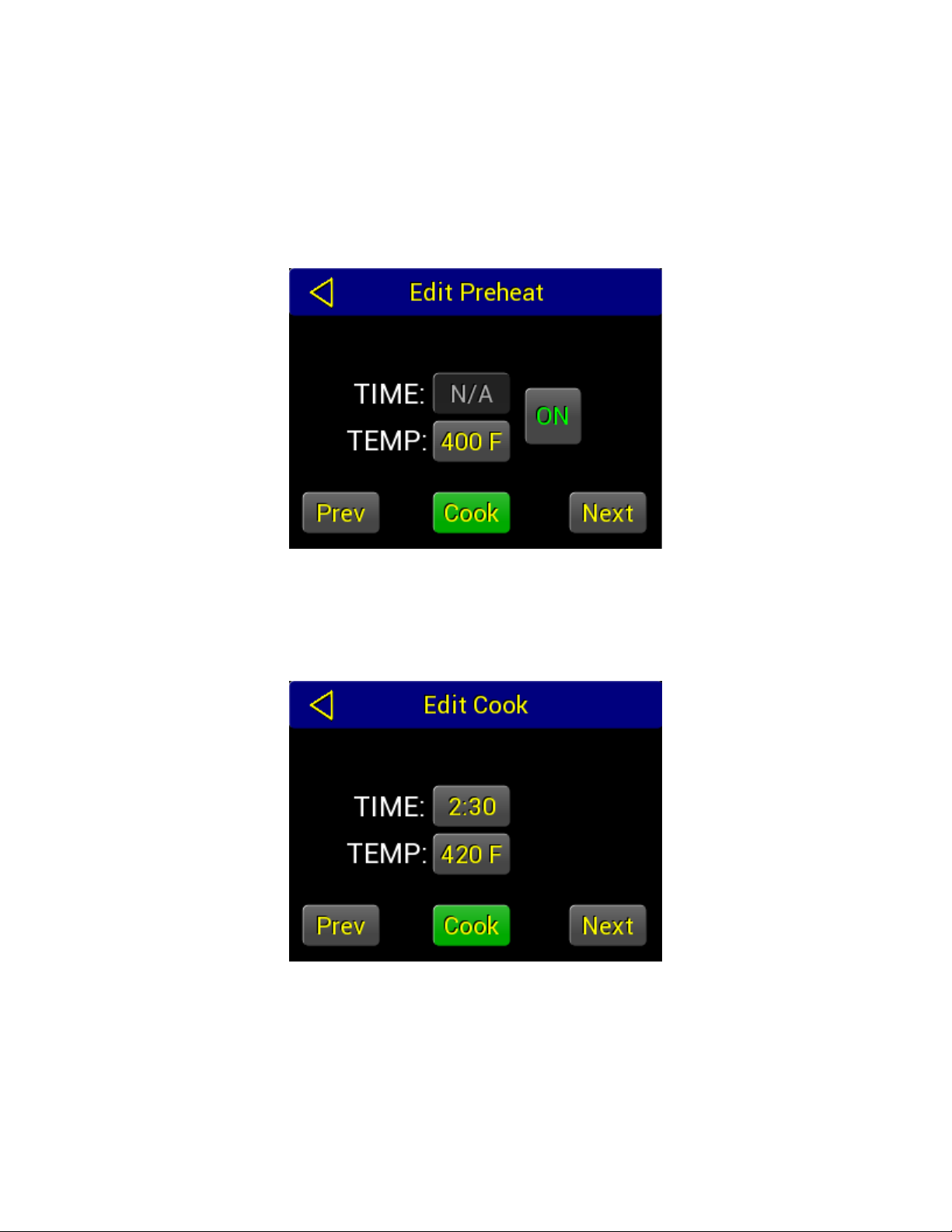

 ToEditthePreheatfield,touchthePreheatscreen.Pleasenotethatwestronglyrecommend thatyouenterthesametemperatureforboththePreheattemperatureandCook temperature. 



Page 17

 ToedittheCookTimeandTemperatureSettings,touchthefield. 



 Afteryouhavemadethechangestoarecipe,youneedtoclick“Save”atthebottomleft portionoftherecipescreentosavethesechanges.Ifyoufailtodothis,youwillneedto reenterthemodificationsthatyouhavemade. 

Page 18

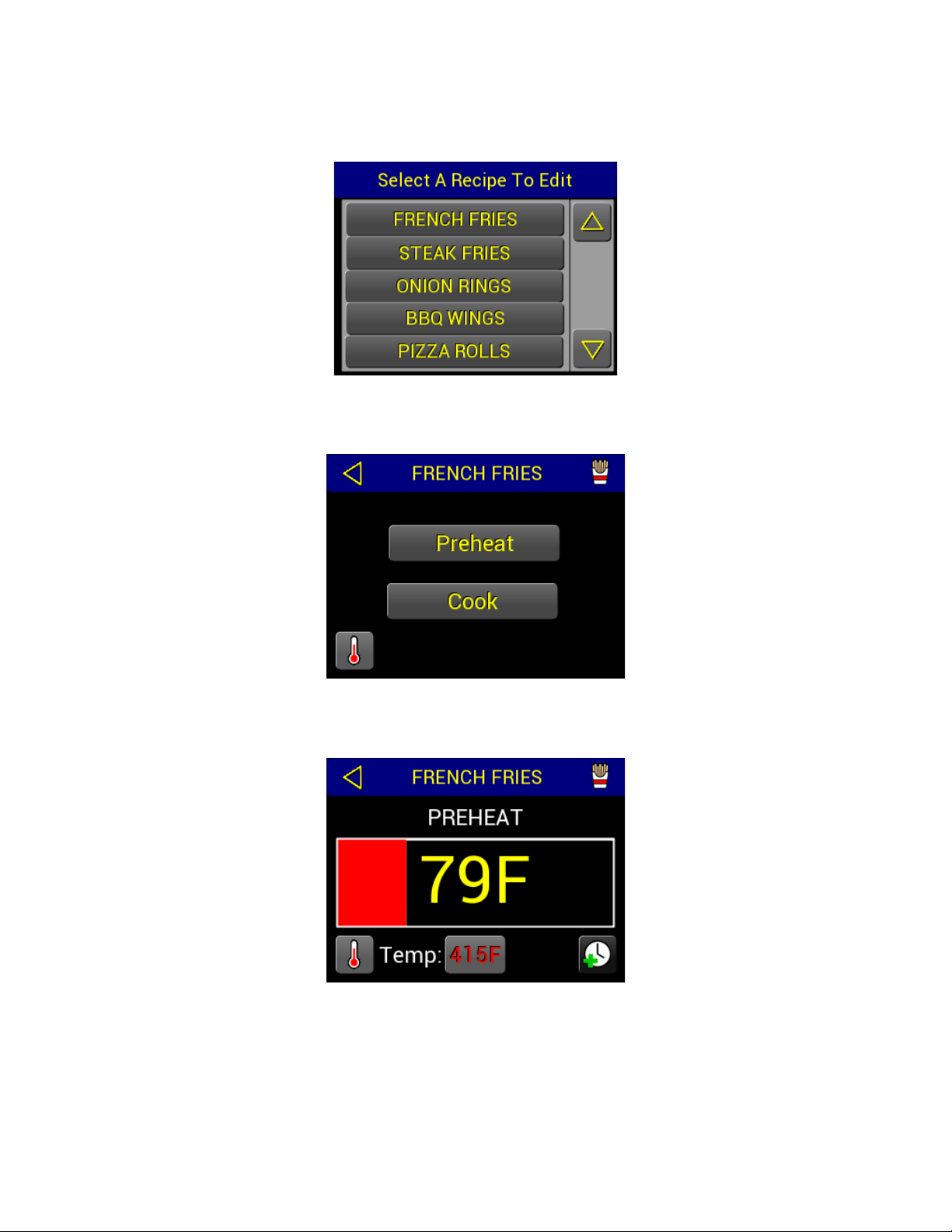

COOKINGARECIPE



Touchandhighlighttherecipenameintheselectionwindow. 



 ThenpressVIEWtoviewtherecipedetails.ScrollbackandthenselecttheCOOKbutton 



 TouchthePREHEATbuttonandtheunitwillheatuptothepresettemperature. 



 ThewindowdisplaysPREHEATduringthepreheatingcycleanddisplaystheoventemperature asitcontinuestorisetopresettemperature.WhentheovenreachesthePREHEAT temperature,thedisplaywillread“StartCook”.Atthispoint,pullthecookingbasketoutof theQuikn’Crispy,placeyourmenuitemsintothebasket,reinsertthecookingbasketand touchthe“StartCook”button.

Page 19



 Pressingthethermometerbuttonatthebottomleftofthescreenwilldisplaythereal‐time temperatureinthecookingchamberfor10secondsandwillthenrevertstothesetpoint temperatureforthecurrentsegment.  Thebuttonwiththe+andclockfaceimagewilladdadditionaltimetothecurrentcookcycle. Thefactorypresetonthisfeatureisanadditional30secondseachtimethisbuttonistouched. 

Tostopacookingcycle,pressandholdthebackarrowtotheleftofthenameoftherecipe for2secondsandthecontrollerchirpstwotwice.Thesystemwillreturntothepreheat/ cookselectionwindow.Ifyouwishtoswitchtoadifferentrecipe,hitthebackarrowagain anditwilltakeyouthelistofthe15recipes. 

Page 20

QUICKCOOKWINDOW

 QUICKCOOKisanewfeaturethathasbeenaddedtotheJuly2020versionoftheController. Itprovidestheoperatorwiththeabilitytoprogramarecipein3easystepswithoutgoing throughtheRecipeEditingsteps.Thisisagreatfeaturefortestingcookingtimesand temperaturesfornewmenuitemsthatyouwishtoaddtothe15menusettings.After touchingtheQUIKCOOKbutton,thefirstscreenthatappearsisthePreheatsetting. 



 EnterthePreheattemperature.Aswerecommendedearlier,thistemperatureshouldbethe sametemperaturethatwillbeutilizedforthecookingtemperature.Enterthetemperature andselect“Next”. 



 Enterthecookingtimeandcookingtemperatureforthisfeatureandthenselect“Cook”.The Quikn’Crispywillpreheattotheprogrammedtemperature.WhenitreachesthePreheat temperature,thedisplaywillshow“StartCook”.TouchthebuttonandtheQUICKCOOK featurewillengage. 

Page 21

SETBACKCONFIGURATION

 ThisisanothernewfeatureoftheJuly2020Controllerupgrade.Thisfeatureprovidesyouto engagetwolongrequestedupgradestotheQuikn’Crispy.Youhavetheoptiontoturnthese featuresonoroff.PleaseexercisecautioninusingeitherofthesefeaturesastheQuikn’ Crispywillcontinuetohavetheheatingelementengagedforthetimethathasbeen programmed.Eventhoughthecookingblowerisn’toperating,themenuitemswillcontinue tocookifleftinthecookingbasket. 



 Thefirstfeatureisthe“HOLDSTAGE”option.Withthisfeature,theQuikn’Crispywillhold thecookingtemperaturethatwasusedduringthepreviousrecipes.Ifyoucookedfrenchfries at420°Ffor3½minutes,andyoucookseveralordersoffrenchfries,oneaftertheother,the unitwillstayatthistemperatureforthepresettimethatyouenterintotheHOLDSTAGE  ThesecondfeatureistheSETBACKoption.Whenthisfeatureisturnedon,yourQuikn’ Crispywillmaintainthisminimumtemperatureforthetimethatyouenteredintothisscreen. Wehavehadseveralcustomersprovideuswiththeirinputthatwouldlikethisfeatureinstead ofhavingtheirunitcooldownbetweencookcycles.Theymighthaveabusylunchperiodthat last3hoursandtheywouldliketokeeptheunitidlingatthistemperaturebetweenengaging recipes. 

Page 22

COOKINGPROCEDURES

 TheQuikn'Crispycanfry,grill,andbakeawidearrayoffrozen,oven‐readyproductsavailable throughnormalfoodservicedistributionand wholesaleclubs. 

Toprepare"fried"menuitemsintheQuikn’Crispy,thefoodsselectedmusthaveoven preparationdirectionslistedonthepackage.Asanexample,eggrolls,corndogs,beer

batteredortempurabatteredvegetablesandbatteredcheesesticksaretypicallyfryableor bakeable.SeasonedorcoatedFrenchfriesorpotatowedgesarefryableorbakeable.These typesofproductswillcomeoutoftheQuikn'Crispycrispontheoutsideandmoistonthe insideasiftheywerefried.Toprepareanon‐battered,non‐coated,ornon‐seasonedmenu item,itmustbeabakeableversion.ToprepareshoestringorcrinklecutFrenchfries,orskin‐ onpotatowedges,youmustuseabakeableversion.

 MenuitemspreparedintheQuikn'Crispythatdonothavebakingdirectionslistedonthe packagewilltypicallybesoggyandlimpandwillnotchangeincolorfromapalewhitetoa goldenbrown.Contactyourfooddistributortoorderthecorrectversionofthemenuitemto

prepare.Ifthefooddistributorsalespersonisnotsureofthemenuitemsthatcanbe preparedintheQuikn’Crispy,havethemreviewthe32pagemenufoundinthisOperators Manual,orhavethemcontacttheQuikn’Crispydistributor,orQNC,Inc.directly. 

Topreparebreadeditemssuchaschickennuggetsandchickenstripseitherapre‐cookedor afullycookedproductmustbeused.Pre‐cookedmeansthattheproducthasbeenpartially

cooked,ispre‐brownedontheoutside,andtheinterioroftheproductisraw.Fullycooked meansthattheproductiscookedonboththeoutsideandtheinterior.Youcannotprepare ready‐to‐cookitemsthathaveawhitebreadingontheoutside.Theywillcook,buttheywill notturngoldenbrownintheQuikn'Crispy. 

TogrillfoodsintheQuikn'Crispy,youshouldusepre‐cookedorfullycookedmeat,poultry, orfishproducts.Asanexample,hotdogsandsomesausagesarefullycookedproductsand

couldbeconsumedcoldrightfromthepackage.TheseitemswillgrillintheQuikn'Crispy withacharbroiledappearance.Topreparegrilledchickenbreastsorhamburgers,usefully cookedproducts.TheseproductswillcomeoutoftheQuikn'Crispysizzlingontheoutside andtenderandjuicyontheinside. 

TheQuikn'Crispycanbakefrozenpizzasorpreparefreshlymadepizzasusingapar‐baked crust.Pleasenotethatanoptionalpizzabasketisavailable.PleasecontactQNCforpricing

information.Preparehot,open‐facedsandwichesinjust60to90seconds.Tobakecookies,

Page 23

pastries,ormuffins,lowerthetemperaturesettingto350°Fanduseamuffintin,asmallsheet pan,orparchmentpaper. 



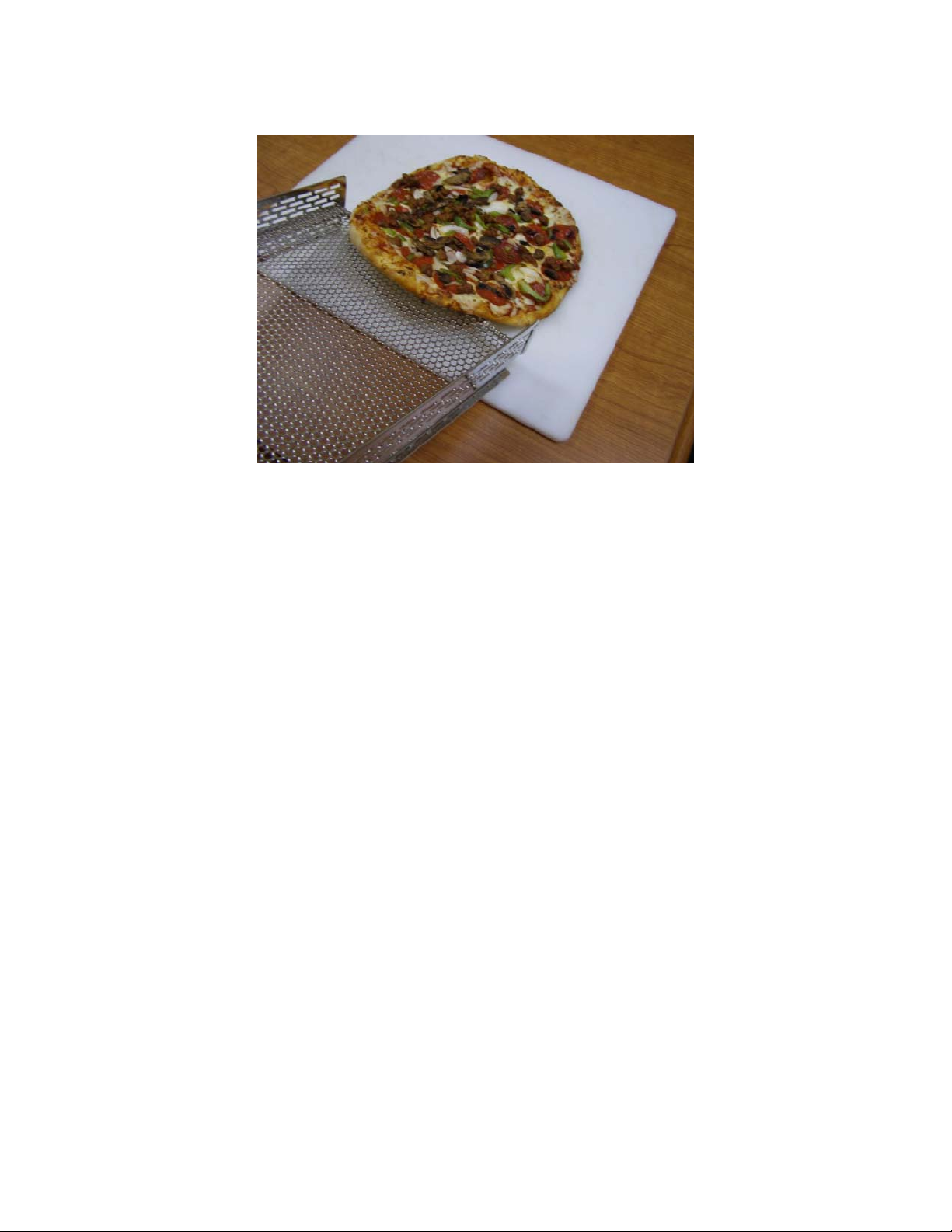

OptionalPizzaBasket  Pleasenotethefollowinggeneralcookingprocedures: 

1. AlwaysspraytheCookingBasketandDripTraywithanaerosolvegetableshortening

priortothefirstcookingcycleoftheday,orthefirstcookingcyclesincecleaning.Do notspraynon‐stickaerosoldirectlyintothefryer,orwhilethefryerisoperating. WipeanyexcessoilfromtheDripTraywithanabsorbentpapertowelorbartowel. TohelpreduceanydragbetweentheDripTrayandTrayGuides,pulltheDripTrayas farbackaspossible,andrubthetowelwiththeexcessoilontheundersideofeach sideoftheDripTray.



2. Removetheproductyouwishtocookfromthefreezerorrefrigerator.Note:Please

beawarethatsimilarproductwillvaryincookingtimedependingonitsinternal temperatureatthetimeofcooking.Inotherwords,frozenfriedchickenwilltake longertocookthanthesamefriedchickenthathasbeenthawedintherefrigerator.



3. IfthisisthefirstcookingcycleofthedaytheQuikn'Crispy®GreaselessFryerneeds

to be warmed up to 210°C.  This should take 4 to 5 minutes.  210°C is the temperatureatwhichyouwillpreparemostorallofyourmenuitemsin your230V Quikn'Crispy®.CookingatatemperaturehigherthanthiscancausetheQuikn' Crispy®tosmoke.IfsmokeisemittedfromtheQuikn'Crispy®, lower the

temperaturesetting.  

Page 24

4. GrabthehandleandslidetheCookingBasketandDripTrayapproximately2/3ofthe

wayoutoftheQuikn’Crispy.TheDripTraywillactasacrumbcatcherwhileplacing

thefoodproductintotheCookingBasket. 



1. 

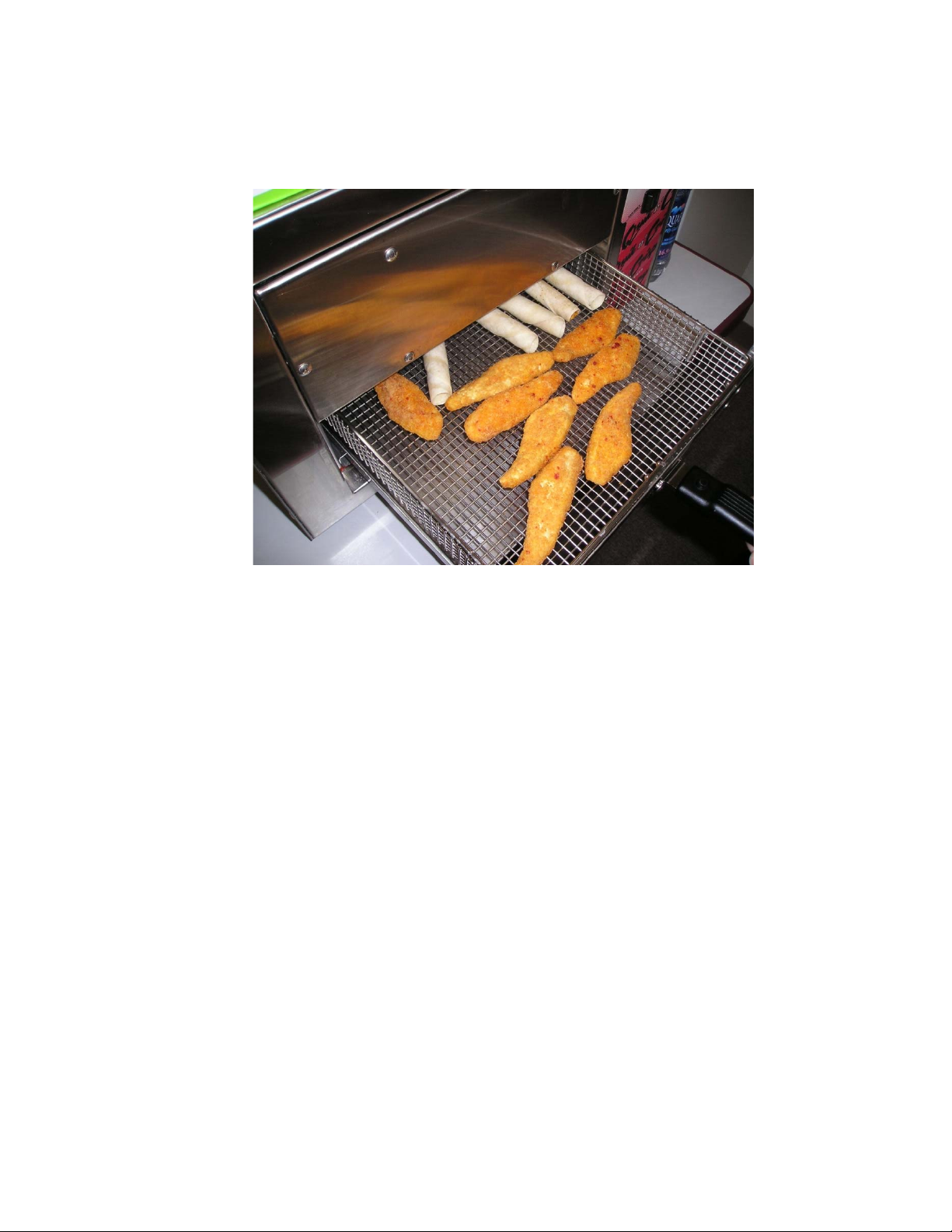

2. PlacingItemsinCookingBasket



5. ArrangetheproducttobecookedinasinglelayerintheCookingBasket.Avoid

stackingtheproducttobecooked.Anevensinglelayerofproductwillcookmore

evenlythanproductsplacedintotheCookingBasketinastackedorclumped

arrangement.  

6. SelectaMenutimetoapproximately70%ofthefoodmanufacturer'ssuggested

convectionovencookingtimes.Asanexample,ifthesuggestedconvectionoven

cookingtimeis10minutes,thisitemshouldtakeapproximately7minutesintheQuik

n'Crispy.IfMenu12isprogrammedto7minutes,usethismenuprogram.Review

theenclosed32pagemenuforsuggestedcookingtimesforvariousmenuitems.



7. Pleasebeawarethatvariationsinthecookingtimeswilloccurdependingonthe

internaltemperatureofthefoodproduct,variancesinvoltages,andthequantityof

foodbeingcookedatonetime.Wesuggestthatyouexperimentwithcookingtimes

andtemperaturesandrecordtheresultsforfuturereference.Thistestingwill

preventunder‐cookingorburningoffoodproducts.



Page 25

8. PulltheDripTrayandCookingBasketoutsimultaneouslyuponcompletionofthe

cookingprocess.Removecookedproductwithspatulaortongsor,inthecaseof

foodproductslikeovenchips,removetheCookingBasketwithbothhandsonthe

handle,anddumpthefoodproductintoafoilpanorholdingcontainer.



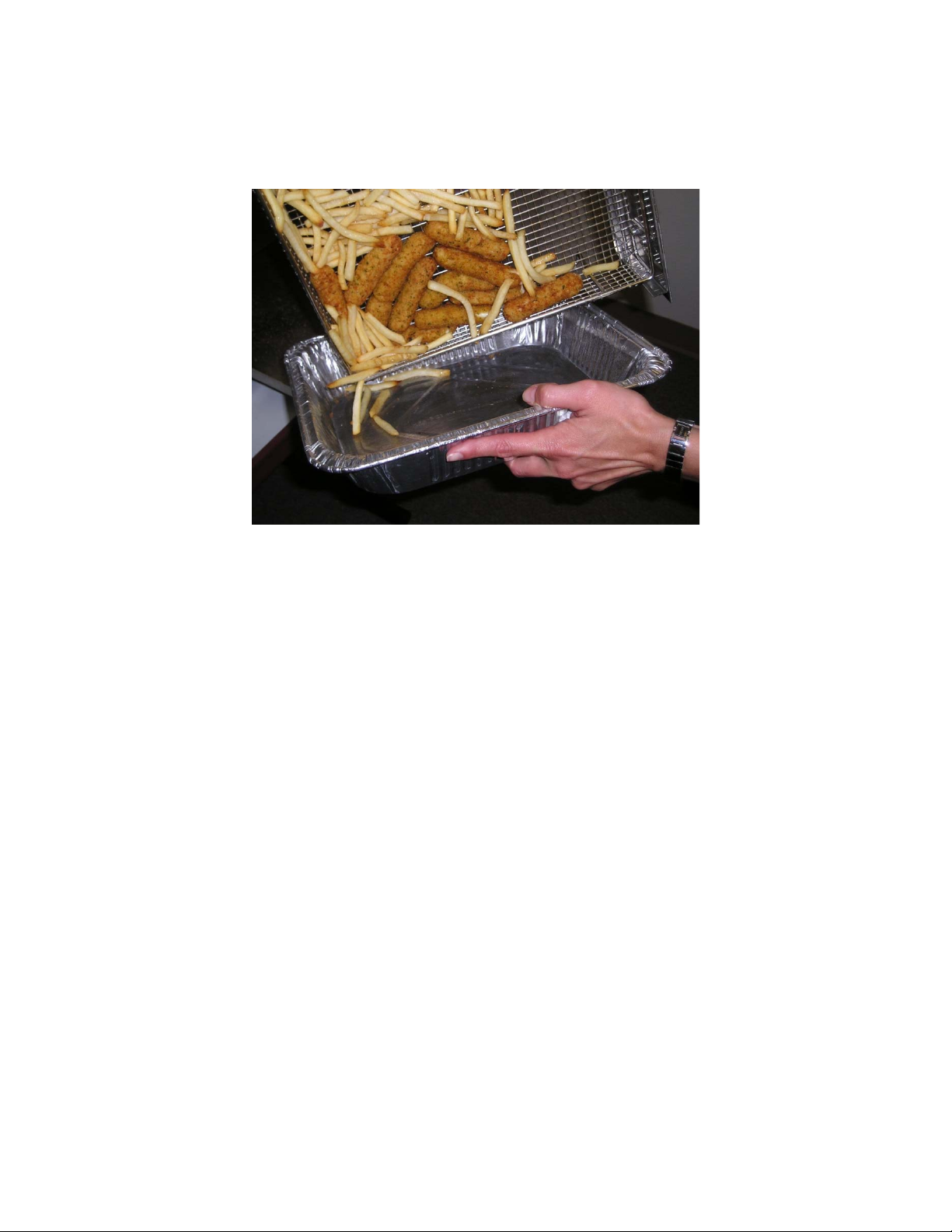

EmptyingtheCookingBasket 

Page 26

CLEANINGPROCEDURES



NOTE: PRIORTOANYCLEANINGORMAINTENANCE,THEON/OFFPOWERSWITCHMUSTBE

INTHELEFT"OFF"POSITION.THISSAFETYPRECAUTIONWILLPREVENTACCIDENTAL

EXPOSURETOHIGHVOLTAGE.



TherearetwotypesofcleaningproceduresrecommendedfortheQuikn'Crispy.Thefirstis topreventproductbuildupontheCookingBasketduringtheday,aswellastransferofflavors fromoneproducttothenext.Thisisaccomplishedbyusingthefollowingprocedure: 

1. AfterpreparingmenuitemsintheQuikn’Crispy,alayerorcoatingofsauce,crumbs,

orbattermaybedepositedontheCookingBasketorDripTray.Youshouldremove thesedepositsbeforecookinganotherbatchoffood.PullbackontheCooking BasketandwithitstillovertheDripTray;brushtheinsideofthebasketwithabrass bristlebrush.Turnthebasketoverandrepeatbrushingintheotherdirection.All

largefoodparticlesshouldthenberemovedfromtheCookingBasket.  



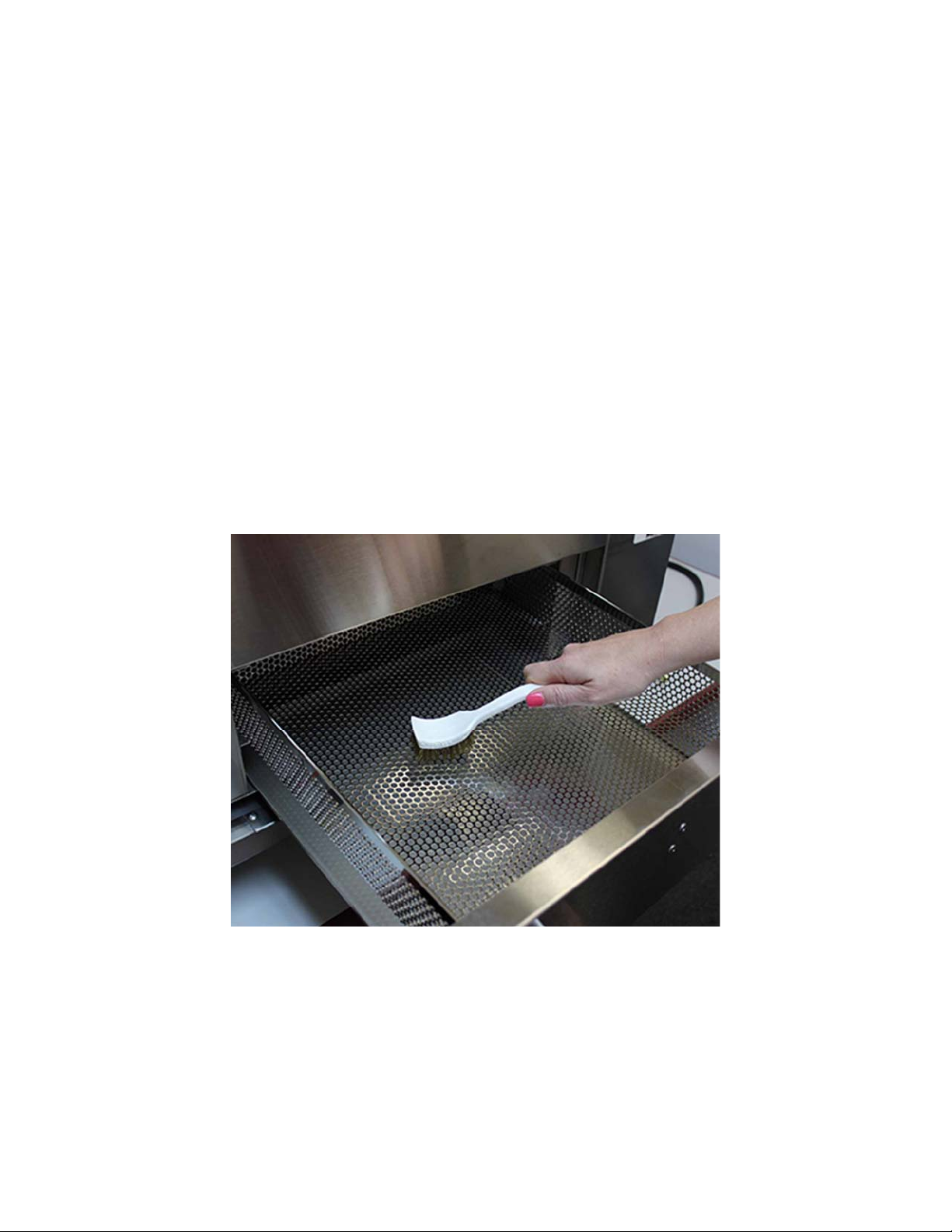

BrushingtheCookingBasket  

2. WiththeCookingBasketremovedfromtheQuikn'CrispyandtheDripTraypulled

out,scrapetheDripTraywithastainlesssteeldoughcutterorbenchscraper.Simply scrapetheDripTrayfromthebacktothefront.Threestrokesofthescraperfrom thereartothefrontandonescrapefromonesidetotheothershouldplaceallof thecrumbsandexcessoiltooneofthefrontcornersoftheDripTray.

Page 27



ScrapingtheDripTraytoClean

3. Removethisresiduewiththescraperanddiscard.WipetheDripTraywithadry

papertowelorclothandre‐insert.



DiscardCrumbsandResidue   BoththebrassbristlebrushandbenchscraperareavailablefromQNC,Inc.oryour

Quikn'Crispydistributor.  Forcompletecleaningattheendoftheday,repeattheaboveprocedure,andthen:   1. RemovetheCookingBasketAssemblyfromtheQuikn’Crispy,andwiththeuseof

ovenmitts,lifttheRemovableFrontPanelthatislocateddirectlyabovetheCooking

Basketbyapplyingslightupwardpressure.PulltheSplashguardoutofthetopofthe

cookingchamberandthenremovetheDripTrayfromthecookingchamber.After

youhave

Page 28

  allowedtheSeparationWalltocooldown,removeitfromtheinterioroftheQuikn’

Crispy(ThetimetocooltheSeparationWallcanbereducedbyturningonthefan

motoronlywiththepowerswitchpushedtotheleft“FanOnly”position).   2. PlacetheCookingBasket,DripTray,Splashguard,thetwopieceRemovableFront

Panel,andSeparationWall(whichhasbeenremovedaccordingtoareversalofthe

installationproceduresonpages7and8ofthismanual)intoasinkcontainingapre‐

soaksolutionwithacommercialdegreaser.Wesuggestthattheuseofawirebrush

forcleaningtheCookingBasketandgreenscrubbingpadforotherstainlesssteel

items.Theitemsshouldthenbecleanedaccordingtolocalhealthdepartment

guidelines.Thisusuallyrequiresthestepsofwashing,rinsing,sanitizing,andair‐

drying.    Analternativetocleaningthese4partsinyoursinkistosoakthemovernightina

solutionofDipTankCleaner(DTC‐2),andwater.CAUTION:ALWAYSWEARRUBBER

GLOVESANDEYEPROTECTIONWHENHANDLINGCAUSTICCHEMICALS.DTC‐2isa

causticchemicalavailablefromeitheryourQuikn'CrispydistributororQNC,Inc.

Pleasecall1‐888‐668‐3687formoreinformation.Acomplete2lb.JarofDTC‐2

shouldbeaddedto8gallonsofwaterina10‐gallonstoragecontainer.Thissolution

shouldbereusedfor30to45daysdependingonthequantityandtypesoffoods

preparedintheQuikn’Crispy.Aminimumof4hoursofsoakingisrecommendedto

removebaked‐oncarbonizedgreasethatmaybeontheseparts.Duringthistime

thegreasewilldissolveandtheCookingBasket,DripTray,Splashguard,twopiece

RemovableFrontPanel,andSeparationWallwillbecleanedofthecarbonizedbuild‐

up.Priortore‐insertingthesepartsintoyourQuikn'Crispy,wash,rinseandsanitize

them.AllowthemtoairdryandthenplacethembackintotheQuikn'Crispy.    3. DependingontheamountofcarbonizedfoodaccumulationontheinsideoftheQuik

n'Crispy,itmaybenecessarytocleantheinsideofthecookingchamberwitha

commercialovencleanerpossiblyasoftenaseachdayorasinfrequentlyasoncea

week.Thefrequencydependsonthequantityoffoodsyouprepareandtheoil

contentofthesevariousfoods.Alwaysusetheseproductsinaccordancewith

manufacturer'sdirections.  QNC,oryourQuikn'Crispy®distributor,hasavailableanovencleanercalledDip‐R‐

Spray,anexcellentcleanerforuseinyourQuikn'Crispy®.Itissafetouseandisthe

quickest,easiesttouseovencleanerthatwehaveevaluatedtodate.Itisappliedto

theinterioroftheovenafterithasbeenpre‐warmedto94°C.Uponcontactwith

thespray,thecarbonizedgreaseisdissolvedandeasilyremovedwithadampcloth.

Page 29

Theinteriorofthe ovenisthensprayedlightly withavinegarandwatersolutionto

neutralizetheDip‐R‐Sprayandwipedwithacleancloth.Theinterioroftheunitwill

beleftcleanandstreakfree.  TheQuikn'Crispyisnowreadyforthenextuse.  PleasenotethatwerecommendthereplacementoftheQuikn’CrispyDipTankCleaner solutionevery30days.Duringthis30‐daytimeperiod,theDTC‐2solutionwillstartto neutralizeandlooseitseffectiveness.Thechemicalreactionoftheactivechemicalsinthe DTC‐2inconjunctionwiththegreaseorcarbonthatisadheredtotheinteriorcomponentsof yourQuikn’Crispyformsacrudeformofsoapthatfloatstotopofyoursoakingcontainer. Thiscanberemovedperiodicallywithadisposablecoffeefilterorsomeothertypeof skimmer.Attheendofthe30daysthesolutioncanbedisposedofinyoursewagesystem. ThepHintheendsolutionistypicallymilderthanthatofadraincleaner.Ifyouareutilizinga septicsystem,oryouwishtofurtherneutralizethesolutionpriortodisposing,youcan neutralizethesolutionbypouringvinegarslowlyintothesolutionwhilestirring.ThepHtarget is6.5to8.5.YoucanobtainapHtestkitfromaswimmingpoolchemicalssupplystore. 



PRODUCTREGISTRATION

 AfterhavingthoroughlyreviewedtheOperator'sManual,pleasetakeamomenttoregister yourQuikn’Crispytoactivateyourwarranty.IfyouhaveInternetaccess,pleasegoonlineat

http://www.q‐n‐c.comandthen,ontheleftsideofthescreen,clickon“Warranty

Registration”tocompleteandsubmityourregistrationelectronically.Oryoumaycomplete theenclosedProductRegistrationformandmailittoQNC,Inc.IftheProductRegistration formwasmisplacedoronewasnotincludedwithyourQuikn'Crispy,goonlineasdescribed above,contactyourdistributor,ore‐mailatsales@q‐n‐c.comforareplacementregistration form.  YourQuikn'Crispyhasalimitedwarrantyof1yearonallotherpartsandlaborfromthedate ofinstallationofyourunit.SeetheProductRegistrationformorespecificinformation.  

SERVICE

 IfyouhavequestionsontheoperationofyourQuikn'Crispy®GreaselessFryerorfeelthatit requiresservice,contactyourinstallingdistributororQNC,Inc.atthenumberlistedabove.If aservicecallisrequired,wewillscheduleonepromptly.



Page 30

WIRINGDIAGRAMS



Page 31

 



Page 32


