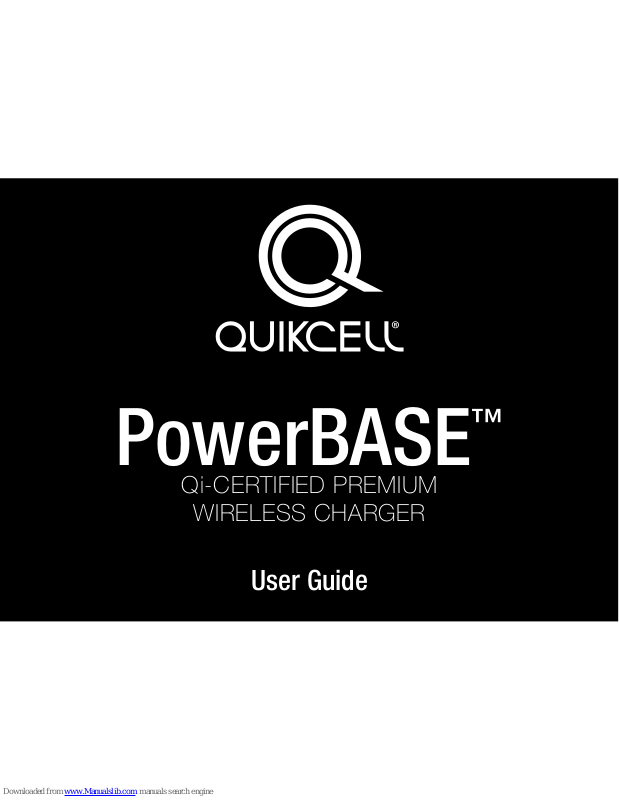

1
User Guide
Qi-CERTIFIED PREMIUM
WIRELESS CHARGER
PowerBASE
™
2
Specications
Dimensions: 88 x 88 x 11mm
Input: 5V-2A | 9V-1.67A
Output: 5V-1A | 9V-1.1A
Transmission Distance: Up to 8mm
Conversion Rate: Less than or equal to 73%
3
Important Safety Instructions
Failure to follow these safety instructions can lead to a
re, electrical shock, personal injury, property damage
and/or damage to the product. Be sure to read the entire
user manual before charging your device for the rst time.
• Do not use charger for any other reason than its
intended use
• Keep the charger away from heat sources and
direct sunlight
• Do not expose the charger to extremely high or
low temperatures
• Use the product in a location where the temperature is
32°F – 95°F (0°C – 35°C)
4
• Do not let the charger come in contact with water or
any other liquid
• If the unit becomes wet, immediately unplug it from the
power source
• Do not handle the charger, USB cable or wall charger
with wet hands
• Do not let dust or debris accumulate on the charger
• Do not use the charger if it has been dropped or
damaged in any way
• Repairs to the electrical equipment should only be
performed by a qualied electrician and improper
repairs may put the user at serious risk
• If you have an electrical device, such as a pacemaker,
please consult a physician before using the PowerBASE
• Do not place magnetic cards or similar items near
5
this product
• Use the specied power source and voltage at all times
• Do not use a voltage converter/travel adapter
• Make sure the wall charger is inserted all the way into
the electrical outlet
• Place the unit on a sturdy, at surface when using
• Keep the wireless charger out of reach of children
Cleaning Your PowerBASE
If the charger needs to be cleaned, wipe it using a soft,
dry cloth. Never use any abrasive cleaning agents.
Periodically wipe off any accumulated dust.
6
Charging Your Device
Note: Make sure your device is Qi-compatible. If you are
using a metal case on your device please remove case
prior to charging. Also, if you are having issues charging
your device, please remove your case.
1. Plug one end of the Micro USB cable into the wall
charger and the other end into the PowerBASE. Place
the PowerBASE on a sturdy, at surface such as a desk
or table.
7
2. Place your device directly onto the PowerBASE. Please
refer to the diagrams below on the proper placement.
– When the charger is plugged in the LED light will
turn Blue
– The LED light will turn Green once it is ready to
charge your device
– The LED light will pulse Blue when it is charging
8
your device
3. The charging time will depend on the type of device
you have. Your device will display charging process when
charging.
4. When charging is complete, the LED Indicator will turn
off. Remove your device from the charger at this time.
FCC Notice:
This device complies with part 15 of the FCC rules. The
operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference received,
including interference that may cause undesired
operation.
9
The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modications or
changes to the charger. Such modications or changes
could void the user's authority to operate the equipment.
This charger has been tested and found to comply with
the limits for a Class B digital device, pursuant to part
15 of the FCC rules. This limits the design to provide
reasonable protection against harmful interference in a
residential installation. This charger generates, uses and
can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
10
installation. If this charger does cause interference to a
radio or television reception (which can be determined by
turning the equipment off and on), the user is encouraged
to try to correct the interface by one or more of the
following measures:
– Reorient or relocate the receiving antenna
– Increase the distance between the charger and
the receiver
– Connect the charger to an outlet different from where
the receiver is connected
– Consult a dealer and/or an experienced technician
for help
11
Return Policy
Alpha Comm Enterprises, Inc. warrants this product as free of defects
in material, design and workmanship for the period of one year from
the original date of purchase. The warranty is limited to the original
purchaser. If during the period of warranty this product proves
defective under normal use and service, you should rst return the
product to the retailer from whom it was purchased. If that route is
unsuccessful, follow the instructions below.
The liability of Alpha Comm Enterprises, Inc. and its appointed repair
company is limited to the cost of repair and/or replacement of the
product under warranty. Products sent for warranty service must be
accompanied by a copy of the original purchase receipt, the original
box, materials and accessories. All cost associated with the return
of the product under warranty are the responsibility of the original
purchaser. A $4.95 Shipping and Handling Fee will apply in order for
Alpha Comm Enterprises, Inc. to ship out a new/refurbished product
to customer. Alpha Comm Enterprises, Inc. will not assume any
responsibility for any loss or damage incurred in shipping.
12
One Year Limited Warranty
All Quikcell products come with a warranty effective one year
starting on the date of the original purchase. This warranty covers all
mechanical and electrical problems, except those arising from abuse
or tampering. Return the defective accessory with proof of purchase to
the retail store where purchased for exchange or contact Alpha Comm
at 1-888-951-0909 or warranty@alphacomm.com.
13
Designed by Alpha Comm Enterprises
in Lawrenceville, Georgia.
Made in China. Alpha Comm Enterprises:
1500 Lakes Parkway; Lawrenceville, GA 30043
Alpha Comm and Quikcell are registered trademarks of Alpha Comm
Enterprises. All other trademarks are the property of their respective
owners. Copyright 2018. All rights reserved. This product is not a toy.
Contains small parts, not for children under 3 years.
