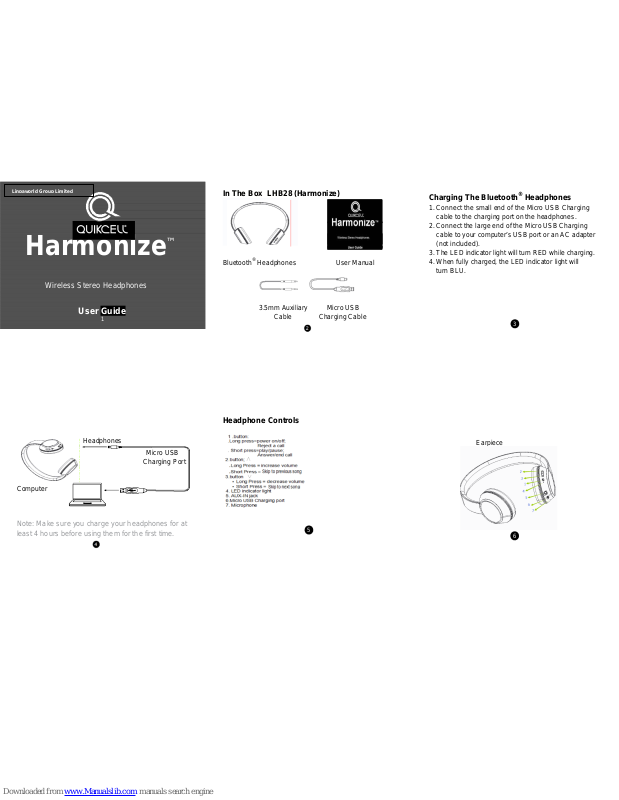

Harmonize
™
Wireless Stereo Headphones
User Guide
1
Linpaworld Group Limited
In The Box LHB28 (Harmonize)
®
APPLAUZ
WirelessStereoHeadphon es
™
User Guide
Bluetooth® Headphones
User Manual
2
3.5mm Auxiliary Micro USB
Cable
Charging Cable
Charging The Bluetooth® Headphones
1. Connect the small end of the Micro USB Charging
cable to the charging port on the headphones.
2. Connect the large end of the Micro USB Charging
cable to your computer’s USB port or an AC adapter
(not included).
3. The LED indicator light will turn RED while charging.
4. When fully charged, the LED indicator light will
turn BLU.
3
Headphones
Micro USB
Charging Port
Computer
Note: Make sure you charge your headphones for at
least 4 hours before using them for the first time.
Headphone Controls
5
Earpiece
6
6
Paring The Headphones With Bluetooth
Enabled Devices
1. Press and HOLD the [Power, call, answer]
button until a tone is heard and the LED indicator
light flashes BLUE.
2. Keep your Bluetooth headphones and Bluetooth
enabled device within 3 feet of each other during the
pairing process.
3. Set your mobile device to search/scan for new
Bluetooth devices.
7
Note: If a paired device is in range wh e n th e
headphones are turned on, the headphones will
connect to it automatically
On an iPhone
®
Go to settings > Bluetooth
(Make sure Bluetooth is turned ON)
On an Android™ Phone
Go to settings > Bluetooth > Search/Scan for devices
(Make sure Bluetooth is turned ON)
On Other Cell Phones/Devices
Review the instruction manual that came with your
phone/device.
8
4. When the Bluetooth enabled device finds the
headphones, select “Harmonize” from the list
of devices found.
5. If required, enter the password “0000”. Select OK
or YES to pair your device.
6. After a successful paring, a tone will be heard and
the LED indicator light will be a steady BLUE.
Note: If you would like to connect the headphones
to another device, you must unpair the
headphones from the first device. On your device’s
Bluetooth settings, select “
Harmonize”, and then
select “unpair”. When the headphones have been
9
unpaired, turn off the headphones, and then turn
them back on to enter pairing mode again.
Using your Bluetooth Headphones
Powering （Call button)ON/OFF
• To turn ON, press and HOLD the [Power, Call, Answer]
button until a tone is heard.
• To turn OFF, press and HOLD the [Power, Call,
Answer] button until a tone is heard.
Adjusting The Volume
• To increase the volume, long press the [ ] button.
• To decrease the volume, long press the [ ] button.
10
Note: You can also adjust the volume from your
connected device’s volume control.
Answering ending a call
• To answer a call, quick press the [Call] button.
• To end a call, quick press the [Call] button again.
Redial a number
• Double press the [Call] button. The last number called
will be redialed.
11
Playing Music
To enjoy wireless music on your Bluetooth Headphones,
make sure you are connected to a Bluetooth enabled
device. Once connected, you can control the music on
the headphones or on your connected device.
Note: Most media enabled smartphones will display
“Connected to phone audio and media” when
connected to the Bluetooth headphones. This
means you can make calls, enjoy music and media.
12
Play/Pause
• Quickly press the [Play, Pause] button to
play music.
• Quickly press the [Play, Pause] button again to
pause music.
Skipping Songs
• Quickly press the [ ] button to skip to previous song.
• Quickly press the [ ] button to skip to next song.
13
Using 3.5mm Wired Cable on Headphones
1. Connect one end of the included 3.5mm Auxiliary
Cable to the AUX-IN jack on the headphones, and
the other end of the cable to the external device’s
headphone jack port (smartphone, tablet, computer
or MP3 player).
2. Open a media player on your device and click on
PLAY to start playing your music.
3. Use the controls on your connected device to control
music playback and volume.
14
Note: Microphone on headset does not work when
the wire is connected.
Frequently Asked Questions
Q: I can pair the Bluetooth headphones with my
Bluetooth device, but I cannot hear any music.
• Make sure your Bluetooth device supports
A2DP profile.
• Turn up the volume on your Bluetooth device.
• You may have to unpair the headphones, then re-
pair your device
15
Q: I cannot get the Bluetooth headphones into
paring mode
• Make sure the Bluetooth headphones are turned OFF
before beginning the pairing process
• Press and HOLD the [Power, Play, Pause]
button until a tone is heard and the LED
indicator light flashes BLUE.
• Check that the headphones are charged.
Q: My Bluetooth Device is not able to pair with the
Bluetooth headphones.
• Make sure the Bluetooth headphones are turned OFF
before beginning the pairing process.
• Keep your headphones and Bluetooth enabled device
16
within 3 feet of each other during the pairing
process.
• Check that your device’s Bluetooth feature is
turned ON.
• Try repeating the pairing process, see the “Pairing”
the headphones with a Bluetooth enable device”.
17
Warranty & Return Policy
Alpha Comm Enterprises, Inc. warrants this product as free of
defects in material, design and workmanship for the period of one
year from the original date of purchase. The warranty is limited to the
original purchaser. If during the period of warranty this product
proves defective under normal use and service you should return the
product to the retailer from whom it was purchased or to an authorized
warranty center.
The liability of Alpha Comm Enterprises, Inc. and its appointed repair
company is limited to the cost of repair and/or replacement of the
product under warranty. Products sent for warranty service must be
accompanied by a copy of the original purchase receipt, the original
box, materials and accessories. All cost associated with the return of
the product under warranty are the responsibility of the original
purchaser. A $6.95 Shipping and Handling Fee will apply in order for
Alpha Comm Enterprises, Inc. to ship out a new/refurbished product
to customer. Alpha Comm Enterprises, Inc. will not assume any
responsibility for any loss or damage occurred in shipping.
18
Designed by Alpha Comm Enterprises in Lawrenceville, Georgia.
Made in China. Alpha Comm Enterprises:
1500 Lakes Parkway; Lawrenceville, GA 30043.
Alpha Comm and Quikcell are registered trademarks of Alpha Comm
Enterprises. All other trademarks are the property of their respective
owners. Copyright 2015. All rights reserved. This product is not a toy.
Contains small parts, not for Children under 3 years.
One Year Limited Warranty: Your satisfaction is our priority. If
you’re not happy with this product, we’ll make it right within one year
from date of purchase. For all warranty inquiries, direct your
questions to warranty@alphacomm.com or call 1-888-951-0909.
19
FCC Statement: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonab le protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does c ause harmful interferen ce to radio or television
reception, which can be determined by turnin g the equipment off an d
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipm e nt and receiver.
20
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly
approved by manufacturer could void your authority to operate this
equipment. This device complies with part 15 of the FCC Rules.
Operation is subjec t to the following two co nditions: (1) This de vice
may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause
undesired operation
.
The device has been evaluated to meet general RF exposure requirement. The device can
be used in portable exposure condition without restriction.
