QUICKSILVER Deep X User Manual

USER’S MANUAL

http://www.quiksilver-europe.com/deepx

1

Introduction

The ”DEEP X System” (patent pending) is Quiksilver’s most advanced tide watch. It features a tide data library for up to
2000 surf spots around the world (Deep model), the most accurate tide information available and also includes a numeric value for
tide height. The tide information contained in your DVD (and then in yout watch) was calculated by a professional oceanographer
based on the exact latitude/longitude of the coastline shape, islands and coast retraction.

Your DeepX tide watch was developed with the help of our Quiksilver team riders around the world and passed all our tests in
the heaviest waves on the planet. DeepX is more accurate than most tide charts for individual locations because our tide information
was calculated specifically for every surf spot, instead of using the tide information of the closest harbour like most tide charts do.

The DEEP X system has been developed to produce consistent tide data globally. In addition, data for the DEEP X has been
calculated for each specific surf spot to render the most accurate tide predictions possible. Please consider that tide predictions are
based on specific harmonics and unpredictable conditions do affect the tides.

This data is not to be used for navigation.

Wear your new DeepX tide watch by Quiksilver and enjoy being at the right place at the right tide. Happy surfing!

2

DEEP X pack includes

DVD
including Tide & Sunset/Sunrise data, surf
spot information and multimedia for 2.000
beaches worldwide

for Radio Frequency transmission

DEEP X watch

USB Stick

DVD content

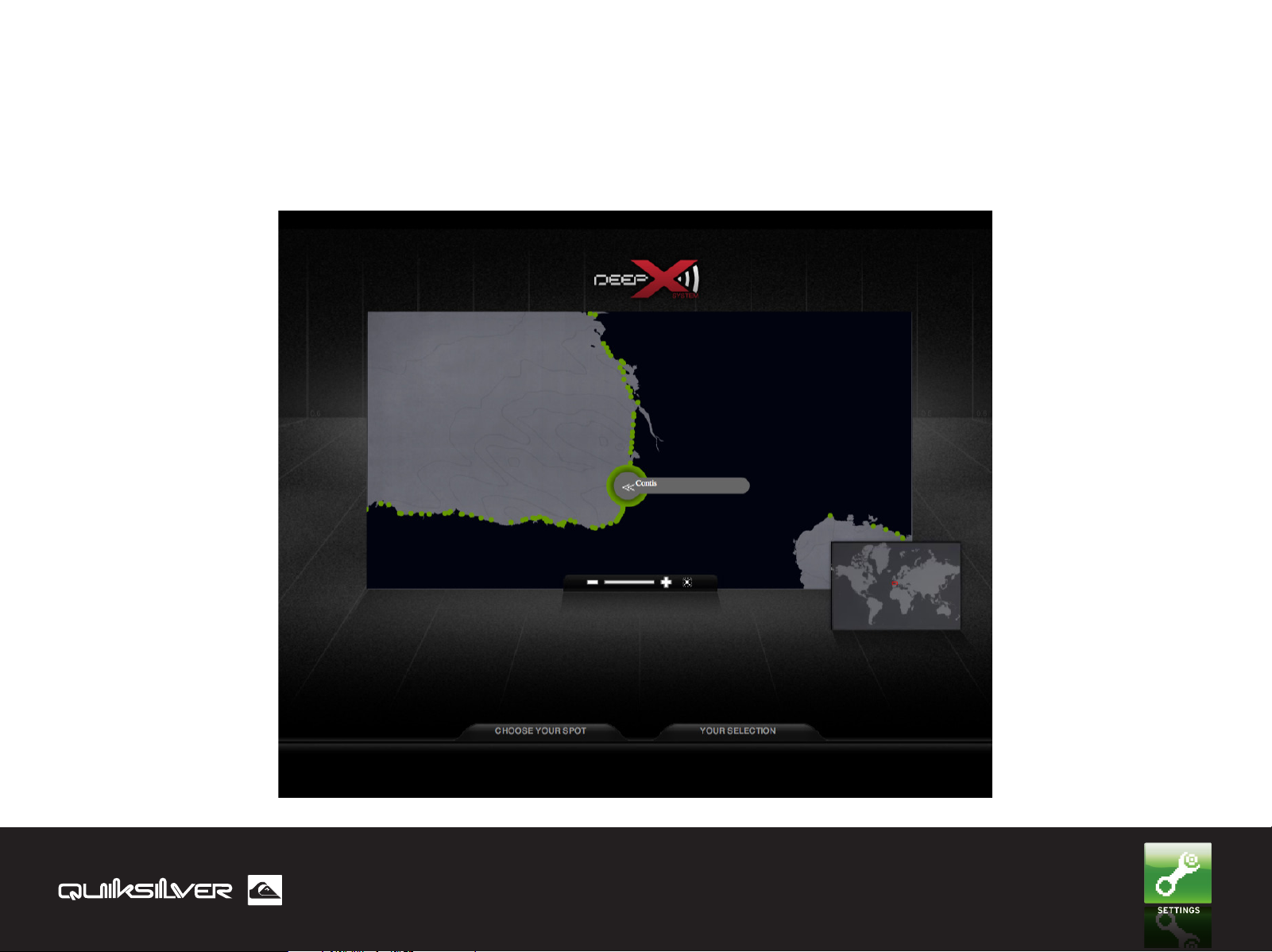

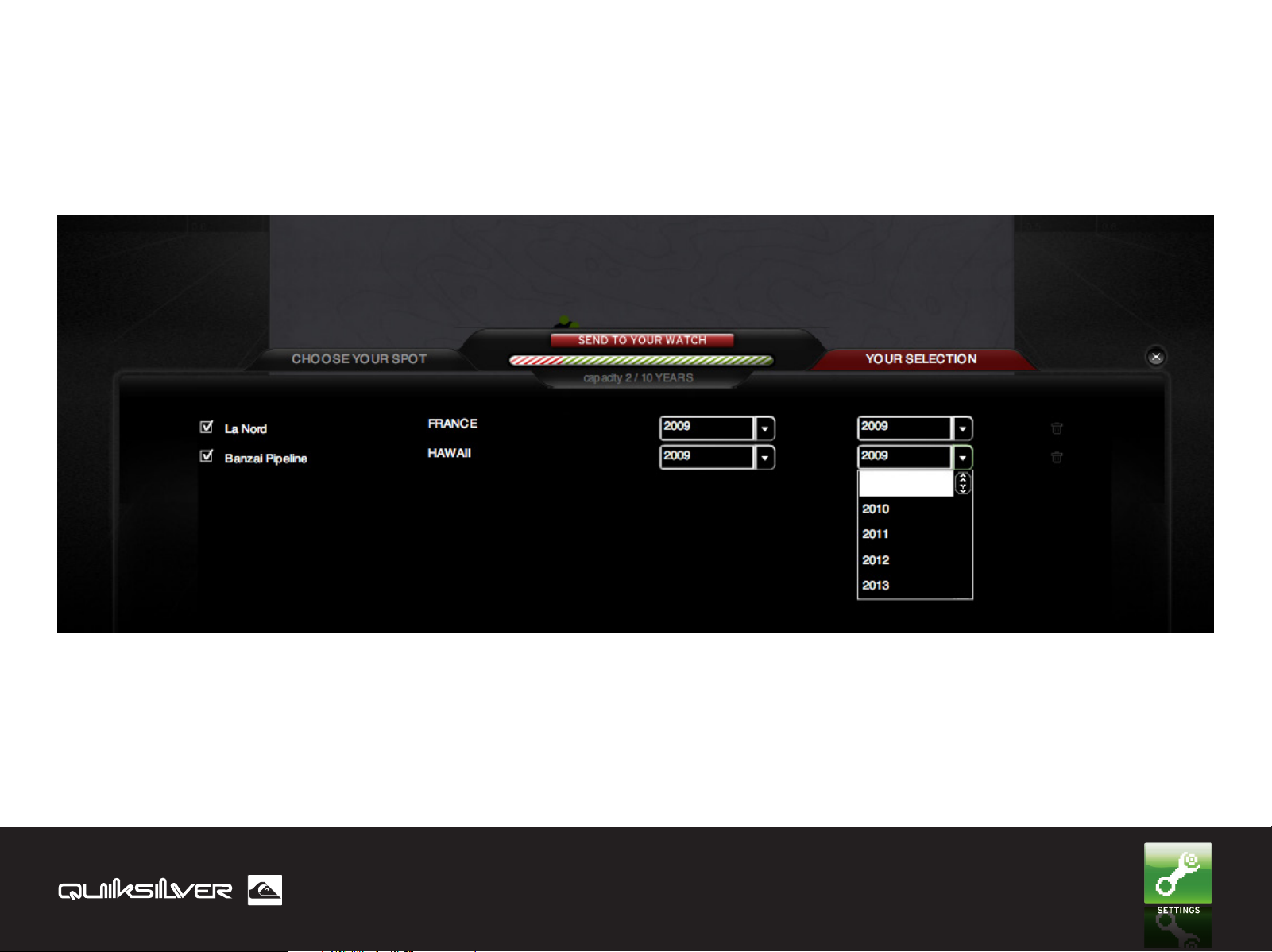

Data upload software Windows & Mac OS compatible
Tide, Sunset/Sunrise data for 2.000 spots (surf Location) worldwide

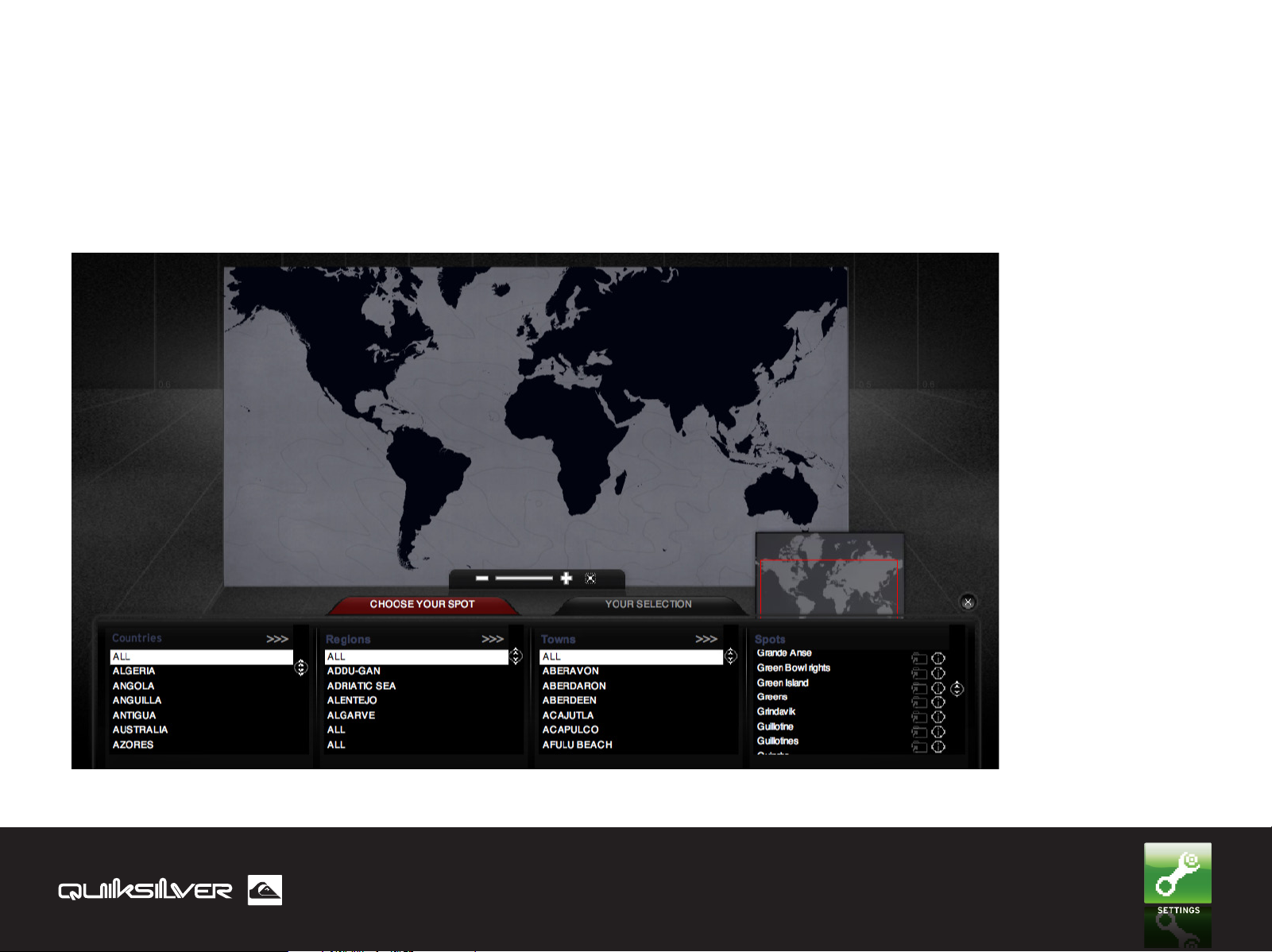

Map & spot photos

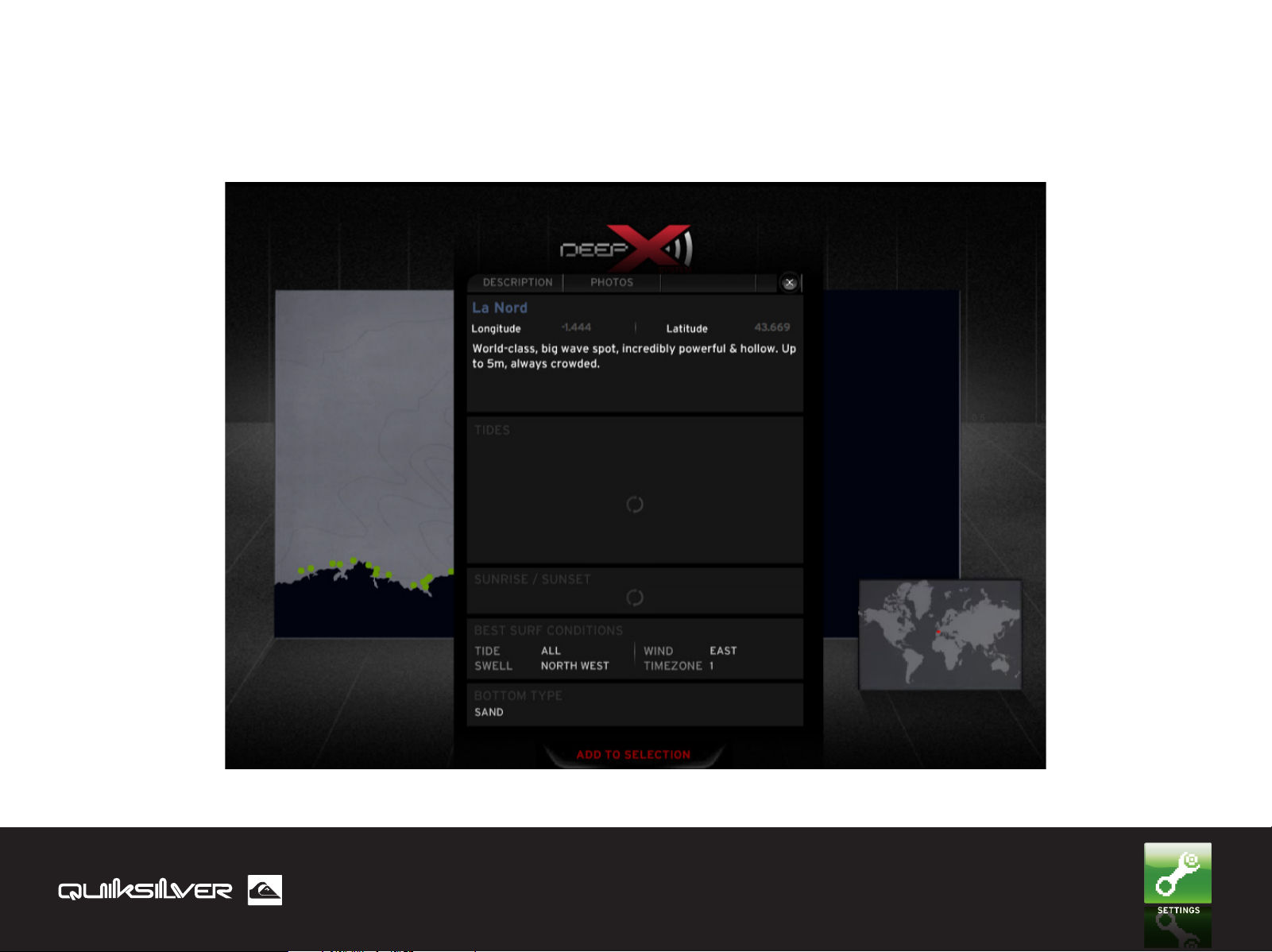

Specific spot descriptions: longitude, latitude, time zone, best surf conditions such as best tide range, best swell & wind
direction and ocean floor variations for each spot
DeepX tutorial & instruction manual
Quiksilver movie clips

3

Tide movement feature

USER FRIENDLY MENU

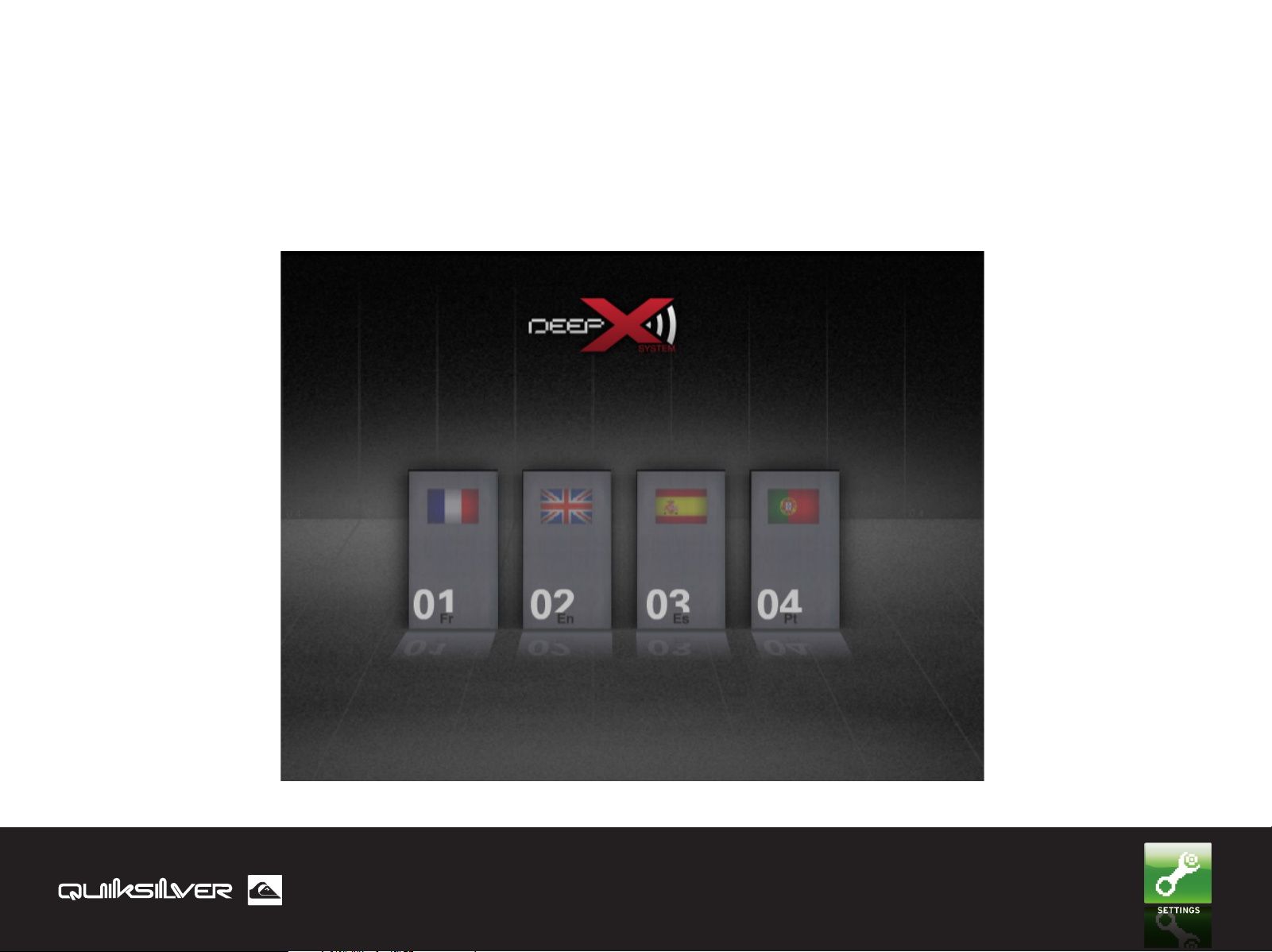

DIFFERENT OPERATION SYSTEM LANGUAGES
(English, Spanish, French, Portuguese)

WIRELESS DATA TRANSMISSION WITH INFORMATION FROM
DVD/ COMPUTER TO DEEP X

TIME

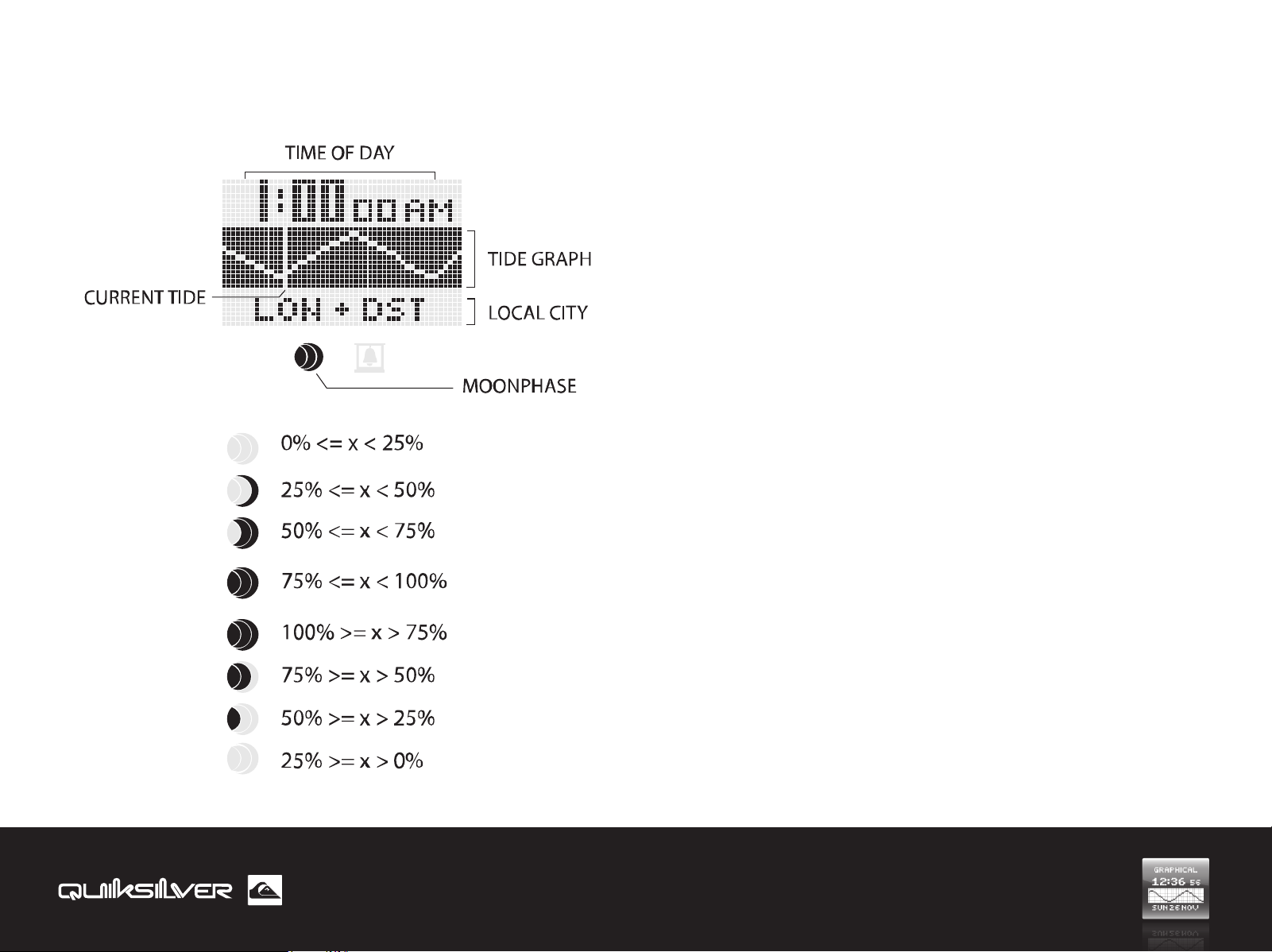

Display time (hours, minutes
& seconds) in 12 or 24h format,
date, tide, Sunset/Sunrise
& moon phase information

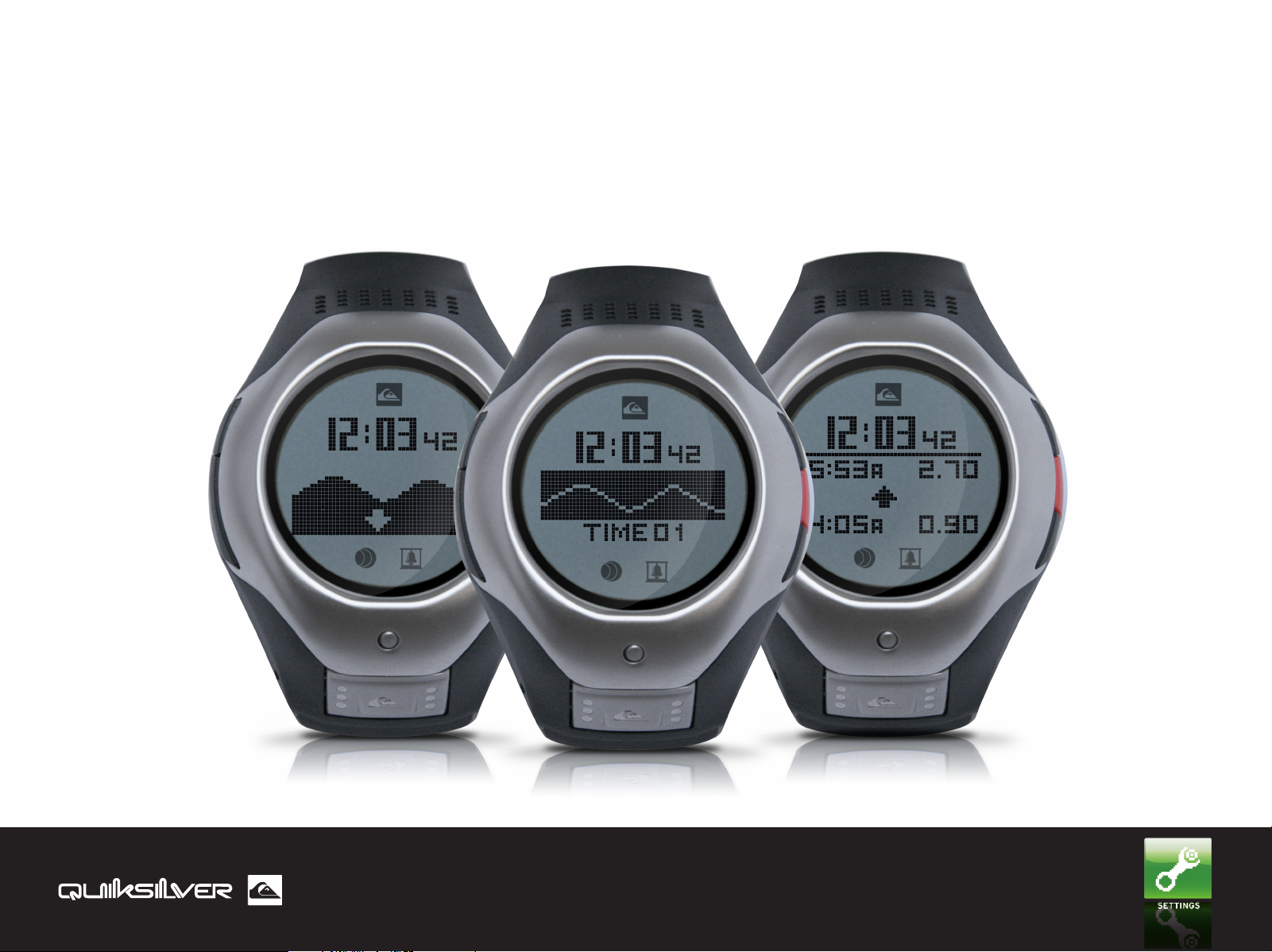

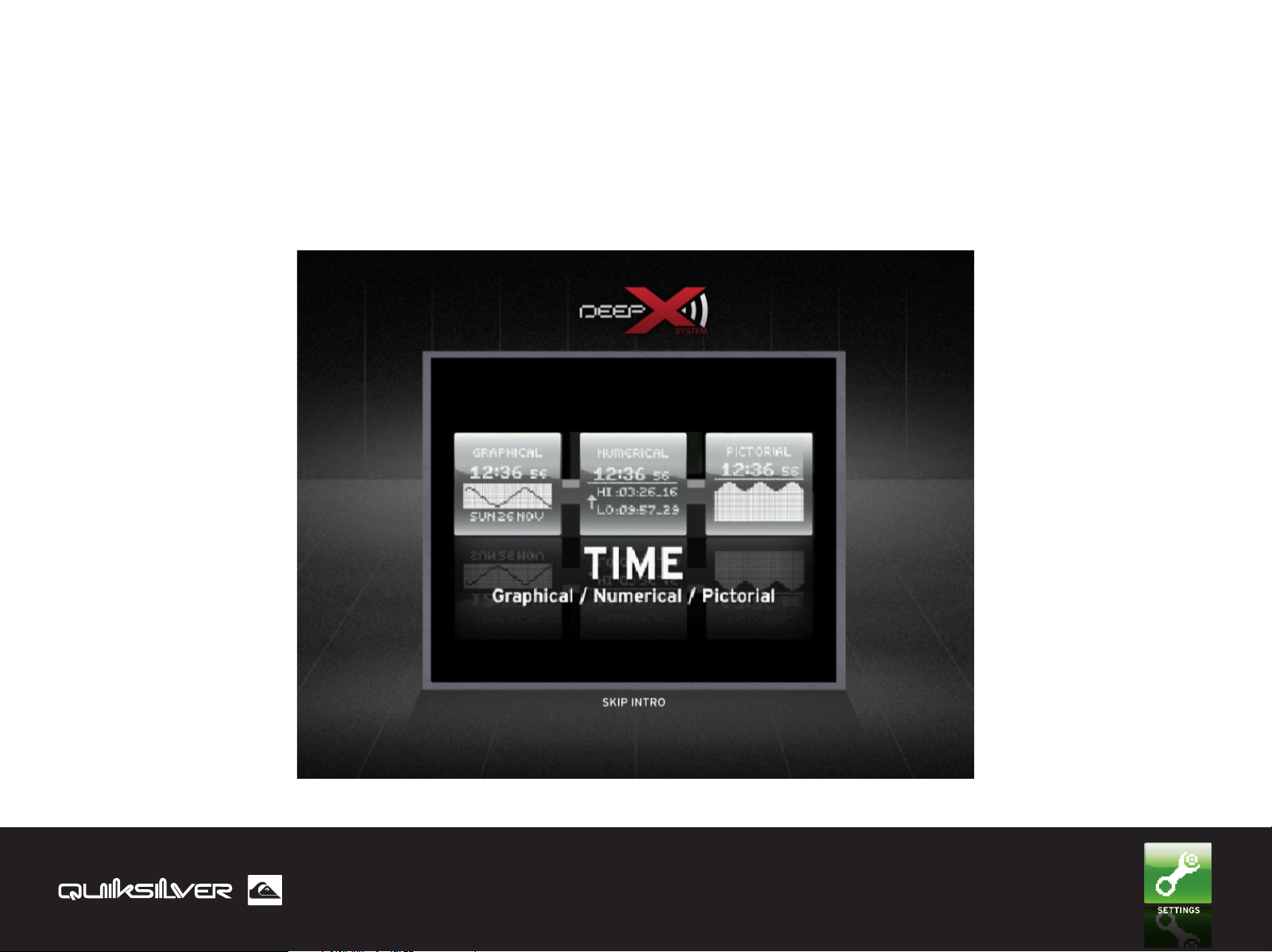

3 different display modes:
graphical, numerical, pictorial
World time (24 cities)
DST setting

4

TIDE

Stores a maximum of 10 years
of data (1 spot on 10 years to 10
spots on 1 year).

Today’s tide: with numeric
water height reading.

Future tide: set your date to
get the tide information
instantaneously.

Spot info: best swell direction, best
wind orientation, best tide range,
bottom tide

Sunset / Sunrise

Customised spot: use published
informations to set the tide for your
own secret spot

Tide Alarm: designed to notify the
best tide to go surfing.

COMPASS

TEMPERATURE

HEAT TIMER

CHRONOGRAPH

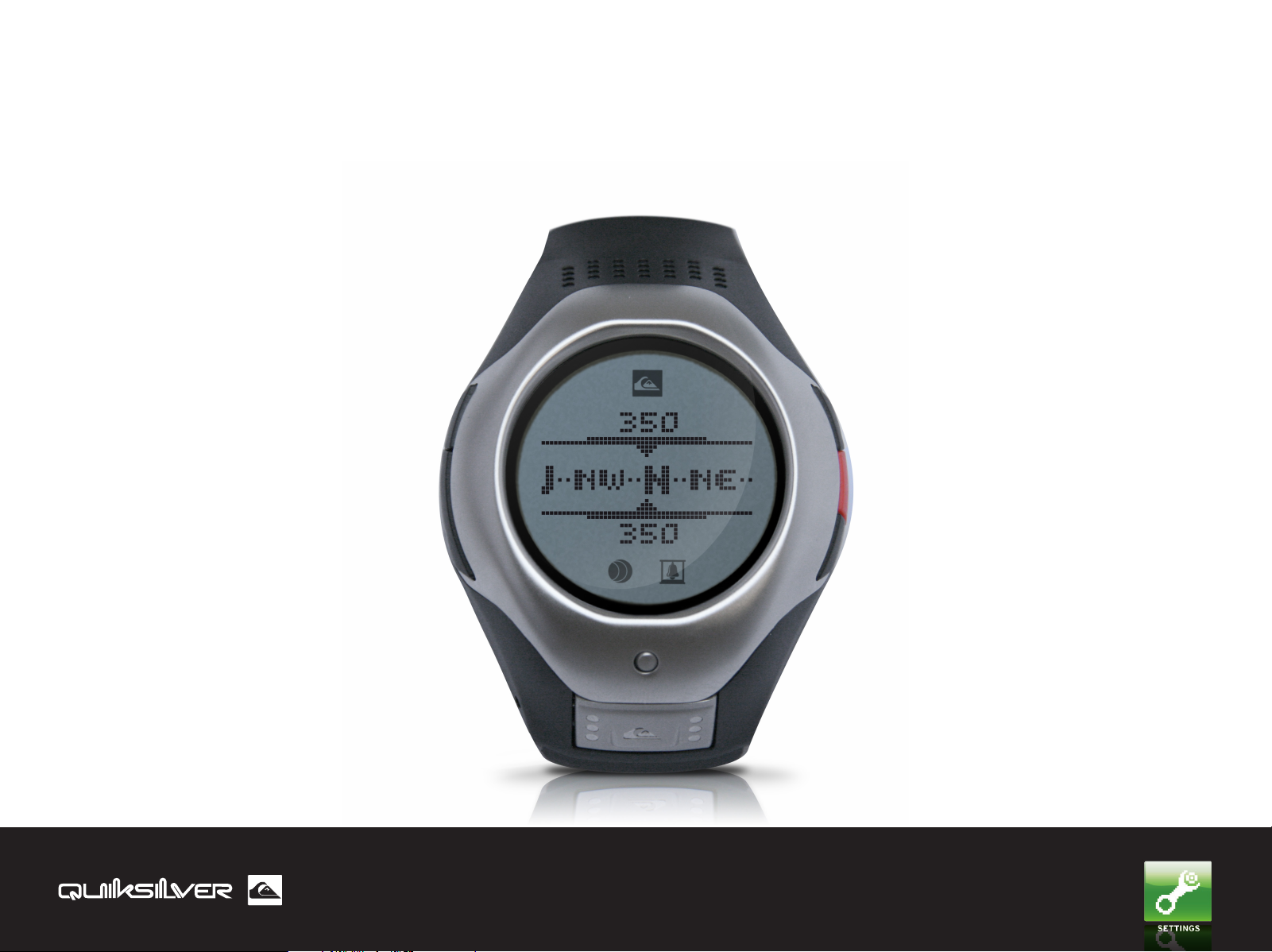

Digital compass
(1° resolution) with graphical
animation showing the 8
cardinal points.

ALARM

2 independent alarms
Each alarm is programmable to
3 alerts: daily, weekly or once.

KEY LOCK FUNCTION

designed to prevent accidental
settings being made to your
watch while you’re engaged in
your favourite sport.

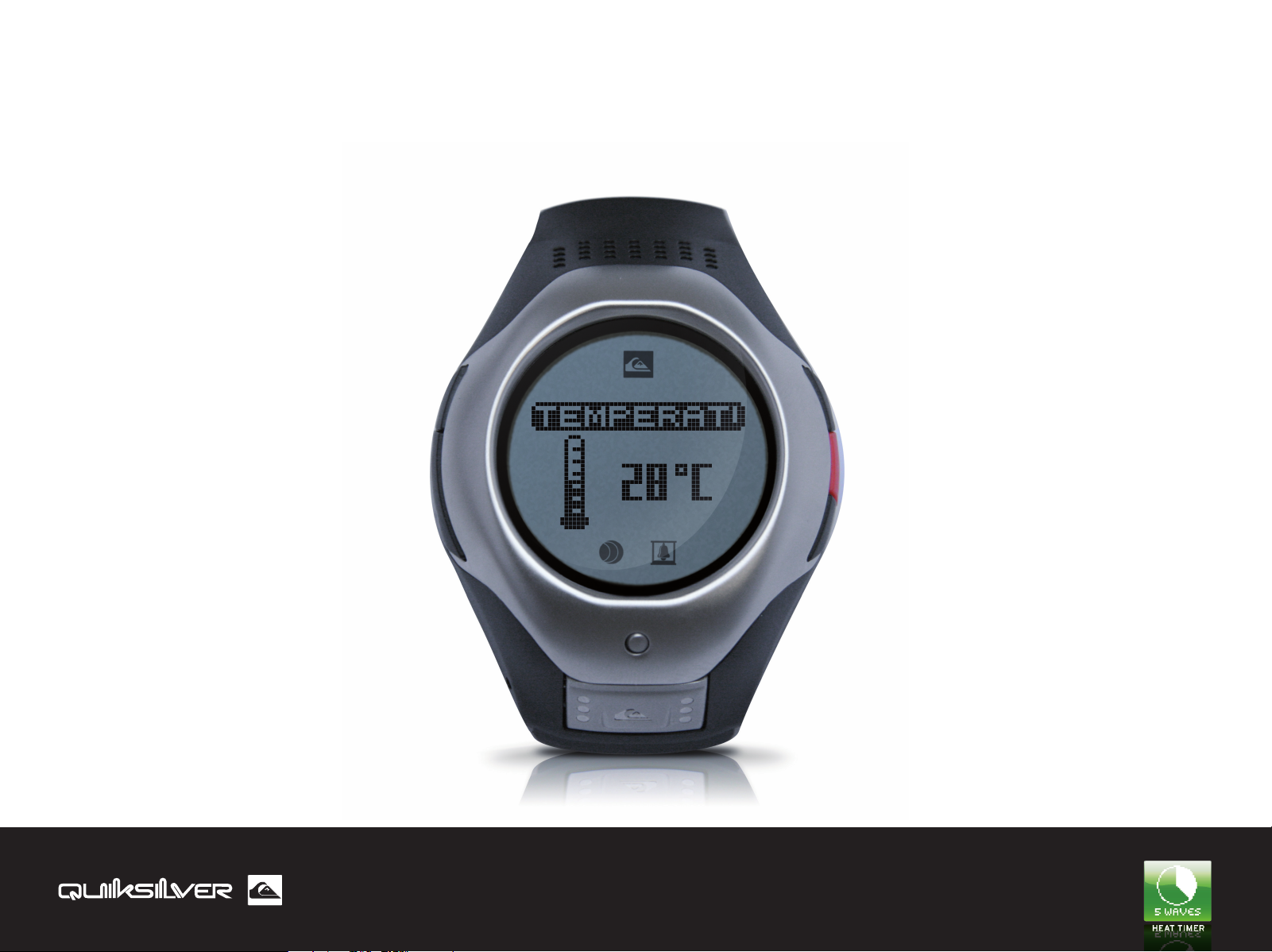

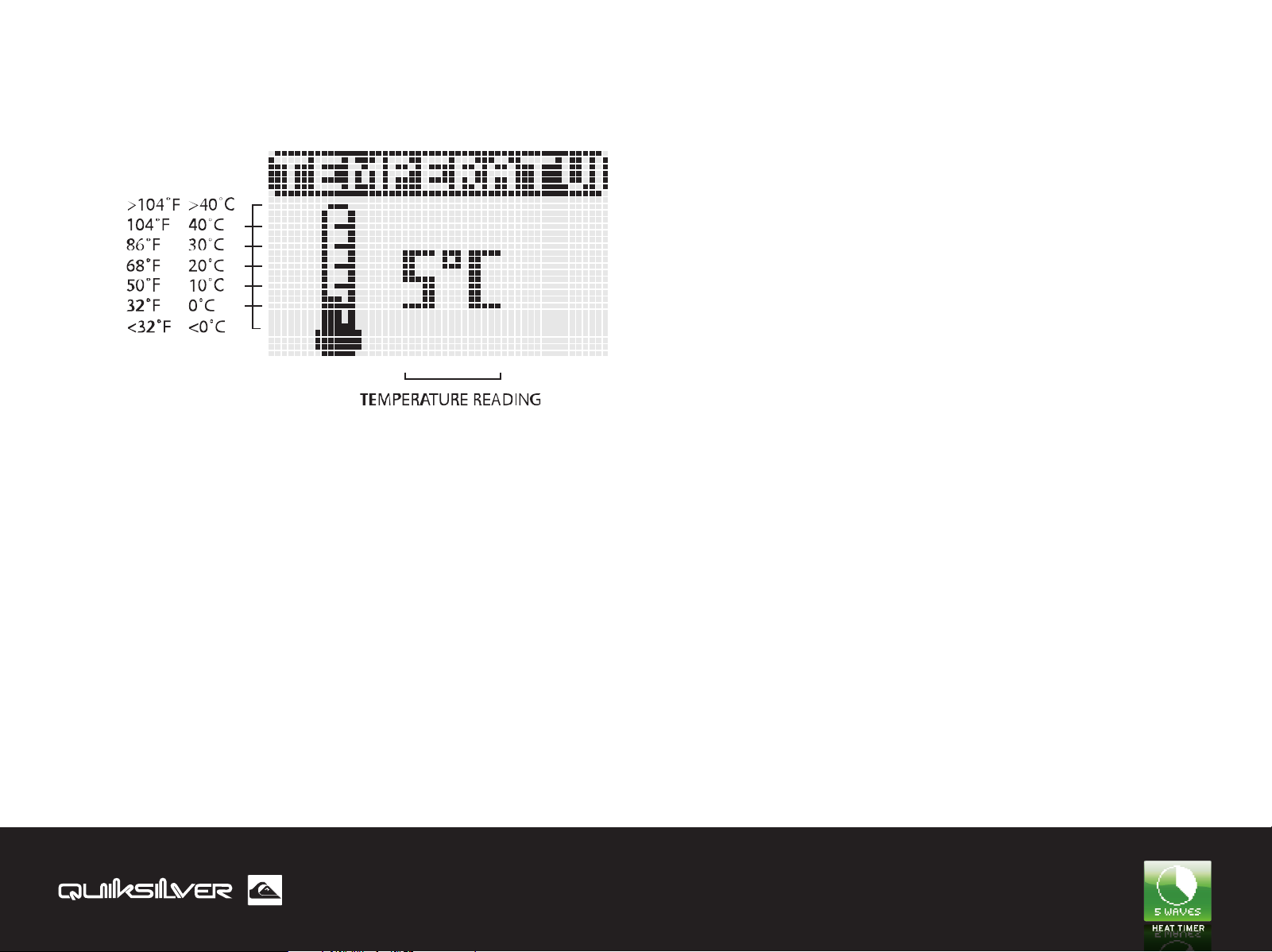

Digital thermometer with
graphical animation.

SLEEP MODE (for saving
power)

ONE TOUCH BACK-LIGHTING

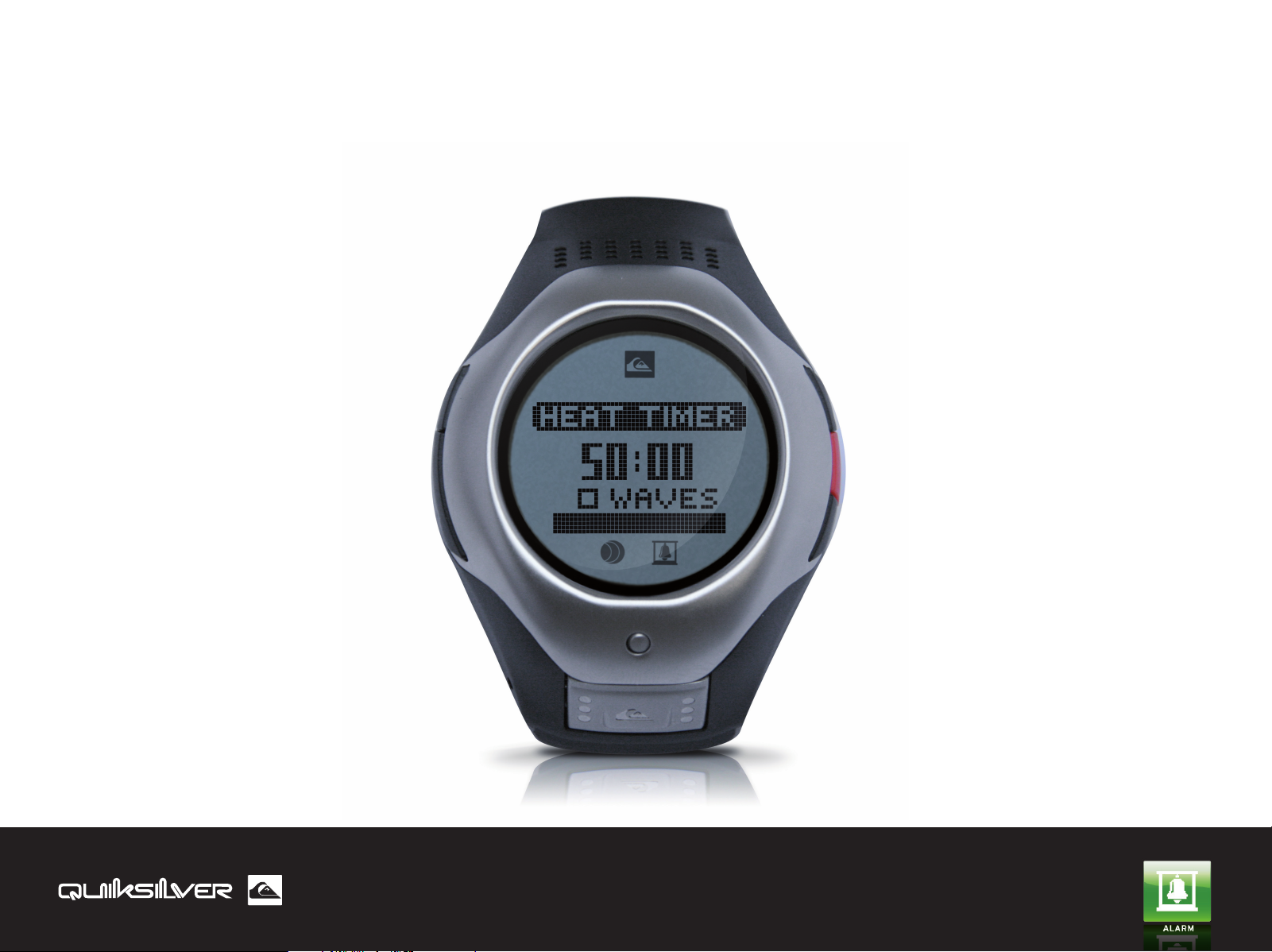

Special countdown timer with
graphical animation designed
for surf contests. It can also
be used for timing your surf
sessions and counting the
number of waves you catch.

1/100 seconds resolution up
to one hour, 1 second resolu­tion up to 100 hours.
Track your work out perfor­mances by analyzing and
storing your results (numbers
of laps, time/lap, fastest lap)

5

Navigation

(+)UP,

Light

Menu/Back

Increase value

Set/Select

(-) DOWN
Decrease value

DeepX consists of 8 different modes, namely:

1. Menu

2. Time of Day

3. Tide

4. Compass

6

5. Temperature

6. Heat Timer

7. Chrono

8. Alarm

9. Settings

APP MENU

7

APP MENU

QS Deep X Watch

3.1 Menu App

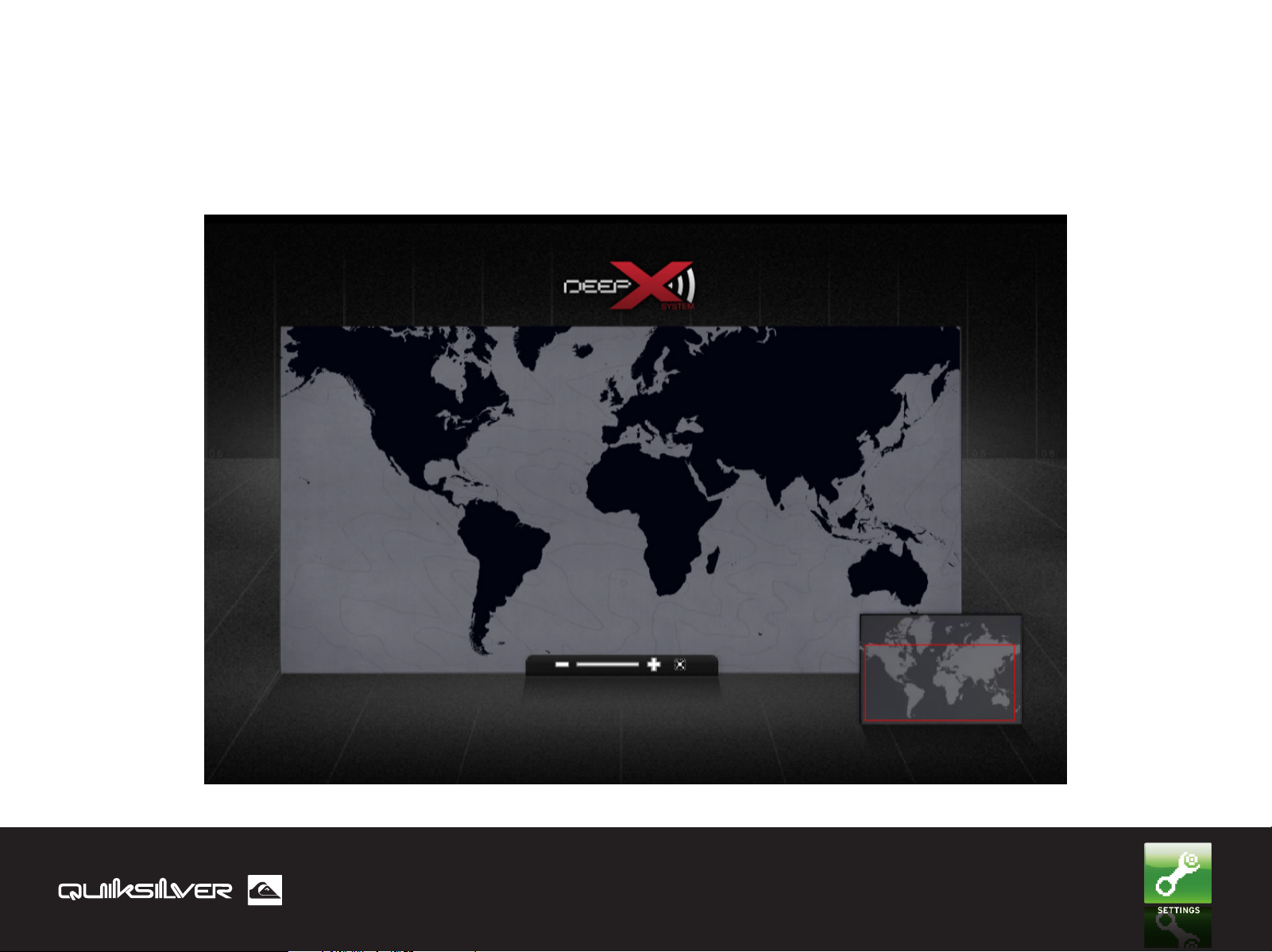

3.1.1 Display Map

1.0 Display Map

8

APP MENU

1.1 Menu Hierarchy

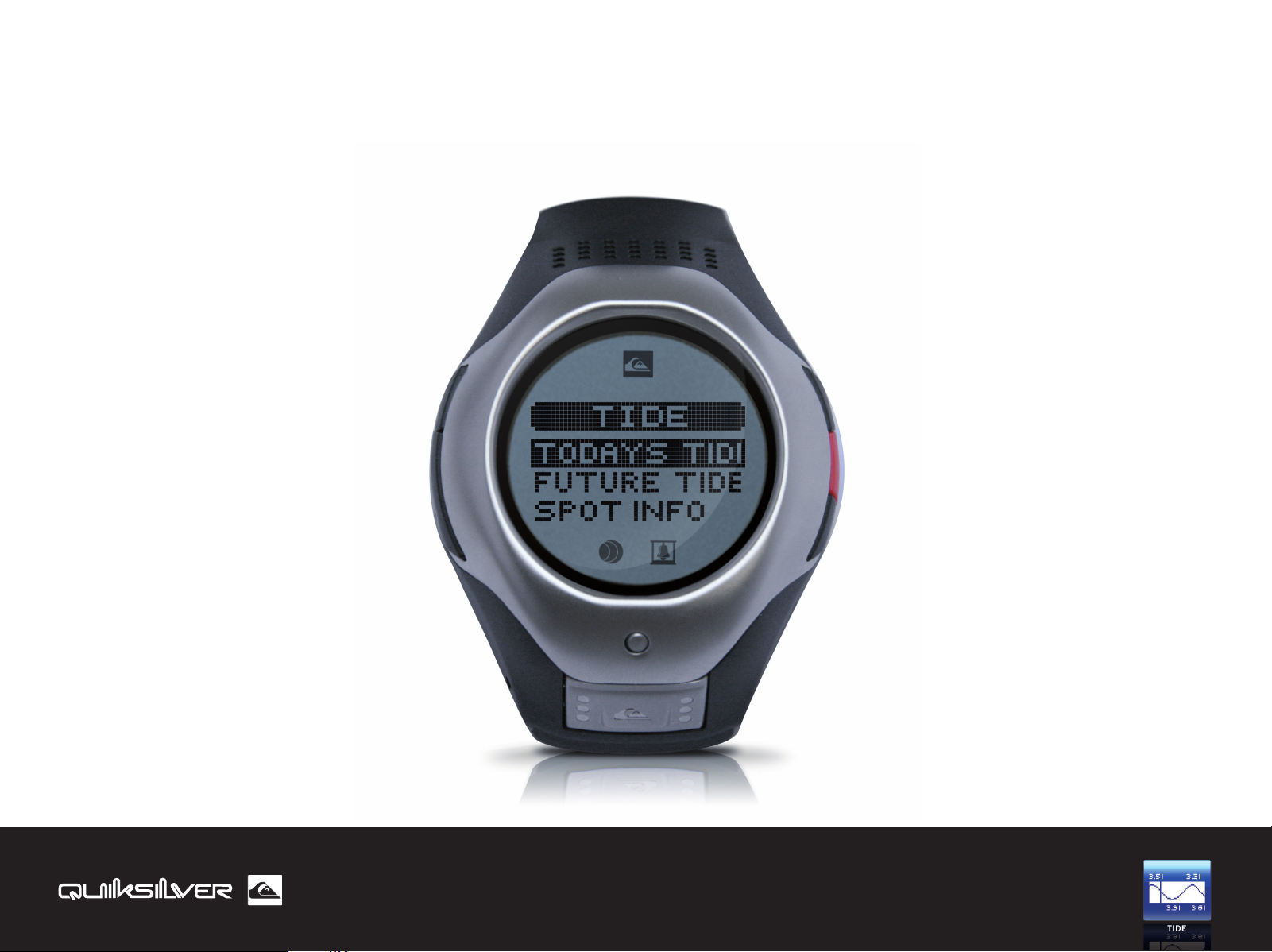

MENU TIDE

TODAY'S TIDE

FUTURE TIDE

SPOT INFO

CUSTOMIZE

LOCAL SPOT

<beach list>

<beach list>

<beach list>

SET NAME
SET SPOT
SET DATA
CLEAR

<beach list>

<date list>

Removes
the
Custom
Beach
from the
beach list

TIDE ALARM

<beach list>

ALARM
ON/OFF

SET
TIDE

<tide events>

9

APP MENU

1.1 Menu Hierarchy

BACK

MENU COMPASS

MENU TEMPERATURE

MENU

DECLINATION
CALIBARATION

HEAT TIMER

BACK
RESET

10

SET TIMER

APP MENU

1.1 Menu Hierarchy

Saves
and
Resets
the
current
Chrono
Run

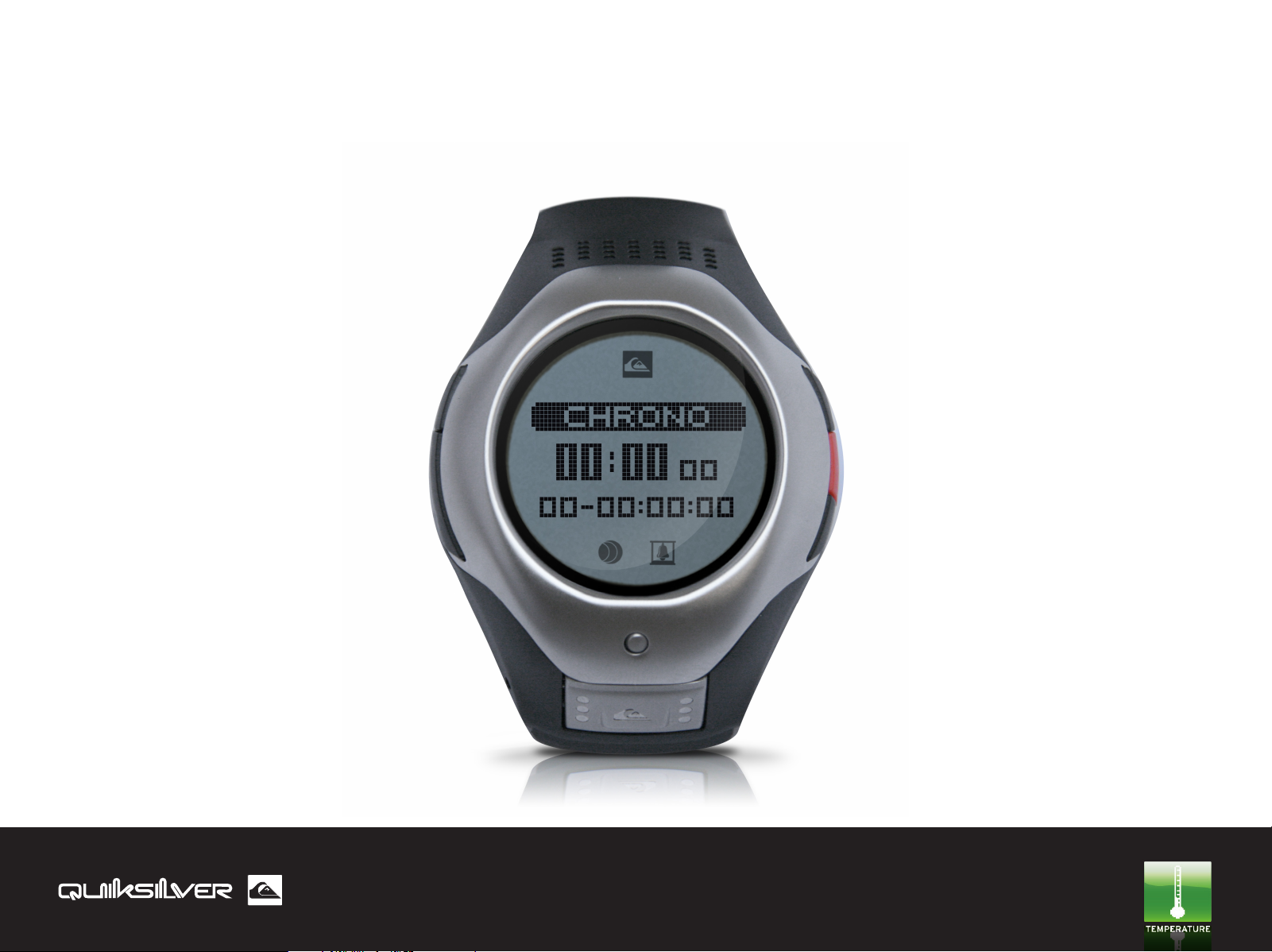

MENU

CHRONO

BACK

SAVE

RESET

VIEW LOG

DELETE LOG

DELETE ALL

<log list>

<log list>

Resets
the
current
Chrono
Run
without
saving

CONFIRM
DELETE

NO
YES

11

APP MENU

1.1 Menu Hierarchy

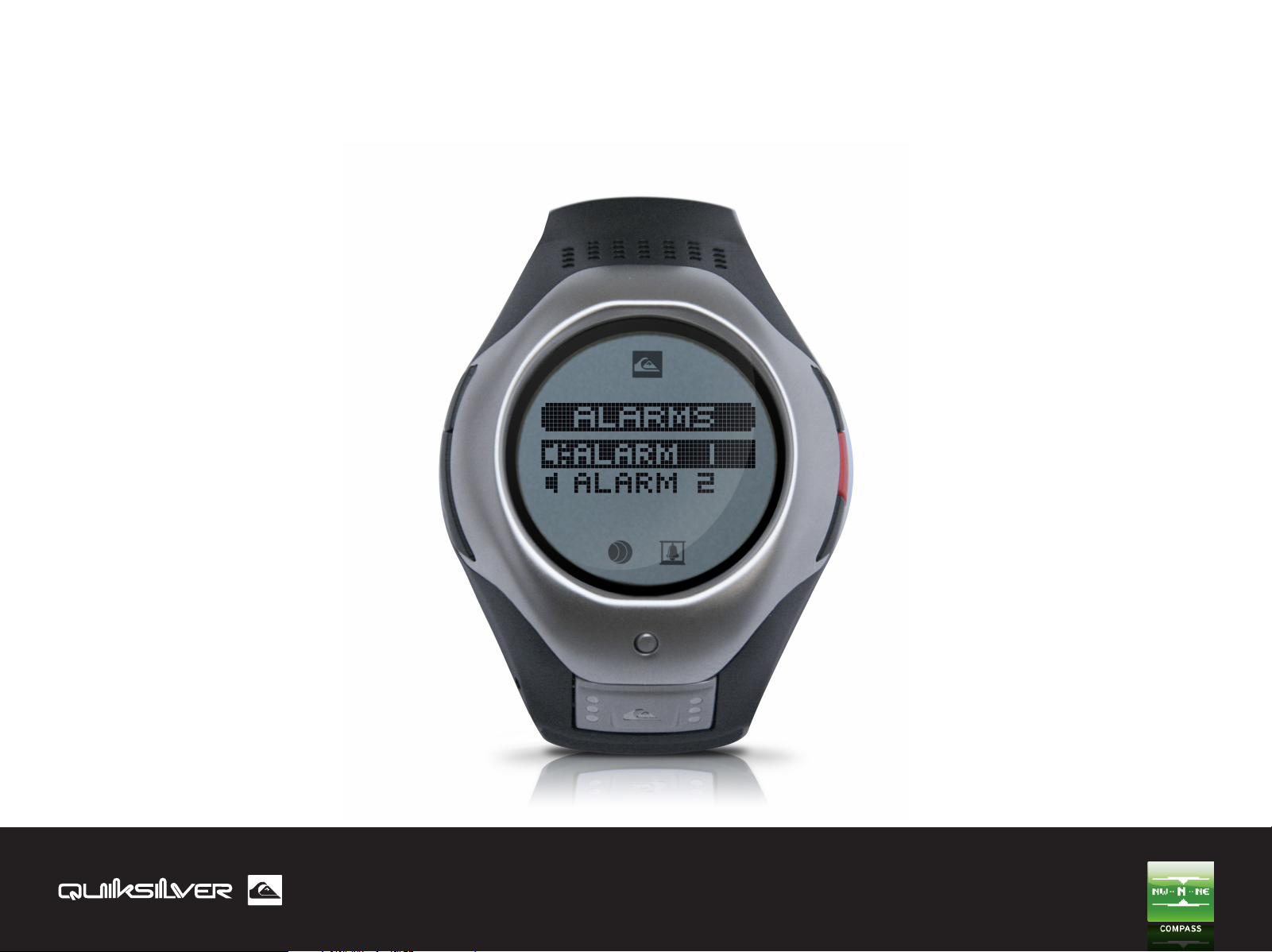

MENU

ALARM

ALARM 2

ALARM 1

ALARM ON/OFF
SET TIME
SET TYPE

SET DAYS

ALARM ON/OFF
SET TIME

SET TYPE

SET DAYS
MON
ON/OFF
TUE
ON/OFF
WED
ON/OFF
THU
ON/OFF
FRI
ON/OFF
SAT
ON/OFF
SUN
ON/OFF

MON
ON/OFF
TUE
ON/OFF
WED
ON/OFF
THU
ON/OFF
FRI
ON/OFF
SAT
ON/OFF
SUN
ON/OFF

12

APP MENU

1.1 Menu Hierarchy

12/24HR

TIME

SET TIME

SET DATE

°C
°F

UNITS

TEMPERATURE

TIDE

METERS
FEET

ENGLISH

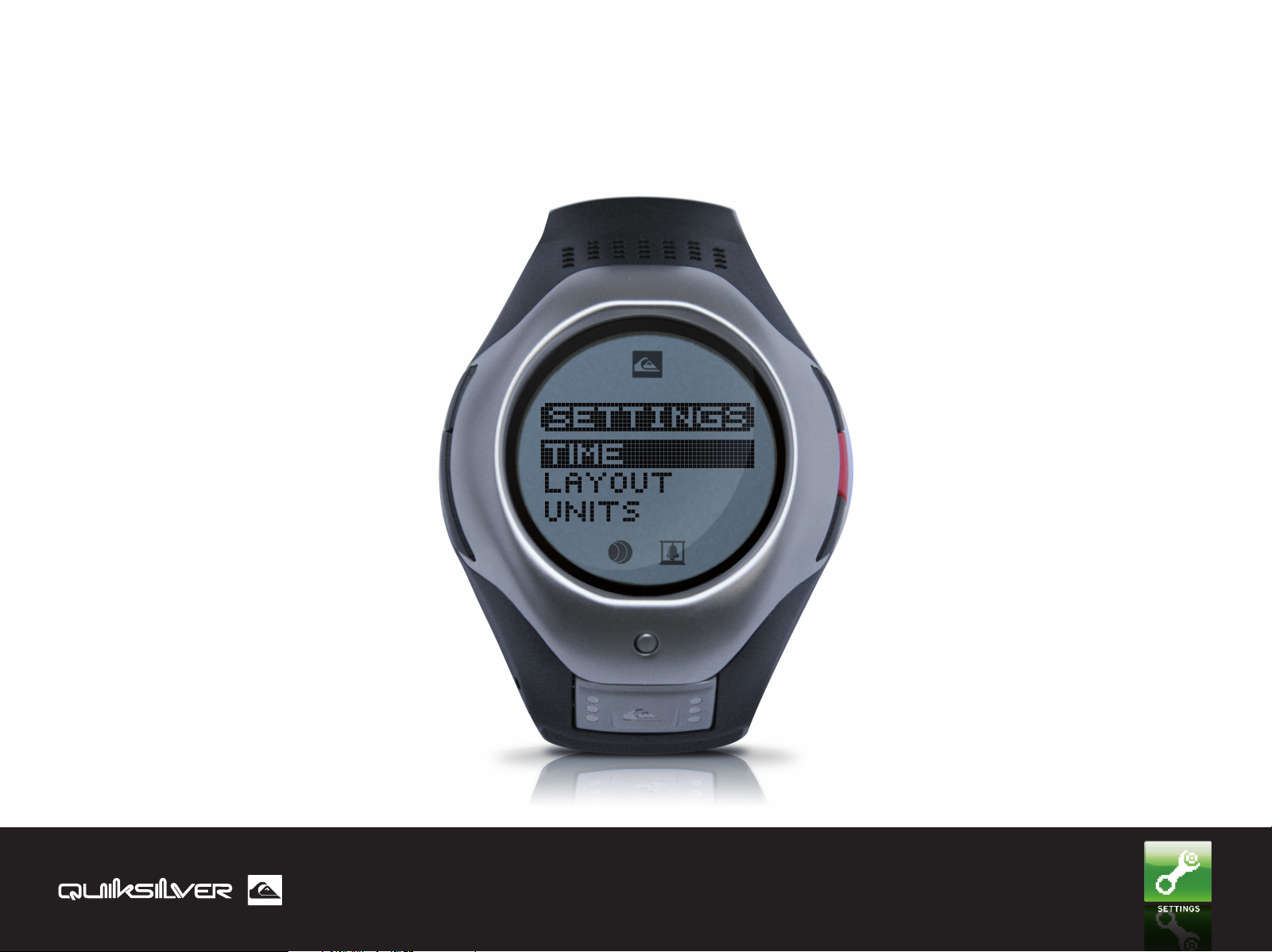

MENU

SETTINGS

LANGUAGE

<downloaded

COEF

language>

TONES

KEYTONES
HOURLY

CHIME

SLEEP

SLEEP ON/OFF

TIDE CHIME

SET TIME

DOWNLOAD

1.2 Notes

If a banner or a selected menu item is long enough to go beyond the display area, it will scroll down.
By default, pressing the MENU button goes up one level the menuhierarchy, while pressing the SET button goes down one level.
Pressing and holding the MENU button for 3 seconds directly goes back to the Time App, regardless of what mode or level one
is in.

13

TIME APP
